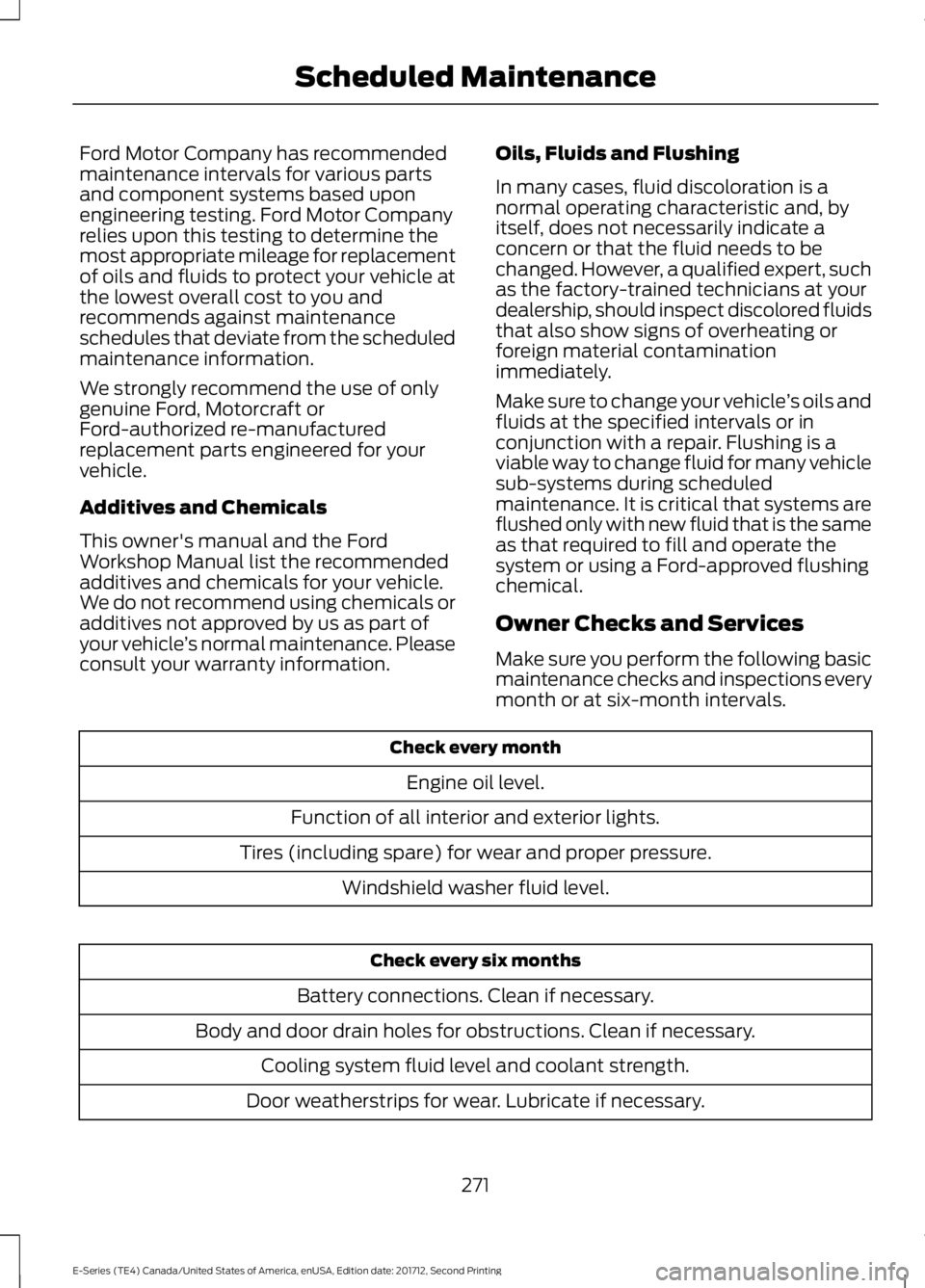

Ford Motor Company has recommendedmaintenance intervals for various partsand component systems based uponengineering testing. Ford Motor Companyrelies upon this testing to determine themost appropriate mileage for replacementof oils and fluids to protect your vehicle atthe lowest overall cost to you andrecommends against maintenanceschedules that deviate from the scheduledmaintenance information.
We strongly recommend the use of onlygenuine Ford, Motorcraft orFord-authorized re-manufacturedreplacement parts engineered for yourvehicle.
Additives and Chemicals
This owner's manual and the FordWorkshop Manual list the recommendedadditives and chemicals for your vehicle.We do not recommend using chemicals oradditives not approved by us as part ofyour vehicle’s normal maintenance. Pleaseconsult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is anormal operating characteristic and, byitself, does not necessarily indicate aconcern or that the fluid needs to bechanged. However, a qualified expert, suchas the factory-trained technicians at yourdealership, should inspect discolored fluidsthat also show signs of overheating orforeign material contaminationimmediately.
Make sure to change your vehicle’s oils andfluids at the specified intervals or inconjunction with a repair. Flushing is aviable way to change fluid for many vehiclesub-systems during scheduledmaintenance. It is critical that systems areflushed only with new fluid that is the sameas that required to fill and operate thesystem or using a Ford-approved flushingchemical.
Owner Checks and Services
Make sure you perform the following basicmaintenance checks and inspections everymonth or at six-month intervals.
Check every month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
271
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Scheduled Maintenance

Check every six months
Hinges, latches and outside locks for proper operation. Lubricate if necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.

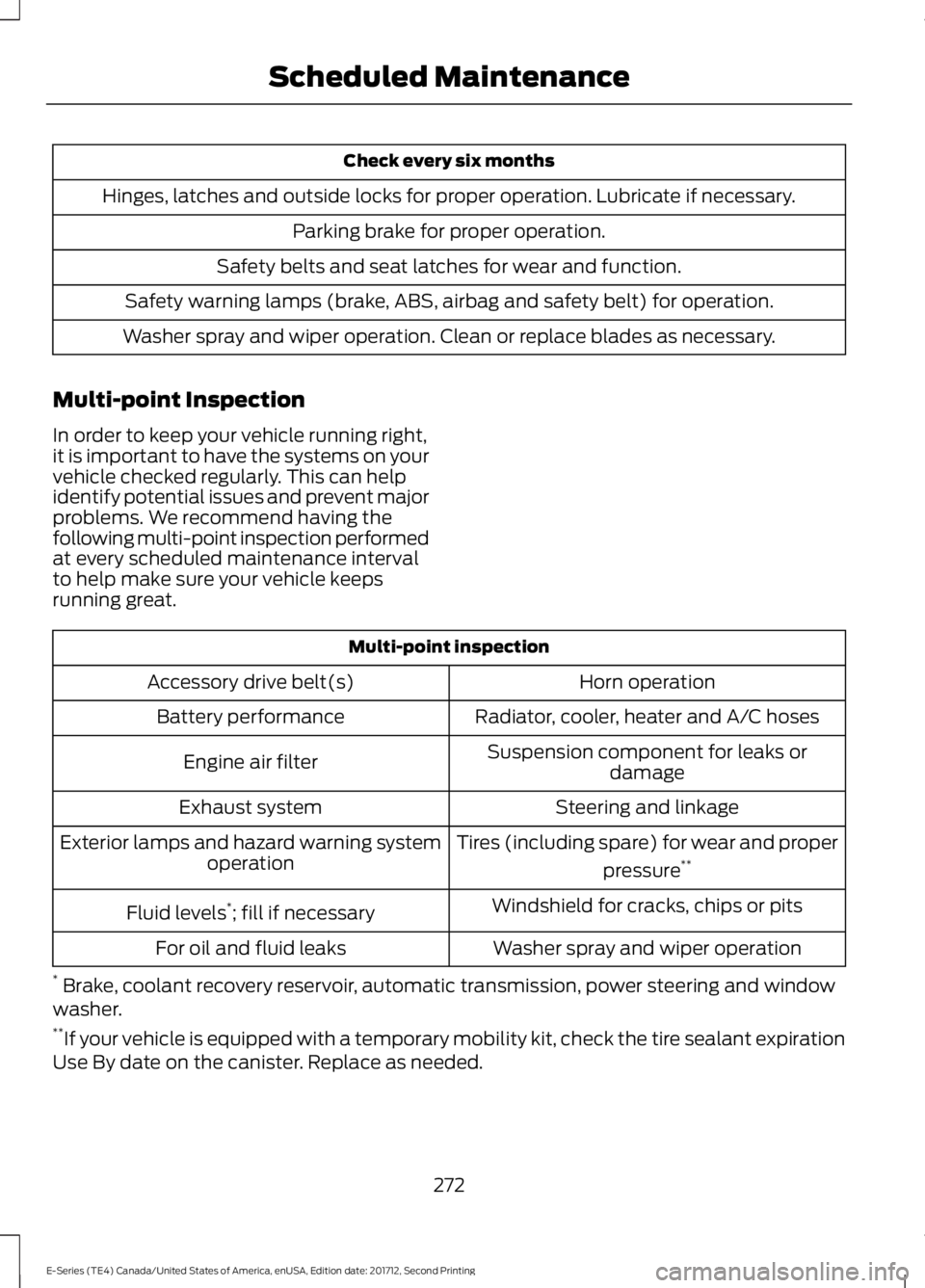

Multi-point Inspection
In order to keep your vehicle running right,it is important to have the systems on yourvehicle checked regularly. This can helpidentify potential issues and prevent majorproblems. We recommend having thefollowing multi-point inspection performedat every scheduled maintenance intervalto help make sure your vehicle keepsrunning great.
Multi-point inspection
Horn operationAccessory drive belt(s)
Radiator, cooler, heater and A/C hosesBattery performance
Suspension component for leaks ordamageEngine air filter
Steering and linkageExhaust system
Tires (including spare) for wear and proper
pressure**Exterior lamps and hazard warning systemoperation
Windshield for cracks, chips or pitsFluid levels*; fill if necessary
Washer spray and wiper operationFor oil and fluid leaks
* Brake, coolant recovery reservoir, automatic transmission, power steering and windowwasher.**If your vehicle is equipped with a temporary mobility kit, check the tire sealant expirationUse By date on the canister. Replace as needed.
272
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Scheduled Maintenance

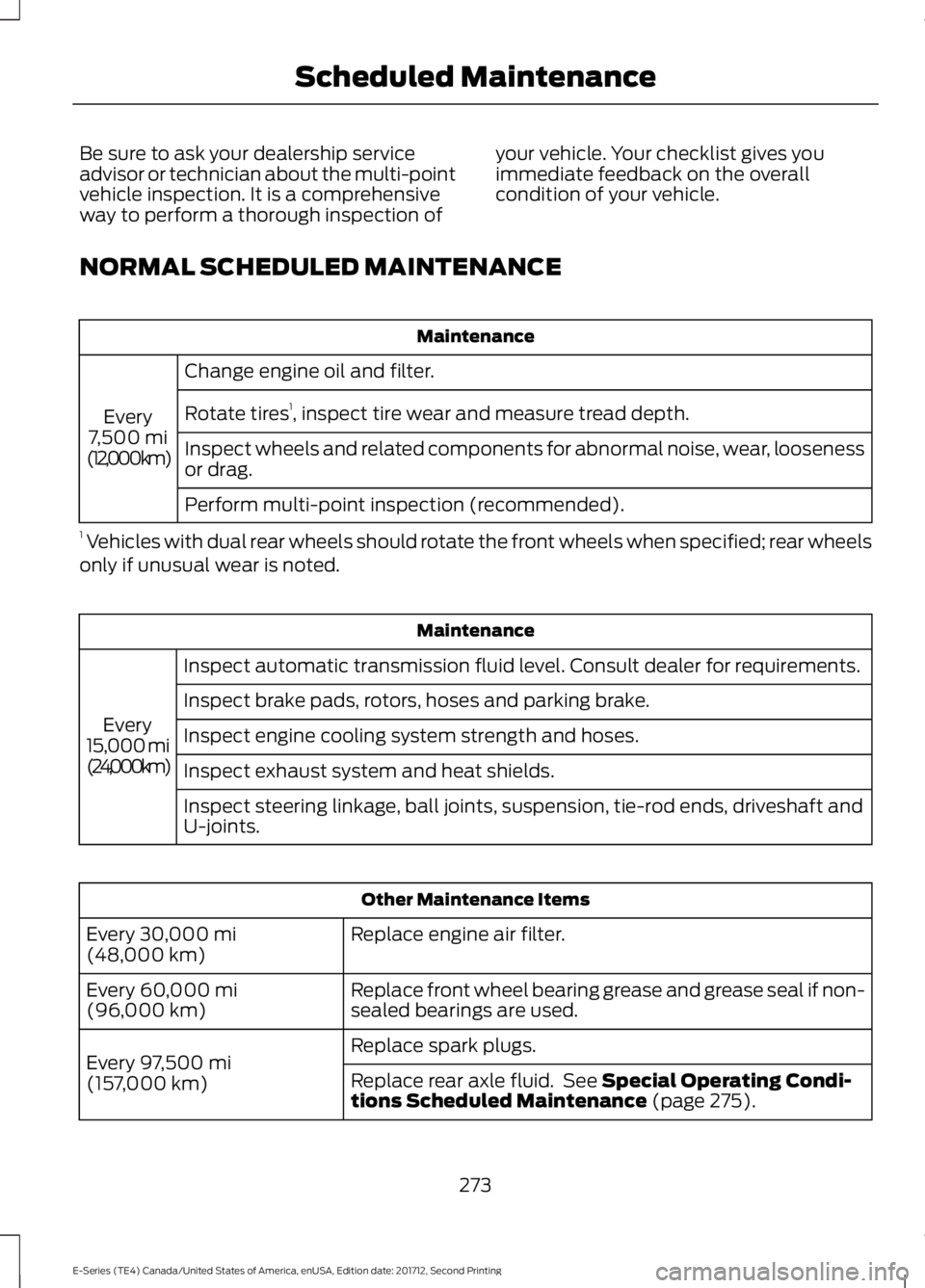

Be sure to ask your dealership serviceadvisor or technician about the multi-pointvehicle inspection. It is a comprehensiveway to perform a thorough inspection of
your vehicle. Your checklist gives youimmediate feedback on the overallcondition of your vehicle.
NORMAL SCHEDULED MAINTENANCE
Maintenance
Change engine oil and filter.
Every7,500 mi(12,000 km)
Rotate tires1, inspect tire wear and measure tread depth.
Inspect wheels and related components for abnormal noise, wear, loosenessor drag.
Perform multi-point inspection (recommended).
1 Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheelsonly if unusual wear is noted.
Maintenance
Inspect automatic transmission fluid level. Consult dealer for requirements.
Every15,000 mi(24,000 km)
Inspect brake pads, rotors, hoses and parking brake.
Inspect engine cooling system strength and hoses.
Inspect exhaust system and heat shields.
Inspect steering linkage, ball joints, suspension, tie-rod ends, driveshaft andU-joints.
Other Maintenance Items
Replace engine air filter.Every 30,000 mi(48,000 km)
Replace front wheel bearing grease and grease seal if non-sealed bearings are used.Every 60,000 mi(96,000 km)
Replace spark plugs.Every 97,500 mi(157,000 km)Replace rear axle fluid. See Special Operating Condi-tions Scheduled Maintenance (page 275).
273
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Scheduled Maintenance

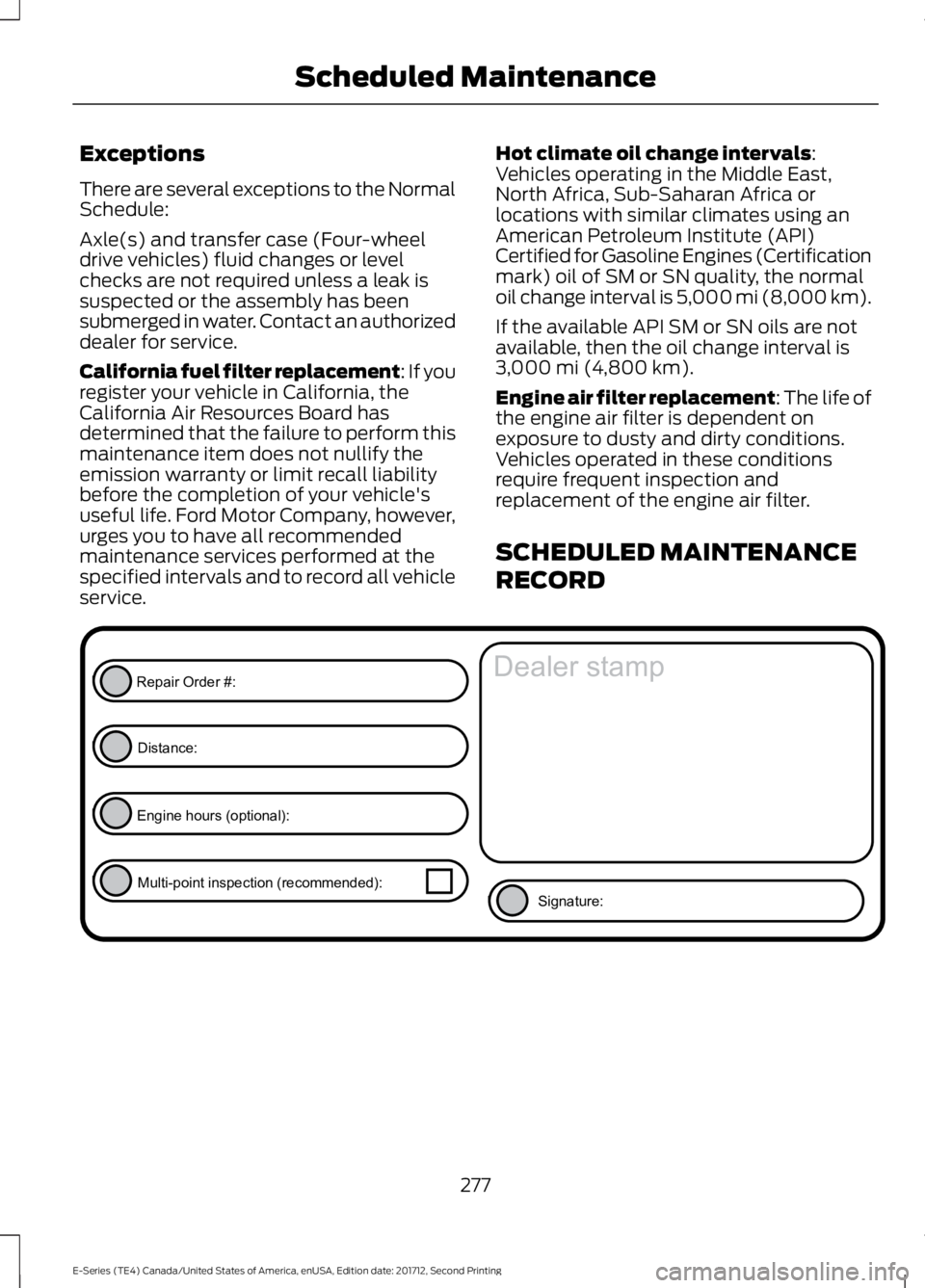

Exceptions
There are several exceptions to the NormalSchedule:
Axle(s) and transfer case (Four-wheeldrive vehicles) fluid changes or levelchecks are not required unless a leak issuspected or the assembly has beensubmerged in water. Contact an authorizeddealer for service.
California fuel filter replacement: If youregister your vehicle in California, theCalifornia Air Resources Board hasdetermined that the failure to perform thismaintenance item does not nullify theemission warranty or limit recall liabilitybefore the completion of your vehicle'suseful life. Ford Motor Company, however,urges you to have all recommendedmaintenance services performed at thespecified intervals and to record all vehicleservice.
Hot climate oil change intervals:Vehicles operating in the Middle East,North Africa, Sub-Saharan Africa orlocations with similar climates using anAmerican Petroleum Institute (API)Certified for Gasoline Engines (Certificationmark) oil of SM or SN quality, the normaloil change interval is 5,000 mi (8,000 km).
If the available API SM or SN oils are notavailable, then the oil change interval is3,000 mi (4,800 km).
Engine air filter replacement: The life ofthe engine air filter is dependent onexposure to dusty and dirty conditions.Vehicles operated in these conditionsrequire frequent inspection andreplacement of the engine air filter.
SCHEDULED MAINTENANCE
RECORD
277
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Scheduled MaintenanceE146852
Repair Order #:Distance:
Engine hours (optional): Multi-point inspection (recommended): Signature:
Dealer stamp

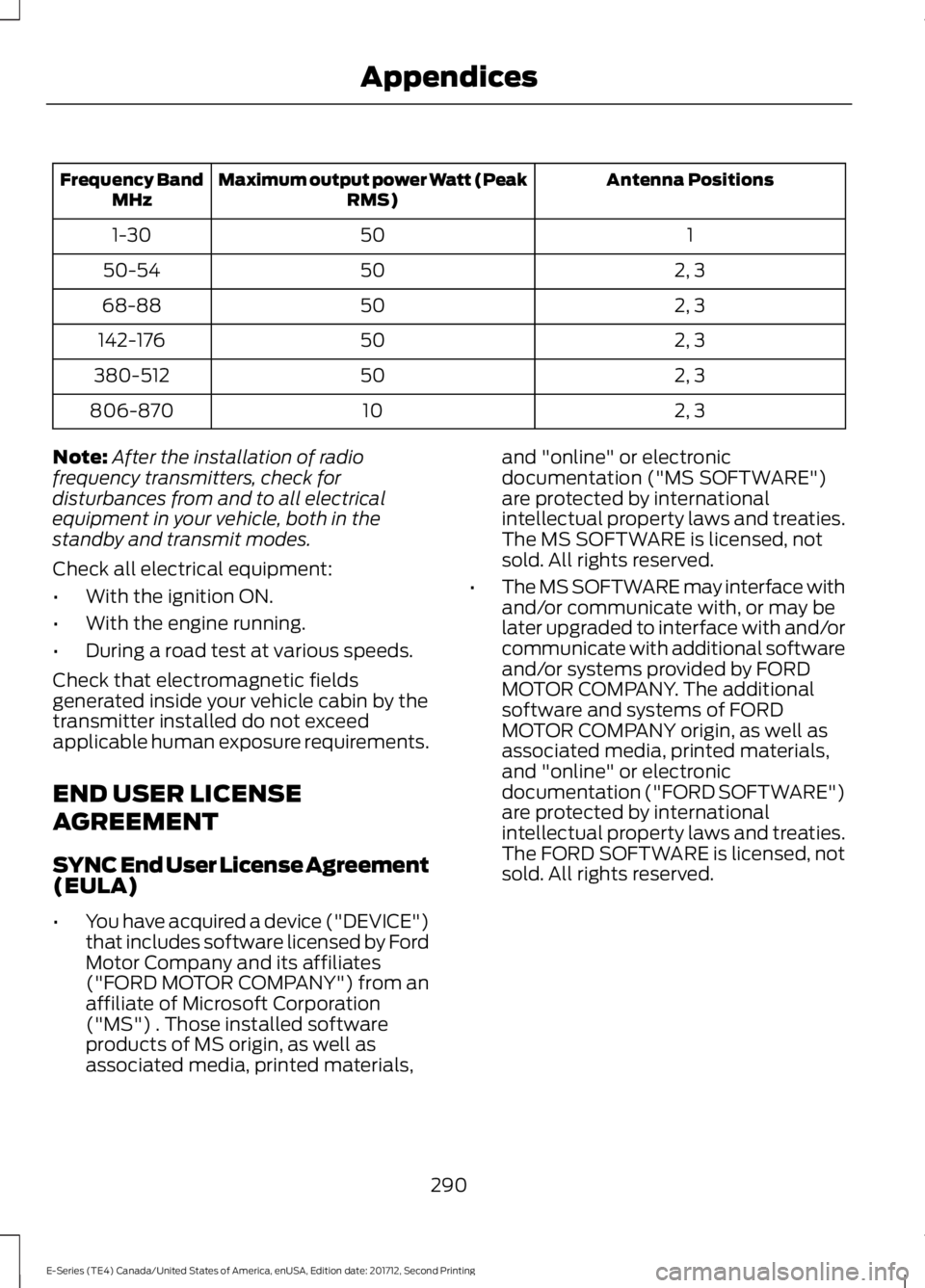

Antenna PositionsMaximum output power Watt (PeakRMS)Frequency BandMHz
1501-30
2, 35050-54
2, 35068-88
2, 350142-176
2, 350380-512
2, 310806-870
Note:After the installation of radiofrequency transmitters, check fordisturbances from and to all electricalequipment in your vehicle, both in thestandby and transmit modes.
Check all electrical equipment:
•With the ignition ON.
•With the engine running.
•During a road test at various speeds.
Check that electromagnetic fieldsgenerated inside your vehicle cabin by thetransmitter installed do not exceedapplicable human exposure requirements.
END USER LICENSE
AGREEMENT
SYNC End User License Agreement(EULA)
•You have acquired a device ("DEVICE")that includes software licensed by FordMotor Company and its affiliates("FORD MOTOR COMPANY") from anaffiliate of Microsoft Corporation("MS") . Those installed softwareproducts of MS origin, as well asassociated media, printed materials,
and "online" or electronicdocumentation ("MS SOFTWARE")are protected by internationalintellectual property laws and treaties.The MS SOFTWARE is licensed, notsold. All rights reserved.
•The MS SOFTWARE may interface withand/or communicate with, or may belater upgraded to interface with and/orcommunicate with additional softwareand/or systems provided by FORDMOTOR COMPANY. The additionalsoftware and systems of FORDMOTOR COMPANY origin, as well asassociated media, printed materials,and "online" or electronicdocumentation ("FORD SOFTWARE")are protected by internationalintellectual property laws and treaties.The FORD SOFTWARE is licensed, notsold. All rights reserved.
290
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Appendices

A
A/CSee: Climate Control..........................................64About This Manual...........................................5ABSSee: Brakes.............................................................90ABS driving hintsSee: Hints on Driving With Anti-LockBrakes.................................................................90Accessories....................................................265Exterior Style.......................................................265Interior Style........................................................265Peace of Mind.....................................................265AccessoriesSee: Replacement PartsRecommendation............................................10Adjusting the Headlamps..........................153Vertical Aim Adjustment Procedure............153Adjusting the Steering Wheel....................45Airbag Disposal...............................................36Air ConditioningSee: Climate Control..........................................64Air FilterSee: Changing the Engine Air Filter.............158Appendices....................................................288At a Glance........................................................14Audible Warnings and Indicators.............55Fail-Safe Cooling Warning Chime..................55Headlamps On Warning Chime......................55Key in Ignition Warning Chime........................55Parking Brake On Warning Chime..................55Shift to Park Warning Chime...........................55Audio System...............................................209General Information.........................................209Audio Unit - Vehicles With: AM/FM/CD/SYNC..............................................................210Audio Unit - Vehicles With: AM/FM.......212Automatic Transmission.............................86Brake-Shift Interlock...........................................87If Your Vehicle Gets Stuck In Mud orSnow....................................................................88Putting your vehicle in or out of gear:...........86Automatic Transmission FluidCheck.............................................................146Automatic Transmission Fluid Filter...........149Checking Automatic TransmissionFluid.....................................................................147
Auxiliary Power Points...................................71110 Volt AC Power Point......................................7112 Volt DC Power Point........................................71Locations..................................................................71Auxiliary Switches.......................................266
B
BatterySee: Changing the 12V Battery.......................151Bonnet LockSee: Opening and Closing the Hood...........139Booster Seats..................................................20Types of Booster Seats.......................................21Brake Fluid Check.........................................149Brakes................................................................90General Information...........................................90Breaking-In.......................................................114Bulb Specification Chart...........................156
C
California Proposition 65...............................9Capacities and Specifications -6.2L.................................................................199Alternative Engine Oil for Extremely ColdClimates...........................................................203Specifications.....................................................200Capacities and Specifications -6.8L................................................................203Alternative Engine Oil for Extremely ColdClimates...........................................................208Specifications.....................................................205Capacities and Specifications.................194Car WashSee: Cleaning the Exterior...............................159Catalytic Converter........................................83On-Board Diagnostics (OBD-II).....................84Readiness for Inspection and Maintenance(I/M) Testing.....................................................84Changing a Bulb............................................154Lamp Assembly Condensation.....................154Replacing Brake/Tail/Turn/Reverse LampBulbs (Cut-Away Only)...............................156Replacing Front Parking Lamp and DirectionIndicator Bulbs................................................155Replacing Headlamp Bulbs............................155Replacing Side Marker Bulbs.........................156
313
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Index

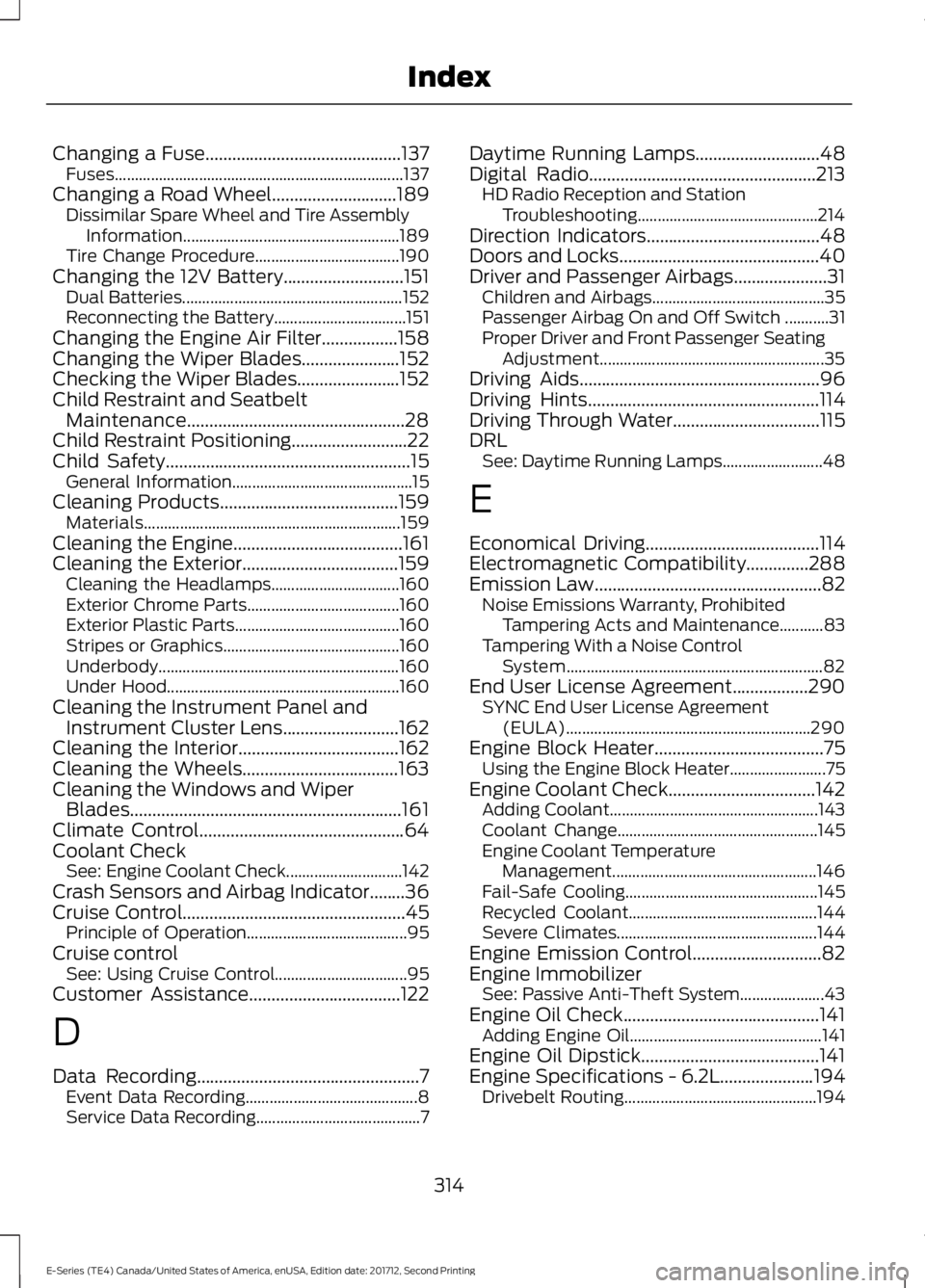

Changing a Fuse............................................137Fuses........................................................................137Changing a Road Wheel............................189Dissimilar Spare Wheel and Tire AssemblyInformation......................................................189Tire Change Procedure....................................190Changing the 12V Battery...........................151Dual Batteries.......................................................152Reconnecting the Battery.................................151Changing the Engine Air Filter.................158Changing the Wiper Blades......................152Checking the Wiper Blades.......................152Child Restraint and SeatbeltMaintenance.................................................28Child Restraint Positioning..........................22Child Safety.......................................................15General Information.............................................15Cleaning Products........................................159Materials................................................................159Cleaning the Engine......................................161Cleaning the Exterior...................................159Cleaning the Headlamps................................160Exterior Chrome Parts......................................160Exterior Plastic Parts.........................................160Stripes or Graphics............................................160Underbody............................................................160Under Hood..........................................................160Cleaning the Instrument Panel andInstrument Cluster Lens..........................162Cleaning the Interior....................................162Cleaning the Wheels...................................163Cleaning the Windows and WiperBlades.............................................................161Climate Control..............................................64Coolant CheckSee: Engine Coolant Check.............................142Crash Sensors and Airbag Indicator........36Cruise Control..................................................45Principle of Operation........................................95Cruise controlSee: Using Cruise Control.................................95Customer Assistance..................................122
D
Data Recording..................................................7Event Data Recording...........................................8Service Data Recording.........................................7
Daytime Running Lamps............................48Digital Radio...................................................213HD Radio Reception and StationTroubleshooting.............................................214Direction Indicators.......................................48Doors and Locks.............................................40Driver and Passenger Airbags.....................31Children and Airbags...........................................35Passenger Airbag On and Off Switch ...........31Proper Driver and Front Passenger SeatingAdjustment........................................................35Driving Aids......................................................96Driving Hints....................................................114Driving Through Water.................................115DRLSee: Daytime Running Lamps.........................48
E
Economical Driving.......................................114Electromagnetic Compatibility..............288Emission Law...................................................82Noise Emissions Warranty, ProhibitedTampering Acts and Maintenance...........83Tampering With a Noise ControlSystem................................................................82End User License Agreement.................290SYNC End User License Agreement(EULA).............................................................290Engine Block Heater......................................75Using the Engine Block Heater........................75Engine Coolant Check.................................142Adding Coolant....................................................143Coolant Change..................................................145Engine Coolant TemperatureManagement...................................................146Fail-Safe Cooling................................................145Recycled Coolant...............................................144Severe Climates..................................................144Engine Emission Control.............................82Engine ImmobilizerSee: Passive Anti-Theft System.....................43Engine Oil Check............................................141Adding Engine Oil................................................141Engine Oil Dipstick........................................141Engine Specifications - 6.2L.....................194Drivebelt Routing................................................194
314
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Index

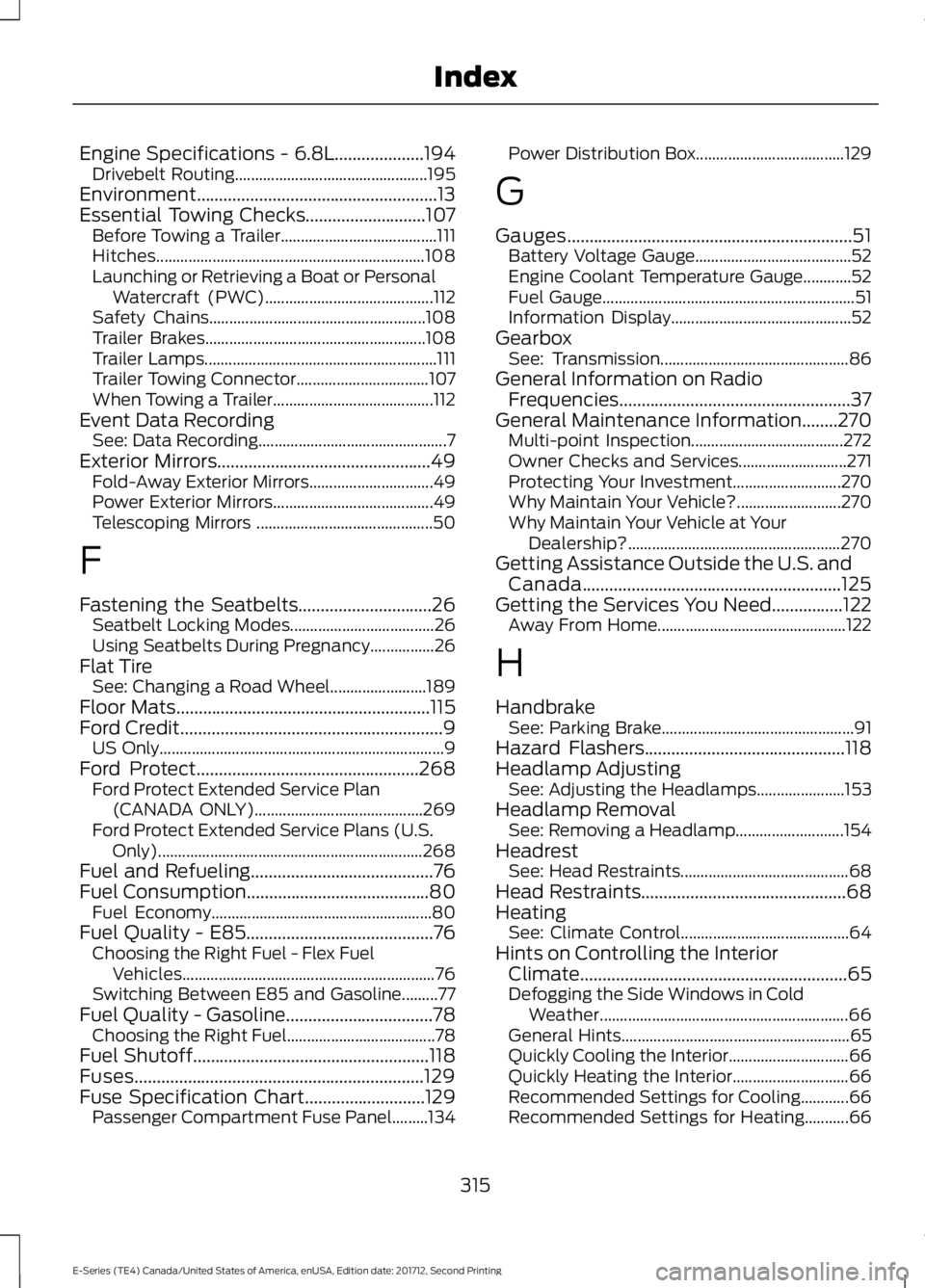

Engine Specifications - 6.8L....................194Drivebelt Routing................................................195Environment......................................................13Essential Towing Checks...........................107Before Towing a Trailer.......................................111Hitches...................................................................108Launching or Retrieving a Boat or PersonalWatercraft (PWC)..........................................112Safety Chains......................................................108Trailer Brakes.......................................................108Trailer Lamps..........................................................111Trailer Towing Connector.................................107When Towing a Trailer........................................112Event Data RecordingSee: Data Recording...............................................7Exterior Mirrors................................................49Fold-Away Exterior Mirrors...............................49Power Exterior Mirrors........................................49Telescoping Mirrors ............................................50
F
Fastening the Seatbelts..............................26Seatbelt Locking Modes....................................26Using Seatbelts During Pregnancy................26Flat TireSee: Changing a Road Wheel........................189Floor Mats.........................................................115Ford Credit...........................................................9US Only.......................................................................9Ford Protect..................................................268Ford Protect Extended Service Plan(CANADA ONLY)..........................................269Ford Protect Extended Service Plans (U.S.Only)..................................................................268Fuel and Refueling.........................................76Fuel Consumption.........................................80Fuel Economy.......................................................80Fuel Quality - E85..........................................76Choosing the Right Fuel - Flex FuelVehicles...............................................................76Switching Between E85 and Gasoline.........77Fuel Quality - Gasoline.................................78Choosing the Right Fuel.....................................78Fuel Shutoff.....................................................118Fuses.................................................................129Fuse Specification Chart...........................129Passenger Compartment Fuse Panel.........134
Power Distribution Box.....................................129
G
Gauges................................................................51Battery Voltage Gauge.......................................52Engine Coolant Temperature Gauge............52Fuel Gauge...............................................................51Information Display.............................................52GearboxSee: Transmission...............................................86General Information on RadioFrequencies....................................................37General Maintenance Information........270Multi-point Inspection......................................272Owner Checks and Services...........................271Protecting Your Investment...........................270Why Maintain Your Vehicle?..........................270Why Maintain Your Vehicle at YourDealership?.....................................................270Getting Assistance Outside the U.S. andCanada..........................................................125Getting the Services You Need................122Away From Home...............................................122
H
HandbrakeSee: Parking Brake................................................91Hazard Flashers.............................................118Headlamp AdjustingSee: Adjusting the Headlamps......................153Headlamp RemovalSee: Removing a Headlamp...........................154HeadrestSee: Head Restraints..........................................68Head Restraints..............................................68HeatingSee: Climate Control..........................................64Hints on Controlling the InteriorClimate............................................................65Defogging the Side Windows in ColdWeather..............................................................66General Hints.........................................................65Quickly Cooling the Interior..............................66Quickly Heating the Interior.............................66Recommended Settings for Cooling............66Recommended Settings for Heating...........66
315
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Index

N
Normal Scheduled Maintenance...........273
O
Oil Change Indicator Reset.......................142Resetting the Oil Life MonitoringSystem...............................................................142Oil CheckSee: Engine Oil Check........................................141Opening and Closing the Hood...............139Ordering Additional Owner'sLiterature.......................................................126Obtaining a French Owner’s Manual...........127
P
Parking Aids.....................................................93Parking Brake....................................................91Passive Anti-Theft System.........................43SecuriLock®...........................................................43PATSSee: Passive Anti-Theft System.....................43Perchlorate..........................................................9Power Door LocksSee: Locking and Unlocking.............................40Power Seats.....................................................69Recline Adjustment.............................................70Power Steering Fluid Check.....................150Power Windows.............................................49Accessory Delay...................................................49One-Touch Down.................................................49Protecting the Environment........................13PunctureSee: Changing a Road Wheel........................189
R
Rear Axle...........................................................89Rear Passenger Climate Controls............66Rear View Camera.........................................93Using the Rear View Camera System..........93Rear View CameraSee: Rear View Camera.....................................93Recommended Towing Weights............103Calculating the Maximum Loaded TrailerWeight for Your Vehicle...............................106
Reduced Engine Performance..................114Refueling............................................................79Fuel Filler Cap........................................................79Remote Control...............................................37Car Finder................................................................39Changing the Remote Control Battery........38Reprogramming the Remote Control...........38Sounding the Panic Alarm................................39Removing a Headlamp...............................154Repairing Minor Paint Damage...............163Replacement PartsRecommendation........................................10Collision Repairs....................................................10Scheduled Maintenance and MechanicalRepairs.................................................................10Warranty on Replacement Parts....................10Replacing a Lost Key or RemoteControl............................................................39Reporting Safety Defects (CanadaOnly)...............................................................127Reporting Safety Defects (U.S.Only)...............................................................127Roadside Assistance....................................117Vehicles Sold in Canada: Getting RoadsideAssistance.........................................................118Vehicles Sold in Canada: RoadsideAssistance Program Coverage..................118Vehicles Sold in Canada: Using RoadsideAssistance.........................................................118Vehicles Sold in the United States: GettingRoadside Assistance......................................117Vehicles Sold in the United States: UsingRoadside Assistance......................................117Roadside Emergencies................................117Running-InSee: Breaking-In...................................................114Running Out of Fuel......................................78Filling a Portable Fuel Container....................79
S
Safety Precautions........................................76Satellite Radio...............................................216Satellite Radio Electronic Serial Number(ESN)..................................................................217Satellite Radio Reception Factors................216SiriusXM Satellite Radio Service...................216Troubleshooting...................................................217
317
E-Series (TE4) Canada/United States of America, enUSA, Edition date: 201712, Second Printing
Index

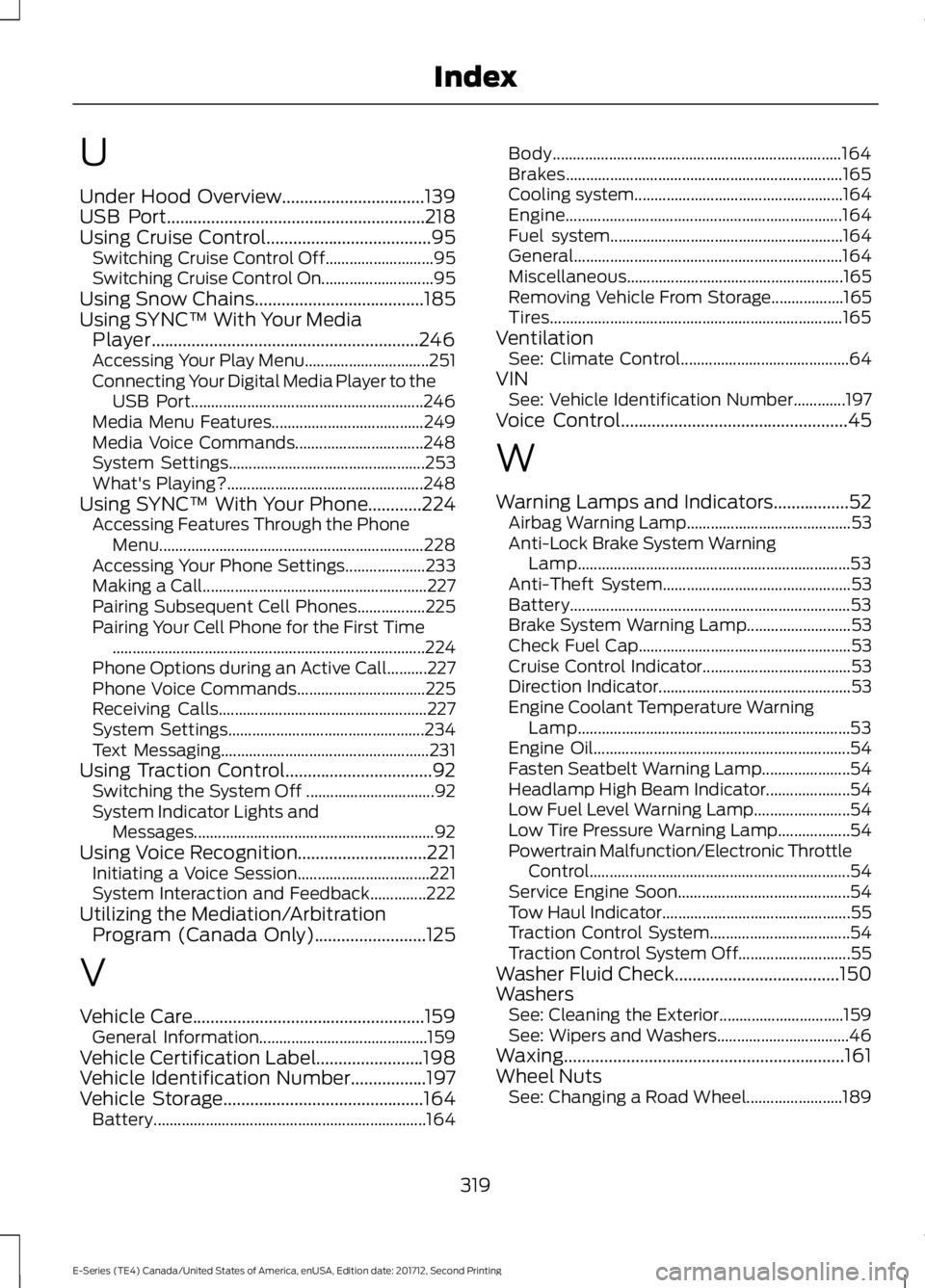

U
