FORD E SERIES 2024 Manual PDF

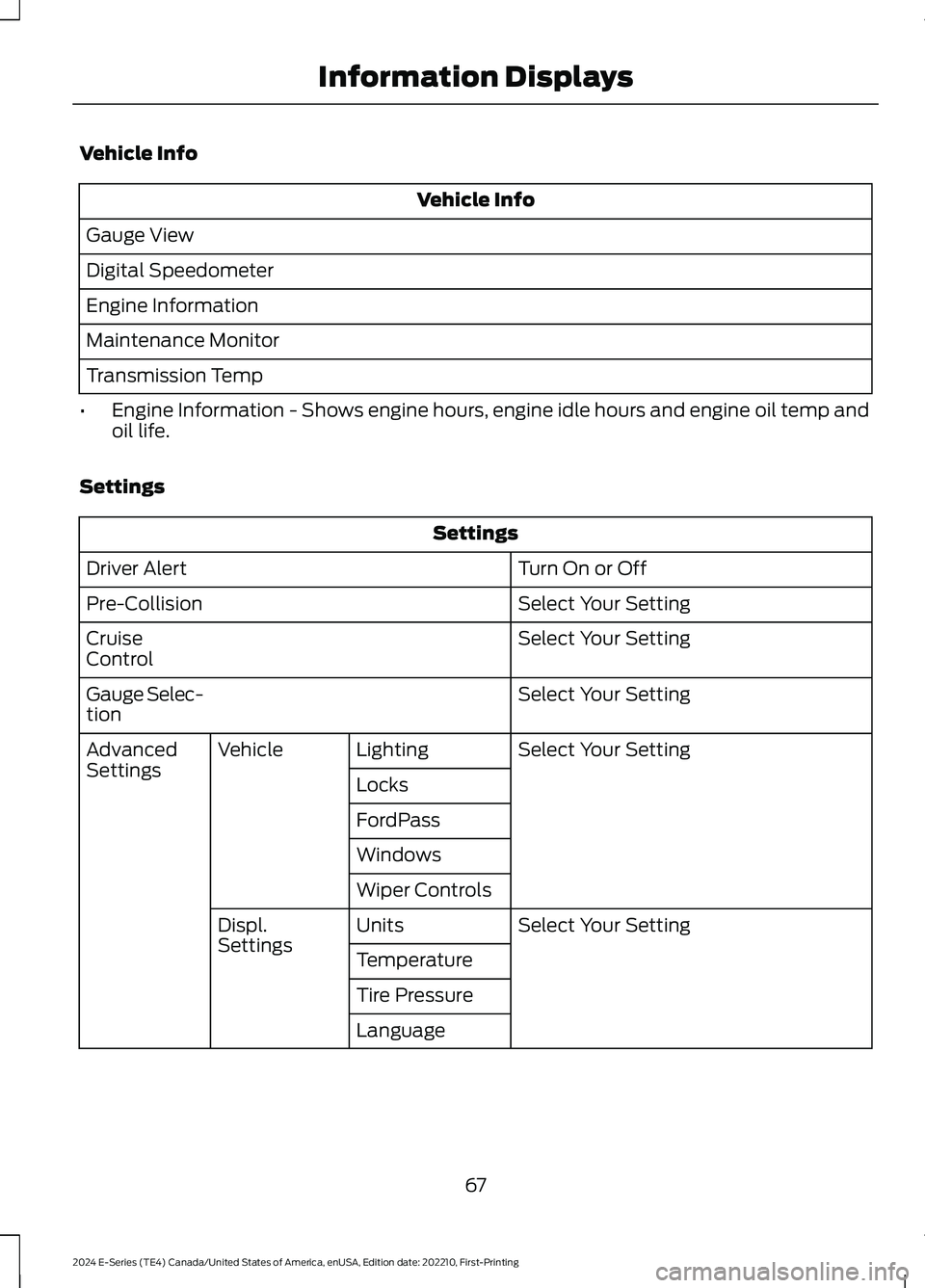

Vehicle Info
Vehicle Info
Gauge View
Digital Speedometer
Engine Information
Maintenance Monitor
Transmission Temp
•Engine Information - Shows engine hours, engine idle hours and engine oil temp andoil life.
Settings
Settings
Turn On or OffDriver Alert
Select Your SettingPre-Collision
Select Your SettingCruiseControl
Select Your SettingGauge Selec-tion
Select Your SettingLightingVehicleAdvancedSettingsLocks
FordPass
Windows
Wiper Controls
Select Your SettingUnitsDispl.SettingsTemperature
Tire Pressure
Language
67
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingInformation Displays

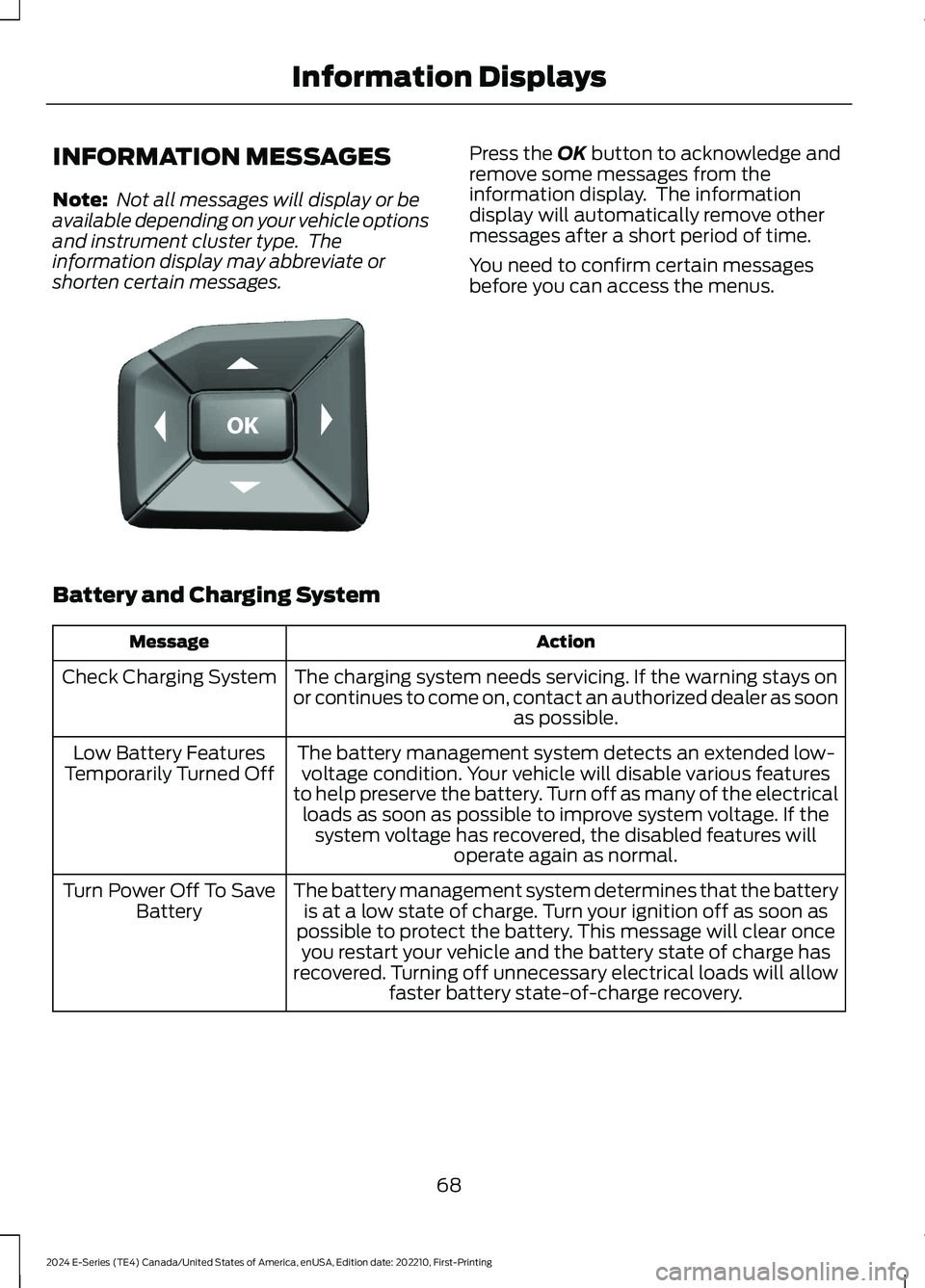

INFORMATION MESSAGES
Note: Not all messages will display or beavailable depending on your vehicle optionsand instrument cluster type. Theinformation display may abbreviate orshorten certain messages.
Press the OK button to acknowledge andremove some messages from theinformation display. The informationdisplay will automatically remove othermessages after a short period of time.
You need to confirm certain messagesbefore you can access the menus.
Battery and Charging System
ActionMessage
The charging system needs servicing. If the warning stays onor continues to come on, contact an authorized dealer as soonas possible.
Check Charging System
The battery management system detects an extended low-voltage condition. Your vehicle will disable various featuresto help preserve the battery. Turn off as many of the electricalloads as soon as possible to improve system voltage. If thesystem voltage has recovered, the disabled features willoperate again as normal.
Low Battery FeaturesTemporarily Turned Off
The battery management system determines that the batteryis at a low state of charge. Turn your ignition off as soon aspossible to protect the battery. This message will clear onceyou restart your vehicle and the battery state of charge hasrecovered. Turning off unnecessary electrical loads will allowfaster battery state-of-charge recovery.
Turn Power Off To SaveBattery
68
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingInformation DisplaysE184451

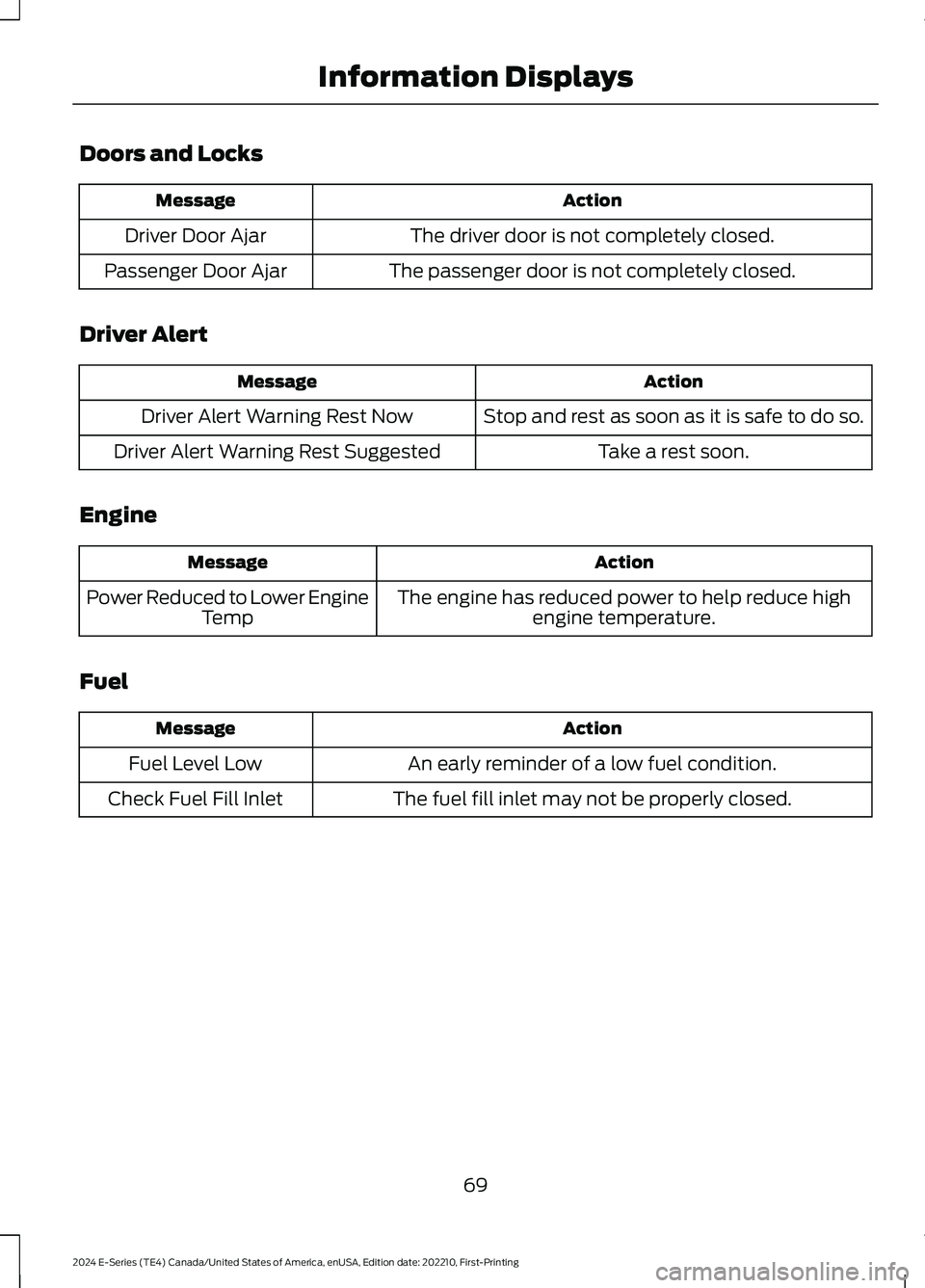

Doors and Locks
ActionMessage
The driver door is not completely closed.Driver Door Ajar
The passenger door is not completely closed.Passenger Door Ajar
Driver Alert
ActionMessage
Stop and rest as soon as it is safe to do so.Driver Alert Warning Rest Now
Take a rest soon.Driver Alert Warning Rest Suggested
Engine
ActionMessage
The engine has reduced power to help reduce highengine temperature.Power Reduced to Lower EngineTemp
Fuel
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
69
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingInformation Displays

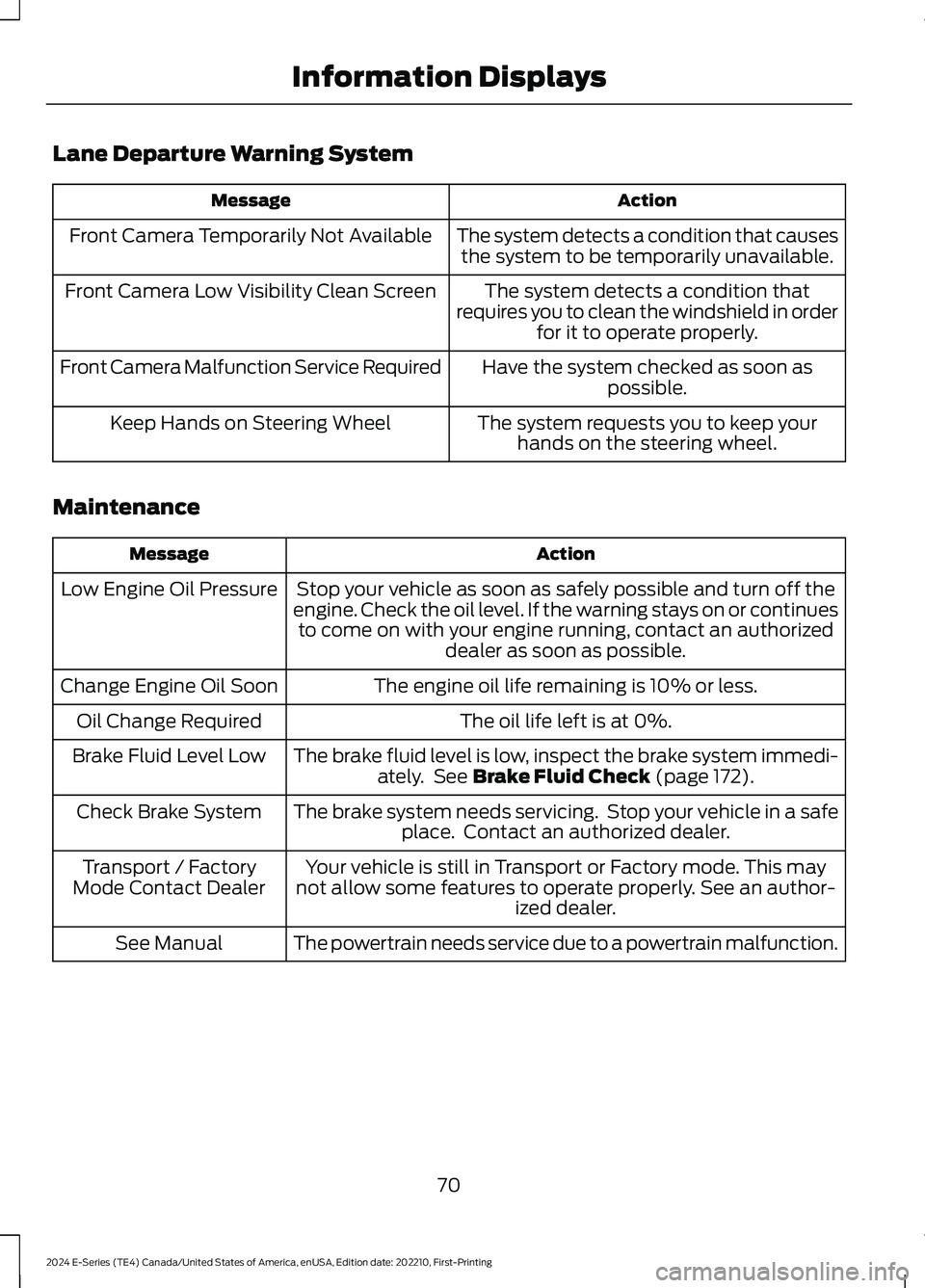

Lane Departure Warning System
ActionMessage
The system detects a condition that causesthe system to be temporarily unavailable.Front Camera Temporarily Not Available
The system detects a condition thatrequires you to clean the windshield in orderfor it to operate properly.
Front Camera Low Visibility Clean Screen
Have the system checked as soon aspossible.Front Camera Malfunction Service Required
The system requests you to keep yourhands on the steering wheel.Keep Hands on Steering Wheel
Maintenance
ActionMessage
Stop your vehicle as soon as safely possible and turn off theengine. Check the oil level. If the warning stays on or continuesto come on with your engine running, contact an authorizeddealer as soon as possible.
Low Engine Oil Pressure
The engine oil life remaining is 10% or less.Change Engine Oil Soon
The oil life left is at 0%.Oil Change Required
The brake fluid level is low, inspect the brake system immedi-ately. See Brake Fluid Check (page 172).Brake Fluid Level Low
The brake system needs servicing. Stop your vehicle in a safeplace. Contact an authorized dealer.Check Brake System
Your vehicle is still in Transport or Factory mode. This maynot allow some features to operate properly. See an author-ized dealer.
Transport / FactoryMode Contact Dealer
The powertrain needs service due to a powertrain malfunction.See Manual
70
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingInformation Displays

Pre-Collision Assist
ActionMessage
You have a blocked sensor due to badweather, ice, mud or water in front of theradar sensor. You can typically clean thesensor to resolve.
Pre-Collision Assist Not Available SensorBlocked
There is a condition preventing the systemfrom being available. Have the systemchecked as soon as possible.
Pre-Collision Assist Not Available
Power Steering
ActionMessage
The power steering system detects a condition that requiresservice. See an authorized dealer.Steering Fault ServiceNow
The power steering system is not working. Stop your vehiclein a safe place. Contact an authorized dealer.Steering Loss StopSafely
The power steering system detects a condition within thepower steering system or passive entry or passive start systemrequires service. Contact an authorized dealer.
Steering Assist FaultService Required
The steering lock system detects a condition that requiresservice. See an authorized dealer.Steering Lock Malfunc-tion Service Now
Traction Control
ActionMessage
The status of the traction control system after you switchedit off. See Using Traction Control (page 102).Traction Control Off
The status of the traction control system after you switchedit on. See Using Traction Control (page 102).Traction Control On
71
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingInformation Displays

Transmission
ActionMessage
You switched the engine off and shift select lever is in anyposition other than park (P).Shift to Park
Displays when the brake pedal needs to be pressed.Press Brake Pedal
The transmission is overheating and needs to cool. Stop in asafe place as soon as it is possible.Transmission OverTemperature StopSafely
See an authorized dealer.Transmission ServiceRequired
The transmission is overheating and needs to cool. Stop in asafe place as soon as it is possible.Transmission Too HotPress Brake
The transmission has limited functionality. See an authorizeddealer.Transmission LimitedFunction See Manual
A reminder to shift into park. In addition, this message is typicalafter reconnecting or recharging the battery until you cyclethe ignition to the on mode. See Changing the 12V Battery(page 173).
Transmission Not in Park
Have your vehicle checked as soon as possible.Transmission FaultService Now
Displays when the transmission has adjusted the shiftstrategy.Transmission Adjusted
Displays when the transmission is adjusting the shift strategy.Transmission Adapt-Mode
Transmission is too cold. Wait for it to warm up before youdrive.Transmission WarmingUp Please Wait
Displays when the transmission shift lever is locked and unableto select gears.Transmission Indicat-Mode Lockup On
Displays when the transmission shift lever is unlocked andfree to select gears.Transmission Indicat-Mode Lockup Off
The transmission is overheating and needs to cool. Stop in asafe place as soon as it is possible.Transmission Over-heating Stop Safely
72
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingInformation Displays

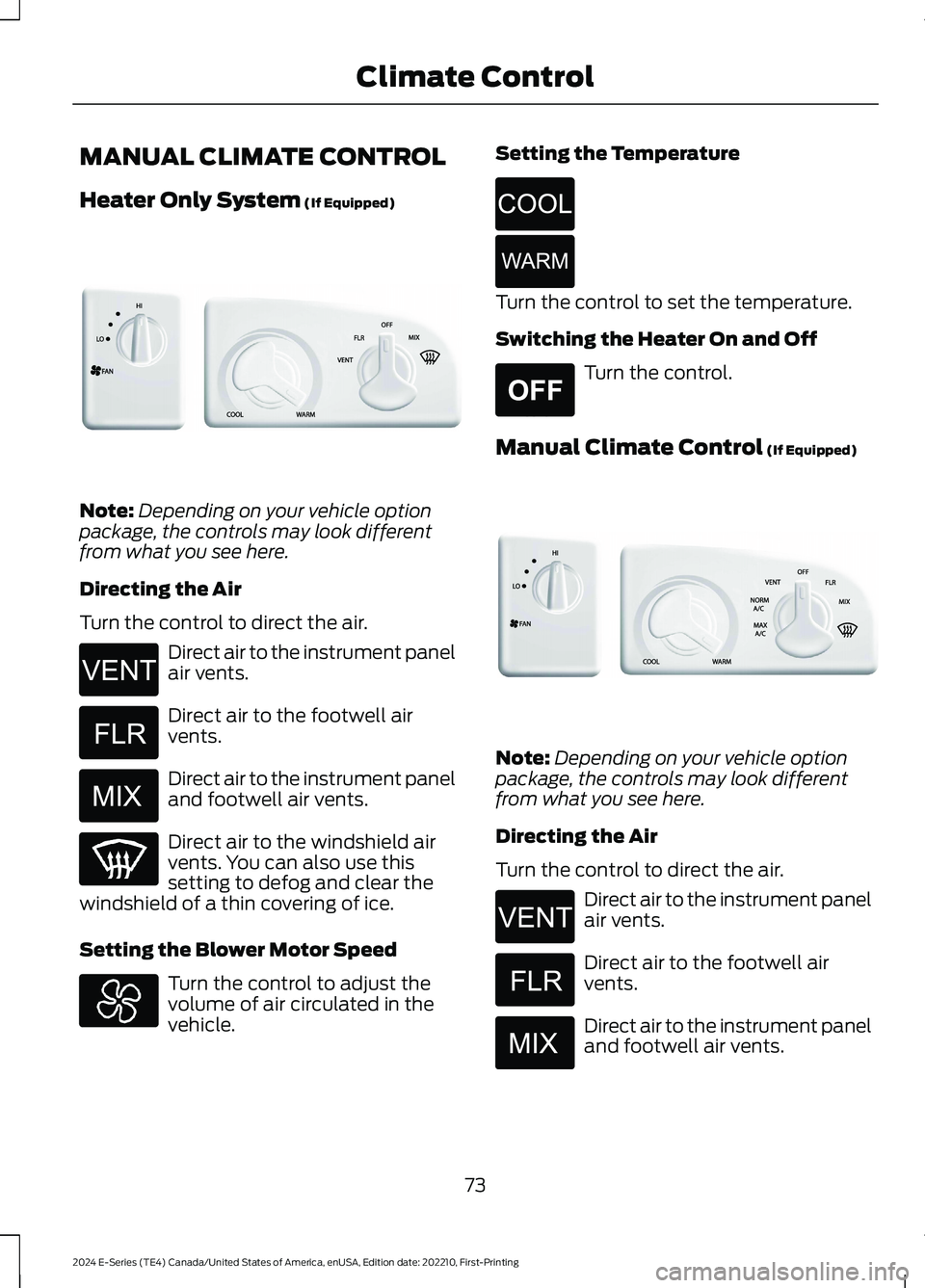

MANUAL CLIMATE CONTROL
Heater Only System (If Equipped)
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Directing the Air
Turn the control to direct the air.
Direct air to the instrument panelair vents.
Direct air to the footwell airvents.
Direct air to the instrument paneland footwell air vents.
Direct air to the windshield airvents. You can also use thissetting to defog and clear thewindshield of a thin covering of ice.
Setting the Blower Motor Speed
Turn the control to adjust thevolume of air circulated in thevehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching the Heater On and Off
Turn the control.
Manual Climate Control (If Equipped)
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Directing the Air
Turn the control to direct the air.
Direct air to the instrument panelair vents.
Direct air to the footwell airvents.
Direct air to the instrument paneland footwell air vents.
73
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingClimate ControlE305221 E266044 E266043 E266042 E266045 E266046 E265297 E305209 E266044 E266043 E266042

Direct air to the windshield airvents. You can also use thissetting to defog and clear thewindshield of a thin covering of ice.
Switching the Air Conditioning On andOff
Turn to switch the airconditioning on or off.
Switching Maximum Air ConditioningOn and Off
Turn the control for maximumcooling.
Recirculated air flows through theinstrument panel vents and air conditioningturns on.
Setting the Blower Motor Speed
Turn the control to adjust thevolume of air circulated in thevehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching the Climate Control On andOff
Turn the control.

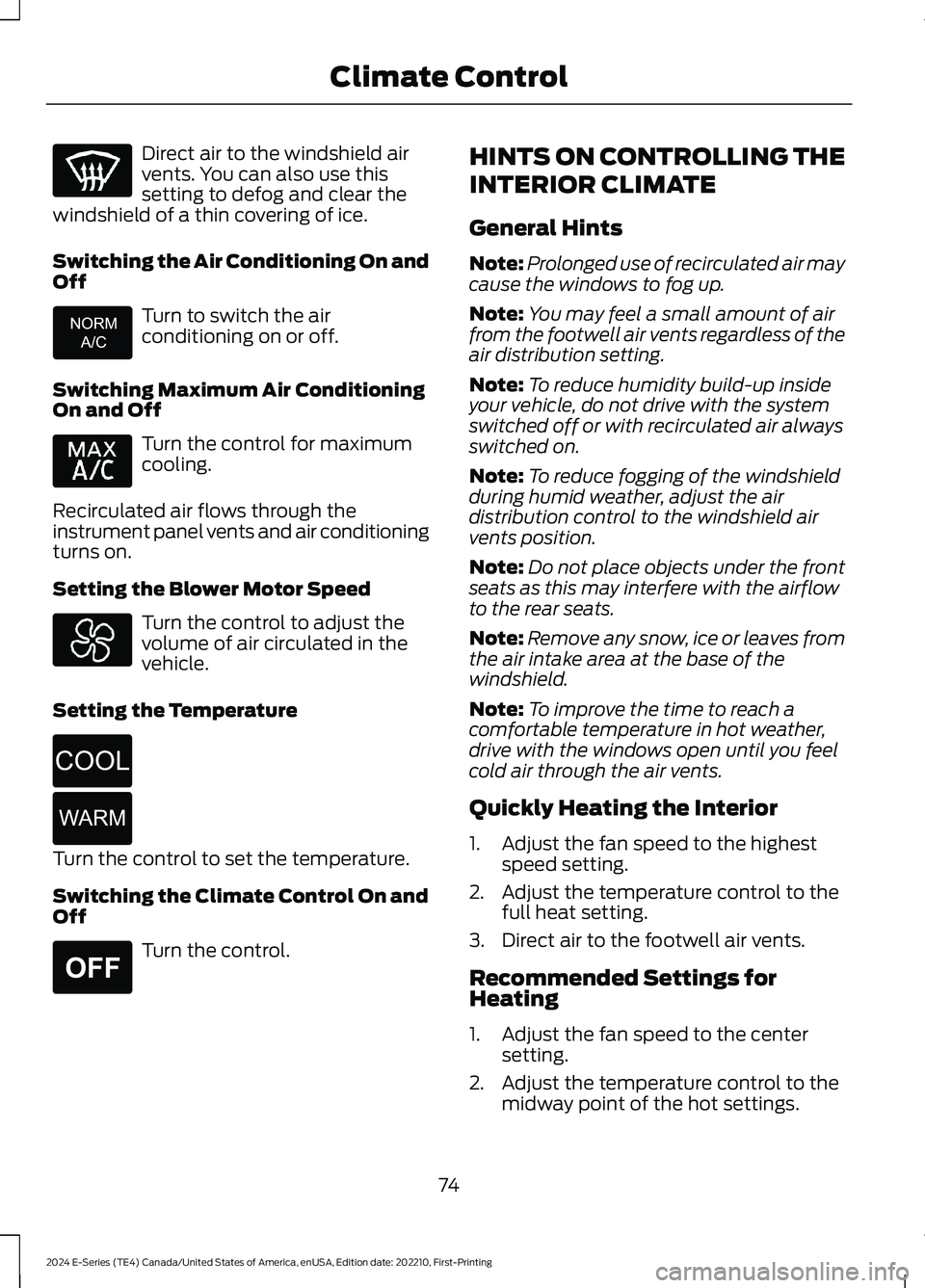

HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air maycause the windows to fog up.
Note:You may feel a small amount of airfrom the footwell air vents regardless of theair distribution setting.
Note:To reduce humidity build-up insideyour vehicle, do not drive with the systemswitched off or with recirculated air alwaysswitched on.
Note:To reduce fogging of the windshieldduring humid weather, adjust the airdistribution control to the windshield airvents position.
Note:Do not place objects under the frontseats as this may interfere with the airflowto the rear seats.
Note:Remove any snow, ice or leaves fromthe air intake area at the base of thewindshield.
Note:To improve the time to reach acomfortable temperature in hot weather,drive with the windows open until you feelcold air through the air vents.
Quickly Heating the Interior
1.Adjust the fan speed to the highestspeed setting.
2.Adjust the temperature control to thefull heat setting.
3.Direct air to the footwell air vents.
Recommended Settings forHeating
1.Adjust the fan speed to the centersetting.
2.Adjust the temperature control to themidway point of the hot settings.
74
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingClimate Control E266041 E266045 E266046 E265297

3.Direct air to the footwell air vents.

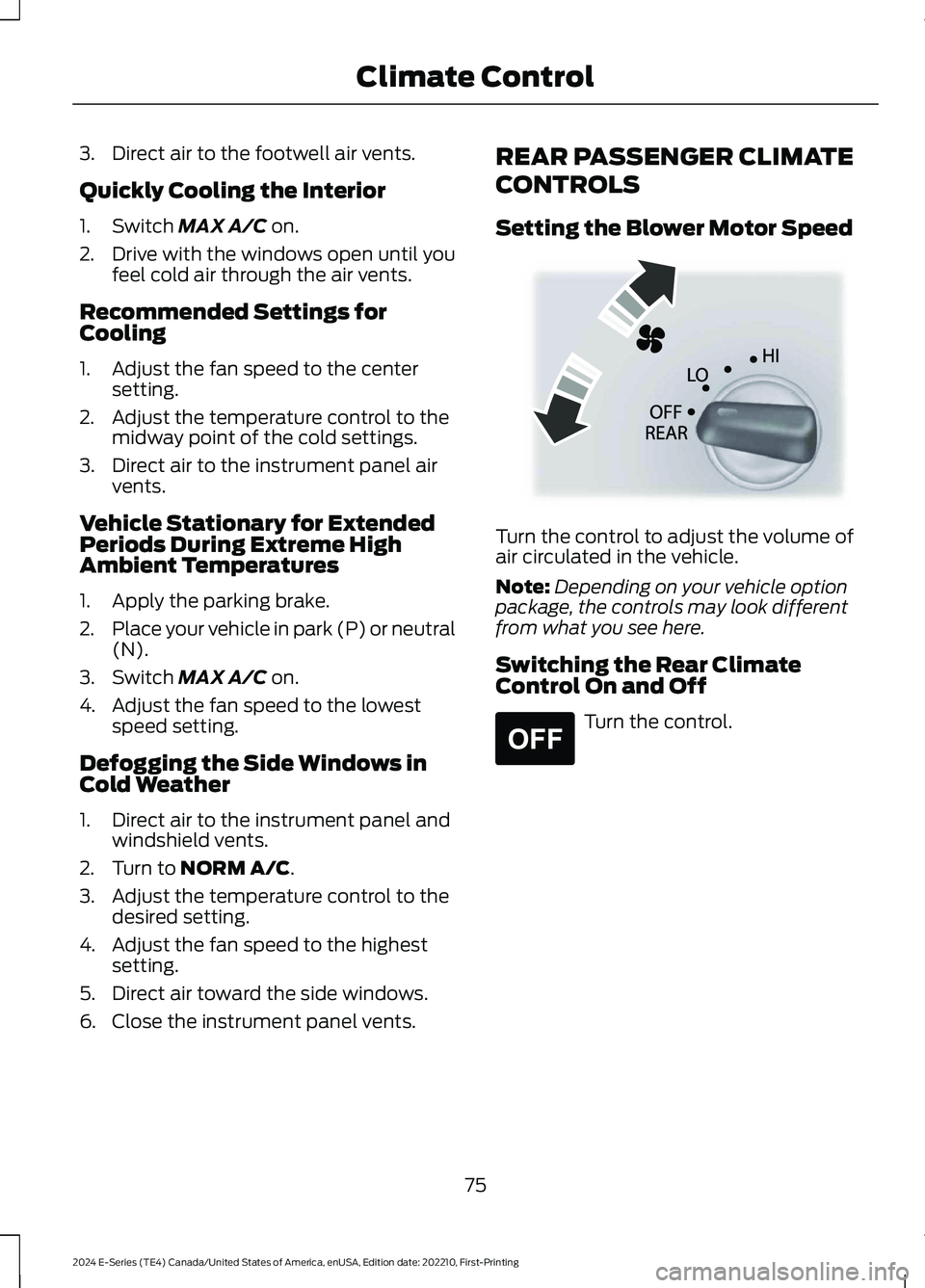

Quickly Cooling the Interior
1.Switch MAX A/C on.
2.Drive with the windows open until youfeel cold air through the air vents.
Recommended Settings forCooling
1.Adjust the fan speed to the centersetting.
2.Adjust the temperature control to themidway point of the cold settings.
3.Direct air to the instrument panel airvents.
Vehicle Stationary for ExtendedPeriods During Extreme HighAmbient Temperatures
1.Apply the parking brake.
2.Place your vehicle in park (P) or neutral(N).
3.Switch MAX A/C on.
4.Adjust the fan speed to the lowestspeed setting.
Defogging the Side Windows inCold Weather
1.Direct air to the instrument panel andwindshield vents.
2.Turn to NORM A/C.
3.Adjust the temperature control to thedesired setting.
4.Adjust the fan speed to the highestsetting.
5.Direct air toward the side windows.
6.Close the instrument panel vents.
REAR PASSENGER CLIMATE
CONTROLS
Setting the Blower Motor Speed
Turn the control to adjust the volume ofair circulated in the vehicle.
Note:Depending on your vehicle optionpackage, the controls may look differentfrom what you see here.
Switching the Rear ClimateControl On and Off
Turn the control.
75
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingClimate ControlE305193 E265297

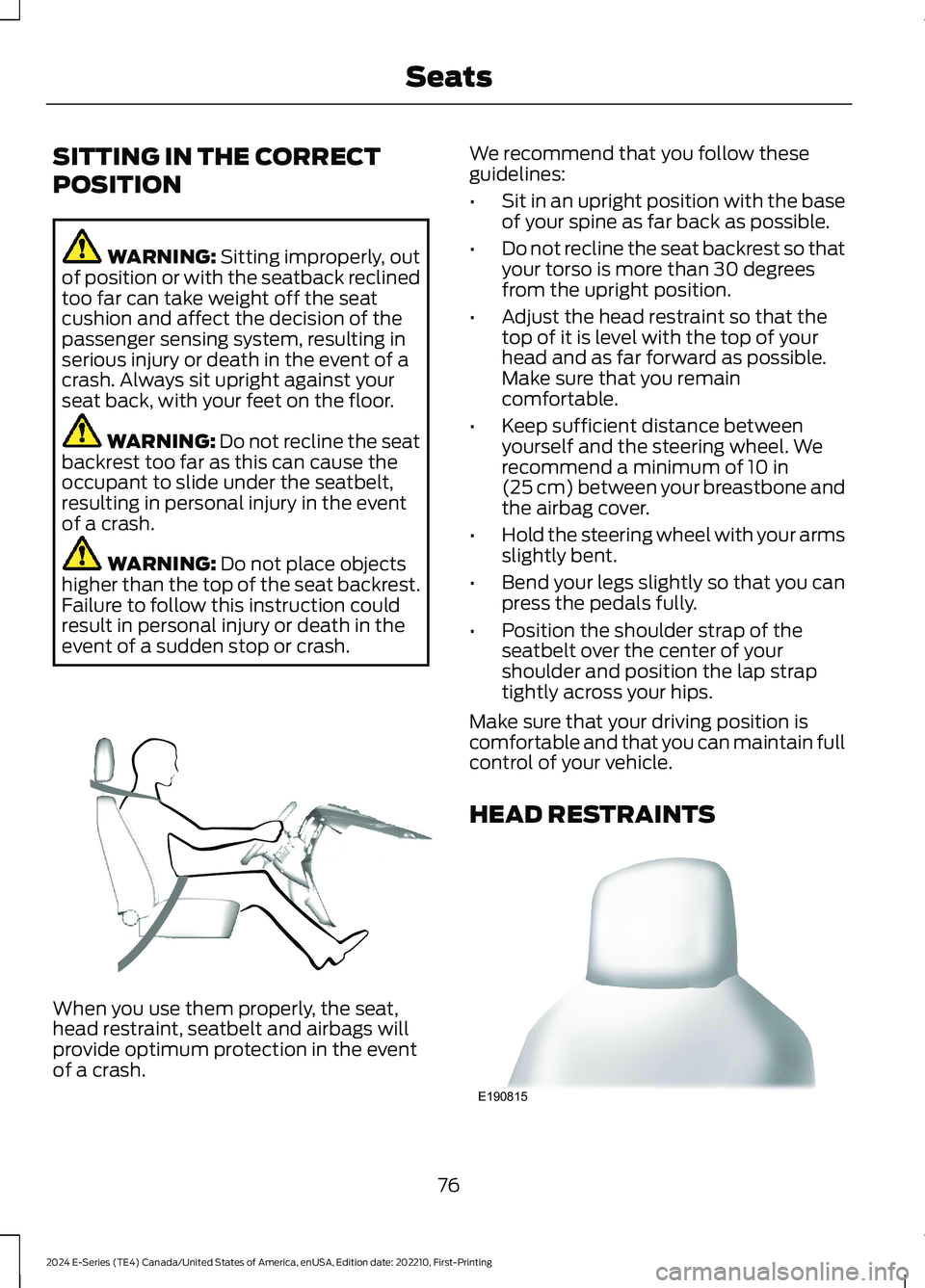

SITTING IN THE CORRECT
POSITION
WARNING: Sitting improperly, outof position or with the seatback reclinedtoo far can take weight off the seatcushion and affect the decision of thepassenger sensing system, resulting inserious injury or death in the event of acrash. Always sit upright against yourseat back, with your feet on the floor.
WARNING: Do not recline the seatbackrest too far as this can cause theoccupant to slide under the seatbelt,resulting in personal injury in the eventof a crash.
WARNING: Do not place objectshigher than the top of the seat backrest.Failure to follow this instruction couldresult in personal injury or death in theevent of a sudden stop or crash.
When you use them properly, the seat,head restraint, seatbelt and airbags willprovide optimum protection in the eventof a crash.
We recommend that you follow theseguidelines:
•Sit in an upright position with the baseof your spine as far back as possible.
•Do not recline the seat backrest so thatyour torso is more than 30 degreesfrom the upright position.
•Adjust the head restraint so that thetop of it is level with the top of yourhead and as far forward as possible.Make sure that you remaincomfortable.
•Keep sufficient distance betweenyourself and the steering wheel. Werecommend a minimum of 10 in(25 cm) between your breastbone andthe airbag cover.
•Hold the steering wheel with your armsslightly bent.
•Bend your legs slightly so that you canpress the pedals fully.
•Position the shoulder strap of theseatbelt over the center of yourshoulder and position the lap straptightly across your hips.
Make sure that your driving position iscomfortable and that you can maintain fullcontrol of your vehicle.
HEAD RESTRAINTS
