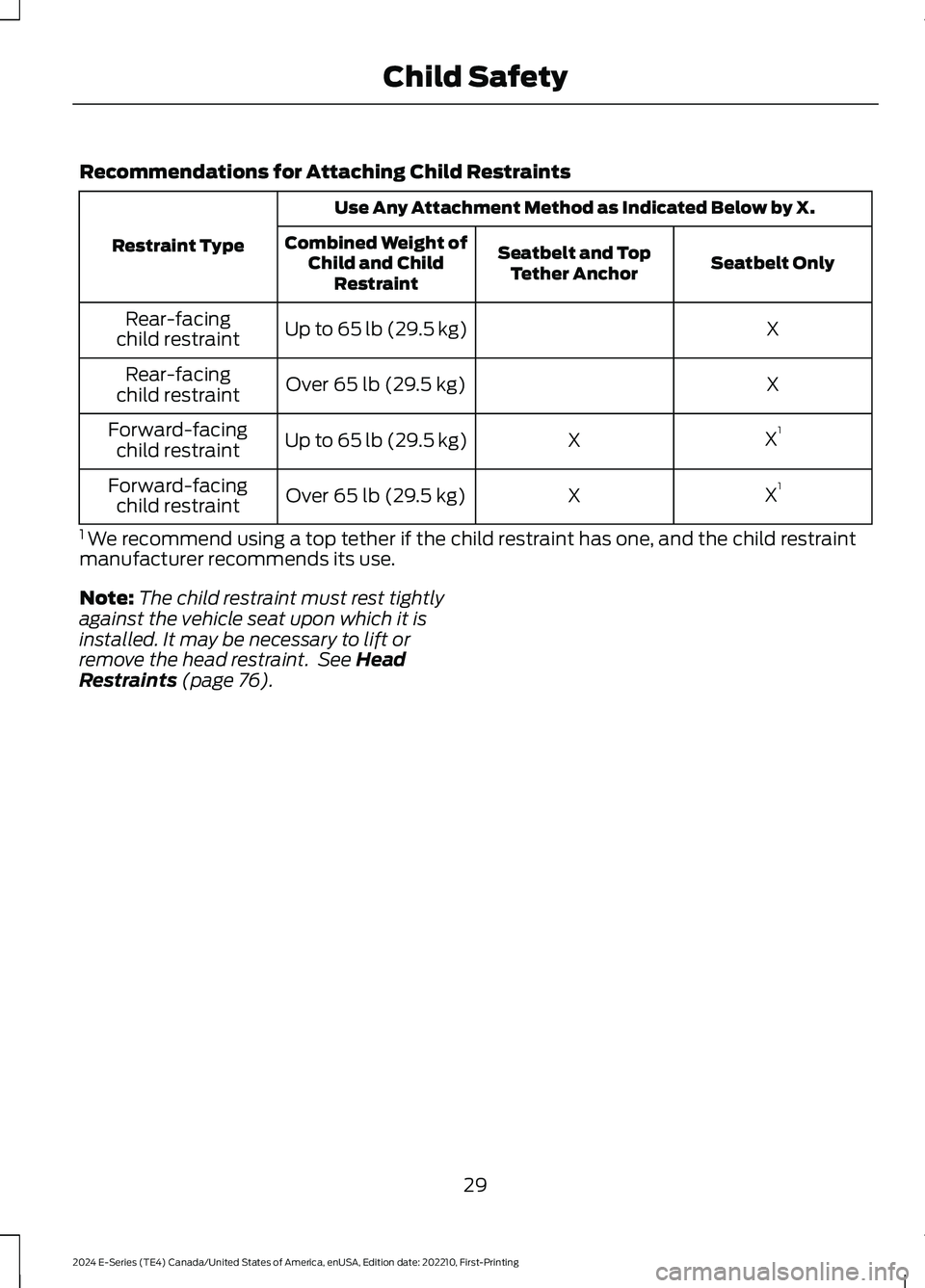

Recommendations for Attaching Child Restraints
Use Any Attachment Method as Indicated Below by X.
Restraint TypeSeatbelt OnlySeatbelt and TopTether Anchor
Combined Weight ofChild and ChildRestraint
XUp to 65 lb (29.5 kg)Rear-facingchild restraint
XOver 65 lb (29.5 kg)Rear-facingchild restraint
X1XUp to 65 lb (29.5 kg)Forward-facingchild restraint
X1XOver 65 lb (29.5 kg)Forward-facingchild restraint
1 We recommend using a top tether if the child restraint has one, and the child restraintmanufacturer recommends its use.
Note:The child restraint must rest tightlyagainst the vehicle seat upon which it isinstalled. It may be necessary to lift orremove the head restraint. See HeadRestraints (page 76).
29
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingChild Safety

Telescoping Mirrors (If Equipped)
This feature lets you extend the mirrorabout 3 in (75 mm). It is useful whentowing a trailer. You can manually pull outor push in the mirrors to the desiredposition.
INTERIOR MIRROR (IF EQUIPPED)
WARNING: Do not adjust themirrors when your vehicle is moving. Thiscould result in the loss of control of yourvehicle, serious personal injury or death.
Note:Do not clean the mirror housing orglass with harsh abrasives, fuel or otherpetroleum-based cleaning products.
You can adjust the interior mirror to yourpreference. Some mirrors also have asecond pivot point. This lets you move themirror head up or down and from side toside.
Manual Dimming Mirror
Pull the tab below the mirror toward youto reduce the effect of bright light frombehind.
Automatic Dimming Mirror (If Equipped)
Note:Do not block the sensors on the frontand back of the mirror. A rear centerpassenger or raised rear center headrestraint may also block light from reachingthe sensor.
The mirror dims to reduce the effect ofbright light from behind. It returns tonormal when the bright light from behindis no longer present or if you shift intoreverse (R).
SUN VISORS (IF EQUIPPED)
Illuminated Vanity Mirror (If Equipped)
Lift the cover to switch the lamp on.
57
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingWindows and MirrorsE163061 E162197

G
Gauges...............................................................58GearboxSee: Transmission................................................95General Information on RadioFrequencies...................................................42General Maintenance Information.......249Getting Assistance Outside the U.S. andCanada...........................................................147Getting the Services You Need...............144
H
HandbrakeSee: Parking Brake.............................................100Hazard Flashers............................................139Headlamp AdjustingSee: Adjusting the Headlamps......................176Headlamp RemovalSee: Removing a Headlamp...........................179HeadrestSee: Head Restraints...........................................76Head Restraints..............................................76HeatingSee: Climate Control...........................................73Hill Start Assist...............................................101Hints on Controlling the InteriorClimate............................................................74Hints on Driving With Anti-LockBrakes............................................................100Hood LockSee: Opening and Closing the Hood............161Horn....................................................................49Hydraulic Power Steering Fluid Capacityand Specification......................................236
I
Ignition Switch.................................................81In California (U.S. Only).............................145Information Display Control......................49Information Displays....................................64General Information...........................................64Information Messages.................................68Installing Child Restraints...........................22Instrument Cluster........................................58Instrument Lighting Dimmer......................52
Instrument Panel............................................18Interior Mirror....................................................57Introduction.........................................................7
J
Jump Starting the Vehicle.........................139
K
Keys and Remote Controls.........................42
L
Lane Keeping System..................................115Lighting Control...............................................51Lighting...............................................................51General Information.............................................51Load Carrying.................................................122Load Limit........................................................122Locking and Unlocking.................................45Lug NutsSee: Changing a Road Wheel........................218
M
Maintenance...................................................161General Information...........................................161Manual Climate Control...............................73Manual Seats....................................................77Message CenterSee: Information Displays.................................64MirrorsSee: Windows and Mirrors................................56Mobile CommunicationsEquipment......................................................10Motorcraft Parts - 7.3L................................227
N
Normal Scheduled Maintenance...........252
O
Oil Change Indicator Reset.......................164Oil CheckSee: Engine Oil Check.......................................163Opening and Closing the Hood................161
297
2024 E-Series (TE4) Canada/United States of America, enUSA, Edition date: 202210, First-PrintingIndex
