compression ratio FORD E150 1999 Owners Manual

Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation. ªDolbyº and the double-D symbol
are trademarks of Dolby Laboratories Licensing Corporation.

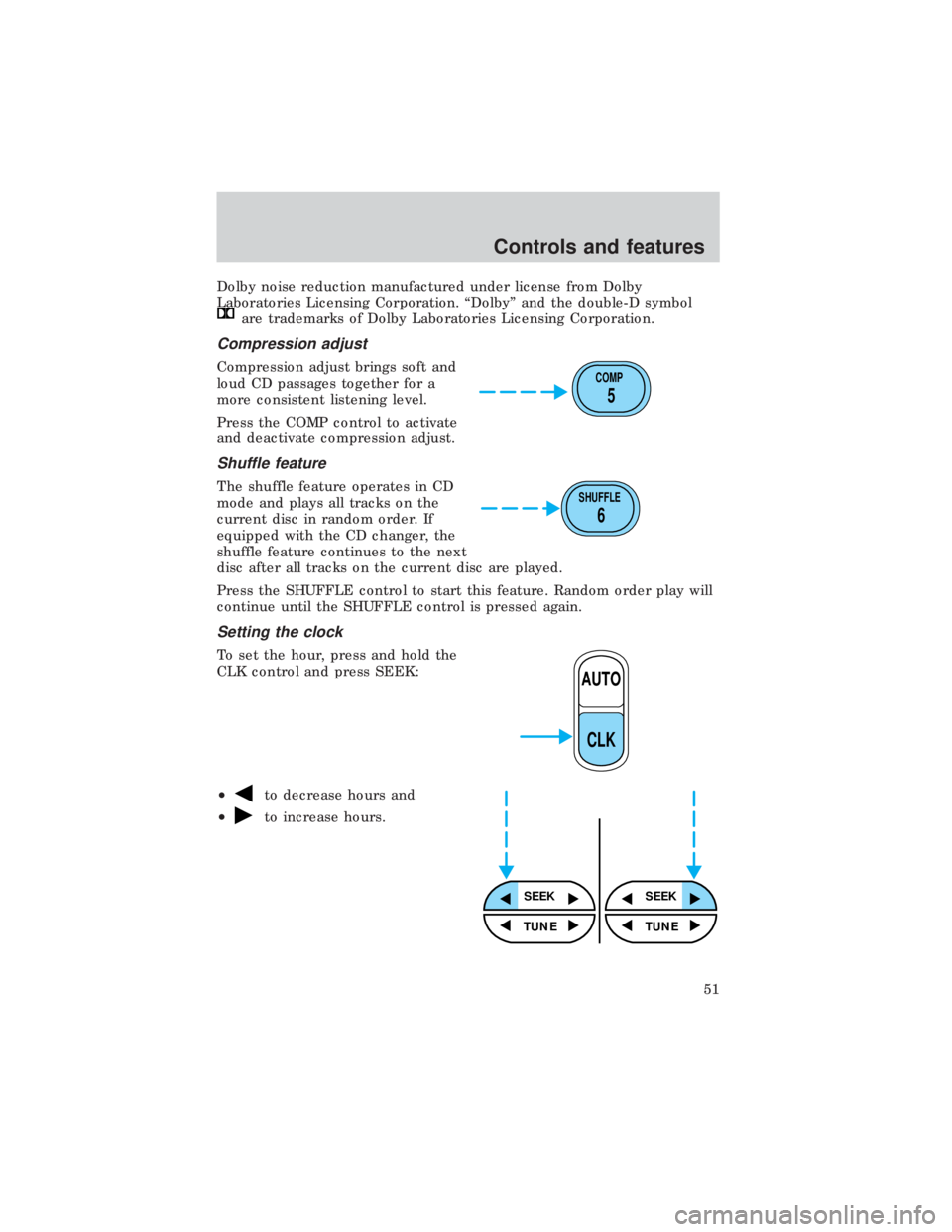

Compression adjust
Compression adjust brings soft and
loud CD passages together for a
more consistent listening level.
Press the COMP control to activate
and deactivate compression adjust.
Shuffle feature
The shuffle feature operates in CD
mode and plays all tracks on the
current disc in random order. If
equipped with the CD changer, the
shuffle feature continues to the next
disc after all tracks on the current disc are played.
Press the SHUFFLE control to start this feature. Random order play will
continue until the SHUFFLE control is pressed again.
Setting the clock
To set the hour, press and hold the
CLK control and press SEEK:
²
to decrease hours and
²
to increase hours.
COMP
5
SHUFFLE
6
AUTO
CLK
SEEKSEEK
TUNE TUNE
Controls and features
51

ENGINE DATA
Engine*4.2L V6
engine4.6L V8
engine5.4L V8
engine6.8L V10
engine
Cubic inches 256 281 330 415
Horsepower200 @
4800 rpm215 @
4500 rpm235 @
4450 rpm265 @
4250 rpm
Torque250 lb.-ft. @
2800 rpm290 lb.-ft. @
3250 rpm335 lb.-ft. @
3000 rpm405 lb.-ft. @
2750 rpm
Recom-
mended fuel87 octane 87 octane 87 octane 87 octane
Firing order1-4-2-5-3-6 1-3-7-2-
6-5-4-81-3-7-2-
6-5-4-81-6-5-10-2-
7-3-8-4-9
Spark plug
gap1.3-1.4 mm
(0.052-
0.056 inch)1.3-1.4 mm
(0.052-
0.056 inch)1.3-1.4 mm
(0.052-
0.056 inch)1.3-1.4 mm
(0.052-
0.056 inch)
Ignition
systemEDIS EDIS Coil on plug Coil on plug
Compression
ratio9.3:1 9.0:1 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner's Guide Supplementfor diesel engine information.
VEHICLE DIMENSIONS
Van/wagon models
E-150 E-250 E-350
(1) Overall height 2 054.8 mm
(80.9 in)2 118.4 mm
(83.4)2 136.1
(84.1 in)
(2) Track front/rear 1 762.8 mm (69.4 in)/ 1 701.8 mm (67.0 in)
(3) Overall width
(excluding mirrors)2 014.2 mm (79.3 in)
(4) Wheelbase 3 505 mm (138 in)
(5) Overall length Regular van, 5 379.7 mm (211.8 in)
Supervan, 5 892.8 mm (232.0 in)
Capacities and specifications
195
