headlamp FORD E150 2010 User Guide

To install the new bulb, follow the removal procedures in reverse order.

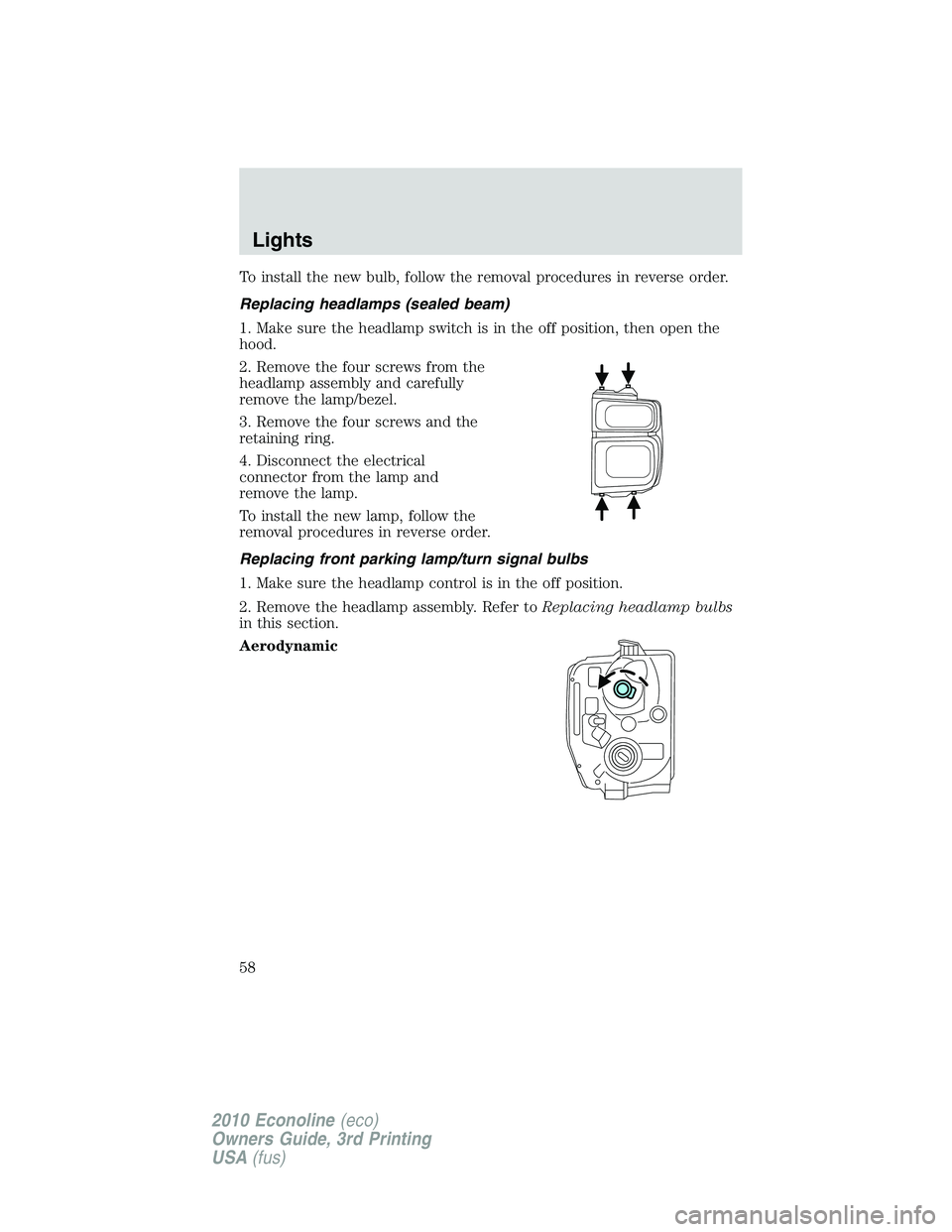

Replacing headlamps (sealed beam)
1. Make sure the headlamp switch is in the off position, then open the
hood.
2. Remove the four screws from the
headlamp assembly and carefully
remove the lamp/bezel.
3. Remove the four screws and the
retaining ring.
4. Disconnect the electrical
connector from the lamp and
remove the lamp.
To install the new lamp, follow the
removal procedures in reverse order.
Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the off position.
2. Remove the headlamp assembly. Refer toReplacing headlamp bulbs
in this section.
Aerodynamic
Lights
58
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

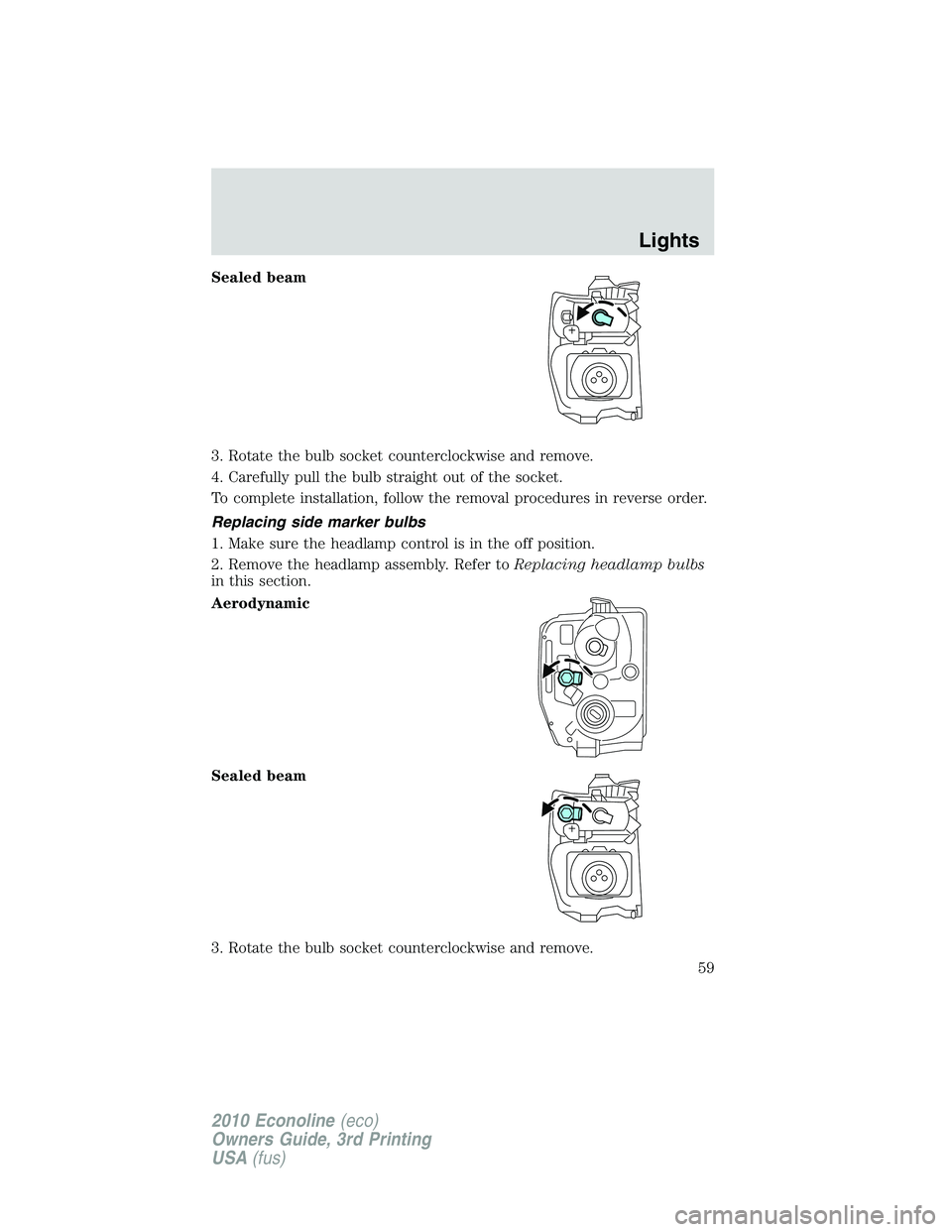

Sealed beam
3. Rotate the bulb socket counterclockwise and remove.
4. Carefully pull the bulb straight out of the socket.
To complete installation, follow the removal procedures in reverse order.
Replacing side marker bulbs
1. Make sure the headlamp control is in the off position.
2. Remove the headlamp assembly. Refer toReplacing headlamp bulbs
in this section.
Aerodynamic
Sealed beam
3. Rotate the bulb socket counterclockwise and remove.
Lights
59
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

4. Carefully pull the bulb straight out of the socket.
To complete installation, follow the removal procedures in reverse order.

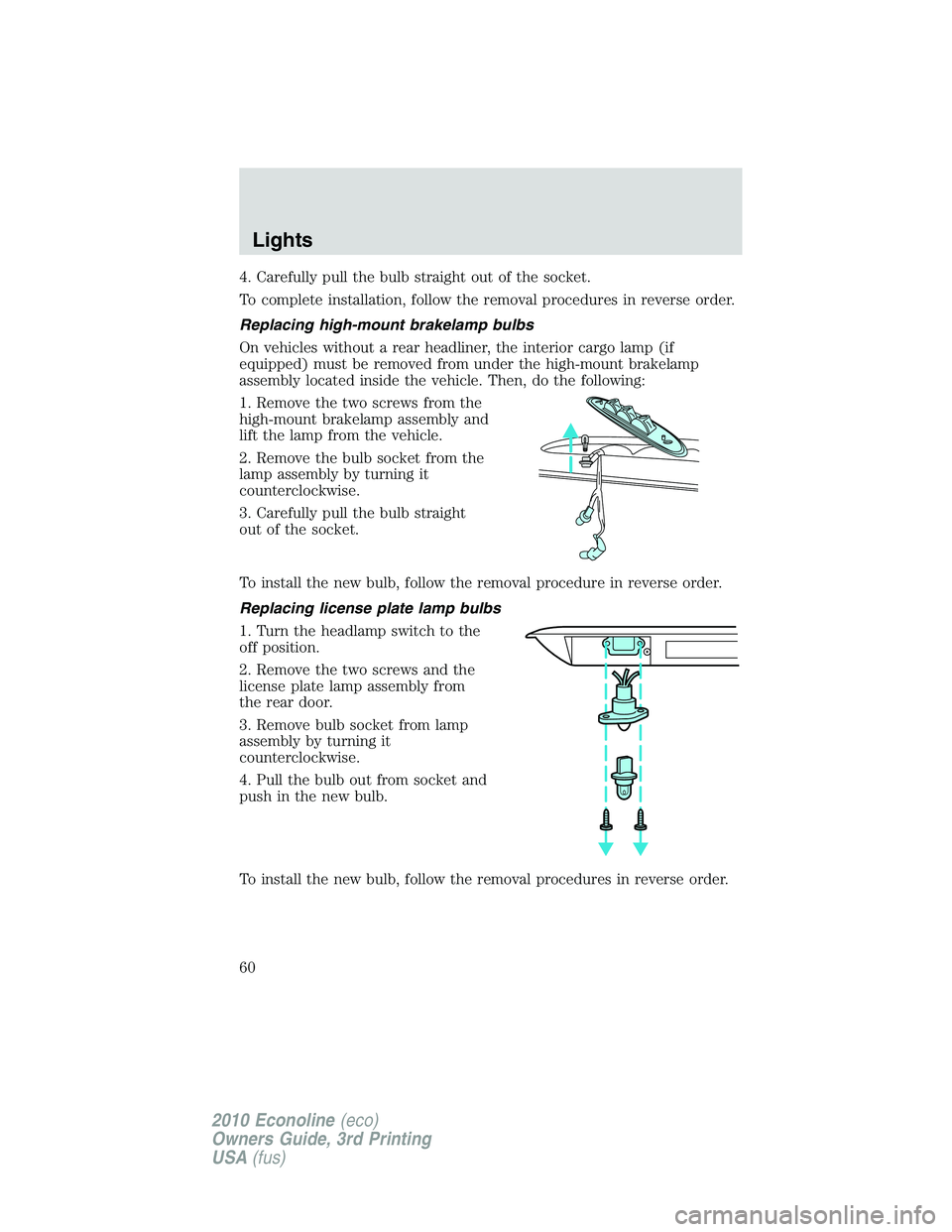

Replacing high-mount brakelamp bulbs
On vehicles without a rear headliner, the interior cargo lamp (if
equipped) must be removed from under the high-mount brakelamp
assembly located inside the vehicle. Then, do the following:
1. Remove the two screws from the
high-mount brakelamp assembly and
lift the lamp from the vehicle.
2. Remove the bulb socket from the
lamp assembly by turning it
counterclockwise.
3. Carefully pull the bulb straight
out of the socket.
To install the new bulb, follow the removal procedure in reverse order.
Replacing license plate lamp bulbs
1. Turn the headlamp switch to the
off position.
2. Remove the two screws and the
license plate lamp assembly from
the rear door.
3. Remove bulb socket from lamp
assembly by turning it
counterclockwise.
4. Pull the bulb out from socket and
push in the new bulb.
To install the new bulb, follow the removal procedures in reverse order.
Lights
60
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

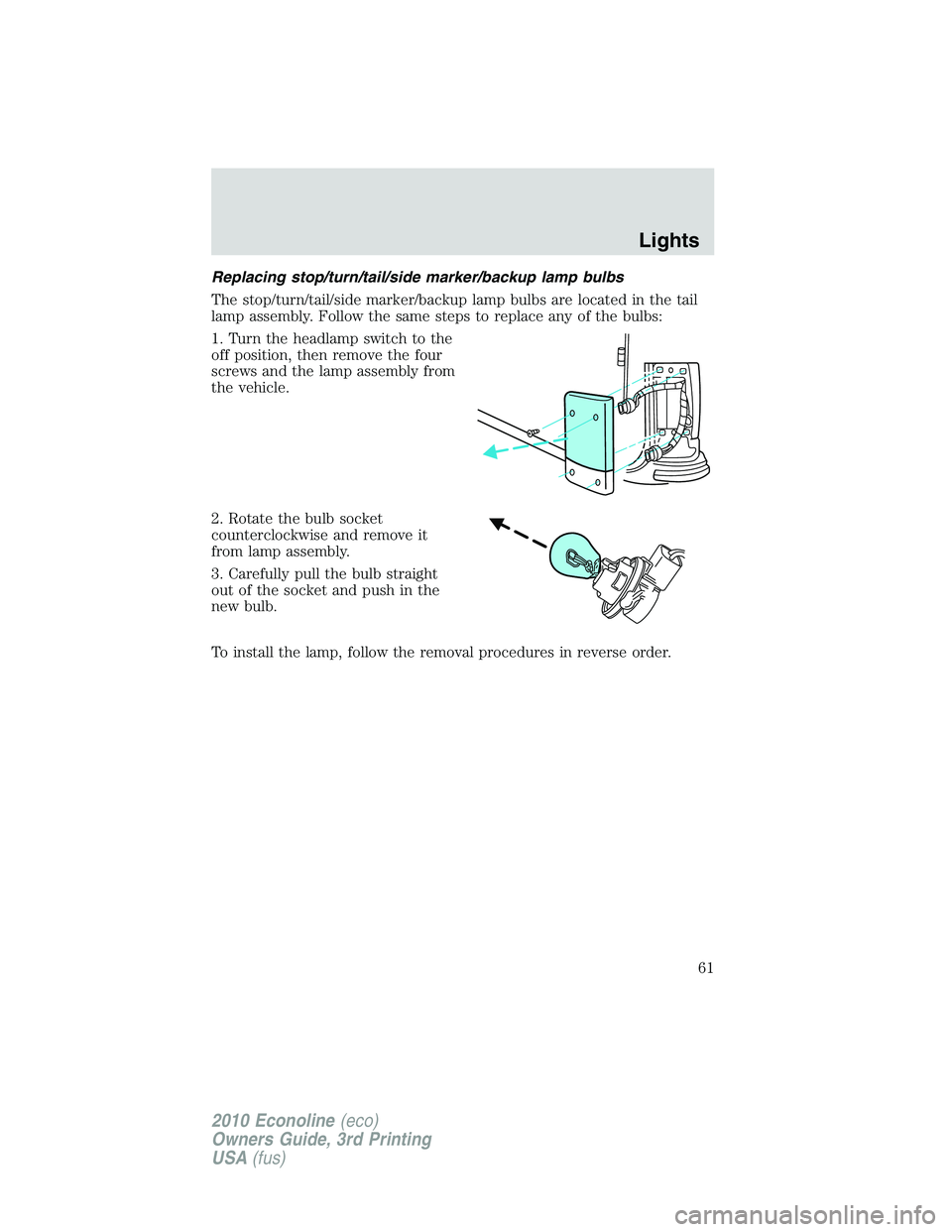

Replacing stop/turn/tail/side marker/backup lamp bulbs
The stop/turn/tail/side marker/backup lamp bulbs are located in the tail
lamp assembly. Follow the same steps to replace any of the bulbs:
1. Turn the headlamp switch to the
off position, then remove the four
screws and the lamp assembly from
the vehicle.
2. Rotate the bulb socket
counterclockwise and remove it
from lamp assembly.
3. Carefully pull the bulb straight
out of the socket and push in the
new bulb.
To install the lamp, follow the removal procedures in reverse order.
Lights
61
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

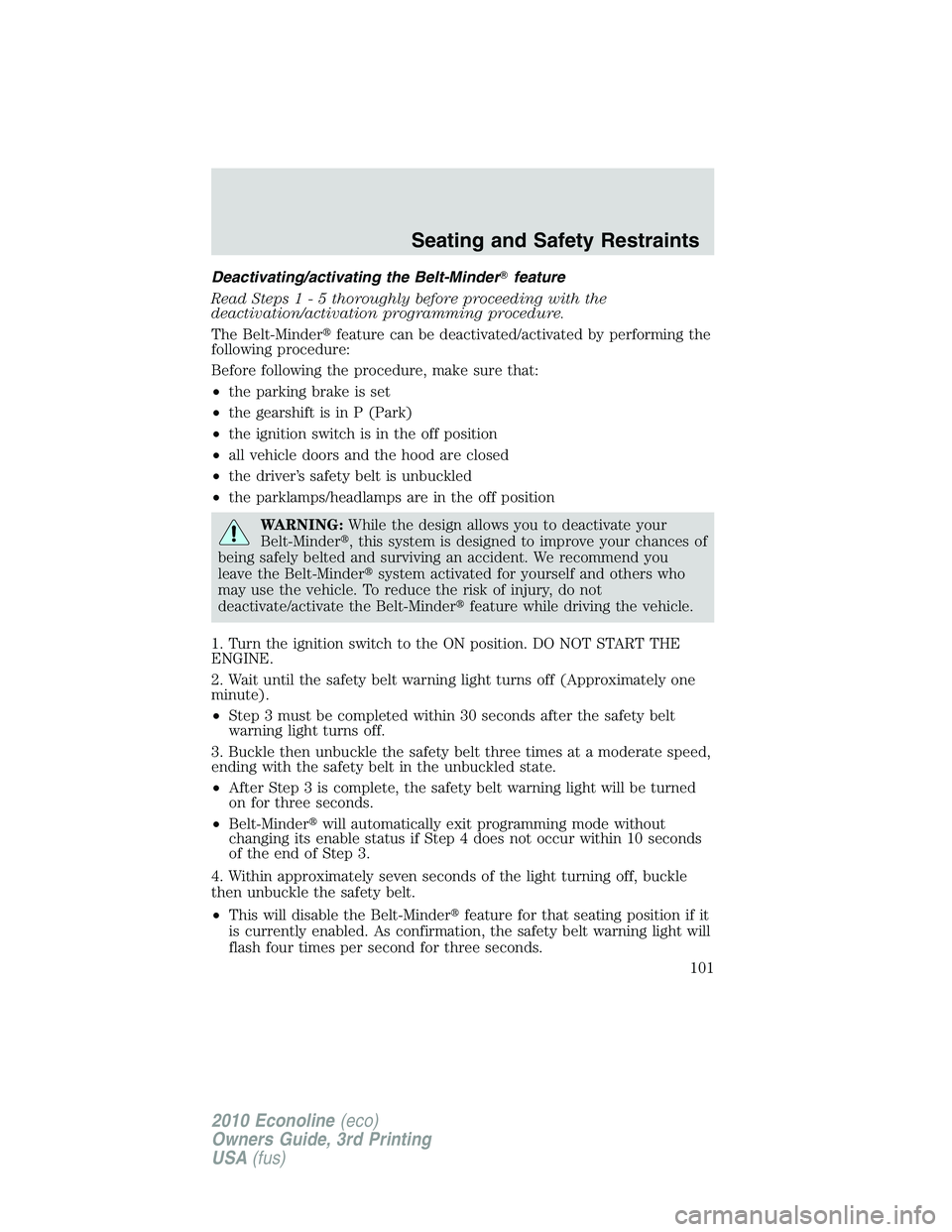

Deactivating/activating the Belt-Minderfeature
Read Steps1-5thoroughly before proceeding with the
deactivation/activation programming procedure.
The Belt-Minderfeature can be deactivated/activated by performing the
following procedure:
Before following the procedure, make sure that:
•the parking brake is set
•the gearshift is in P (Park)
•the ignition switch is in the off position
•all vehicle doors and the hood are closed
•the driver’s safety belt is unbuckled
•the parklamps/headlamps are in the off position
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you
leave the Belt-Mindersystem activated for yourself and others who
may use the vehicle. To reduce the risk of injury, do not
deactivate/activate the Belt-Minderfeature while driving the vehicle.
1. Turn the ignition switch to the ON position. DO NOT START THE
ENGINE.
2. Wait until the safety belt warning light turns off (Approximately one
minute).
•Step 3 must be completed within 30 seconds after the safety belt
warning light turns off.
3. Buckle then unbuckle the safety belt three times at a moderate speed,
ending with the safety belt in the unbuckled state.
•After Step 3 is complete, the safety belt warning light will be turned
on for three seconds.
•Belt-Minderwill automatically exit programming mode without
changing its enable status if Step 4 does not occur within 10 seconds
of the end of Step 3.
4. Within approximately seven seconds of the light turning off, buckle
then unbuckle the safety belt.
•This will disable the Belt-Minderfeature for that seating position if it
is currently enabled. As confirmation, the safety belt warning light will
flash four times per second for three seconds.
Seating and Safety Restraints
101
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

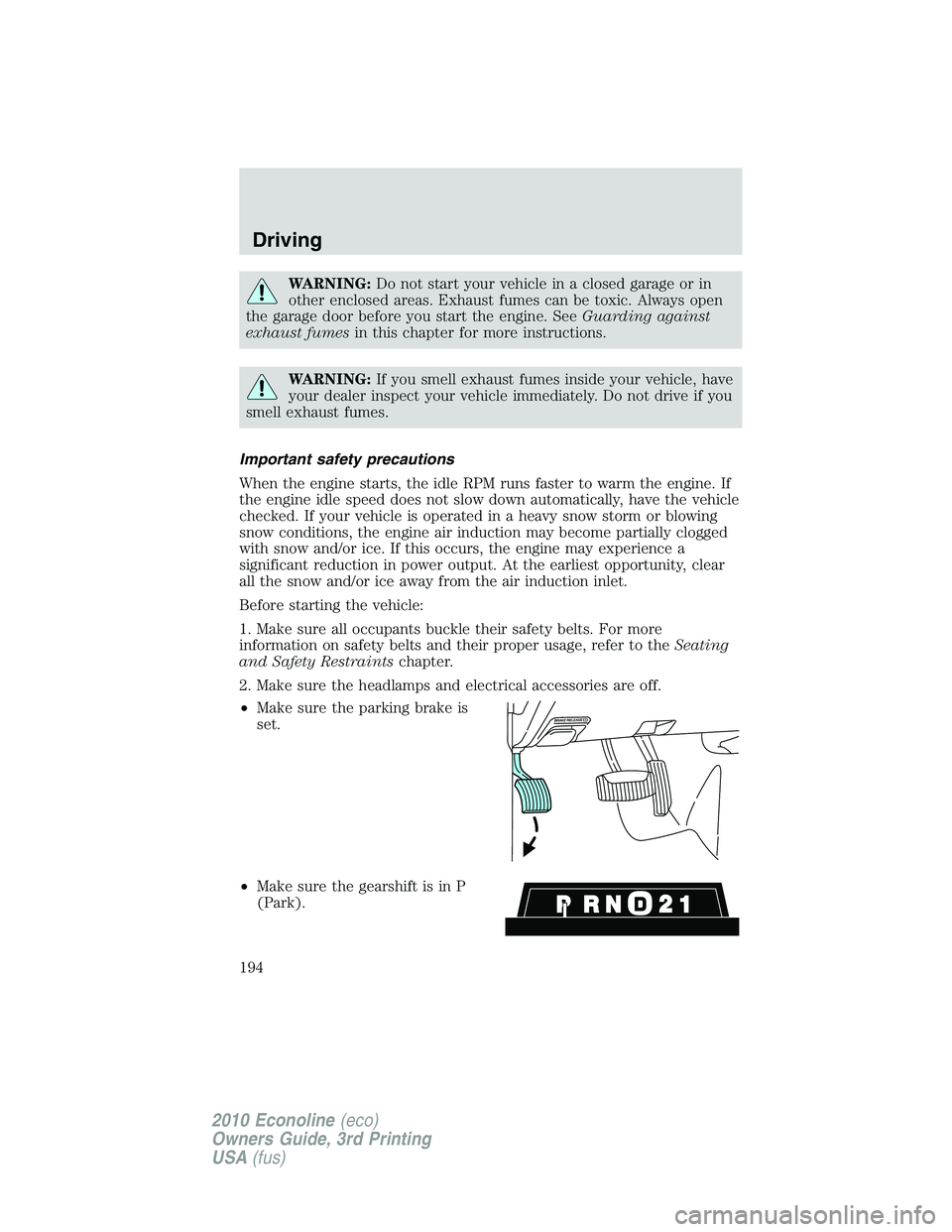

WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. SeeGuarding against
exhaust fumesin this chapter for more instructions.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked. If your vehicle is operated in a heavy snow storm or blowing
snow conditions, the engine air induction may become partially clogged
with snow and/or ice. If this occurs, the engine may experience a
significant reduction in power output. At the earliest opportunity, clear
all the snow and/or ice away from the air induction inlet.
Before starting the vehicle:
1. Make sure all occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
Driving
194
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

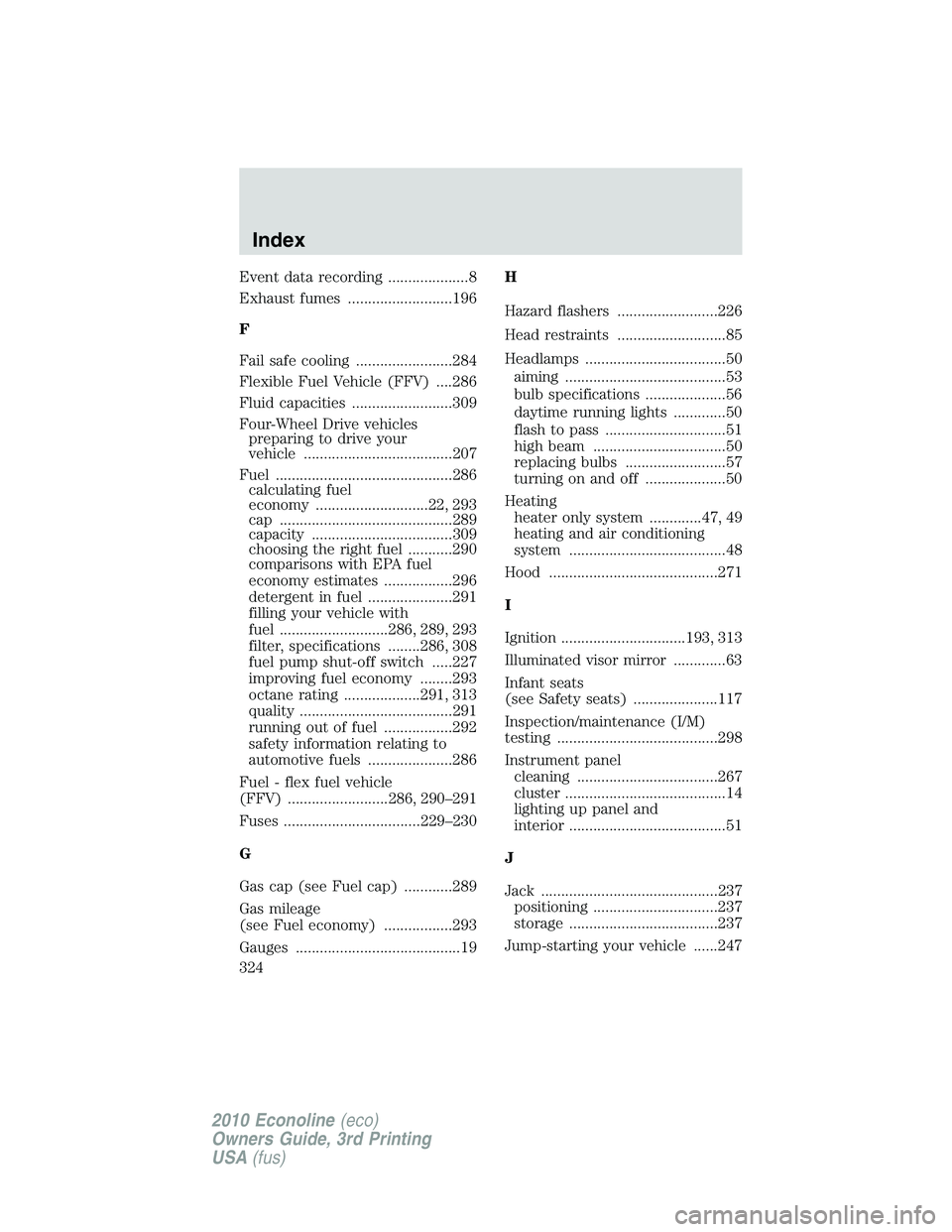

Event data recording ....................8
Exhaust fumes ..........................196
F
Fail safe cooling ........................284
Flexible Fuel Vehicle (FFV) ....286
Fluid capacities .........................309
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................207
Fuel ............................................286
calculating fuel
economy ............................22, 293
cap ...........................................289
capacity ...................................309
choosing the right fuel ...........290
comparisons with EPA fuel
economy estimates .................296
detergent in fuel .....................291
filling your vehicle with
fuel ...........................286, 289, 293
filter, specifications ........286, 308
fuel pump shut-off switch .....227
improving fuel economy ........293
octane rating ...................291, 313
quality ......................................291
running out of fuel .................292
safety information relating to
automotive fuels .....................286
Fuel - flex fuel vehicle
(FFV) .........................286, 290–291
Fuses ..................................229–230
G
Gas cap (see Fuel cap) ............289
Gas mileage
(see Fuel economy) .................293
Gauges .........................................19H
Hazard flashers .........................226
Head restraints ...........................85
Headlamps ...................................50
aiming ........................................53
bulb specifications ....................56
daytime running lights .............50
flash to pass ..............................51
high beam .................................50
replacing bulbs .........................57
turning on and off ....................50
Heating
heater only system .............47, 49
heating and air conditioning
system .......................................48
Hood ..........................................271
I
Ignition ...............................193, 313
Illuminated visor mirror .............63
Infant seats
(see Safety seats) .....................117
Inspection/maintenance (I/M)
testing ........................................298
Instrument panel
cleaning ...................................267
cluster ........................................14
lighting up panel and
interior .......................................51
J
Jack ............................................237
positioning ...............................237
storage .....................................237
Jump-starting your vehicle ......247
Index
324
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

K
Keyless entry system
autolock .....................................72
Keys .............................................83
positions of the ignition .........193
L
Lamps
bulb replacement
specifications chart ..................56
daytime running light ...............50
headlamps .................................50
headlamps, flash to pass ..........51
instrument panel, dimming .....51
interior lamps ...........................54
replacing bulbs .........................57
LATCH anchors .........................121
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........199
Load limits .................................167
Loading instructions .................174
Locks
autolock .....................................72
doors ..........................................72
Lubricant specifications ...........309
Lug nuts ....................................246
Lumbar support, seats ...............87
M
Message center ...........................21
english/metric button ...............26
warning messages .....................26
Mirrors ...................................65–66
automatic dimming rearview
mirror ........................................65
fold away ...................................67side view mirrors (power) .......66
Motorcraftparts ..............269, 308
N
Navigation system .......................46
O
Octane rating ............................291
Oil (see Engine oil) ..................274
P
Parking brake ............................199
Parts
(see Motorcraftparts) ...........308
Power distribution box
(see Fuses) ...............................232
Power door locks ........................72
Power mirrors .............................66
Power point .................................63
Power steering ..........................206
fluid, checking and adding ....299
fluid, refill capacity ................309
fluid, specifications .................309
Power Windows ...........................64
Preparing to drive your
vehicle ........................................207
R
Radio ......................................29, 31
Rear-view camera system .........220
Recommendations for
attaching safety restraints for
children ......................................115
Relays ........................................229
Index
325
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
