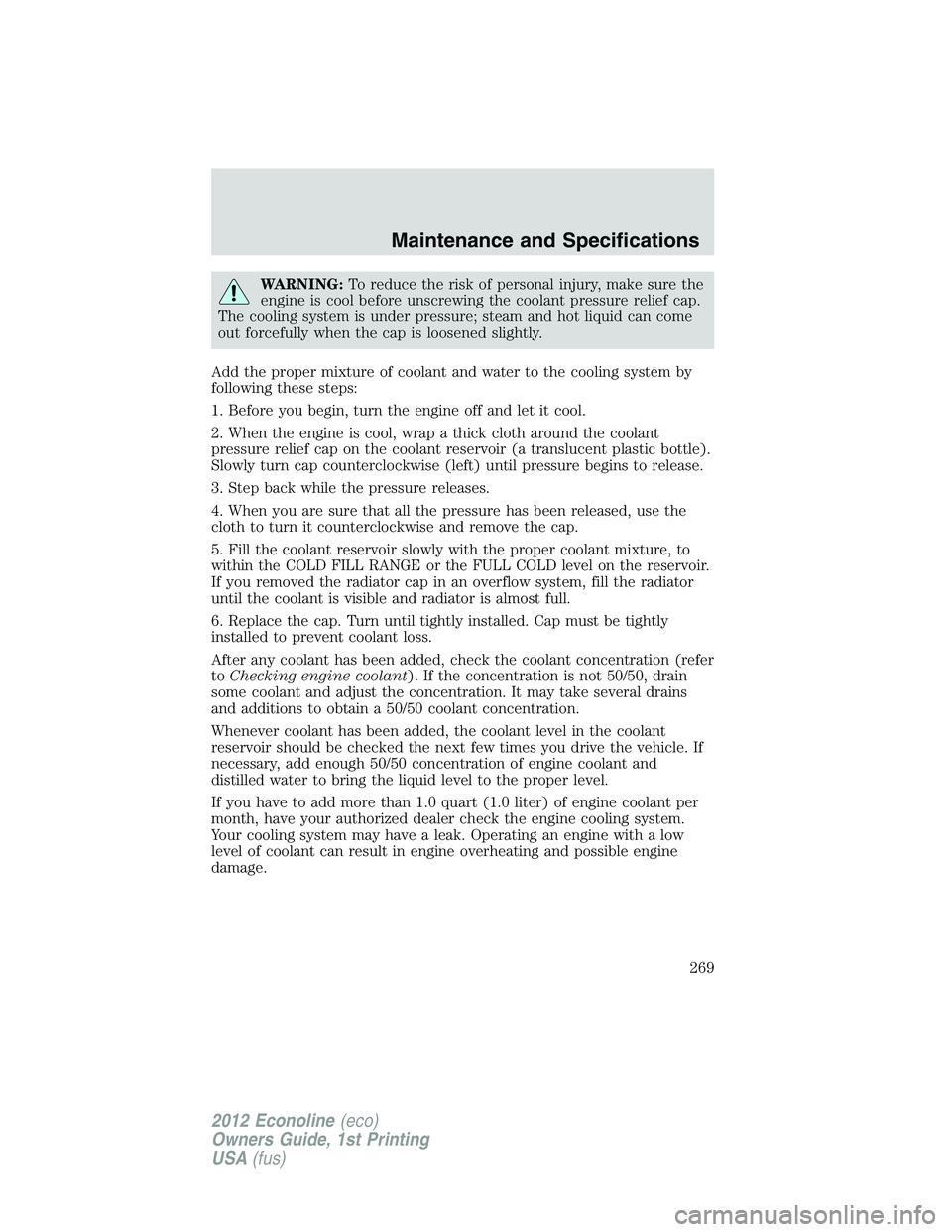

WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
Add the proper mixture of coolant and water to the cooling system by
following these steps:
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the COLD FILL RANGE or the FULL COLD level on the reservoir.
If you removed the radiator cap in an overflow system, fill the radiator
until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50, drain
some coolant and adjust the concentration. It may take several drains
and additions to obtain a 50/50 coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Maintenance and Specifications
269
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

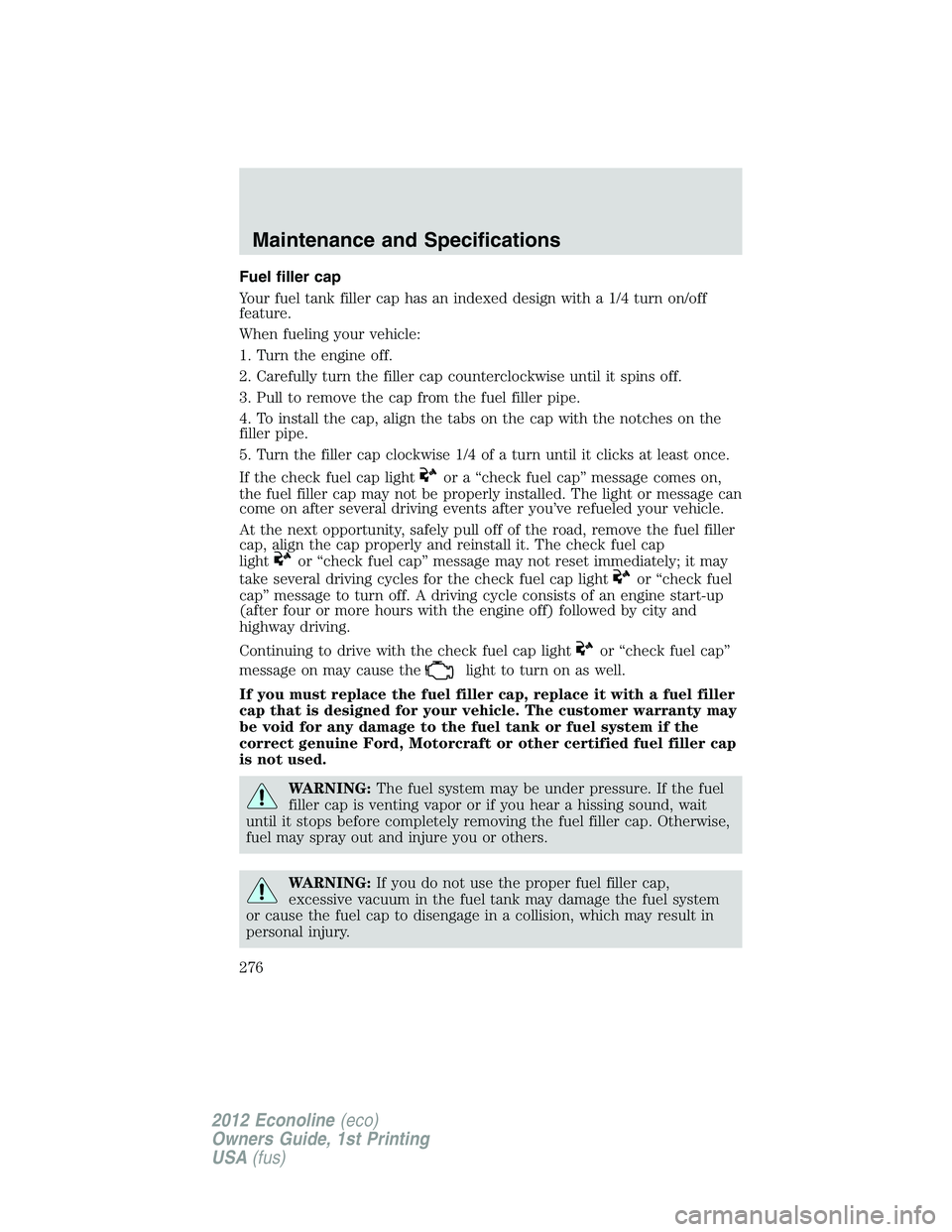

Fuel filler cap
Your fuel tank filler cap has an indexed design with a 1/4 turn on/off
feature.
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise 1/4 of a turn until it clicks at least once.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or “check fuel cap” message may not reset immediately; it may
take several driving cycles for the check fuel cap light
or “check fuel
cap” message to turn off. A driving cycle consists of an engine start-up
(after four or more hours with the engine off) followed by city and
highway driving.
Continuing to drive with the check fuel cap light
or “check fuel cap”
message on may cause the
light to turn on as well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap,
excessive vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a collision, which may result in
personal injury.
Maintenance and Specifications
276
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

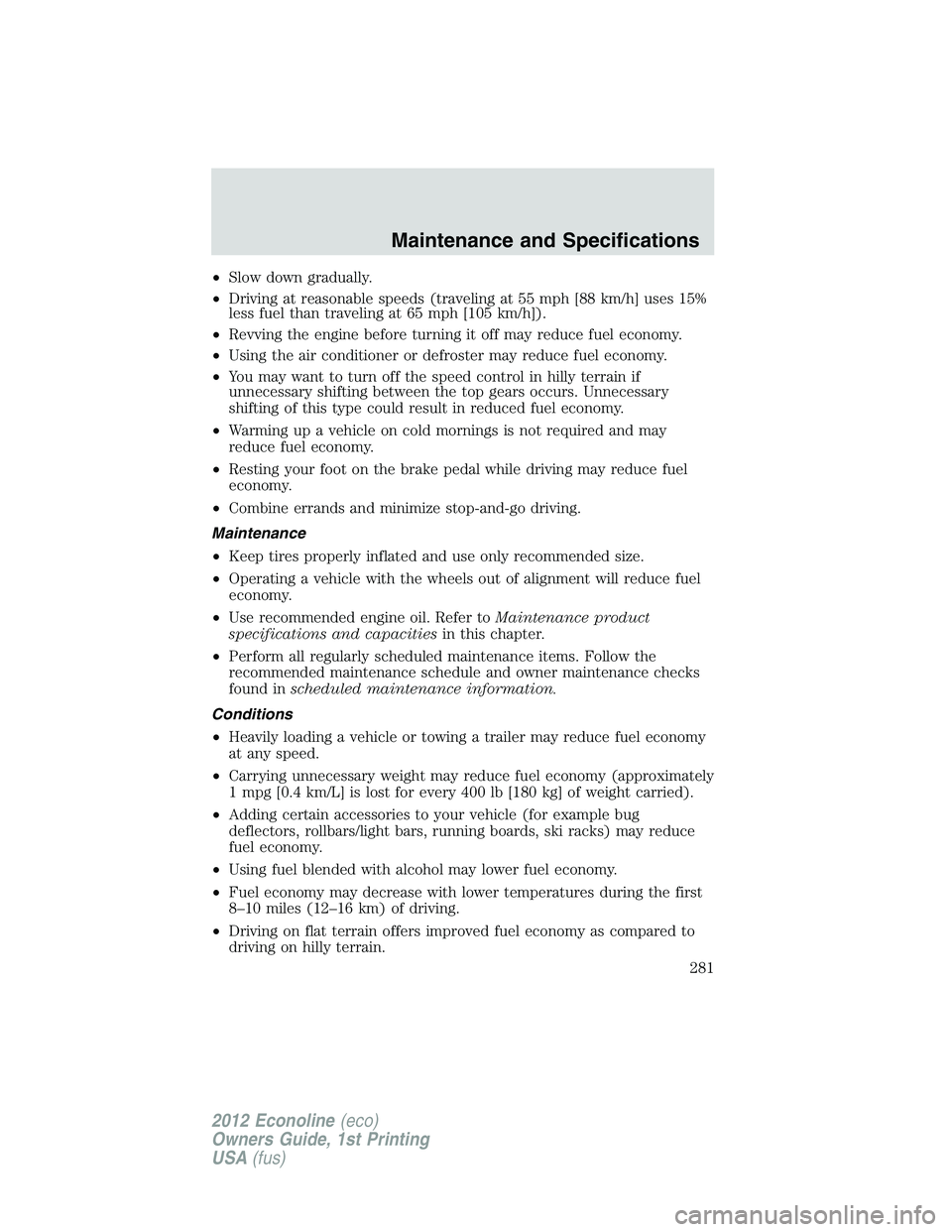

•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski racks) may reduce
fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
Maintenance and Specifications
281
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

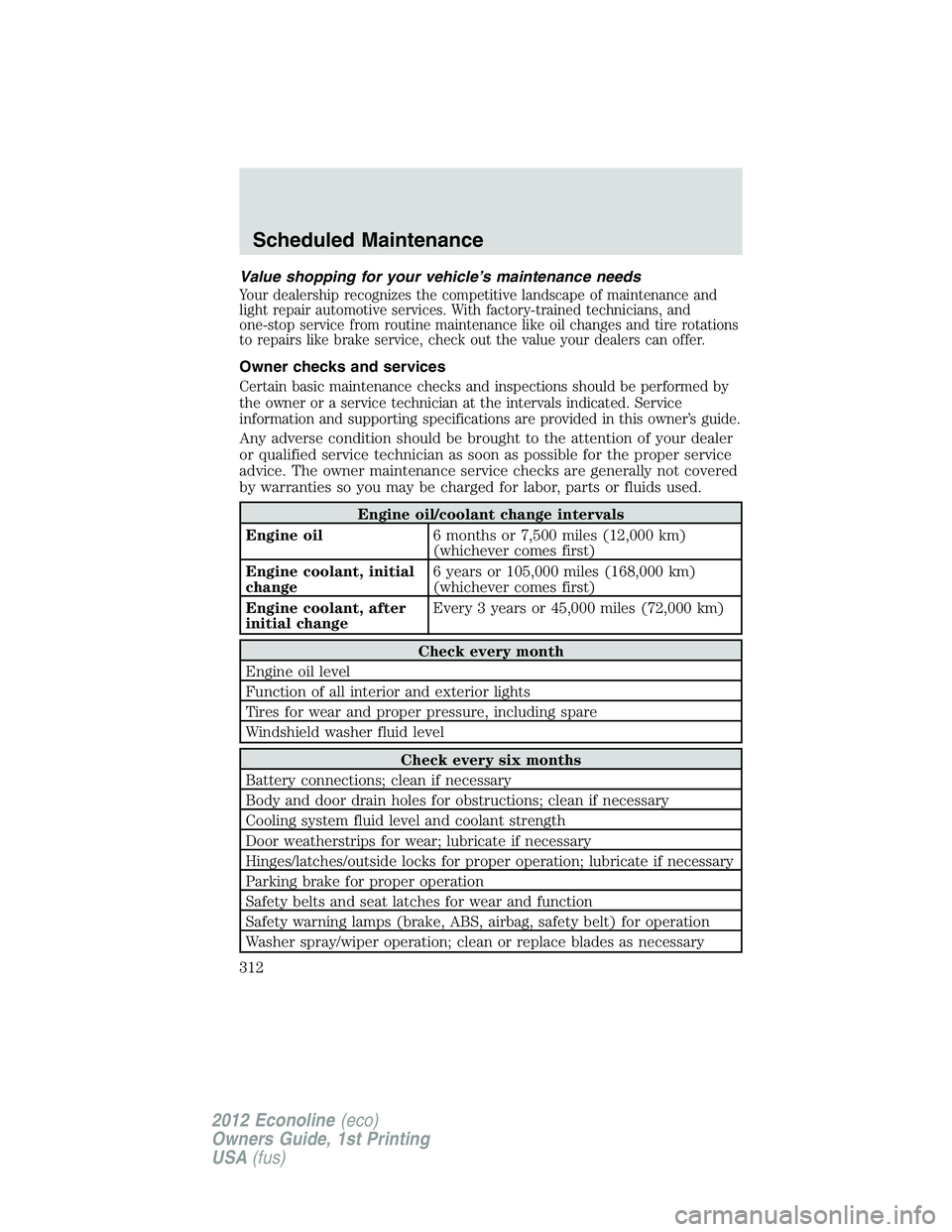

Value shopping for your vehicle’s maintenance needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire rotations
to repairs like brake service, check out the value your dealers can offer.
Owner checks and services
Certain basic maintenance checks and inspections should be performed by
the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Engine oil/coolant change intervals
Engine oil6 months or 7,500 miles (12,000 km)
(whichever comes first)
Engine coolant, initial
change6 years or 105,000 miles (168,000 km)
(whichever comes first)
Engine coolant, after
initial changeEvery 3 years or 45,000 miles (72,000 km)
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance
312
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

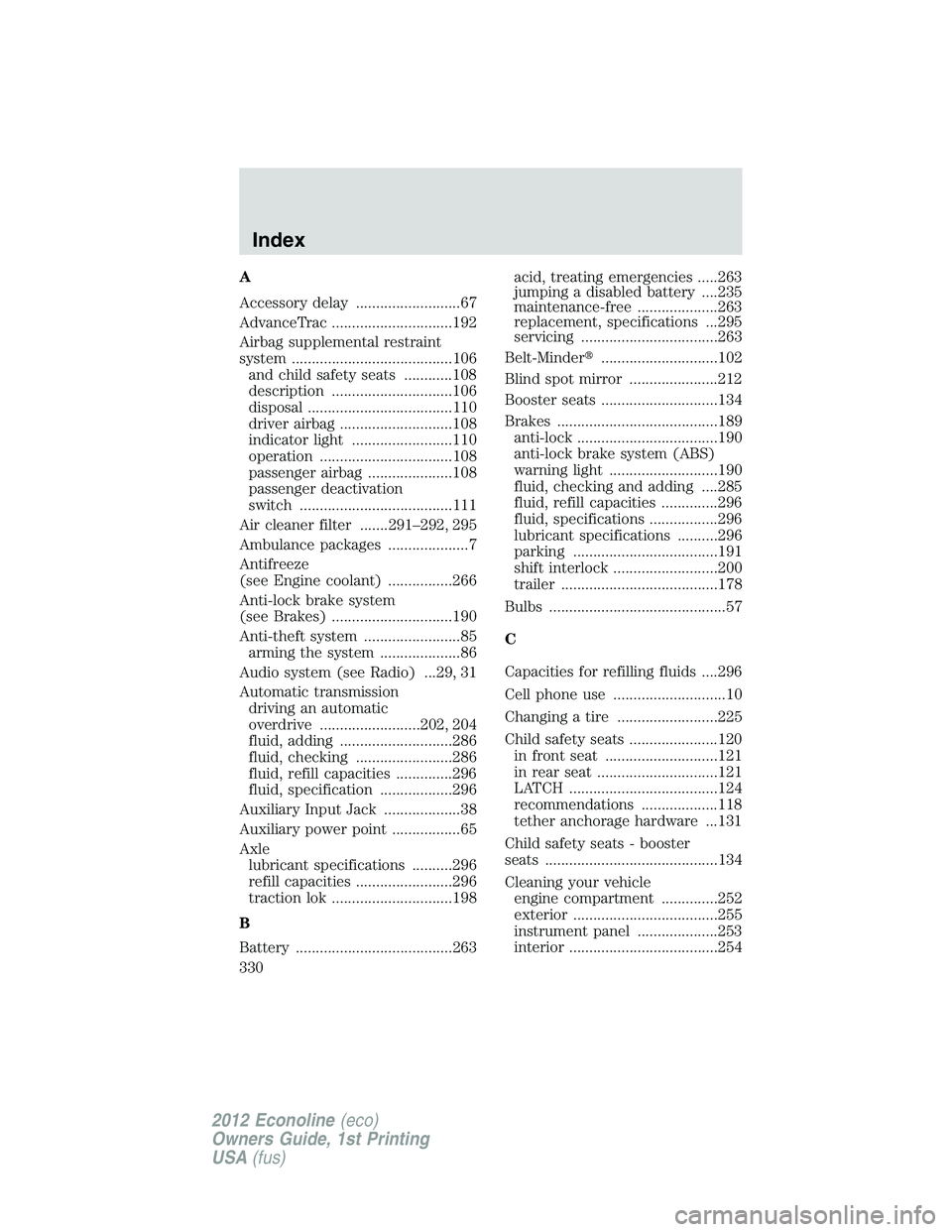

A
Accessory delay ..........................67
AdvanceTrac ..............................192
Airbag supplemental restraint
system ........................................106
and child safety seats ............108
description ..............................106
disposal ....................................110
driver airbag ............................108
indicator light .........................110
operation .................................108
passenger airbag .....................108
passenger deactivation
switch ......................................111
Air cleaner filter .......291–292, 295
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................266
Anti-lock brake system
(see Brakes) ..............................190
Anti-theft system ........................85
arming the system ....................86
Audio system (see Radio) ...29, 31
Automatic transmission
driving an automatic
overdrive .........................202, 204
fluid, adding ............................286
fluid, checking ........................286
fluid, refill capacities ..............296
fluid, specification ..................296
Auxiliary Input Jack ...................38
Auxiliary power point .................65
Axle
lubricant specifications ..........296
refill capacities ........................296
traction lok ..............................198
B
Battery .......................................263acid, treating emergencies .....263
jumping a disabled battery ....235
maintenance-free ....................263
replacement, specifications ...295
servicing ..................................263
Belt-Minder.............................102
Blind spot mirror ......................212
Booster seats .............................134
Brakes ........................................189
anti-lock ...................................190
anti-lock brake system (ABS)
warning light ...........................190
fluid, checking and adding ....285
fluid, refill capacities ..............296
fluid, specifications .................296
lubricant specifications ..........296
parking ....................................191
shift interlock ..........................200
trailer .......................................178
Bulbs ............................................57
C
Capacities for refilling fluids ....296
Cell phone use ............................10
Changing a tire .........................225
Child safety seats ......................120
in front seat ............................121
in rear seat ..............................121
LATCH .....................................124
recommendations ...................118
tether anchorage hardware ...131
Child safety seats - booster
seats ...........................................134
Cleaning your vehicle
engine compartment ..............252
exterior ....................................255
instrument panel ....................253
interior .....................................254
Index
330
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

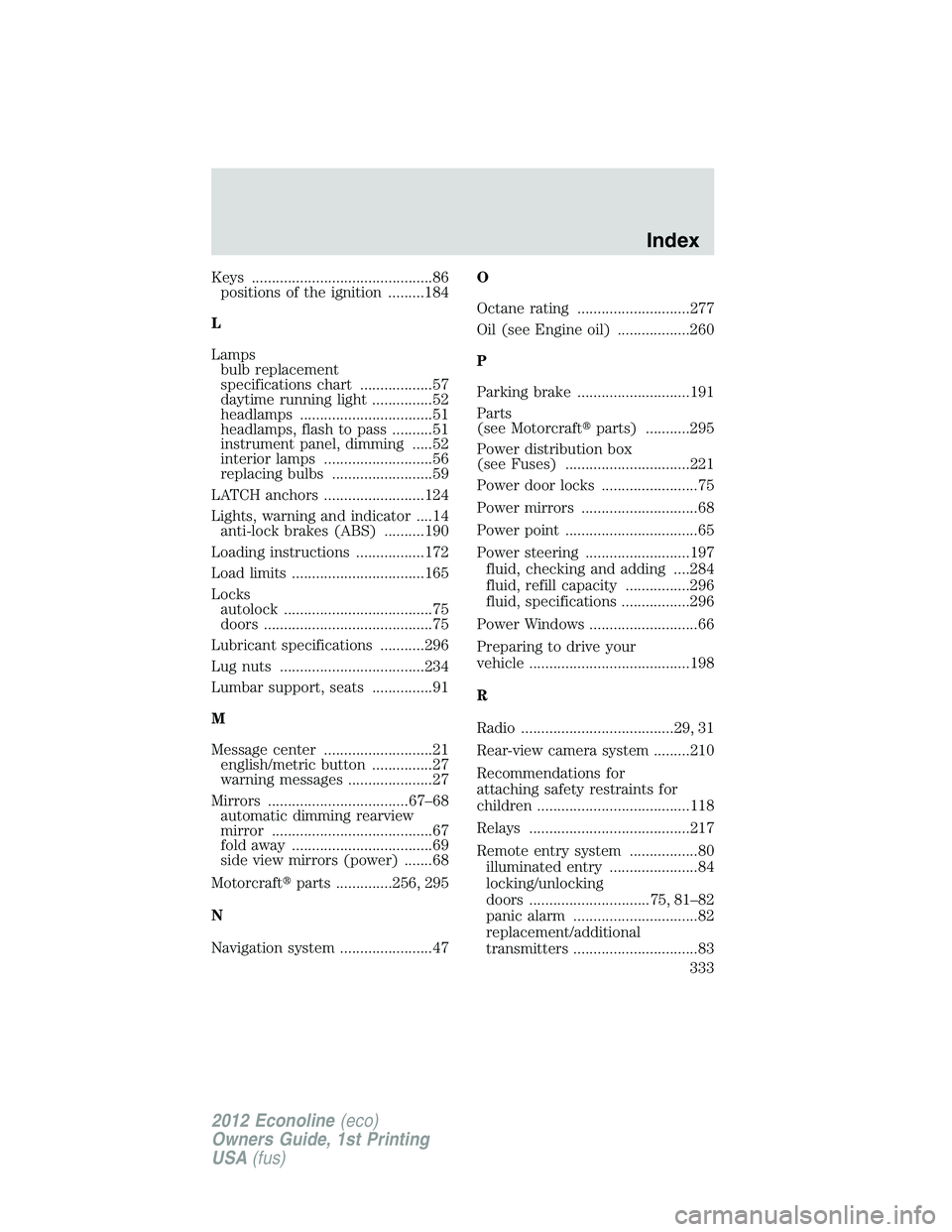

Keys .............................................86
positions of the ignition .........184
L
Lamps
bulb replacement
specifications chart ..................57
daytime running light ...............52
headlamps .................................51
headlamps, flash to pass ..........51
instrument panel, dimming .....52
interior lamps ...........................56
replacing bulbs .........................59
LATCH anchors .........................124
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........190
Loading instructions .................172
Load limits .................................165
Locks
autolock .....................................75
doors ..........................................75
Lubricant specifications ...........296
Lug nuts ....................................234
Lumbar support, seats ...............91
M
Message center ...........................21
english/metric button ...............27
warning messages .....................27
Mirrors ...................................67–68
automatic dimming rearview
mirror ........................................67
fold away ...................................69
side view mirrors (power) .......68
Motorcraftparts ..............256, 295
N
Navigation system .......................47O
Octane rating ............................277
Oil (see Engine oil) ..................260
P
Parking brake ............................191
Parts
(see Motorcraftparts) ...........295
Power distribution box
(see Fuses) ...............................221
Power door locks ........................75
Power mirrors .............................68
Power point .................................65
Power steering ..........................197
fluid, checking and adding ....284
fluid, refill capacity ................296
fluid, specifications .................296
Power Windows ...........................66
Preparing to drive your
vehicle ........................................198
R
Radio ......................................29, 31
Rear-view camera system .........210
Recommendations for
attaching safety restraints for
children ......................................118
Relays ........................................217
Remote entry system .................80
illuminated entry ......................84
locking/unlocking
doors ..............................75, 81–82
panic alarm ...............................82
replacement/additional
transmitters ...............................83
Index
333
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)
