automatic transmission FORD E250 2010 Owner's Manual

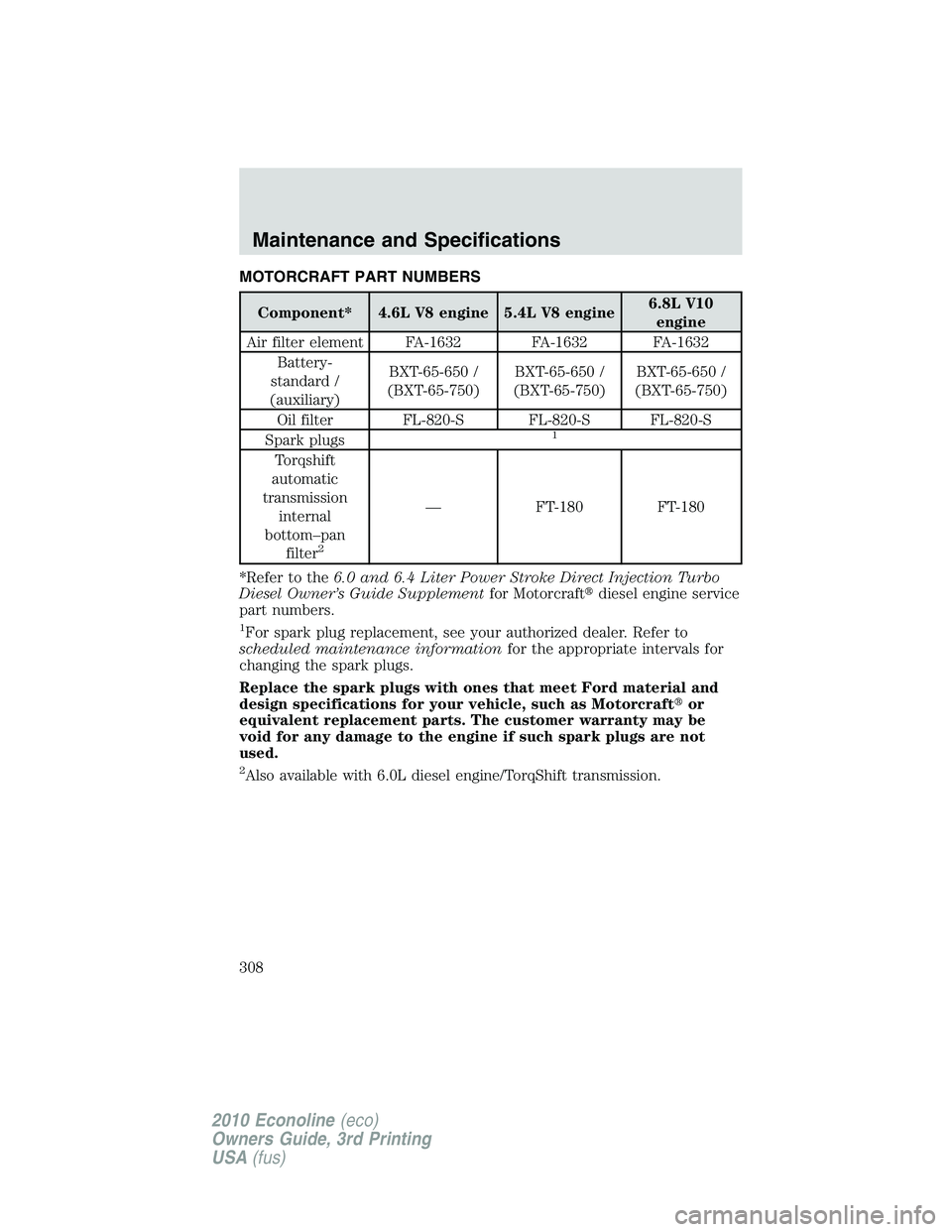

MOTORCRAFT PART NUMBERS
Component* 4.6L V8 engine 5.4L V8 engine6.8L V10
engine
Air filter element FA-1632 FA-1632 FA-1632
Battery-
standard /
(auxiliary)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)BXT-65-650 /
(BXT-65-750)
Oil filter FL-820-S FL-820-S FL-820-S
Spark plugs
1
Torqshift
automatic
transmission
internal
bottom–pan
filter
2
— FT-180 FT-180
*Refer to the6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplementfor Motorcraftdiesel engine service
part numbers.
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2Also available with 6.0L diesel engine/TorqShift transmission.
Maintenance and Specifications
308
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Cooling system stop leak pellets —MotorcraftCooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Engine oil6.0 quarts
(5.7L)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic
Motor Oil (Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A with
API Certification Mark
Engine oil-diesel engineRefer to the6.0L and 6.4L Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Power steering fluidKeep in FULL
range on
dipstickMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic transmission fluid
(4R75E)13.9 quarts
(13.1L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Automatic transmission fluid
TorqShift (5–speed)18.8 quarts
(17.7L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Limited Slip axle fluid
M60 (M248)
E-350 with 4.10 axle ratio5.9 pints
(2.8L)
5,7
SAE 75W-140
Synthetic Rear Axle
Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
Maintenance and Specifications
310
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and extended
length vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 6 oz. (177 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
Maintenance and Specifications
312
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on the Safety Compliance Certification
Label. The following table tells you which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
Five-speed automatic TorqShift with Tow/Haul T
Five-speed automatic 5R110W-Hi/Torque B
Maintenance and Specifications
316
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

A
Accessory delay ..........................65
AdvanceTrac ..............................201
Air cleaner filter ...............306–308
Airbag supplemental restraint
system ................................102–103
and child safety seats ............104
description ..............................103
disposal ....................................107
driver airbag ............................105
indicator light .........................106
operation .................................105
passenger airbag .....................105
passenger deactivation
switch ......................................108
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................280
Anti-lock brake system
(see Brakes) ......................198–199
Anti-theft system ........................81
arming the system ....................82
Audio system (see Radio) ...29, 31
Automatic transmission
driving an automatic
overdrive .................210, 212, 215
fluid, adding ............................301
fluid, checking ........................301
fluid, refill capacities ..............309
fluid, specification ..................309
Auxiliary Input Jack ...................38
Auxiliary power point .................63
Axle
lubricant specifications ..........309
refill capacities ........................309
traction lok ..............................206
B
Battery .......................................277acid, treating emergencies .....277
jumping a disabled battery ....247
maintenance-free ....................277
replacement, specifications ...308
servicing ..................................277
Belt-Minder...............................98
Blind Spot Spotter Mirror ........222
Booster seats .............................130
Brakes ........................................198
anti-lock ...........................198–199
anti-lock brake system (ABS)
warning light ...........................199
fluid, checking and adding ....300
fluid, refill capacities ..............309
fluid, specifications .................309
lubricant specifications ..........309
parking ....................................199
shift interlock ..........................209
trailer .......................................186
Bulbs ............................................55
C
Capacities for refilling fluids ....309
Cell phone use ............................10
Changing a tire .........................237
Child safety seats ......................117
in front seat ............................117
in rear seat ..............................117
LATCH .....................................121
recommendations ...................115
tether anchorage hardware ...127
Child safety seats - booster
seats ...........................................130
Cleaning your vehicle
engine compartment ..............265
exterior ....................................268
instrument panel ....................267
interior .....................................267
Index
322
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

plastic parts ............................266
safety belts ..............................267
washing ....................................263
waxing .....................................264
wheels ......................................264
wiper blades ............................266
Climate control (see Air
conditioning or Heating)
......47–49
Clock adjust
AM/FM Stereo
...........................30
AM/FM/CD
.................................32
Compass, electronic
....................26
calibration
.................................26
set zone adjustment
.................26
Controls
power seat
.................................87
steering column
........................69
Coolant
checking and adding
..............280
refill capacities
................283, 309
specifications
..........................309
Cruise control
(see Speed control)
....................68
Customer Assistance
................225
Ford Extended Service
Plan
..........................................319
Getting assistance outside the
U.S. and Canada
.....................260
Getting roadside assistance
...225
Getting the service you
need
.........................................255
Ordering additional owner’s
literature
.................................261
Utilizing the
Mediation/Arbitration
Program
...................................259D
Daytime running lamps
(see Lamps) ................................50
Dipstick
automatic transmission
fluid ..........................................301
engine oil .................................274
Driveline universal joint and
slip yoke ....................................300
Driving under special
conditions
through water .........................224
E
Electronic message center .........21
Emergencies, roadside
jump-starting ..........................247
Emergency Flashers .................226
Emission control system ..........296
Engine ........................................313
cleaning ...................................265
coolant .....................................280
diesel ...........................................6
fail-safe cooling .......................284
idle speed control ...................277
lubrication specifications .......309
refill capacities ........................309
service points ..................272–273
starting after a collision .........227
Engine block heater .................196
Engine oil ..................................274
checking and adding ..............274
dipstick ....................................274
filter, specifications ........276, 308
recommendations ...................276
refill capacities ........................309
specifications ..........................309
Index
323
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)

safety practices .......................145
sidewall information ...............148
snow tires and chains ............166
spare tire .........................238–239
terminology .............................137
tire grades ...............................137
treadwear ........................136, 143
Towing .......................................174
recreational towing .................192
Trailer Brake
Controller-Integrated ..............186
trailer towing ..........................174
wrecker ....................................253
Traction control ........................200
Traction-lok rear axle ...............206
Trailer Brake
Controller-Integrated ................186
Transmission .............................210
brake-shift interlock (BSI) ....209
fluid, checking and adding
(automatic) .............................301
fluid, refill capacities ..............309
lubricant specifications ..........309
Turn signal ..................................54U
Upfitter controls .........................70
USB port ......................................40
V
Vehicle loading ..........................167
Ventilating your vehicle ...........196
W
Warning lights (see Lights) .......14
Washer fluid ..............................273
Water, Driving through .............224
Windows
power .........................................64
Windshield washer fluid and
wipers ..........................................62
checking and adding fluid .....273
replacing wiper blades ...........273
Wrecker towing .........................253
Index
327
2010 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
