FORD E450 2006 Owners Manual

Cutaway/commercial stripped chassis models
E-350 – inches (mm) E-450 – inches (mm)
(1) Overall height Refer to Body Builder for specifications.
(2) Track front/rearCutaway:
69.4 (1763)
SRW: 72.1 (1831)
DRW: 73.2 (1860)
Stripped Chassis:
69.4 (1763)
SRW: 72.1 (1831.4)
DRW: 73.2 (1859)69.4 (1763)/
77.7 (1974)
(3) Overall width Refer to Body Builder for specifications.
(4) Wheelbase 138.0 (3505)
158.0 (4012.3)
176.0 (4470)158.0 (4012.3)
176.0 (4470)
(5) Overall length Refer to Body Builder for specifications.
4
5
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
241

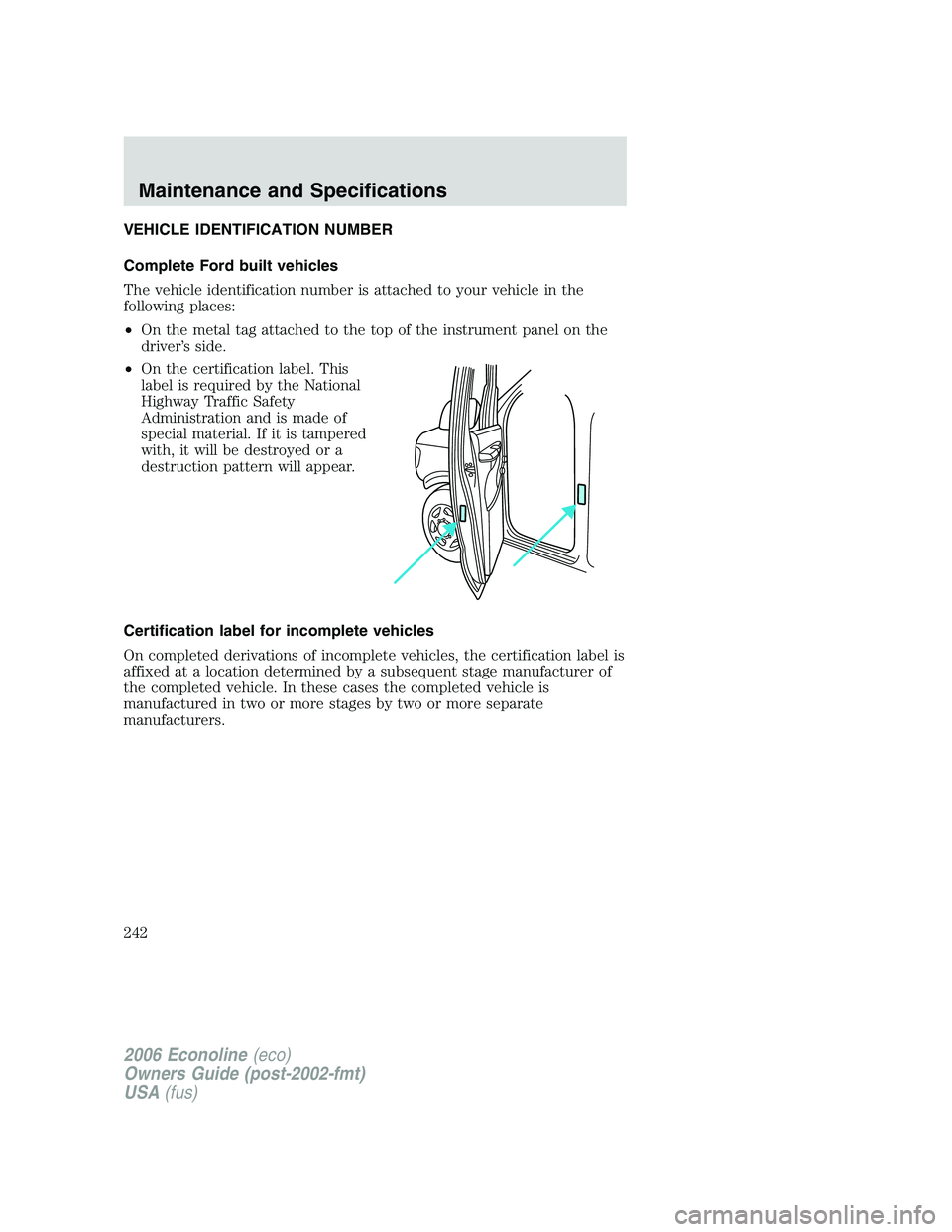

VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•On the metal tag attached to the top of the instrument panel on the
driver’s side.
•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
242

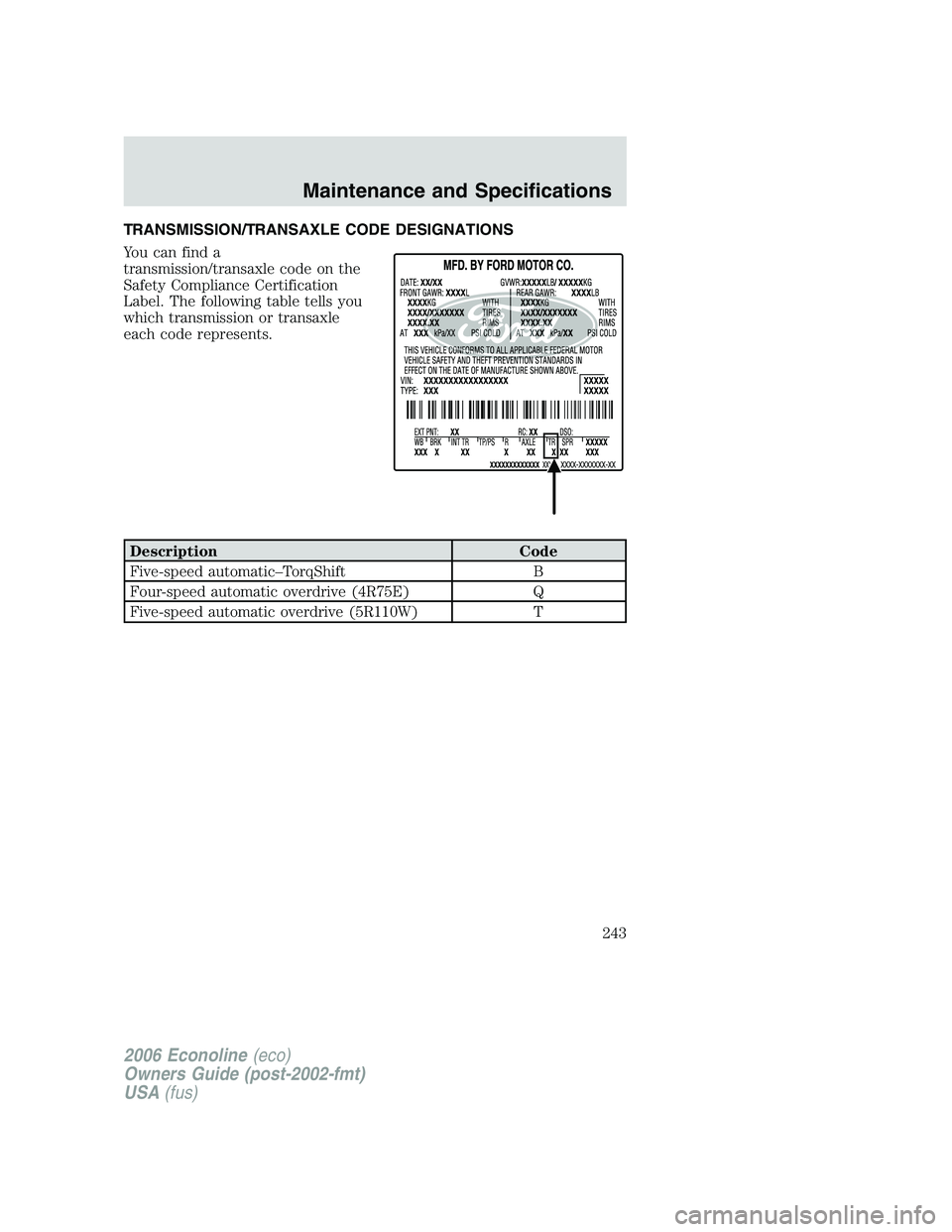

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic–TorqShift B
Four-speed automatic overdrive (4R75E) Q
Five-speed automatic overdrive (5R110W) T
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
243

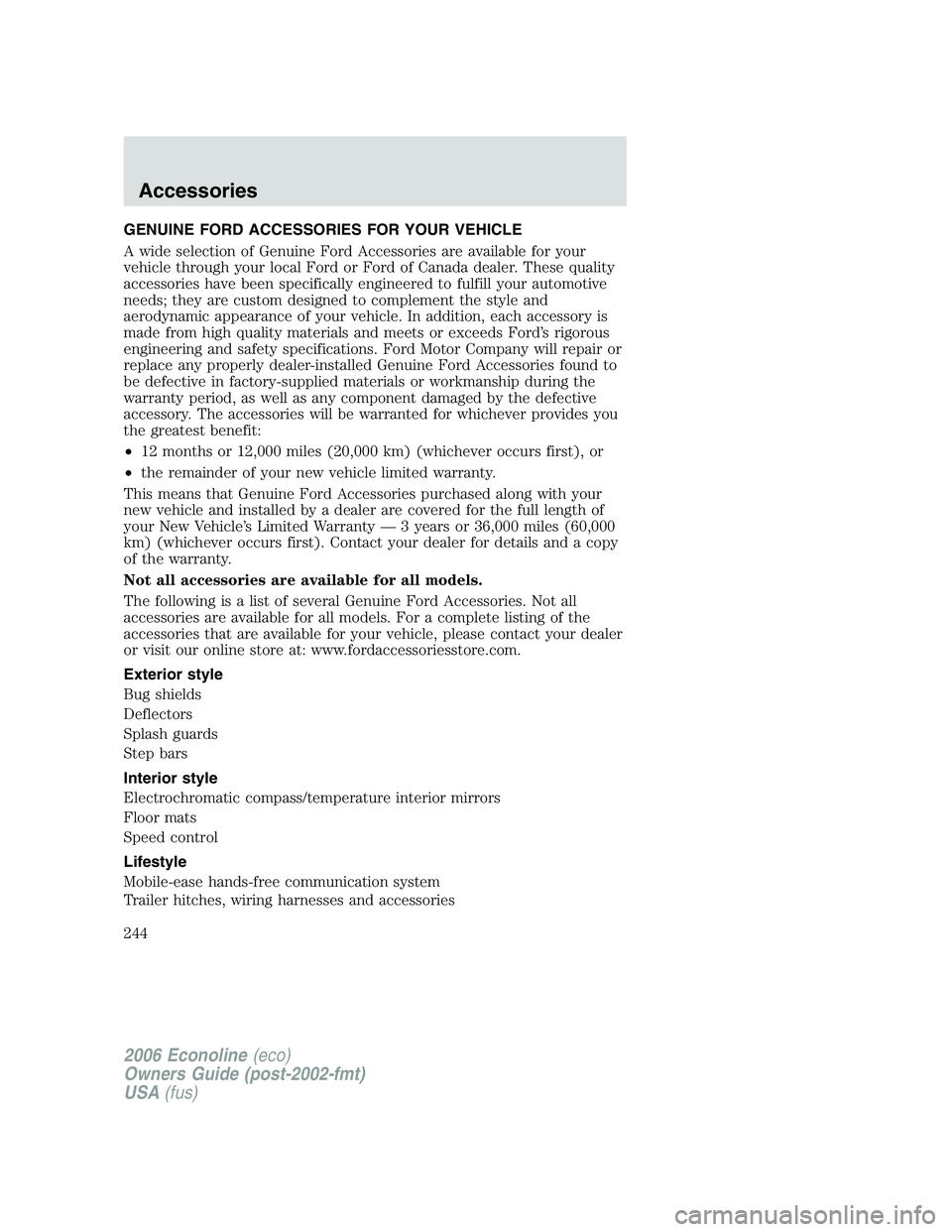

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessories will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Splash guards
Step bars
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Speed control
Lifestyle
Mobile-ease hands-free communication system
Trailer hitches, wiring harnesses and accessories
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
244

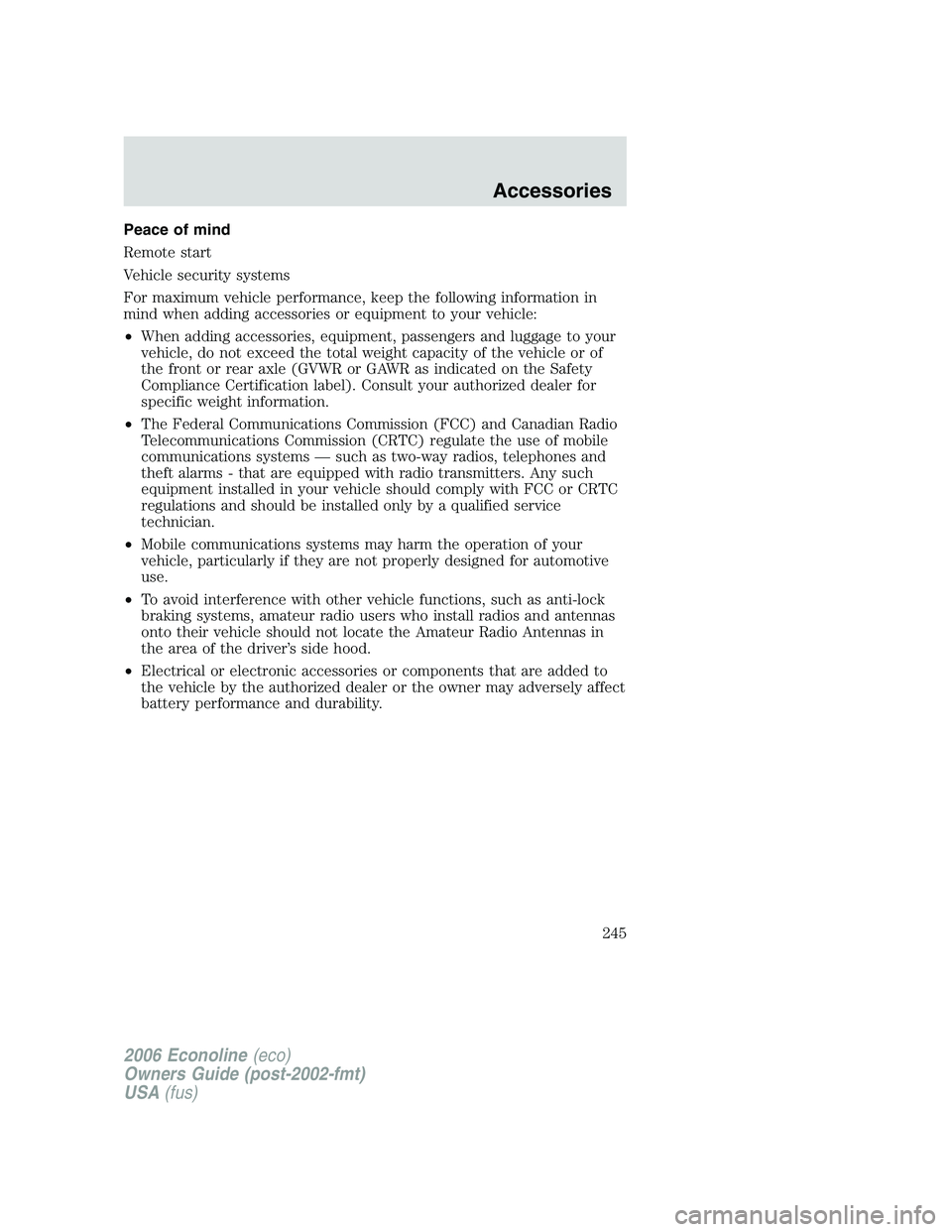

Peace of mind
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
245

A
Accessory delay ..........................48
AdvanceTrac ..............................144
Air cleaner filter ...............229–231
Airbag supplemental restraint
system ....................................75–76
and child safety seats ..............77
description ................................76
disposal ......................................79
driver airbag ..............................78
indicator light ...........................79
operation ...................................78
passenger airbag .......................78
passenger deactivation switch .80
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................209
Anti-lock brake system
(see Brakes) ..............................143
Audio system (see Radio) ..19–20,
25
Automatic transmission
driving an automatic
overdrive .................151, 153, 156
fluid, adding ............................227
fluid, checking ........................227
fluid, refill capacities ..............232
fluid, specification ..................239
Auxiliary power point .................47
Axle
lubricant specifications ..236, 239
refill capacities ........................232
traction lok ..............................148
B
Battery .......................................207
acid, treating emergencies .....207battery saver .............................34
jumping a disabled battery ....181
maintenance-free ....................207
replacement, specifications ...231
servicing ..................................207
BeltMinder ...................................71
Brakes ........................................142
anti-lock ...................................143
anti-lock brake system (ABS)
warning light ...........................143
fluid, checking and adding ....226
fluid, refill capacities ..............232
fluid, specifications .........236, 239
lubricant specifications ..236, 239
parking ....................................144
shift interlock ..........................150
Break-in period .............................5
Bulbs ............................................39
C
Capacities for refilling fluids ....232
Cell phone use ..............................9
Child safety restraints ................85
child safety belts ......................85
Child safety seats ........................89
in front seat ..............................90
in rear seat ................................90
tether anchorage hardware .....93
Cleaning your vehicle
engine compartment ..............196
exterior ....................................198
instrument panel ....................197
interior .....................................198
interior trim ............................198
plastic parts ............................196
safety belts ..............................198
washing ....................................194
waxing .....................................194
wheels ......................................195
