heater FORD E450 2006 Owners Manual

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 16
Entertainment Systems 19
AM/FM stereo 19
AM/FM stereo with single CD 20
AM/FM stereo with in-dash six CD 25
Climate Controls 31
Heater only 31
Manual heating and air conditioning 32
Lights 34
Headlamps 34
Turn signal control 38
Bulb replacement 39
Driver Controls 44
Windshield wiper/washer control 44
Steering wheel adjustment 44
Power windows 48
Mirrors 49
Speed control 50
Locks and Security 54
Keys 54
Locks 54
Seating and Safety Restraints 59
Seating 59
Safety restraints 65
Airbags 75
Child restraints 84
Table of Contents
1
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)

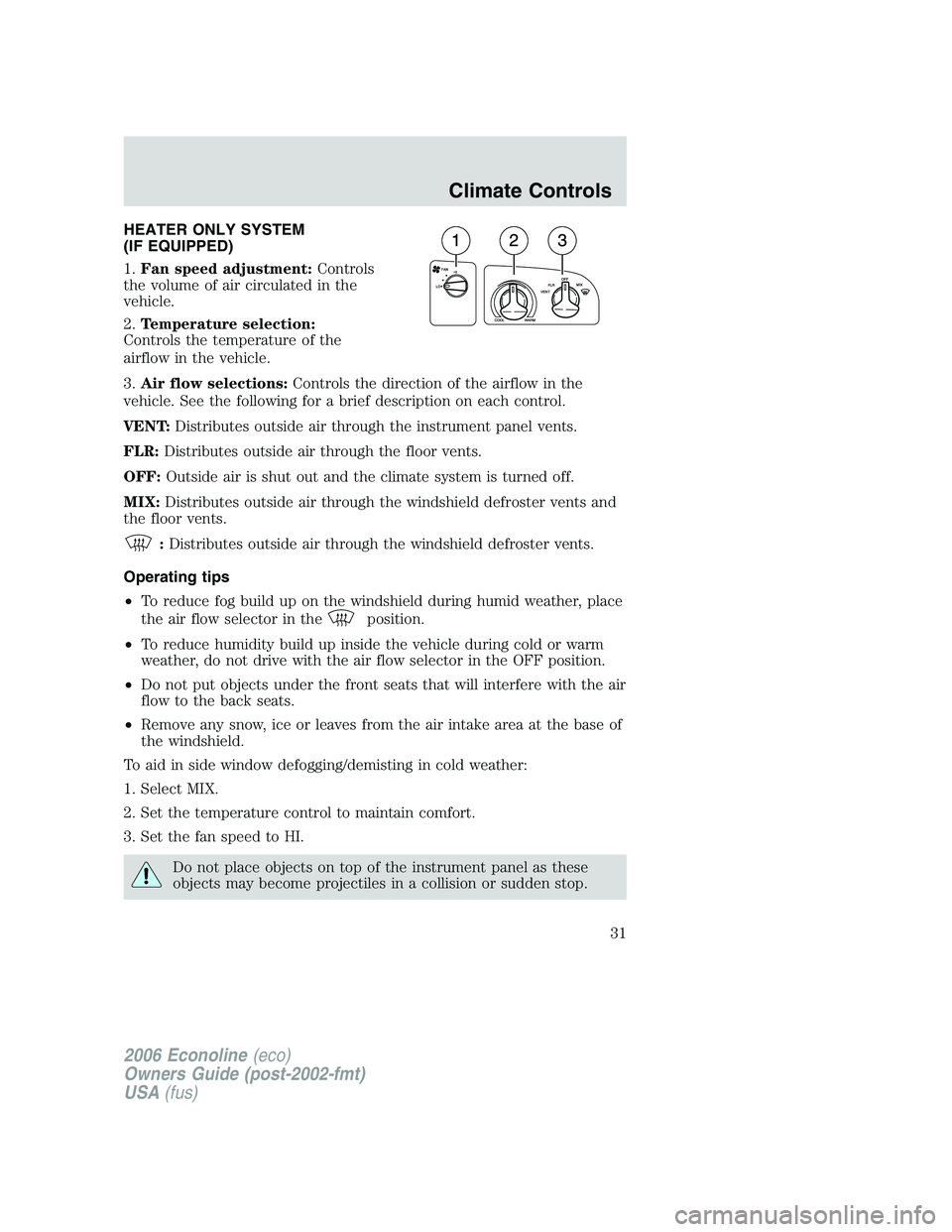

HEATER ONLY SYSTEM
(IF EQUIPPED)
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
VENT:Distributes outside air through the instrument panel vents.
FLR:Distributes outside air through the floor vents.
OFF:Outside air is shut out and the climate system is turned off.
MIX:Distributes outside air through the windshield defroster vents and
the floor vents.
:Distributes outside air through the windshield defroster vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle during cold or warm
weather, do not drive with the air flow selector in the OFF position.
•Do not put objects under the front seats that will interfere with the air
flow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select MIX.
2. Set the temperature control to maintain comfort.
3. Set the fan speed to HI.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
31

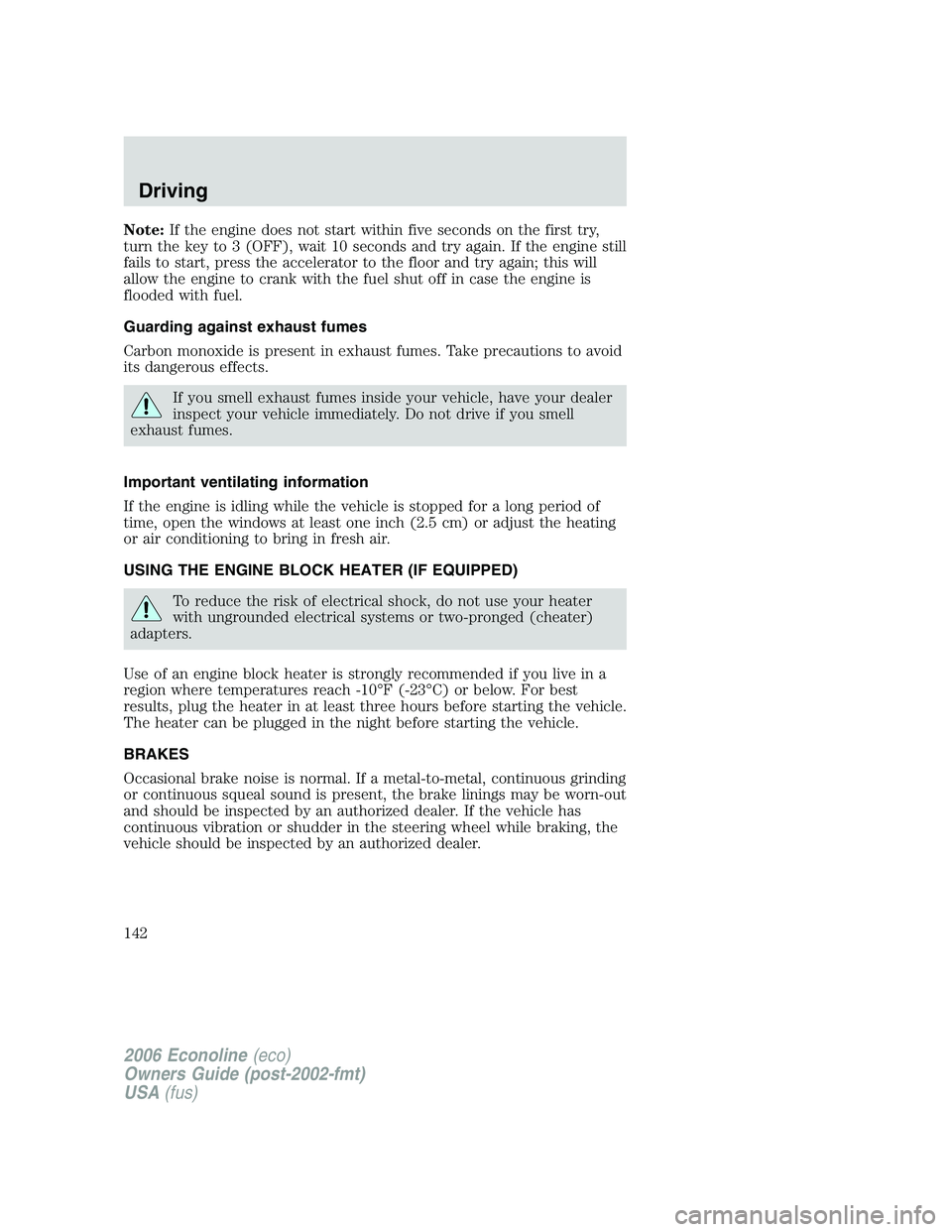

Note:If the engine does not start within five seconds on the first try,
turn the key to 3 (OFF), wait 10 seconds and try again. If the engine still
fails to start, press the accelerator to the floor and try again; this will
allow the engine to crank with the fuel shut off in case the engine is
flooded with fuel.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
USING THE ENGINE BLOCK HEATER (IF EQUIPPED)
To reduce the risk of electrical shock, do not use your heater
with ungrounded electrical systems or two-pronged (cheater)
adapters.
Use of an engine block heater is strongly recommended if you live in a
region where temperatures reach -10°F (-23°C) or below. For best
results, plug the heater in at least three hours before starting the vehicle.
The heater can be plugged in the night before starting the vehicle.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
142

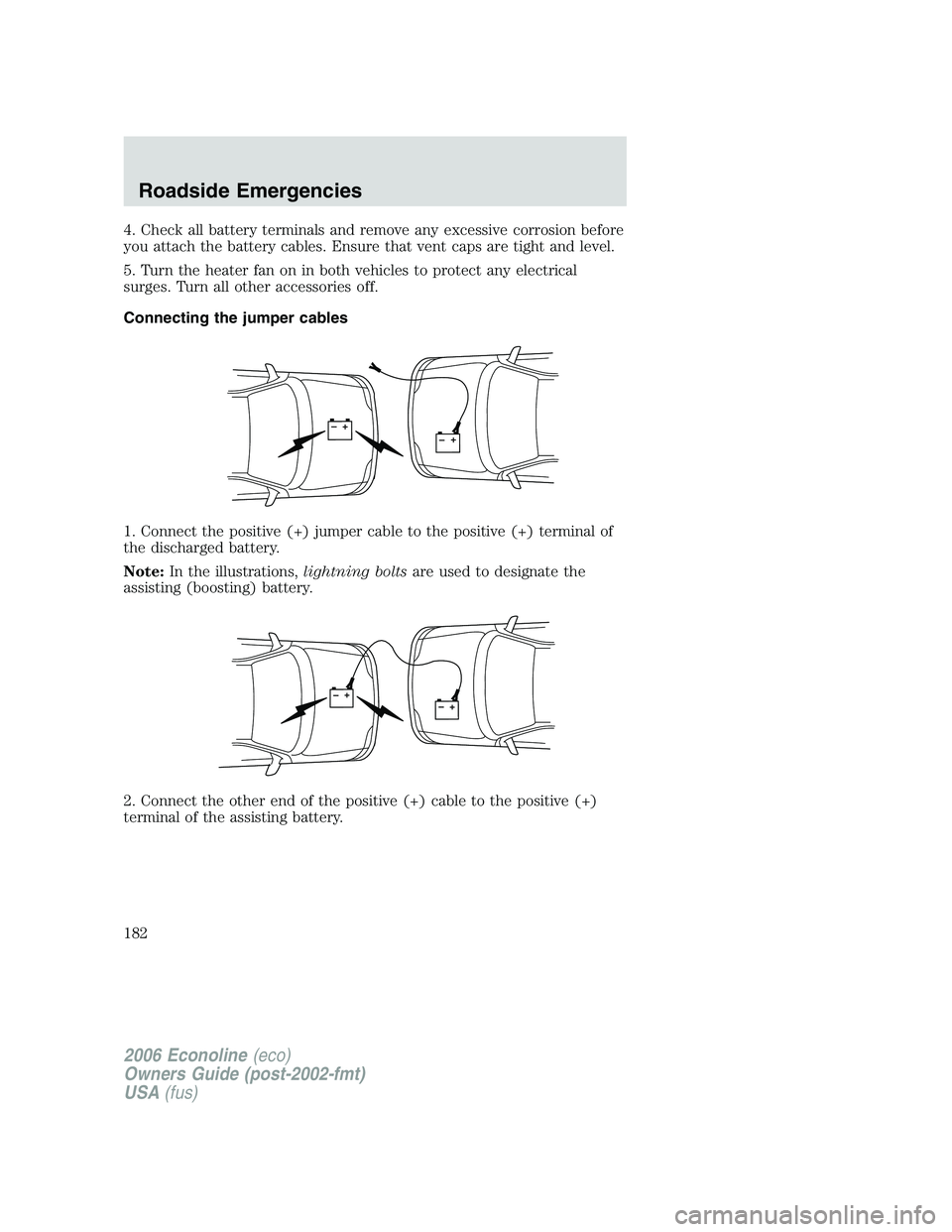

4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Connect the other end of the positive (+) cable to the positive (+)
terminal of the assisting battery.
+–+–
+–+–
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
182

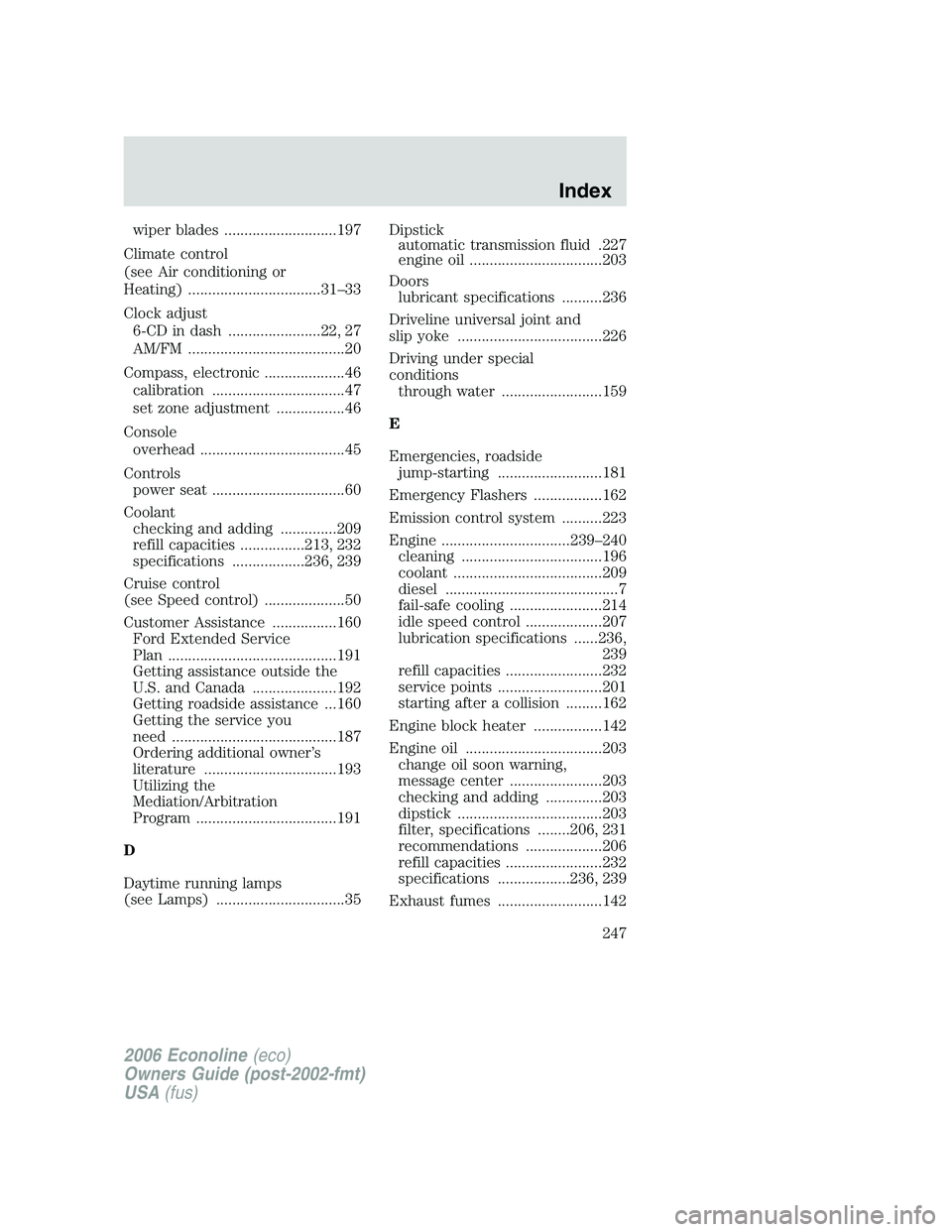

wiper blades ............................197
Climate control
(see Air conditioning or
Heating) .................................31–33
Clock adjust
6-CD in dash .......................22, 27
AM/FM .......................................20
Compass, electronic ....................46
calibration .................................47
set zone adjustment .................46
Console
overhead ....................................45
Controls
power seat .................................60
Coolant
checking and adding ..............209
refill capacities ................213, 232
specifications ..................236, 239
Cruise control
(see Speed control) ....................50
Customer Assistance ................160
Ford Extended Service
Plan ..........................................191
Getting assistance outside the
U.S. and Canada .....................192
Getting roadside assistance ...160
Getting the service you
need .........................................187
Ordering additional owner’s
literature .................................193
Utilizing the
Mediation/Arbitration
Program ...................................191
D
Daytime running lamps
(see Lamps) ................................35Dipstick
automatic transmission fluid .227
engine oil .................................203
Doors
lubricant specifications ..........236
Driveline universal joint and
slip yoke ....................................226
Driving under special
conditions
through water .........................159
E
Emergencies, roadside
jump-starting ..........................181
Emergency Flashers .................162
Emission control system ..........223
Engine ................................239–240
cleaning ...................................196
coolant .....................................209
diesel ...........................................7
fail-safe cooling .......................214
idle speed control ...................207
lubrication specifications ......236,
239
refill capacities ........................232
service points ..........................201
starting after a collision .........162
Engine block heater .................142
Engine oil ..................................203
change oil soon warning,
message center .......................203
checking and adding ..............203
dipstick ....................................203
filter, specifications ........206, 231
recommendations ...................206
refill capacities ........................232
specifications ..................236, 239
Exhaust fumes ..........................142
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
247

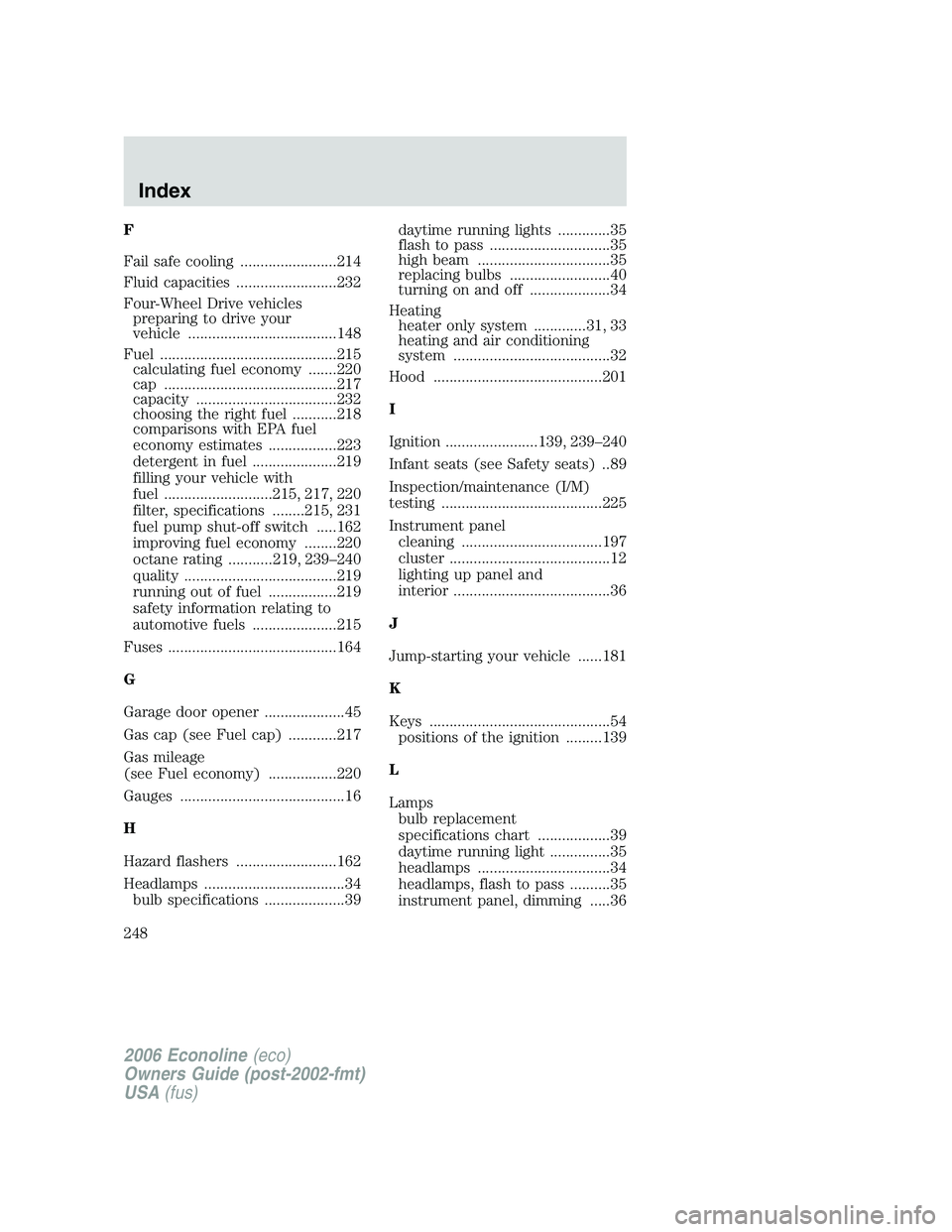

F
Fail safe cooling ........................214
Fluid capacities .........................232
Four-Wheel Drive vehicles
preparing to drive your
vehicle .....................................148
Fuel ............................................215
calculating fuel economy .......220
cap ...........................................217
capacity ...................................232
choosing the right fuel ...........218
comparisons with EPA fuel
economy estimates .................223
detergent in fuel .....................219
filling your vehicle with
fuel ...........................215, 217, 220
filter, specifications ........215, 231
fuel pump shut-off switch .....162
improving fuel economy ........220
octane rating ...........219, 239–240
quality ......................................219
running out of fuel .................219
safety information relating to
automotive fuels .....................215
Fuses ..........................................164
G
Garage door opener ....................45
Gas cap (see Fuel cap) ............217
Gas mileage
(see Fuel economy) .................220
Gauges .........................................16
H
Hazard flashers .........................162
Headlamps ...................................34
bulb specifications ....................39daytime running lights .............35
flash to pass ..............................35
high beam .................................35
replacing bulbs .........................40
turning on and off ....................34
Heating
heater only system .............31, 33
heating and air conditioning
system .......................................32
Hood ..........................................201
I
Ignition .......................139, 239–240
Infant seats (see Safety seats) ..89
Inspection/maintenance (I/M)
testing ........................................225
Instrument panel
cleaning ...................................197
cluster ........................................12
lighting up panel and
interior .......................................36
J
Jump-starting your vehicle ......181
K
Keys .............................................54
positions of the ignition .........139
L
Lamps
bulb replacement
specifications chart ..................39
daytime running light ...............35
headlamps .................................34
headlamps, flash to pass ..........35
instrument panel, dimming .....36
2006 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
248
