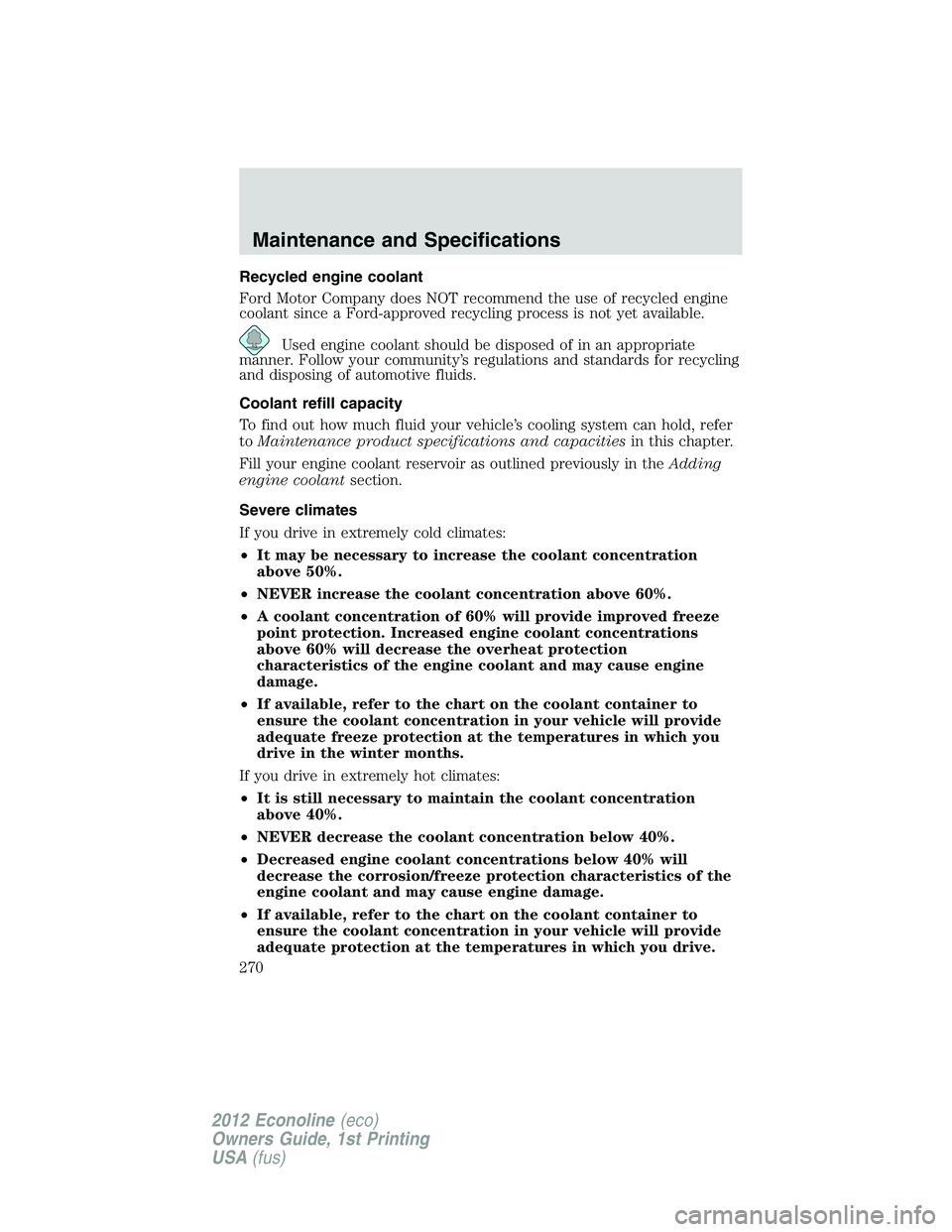

Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Fill your engine coolant reservoir as outlined previously in theAdding
engine coolantsection.
Severe climates
If you drive in extremely cold climates:
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•A coolant concentration of 60% will provide improved freeze
point protection. Increased engine coolant concentrations
above 60% will decrease the overheat protection
characteristics of the engine coolant and may cause engine
damage.
•If available, refer to the chart on the coolant container to
ensure the coolant concentration in your vehicle will provide
adequate freeze protection at the temperatures in which you
drive in the winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion/freeze protection characteristics of the
engine coolant and may cause engine damage.
•If available, refer to the chart on the coolant container to
ensure the coolant concentration in your vehicle will provide
adequate protection at the temperatures in which you drive.
Maintenance and Specifications
270
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

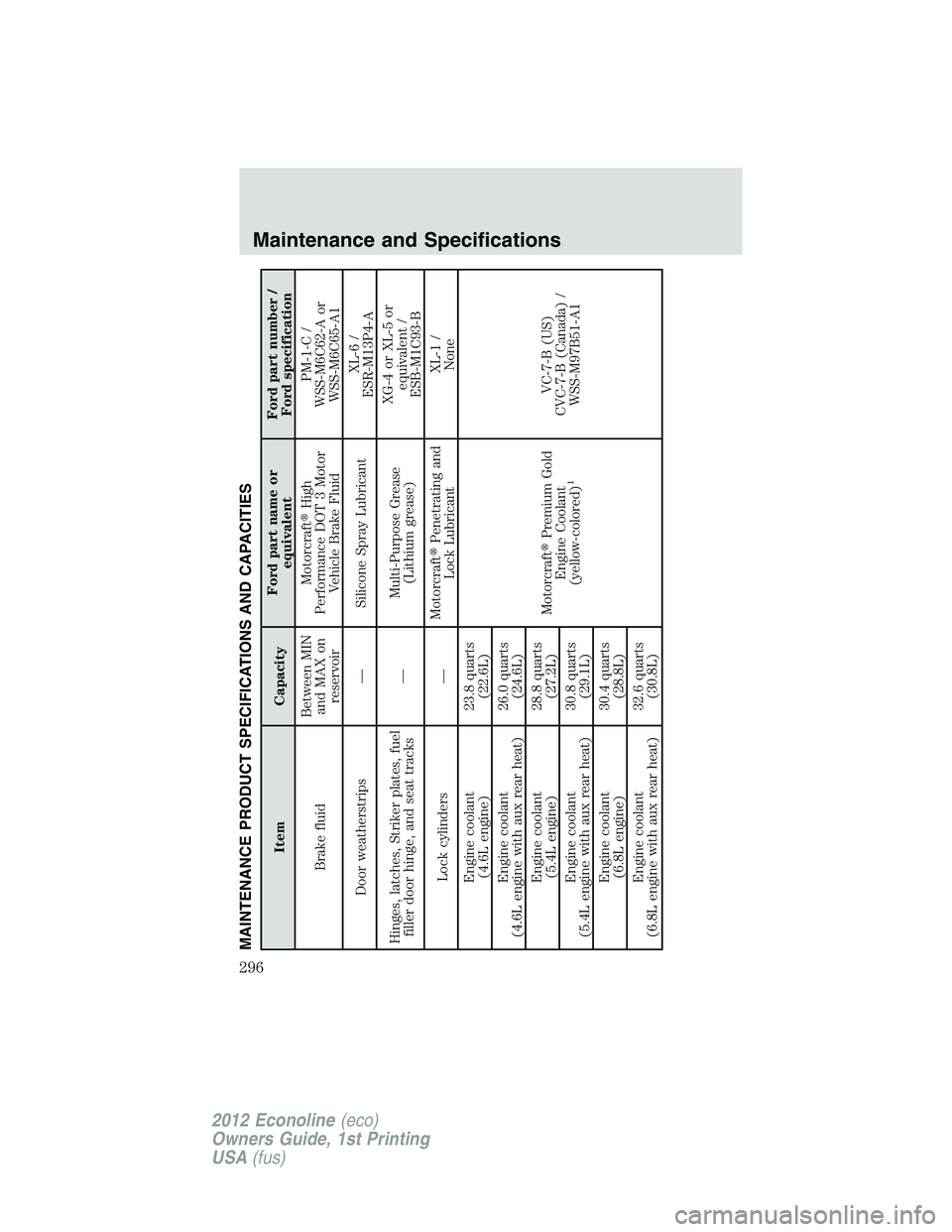

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraftHigh
Performance DOT 3 Motor
Vehicle Brake FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Hinges, latches, Striker plates, fuel
filler door hinge, and seat tracks—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Lock cylinders —MotorcraftPenetrating and
Lock LubricantXL-1 /
None
Engine coolant
(4.6L engine)23.8 quarts
(22.6L)
MotorcraftPremium Gold
Engine Coolant
(yellow-colored)
1
VC-7-B (US)
CVC-7-B (Canada) /
WSS-M97B51-A1 Engine coolant
(4.6L engine with aux rear heat)26.0 quarts
(24.6L)
Engine coolant
(5.4L engine)28.8 quarts
(27.2L)
Engine coolant
(5.4L engine with aux rear heat)30.8 quarts
(29.1L)
Engine coolant
(6.8L engine)30.4 quarts
(28.8L)
Engine coolant
(6.8L engine with aux rear heat)32.6 quarts
(30.8L)
Maintenance and Specifications
296
2012 Econoline(eco)
Owners Guide, 1st Printing
USA(fus)

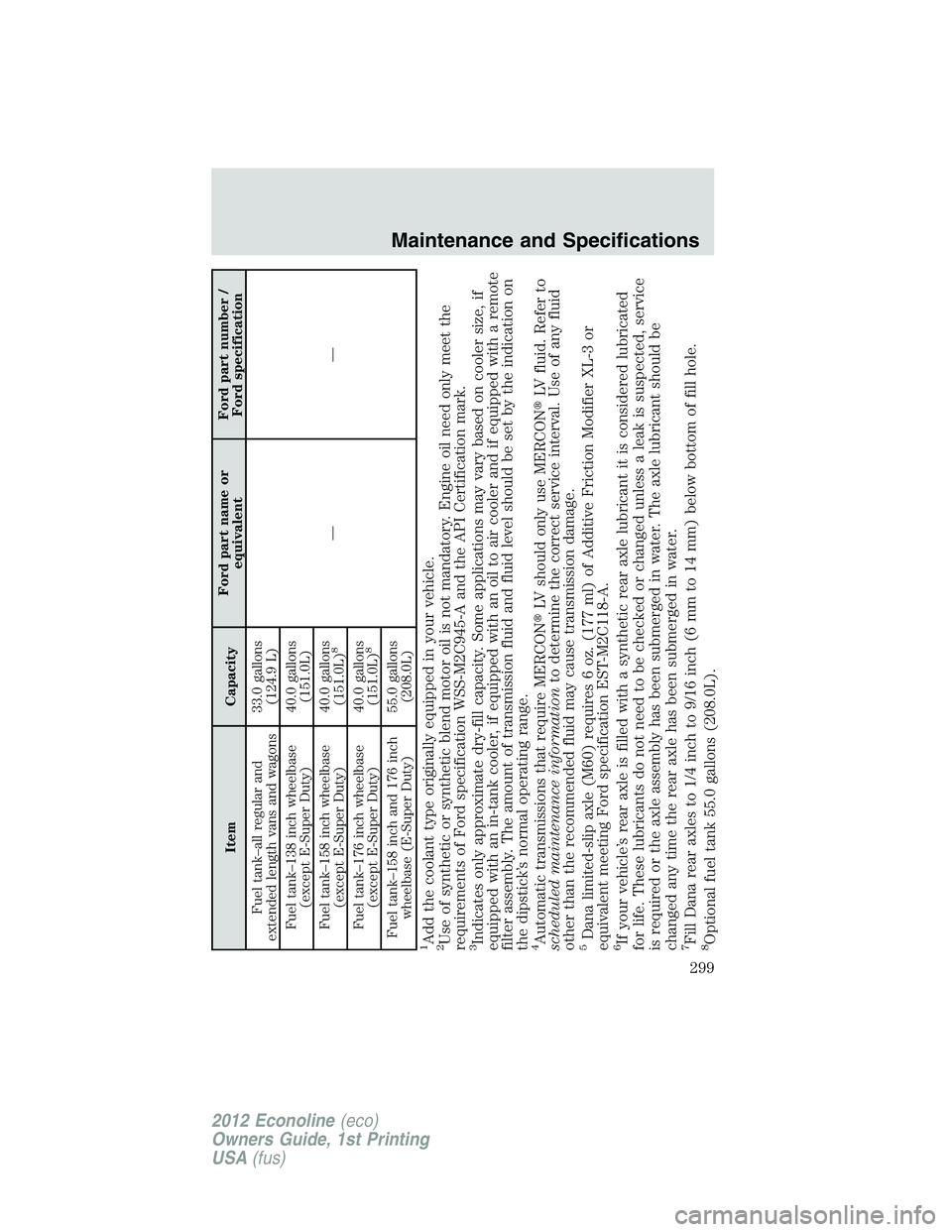

Item CapacityFord part name or
equivalentFord part number /
Ford specification
Fuel tank–all regular and
extended length vans and wagons33.0 gallons
(124.9 L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C945-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 6 oz. (177 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
