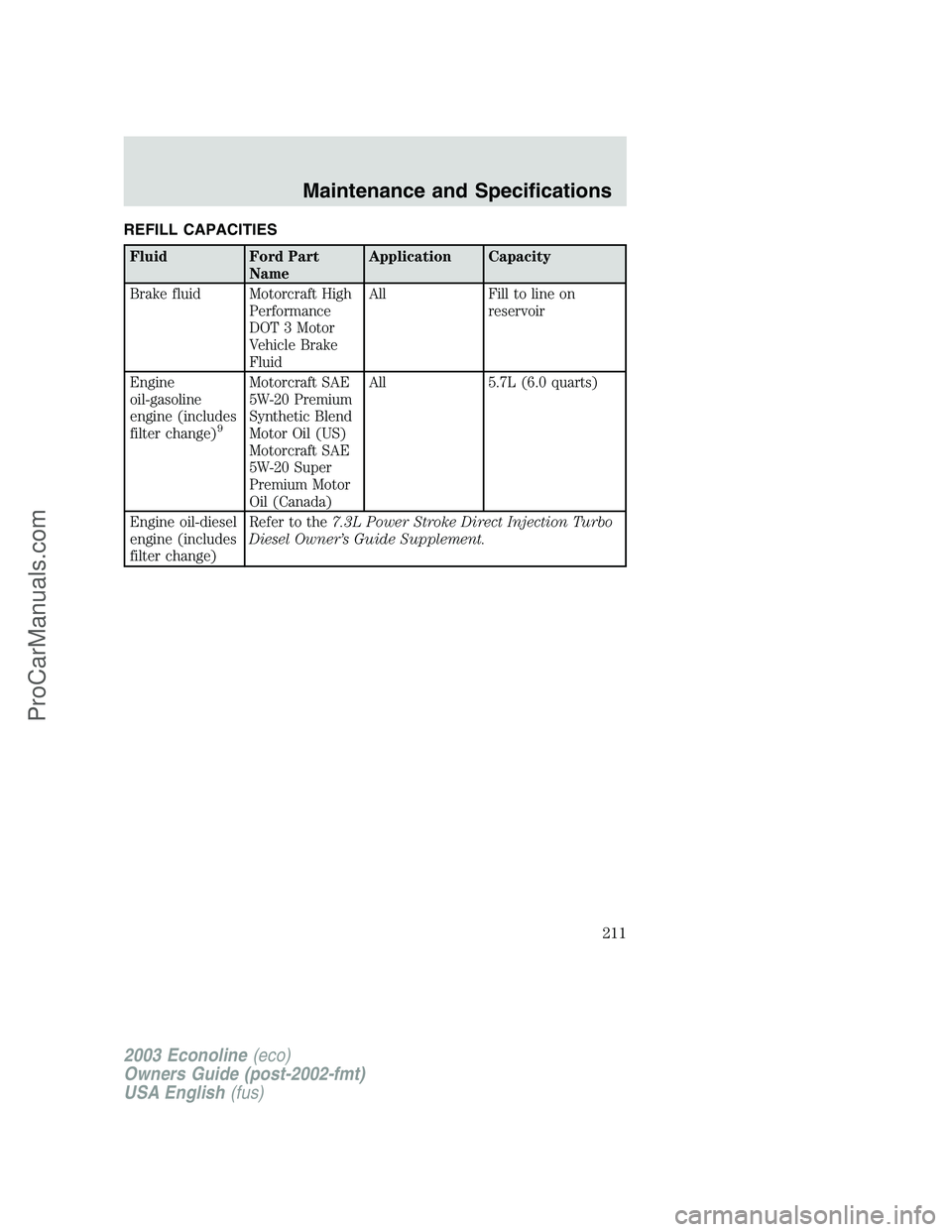

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine
oil-gasoline
engine (includes
filter change)
9
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)All 5.7L (6.0 quarts)
Engine oil-diesel
engine (includes
filter change)Refer to the7.3L Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
211
ProCarManuals.com

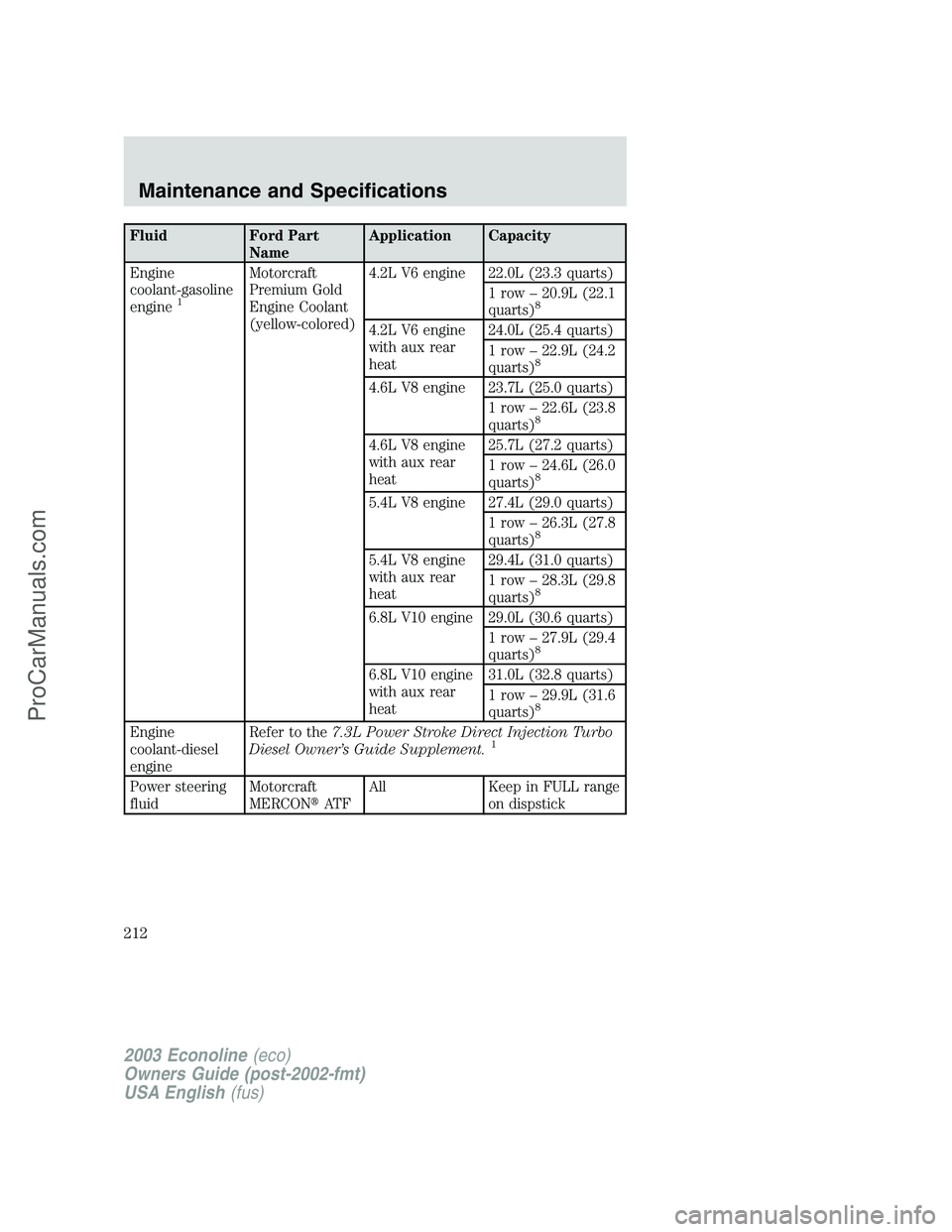

Fluid Ford Part
NameApplication Capacity
Engine
coolant-gasoline
engine
1
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.2L V6 engine 22.0L (23.3 quarts)
1 row–20.9L (22.1
quarts)
8
4.2L V6 engine
with aux rear
heat24.0L (25.4 quarts)
1 row–22.9L (24.2
quarts)
8
4.6L V8 engine 23.7L (25.0 quarts)
1 row–22.6L (23.8
quarts)
8
4.6L V8 engine
with aux rear
heat25.7L (27.2 quarts)
1 row–24.6L (26.0
quarts)
8
5.4L V8 engine 27.4L (29.0 quarts)
1 row–26.3L (27.8
quarts)
8
5.4L V8 engine
with aux rear
heat29.4L (31.0 quarts)
1 row–28.3L (29.8
quarts)
8
6.8L V10 engine 29.0L (30.6 quarts)
1 row–27.9L (29.4
quarts)
8
6.8L V10 engine
with aux rear
heat31.0L (32.8 quarts)
1 row–29.9L (31.6
quarts)
8
Engine
coolant-diesel
engineRefer to the7.3L Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.1
Power steering
fluidMotorcraft
MERCONAT FAll Keep in FULL range
on dispstick
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
212
ProCarManuals.com

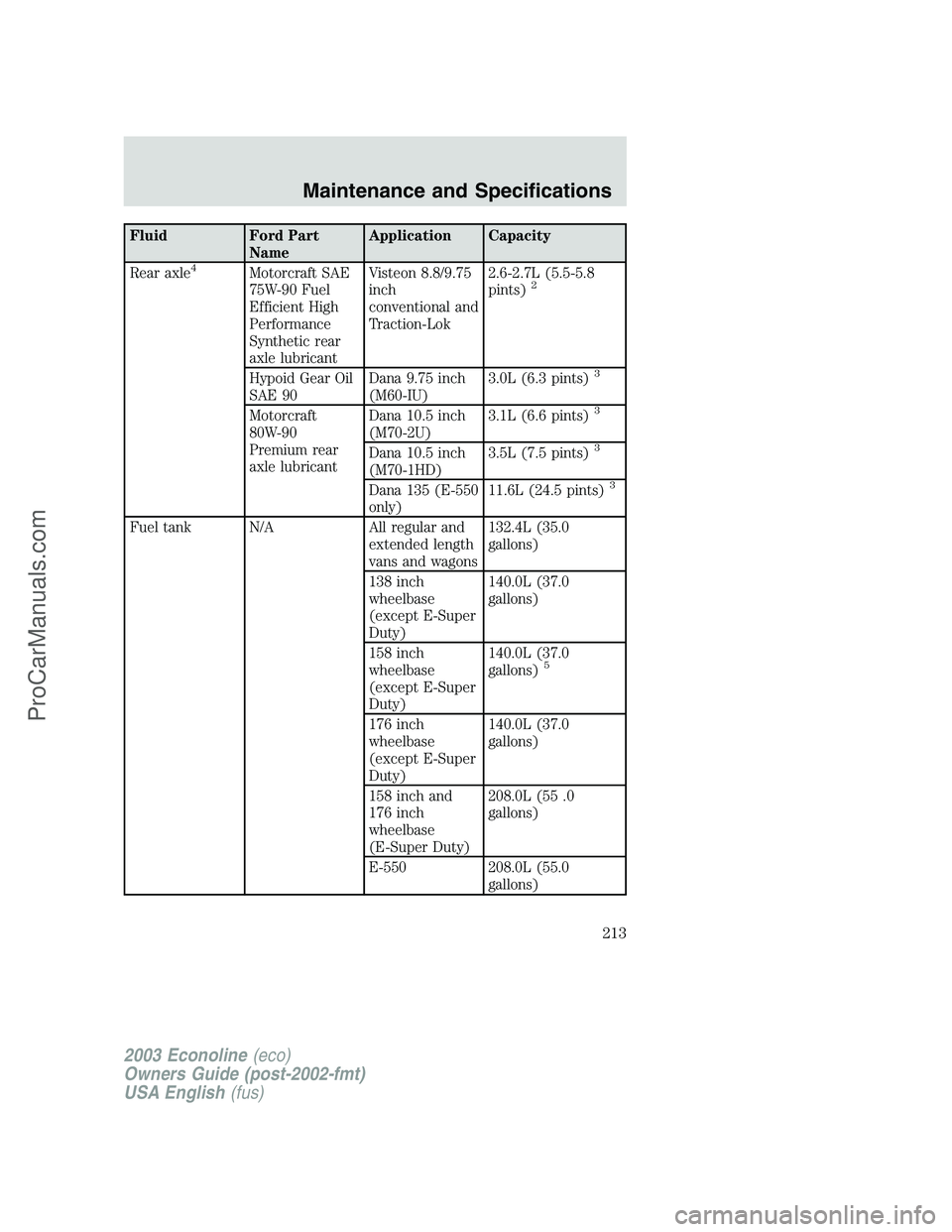

Fluid Ford Part
NameApplication Capacity
Rear axle
4Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic rear
axle lubricantVisteon 8.8/9.75
inch
conventional and
Traction-Lok2.6-2.7L (5.5-5.8
pints)2
Hypoid Gear Oil
SAE 90Dana 9.75 inch
(M60-IU)3.0L (6.3 pints)3
Motorcraft
80W-90
Premium rear
axle lubricantDana 10.5 inch
(M70-2U)3.1L (6.6 pints)3
Dana 10.5 inch
(M70-1HD)3.5L (7.5 pints)3
Dana 135 (E-550
only)11.6L (24.5 pints)3
Fuel tank N/A All regular and
extended length
vans and wagons132.4L (35.0
gallons)
138 inch
wheelbase
(except E-Super
Duty)140.0L (37.0
gallons)
158 inch
wheelbase
(except E-Super
Duty)140.0L (37.0
gallons)
5
176 inch
wheelbase
(except E-Super
Duty)140.0L (37.0
gallons)
158 inch and
176 inch
wheelbase
(E-Super Duty)208.0L (55 .0
gallons)
E-550 208.0L (55.0
gallons)
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
213
ProCarManuals.com

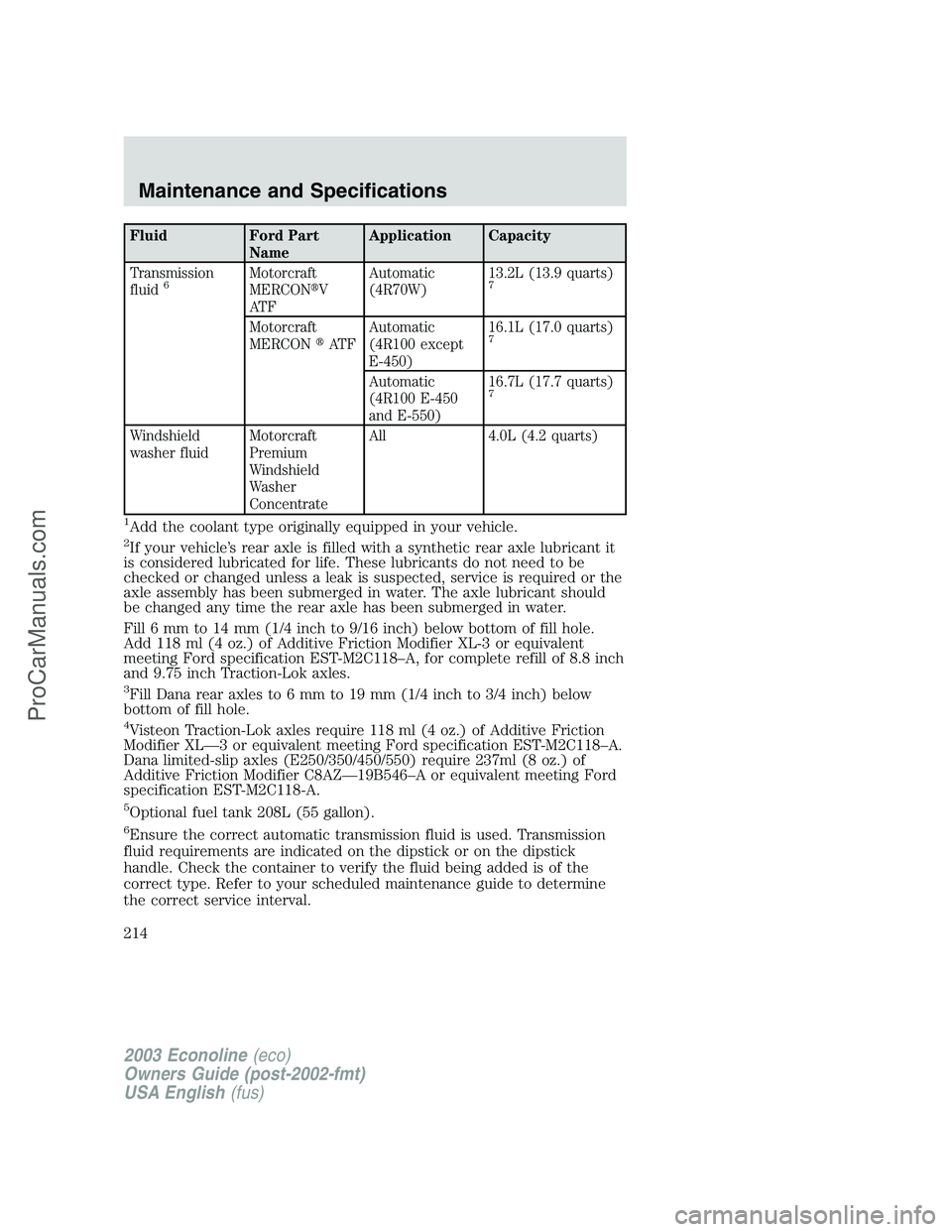

Fluid Ford Part
NameApplication Capacity
Transmission
fluid
6Motorcraft
MERCONV
AT FAutomatic
(4R70W)13.2L (13.9 quarts)7
Motorcraft
MERCONAT FAutomatic
(4R100 except
E-450)16.1L (17.0 quarts)7
Automatic
(4R100 E-450
and E-550)16.7L (17.7 quarts)7
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.0L (4.2 quarts)
1Add the coolant type originally equipped in your vehicle.2If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
Fill 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A, for complete refill of 8.8 inch
and 9.75 inch Traction-Lok axles.
3Fill Dana rear axles to 6 mm to 19 mm (1/4 inch to 3/4 inch) below
bottom of fill hole.
4Visteon Traction-Lok axles require 118 ml (4 oz.) of Additive Friction
Modifier XL—3 or equivalent meeting Ford specification EST-M2C118–A.
Dana limited-slip axles (E250/350/450/550) require 237ml (8 oz.) of
Additive Friction Modifier C8AZ—19B546–A or equivalent meeting Ford
specification EST-M2C118-A.
5Optional fuel tank 208L (55 gallon).
6Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
214
ProCarManuals.com

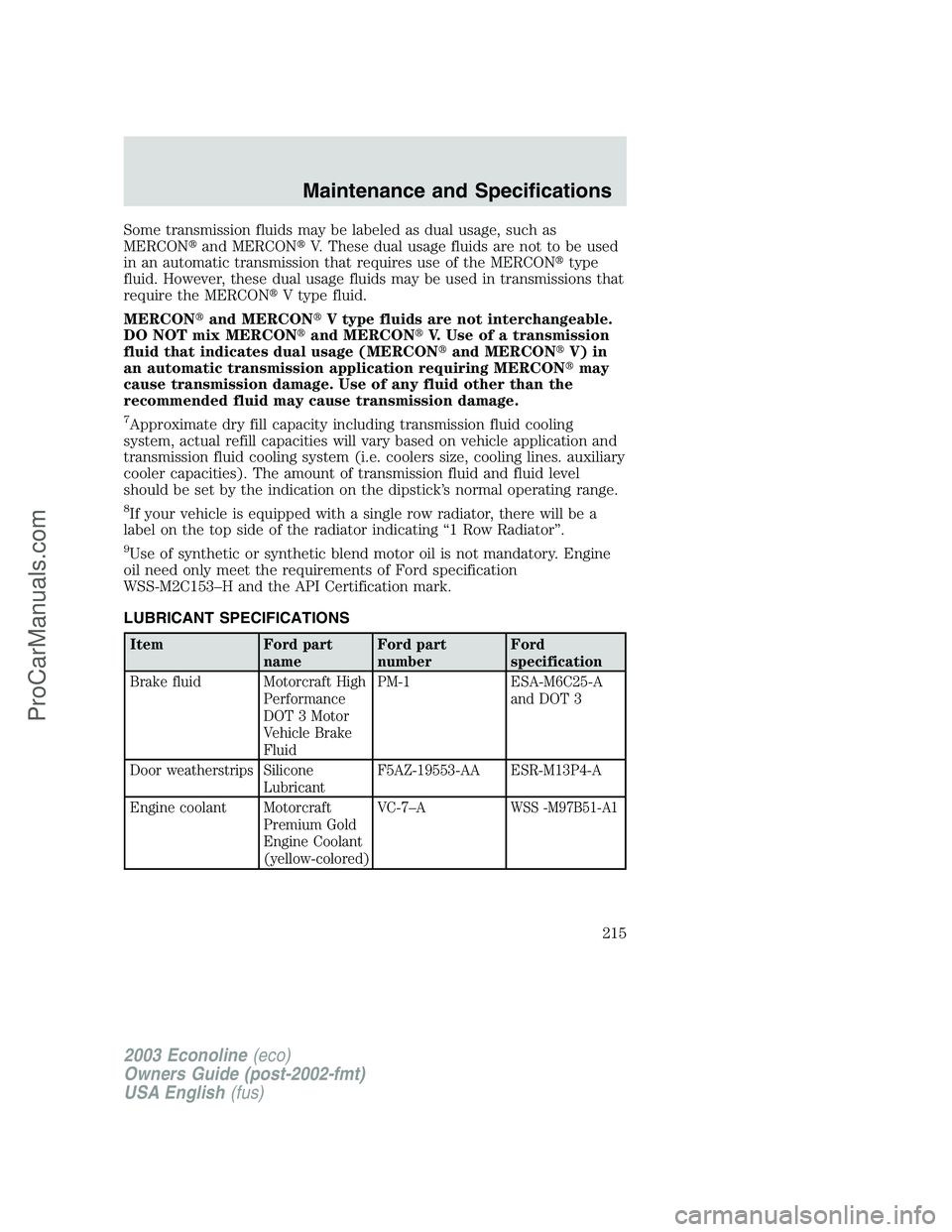

Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
7Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines. auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
8If your vehicle is equipped with a single row radiator, there will be a
label on the top side of the radiator indicating“1 Row Radiator”.
9Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door weatherstrips Silicone
LubricantF5AZ-19553-AA ESR-M13P4-A
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A
WSS -M97B51-A1
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
215
ProCarManuals.com

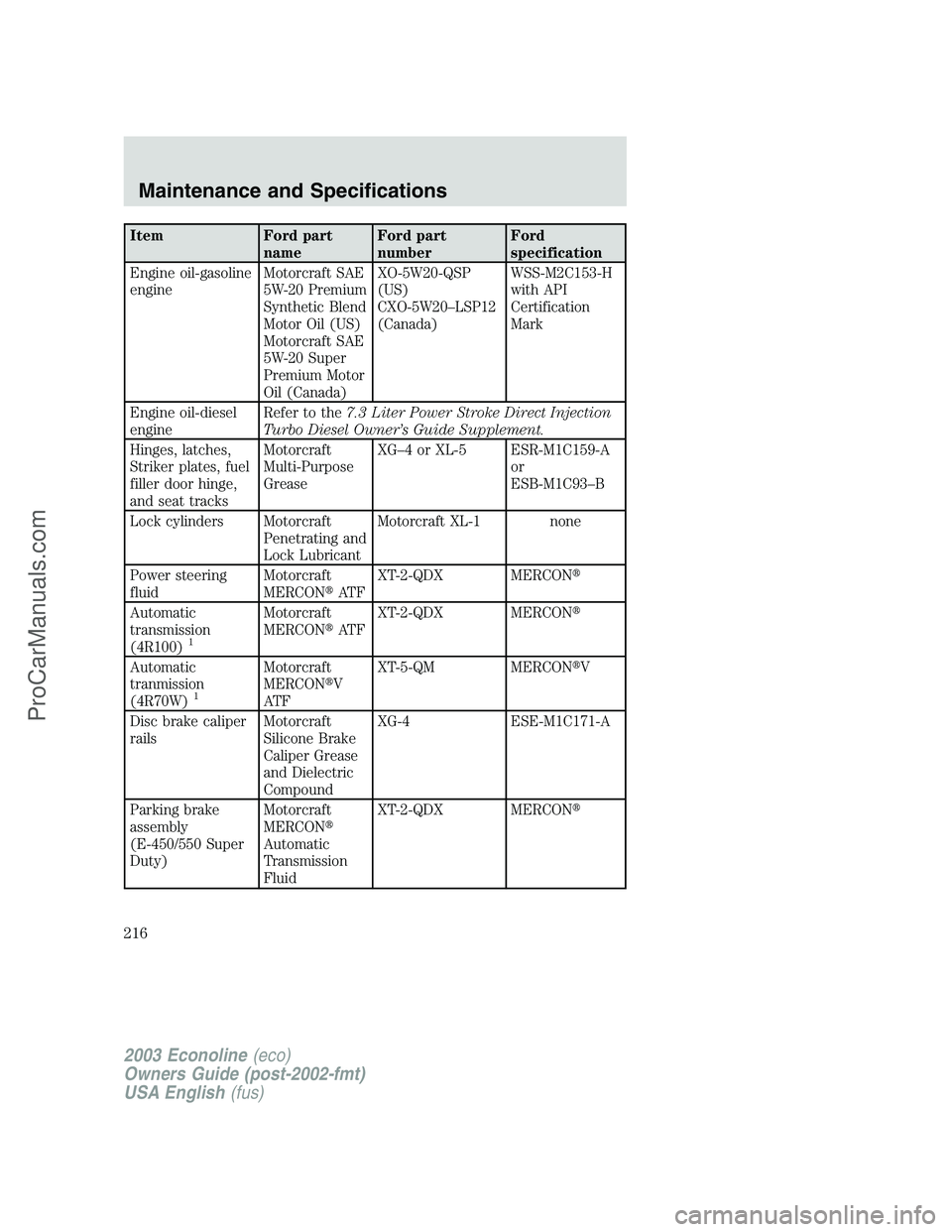

Item Ford part
nameFord part
numberFord
specification
Engine oil-gasoline
engineMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
with API
Certification
Mark
Engine oil-diesel
engineRefer to the7.3 Liter Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Hinges, latches,
Striker plates, fuel
filler door hinge,
and seat tracksMotorcraft
Multi-Purpose
GreaseXG–4 or XL-5 ESR-M1C159-A
or
ESB-M1C93–B
Lock cylinders Motorcraft
Penetrating and
Lock LubricantMotorcraft XL-1 none
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
(4R100)
1
Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
tranmission
(4R70W)
1
Motorcraft
MERCONV
AT FXT-5-QM MERCONV
Disc brake caliper
railsMotorcraft
Silicone Brake
Caliper Grease
and Dielectric
CompoundXG-4 ESE-M1C171-A
Parking brake
assembly
(E-450/550 Super
Duty)Motorcraft
MERCON
Automatic
Transmission
FluidXT-2-QDX MERCON
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
216
ProCarManuals.com

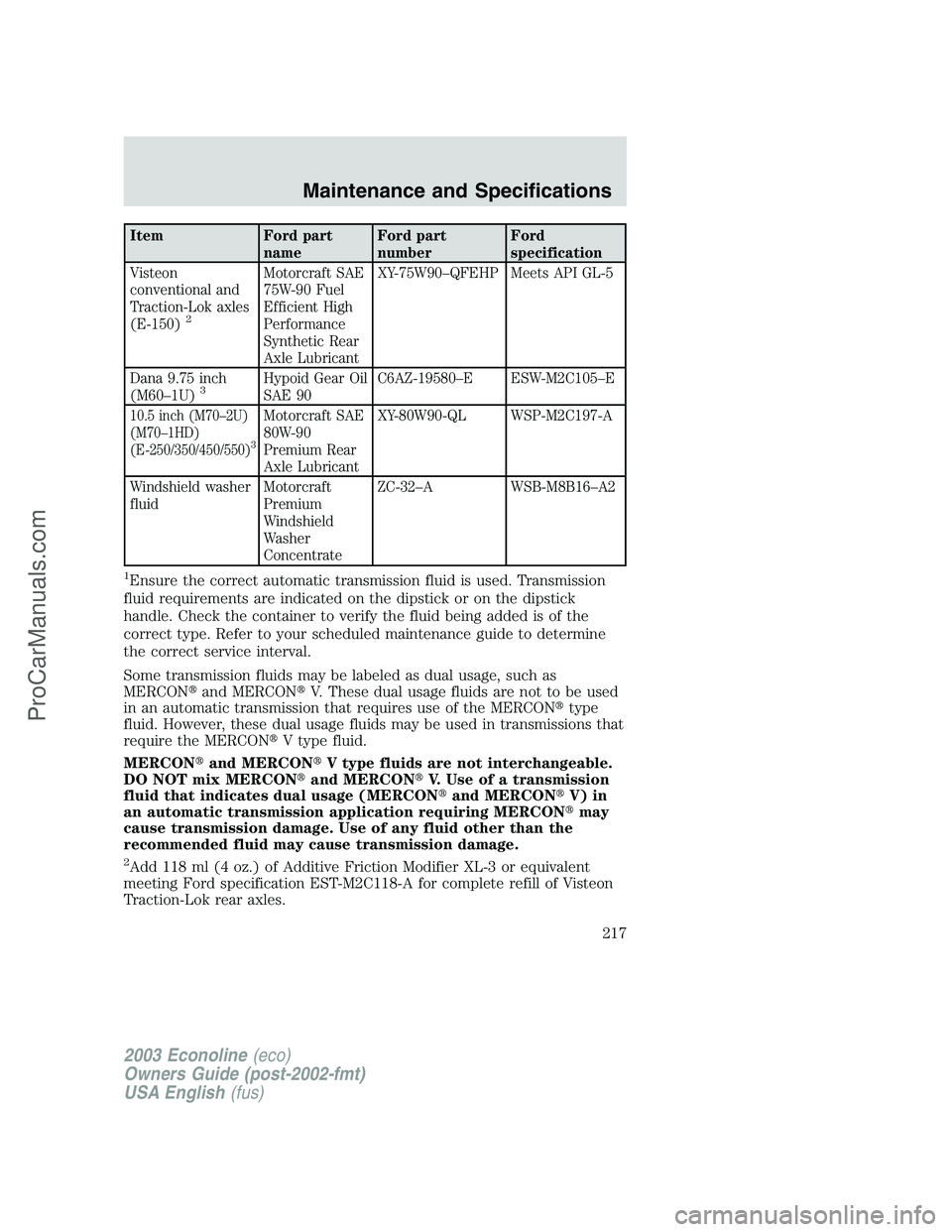

Item Ford part
nameFord part
numberFord
specification
Visteon
conventional and
Traction-Lok axles
(E-150)
2
Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle LubricantXY-75W90–QFEHP Meets API GL-5
Dana 9.75 inch
(M60–1U)
3Hypoid Gear Oil
SAE 90C6AZ-19580–E ESW-M2C105–E
10.5 inch (M70–2U)
(M70–1HD)
(E-250/350/450/550)
3
Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Windshield washer
fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
2Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of Visteon
Traction-Lok rear axles.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
217
ProCarManuals.com

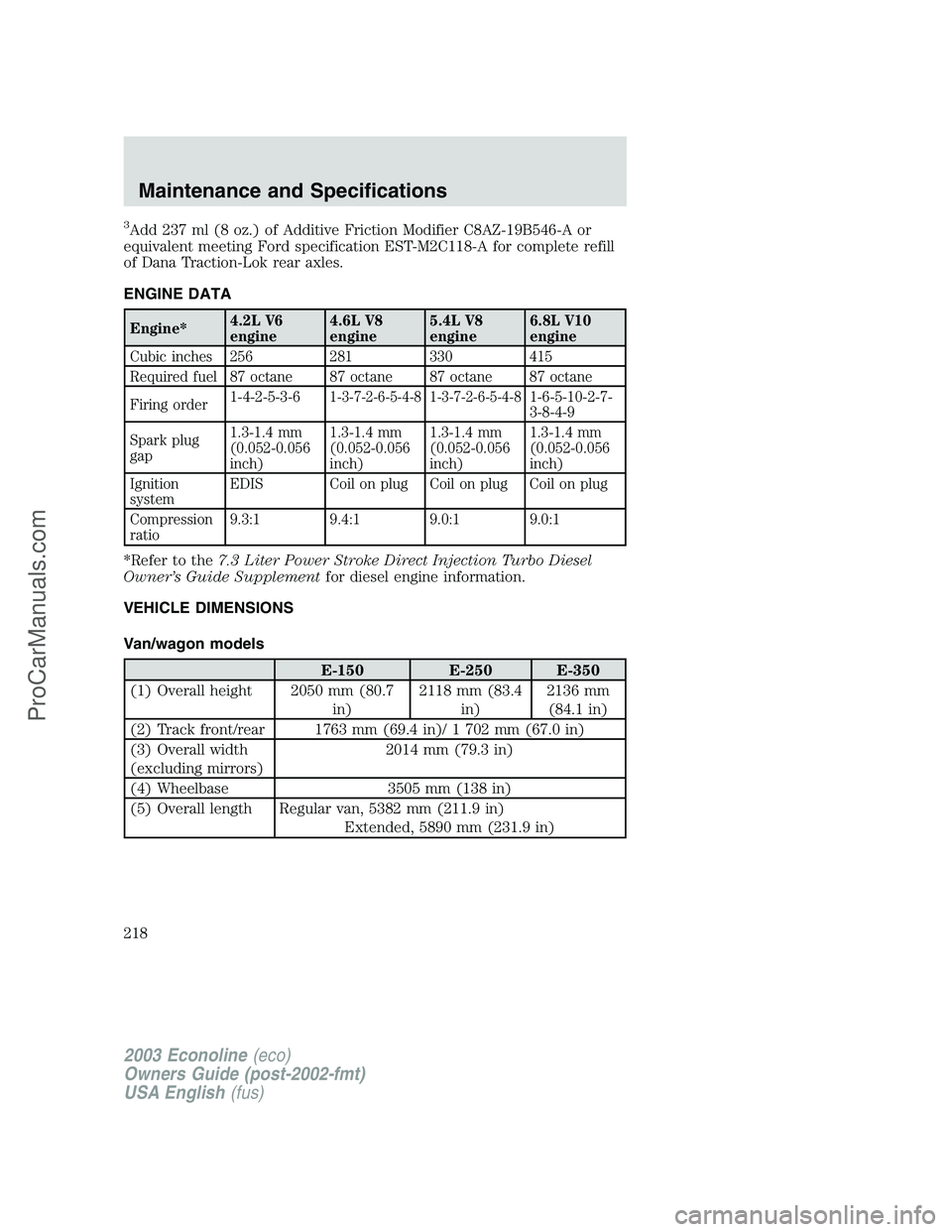

3Add 237 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118-A for complete refill
of Dana Traction-Lok rear axles.
ENGINE DATA
Engine*4.2L V6
engine4.6L V8
engine5.4L V8
engine6.8L V10
engine
Cubic inches 256 281 330 415
Required fuel 87 octane 87 octane 87 octane 87 octane
Firing order1-4-2-5-3-6
1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-81-6-5-10-2-7-
3-8-4-9
Spark plug
gap1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)1.3-1.4 mm
(0.052-0.056
inch)
Ignition
systemEDIS Coil on plug Coil on plug Coil on plug
Compression
ratio9.3:1 9.4:1 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine information.

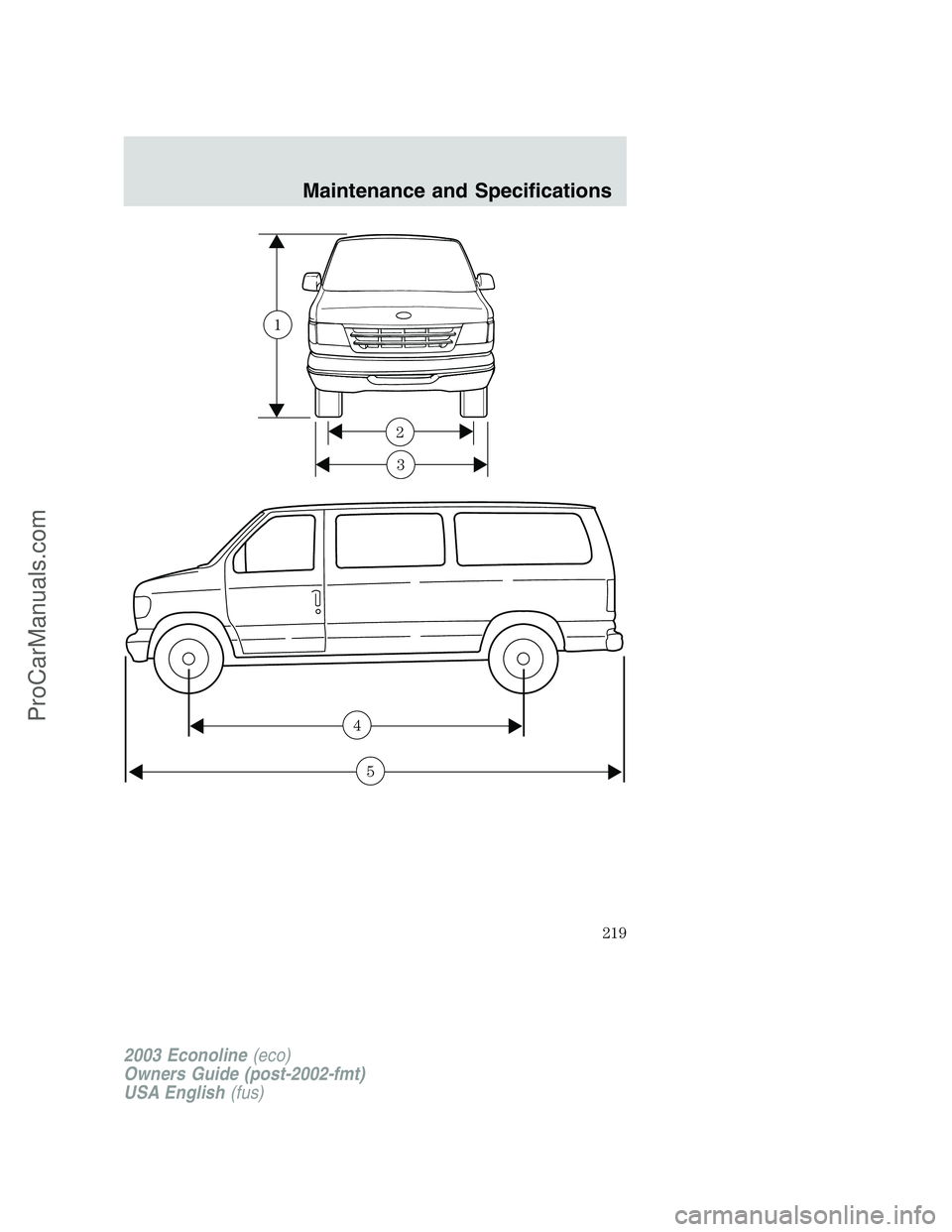

VEHICLE DIMENSIONS
Van/wagon models
E-150 E-250 E-350
(1) Overall height 2050 mm (80.7
in)2118 mm (83.4
in)2136 mm
(84.1 in)
(2) Track front/rear 1763 mm (69.4 in)/ 1 702 mm (67.0 in)
(3) Overall width
(excluding mirrors)2014 mm (79.3 in)
(4) Wheelbase 3505 mm (138 in)
(5) Overall length Regular van, 5382 mm (211.9 in)
Extended, 5890 mm (231.9 in)
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
218
ProCarManuals.com

3
2
1
4
5
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
219
ProCarManuals.com

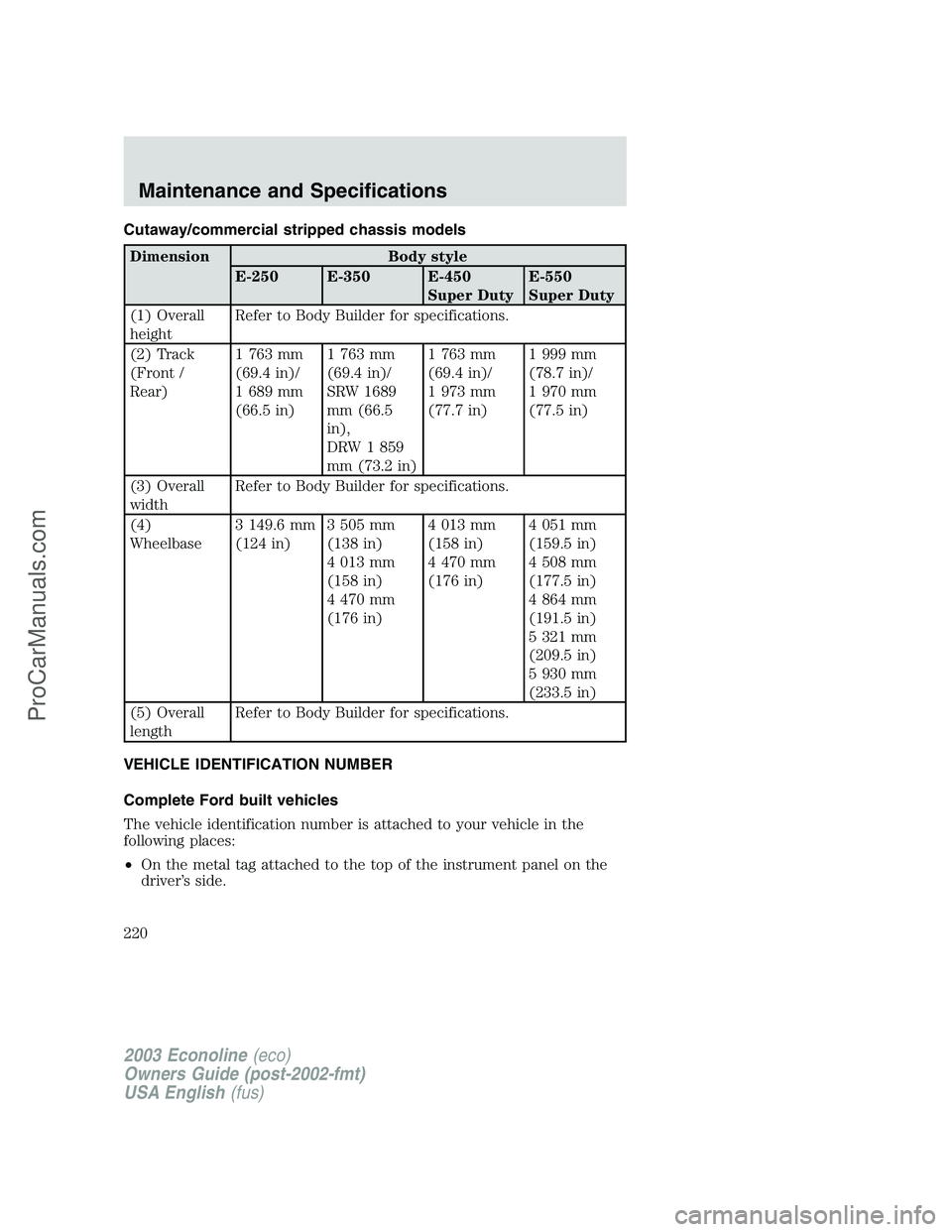

Cutaway/commercial stripped chassis models
Dimension Body style
E-250 E-350 E-450
Super DutyE-550
Super Duty
(1) Overall
heightRefer to Body Builder for specifications.
(2) Track
(Front /
Rear)1 763 mm
(69.4 in)/
1 689 mm
(66.5 in)1 763 mm
(69.4 in)/
SRW 1689
mm (66.5
in),
DRW 1 859
mm (73.2 in)1 763 mm
(69.4 in)/
1 973 mm
(77.7 in)1 999 mm
(78.7 in)/
1 970 mm
(77.5 in)
(3) Overall
widthRefer to Body Builder for specifications.
(4)
Wheelbase3 149.6 mm
(124 in)3 505 mm
(138 in)
4 013 mm
(158 in)
4 470 mm
(176 in)4 013 mm
(158 in)
4 470 mm
(176 in)4 051 mm
(159.5 in)
4 508 mm
(177.5 in)
4 864 mm
(191.5 in)
5 321 mm
(209.5 in)
5 930 mm
(233.5 in)
(5) Overall
lengthRefer to Body Builder for specifications.
VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•On the metal tag attached to the top of the instrument panel on the
driver’s side.
2003 Econoline(eco)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
220
ProCarManuals.com
