power steering fluid FORD ECONOLINE 2007 Owners Manual

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
11
ProCarManuals.com

Some drivers may notice a slight movement of the brake pedal when the
AdvanceTrac
with RSC performs a system self-check. During
AdvanceTrac
with RSC operation you may experience the following:
•A rumble or grinding noise
•A slight deceleration of the vehicle
•Steering feedback
•The AdvanceTrac
with RSC indicator light will flash
•If your foot is on the brake pedal, you will feel a vibration in the
pedal.
All these conditions are normal during AdvanceTrac
with RSC
operation.
Do not alter or modify your vehicle’s suspension, steering or
tires; the resulting changes to the vehicle’s handling can
adversely affect the AdvanceTrac
with RSC system. Also, do not
install a stereo loudspeaker. The speaker vibrations can adversely
affect the AdvanceTrac
with RSC sensors.
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of a AdvanceTrac
with
RSC event is an indication that at least some of the tires have
exceeded their ability to grip the road; this may lead to an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death. If you experience a severe road event, SLOW DOWN.
STEERING
To help prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump fluid level
(If the fluid level is below the FULL COLD range on the dipstick).
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
151
ProCarManuals.com

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
Engine compartment component locations
Refer to the6.0 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine component locations.
1. Windshield washer fluid reservoir
2. Engine oil filler cap
3. Automatic transmission fluid dipstick
4. Air filter assembly
5. Engine oil dipstick
6. Power steering fluid reservoir
7. Brake fluid reservoir
8. Engine coolant reservoir
9. Power distribution box
10. Battery
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
211
ProCarManuals.com

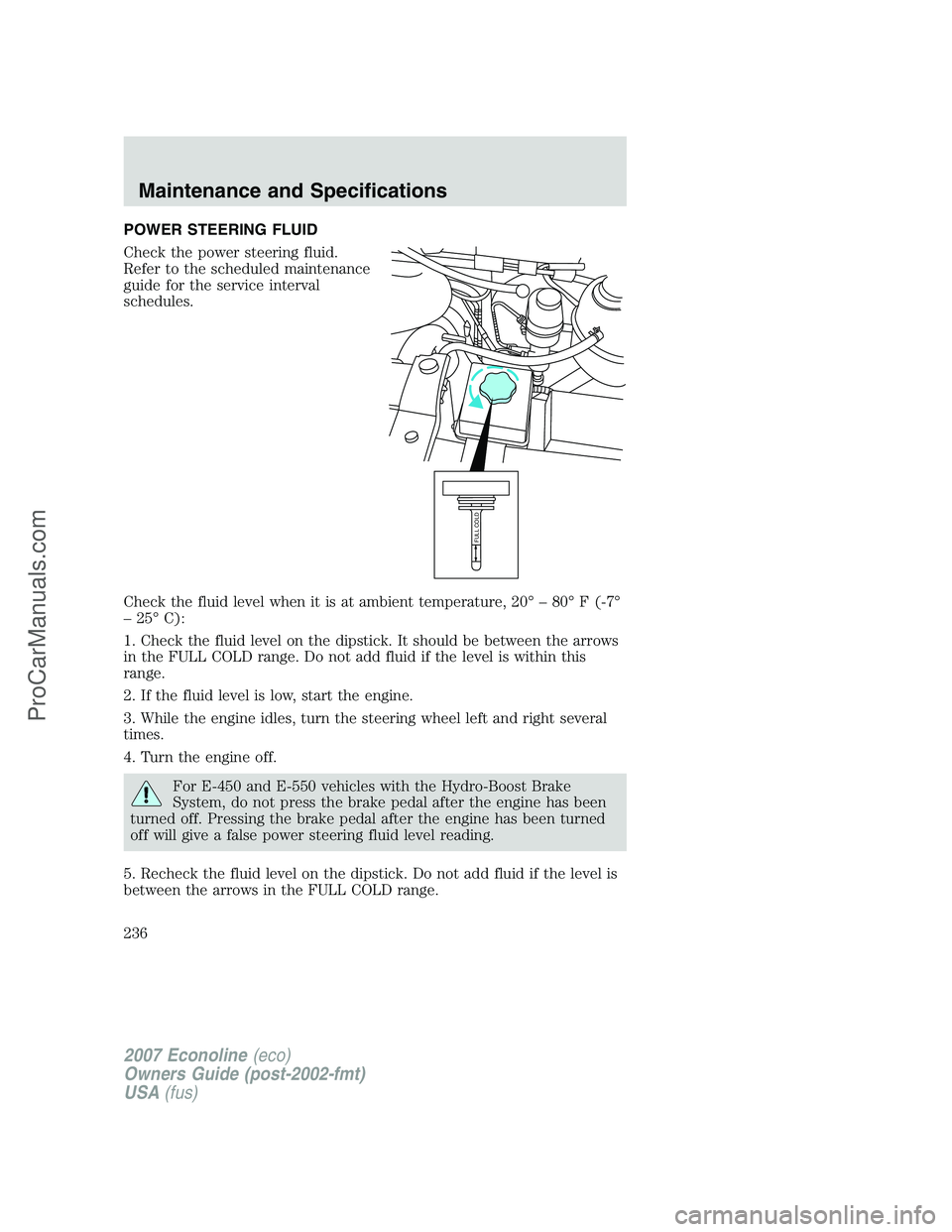

POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules.
Check the fluid level when it is at ambient temperature, 20° – 80° F (-7°
– 25° C):
1. Check the fluid level on the dipstick. It should be between the arrows
in the FULL COLD range. Do not add fluid if the level is within this
range.
2. If the fluid level is low, start the engine.
3. While the engine idles, turn the steering wheel left and right several
times.
4. Turn the engine off.
For E-450 and E-550 vehicles with the Hydro-Boost Brake
System, do not press the brake pedal after the engine has been
turned off. Pressing the brake pedal after the engine has been turned
off will give a false power steering fluid level reading.
5. Recheck the fluid level on the dipstick. Do not add fluid if the level is
between the arrows in the FULL COLD range.
FULL COLD
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
236
ProCarManuals.com

Item Capacity Ford part nameFord part number /
Ford specification
Engine oil-gasoline
engine6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Engine oil-diesel engineRefer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplement.
Power steering fluidKeep in FULL
range on dipstickMotorcraft MERCON
V
AT FXT-5-QM /
MERCON
V
Automatic transmission
fluid (4R75E)13.9 quarts
(13.1L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
Automatic transmission
fluid TorqShift
(5–speed)17.5 quarts
(16.6L)
3
Motorcraft MERCON
SP
AT F
4
XT-6-QSP /
MERCON
SP
Parking brake assembly
(E-450 Super Duty)—Motorcraft MERCON

AT FXT-2-QDX /
MERCON

Dana conventional and
Limited Slip axle fluid
M60 (M248)
E-350 w/ 4.10 axle ratio5.9 pints (2.8L)
5,7
SAE 75W-140 Synthetic
Rear Axle Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246
ProCarManuals.com

L
Lamps
bulb replacement
specifications chart ..................39
daytime running light ...............35
headlamps .................................34
headlamps, flash to pass ..........35
instrument panel, dimming .....36
interior lamps ...........................38
replacing bulbs .........................40
Lane change indicator
(see Turn signal) ........................38
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........147
Load limits .................................124
Loading instructions .................130
Locks ............................................55
autolock .....................................55
doors ..........................................55
Lubricant specifications ...........244
Lug nuts ....................................187
Lumbar support, seats ...............63
M
Mirrors
fold away ...................................51
side view mirrors (power) .......50
Motorcraft parts ........208, 224, 242
O
Octane rating ............................228
Oil (see Engine oil) ..................213
P
Parking brake ............................148Parts (see Motorcraft parts) ....242
Power distribution box
(see Fuses) ...............................174
Power door locks ........................55
Power mirrors .............................50
Power point .................................48
Power steering ..........................151
fluid, checking and adding ....236
fluid, refill capacity ................244
fluid, specifications .................244
Power Windows ...........................49
Preparing to drive your
vehicle ........................................152
R
Radio ................................19, 21, 25
Relays ................................170, 177
Remote entry system .................57
illuminated entry ......................61
locking/unlocking doors ...........58
panic alarm ...............................58
replacement/additional
transmitters ...............................60
replacing the batteries .............59
Reverse sensing system ...........163
Roadside assistance ..................166
S
Safety Belt Maintenance ............78
Safety belts (see Safety
restraints) ........................68, 70–72
Safety defects, reporting ..200–201
Safety restraints ..............68, 70–72
Belt-Minder
.............................74
extension assembly ..................77
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
259
ProCarManuals.com

for adults .............................70–71
for children .........................87–88
lap belt ......................................73
safety belt maintenance ...........78
warning light and chime ....73–74
Safety seats for children ............92
Seats ............................................62
child safety seats ......................92
front seats .................................62
Servicing your vehicle ..............209
Setting the clock
AM/FM stereo ...........................20
AM/FM/In-dash 6 CD ..........22, 27
Spare tire
(see Changing the Tire) ...........180
Spark plugs,
specifications .....................242, 250
Special notice ................................8
ambulance conversions ..............8
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................244
Speed control ..............................51
Starting your vehicle ........143–145
jump starting ..........................188
Steering wheel
tilting .........................................45
T
Temperature control
(see Climate control) ...........31, 33
Tilt steering wheel ......................45
Tires ...................................106–107
alignment ................................116
care ..........................................112
changing ..........................180–181checking the pressure ............111
inflating ...................................108
label .........................................123
replacing ..........................114, 183
rotating ....................................116
safety practices .......................115
sidewall information ...............118
snow tires and chains ............124
spare tire .........................178, 180
terminology .............................107
tire grades ...............................107
treadwear ........................106, 113
Towing .......................................130
recreational towing .................142
trailer towing ..........................130
wrecker ....................................193
Traction-lok rear axle ...............152
Transmission .............................154
brake-shift interlock (BSI) ....154
fluid, checking and adding
(automatic) .............................237
fluid, refill capacities ..............244
lubricant specifications ..........244
Turn signal ..................................38
V
Vehicle Identification Number
(VIN) ..........................................251
Vehicle loading ..........................124
Ventilating your vehicle ...........146
W
Warning lights (see Lights) .......12
Washer fluid ..............................212
Water, Driving through .............165
Windows
power .........................................49
