5.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
6.Tone:Press TONE until the
desired level — Bass, Treble, Fade
appears on the display. Turn the
volume control to raise/lower the
levels, or to move the audio sound
from the right to left or the front to
back (if equipped).
7.CLK (Clock):To set the hour,
press and hold CLK until CLOCK
SET appears in the display.
Continue to hold CLK as you press
SEEK to decrease
or
increase
the hours.
To set the minute, press and hold CLK until CLOCK set appears in the
display. Continue to hold CLK as you press TUNE to decrease
or
increase
the minutes.
VOL
PUSH
ON
TONE
CLK
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
20
ProCarManuals.com

3.AUX:This function is not
operational.
4.MUTE:Press to MUTE playing
media; press again to return to
playing media.
5.EJ:Press to eject a CD.
6.Bass:Press BASS; then press
SEL
/to decrease/increase
the bass output.
Treble:Press TREB; then press
SEL
/to decrease/increase
the treble output.
7.Select:Use with Bass, Treble,
Balance, Fade and other menu
selections.
8.Balance:Press BAL; then press
SEL
/to shift sound to the
left/right speakers.
Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
9.Menu:Press MENU and SEL to
access/adjust the following
functions:
Autoset:Press MENU until AUTOSET appears in the display. Press SEL
to toggle ON/OFF. Allows you to set the strongest local radio stations
without losing your original manually set preset stations for
AM/FM1/FM2. When the six strongest stations are filled, the station
stored in preset 1 will begin playing. If there are less than six strong
stations, the system will store the last one in the remaining presets.
Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (
) or decrease
(
) the hours/minutes. Press MENU again to disengage clock mode.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
22
ProCarManuals.com

AM/FM1/FM2. When the six strongest stations are filled, the station
stored in preset 1 will begin playing. If there are less than six strong
stations, the system will store the last one in the remaining presets.
Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (
) or decrease
(
) the hours/minutes. Press MENU again to disengage clock mode.
Folder/Track Mode:In MP3 mode, press MENU until MODE appears in
the display. Use SEL to toggle between FOLDER (only tracks within
selected folder are accessible) or TRACK (all tracks on disc are
accessible) MODE.
10.REPEAT:Press to repeat the
current CD/MP3 track. Press again
to disable.
11.SHUFFLE:Press play the
CD/MP3 tracks on the current disc
in random order. Press again to
disable.
12.FOLDER
: Press to access
the next MP3 directory.
13.FOLDER
: Press to access
the previous MP3 directory
14.FF(Fast forward): In CD/MP3
mode, press until desired selection
is reached.
15.REW(Rewind): In CD/MP3
mode, press until desired selection
is reached.
16.SAT (if equipped):Your radio
comes equipped with Satellite Ready
capability. The kit to enable the
Satellite reception is available through your dealer. Detailed satellite
instructions are included with the dealer installed kit.Check with your
authorized dealer for availability.
17.BAND:Press to toggle between
AM/FM1/FM2 frequency band.
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
27
ProCarManuals.com

To remove the spare tire:
1. Open the rear doors and remove
the thumb screw and anti-theft
bracket. If finger pressure will not
remove the thumb screw, use the
lug wrench to loosen the screw.
2. Remove the access plug under
the left door.
3. Remove the jack handle from the
right side compartment and insert
the tip of the jack handle through
the access hole and into the tube.
4. Turn the jack handle
counterclockwise until the cable is
slack and the tire can be slid from
under the vehicle.
5. Remove the retainer from the
spare tire.
To stow the cable retainer with the spare removed, turn the jack handle
clockwise until all slack is removed.
Tire change procedure
Preparing to change the tire
To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
1. Park on a level surface.
2. Activate the warning flashers.
3. Place the gearshift in P (Park).
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
181
ProCarManuals.com

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
LEAD
RETURN
RECYCLE
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
218
ProCarManuals.com

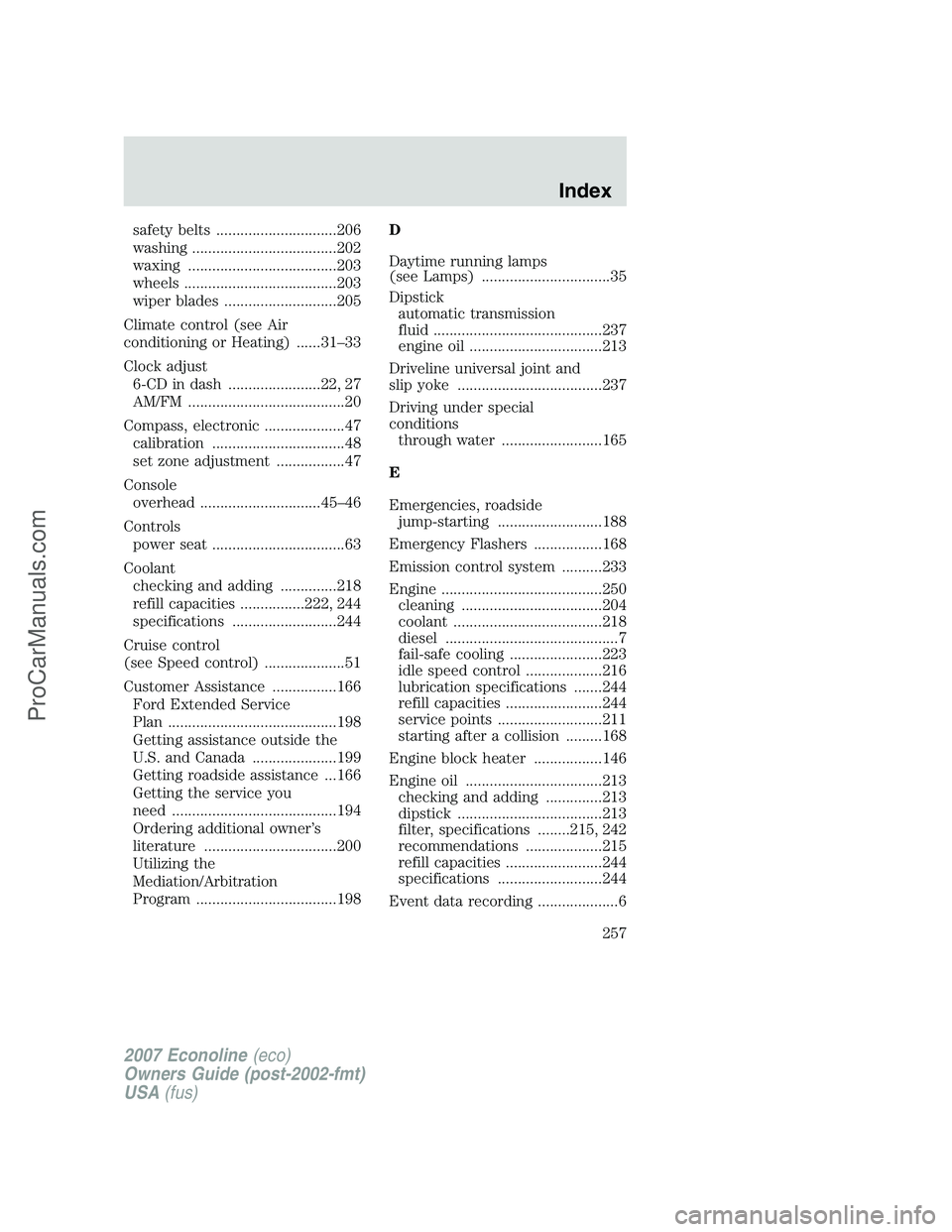

safety belts ..............................206
washing ....................................202
waxing .....................................203
wheels ......................................203
wiper blades ............................205
Climate control (see Air
conditioning or Heating) ......31–33
Clock adjust
6-CD in dash .......................22, 27
AM/FM .......................................20
Compass, electronic ....................47
calibration .................................48
set zone adjustment .................47
Console
overhead ..............................45–46
Controls
power seat .................................63
Coolant
checking and adding ..............218
refill capacities ................222, 244
specifications ..........................244
Cruise control
(see Speed control) ....................51
Customer Assistance ................166
Ford Extended Service
Plan ..........................................198
Getting assistance outside the
U.S. and Canada .....................199
Getting roadside assistance ...166
Getting the service you
need .........................................194
Ordering additional owner’s
literature .................................200
Utilizing the
Mediation/Arbitration
Program ...................................198D
Daytime running lamps
(see Lamps) ................................35
Dipstick
automatic transmission
fluid ..........................................237
engine oil .................................213
Driveline universal joint and
slip yoke ....................................237
Driving under special
conditions
through water .........................165
E
Emergencies, roadside
jump-starting ..........................188
Emergency Flashers .................168
Emission control system ..........233
Engine ........................................250
cleaning ...................................204
coolant .....................................218
diesel ...........................................7
fail-safe cooling .......................223
idle speed control ...................216
lubrication specifications .......244
refill capacities ........................244
service points ..........................211
starting after a collision .........168
Engine block heater .................146
Engine oil ..................................213
checking and adding ..............213
dipstick ....................................213
filter, specifications ........215, 242
recommendations ...................215
refill capacities ........................244
specifications ..........................244
Event data recording ....................6
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
257
ProCarManuals.com

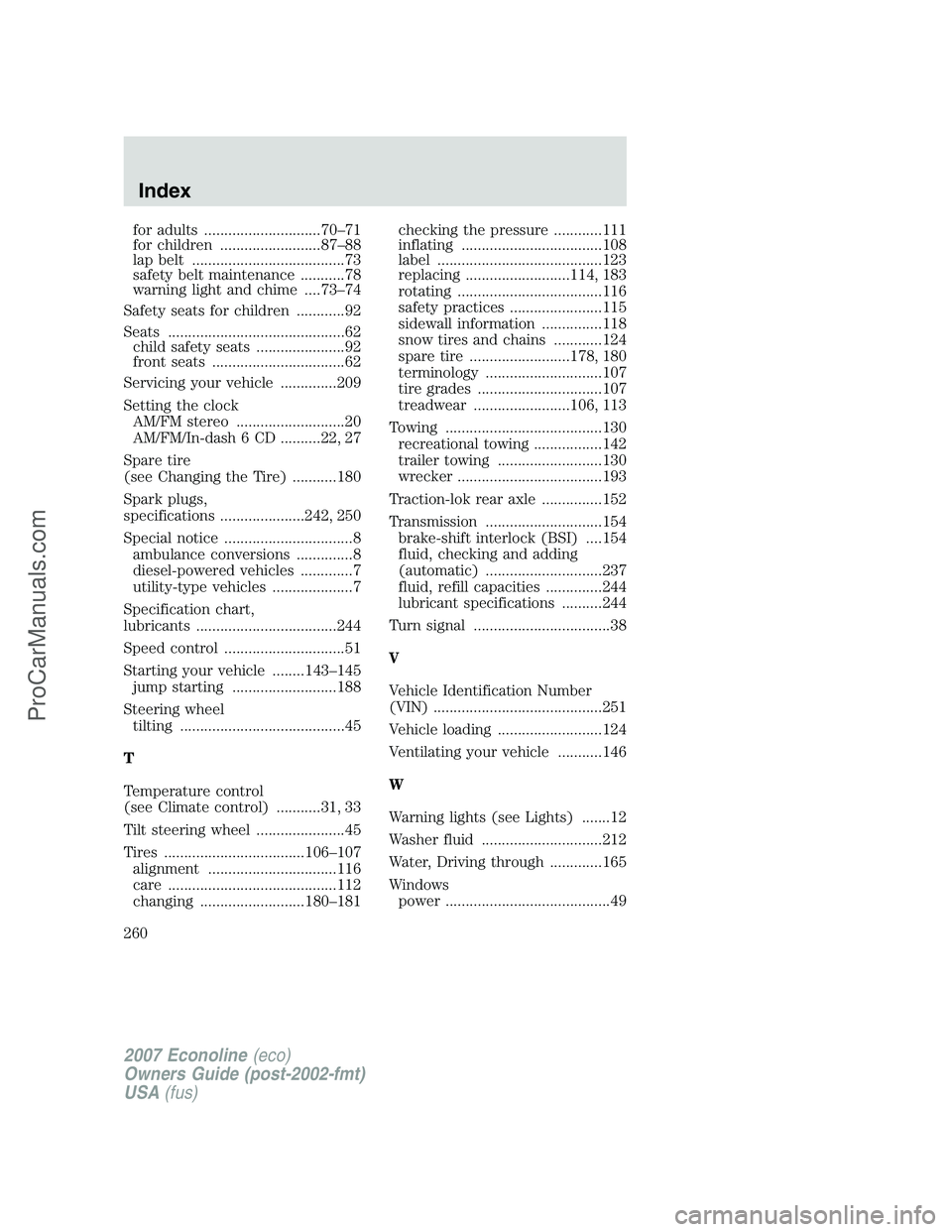

for adults .............................70–71
for children .........................87–88
lap belt ......................................73
safety belt maintenance ...........78
warning light and chime ....73–74
Safety seats for children ............92
Seats ............................................62
child safety seats ......................92
front seats .................................62
Servicing your vehicle ..............209
Setting the clock
AM/FM stereo ...........................20
AM/FM/In-dash 6 CD ..........22, 27
Spare tire
(see Changing the Tire) ...........180
Spark plugs,
specifications .....................242, 250
Special notice ................................8
ambulance conversions ..............8
diesel-powered vehicles .............7
utility-type vehicles ....................7
Specification chart,
lubricants ...................................244
Speed control ..............................51
Starting your vehicle ........143–145
jump starting ..........................188
Steering wheel
tilting .........................................45
T
Temperature control
(see Climate control) ...........31, 33
Tilt steering wheel ......................45
Tires ...................................106–107
alignment ................................116
care ..........................................112
changing ..........................180–181checking the pressure ............111
inflating ...................................108
label .........................................123
replacing ..........................114, 183
rotating ....................................116
safety practices .......................115
sidewall information ...............118
snow tires and chains ............124
spare tire .........................178, 180
terminology .............................107
tire grades ...............................107
treadwear ........................106, 113
Towing .......................................130
recreational towing .................142
trailer towing ..........................130
wrecker ....................................193
Traction-lok rear axle ...............152
Transmission .............................154
brake-shift interlock (BSI) ....154
fluid, checking and adding
(automatic) .............................237
fluid, refill capacities ..............244
lubricant specifications ..........244
Turn signal ..................................38
V
Vehicle Identification Number
(VIN) ..........................................251
Vehicle loading ..........................124
Ventilating your vehicle ...........146
W
Warning lights (see Lights) .......12
Washer fluid ..............................212
Water, Driving through .............165
Windows
power .........................................49
2007 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
260
ProCarManuals.com
