adding oil FORD ECONOLINE 2008 Owners Manual

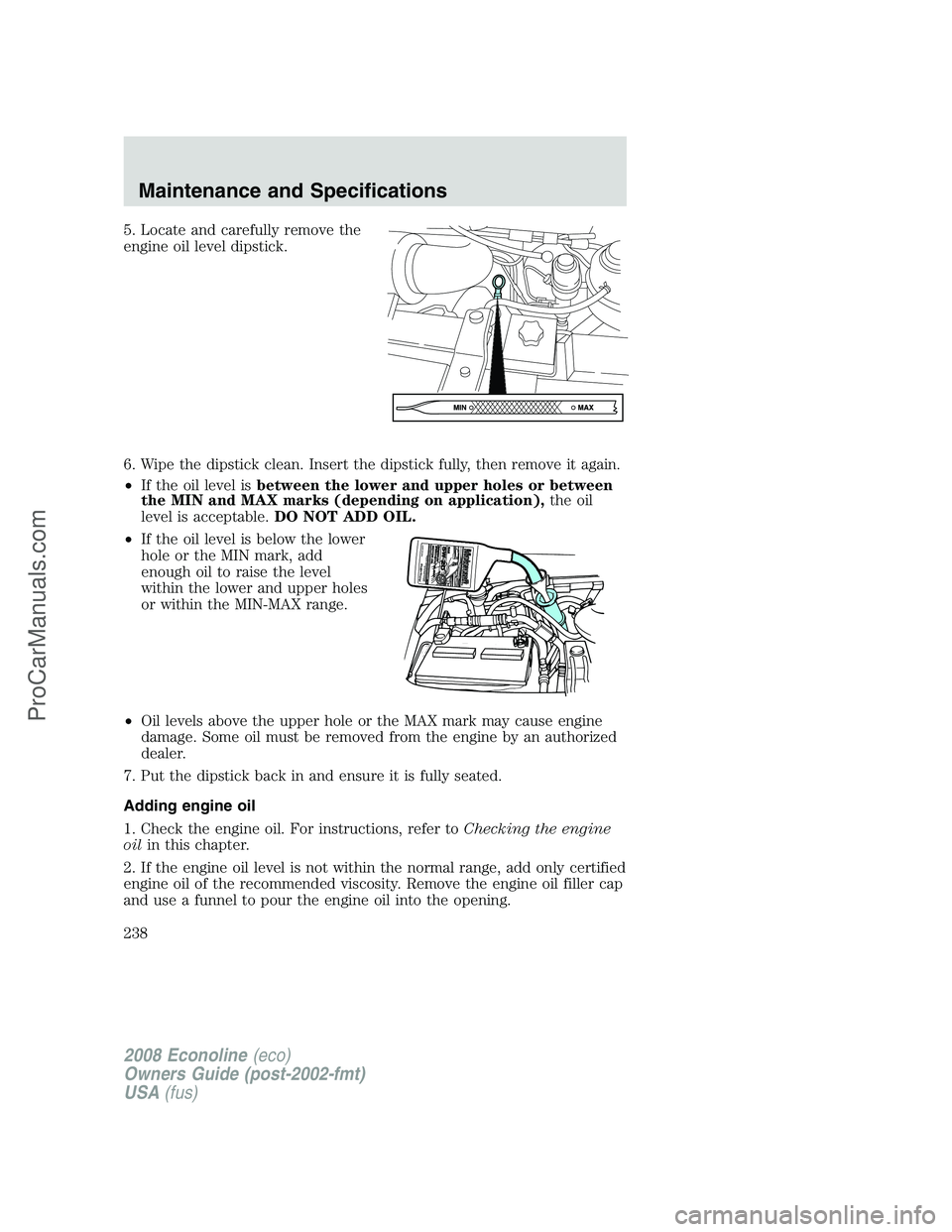

5. Locate and carefully remove the
engine oil level dipstick.
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it again.
•If the oil level isbetween the lower and upper holes or between
the MIN and MAX marks (depending on application),the oil
level is acceptable.DO NOT ADD OIL.
•If the oil level is below the lower
hole or the MIN mark, add
enough oil to raise the level
within the lower and upper holes
or within the MIN-MAX range.
•Oil levels above the upper hole or the MAX mark may cause engine
damage. Some oil must be removed from the engine by an authorized
dealer.
7. Put the dipstick back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
238
ProCarManuals.com

•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.

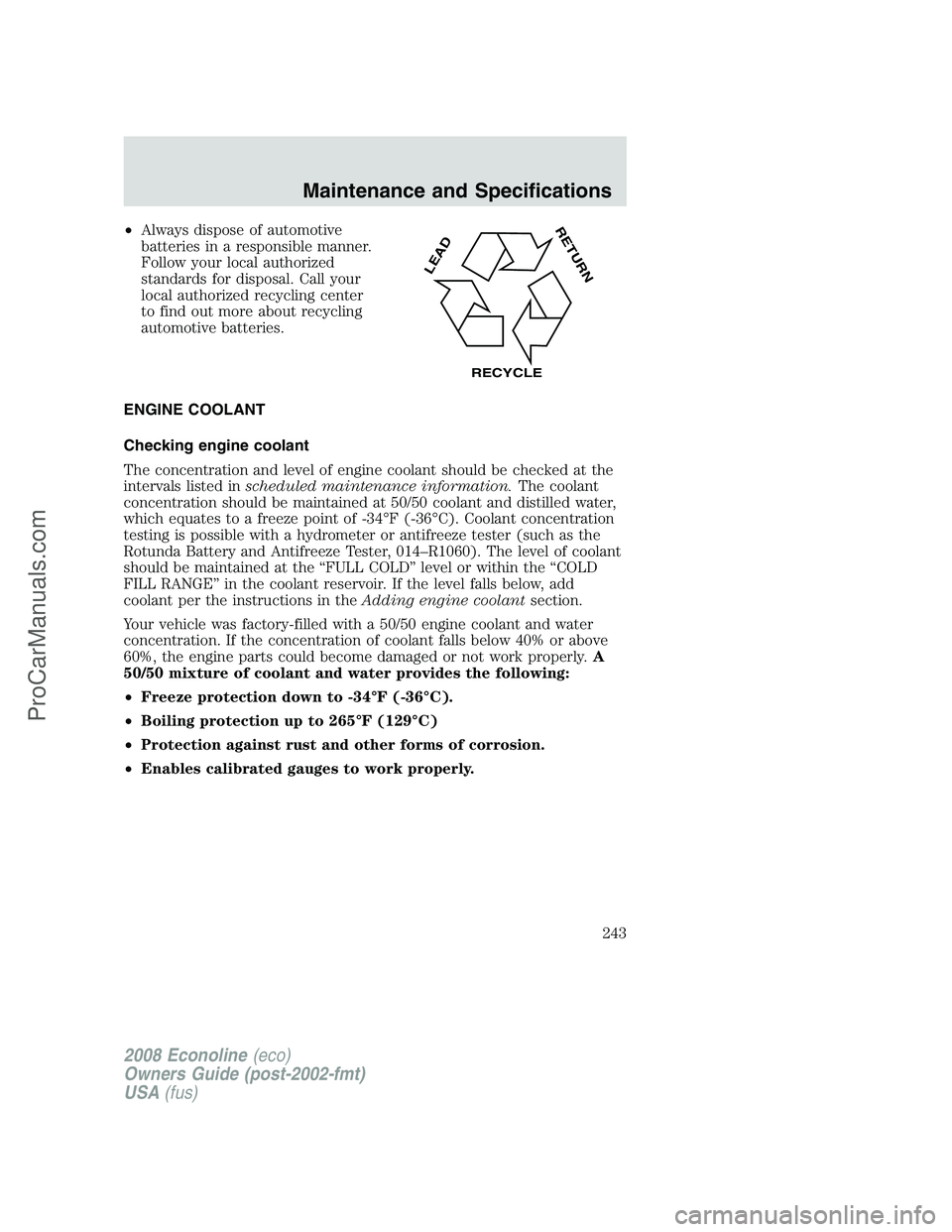

ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C)
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
LEAD
RETURN
RECYCLE
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
243
ProCarManuals.com

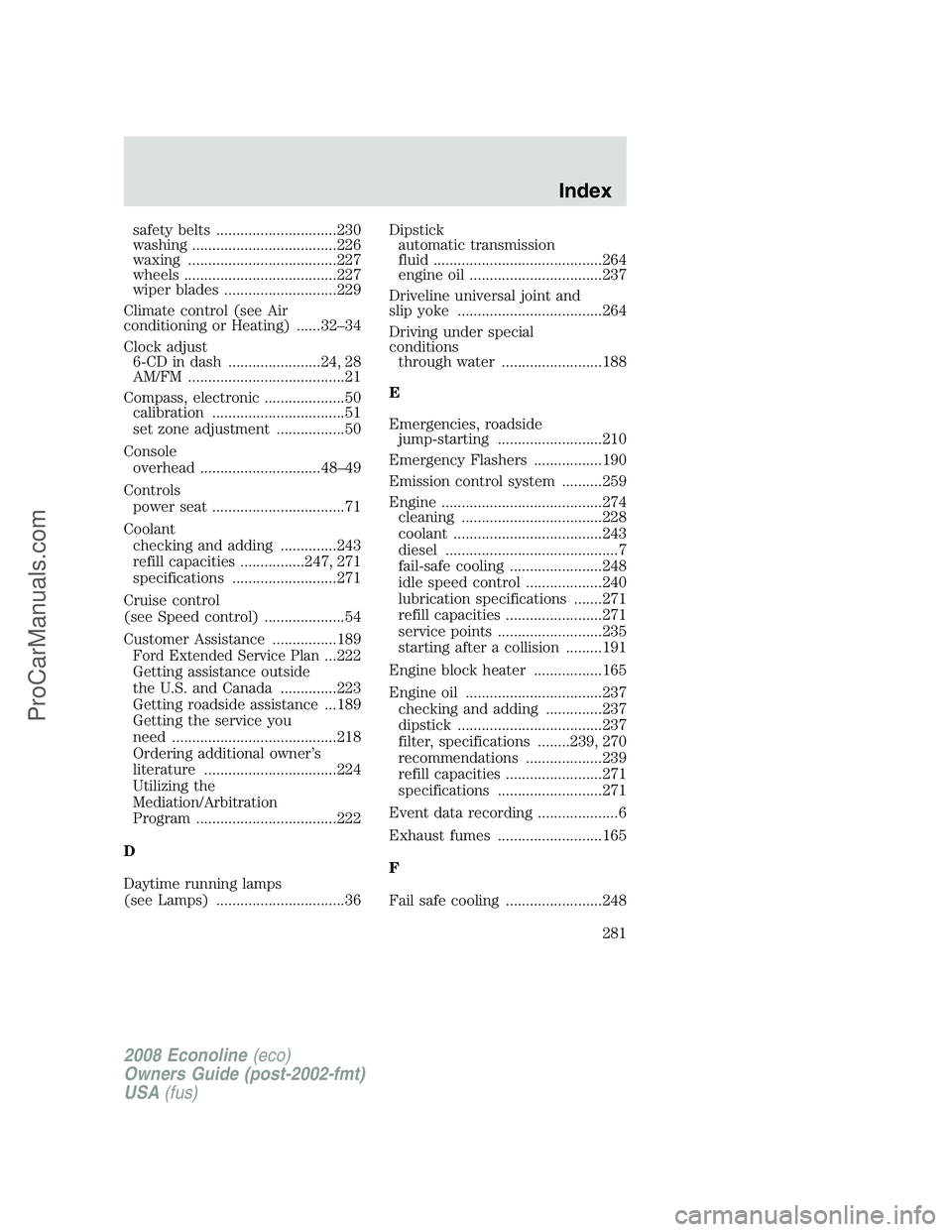

safety belts ..............................230
washing ....................................226
waxing .....................................227
wheels ......................................227
wiper blades ............................229
Climate control (see Air
conditioning or Heating) ......32–34
Clock adjust
6-CD in dash .......................24, 28
AM/FM .......................................21
Compass, electronic ....................50
calibration .................................51
set zone adjustment .................50
Console
overhead ..............................48–49
Controls
power seat .................................71
Coolant
checking and adding ..............243
refill capacities ................247, 271
specifications ..........................271
Cruise control
(see Speed control) ....................54
Customer Assistance ................189
Ford Extended Service Plan...222
Getting assistance outside
the U.S. and Canada ..............223
Getting roadside assistance ...189
Getting the service you
need .........................................218
Ordering additional owner’s
literature .................................224
Utilizing the
Mediation/Arbitration
Program ...................................222
D
Daytime running lamps
(see Lamps) ................................36Dipstick
automatic transmission
fluid ..........................................264
engine oil .................................237
Driveline universal joint and
slip yoke ....................................264
Driving under special
conditions
through water .........................188
E
Emergencies, roadside
jump-starting ..........................210
Emergency Flashers .................190
Emission control system ..........259
Engine ........................................274
cleaning ...................................228
coolant .....................................243
diesel ...........................................7
fail-safe cooling .......................248
idle speed control ...................240
lubrication specifications .......271
refill capacities ........................271
service points ..........................235
starting after a collision .........191
Engine block heater .................165
Engine oil ..................................237
checking and adding ..............237
dipstick ....................................237
filter, specifications ........239, 270
recommendations ...................239
refill capacities ........................271
specifications ..........................271
Event data recording ....................6
Exhaust fumes ..........................165
F
Fail safe cooling ........................248
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
281
ProCarManuals.com

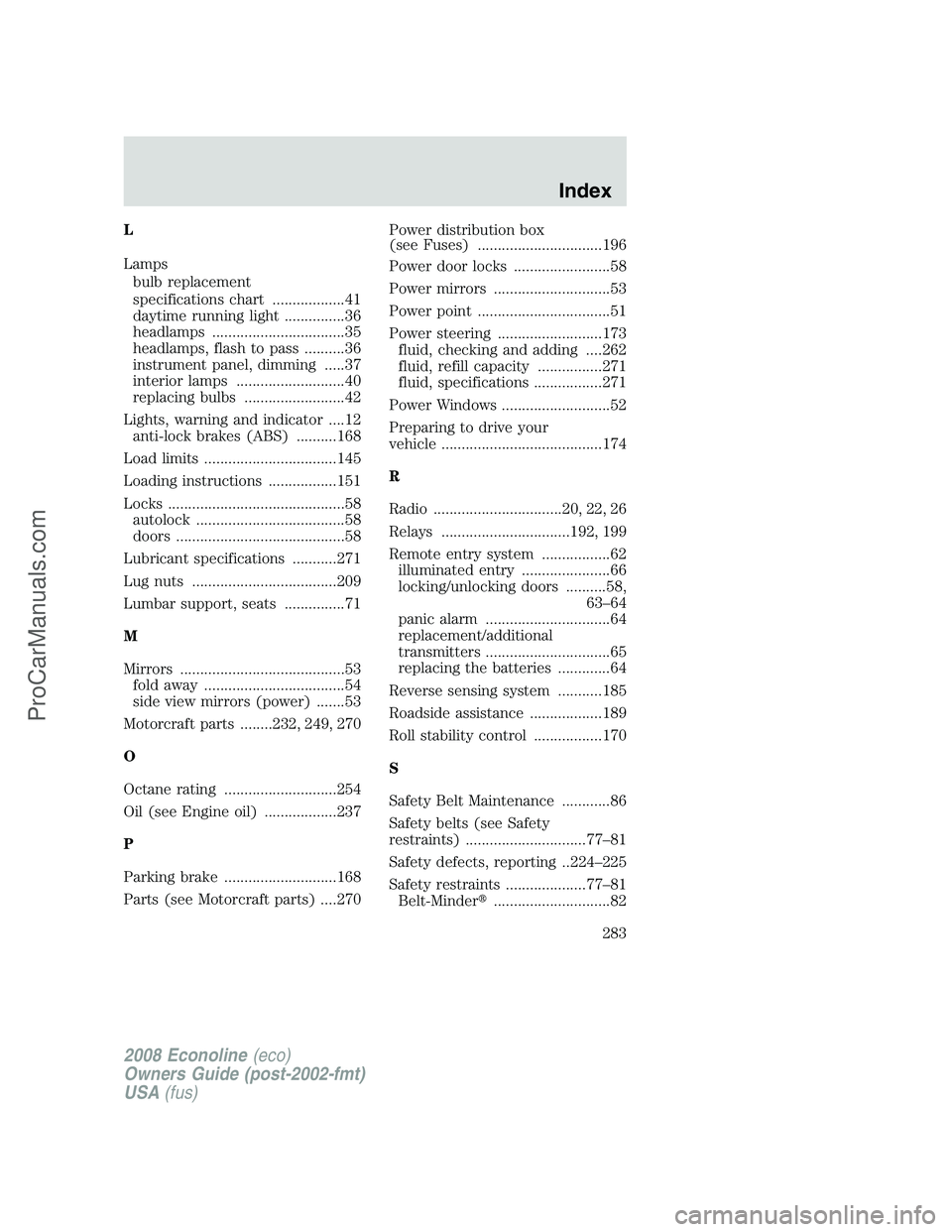

L
Lamps
bulb replacement
specifications chart ..................41
daytime running light ...............36
headlamps .................................35
headlamps, flash to pass ..........36
instrument panel, dimming .....37
interior lamps ...........................40
replacing bulbs .........................42
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........168
Load limits .................................145
Loading instructions .................151
Locks ............................................58
autolock .....................................58
doors ..........................................58
Lubricant specifications ...........271
Lug nuts ....................................209
Lumbar support, seats ...............71
M
Mirrors .........................................53
fold away ...................................54
side view mirrors (power) .......53
Motorcraft parts ........232, 249, 270
O
Octane rating ............................254
Oil (see Engine oil) ..................237
P
Parking brake ............................168
Parts (see Motorcraft parts) ....270Power distribution box
(see Fuses) ...............................196
Power door locks ........................58
Power mirrors .............................53
Power point .................................51
Power steering ..........................173
fluid, checking and adding ....262
fluid, refill capacity ................271
fluid, specifications .................271
Power Windows ...........................52
Preparing to drive your
vehicle ........................................174
R
Radio ................................20, 22, 26
Relays ................................192, 199
Remote entry system .................62
illuminated entry ......................66
locking/unlocking doors ..........58,
63–64
panic alarm ...............................64
replacement/additional
transmitters ...............................65
replacing the batteries .............64
Reverse sensing system ...........185
Roadside assistance ..................189
Roll stability control .................170
S
Safety Belt Maintenance ............86
Safety belts (see Safety
restraints) ..............................77–81
Safety defects, reporting ..224–225
Safety restraints ....................77–81
Belt-Minder
.............................82
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283
