MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers
and washer fluid will be activated
for up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
47
ProCarManuals.com

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
31 10A Right headlamp (low beam)
32 20A Power point #1 (instrument
panel)
33 10A Starter relay
34 — Not used
35 — Not used
36 5A Instrument illumination
37 15A Ignition switch
38 10A Brake Shift Interlock
39 10A Trailer tow electric brake, Center
High-Mounted Stop Lamp
(CHMSL)
40 20A Power point (body B-pillar)
41 30A Modified vehicle
42 20A circuit
breakerPower windows
43 — Not used
44 30A circuit
breakerWiper/washer
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If your vehicle is equipped with an auxiliary battery,
disconnecting the primary under-hood battery DOES NOT remove
power from all circuits.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
196
ProCarManuals.com

PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3-A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
229
ProCarManuals.com

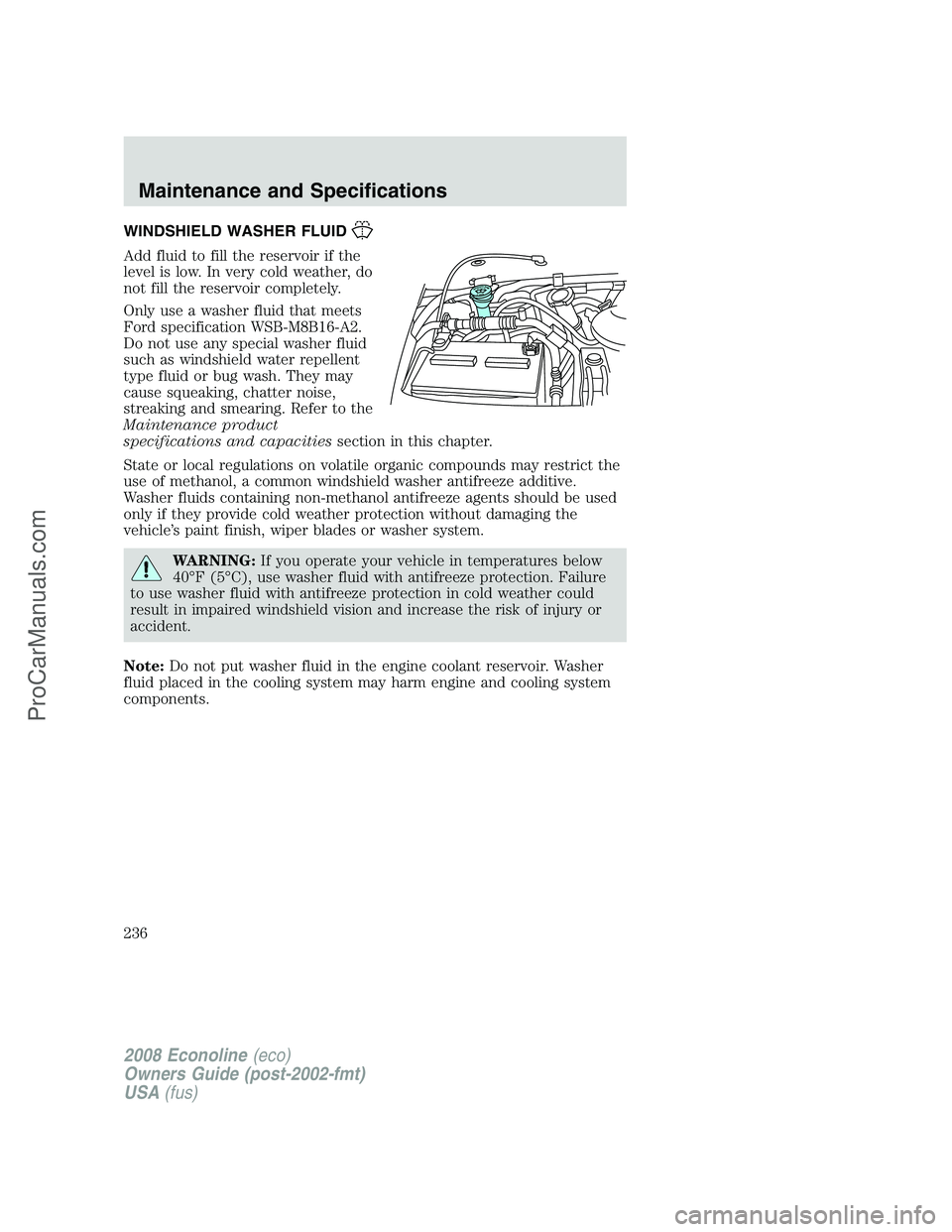

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16-A2.
Do not use any special washer fluid
such as windshield water repellent
type fluid or bug wash. They may
cause squeaking, chatter noise,
streaking and smearing. Refer to the
Maintenance product
specifications and capacitiessection in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
236
ProCarManuals.com

safety belts ..............................230
washing ....................................226
waxing .....................................227
wheels ......................................227
wiper blades ............................229
Climate control (see Air
conditioning or Heating) ......32–34
Clock adjust
6-CD in dash .......................24, 28
AM/FM .......................................21
Compass, electronic ....................50
calibration .................................51
set zone adjustment .................50
Console
overhead ..............................48–49
Controls
power seat .................................71
Coolant
checking and adding ..............243
refill capacities ................247, 271
specifications ..........................271
Cruise control
(see Speed control) ....................54
Customer Assistance ................189
Ford Extended Service Plan...222
Getting assistance outside
the U.S. and Canada ..............223
Getting roadside assistance ...189
Getting the service you
need .........................................218
Ordering additional owner’s
literature .................................224
Utilizing the
Mediation/Arbitration
Program ...................................222
D
Daytime running lamps
(see Lamps) ................................36Dipstick
automatic transmission
fluid ..........................................264
engine oil .................................237
Driveline universal joint and
slip yoke ....................................264
Driving under special
conditions
through water .........................188
E
Emergencies, roadside
jump-starting ..........................210
Emergency Flashers .................190
Emission control system ..........259
Engine ........................................274
cleaning ...................................228
coolant .....................................243
diesel ...........................................7
fail-safe cooling .......................248
idle speed control ...................240
lubrication specifications .......271
refill capacities ........................271
service points ..........................235
starting after a collision .........191
Engine block heater .................165
Engine oil ..................................237
checking and adding ..............237
dipstick ....................................237
filter, specifications ........239, 270
recommendations ...................239
refill capacities ........................271
specifications ..........................271
Event data recording ....................6
Exhaust fumes ..........................165
F
Fail safe cooling ........................248
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
281
ProCarManuals.com

W
Warning lights (see Lights) .......12
Washer fluid ..............................236
Water, Driving through .............188
Windows
power .........................................52Windshield washer fluid and
wipers
..........................................47
checking and adding fluid
.....236
replacing wiper blades
...........237
Wrecker towing
.........................216
2008 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
285
