keyless FORD ECOSPORT 2019 Owners Manual

Introduction
About This Manual..........................................7
Symbols Glossary............................................7
Data Recording.................................................9
Perchlorate........................................................11
Ford Credit.........................................................11
Replacement Parts Recommendation............................................................................12
Special Notices...............................................12
Mobile Communications Equipment............................................................................13
Export Unique Options................................14
Environment
Protecting the Environment.......................15
Child Safety
General Information......................................16
Installing Child Restraints............................17
Booster Seats.................................................23
Child Restraint Positioning........................25
Child Safety Locks.........................................27
Seatbelts
Principle of Operation.................................28
Fastening the Seatbelts.............................29
Seatbelt Height Adjustment......................31
Seatbelt Warning Lamp and IndicatorChime.............................................................31
Seatbelt Reminder........................................32
Child Restraint and SeatbeltMaintenance...............................................34
Seatbelt Extension.......................................34
Personal Safety System™
Personal Safety System™.........................35
Supplementary RestraintsSystem
Principle of Operation.................................36
Driver and Passenger Airbags...................37
Front Passenger Sensing System...........38
Side Airbags....................................................40
Driver and Passenger Knee Airbags.......42
Safety Canopy™............................................42
Crash Sensors and Airbag Indicator......44
Airbag Disposal..............................................45
Keys and Remote Controls
Principle of Operation.................................46
General Information on RadioFrequencies................................................46
Remote Control.............................................46
Replacing a Lost Key or Remote Control..........................................................................50
MyKey™
Principle of Operation..................................51
Creating a MyKey...........................................52
Programming a MyKey................................53
Clearing All MyKeys......................................53
Checking MyKey System Status..............53
Using MyKey With Remote StartSystems........................................................54
MyKey — Troubleshooting.........................54
Doors and Locks
Locking and Unlocking................................55
Keyless Entry..................................................58
Tailgate.............................................................60
Security
Passive Anti-Theft System........................62
Anti-Theft Alarm...........................................64
Steering Wheel
Adjusting the Steering Wheel..................66
Audio Control.................................................66
Voice Control...................................................67
Cruise Control.................................................67
1
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingTable of Contents

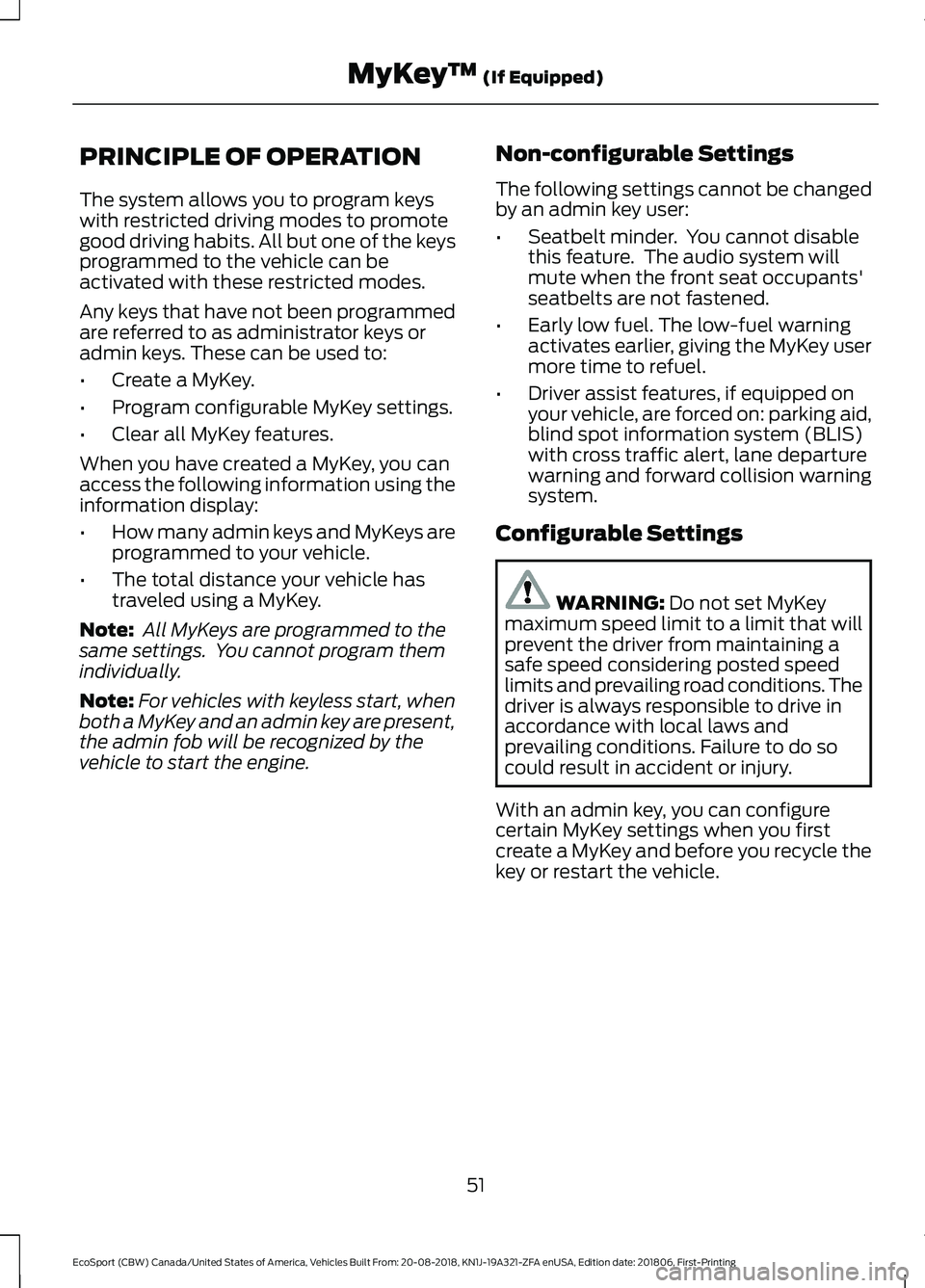

PRINCIPLE OF OPERATION
The system allows you to program keyswith restricted driving modes to promotegood driving habits. All but one of the keysprogrammed to the vehicle can beactivated with these restricted modes.
Any keys that have not been programmedare referred to as administrator keys oradmin keys. These can be used to:
•Create a MyKey.
•Program configurable MyKey settings.
•Clear all MyKey features.
When you have created a MyKey, you canaccess the following information using theinformation display:
•How many admin keys and MyKeys areprogrammed to your vehicle.
•The total distance your vehicle hastraveled using a MyKey.
Note: All MyKeys are programmed to thesame settings. You cannot program themindividually.
Note:For vehicles with keyless start, whenboth a MyKey and an admin key are present,the admin fob will be recognized by thevehicle to start the engine.
Non-configurable Settings
The following settings cannot be changedby an admin key user:
•Seatbelt minder. You cannot disablethis feature. The audio system willmute when the front seat occupants'seatbelts are not fastened.
•Early low fuel. The low-fuel warningactivates earlier, giving the MyKey usermore time to refuel.
•Driver assist features, if equipped onyour vehicle, are forced on: parking aid,blind spot information system (BLIS)with cross traffic alert, lane departurewarning and forward collision warningsystem.
Configurable Settings
WARNING: Do not set MyKeymaximum speed limit to a limit that willprevent the driver from maintaining asafe speed considering posted speedlimits and prevailing road conditions. Thedriver is always responsible to drive inaccordance with local laws andprevailing conditions. Failure to do socould result in accident or injury.
With an admin key, you can configurecertain MyKey settings when you firstcreate a MyKey and before you recycle thekey or restart the vehicle.
51
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingMyKey™ (If Equipped)

KEYLESS ENTRY (IF EQUIPPED)
General Information
Note:The system may not function if thekey is close to metal objects or electronicdevices such as cell phones.
The system will not function if:
•Your vehicle battery has no charge.
•The passive key frequencies arejammed.
•The passive key battery is flat.
Note:If the system does not function, youwill need to use the key blade to lock andunlock your vehicle.
The system allows you to operate yourvehicle without the use of a key or remotecontrol.
Locking and unlocking requires a validintelligent access key to be located withinone of the there external detection ranges.These are located approximately 5 ft (1 m)from the front door handles and from theswing gate handle. You can also use theIntelligent Access key as a remote control.See Locking and Unlocking (page 55).
Locking Using Intelligent Access
Touch the outer door handle lock sensorfor approximately one second to lock,being careful to not touch the unlocksensor on the back of the door handle atthe same time. After locking, you canimmediately pull on the door handle toconfirm locking occurred withoutinadvertently unlocking.
Note:Your vehicle does not lock itselfautomatically. If you do not lock, yourvehicle will remain unlocked.
Note:Locking touch surfaces are locatedon each of the front doors.
For central locking and to arm the alarm:
•Touch the locking surface once.
After locking the doors with the locksensor, there is a brief delay before you canunlock your vehicle.
This delay lets you pull the handle to makesure your vehicle is locked.
Note:When the delay period is over, youcan open the doors again, provided theIntelligent Access is within the respectivedetection range.
Two short flashes of the directionindicators confirms that all the doors andswing gate have been locked and that thealarm (if equipped) has been armed.
Unlocking Using Intelligent Access
58
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingDoors and Locks

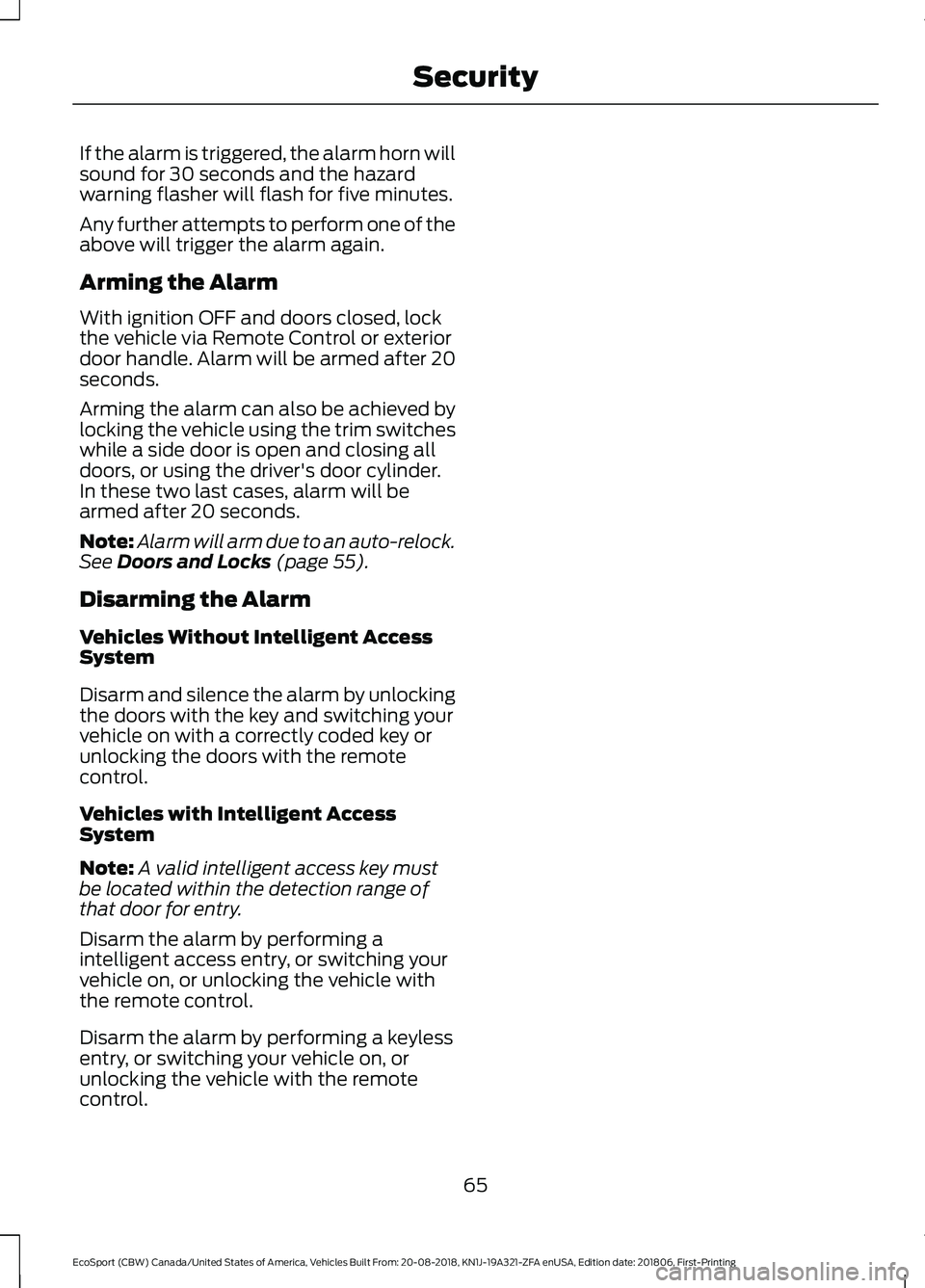

If the alarm is triggered, the alarm horn willsound for 30 seconds and the hazardwarning flasher will flash for five minutes.
Any further attempts to perform one of theabove will trigger the alarm again.
Arming the Alarm
With ignition OFF and doors closed, lockthe vehicle via Remote Control or exteriordoor handle. Alarm will be armed after 20seconds.
Arming the alarm can also be achieved bylocking the vehicle using the trim switcheswhile a side door is open and closing alldoors, or using the driver's door cylinder.In these two last cases, alarm will bearmed after 20 seconds.
Note:Alarm will arm due to an auto-relock.See Doors and Locks (page 55).
Disarming the Alarm
Vehicles Without Intelligent AccessSystem
Disarm and silence the alarm by unlockingthe doors with the key and switching yourvehicle on with a correctly coded key orunlocking the doors with the remotecontrol.
Vehicles with Intelligent AccessSystem
Note:A valid intelligent access key mustbe located within the detection range ofthat door for entry.
Disarm the alarm by performing aintelligent access entry, or switching yourvehicle on, or unlocking the vehicle withthe remote control.
Disarm the alarm by performing a keylessentry, or switching your vehicle on, orunlocking the vehicle with the remotecontrol.
65
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingSecurity

Keyless Vehicle
ActionMessage
Displayed if the key is not detected by the system. SeePush Button Ignition Switch (page 124).No Key Detected
Displayed as a reminder to turn off the vehicle. SeePush Button Ignition Switch (page 124).Switch ignition off.
Displayed as a reminder to press the brake whilestarting the vehicle.To START Press Brake
Displayed when a valid key is not detected within thevehicle. See Push Button Ignition Switch (page 124).Key Not Inside vehicle
Displays when the key battery is low. Change thebattery as soon as possible. See Remote Control(page 46).
Key Battery low Replace soon
Lighting
ActionMessage
Displays if an electrical malfunction occurs with theheadlamp system. Have your vehicle checked as soonas possible.
Check Headlamp System Seemanual
Maintenance
ActionMessage
Indicates the brake fluid level is low and the brakesystem should be inspected immediately. See BrakeFluid Check (page 214).
Brake fluid level low Servicenow
Indicates that the vehicle sold date has beensuccessful updated. If this date has not been set,contact your authorized dealer.
Maintenance Set initial date
Displays when the date and time are not set.Maintenance Set date
95
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingInformation Displays

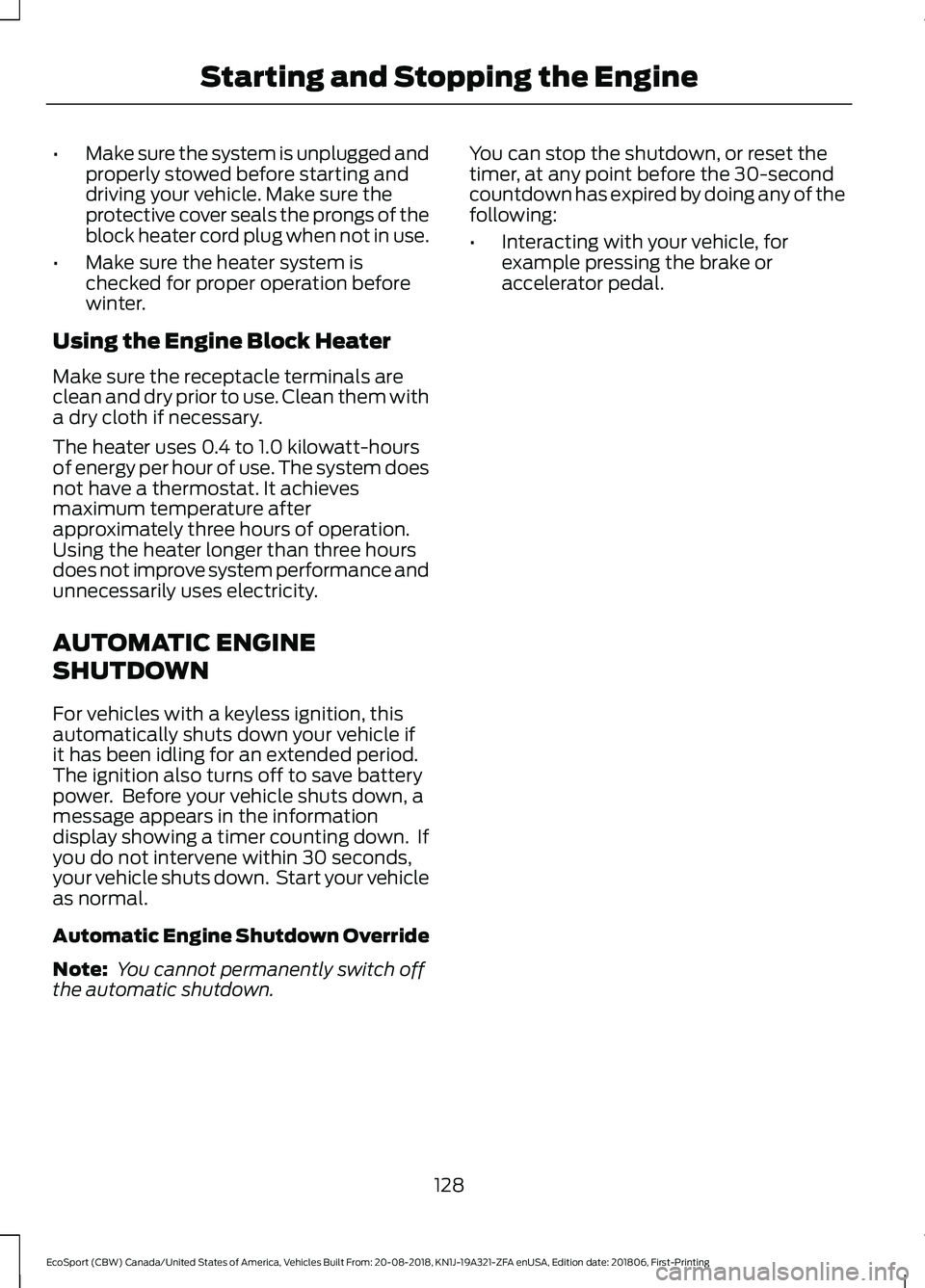

•Make sure the system is unplugged andproperly stowed before starting anddriving your vehicle. Make sure theprotective cover seals the prongs of theblock heater cord plug when not in use.
•Make sure the heater system ischecked for proper operation beforewinter.
Using the Engine Block Heater
Make sure the receptacle terminals areclean and dry prior to use. Clean them witha dry cloth if necessary.
The heater uses 0.4 to 1.0 kilowatt-hoursof energy per hour of use. The system doesnot have a thermostat. It achievesmaximum temperature afterapproximately three hours of operation.Using the heater longer than three hoursdoes not improve system performance andunnecessarily uses electricity.
AUTOMATIC ENGINE
SHUTDOWN
For vehicles with a keyless ignition, thisautomatically shuts down your vehicle ifit has been idling for an extended period.The ignition also turns off to save batterypower. Before your vehicle shuts down, amessage appears in the informationdisplay showing a timer counting down. Ifyou do not intervene within 30 seconds,your vehicle shuts down. Start your vehicleas normal.
Automatic Engine Shutdown Override
Note: You cannot permanently switch offthe automatic shutdown.
You can stop the shutdown, or reset thetimer, at any point before the 30-secondcountdown has expired by doing any of thefollowing:
•Interacting with your vehicle, forexample pressing the brake oraccelerator pedal.
128
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingStarting and Stopping the Engine

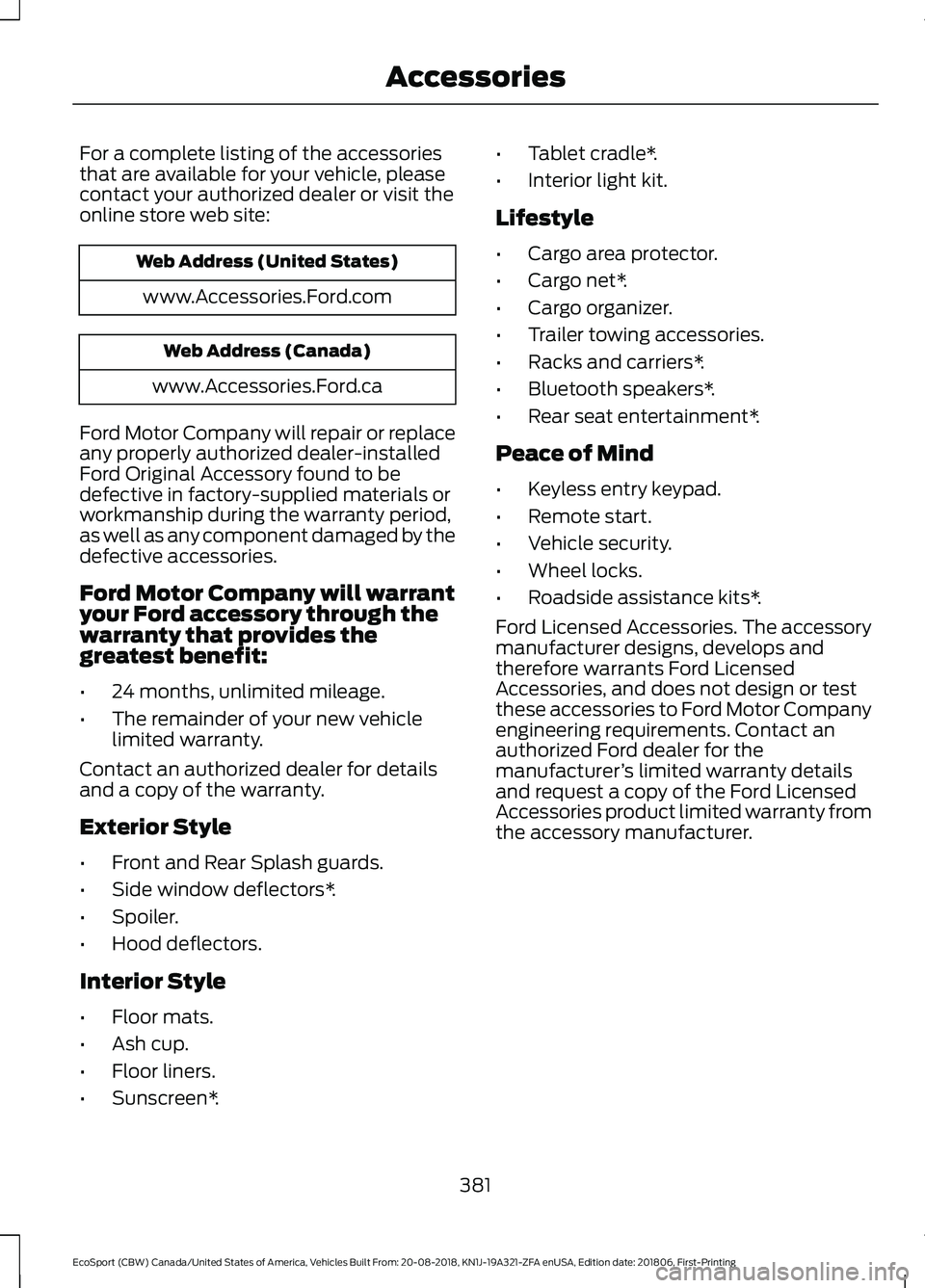

For a complete listing of the accessoriesthat are available for your vehicle, pleasecontact your authorized dealer or visit theonline store web site:
Web Address (United States)
www.Accessories.Ford.com
Web Address (Canada)
www.Accessories.Ford.ca
Ford Motor Company will repair or replaceany properly authorized dealer-installedFord Original Accessory found to bedefective in factory-supplied materials orworkmanship during the warranty period,as well as any component damaged by thedefective accessories.
Ford Motor Company will warrantyour Ford accessory through thewarranty that provides thegreatest benefit:
•24 months, unlimited mileage.
•The remainder of your new vehiclelimited warranty.
Contact an authorized dealer for detailsand a copy of the warranty.
Exterior Style
•Front and Rear Splash guards.
•Side window deflectors*.
•Spoiler.
•Hood deflectors.
Interior Style
•Floor mats.
•Ash cup.
•Floor liners.
•Sunscreen*.
•Tablet cradle*.
•Interior light kit.
Lifestyle
•Cargo area protector.
•Cargo net*.
•Cargo organizer.
•Trailer towing accessories.
•Racks and carriers*.
•Bluetooth speakers*.
•Rear seat entertainment*.
Peace of Mind
•Keyless entry keypad.
•Remote start.
•Vehicle security.
•Wheel locks.
•Roadside assistance kits*.
Ford Licensed Accessories. The accessorymanufacturer designs, develops andtherefore warrants Ford LicensedAccessories, and does not design or testthese accessories to Ford Motor Companyengineering requirements. Contact anauthorized Ford dealer for themanufacturer’s limited warranty detailsand request a copy of the Ford LicensedAccessories product limited warranty fromthe accessory manufacturer.
381
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 20-08-2018, KN1J-19A321-ZFA enUSA, Edition date: 201806, First-PrintingAccessories

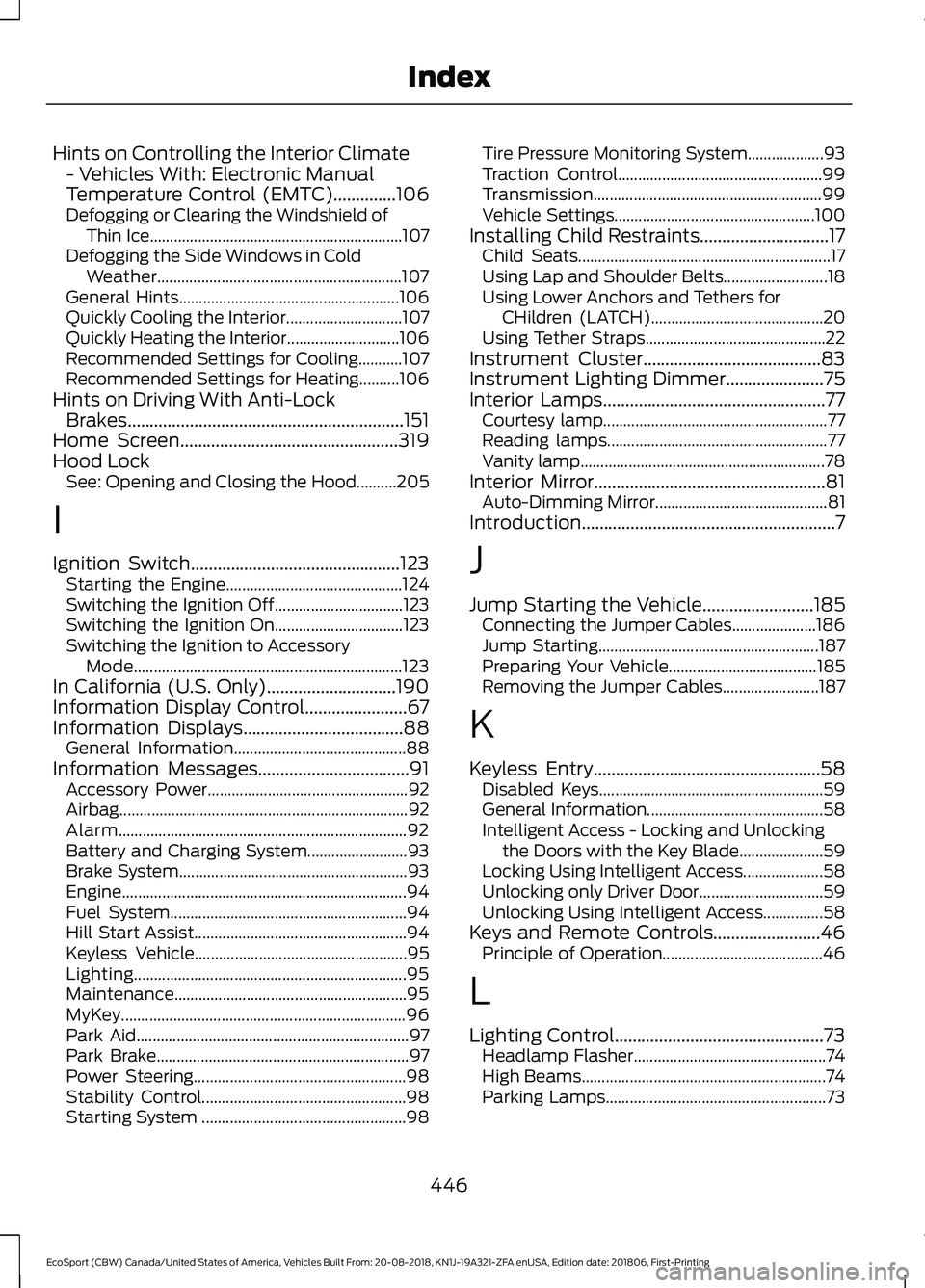

Hints on Controlling the Interior Climate- Vehicles With: Electronic ManualTemperature Control (EMTC)..............106Defogging or Clearing the Windshield ofThin Ice...............................................................107Defogging the Side Windows in ColdWeather.............................................................107General Hints.......................................................106Quickly Cooling the Interior.............................107Quickly Heating the Interior............................106Recommended Settings for Cooling...........107Recommended Settings for Heating..........106Hints on Driving With Anti-LockBrakes..............................................................151Home Screen.................................................319Hood LockSee: Opening and Closing the Hood..........205
I
Ignition Switch...............................................123Starting the Engine............................................124Switching the Ignition Off................................123Switching the Ignition On................................123Switching the Ignition to AccessoryMode...................................................................123In California (U.S. Only).............................190Information Display Control.......................67Information Displays....................................88General Information...........................................88Information Messages..................................91Accessory Power..................................................92Airbag........................................................................92Alarm........................................................................92Battery and Charging System.........................93Brake System.........................................................93Engine.......................................................................94Fuel System...........................................................94Hill Start Assist.....................................................94Keyless Vehicle.....................................................95Lighting....................................................................95Maintenance..........................................................95MyKey.......................................................................96Park Aid....................................................................97Park Brake...............................................................97Power Steering.....................................................98Stability Control...................................................98Starting System ...................................................98
Tire Pressure Monitoring System...................93Traction Control...................................................99Transmission.........................................................99Vehicle Settings..................................................100Installing Child Restraints.............................17Child Seats...............................................................17Using Lap and Shoulder Belts..........................18Using Lower Anchors and Tethers forCHildren (LATCH)...........................................20Using Tether Straps.............................................22Instrument Cluster........................................83Instrument Lighting Dimmer......................75Interior Lamps..................................................77Courtesy lamp........................................................77Reading lamps.......................................................77Vanity lamp.............................................................78Interior Mirror....................................................81Auto-Dimming Mirror...........................................81Introduction.........................................................7
J
Jump Starting the Vehicle.........................185Connecting the Jumper Cables.....................186Jump Starting.......................................................187Preparing Your Vehicle.....................................185Removing the Jumper Cables........................187
K
Keyless Entry...................................................58Disabled Keys........................................................59General Information............................................58Intelligent Access - Locking and Unlockingthe Doors with the Key Blade.....................59Locking Using Intelligent Access....................58Unlocking only Driver Door...............................59Unlocking Using Intelligent Access...............58Keys and Remote Controls........................46Principle of Operation........................................46
L
Lighting Control...............................................73Headlamp Flasher................................................74High Beams.............................................................74Parking Lamps.......................................................73
446
