Page 161 of 448

FORD ECOSPORT 2020  Owners Manual GENERAL INFORMATION
Wet brakes result in reduced brakingefficiency.  Gently press the brake pedal afew times when driving from a car wash orstanding water to dry the brakes.
Brake Over Accelerator
In

Page 162 of 448

FORD ECOSPORT 2020  Owners Manual HINTS ON DRIVING WITH
ANTI-LOCK BRAKES
The anti-lock braking system does noteliminate the risks when:
•You drive too closely to the vehicle infront of you.
•Your vehicle is hydroplaning.
•You ta

Page 163 of 448

FORD ECOSPORT 2020  Owners Manual The system makes it easier to pull awaywhen your vehicle is on a slope without theneed to use the parking brake.
When the system activates, your vehicleremains stationary on a slope for a fewseconds a

Page 164 of 448

FORD ECOSPORT 2020  Owners Manual PRINCIPLE OF OPERATION
The traction control system helps avoiddrive wheel spin and loss of traction.
If your vehicle begins to slide, the systemapplies the brakes to individual wheelsand, when needed,

Page 165 of 448

FORD ECOSPORT 2020  Owners Manual PRINCIPLE OF OPERATION
Electronic Stability Control
WARNING: The system isdesigned to aid the driver. It is notintended to replace your attention andjudgment. You are still responsible todrive with du

Page 166 of 448

FORD ECOSPORT 2020  Owners Manual PRINCIPLE OF OPERATION
WARNING: The system may notdetect objects with surfaces that absorbreflection. Always drive with due careand attention. Failure to take care mayresult in a crash.
WARNING: To he

Page 167 of 448

FORD ECOSPORT 2020  Owners Manual As your vehicle moves closer to theobstacle, the rate of the audible warningincreases. When the obstacle is less than11.81 in (30 cm) the warning soundscontinuously. If the system detects anobject far

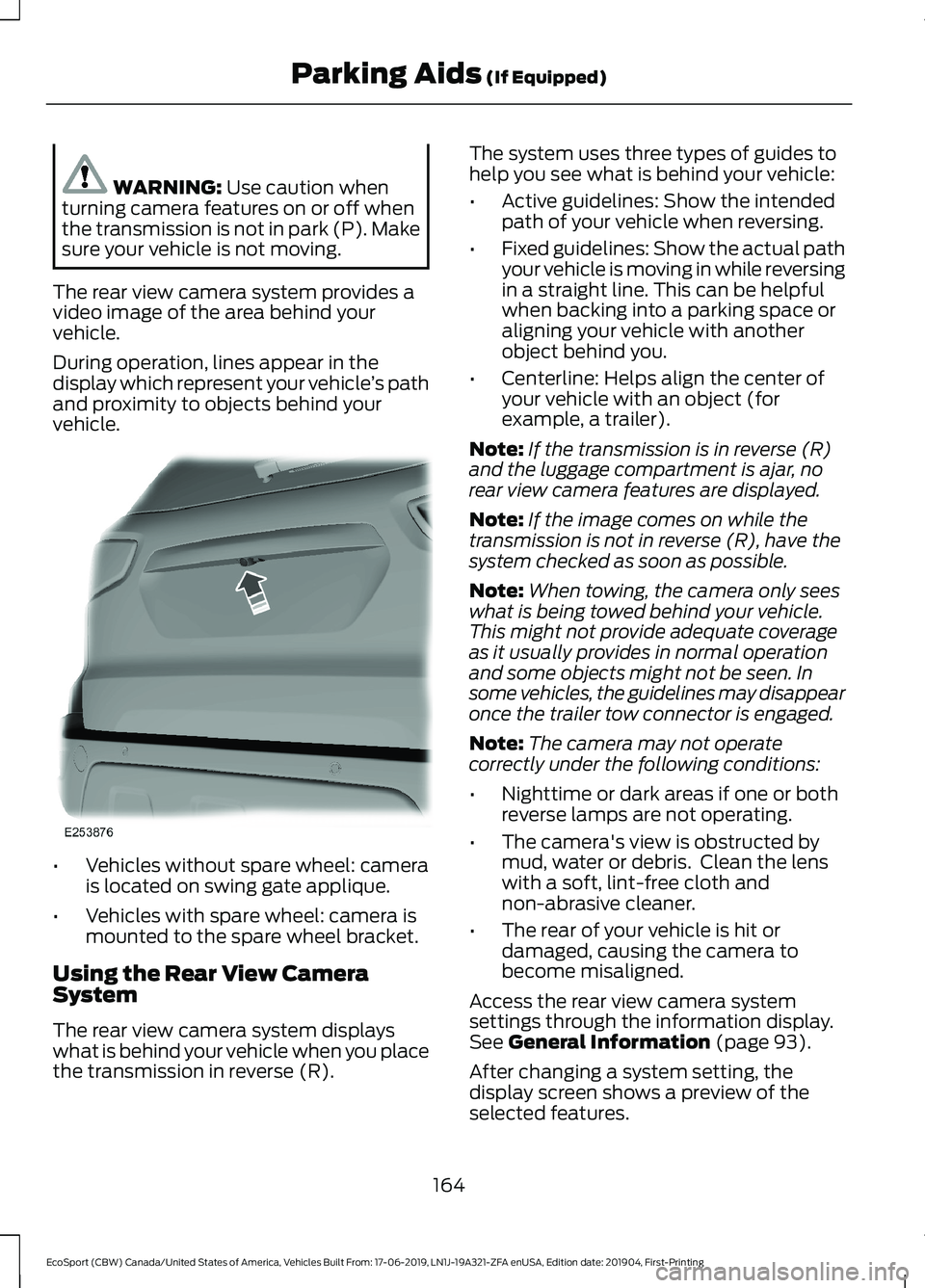

Page 168 of 448

FORD ECOSPORT 2020  Owners Manual WARNING: Use caution whenturning camera features on or off whenthe transmission is not in park (P). Makesure your vehicle is not moving.
The rear view camera system provides avideo image of the area b

Page 169 of 448

FORD ECOSPORT 2020  Owners Manual Camera Guidelines
Note:Dynamic guidelines are only availablewhen the transmission is in reverse (R).
Active guidelinesA
CenterlineB
Fixed guideline: Green zoneC
Fixed guideline: Yellow zoneD
Fixed gui

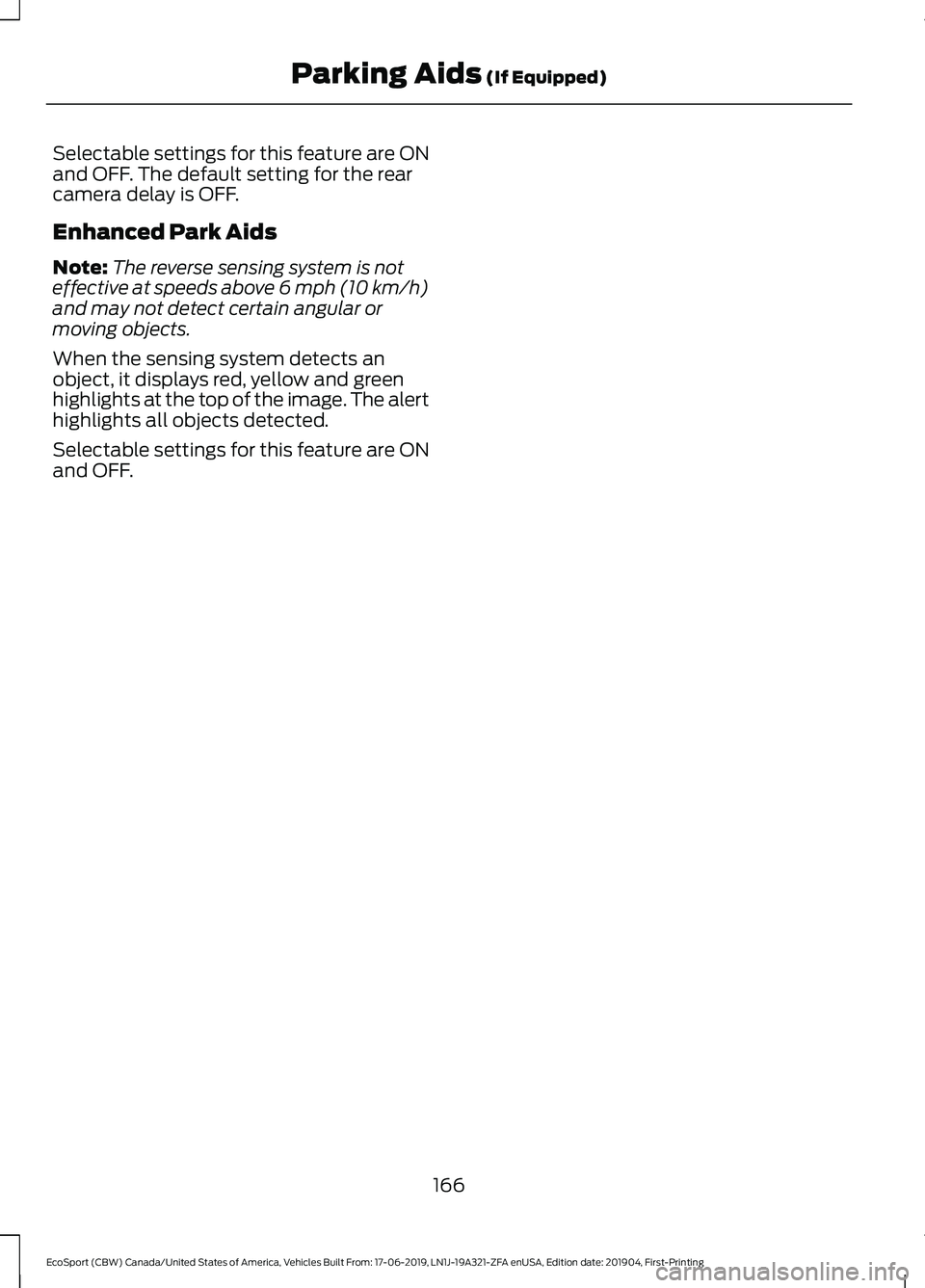

Page 170 of 448

FORD ECOSPORT 2020  Owners Manual Selectable settings for this feature are ONand OFF. The default setting for the rearcamera delay is OFF.
Enhanced Park Aids
Note:The reverse sensing system is noteffective at speeds above 6 mph (10 km
