check engine FORD ECOSPORT 2020 Owners Manual

Starting and Stopping theEngine
General Information...................................130
Ignition Switch..............................................130
Push Button Ignition Switch.....................131
Starting a Gasoline Engine.......................133
Engine Block Heater...................................134
Automatic Engine Shutdown..................135
Unique Driving Characteristics
Auto-Start-Stop..........................................136
Fuel and Refueling
Safety Precautions.....................................138
Fuel Quality - Gasoline..............................138
Fuel Filler Funnel Location.......................139
Running Out of Fuel...................................139
Refueling..........................................................141
Fuel Consumption.......................................143
Engine Emission Control
Emission Law................................................145
Catalytic Converter.....................................146
Transmission
Automatic Transmission..........................149
Four-Wheel Drive
Using Four-Wheel Drive............................153
Brakes
General Information....................................157
Hints on Driving With Anti-Lock Brakes.........................................................................158
Parking Brake................................................158
Hill Start Assist.............................................158
Traction Control
Principle of Operation...............................160
Using Traction Control..............................160
Stability Control
Principle of Operation.................................161
Using Stability Control...............................161
Parking Aids
Principle of Operation................................162
Rear Parking Aid...........................................162
Rear View Camera......................................163
Cruise Control
Principle of Operation................................167
Using Cruise Control...................................167
Driving Aids
Blind Spot Information System.............169
Cross Traffic Alert........................................170
Steering............................................................173
Load Carrying
Luggage Anchor Points..............................174
Rear Under Floor Storage.........................174
Luggage Covers............................................174
Roof Racks and Load Carriers.................175
Load Limit.......................................................176
Towing
Towing a Trailer.............................................181
Trailer Sway Control....................................181
Recommended Towing Weights...........182
Essential Towing Checks..........................183
Towing Points...............................................185
Transporting the Vehicle..........................186
Towing the Vehicle on Four Wheels......187
Driving Hints
Breaking-In....................................................188
Economical Driving.....................................188
3
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingTable of Contents

Cold Weather Precautions.......................188
Driving Through Water..............................188
Floor Mats......................................................189
Roadside Emergencies
Roadside Assistance.................................190
Hazard Flashers............................................191
Fuel Shutoff....................................................191
Jump Starting the Vehicle........................192
Post-Crash Alert System..........................195
Customer Assistance
Getting the Services You Need..............196
In California (U.S. Only).............................197
The Better Business Bureau (BBB) AutoLine Program (U.S. Only).....................198
Utilizing the Mediation/ArbitrationProgram (Canada Only).......................199
Getting Assistance Outside the U.S. andCanada.......................................................199
Ordering Additional Owner's Literature.........................................................................201
Reporting Safety Defects (U.S. Only).........................................................................201
Reporting Safety Defects (Canada Only).........................................................................201
Fuses
Fuse Box Locations....................................203
Fuse Specification Chart.........................203
Changing a Fuse..........................................210
Maintenance
General Information....................................212
Opening and Closing the Hood..............212
Under Hood Overview - 1.0L EcoBoost™.........................................................................213
Under Hood Overview - 2.0L...................214
Engine Oil Dipstick - 1.0L EcoBoost™.........................................................................215
Engine Oil Dipstick - 2.0L..........................215
Engine Oil Check..........................................215
Oil Change Indicator Reset......................216
Engine Cooling Fan......................................217
Engine Coolant Check................................217
Automatic Transmission Fluid Check.........................................................................221
Brake Fluid Check........................................221
Washer Fluid Check....................................222
Fuel Filter........................................................222
Changing the 12V Battery........................223
Checking the Wiper Blades.....................224
Changing the Wiper Blades....................225
Adjusting the Headlamps........................225
Removing a Headlamp.............................227
Changing a Bulb..........................................228
Bulb Specification Chart..........................236
Changing the Engine Air Filter................237
Drive Belt Routing - 2.0L..........................238
Drive Belt Routing - 1.0L EcoBoost™........................................................................238
Vehicle Care
General Information..................................239
Cleaning Products......................................239
Cleaning the Exterior.................................240
Waxing.............................................................241
Cleaning the Engine...................................242
Cleaning the Windows and Wiper Blades........................................................................242
Cleaning the Interior..................................243
Cleaning the Instrument Panel andInstrument Cluster Lens......................243
Cleaning Leather Seats............................244
Repairing Minor Paint Damage.............244
Cleaning the Wheels.................................244
Vehicle Storage...........................................245
Body Styling Kits.........................................247
Wheels and Tires
General Information..................................248
4
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingTable of Contents

Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten seatbelt
Flammable
Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard flashers
Heated rear window
Windshield defrosting system
Interior luggage compartmentrelease
Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level
Note operating instructions
8
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingIntroduction

PASSIVE ANTI-THEFT
SYSTEM

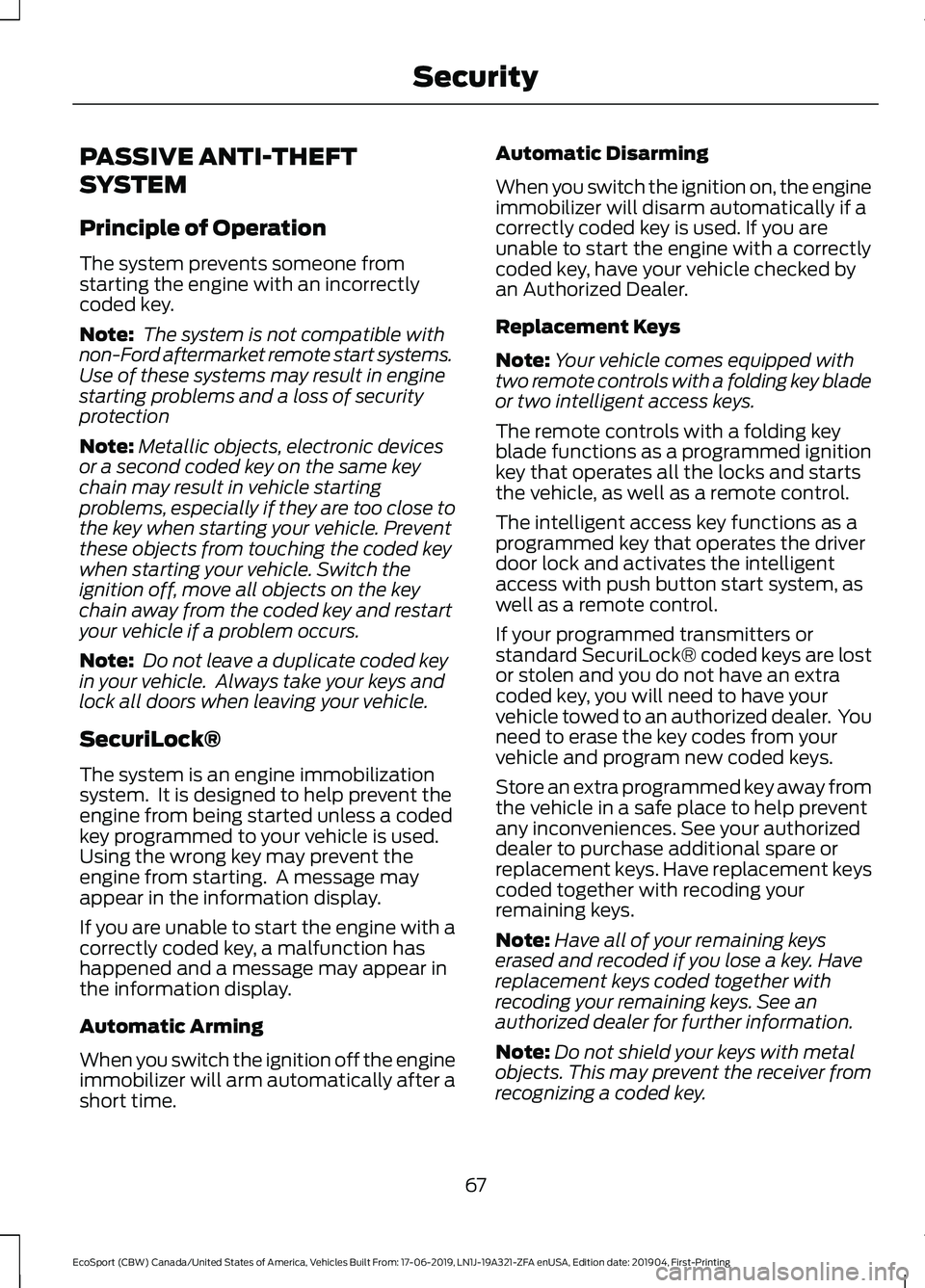

Principle of Operation
The system prevents someone fromstarting the engine with an incorrectlycoded key.
Note: The system is not compatible withnon-Ford aftermarket remote start systems.Use of these systems may result in enginestarting problems and a loss of securityprotection
Note:Metallic objects, electronic devicesor a second coded key on the same keychain may result in vehicle startingproblems, especially if they are too close tothe key when starting your vehicle. Preventthese objects from touching the coded keywhen starting your vehicle. Switch theignition off, move all objects on the keychain away from the coded key and restartyour vehicle if a problem occurs.
Note: Do not leave a duplicate coded keyin your vehicle. Always take your keys andlock all doors when leaving your vehicle.
SecuriLock®
The system is an engine immobilizationsystem. It is designed to help prevent theengine from being started unless a codedkey programmed to your vehicle is used.Using the wrong key may prevent theengine from starting. A message mayappear in the information display.
If you are unable to start the engine with acorrectly coded key, a malfunction hashappened and a message may appear inthe information display.
Automatic Arming
When you switch the ignition off the engineimmobilizer will arm automatically after ashort time.
Automatic Disarming
When you switch the ignition on, the engineimmobilizer will disarm automatically if acorrectly coded key is used. If you areunable to start the engine with a correctlycoded key, have your vehicle checked byan Authorized Dealer.
Replacement Keys
Note:Your vehicle comes equipped withtwo remote controls with a folding key bladeor two intelligent access keys.
The remote controls with a folding keyblade functions as a programmed ignitionkey that operates all the locks and startsthe vehicle, as well as a remote control.
The intelligent access key functions as aprogrammed key that operates the driverdoor lock and activates the intelligentaccess with push button start system, aswell as a remote control.
If your programmed transmitters orstandard SecuriLock® coded keys are lostor stolen and you do not have an extracoded key, you will need to have yourvehicle towed to an authorized dealer. Youneed to erase the key codes from yourvehicle and program new coded keys.
Store an extra programmed key away fromthe vehicle in a safe place to help preventany inconveniences. See your authorizeddealer to purchase additional spare orreplacement keys. Have replacement keyscoded together with recoding yourremaining keys.
Note:Have all of your remaining keyserased and recoded if you lose a key. Havereplacement keys coded together withrecoding your remaining keys. See anauthorized dealer for further information.
Note:Do not shield your keys with metalobjects. This may prevent the receiver fromrecognizing a coded key.
67
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSecurity

Vehicle Settings and Personalization
See General Information (page 93).
Engine Coolant TemperatureGauge
WARNING: Do not remove thecoolant reservoir cap when the engine ison or the cooling system is hot. Wait 10minutes for the cooling system to cooldown. Cover the coolant reservoir capwith a thick cloth to prevent thepossibility of scalding and slowly removethe cap. Failure to follow this instructioncould result in personal injury.
At normal operating temperature theindicator will remain in the center section.
If the needle enters the red section, theengine is overheating. Stop the engine,switch the ignition off and determine thecause once the engine has cooled down.See Engine Coolant Check (page 217).
Note:Do not restart the engine until thecause of overheating has been determinedand resolved.
Fuel Gauge
Switch the ignition on. The fuel gauge willindicate approximately how much fuel isleft in the fuel tank. The fuel gauge mayvary slightly when your vehicle is movingor on a gradient.
The arrow adjacent to the fuel pumpsymbol indicates on which side of yourvehicle the fuel filler door is located.
The fuel filler door is on theleft-hand side of your vehicle.A
The fuel filler door is on theright-hand side of your vehicle.B
WARNING LAMPS AND
INDICATORS
The following warning lamps andindicators alert you to a vehicle conditionthat may become serious. Some lampsilluminate when you start your vehicle tomake sure they work. If any lamps remainon after starting your vehicle, refer to therespective system warning lamp for furtherinformation.
Note:Some warning indicators appear inthe information display and operate thesame as a warning lamp but do notilluminate when you start your vehicle.
Airbag Warning Lamp
If it does not illuminate when youswitch the ignition on, continuesto flash or remains on when theengine is running, this indicates amalfunction. Have your vehicle checkedas soon as possible.
89
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingInstrument Cluster

Anti-Lock Brake System WarningLamp
If it illuminates when you aredriving, this indicates amalfunction. Your vehiclecontinues to have normal braking withoutthe anti-lock brake system function. It alsoilluminates momentarily when you switchthe ignition on to confirm the lamp isfunctional. If it does not illuminate whenyou switch the ignition on, or begins toflash at any time, have the system checkedby an authorized dealer. Have your vehiclechecked as soon as possible.
Brake System Warning Lamp
WARNING: Driving your vehiclewith the warning lamp on is dangerous.A significant decrease in brakingperformance may occur. It may take youlonger to stop your vehicle. Have yourvehicle checked as soon as possible.Driving extended distances with theparking brake engaged can cause brakefailure and the risk of personal injury.
It illuminates when you engagethe parking brake and theignition is on.
If it illuminates when your vehicle ismoving, make sure the parking brake isdisengaged. If the parking brake isdisengaged, this indicates low brake fluidlevel or a brake system fault. It alsoilluminates momentarily when you switchthe ignition on to confirm the lamp isfunctional. If it does not illuminate whenyou switch the ignition on, or begins toflash at any time, have the system checkedby an authorized dealer. Have your vehiclechecked immediately.
Direction Indicator
Flashes during operation. Anincrease in the rate of flashingwarns of a failed indicator bulb.
Fasten Seatbelt Warning Lamp
It illuminates and a chimesounds until you fasten theseatbelts.
Front Fog Lamp Indicator (If Equipped)
It illuminates when you switchthe front fog lamps on.
Headlamp High Beam Indicator
It illuminates when you switchthe headlamp high beam on.
Battery
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.
Switch off all unnecessary electricalequipment. Have your vehicle checked assoon as possible.
Parking Lamps
It will illuminate when you switchthe parking lamps on.
Low Fuel Level Warning Lamp
If it illuminates when you aredriving, refuel as soon aspossible.
90
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingInstrument Cluster

Low Tire Pressure Warning Lamp
It illuminates if the tire pressurein one or more tires is below thecorrect tire pressure.
Auto Start-Stop (If Equipped)
It illuminates to inform you whenthe engine shuts down or inconjunction with a message.
Service Engine Soon
If it illuminates when the engineis running this indicates amalfunction. The On BoardDiagnostics system has detected amalfunction of the vehicle emission controlsystem.
If it flashes, engine misfire may beoccurring. Increased exhaust gastemperatures could damage the catalyticconverter or other vehicle components.Drive in a moderate fashion (avoid heavyacceleration and deceleration) and haveyour vehicle immediately serviced.
It illuminates when you switch the ignitionon prior to engine start to check the bulband to indicate whether your vehicle isready for Inspection and Maintenance(I/M) testing.
Normally, it illuminates until the engine iscranked and automatically turns off if nomalfunctions are present. However, if after15 seconds it flashes eight times, thisindicates that your vehicle is not ready forInspection and Maintenance (I/M) testing.
See Catalytic Converter (page 146).
Powertrain Malfunction
If it illuminates when driving, apowertrain fault has beendetected. Contact yourauthorized dealer as soon possible.
Oil Pressure Warning Lamp
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.Stop your vehicle as soon as it is safe todo so and switch the engine off. Check theengine oil level. If the oil level is sufficient,this indicates a system malfunction. Haveyour vehicle checked immediately. SeeEngine Oil Check (page 215).
Engine Coolant TemperatureWarning Lamp
WARNING: Do not remove thecoolant reservoir cap when the engine ison or the cooling system is hot. Wait 10minutes for the cooling system to cooldown. Cover the coolant reservoir capwith a thick cloth to prevent thepossibility of scalding and slowly removethe cap. Failure to follow this instructioncould result in personal injury.
Note:Do not restart the engine until thecause of overheating has been determinedand resolved.
Note:Do not resume your journey if itilluminates despite the level being correct.Have the system checked by your authorizeddealer immediately.
Illuminates when the enginecoolant temperature is high.Stop the vehicle as soon aspossible, switch off the engine and let cool.Check the coolant level. See EngineCoolant Check (page 217).
If it stays on after starting or illuminateswhen driving, this indicates a malfunction.
91
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingInstrument Cluster

Blind Spot (If Equipped)
It will illuminate when you switchthis feature off or a fault hasbeen detected. Contact yourauthorized dealer as soon possible.
Door Ajar Warning Lamp
Illuminates when you switch theignition on and remains on if anydoor, the hood or the liftgate isnot closed properly.
Stability Control and TractionControl Off Warning Lamp
It illuminates when you switchthe system off.
See Stability Control (page161).
Stability Control and TractionControl Indicator
Flashes during operation.
If it does not illuminate when youswitch the ignition on, or remainson when the engine is running, thisindicates a malfunction. Have your vehiclechecked as soon as possible.
Note:The system automatically turns offif there is a malfunction.
See Using Traction Control (page 160).See Using Stability Control (page 161).
AUDIBLE WARNINGS AND
INDICATORS
Automatic Transmission
Sounds when you open the driver's doorand do not move the transmission selectorlever to position P.
Key Outside Car
Vehicles with Intelligent AccessSystem
Sounds when you close the door, theengine is running and the system does notdetect a passive key inside your vehicle.
Headlamps On Warning Chime
Sounds when you remove the key from theignition and open the driver's door and youhave left the headlamps or parking lampson.
Low Fuel Reminder
A low fuel reminder displays and soundswhen the fuel level reaches 1/16th of thescale or the distance to empty is 37 mi(60 km) or less.
Note:The low fuel reminder can appear atdifferent fuel gauge positions depending onfuel economy conditions. This variation isnormal.
Seatbelt Reminder
WARNING: Do not sit on top of afastened seatbelt to prevent the seatbeltreminder from coming on. The occupantprotection system will only provideoptimum protection when you use theseatbelt properly.
Note:The seatbelt reminder remains instand-by mode when the front seatbeltshave been fastened. It sounds if eitherseatbelt is unfastened.
Sounds when your vehicle speed exceedsthe pre-determined limit and the frontseatbelts are unfastened. The chime willstop after a period of time.
92
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingInstrument Cluster

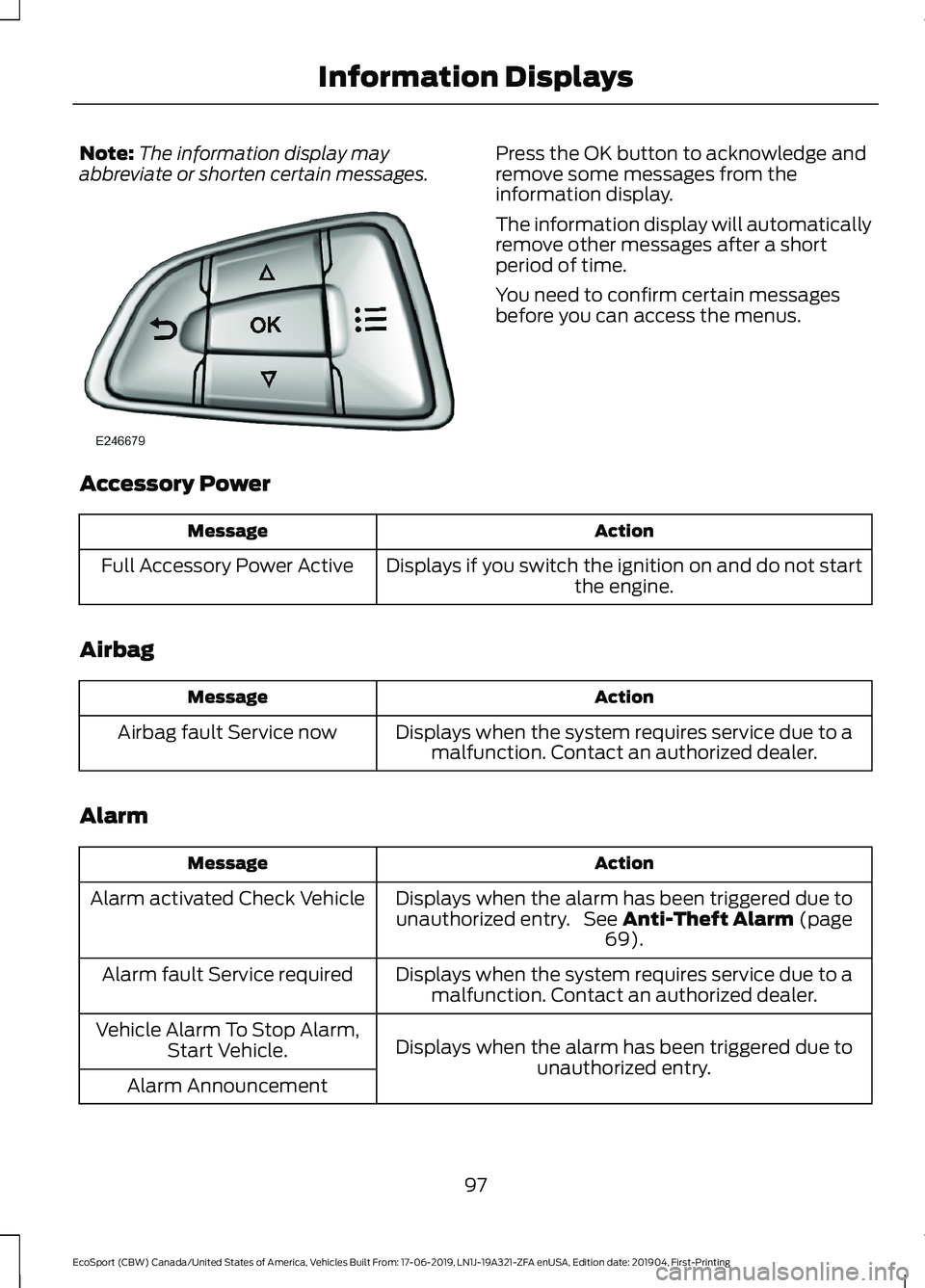

Note:The information display mayabbreviate or shorten certain messages.Press the OK button to acknowledge andremove some messages from theinformation display.
The information display will automaticallyremove other messages after a shortperiod of time.
You need to confirm certain messagesbefore you can access the menus.
Accessory Power
ActionMessage
Displays if you switch the ignition on and do not startthe engine.Full Accessory Power Active
Airbag
ActionMessage
Displays when the system requires service due to amalfunction. Contact an authorized dealer.Airbag fault Service now
Alarm
ActionMessage
Displays when the alarm has been triggered due tounauthorized entry. See Anti-Theft Alarm (page69).
Alarm activated Check Vehicle
Displays when the system requires service due to amalfunction. Contact an authorized dealer.Alarm fault Service required
Displays when the alarm has been triggered due tounauthorized entry.
Vehicle Alarm To Stop Alarm,Start Vehicle.
Alarm Announcement
97
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingInformation Displays

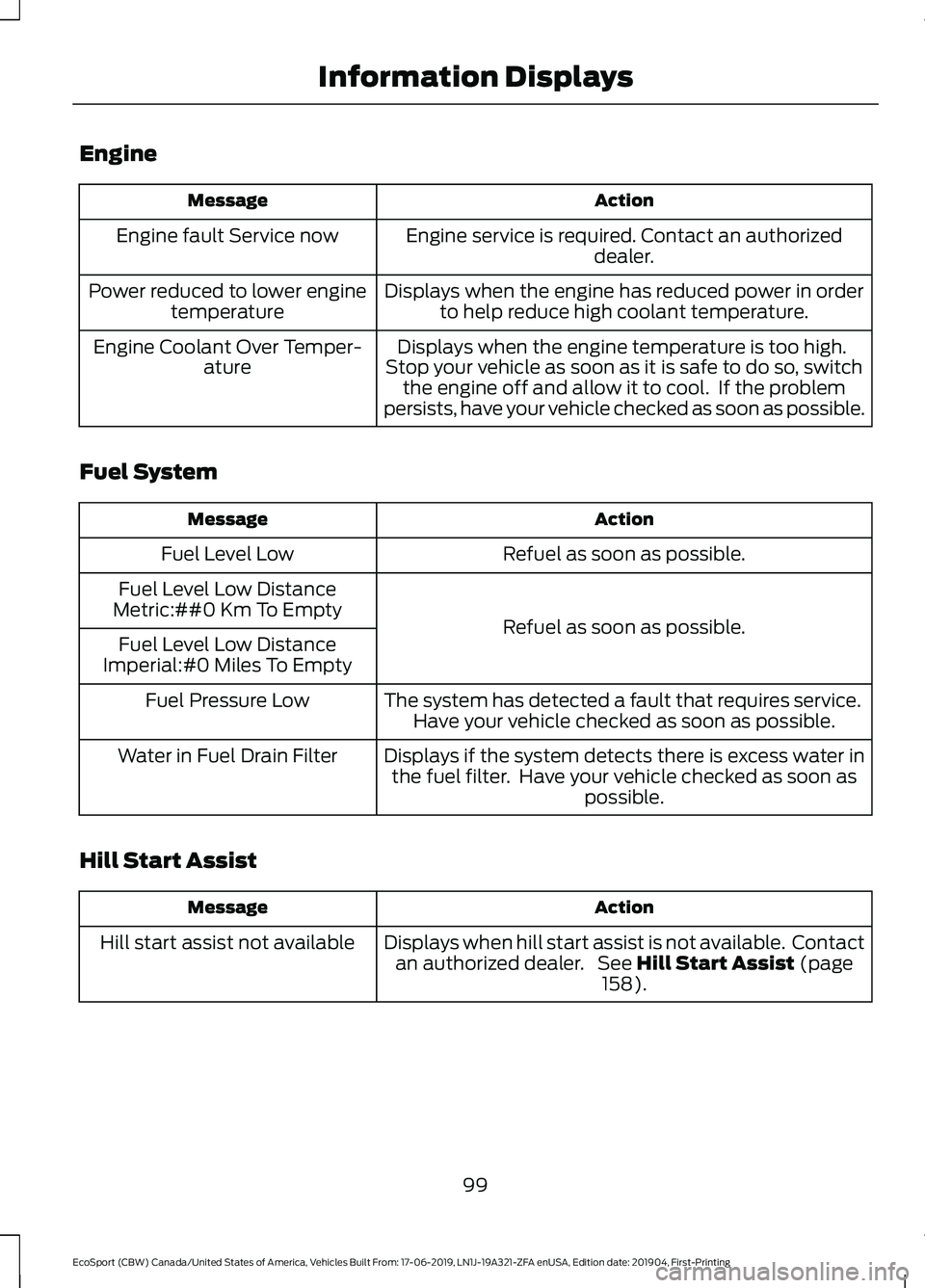

Engine
ActionMessage
Engine service is required. Contact an authorizeddealer.Engine fault Service now
Displays when the engine has reduced power in orderto help reduce high coolant temperature.Power reduced to lower enginetemperature
Displays when the engine temperature is too high.Stop your vehicle as soon as it is safe to do so, switchthe engine off and allow it to cool. If the problempersists, have your vehicle checked as soon as possible.
Engine Coolant Over Temper-ature
Fuel System
ActionMessage
Refuel as soon as possible.Fuel Level Low
Refuel as soon as possible.
Fuel Level Low DistanceMetric:##0 Km To Empty
Fuel Level Low DistanceImperial:#0 Miles To Empty
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.Fuel Pressure Low
Displays if the system detects there is excess water inthe fuel filter. Have your vehicle checked as soon aspossible.
Water in Fuel Drain Filter
Hill Start Assist
ActionMessage
Displays when hill start assist is not available. Contactan authorized dealer. See Hill Start Assist (page158).
Hill start assist not available
99
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingInformation Displays
