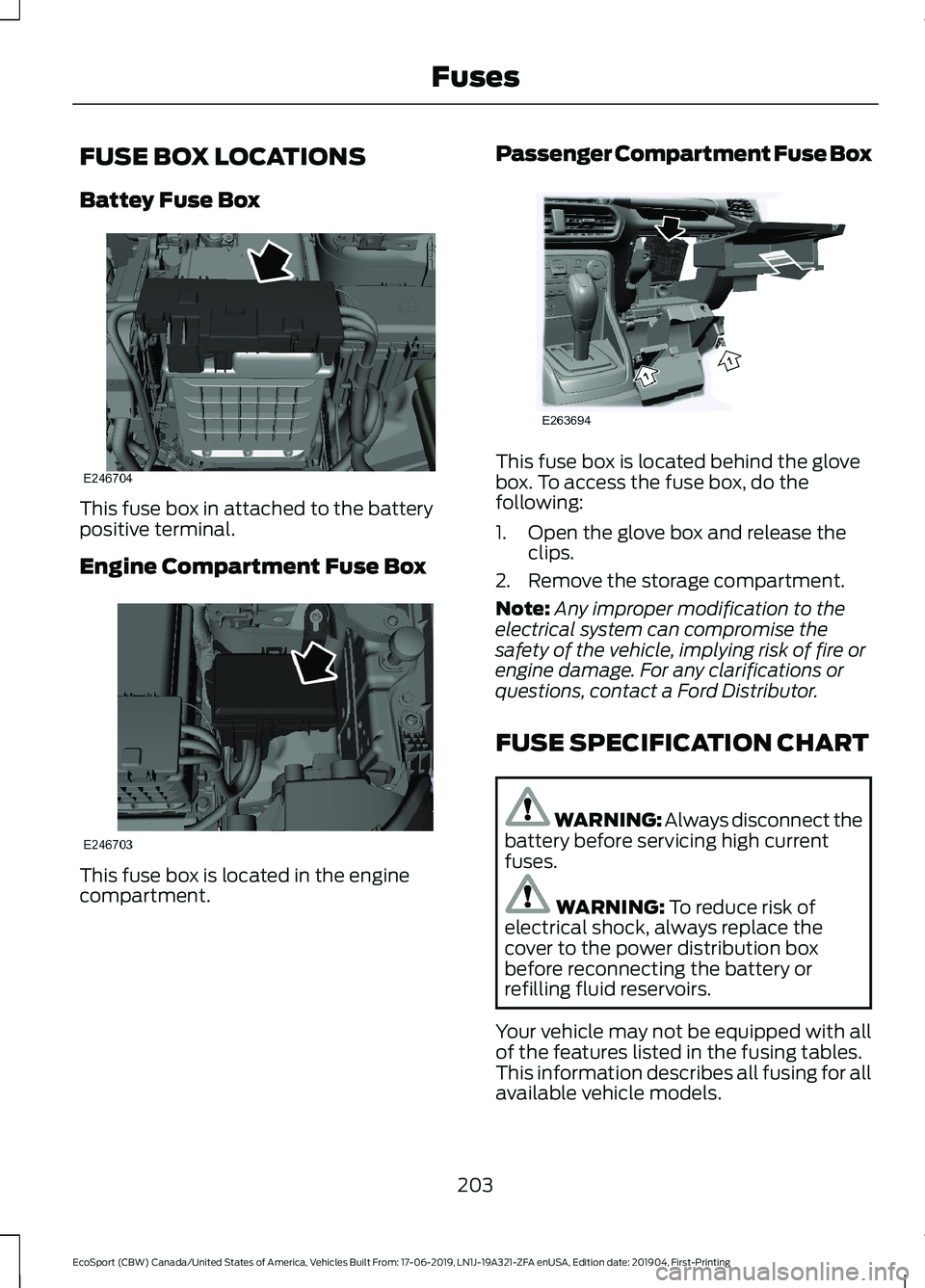

FUSE BOX LOCATIONS
Battey Fuse Box
This fuse box in attached to the batterypositive terminal.
Engine Compartment Fuse Box
This fuse box is located in the enginecompartment.
Passenger Compartment Fuse Box
This fuse box is located behind the glovebox. To access the fuse box, do thefollowing:
1.Open the glove box and release theclips.
2.Remove the storage compartment.
Note:Any improper modification to theelectrical system can compromise thesafety of the vehicle, implying risk of fire orengine damage. For any clarifications orquestions, contact a Ford Distributor.
FUSE SPECIFICATION CHART
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
Your vehicle may not be equipped with allof the features listed in the fusing tables.This information describes all fusing for allavailable vehicle models.
203
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

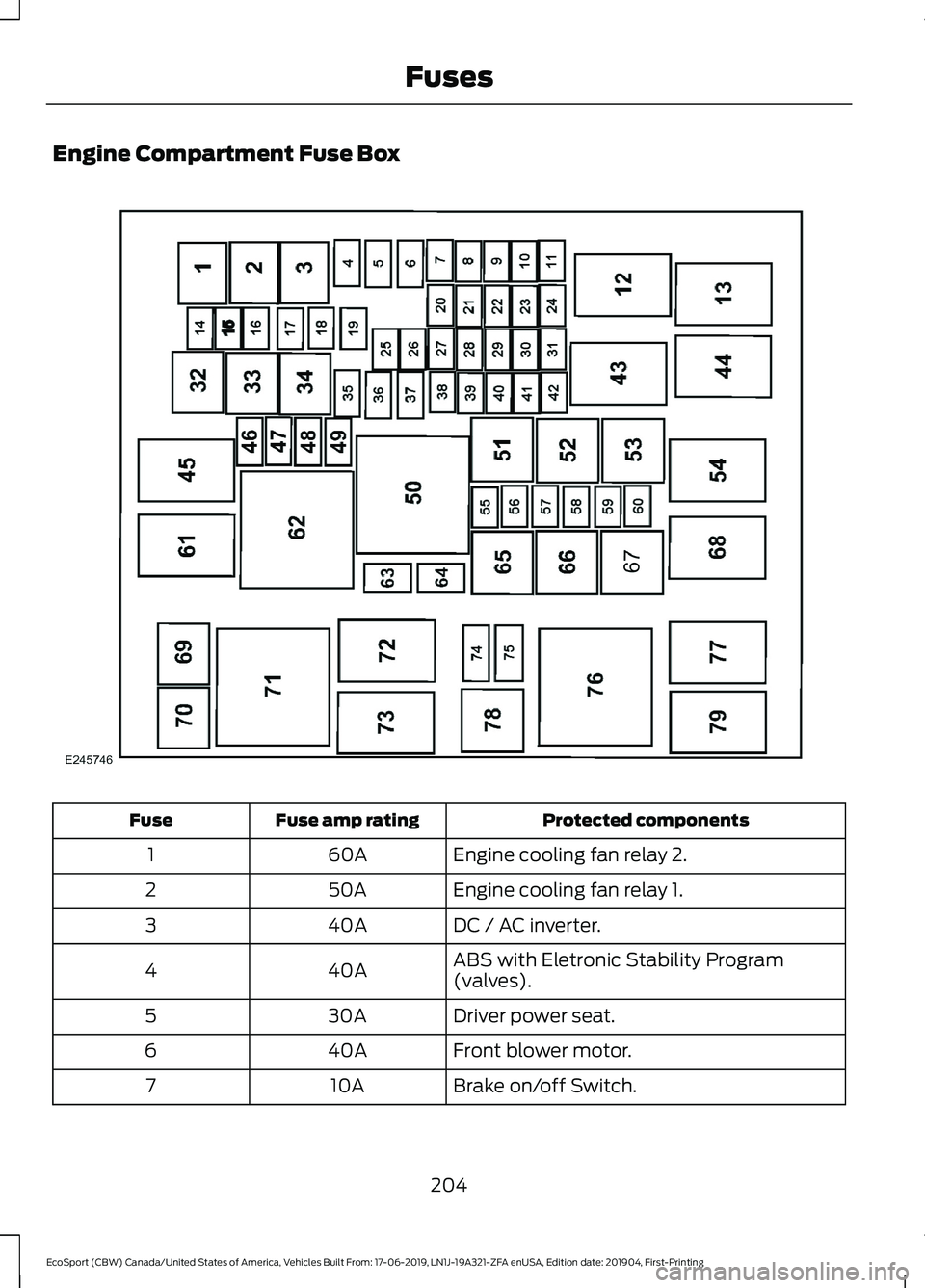

Engine Compartment Fuse Box
Protected componentsFuse amp ratingFuse
Engine cooling fan relay 2.60A1
Engine cooling fan relay 1.50A2
DC / AC inverter.40A3
ABS with Eletronic Stability Program(valves).40A4
Driver power seat.30A5
Front blower motor.40A6
Brake on/off Switch.10A7
204
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

Circuits switchedRelay
Engine cooling fan 1.68
Not used.71
Not used.72
Heated wiper park.73
Positive temperature coefficient heater.76
Puller fan (1.0 L Fox).77
Not used.78
Positive temperature coefficient heater.79
Passenger Compartment Fuse Box
Protected componentsFuse amp ratingFuse
Not used.5AF01
Humidity and incar temperature sensor.5AF02
Reverse parking aid module.10AF03
Ignition switch.10AF04Key in switch & solenoid.
208
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

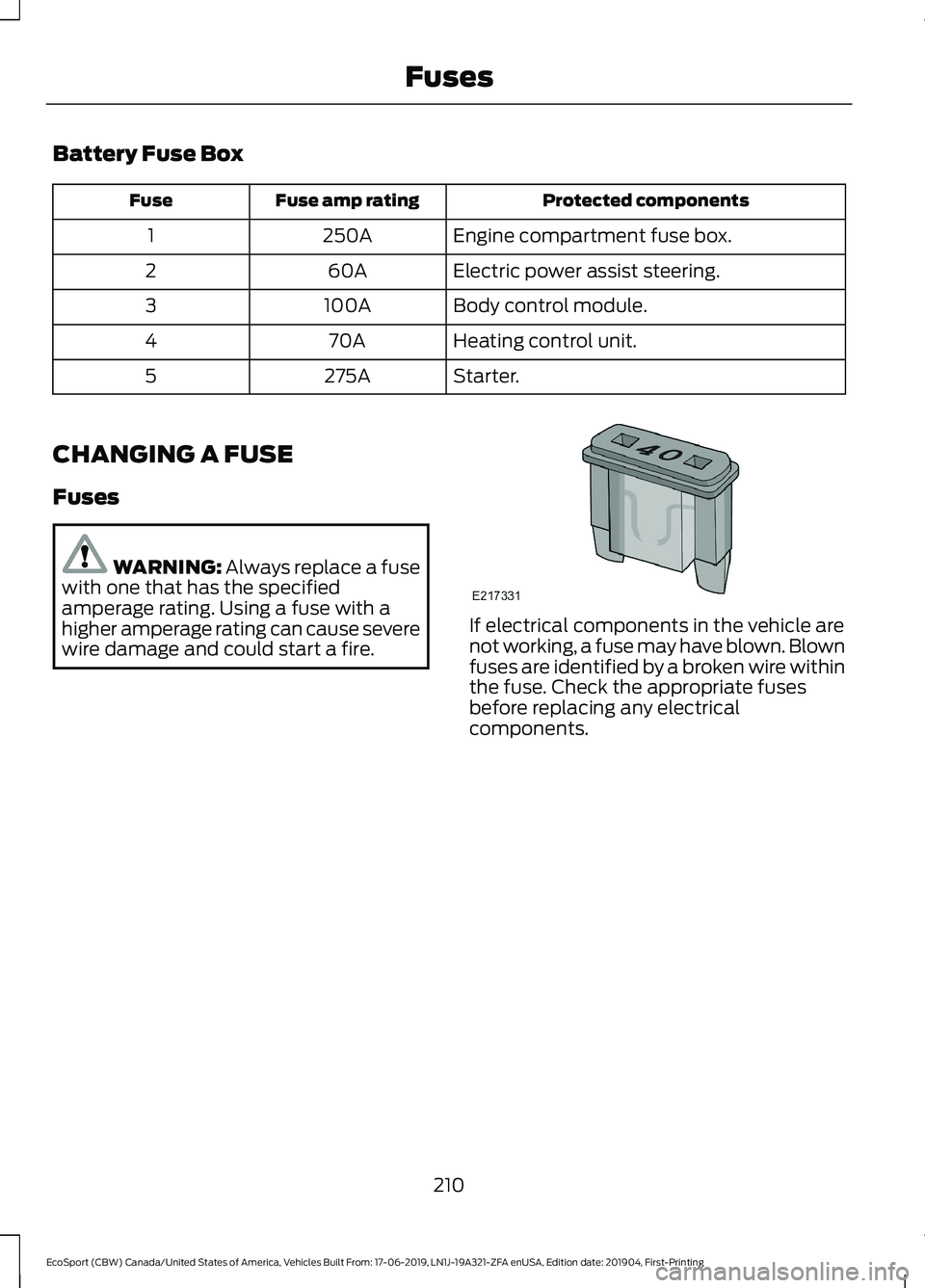

Battery Fuse Box
Protected componentsFuse amp ratingFuse
Engine compartment fuse box.250A1
Electric power assist steering.60A2
Body control module.100A3
Heating control unit.70A4
Starter.275A5
CHANGING A FUSE
Fuses
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
210
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

Battery. See Changing the 12V Battery (page 223).E
Power distribution box. See Fuses (page 203).F
Washer system fluid reservoir. See Washer Fluid Check (page 222).G
Air filter assembly. See Changing the Engine Air Filter (page 237).H

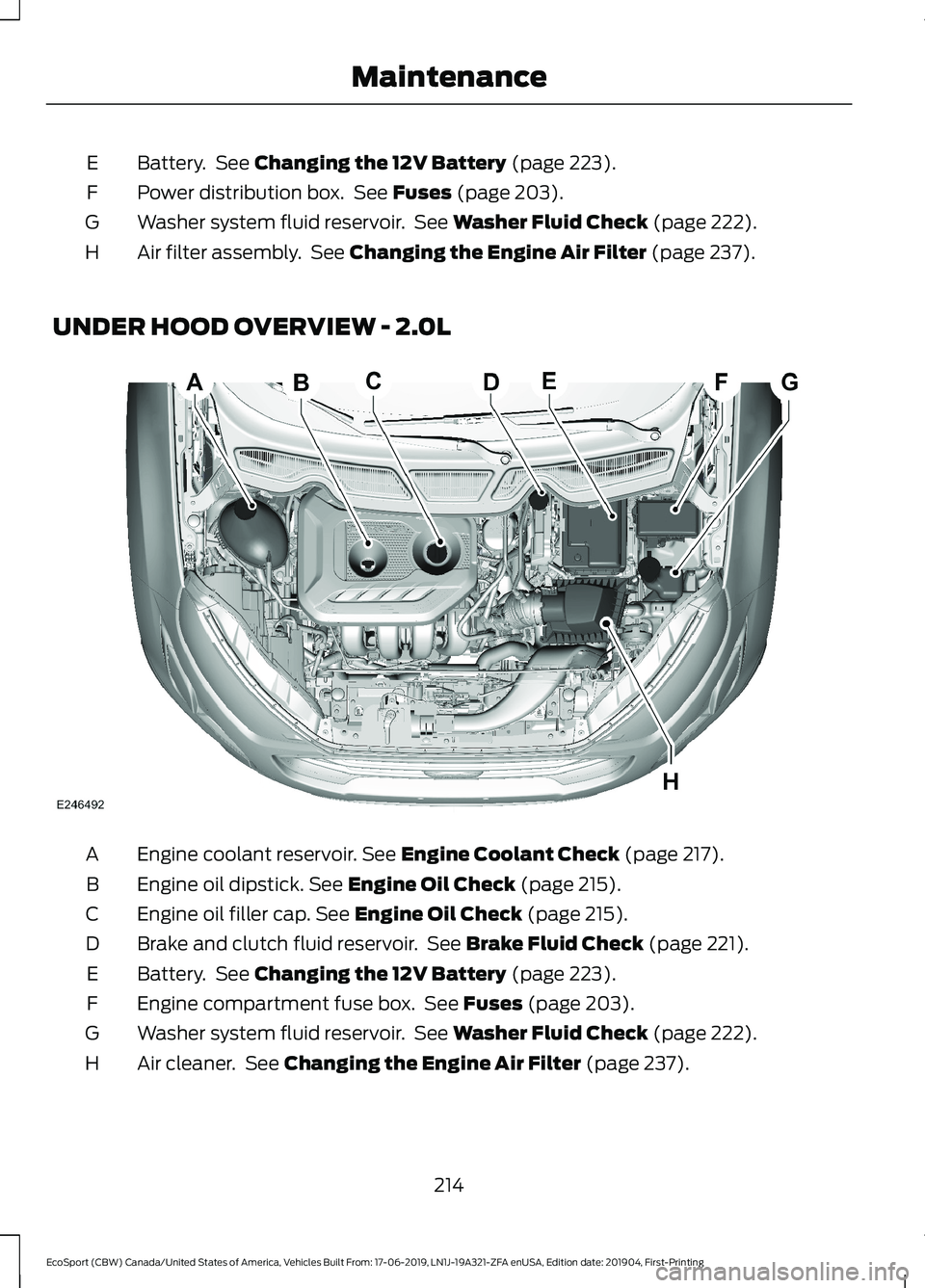

UNDER HOOD OVERVIEW - 2.0L
Engine coolant reservoir. See Engine Coolant Check (page 217).A
Engine oil dipstick. See Engine Oil Check (page 215).B
Engine oil filler cap. See Engine Oil Check (page 215).C
Brake and clutch fluid reservoir. See Brake Fluid Check (page 221).D
Battery. See Changing the 12V Battery (page 223).E
Engine compartment fuse box. See Fuses (page 203).F
Washer system fluid reservoir. See Washer Fluid Check (page 222).G
Air cleaner. See Changing the Engine Air Filter (page 237).H
214
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingMaintenance
