fuse chart FORD ECOSPORT 2020 Owners Manual

Cold Weather Precautions.......................188
Driving Through Water..............................188
Floor Mats......................................................189
Roadside Emergencies
Roadside Assistance.................................190
Hazard Flashers............................................191
Fuel Shutoff....................................................191
Jump Starting the Vehicle........................192
Post-Crash Alert System..........................195
Customer Assistance
Getting the Services You Need..............196
In California (U.S. Only).............................197
The Better Business Bureau (BBB) AutoLine Program (U.S. Only).....................198
Utilizing the Mediation/ArbitrationProgram (Canada Only).......................199
Getting Assistance Outside the U.S. andCanada.......................................................199
Ordering Additional Owner's Literature.........................................................................201
Reporting Safety Defects (U.S. Only).........................................................................201
Reporting Safety Defects (Canada Only).........................................................................201
Fuses
Fuse Box Locations....................................203
Fuse Specification Chart.........................203
Changing a Fuse..........................................210
Maintenance
General Information....................................212
Opening and Closing the Hood..............212
Under Hood Overview - 1.0L EcoBoost™.........................................................................213
Under Hood Overview - 2.0L...................214
Engine Oil Dipstick - 1.0L EcoBoost™.........................................................................215
Engine Oil Dipstick - 2.0L..........................215
Engine Oil Check..........................................215
Oil Change Indicator Reset......................216
Engine Cooling Fan......................................217
Engine Coolant Check................................217
Automatic Transmission Fluid Check.........................................................................221
Brake Fluid Check........................................221
Washer Fluid Check....................................222
Fuel Filter........................................................222
Changing the 12V Battery........................223
Checking the Wiper Blades.....................224
Changing the Wiper Blades....................225
Adjusting the Headlamps........................225
Removing a Headlamp.............................227
Changing a Bulb..........................................228
Bulb Specification Chart..........................236
Changing the Engine Air Filter................237
Drive Belt Routing - 2.0L..........................238
Drive Belt Routing - 1.0L EcoBoost™........................................................................238
Vehicle Care
General Information..................................239
Cleaning Products......................................239
Cleaning the Exterior.................................240
Waxing.............................................................241
Cleaning the Engine...................................242
Cleaning the Windows and Wiper Blades........................................................................242
Cleaning the Interior..................................243
Cleaning the Instrument Panel andInstrument Cluster Lens......................243
Cleaning Leather Seats............................244
Repairing Minor Paint Damage.............244
Cleaning the Wheels.................................244
Vehicle Storage...........................................245
Body Styling Kits.........................................247
Wheels and Tires
General Information..................................248
4
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingTable of Contents

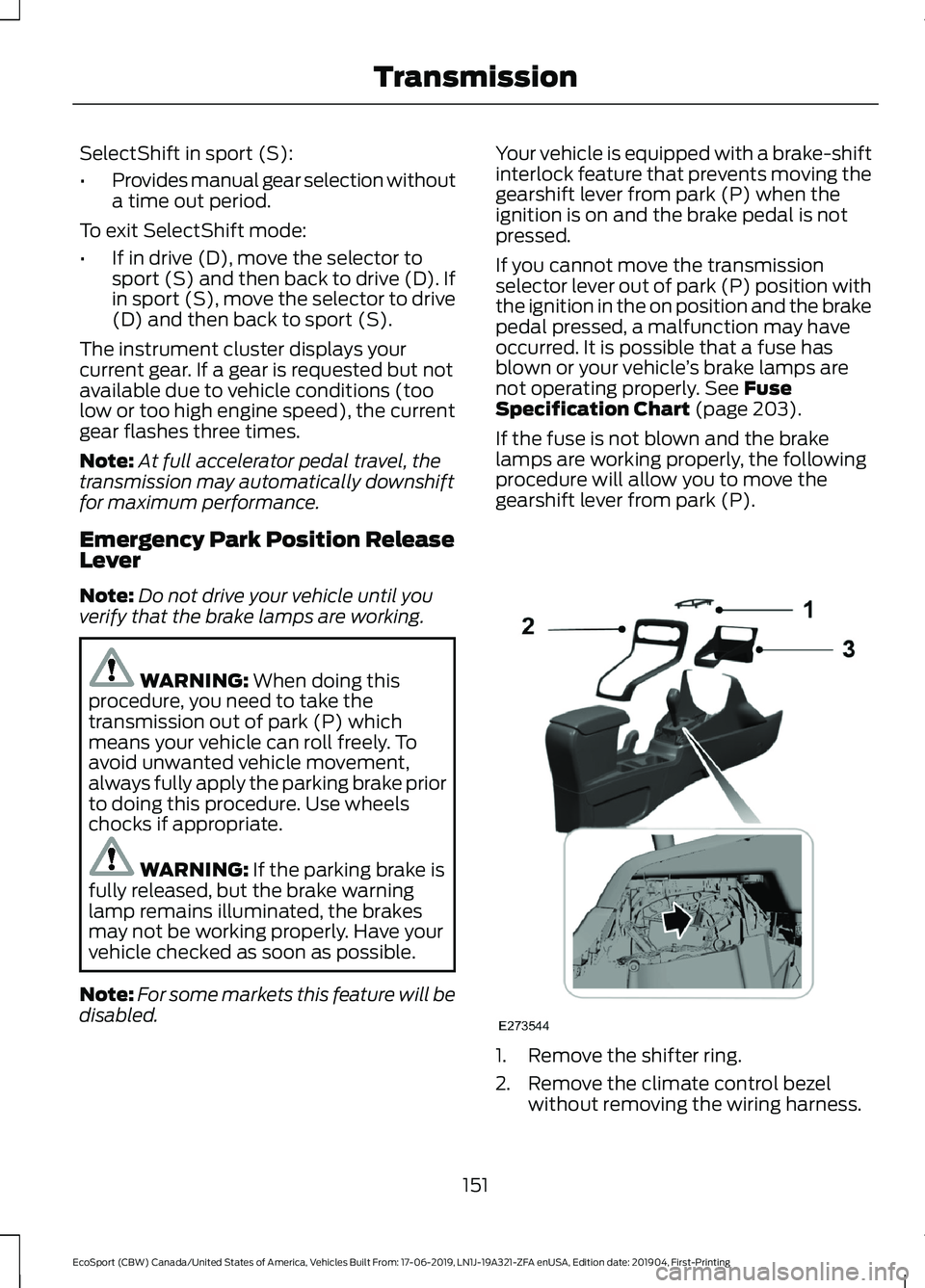

SelectShift in sport (S):
•Provides manual gear selection withouta time out period.
To exit SelectShift mode:
•If in drive (D), move the selector tosport (S) and then back to drive (D). Ifin sport (S), move the selector to drive(D) and then back to sport (S).
The instrument cluster displays yourcurrent gear. If a gear is requested but notavailable due to vehicle conditions (toolow or too high engine speed), the currentgear flashes three times.
Note:At full accelerator pedal travel, thetransmission may automatically downshiftfor maximum performance.
Emergency Park Position ReleaseLever
Note:Do not drive your vehicle until youverify that the brake lamps are working.
WARNING: When doing thisprocedure, you need to take thetransmission out of park (P) whichmeans your vehicle can roll freely. Toavoid unwanted vehicle movement,always fully apply the parking brake priorto doing this procedure. Use wheelschocks if appropriate.
WARNING: If the parking brake isfully released, but the brake warninglamp remains illuminated, the brakesmay not be working properly. Have yourvehicle checked as soon as possible.
Note:For some markets this feature will bedisabled.
Your vehicle is equipped with a brake-shiftinterlock feature that prevents moving thegearshift lever from park (P) when theignition is on and the brake pedal is notpressed.
If you cannot move the transmissionselector lever out of park (P) position withthe ignition in the on position and the brakepedal pressed, a malfunction may haveoccurred. It is possible that a fuse hasblown or your vehicle’s brake lamps arenot operating properly. See FuseSpecification Chart (page 203).
If the fuse is not blown and the brakelamps are working properly, the followingprocedure will allow you to move thegearshift lever from park (P).
1.Remove the shifter ring.
2.Remove the climate control bezelwithout removing the wiring harness.
151
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingTransmission

FUSE BOX LOCATIONS
Battey Fuse Box
This fuse box in attached to the batterypositive terminal.
Engine Compartment Fuse Box
This fuse box is located in the enginecompartment.
Passenger Compartment Fuse Box
This fuse box is located behind the glovebox. To access the fuse box, do thefollowing:
1.Open the glove box and release theclips.
2.Remove the storage compartment.
Note:Any improper modification to theelectrical system can compromise thesafety of the vehicle, implying risk of fire orengine damage. For any clarifications orquestions, contact a Ford Distributor.
FUSE SPECIFICATION CHART
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
Your vehicle may not be equipped with allof the features listed in the fusing tables.This information describes all fusing for allavailable vehicle models.
203
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

F
FanSee: Engine Cooling Fan...................................217Fastening the Seatbelts...............................32Seatbelt Locking Modes....................................33Using Seatbelts During Pregnancy................33Using the Sliding Clip..........................................32Flat Tire InflationSee: Tire Sealant and Inflator Kit.................249Floor Mats.......................................................189Fog Lamps - FrontSee: Front Fog Lamps.........................................81Ford Credit.........................................................13US Only.....................................................................13Ford Protect....................................................371Ford Protect Extended Service Plan(CANADA ONLY)...........................................372Ford Protect Extended Service Plans (U.S.Only)...................................................................371Four-Wheel Drive..........................................153Front Fog Lamps.............................................81Front Passenger Sensing System.............41Fuel and Refueling.......................................138Fuel Consumption........................................143Advertised Capacity..........................................143Filling the Fuel Tank...........................................143Fuel Economy......................................................144Fuel Filler Funnel Location........................139Fuel Filter.........................................................222Fuel Quality - Gasoline...............................138Choosing the Right Fuel...................................138Fuel Shutoff.....................................................191Fuse Box Locations.....................................203Battey Fuse Box.................................................203Engine Compartment Fuse Box...................203Passenger Compartment Fuse Box...........203Fuses................................................................203Fuse Specification Chart..........................203Battery Fuse Box.................................................210Engine Compartment Fuse Box..................204Passenger Compartment Fuse Box...........208
G
Gauges...............................................................88Engine Coolant Temperature Gauge............89Fuel Gauge.............................................................89
Information Display............................................88GearboxSee: Transmission..............................................149General Information on RadioFrequencies....................................................51General Maintenance Information........373Multi-Point Inspection......................................375Owner Checks and Services..........................374Protecting Your Investment...........................373Why Maintain Your Vehicle?..........................373Why Maintain Your Vehicle at YourDealership?......................................................373Getting Assistance Outside the U.S. andCanada..........................................................199Getting the Services You Need...............196Away From Home..............................................196Glasses Holder...............................................129
H
HandbrakeSee: Parking Brake.............................................158Hazard Flashers.............................................191Hazard Flasher Indicator...................................191Switching the Hazard Flashers On orOff........................................................................191Headlamp AdjustingSee: Adjusting the Headlamps.....................225Headlamp Exit Delay...................................80Headlamp RemovalSee: Removing a Headlamp...........................227HeadrestSee: Head Restraints..........................................115Head Restraints..............................................115Folding the Rear Seat Outermost HeadRestraint.............................................................117Installing the Head Restraint...........................117Lowering the Head Restraint...........................117Raising the Head Restraint...............................117Removing the Head Restraint.........................117Tilting the Front Seat Head Restraint...........117Heated Exterior Mirrors................................112Windshield Wiper De-icer.................................112Heated Rear Window - Vehicles With:Electronic Automatic TemperatureControl (EATC).............................................111
435
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingIndex
