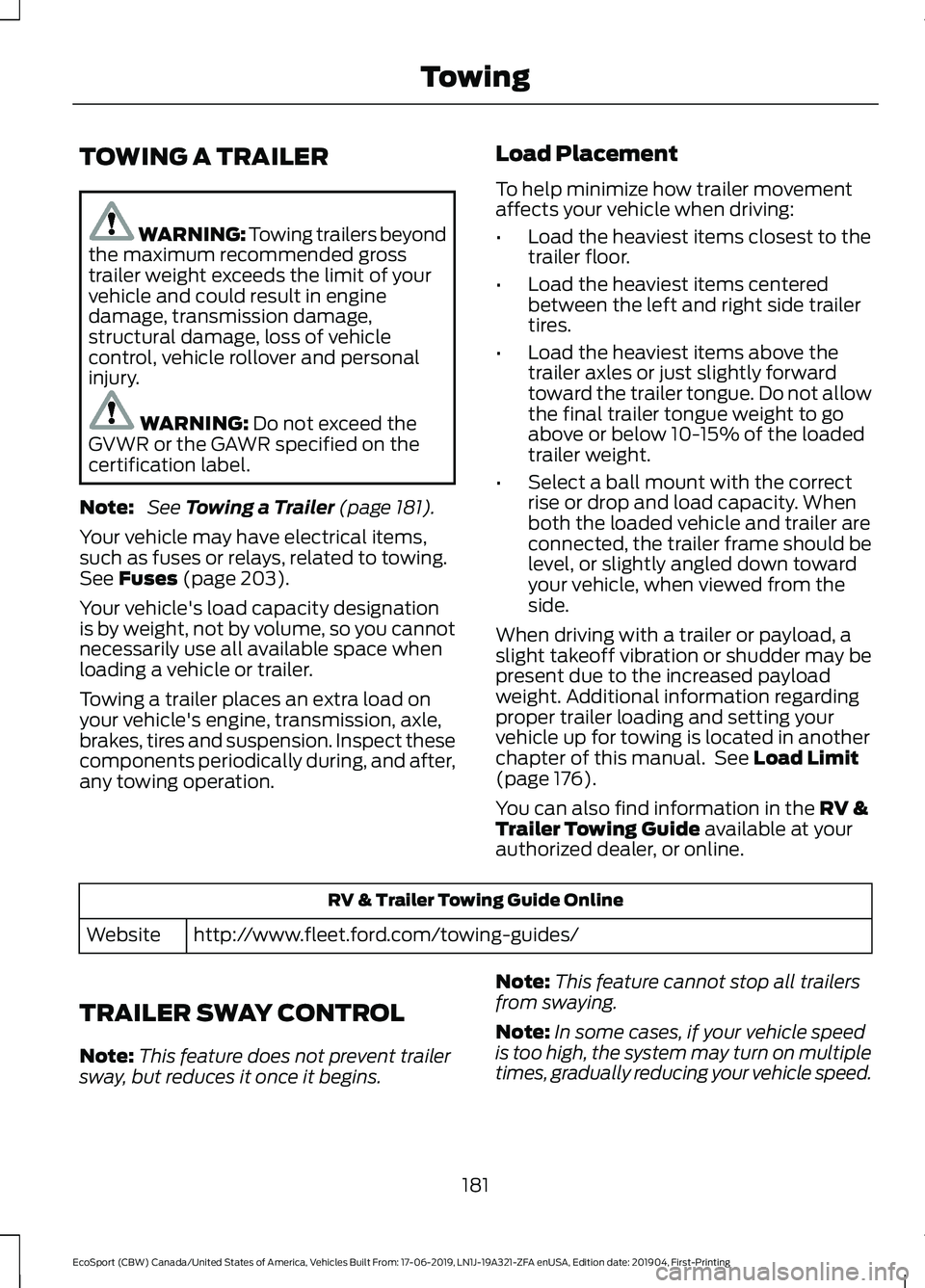

TOWING A TRAILER
WARNING: Towing trailers beyondthe maximum recommended grosstrailer weight exceeds the limit of yourvehicle and could result in enginedamage, transmission damage,structural damage, loss of vehiclecontrol, vehicle rollover and personalinjury.
WARNING: Do not exceed theGVWR or the GAWR specified on thecertification label.
Note: See Towing a Trailer (page 181).
Your vehicle may have electrical items,such as fuses or relays, related to towing.See Fuses (page 203).
Your vehicle's load capacity designationis by weight, not by volume, so you cannotnecessarily use all available space whenloading a vehicle or trailer.
Towing a trailer places an extra load onyour vehicle's engine, transmission, axle,brakes, tires and suspension. Inspect thesecomponents periodically during, and after,any towing operation.
Load Placement
To help minimize how trailer movementaffects your vehicle when driving:
•Load the heaviest items closest to thetrailer floor.
•Load the heaviest items centeredbetween the left and right side trailertires.
•Load the heaviest items above thetrailer axles or just slightly forwardtoward the trailer tongue. Do not allowthe final trailer tongue weight to goabove or below 10-15% of the loadedtrailer weight.
•Select a ball mount with the correctrise or drop and load capacity. Whenboth the loaded vehicle and trailer areconnected, the trailer frame should belevel, or slightly angled down towardyour vehicle, when viewed from theside.
When driving with a trailer or payload, aslight takeoff vibration or shudder may bepresent due to the increased payloadweight. Additional information regardingproper trailer loading and setting yourvehicle up for towing is located in anotherchapter of this manual. See Load Limit(page 176).
You can also find information in the RV &Trailer Towing Guide available at yourauthorized dealer, or online.
RV & Trailer Towing Guide Online
http://www.fleet.ford.com/towing-guides/Website
TRAILER SWAY CONTROL
Note:This feature does not prevent trailersway, but reduces it once it begins.
Note:This feature cannot stop all trailersfrom swaying.
Note:In some cases, if your vehicle speedis too high, the system may turn on multipletimes, gradually reducing your vehicle speed.
181
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingTowing

Engine Compartment Fuse Box
Protected componentsFuse amp ratingFuse
Engine cooling fan relay 2.60A1
Engine cooling fan relay 1.50A2
DC / AC inverter.40A3
ABS with Eletronic Stability Program(valves).40A4
Driver power seat.30A5
Front blower motor.40A6
Brake on/off Switch.10A7
204
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

Protected componentsFuse amp ratingFuse
Moonroof.20A8
Rear washer.15A9Wiper.
A/C clutch relay.7.5A10
Power point relay.5A11Horn relay.Fuel pump relay.
Heated exterior mirrors.10A14
Rain sensor relay.5A15Rear washer relay.
Rear window wiper motor.10A16
Power point 1 (or cigar lighter).20A17
Power point 2.20A18
Not used.-19
Powertrain control module.20A20
Oxygen sensor heater.
15A21Catalyst monitor sensor.Canister purge valve.Variable camshaft timing solenoid valves.Vapor blocking valve.
A/C clutch control.
10A22
Fan control - on/off.Puller fan coil (1.0 L).Coolant pump control.Run / on water pump.Exhaust gas recirculation baypass solenoid.Variable oil pump control.Variable A/C compressor valve.All-wheel drive relay module (2.0 L).Active grille shutter.
For ignition coils (2.0 L).15A23For ignition coils (1.0 L).20A
Not used.-24
Subwoofer amplifier.15A25
205
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

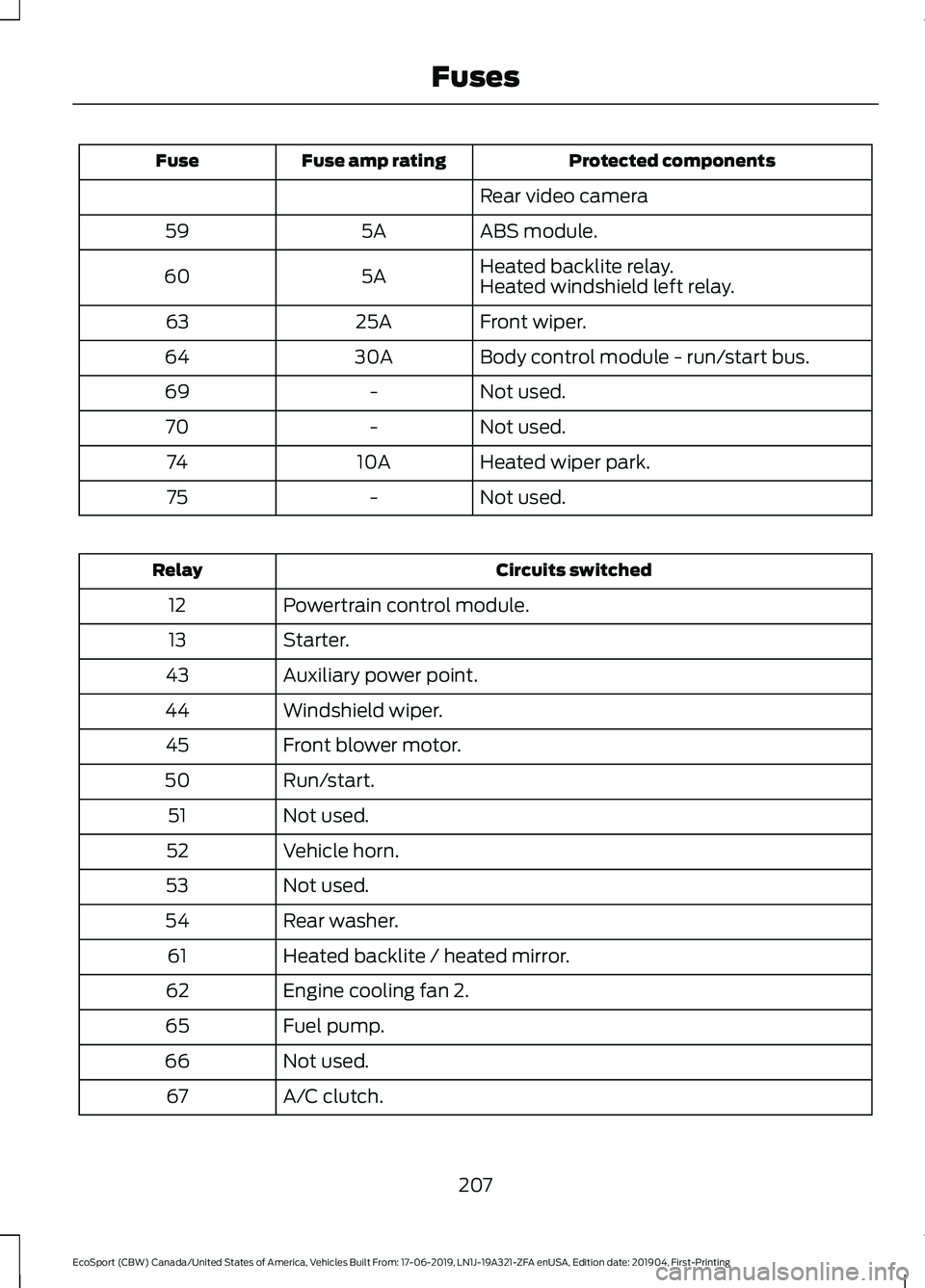

Protected componentsFuse amp ratingFuse
Rear video camera
ABS module.5A59
Heated backlite relay.5A60Heated windshield left relay.
Front wiper.25A63
Body control module - run/start bus.30A64
Not used.-69
Not used.-70
Heated wiper park.10A74
Not used.-75
Circuits switchedRelay
Powertrain control module.12
Starter.13
Auxiliary power point.43
Windshield wiper.44
Front blower motor.45
Run/start.50
Not used.51
Vehicle horn.52
Not used.53
Rear washer.54
Heated backlite / heated mirror.61
Engine cooling fan 2.62
Fuel pump.65
Not used.66
A/C clutch.67
207
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

Circuits switchedRelay
Engine cooling fan 1.68
Not used.71
Not used.72
Heated wiper park.73
Positive temperature coefficient heater.76
Puller fan (1.0 L Fox).77
Not used.78
Positive temperature coefficient heater.79
Passenger Compartment Fuse Box
Protected componentsFuse amp ratingFuse
Not used.5AF01
Humidity and incar temperature sensor.5AF02
Reverse parking aid module.10AF03
Ignition switch.10AF04Key in switch & solenoid.
208
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses

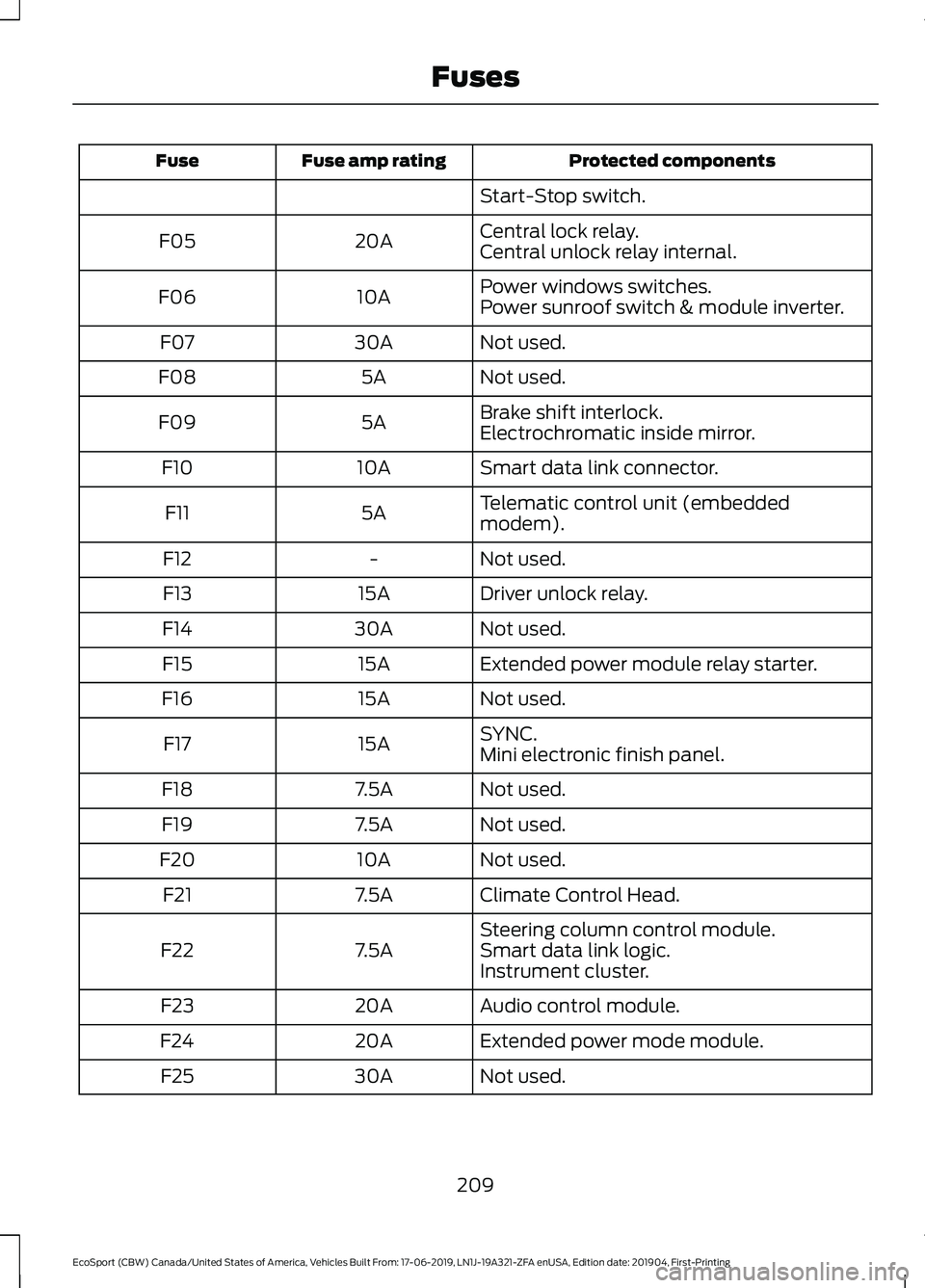

Protected componentsFuse amp ratingFuse
Start-Stop switch.
Central lock relay.20AF05Central unlock relay internal.
Power windows switches.10AF06Power sunroof switch & module inverter.
Not used.30AF07
Not used.5AF08
Brake shift interlock.5AF09Electrochromatic inside mirror.
Smart data link connector.10AF10
Telematic control unit (embeddedmodem).5AF11
Not used.-F12
Driver unlock relay.15AF13
Not used.30AF14
Extended power module relay starter.15AF15
Not used.15AF16
SYNC.15AF17Mini electronic finish panel.
Not used.7.5AF18
Not used.7.5AF19
Not used.10AF20
Climate Control Head.7.5AF21
Steering column control module.7.5AF22Smart data link logic.Instrument cluster.
Audio control module.20AF23
Extended power mode module.20AF24
Not used.30AF25
209
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingFuses
