FORD EDGE 2007 1.G Owners Manual

STARTING
Positions of the ignition
1. LOCK, locks the automatic
transaxle gearshift lever and allows
key removal. This position also shuts
the engine and all electrical
accessories off without locking the
steering wheel. To lock the steering
wheel, remove the key then turn the
steering wheel.
2. ACC, allows the electrical accessories such as the radio to operate
while the engine is not running. This position also unlocks the steering
wheel.
3. RUN, all electrical circuits operational. Warning lights illuminated. Key
position when driving.
4. START, cranks the engine. Release the key as soon as the engine
starts.
Preparing to start your vehicle
Engine starting is controlled by the powertrain control system. This
system meets all Canadian Interference-Causing Equipment standard
requirements regulating the impulse electrical field strength of radio
noise.
When starting a fuel-injected engine, avoid pressing the accelerator
before or during starting. Only use the accelerator when you have
difficulty starting the engine. For more information on starting the
vehicle, refer toStarting the enginein this chapter.
Extended idling at high engine speeds can produce very high
temperatures in the engine and exhaust system, creating the risk
of fire or other damage.
Do not park, idle, or drive your vehicle in dry grass or other dry
ground cover. The emission system heats up the engine
compartment and exhaust system, which can start a fire.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
211

Do not start your vehicle in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always open the garage door
before you start the engine. SeeGuarding against exhaust fumesin
this chapter for more instructions.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all vehicle occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
212

•Make sure the gearshift is in
P (Park).
3. Turn the key to 3 (RUN) without
turning the key to 4 (START).
Some warning lights will briefly illuminate. SeeWarning lights and
chimesin theInstrument Clusterchapter for more information
regarding the warning lights.
Starting the engine
1. Turn the key to 3 (RUN) without
turning the key to 4 (START).
2. Turn the key to 4 (START), then
release the key as soon as the
engine starts. Excessive cranking
could damage the starter.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
213

Note:If the engine does not start within five seconds on the first try,
turn the key to LOCK, wait 10 seconds and try again. If the engine still
fails to start, press the accelerator to the floor and try again; this will
allow the engine to crank with the fuel shut off in case the engine is
flooded with fuel.
Guarding against exhaust fumes
Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.
If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important ventilating information
If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least one inch (2.5 cm) or adjust the heating
or air conditioning to bring in fresh air.
ENGINE BLOCK HEATER (IF EQUIPPED)
An engine block heater warms the engine coolant which aids in starting
and heater/defroster performance. Use of an engine block heater is
strongly recommended if you live in a region where temperatures reach
-10°F (-23°C) or below. For best results, plug the heater in at least three
hours before starting the vehicle. The heater can be plugged in the night
before starting the vehicle.
To reduce the risk of electrical shock, do not use your heater
with ungrounded electrical systems or two-pronged (cheater)
adapters.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
214

Refer toBrake system warning
lightin theInstrument Cluster
chapter for information on the brake
system warning light.
Four-wheel anti-lock brake system (ABS)
Your vehicle is equipped with an Anti-lock Braking System (ABS). This
system helps you maintain steering control during emergency stops by
keeping the brakes from locking. Noise from the ABS pump motor and
brake pedal pulsation may be observed during ABS braking and the
brake pedal may suddenly travel a little farther as soon as ABS braking is
done and normal brake operation resumes. These are normal
characteristics of the ABS and should be no reason for concern.
Using ABS
When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
steering control during hard braking and on slippery surfaces. However,
the ABS does not decrease stopping distance.
ABS warning lamp
The ABS lamp in the instrument
cluster momentarily illuminates
when the ignition is turned on. If
the light does not illuminate during
start up, remains on or flashes, the
ABS may be disabled and may need to be serviced.
Even when the ABS is disabled,
normal braking is still effective. (If
your BRAKE warning lamp
illuminates with the parking brake
released, have your brake system
serviced immediately by an authorized dealer.)P!
BRAKE
ABS
P!
BRAKE
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
215

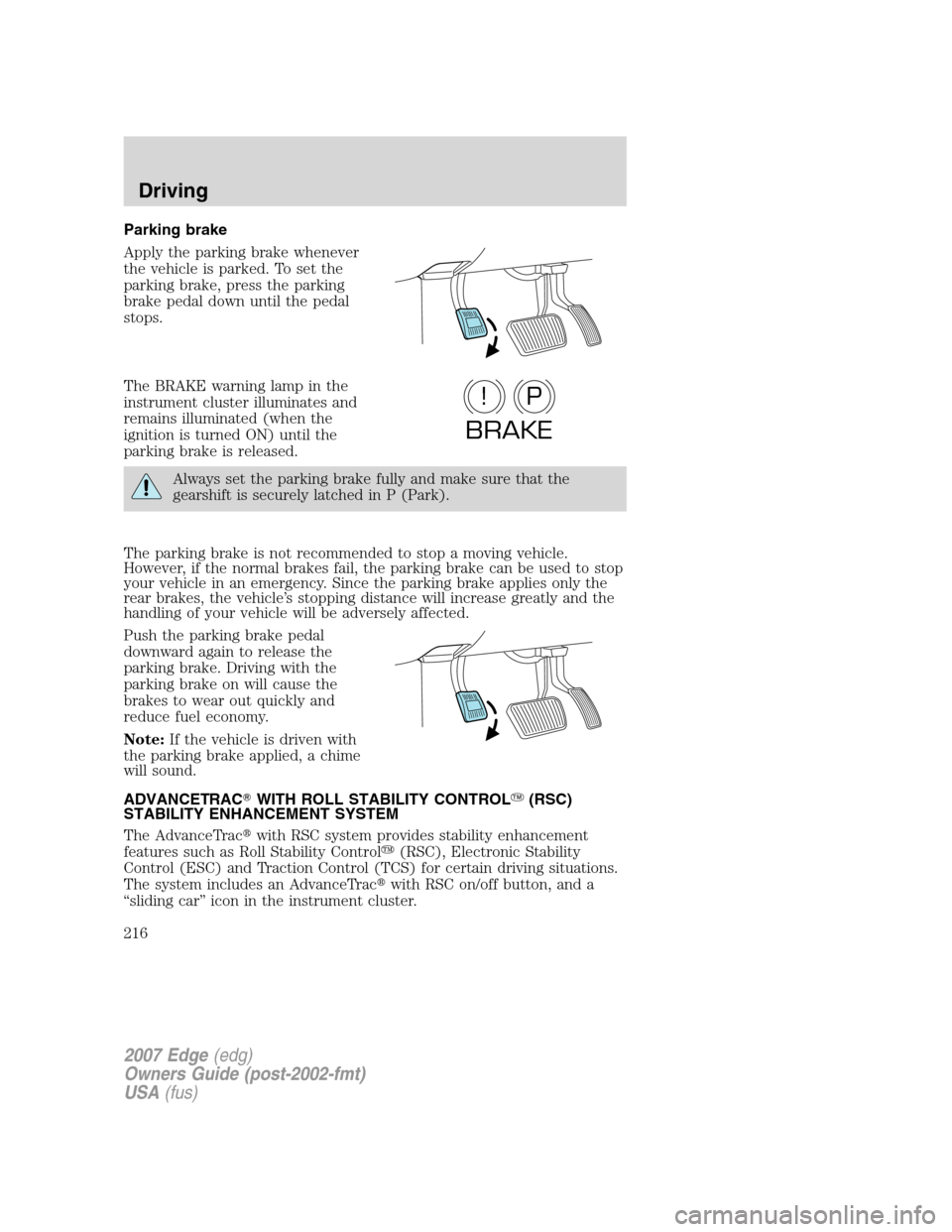

Parking brake
Apply the parking brake whenever
the vehicle is parked. To set the
parking brake, press the parking
brake pedal down until the pedal
stops.
The BRAKE warning lamp in the
instrument cluster illuminates and
remains illuminated (when the
ignition is turned ON) until the
parking brake is released.
Always set the parking brake fully and make sure that the
gearshift is securely latched in P (Park).
The parking brake is not recommended to stop a moving vehicle.
However, if the normal brakes fail, the parking brake can be used to stop
your vehicle in an emergency. Since the parking brake applies only the
rear brakes, the vehicle’s stopping distance will increase greatly and the
handling of your vehicle will be adversely affected.
Push the parking brake pedal
downward again to release the
parking brake. Driving with the
parking brake on will cause the
brakes to wear out quickly and
reduce fuel economy.
Note:If the vehicle is driven with
the parking brake applied, a chime
will sound.
ADVANCETRACWITH ROLL STABILITY CONTROL(RSC)
STABILITY ENHANCEMENT SYSTEM
The AdvanceTrac
with RSC system provides stability enhancement
features such as Roll Stability Control(RSC), Electronic Stability
Control (ESC) and Traction Control (TCS) for certain driving situations.
The system includes an AdvanceTrac
with RSC on/off button, and a
“sliding car” icon in the instrument cluster.
P!
BRAKE
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
216

The Anti-lock Braking System (ABS) will work with the regular brakes in
order to prevent wheel lock during a braking event. This feature will also
help provide better steerability during braking.
During AdvanceTrac
with RSC operation you may experience the
following:
•A rumble, grunting, or grinding noise after startup and when driving
off
•A slight deceleration of the vehicle
•The AdvanceTrac
with RSC indicator light will flash when the system
is activated.
•If your foot is on the brake pedal, you will feel a vibration in the
pedal.
Traction Control
Traction Control helps your vehicle maintain traction, when driving on
slippery and/or hilly road surfaces, by detecting and controlling wheel
spin. Excessive wheel spin is controlled by momentarily reducing engine
power and/or applying the anti-lock brakes.
If your vehicle should become stuck in deep snow or mud, try switching
the AdvanceTrac
with RSC system off by pressing the AdvanceTrac

with RSC button momentarily. This will allow your wheels to spin and
your tires to “dig” for traction. If your vehicle seems to lose engine
power while driving in deep sand or very deep snow, switching off the
AdvanceTrac with RSC stability enhancement feature will restore full
engine power and torque to each wheel.
If the AdvanceTrac
with RSC system is activated excessively in a short
period of time, the brake portion of the system will disable to allow the
brakes to cool down. In this situation, Traction Control will use only
engine power reduction to help control the wheels from over-spinning.
When the brakes have cooled down, the system will again function
normally. Anti-lock braking, RSC and ESC are not affected by this
condition and will function normally during the cool-down period.
During Traction Control events the “sliding car” icon in the instrument
cluster will flash momentarily.
Electronic Stability Control (ESC)
The Electronic Stability Control (ESC) with RSC system may enhance
your vehicle’s stability during adverse maneuvers.
The AdvanceTrac
with RSC system helps the driver maintain steering
control. AdvanceTrac
with RSC will attempt to correct the vehicle
motion by applying brake force at individual tires and, if necessary, by
reducing engine power.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
217

During Electronic Stability Control events the “sliding car” icon in the
instrument cluster will flash momentarily.
Driving maneuvers which may activate AdvanceTrac
with RSC system
include:
•Taking a turn too fast.
•Maneuvering quickly to avoid an accident, pedestrian or obstacle.
•Driving over a patch of ice.
•Changing lanes on a snow-rutted road.
•Entering a snow-free road from a snow-covered side street, or vice
versa.
•Entering a paved road from a gravel road, or vice versa.
•Driving on slick surfaces.
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter.)
Roll Stability Control(RSC)
The RSC system works in conjunction with the AdvanceTrac
system to
help maintain roll stability of the vehicle during aggressive maneuvers by
applying brake force to one or more wheels.
During Roll Stability Control(RSC) events the “sliding car” icon in the
instrument cluster will flash momentarily.
Driving conditions that may activate AdvanceTrac
with RSC include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
AdvanceTrac
with RSC button and icon functionality
The AdvanceTrac
with RSC system automatically turns on each time
the engine is started, even if it was turned off when the engine was last
shut down. The “sliding car” icon which is located with the warning
lights in the instrument cluster will illuminate during bulb check at initial
start-up and then go off. This tells you that the system is normal and
active. All functions of the AdvanceTrac
with RSC system (RSC, ESC,
Engine Traction Control, and Brake Traction Control) will be tested at
start up. When the system is left active, the “sliding car” icon will flash
only when any of the components of the system are affecting the
vehicle’s performance, otherwise the light will remain off. Consequently,
the “sliding car” icon will not be illuminated during most of your normal
driving.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
218

The AdvanceTrac
with RSC button,
located on the center stack of the
instrument panel, allows the driver
to control certain features of the
AdvanceTrac
with RSC system
below 45 mph (70 km/h). If the
vehicle is below 45 mph (70 km/h), pressing the AdvanceTrac
with RSC
button will disable RSC, ESC and Engine Traction Control and steadily
illuminate the “sliding car” icon. The AdvanceTrac
with RSC system will
remain enabled when the vehicle speed is above 45 mph (70 km/h) even
if the button has been pressed.
In R (Reverse), ABS and the Traction Control feature will continue to
function, however ESC and RSC are disabled.
All these conditions are normal during AdvanceTrac
with RSC
operation.
Do not alter or modify your vehicle’s suspension or steering; the
resulting changes to the vehicle’s handling can adversely affect
the AdvanceTrac
with RSC system.
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of a AdvanceTrac
with
RSC event is an indication that at least some of the tires have
exceeded their ability to grip the road; this may lead to an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death. If you experience a severe road event, SLOW DOWN.
If a failure is detected in the AdvanceTrac
with RSC system, and the
AdvanceTrac
with RSC button has not been pushed, the warning
indicator light in the instrument cluster will stay on. If the warning
indicator light in the instrument cluster remains on while the engine is
running, have the system serviced by an authorized dealer immediately.
STEERING
To help prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering fluid level
(below the MIN mark on the reservoir).
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
219

•Some noise is normal during operation. If the noise is excessive, check
for a low power steering fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by a low power
steering fluid level. Check for a low power steering fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering fluid reservoir above the MAX mark on
the reservoir.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the RUN position unless brake pedal is depressed.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
220
