Page 91 of 320
AUTOMATIC DIMMING INTERIOR REAR VIEW MIRROR
(IF EQUIPPED)
Your vehicle may be equipped with
an interior rear view mirror which
has an auto-dimming function. The
electronic day/night mirror will
change from the normal (high
reflective) state to the non-glare
(darkened) state when bright lights
(glare) reach the mirror. When the
mirror detects bright light from behind the vehicle, it will automatically
adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
91
Page 133 of 320

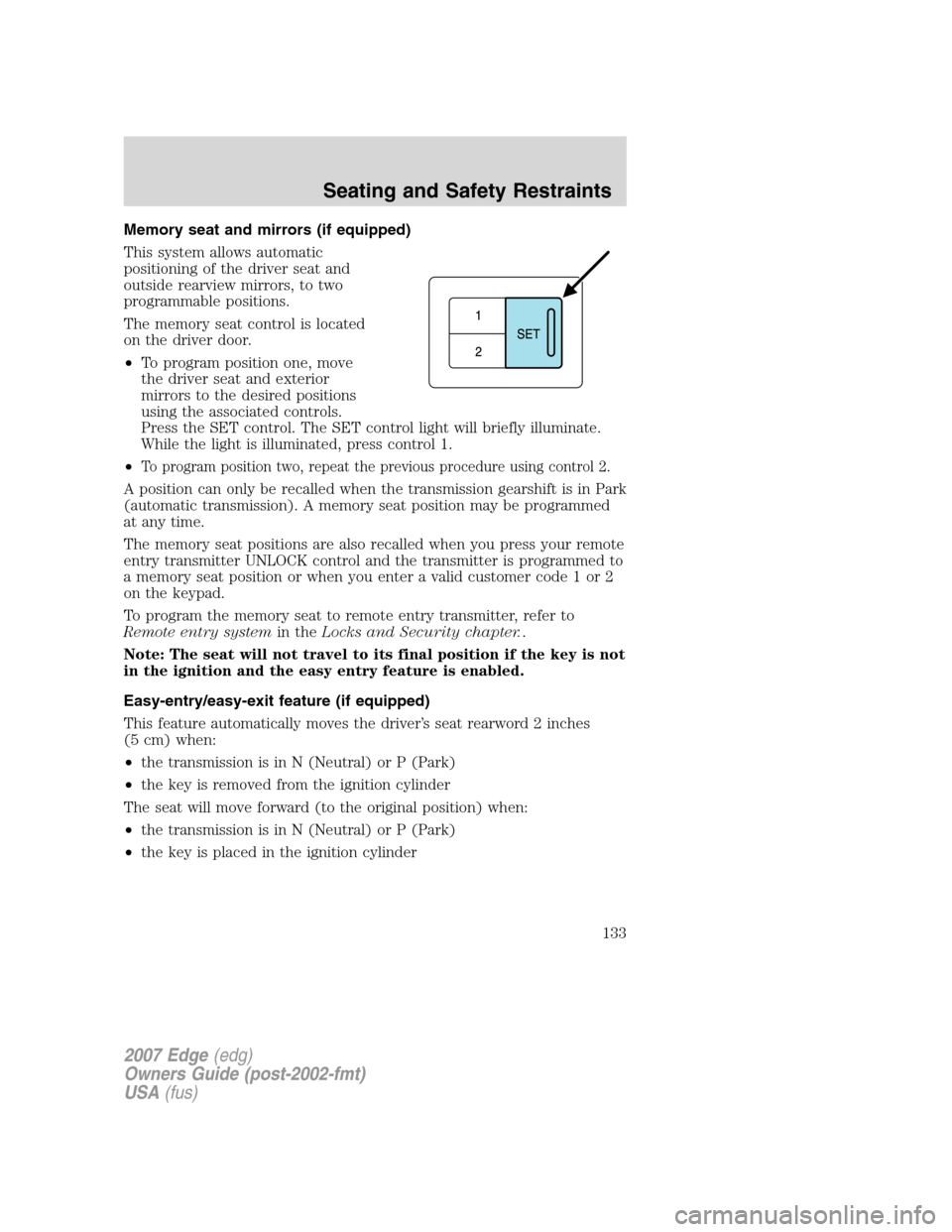

Memory seat and mirrors (if equipped)
This system allows automatic
positioning of the driver seat and
outside rearview mirrors, to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position one, move
the driver seat and exterior
mirrors to the desired positions
using the associated controls.
Press the SET control. The SET control light will briefly illuminate.
While the light is illuminated, press control 1.
•
To program position two, repeat the previous procedure using control 2.
A position can only be recalled when the transmission gearshift is in Park
(automatic transmission). A memory seat position may be programmed
at any time.
The memory seat positions are also recalled when you press your remote
entry transmitter UNLOCK control and the transmitter is programmed to
a memory seat position or when you enter a valid customer code 1 or 2
on the keypad.
To program the memory seat to remote entry transmitter, refer to
Remote entry systemin theLocks and Security chapter..
Note: The seat will not travel to its final position if the key is not
in the ignition and the easy entry feature is enabled.
Easy-entry/easy-exit feature (if equipped)
This feature automatically moves the driver’s seat rearword 2 inches
(5 cm) when:
•the transmission is in N (Neutral) or P (Park)
•the key is removed from the ignition cylinder
The seat will move forward (to the original position) when:
•the transmission is in N (Neutral) or P (Park)
•the key is placed in the ignition cylinder
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
133
Page 237 of 320
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
10 15A Backlighting, Puddle lamps
11 10A All wheel drive
12 7.5A Power mirror switch, Driver side
power seat memory, Driver seat
module – Keep alive power (KA)
13 7.5A Not used (Spare)
14 10A Not used (Spare)
15 10A Climate control
16 15A Not used (Spare)
17 20A All power lock motor feeds,
Liftgate release, Moon roof
18 20A Not used (Spare)
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps/Interior lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Overdrive cancel switch
31 10A Compass, Automatic dimming rear
view mirror
32 10A Not used (Spare)
33 10A Not used (Spare)
34 5A Steering angle sensor
35 10A Rear park assist, AWD, Heated
seat module
36 5A PATS transceiver
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
237
Page 313 of 320
positioning ...............................242
storage .....................................242
Jump-starting your vehicle ......249
K
Keyless entry system ...............122
autolock ...................................112
keypad .....................................123
locking and unlocking
doors ........................................124
programming entry code .......123
Keys ...................................110, 126
positions of the ignition .........211
L
Lamps
autolamp system .......................74
bulb replacement
specifications chart ..................79
daytime running light ...............75
fog lamps ...................................75
headlamps .................................74
headlamps, flash to pass ..........75
instrument panel, dimming .....76
interior lamps .....................78, 80
replacing bulbs .........................80
Lane change indicator
(see Turn signal) ........................78
Liftgate ......................................108
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........215
Load limits .................................199
Locks
autolock ...................................112
childproof ................................116
doors ........................................112
Lubricant specifications ...........303
Lug nuts ....................................248Lumbar support, seats .............129
M
Message center ...........................98
english/metric button .............103
system check button ..............102
warning messages ...................105
Mirrors .........................................91
automatic dimming rearview
mirror ........................................91
fold away ...................................92
heated ........................................92
programmable memory ..........118
side view mirrors (power) .......91
Moon roof ....................................96
Motorcraft parts ........270, 286, 302
N
Navigation system .......................67
O
Octane rating ............................290
Oil (see Engine oil) ..................275
Overdrive ...................................222
P
Parking brake ............................216
Parts (see Motorcraft parts) ....302
Passenger Occupant
Classification Sensor .................139
Power distribution box
(see Fuses) ...............................238
Power door locks ......................112
Power mirrors .............................91
Power point .................................88
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Index
313
