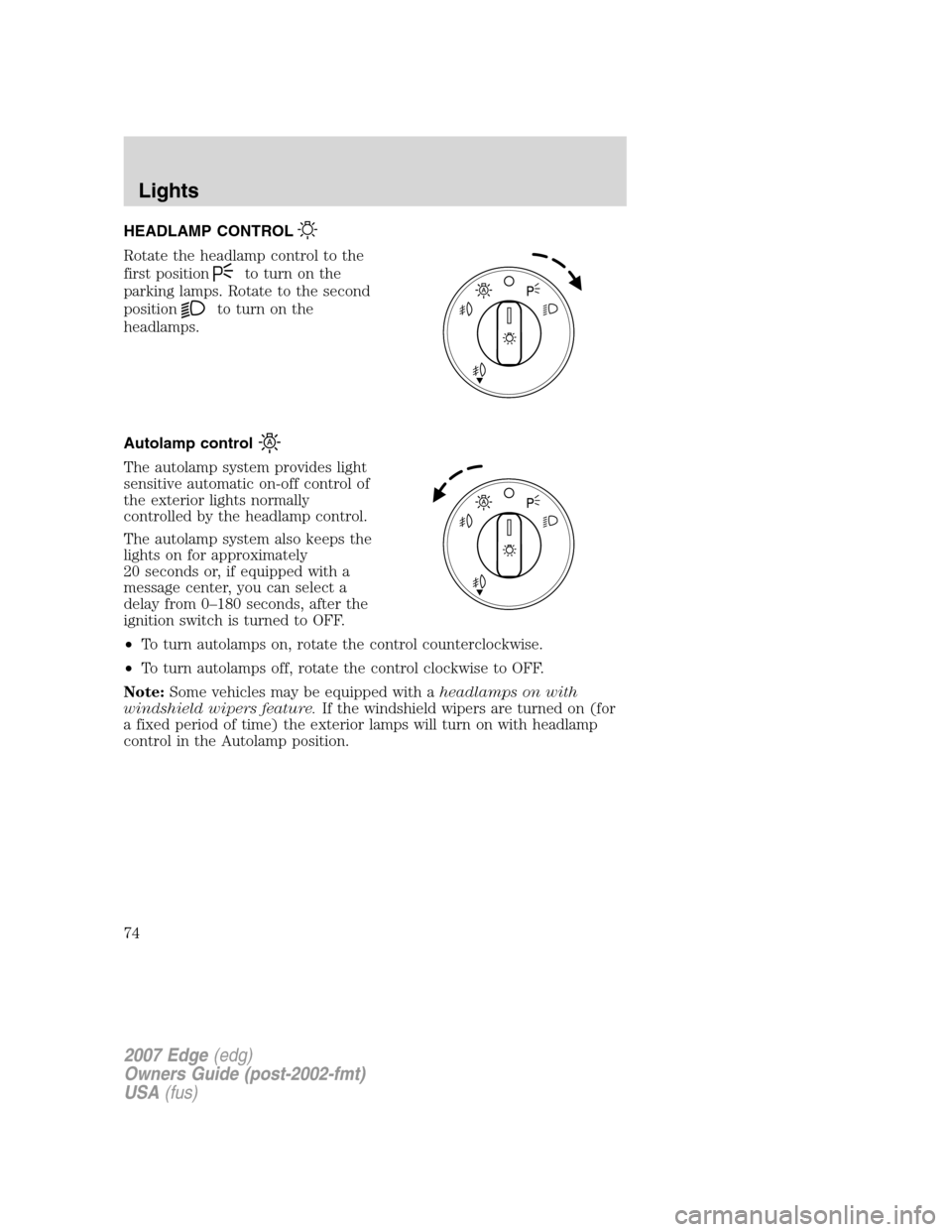

HEADLAMP CONTROL
Rotate the headlamp control to the
first position
to turn on the
parking lamps. Rotate to the second
position
to turn on the
headlamps.
Autolamp control
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system also keeps the
lights on for approximately
20 seconds or, if equipped with a
message center, you can select a
delay from 0–180 seconds, after the
ignition switch is turned to OFF.
•To turn autolamps on, rotate the control counterclockwise.
•To turn autolamps off, rotate the control clockwise to OFF.
Note:Some vehicles may be equipped with aheadlamps on with
windshield wipers feature.If the windshield wipers are turned on (for
a fixed period of time) the exterior lamps will turn on with headlamp
control in the Autolamp position.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
74

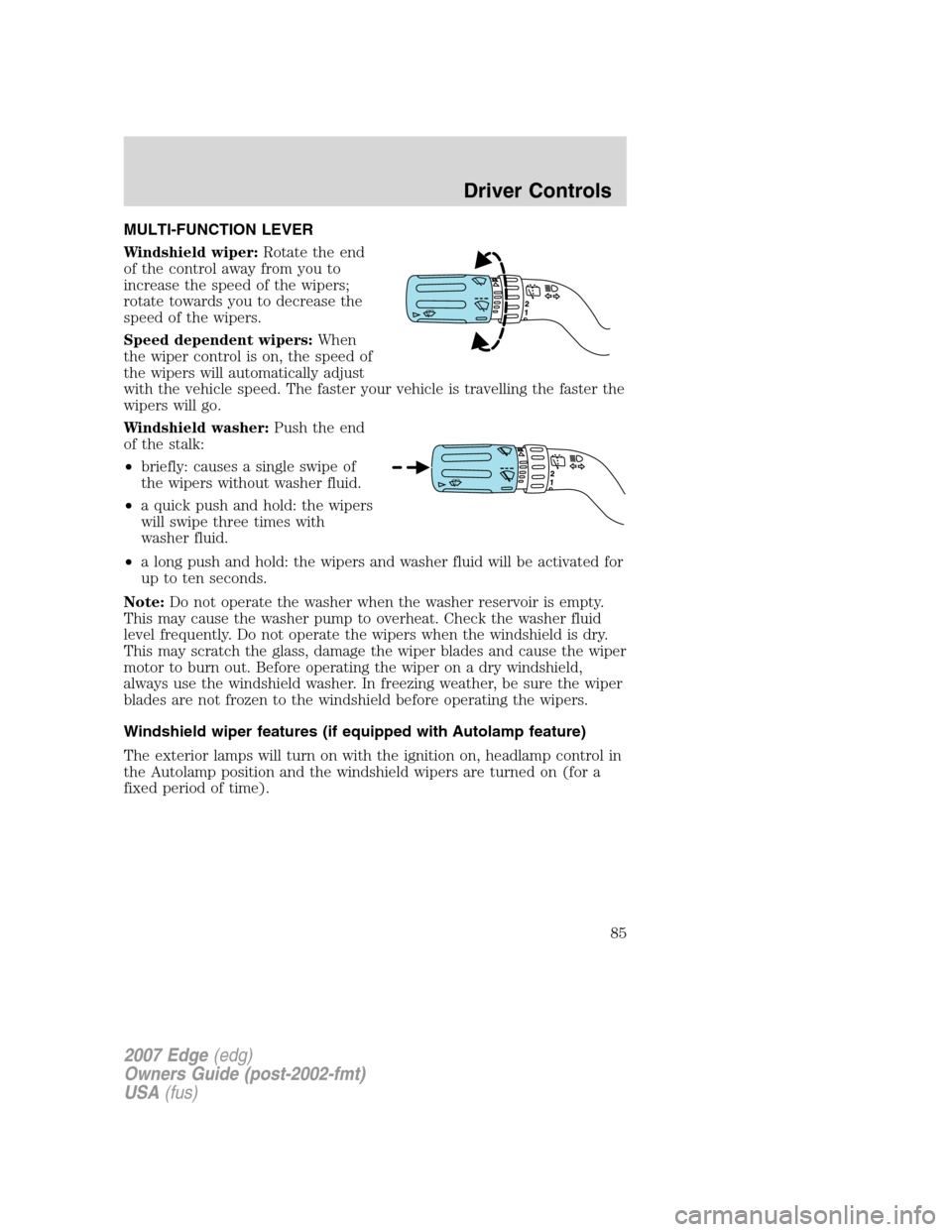

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Speed dependent wipers:When
the wiper control is on, the speed of
the wipers will automatically adjust
with the vehicle speed. The faster your vehicle is travelling the faster the
wipers will go.
Windshield washer:Push the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick push and hold: the wipers
will swipe three times with
washer fluid.
•a long push and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper features (if equipped with Autolamp feature)
The exterior lamps will turn on with the ignition on, headlamp control in
the Autolamp position and the windshield wipers are turned on (for a
fixed period of time).
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
85

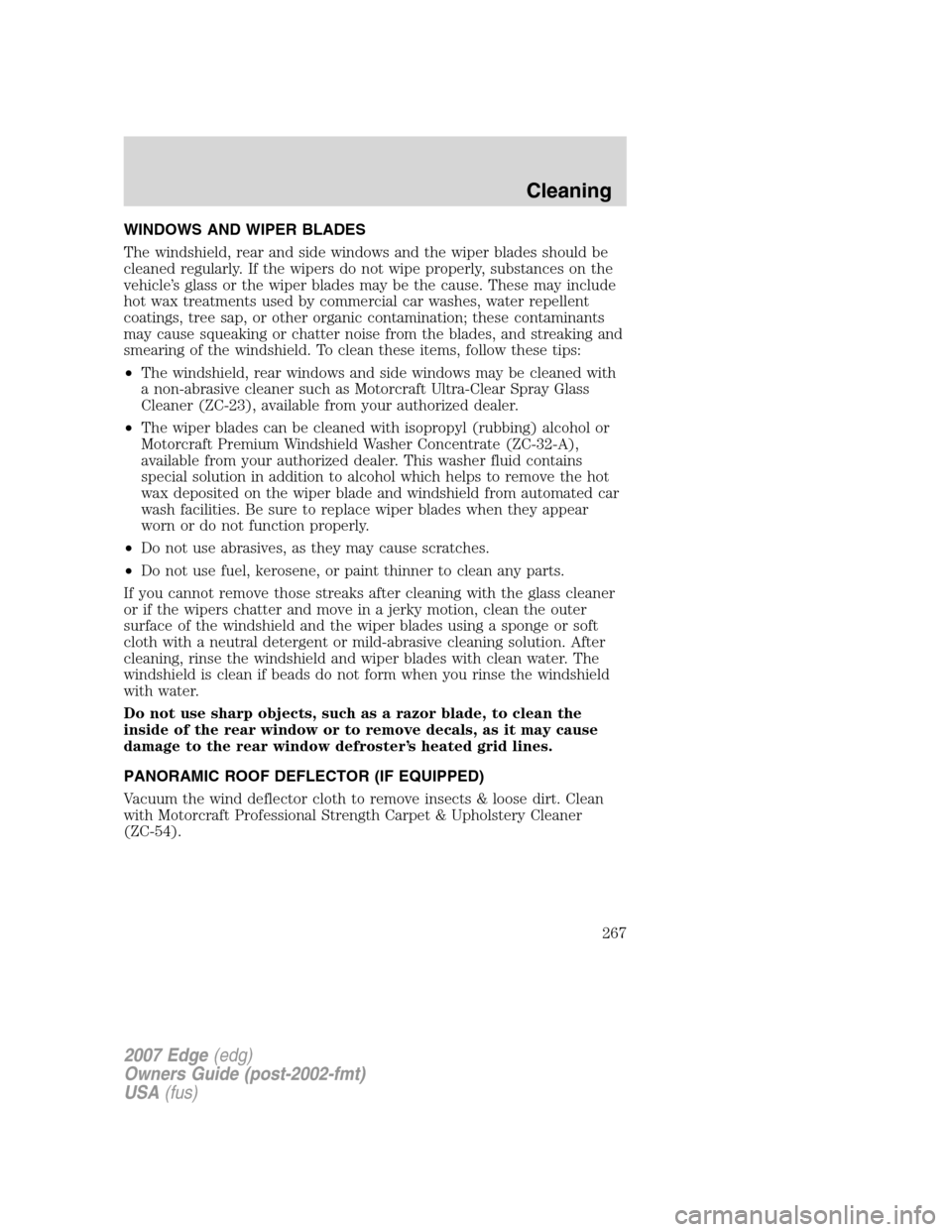

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
PANORAMIC ROOF DEFLECTOR (IF EQUIPPED)
Vacuum the wind deflector cloth to remove insects & loose dirt. Clean
with Motorcraft Professional Strength Carpet & Upholstery Cleaner
(ZC-54).
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
267

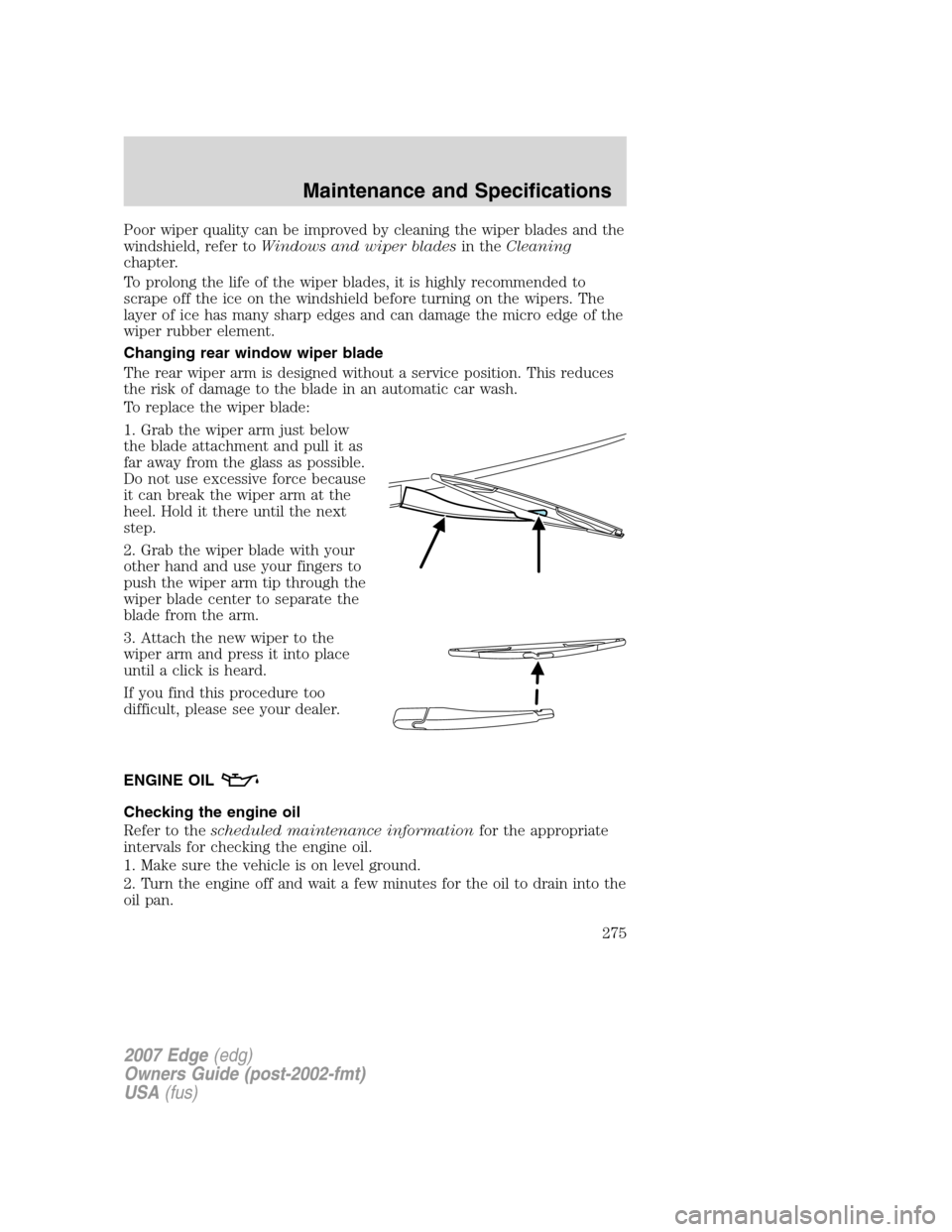

Poor wiper quality can be improved by cleaning the wiper blades and the
windshield, refer toWindows and wiper bladesin theCleaning
chapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
Changing rear window wiper blade
The rear wiper arm is designed without a service position. This reduces
the risk of damage to the blade in an automatic car wash.
To replace the wiper blade:
1. Grab the wiper arm just below
the blade attachment and pull it as
far away from the glass as possible.
Do not use excessive force because
it can break the wiper arm at the
heel. Hold it there until the next
step.
2. Grab the wiper blade with your
other hand and use your fingers to
push the wiper arm tip through the
wiper blade center to separate the
blade from the arm.
3. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
If you find this procedure too
difficult, please see your dealer.
ENGINE OIL
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
275

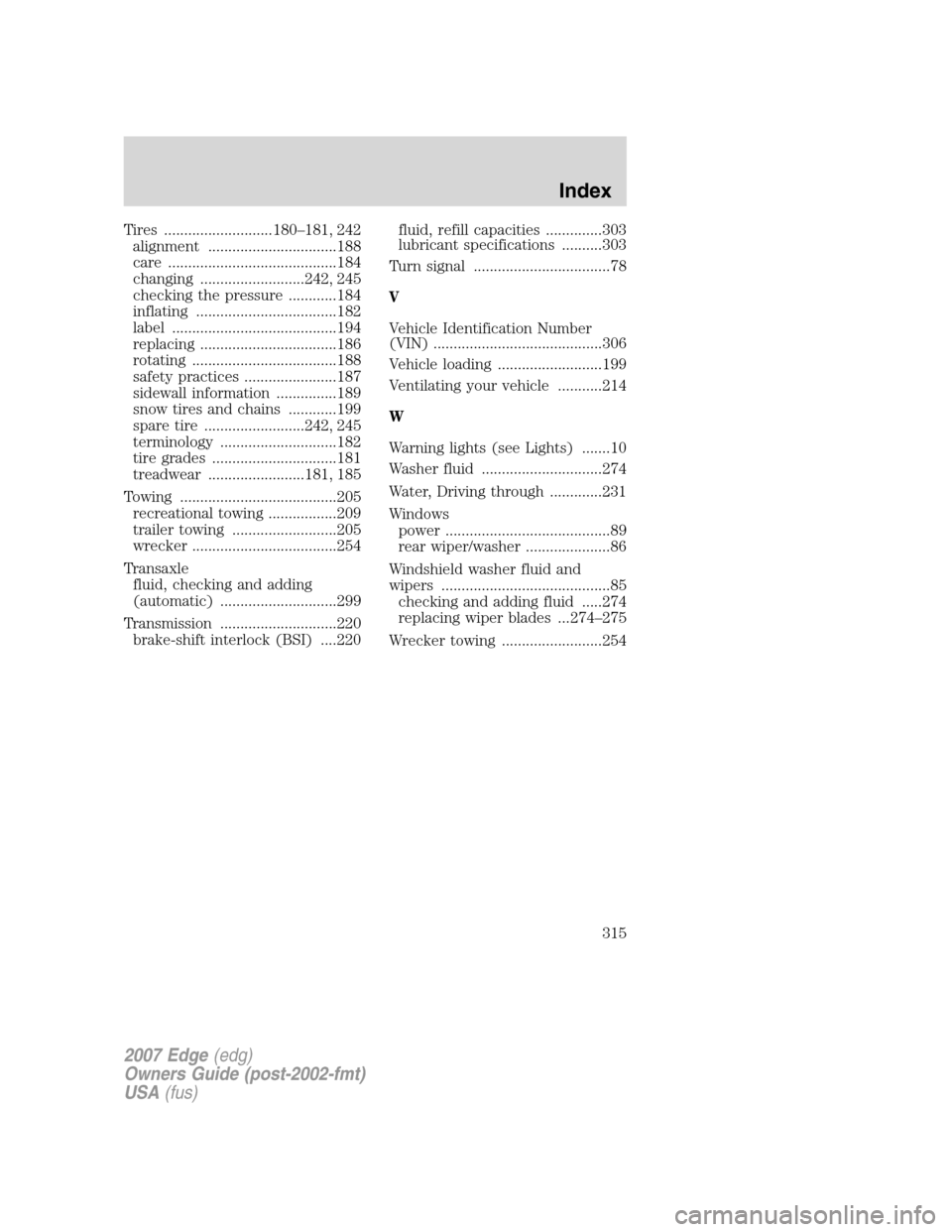

Tires ...........................180–181, 242
alignment ................................188
care ..........................................184
changing ..........................242, 245
checking the pressure ............184
inflating ...................................182
label .........................................194
replacing ..................................186
rotating ....................................188
safety practices .......................187
sidewall information ...............189
snow tires and chains ............199
spare tire .........................242, 245
terminology .............................182
tire grades ...............................181
treadwear ........................181, 185
Towing .......................................205
recreational towing .................209
trailer towing ..........................205
wrecker ....................................254
Transaxle
fluid, checking and adding
(automatic) .............................299
Transmission .............................220
brake-shift interlock (BSI) ....220fluid, refill capacities ..............303
lubricant specifications ..........303
Turn signal ..................................78
V
Vehicle Identification Number
(VIN) ..........................................306
Vehicle loading ..........................199
Ventilating your vehicle ...........214
W
Warning lights (see Lights) .......10
Washer fluid ..............................274
Water, Driving through .............231
Windows
power .........................................89
rear wiper/washer .....................86
Windshield washer fluid and
wipers ..........................................85
checking and adding fluid .....274
replacing wiper blades ...274–275
Wrecker towing .........................254
2007 Edge(edg)
Owners Guide (post-2002-fmt)
USA(fus)
Index
315
