CENTER CONSOLE (IF EQUIPPED)
Your vehicle may be equipped with a variety of console features. These
include:
1. Cupholders
2. Tissue box holder (located on
underside of console lid)
3. Rear power point
4. Utility compartment with a
clamshell tray with coin holder and
a removable divider for organizing
and storing personal items including
a laptop computer, MP3 players,
CDs or handbags and, (if equipped)
an ambient light control switch located on the front of the compartment.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power point is located
on the instrument panel.
A second auxiliary power point is
located in the center console utility
compartment.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of 12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and relaysin theRoadside Emergencieschapter for information
on checking and replacing fuses.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
68

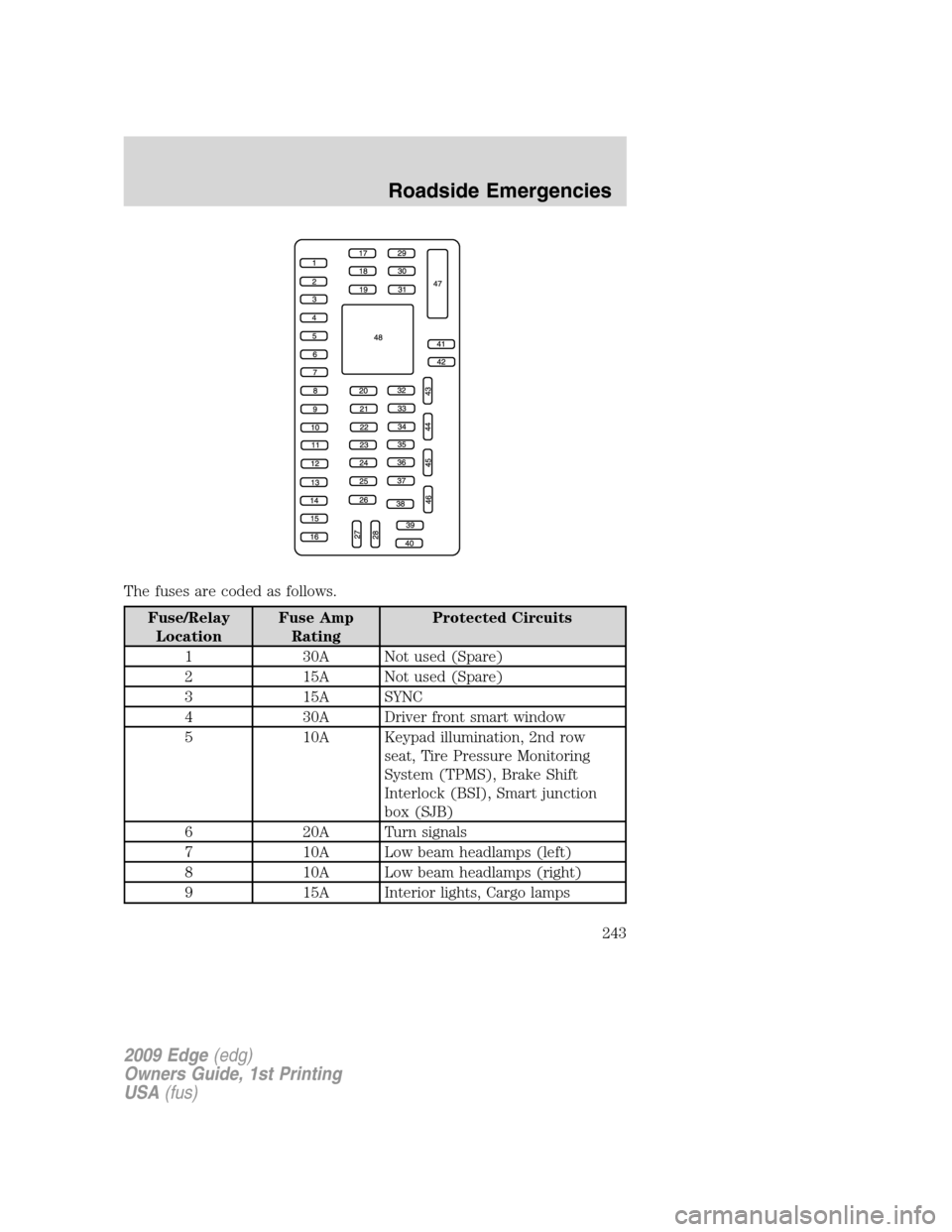

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Not used (Spare)
2 15A Not used (Spare)
3 15A SYNC
4 30A Driver front smart window
5 10A Keypad illumination, 2nd row
seat, Tire Pressure Monitoring
System (TPMS), Brake Shift
Interlock (BSI), Smart junction
box (SJB)
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
243

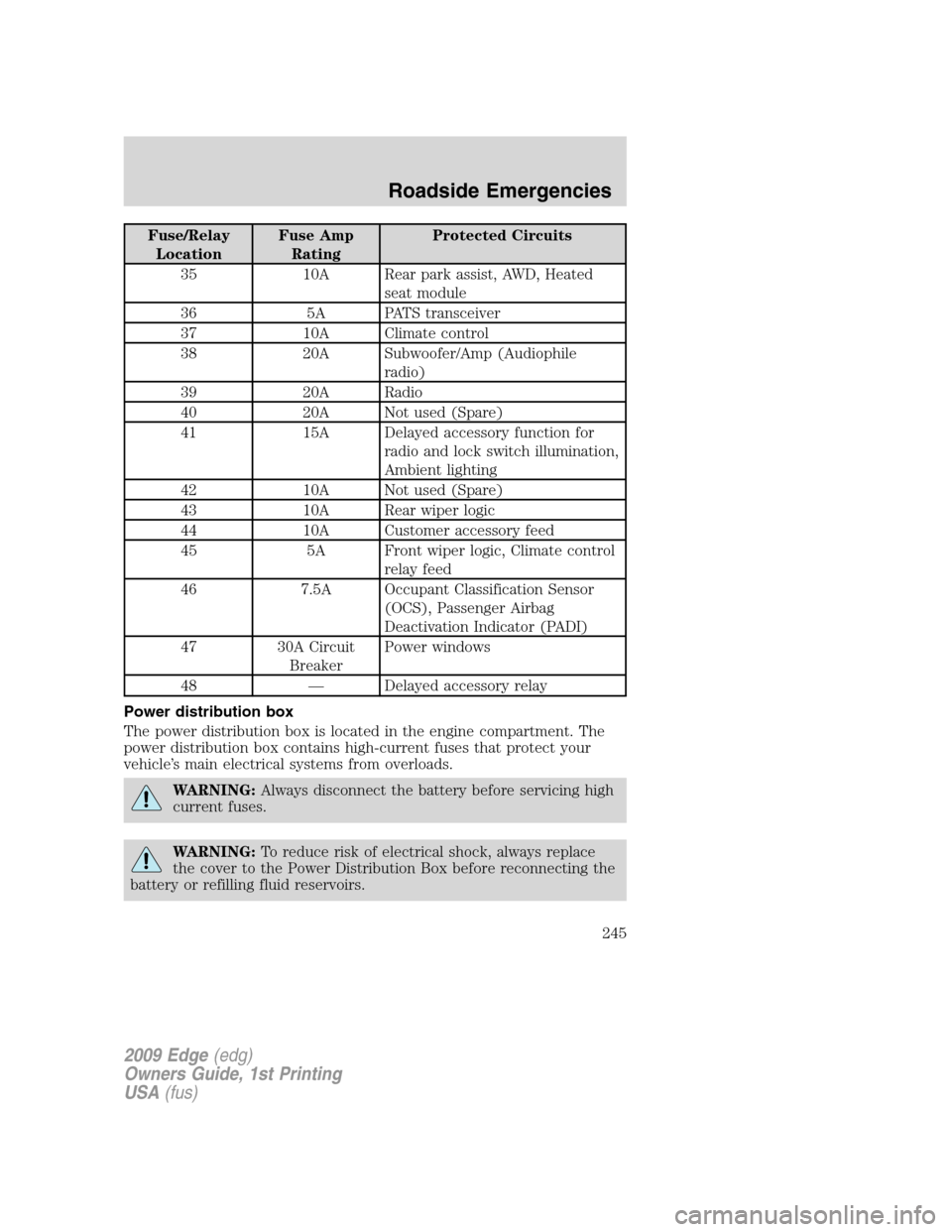

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
35 10A Rear park assist, AWD, Heated
seat module
36 5A PATS transceiver
37 10A Climate control
38 20A Subwoofer/Amp (Audiophile
radio)
39 20A Radio
40 20A Not used (Spare)
41 15A Delayed accessory function for
radio and lock switch illumination,
Ambient lighting
42 10A Not used (Spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic, Climate control
relay feed
46 7.5A Occupant Classification Sensor
(OCS), Passenger Airbag
Deactivation Indicator (PADI)
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
245

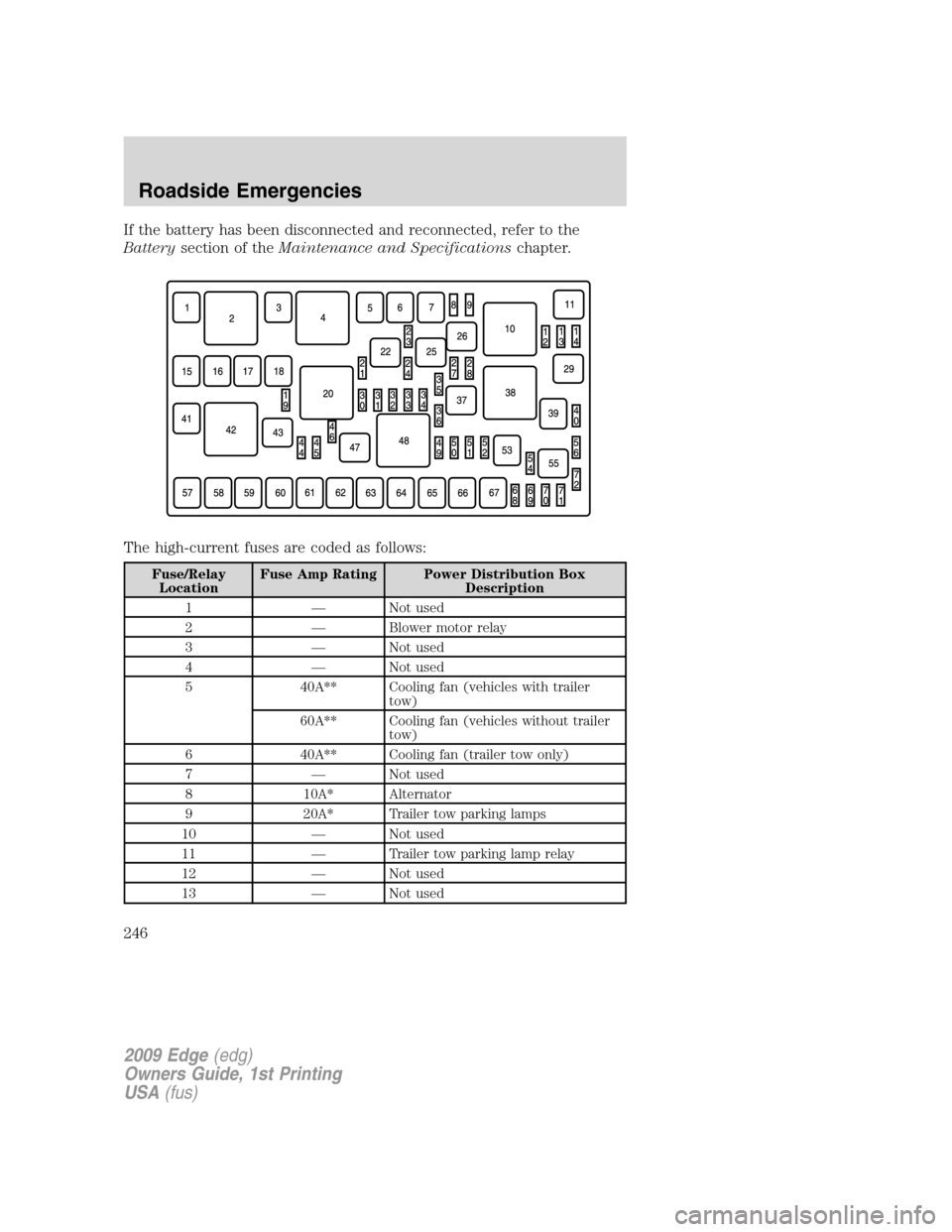

If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp Rating Power Distribution Box
Description
1 — Not used
2 — Blower motor relay
3 — Not used
4 — Not used
5 40A** Cooling fan (vehicles with trailer
tow)
60A** Cooling fan (vehicles without trailer
tow)
6 40A** Cooling fan (trailer tow only)
7 — Not used
8 10A* Alternator
9 20A* Trailer tow parking lamps
10 — Not used
11 — Trailer tow parking lamp relay
12 — Not used
13 — Not used
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
246

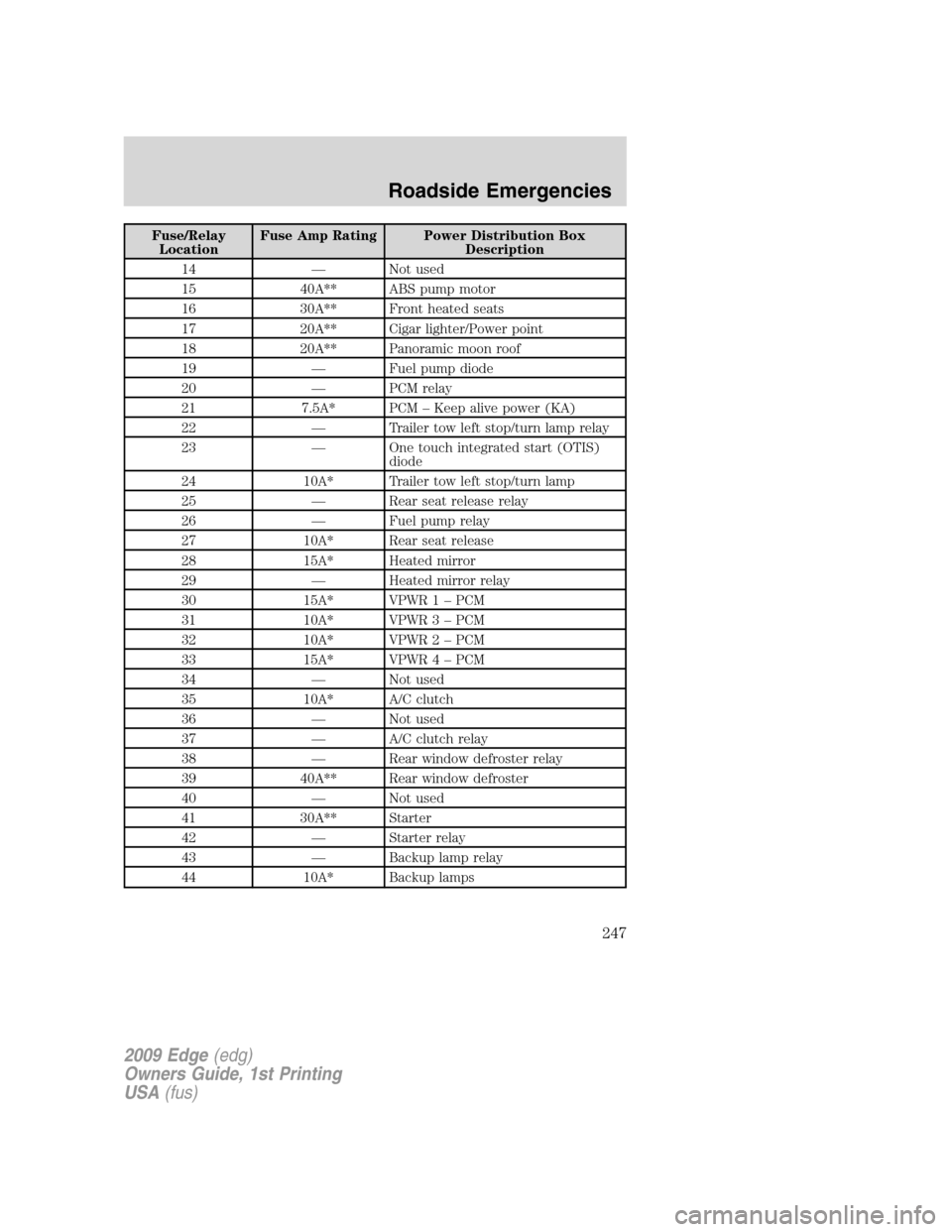

Fuse/Relay
LocationFuse Amp Rating Power Distribution Box
Description
14 — Not used
15 40A** ABS pump motor
16 30A** Front heated seats
17 20A** Cigar lighter/Power point
18 20A** Panoramic moon roof
19 — Fuel pump diode
20 — PCM relay
21 7.5A* PCM – Keep alive power (KA)
22 — Trailer tow left stop/turn lamp relay
23 — One touch integrated start (OTIS)
diode
24 10A* Trailer tow left stop/turn lamp
25 — Rear seat release relay
26 — Fuel pump relay
27 10A* Rear seat release
28 15A* Heated mirror
29 — Heated mirror relay
30 15A* VPWR1–PCM
31 10A* VPWR3–PCM
32 10A* VPWR2–PCM
33 15A* VPWR4–PCM
34 — Not used
35 10A* A/C clutch
36 — Not used
37 — A/C clutch relay
38 — Rear window defroster relay
39 40A** Rear window defroster
40 — Not used
41 30A** Starter
42 — Starter relay
43 — Backup lamp relay
44 10A* Backup lamps
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
247

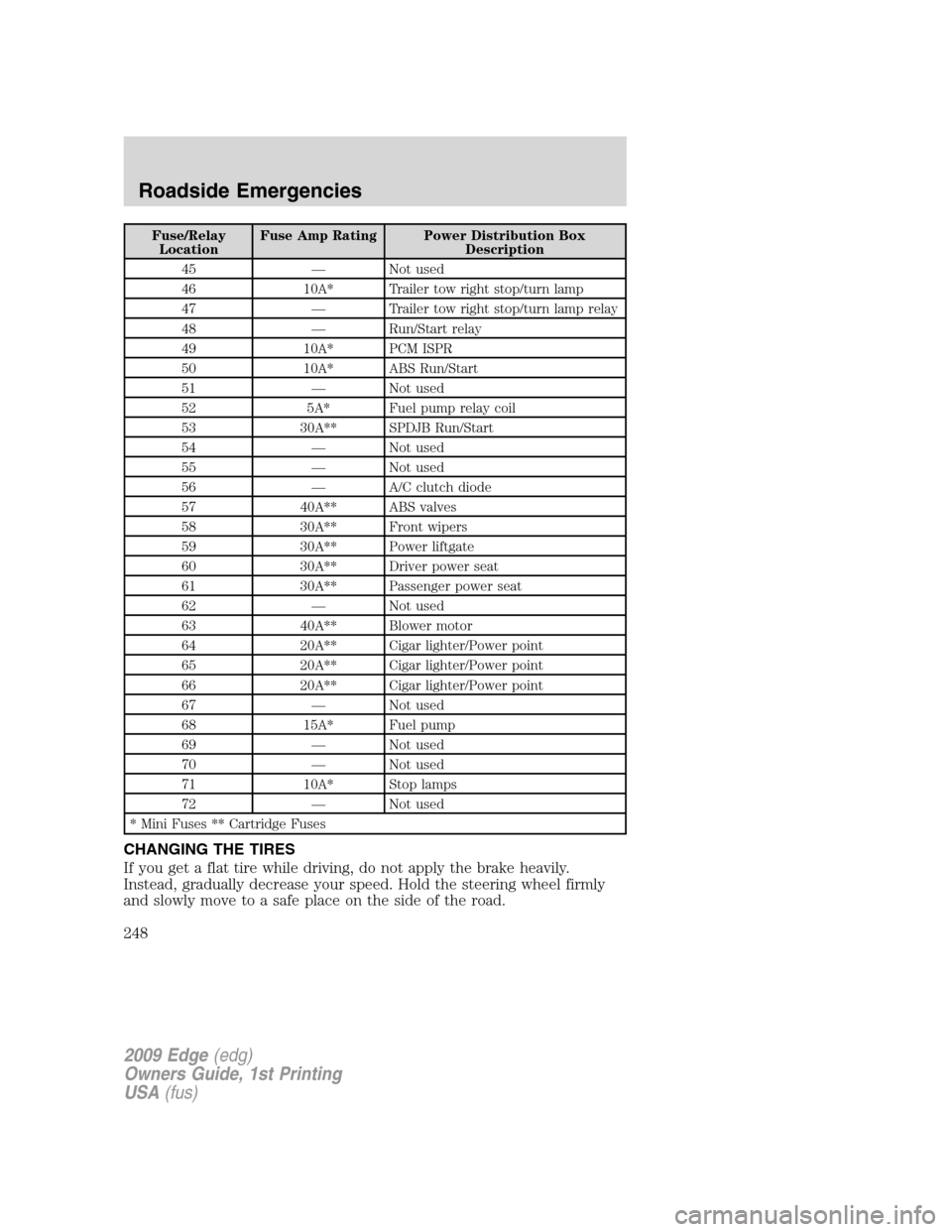

Fuse/Relay
LocationFuse Amp Rating Power Distribution Box
Description
45 — Not used
46 10A* Trailer tow right stop/turn lamp
47 — Trailer tow right stop/turn lamp relay
48 — Run/Start relay
49 10A* PCM ISPR
50 10A* ABS Run/Start
51 — Not used
52 5A* Fuel pump relay coil
53 30A** SPDJB Run/Start
54 — Not used
55 — Not used
56 — A/C clutch diode
57 40A** ABS valves
58 30A** Front wipers
59 30A** Power liftgate
60 30A** Driver power seat
61 30A** Passenger power seat
62 — Not used
63 40A** Blower motor
64 20A** Cigar lighter/Power point
65 20A** Cigar lighter/Power point
66 20A** Cigar lighter/Power point
67 — Not used
68 15A* Fuel pump
69 — Not used
70 — Not used
71 10A* Stop lamps
72 — Not used
* Mini Fuses ** Cartridge Fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
248

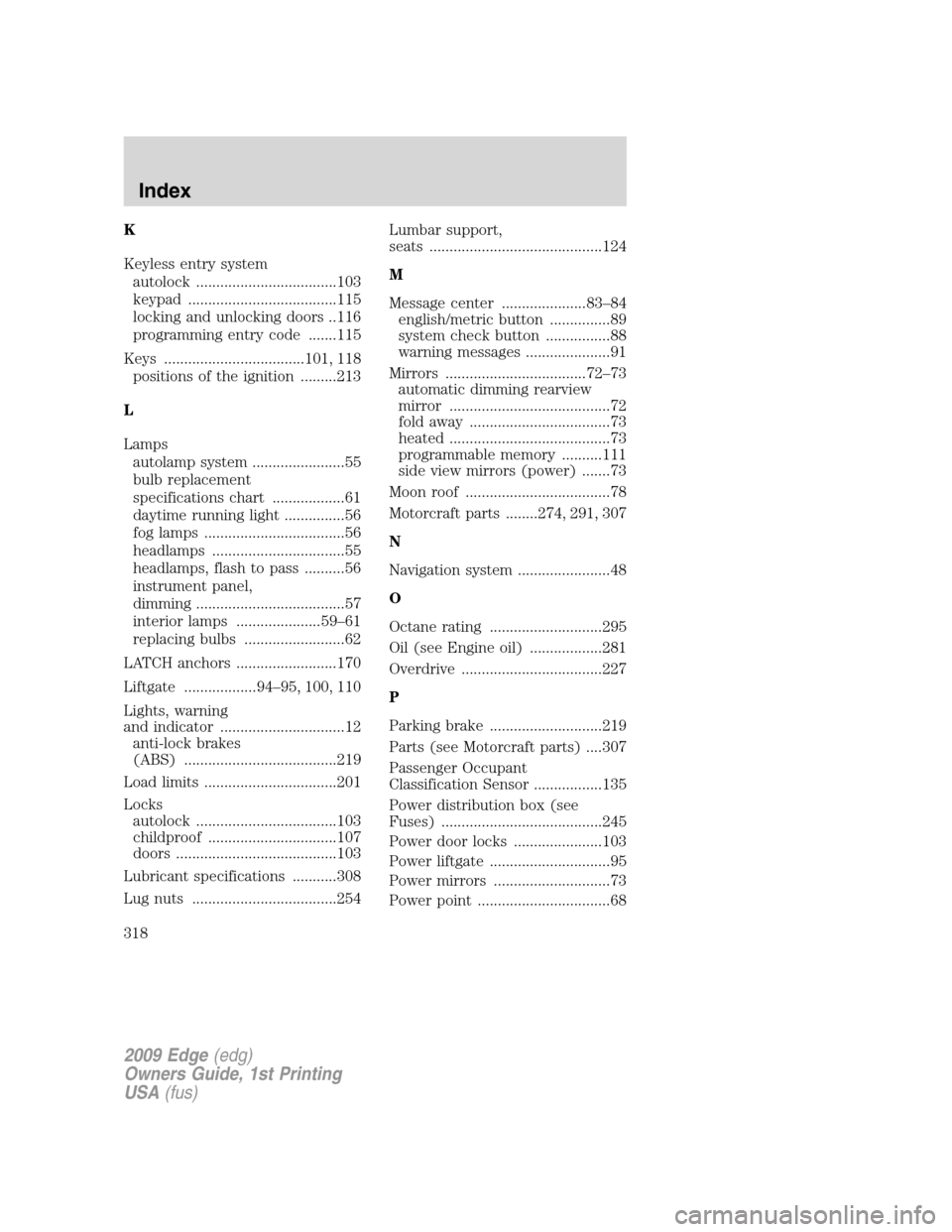

K
Keyless entry system
autolock ...................................103
keypad .....................................115
locking and unlocking doors ..116
programming entry code .......115
Keys ...................................101, 118
positions of the ignition .........213
L
Lamps
autolamp system .......................55
bulb replacement
specifications chart ..................61
daytime running light ...............56
fog lamps ...................................56
headlamps .................................55
headlamps, flash to pass ..........56
instrument panel,
dimming .....................................57
interior lamps .....................59–61
replacing bulbs .........................62
LATCH anchors .........................170
Liftgate ..................94–95, 100, 110
Lights, warning
and indicator ...............................12
anti-lock brakes
(ABS) ......................................219
Load limits .................................201
Locks
autolock ...................................103
childproof ................................107
doors ........................................103
Lubricant specifications ...........308
Lug nuts ....................................254Lumbar support,
seats ...........................................124
M
Message center .....................83–84
english/metric button ...............89
system check button ................88
warning messages .....................91
Mirrors ...................................72–73
automatic dimming rearview
mirror ........................................72
fold away ...................................73
heated ........................................73
programmable memory ..........111
side view mirrors (power) .......73
Moon roof ....................................78
Motorcraft parts ........274, 291, 307
N
Navigation system .......................48
O
Octane rating ............................295
Oil (see Engine oil) ..................281
Overdrive ...................................227
P
Parking brake ............................219
Parts (see Motorcraft parts) ....307
Passenger Occupant
Classification Sensor .................135
Power distribution box (see
Fuses) ........................................245
Power door locks ......................103
Power liftgate ..............................95
Power mirrors .............................73
Power point .................................68
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Index
318
