Page 26 of 320

•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again
and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press
/to select either
RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press OK to delete all songs from the
system’s memory. The display will read ARE YOU SURE ? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:Press MENU until SET HOURS or SET MINUTES is
displayed. Use
/to manually increase/decrease. Press MENU again
to disengage clock mode. Press OK to close and return to the main
menu.
AUTOSET:Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. Use
/to
turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press OK to close and
return to the main menu.
RBDS: Available only in FM mode. This feature allows you to search
RBDS-equipped stations for a certain category of music format:
CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
26
Page 34 of 320

•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
song appears in the display that you would like to delete, press OK.
The song will appear in the display for confirmation. Press OK again
and the display will read SONG DELETED. If you do not want to
delete the currently listed song, press
/to select either
RETURN or CANCEL.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•DELETE ALL SONGS:Press OK to delete all songs from the
system’s memory. The display will read ARE YOU SURE ? Press OK to
confirm deletion of all saved songs and the display will read ALL
DELETED.
Note:If there are no songs presently saved, the display will read NO
SONGS.
•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:Press MENU until SET HOURS or SET MINUTES is
displayed. Use
/to manually increase/decrease. Press MENU again
to disengage clock mode. Press OK to close and return to the main
menu.
AUTOSET:Press MENU until the display reads AUTOSET. Autoset
allows you to set the strongest local radio stations without losing your
original manually set preset stations for AM/FM1/FM2. Use
/to
turn on/off. Press OK to close and return to the main menu.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
34
Page 73 of 320

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Fold-away mirrors
Pull the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
SPEED CONTROL
With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
73
Page 251 of 320

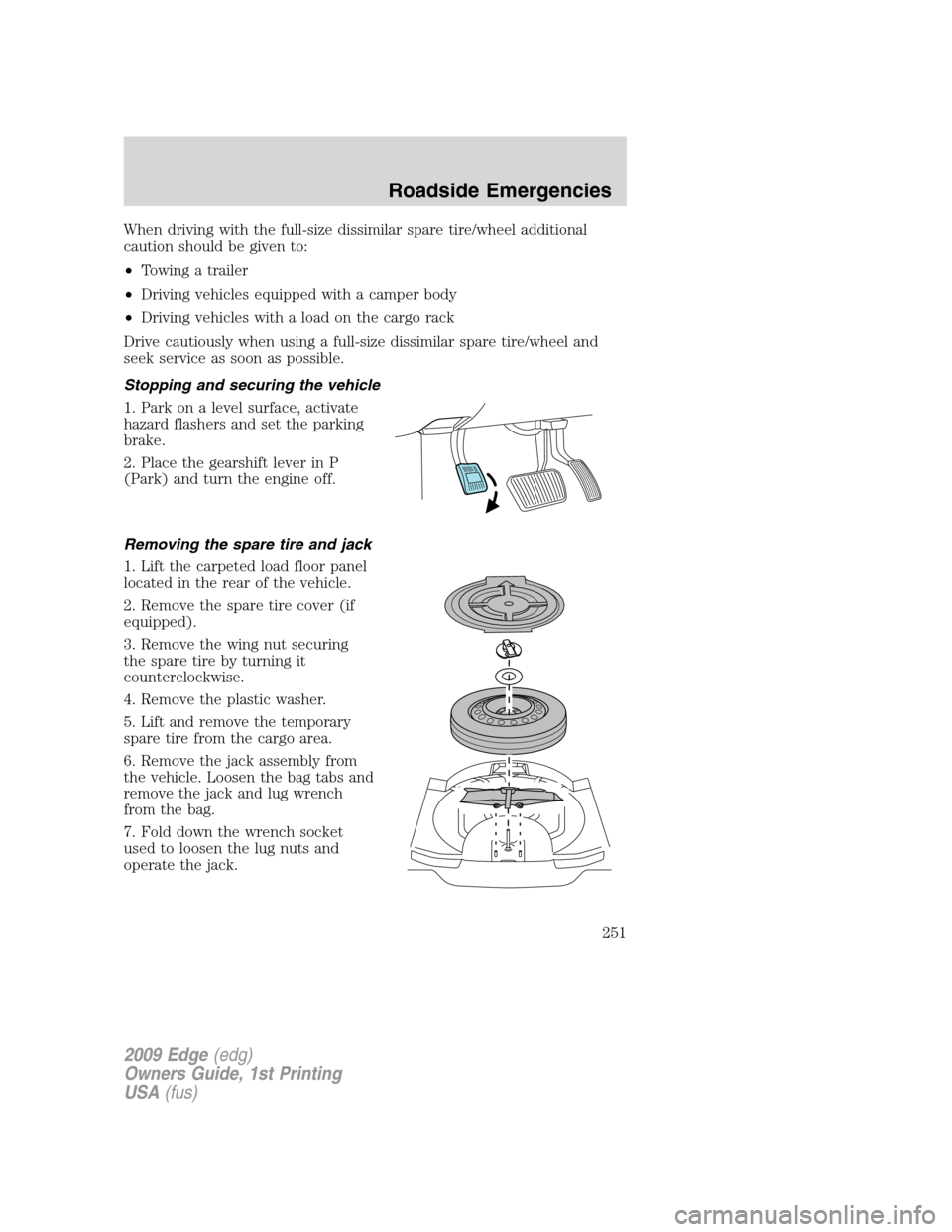

When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
Stopping and securing the vehicle
1. Park on a level surface, activate
hazard flashers and set the parking
brake.
2. Place the gearshift lever in P
(Park) and turn the engine off.
Removing the spare tire and jack
1. Lift the carpeted load floor panel
located in the rear of the vehicle.
2. Remove the spare tire cover (if
equipped).
3. Remove the wing nut securing
the spare tire by turning it
counterclockwise.
4. Remove the plastic washer.
5. Lift and remove the temporary
spare tire from the cargo area.
6. Remove the jack assembly from
the vehicle. Loosen the bag tabs and
remove the jack and lug wrench
from the bag.
7. Fold down the wrench socket
used to loosen the lug nuts and
operate the jack.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
251
Page 252 of 320

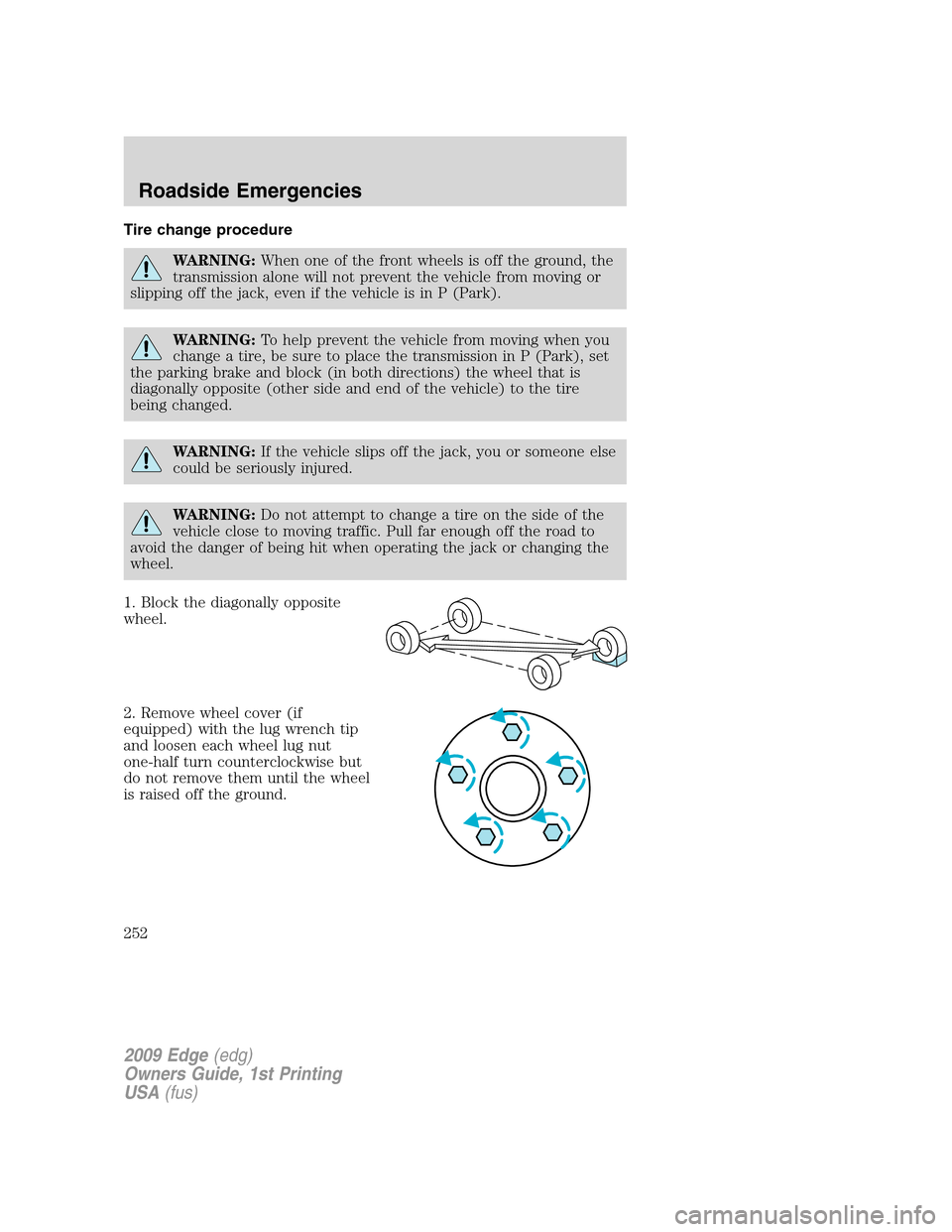

Tire change procedure
WARNING:When one of the front wheels is off the ground, the
transmission alone will not prevent the vehicle from moving or
slipping off the jack, even if the vehicle is in P (Park).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure to place the transmission in P (Park), set
the parking brake and block (in both directions) the wheel that is
diagonally opposite (other side and end of the vehicle) to the tire
being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
1. Block the diagonally opposite
wheel.
2. Remove wheel cover (if
equipped) with the lug wrench tip
and loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
252
Page 286 of 320

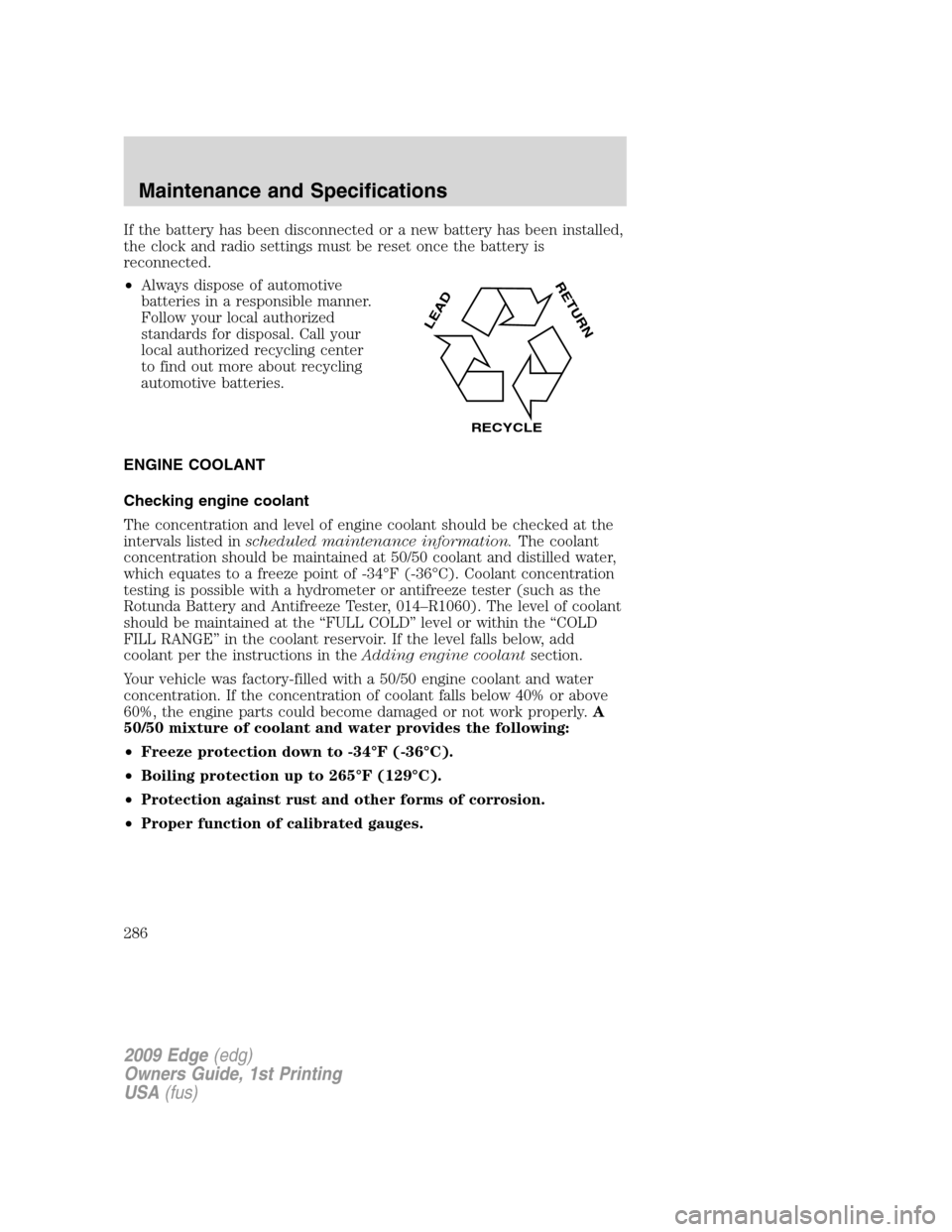

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -34°F (-36°C). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “FULL COLD” level or within the “COLD
FILL RANGE” in the coolant reservoir. If the level falls below, add
coolant per the instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
•Proper function of calibrated gauges.
L
E
A
D
RETURN
RECYCLE
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
286
Page 294 of 320

Use the following guidelines to avoid electrostatic charge build-up when
filling an ungrounded fuel container:
•Place approved fuel container on the ground.
•DO NOT fill a fuel container while it is in the vehicle (including the
cargo area).
•Keep the fuel pump nozzle in contact with the fuel container while
filling.
•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Fuel filler cap
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise until at least a few clicks are heard.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or “check fuel cap” message may not reset immediately; it may
take several driving cycles for the check fuel cap light
or “check fuel
cap” message to turn off. A driving cycle consists of an engine start-up
(after four or more hours with the engine off) followed by city and
highway driving.
Continuing to drive with the check fuel cap light
or “check fuel cap”
message on may cause the service engine soon
light to turn on as
well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
294
Page 316 of 320

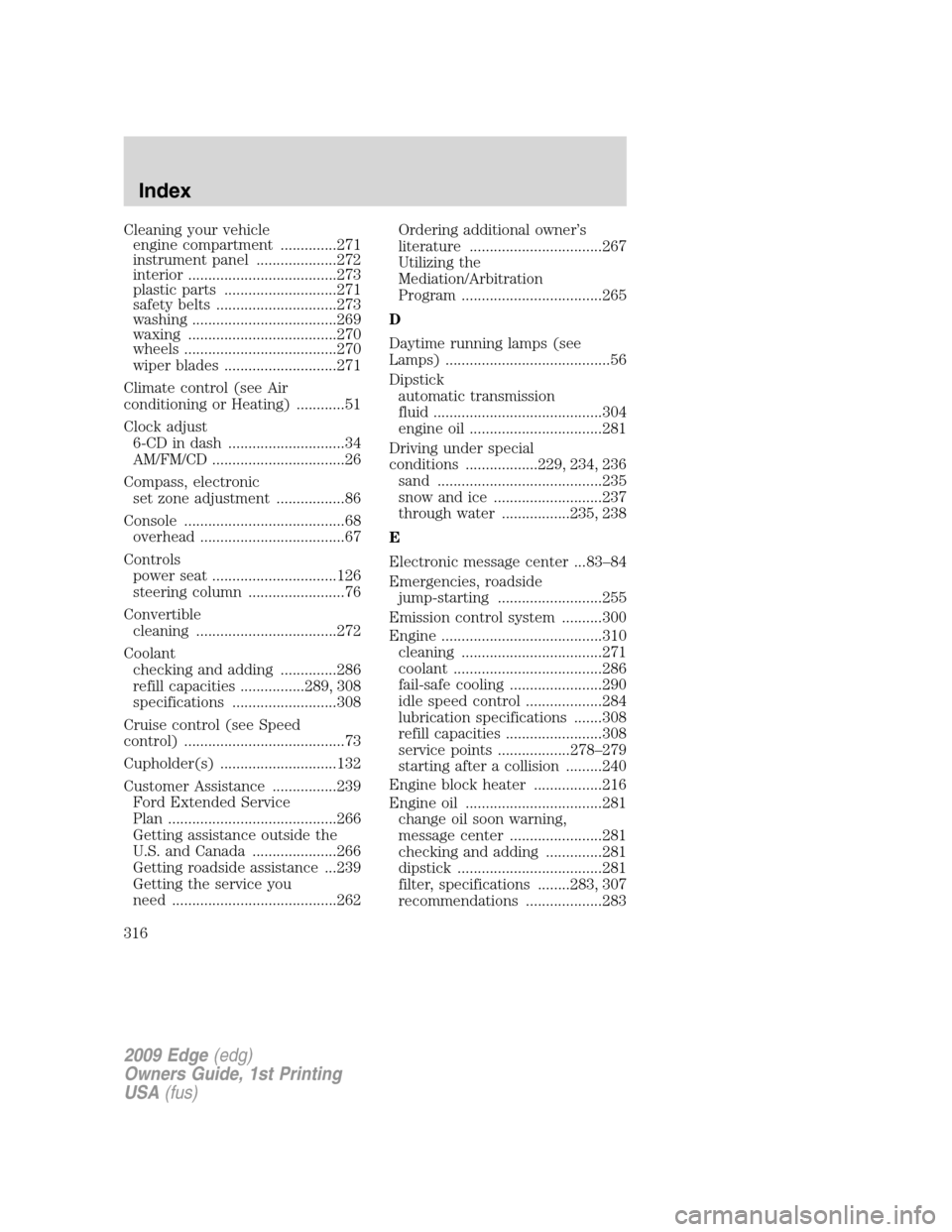

Cleaning your vehicle
engine compartment ..............271
instrument panel ....................272
interior .....................................273
plastic parts ............................271
safety belts ..............................273
washing ....................................269
waxing .....................................270
wheels ......................................270
wiper blades ............................271
Climate control (see Air
conditioning or Heating) ............51
Clock adjust
6-CD in dash .............................34
AM/FM/CD .................................26
Compass, electronic
set zone adjustment .................86
Console ........................................68
overhead ....................................67
Controls
power seat ...............................126
steering column ........................76
Convertible
cleaning ...................................272
Coolant
checking and adding ..............286
refill capacities ................289, 308
specifications ..........................308
Cruise control (see Speed
control) ........................................73
Cupholder(s) .............................132
Customer Assistance ................239
Ford Extended Service
Plan ..........................................266
Getting assistance outside the
U.S. and Canada .....................266
Getting roadside assistance ...239
Getting the service you
need .........................................262Ordering additional owner’s
literature .................................267
Utilizing the
Mediation/Arbitration
Program ...................................265
D
Daytime running lamps (see
Lamps) .........................................56
Dipstick
automatic transmission
fluid ..........................................304
engine oil .................................281
Driving under special
conditions ..................229, 234, 236
sand .........................................235
snow and ice ...........................237
through water .................235, 238
E
Electronic message center ...83–84
Emergencies, roadside
jump-starting ..........................255
Emission control system ..........300
Engine ........................................310
cleaning ...................................271
coolant .....................................286
fail-safe cooling .......................290
idle speed control ...................284
lubrication specifications .......308
refill capacities ........................308
service points ..................278–279
starting after a collision .........240
Engine block heater .................216
Engine oil ..................................281
change oil soon warning,
message center .......................281
checking and adding ..............281
dipstick ....................................281
filter, specifications ........283, 307
recommendations ...................283
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Index
316
Page 319 of 320

Power steering ..........................225
fluid, checking and adding ....303
fluid, refill capacity ................308
fluid, specifications .................308
Power Windows ...........................70
R
Radio ................................20, 24, 32
Recommendations for
attaching safety restraints for
children ......................................164
Relays ........................................241
Remote entry system .......107, 109
illuminated entry ............112, 114
locking/unlocking doors .........109
opening the trunk ...................110
panic alarm .............................110
replacement/additional
transmitters .............................112
replacing the batteries ...........111
Reverse sensing system ...........230
Roadside assistance ..................239
S
Safety belts (see Safety
restraints) ..........133, 136, 138–141
Safety Canopy ...................156, 159
Safety defects, reporting ..........268
Safety restraints ...............133, 136,
138–141
Belt-Minder...........................143
extension assembly ................142
for adults .........................138–140
for children .............................162
Occupant Classification
Sensor ......................................135warning light and
chime ...............................142–143
Safety restraints - LATCH
anchors ......................................170
Safety seats for children ..........166
Safety Compliance
Certification Label ....................311
Satellite Radio Information ........45
Seats ..........................................121
child safety seats ....................166
easy access/easyout feature ..128
front seats ...............................124
heated ................................51, 128
memory seat ...................111, 127
SecuriCode keyless entry
system ........................................115
SecuriLock passive anti-theft
system ........................................116
Servicing your vehicle ..............276
Setting the clock
AM/FM single CD .....................26
AM/FM/In-dash 6 CD ................34
Spare tire (see Changing the
Tire) ...........................................252
Spark plugs,
specifications .....................307, 310
Specification chart,
lubricants ...................................308
Speed control ..............................73
Starting your vehicle ........213–215
jump starting ..........................255
Steering wheel
controls ......................................76
tilting .........................................66
SYNC..........................................48
2009 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Index
319
