air filter FORD EDGE 2010 1.G Owners Manual

Customer Assistance 266
Reporting safety defects (U.S. only) 272
Reporting safety defects (Canada only) 272
Cleaning 273
Maintenance and Specifications 280
Engine compartment 282
Engine oil 285
Battery 288
Engine coolant 290
Fuel information 295
Air filter(s) 309
Part numbers 311
Maintenance product specifications and capacities 312
Engine data 315
Accessories 318
Ford Extended Service Plan 320
Index 323
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
Table of Contents
3
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

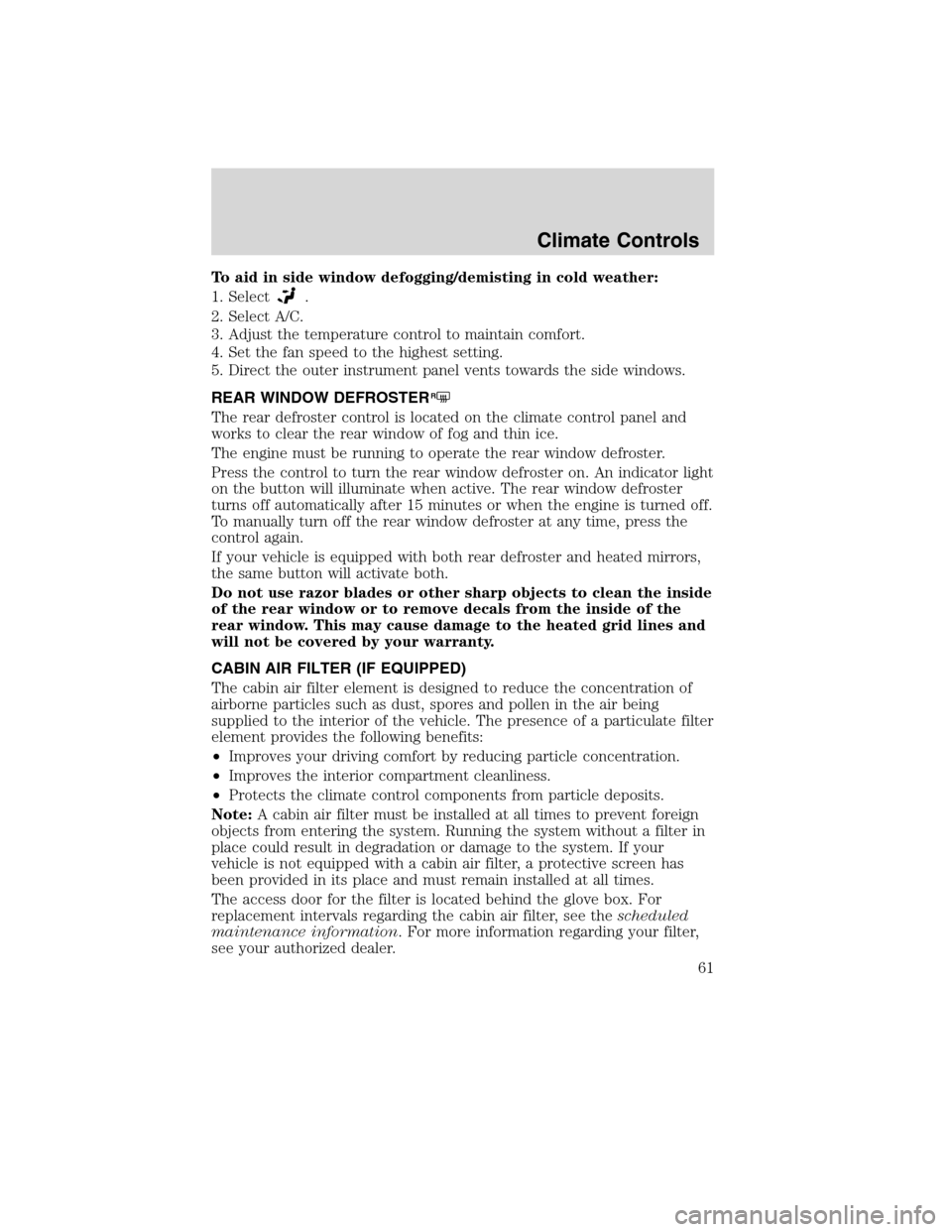

To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Select A/C.
3. Adjust the temperature control to maintain comfort.
4. Set the fan speed to the highest setting.
5. Direct the outer instrument panel vents towards the side windows.
REAR WINDOW DEFROSTER
R
The rear defroster control is located on the climate control panel and
works to clear the rear window of fog and thin ice.
The engine must be running to operate the rear window defroster.
Press the control to turn the rear window defroster on. An indicator light
on the button will illuminate when active. The rear window defroster
turns off automatically after 15 minutes or when the engine is turned off.
To manually turn off the rear window defroster at any time, press the
control again.
If your vehicle is equipped with both rear defroster and heated mirrors,
the same button will activate both.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside of the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
CABIN AIR FILTER (IF EQUIPPED)
The cabin air filter element is designed to reduce the concentration of
airborne particles such as dust, spores and pollen in the air being
supplied to the interior of the vehicle. The presence of a particulate filter
element provides the following benefits:
•Improves your driving comfort by reducing particle concentration.
•Improves the interior compartment cleanliness.
•Protects the climate control components from particle deposits.
Note:A cabin air filter must be installed at all times to prevent foreign
objects from entering the system. Running the system without a filter in
place could result in degradation or damage to the system. If your
vehicle is not equipped with a cabin air filter, a protective screen has
been provided in its place and must remain installed at all times.
The access door for the filter is located behind the glove box. For
replacement intervals regarding the cabin air filter, see thescheduled
maintenance information. For more information regarding your filter,
see your authorized dealer.
Climate Controls
61
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

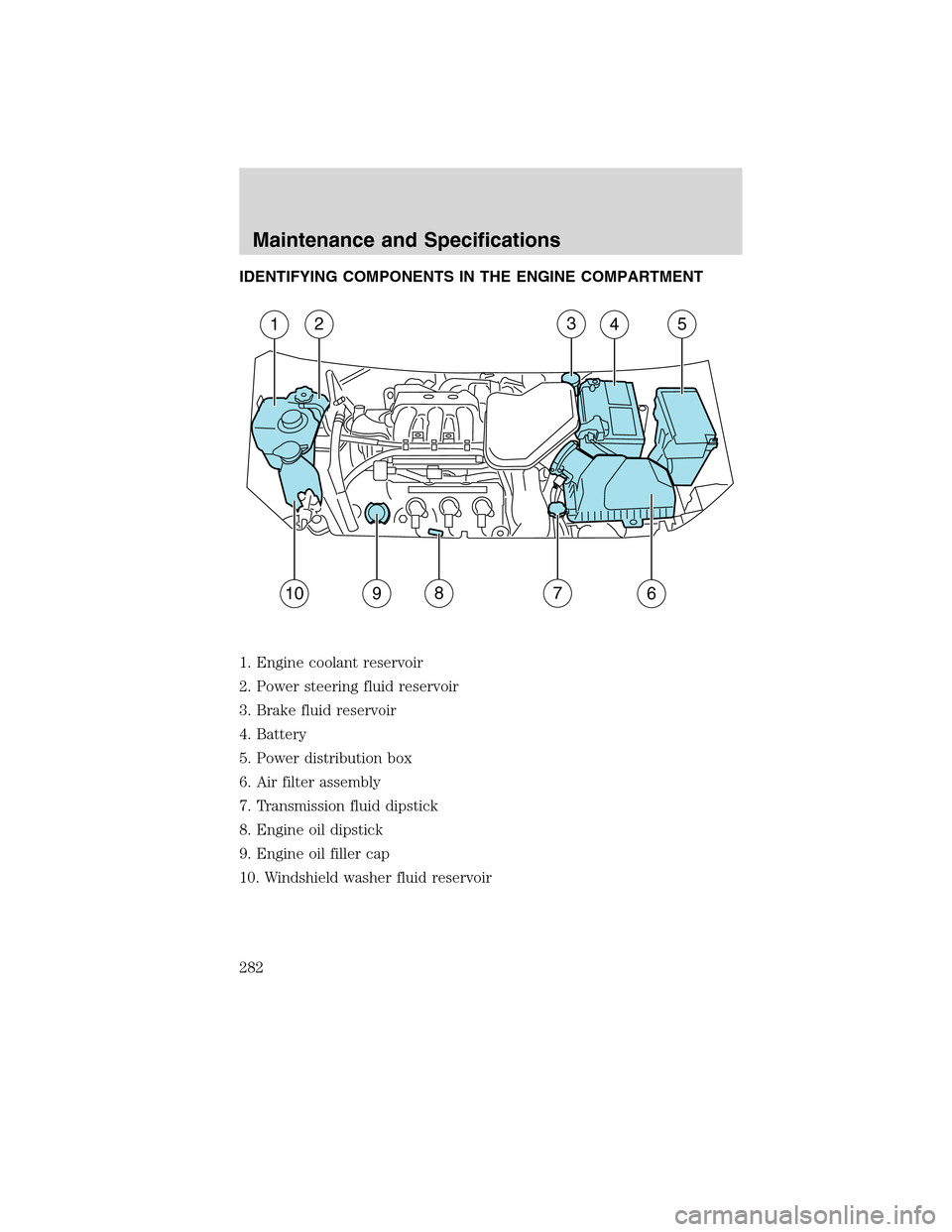

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
1. Engine coolant reservoir
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Battery
5. Power distribution box
6. Air filter assembly
7. Transmission fluid dipstick
8. Engine oil dipstick
9. Engine oil filler cap
10. Windshield washer fluid reservoir
1
8
2345
67910
Maintenance and Specifications
282
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

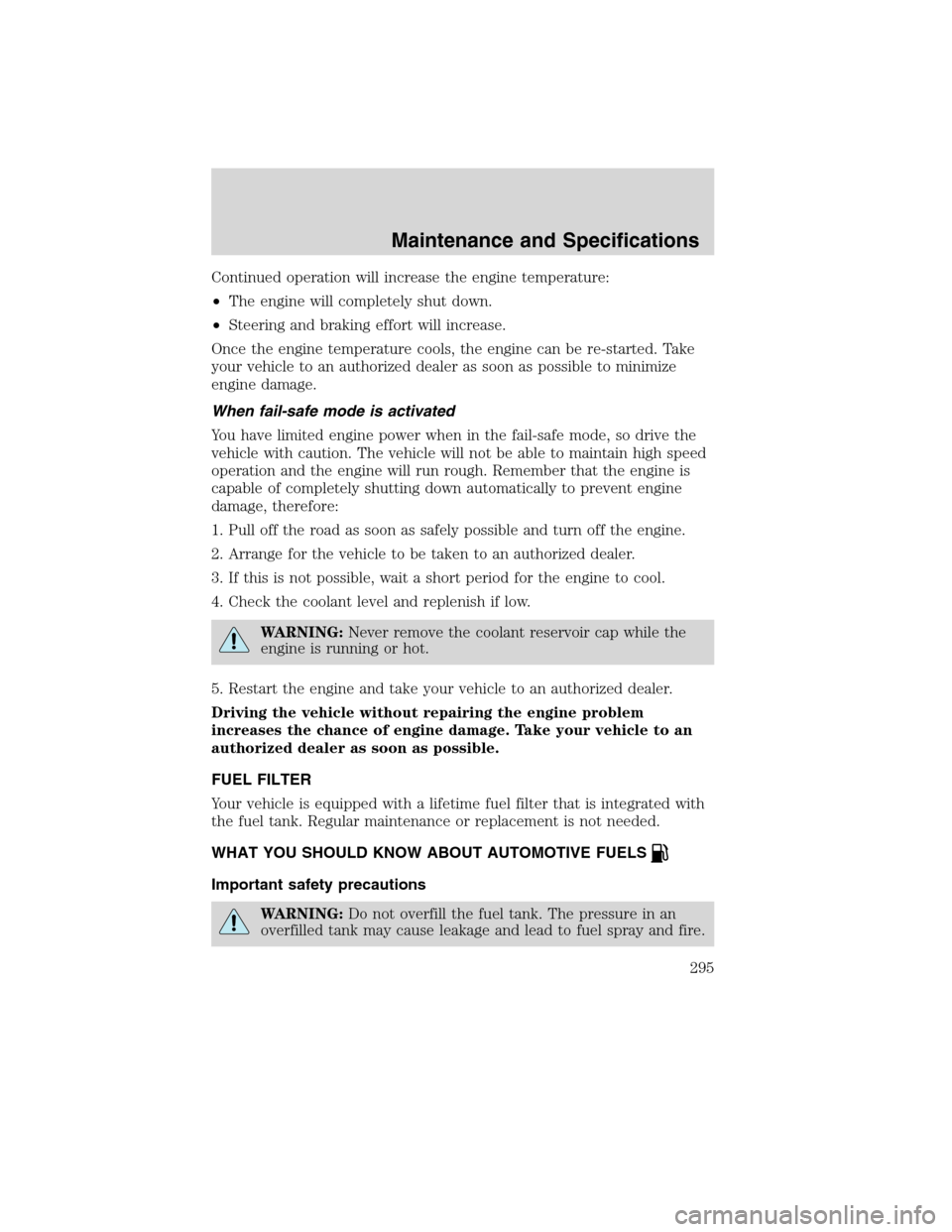

Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
Maintenance and Specifications
295
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

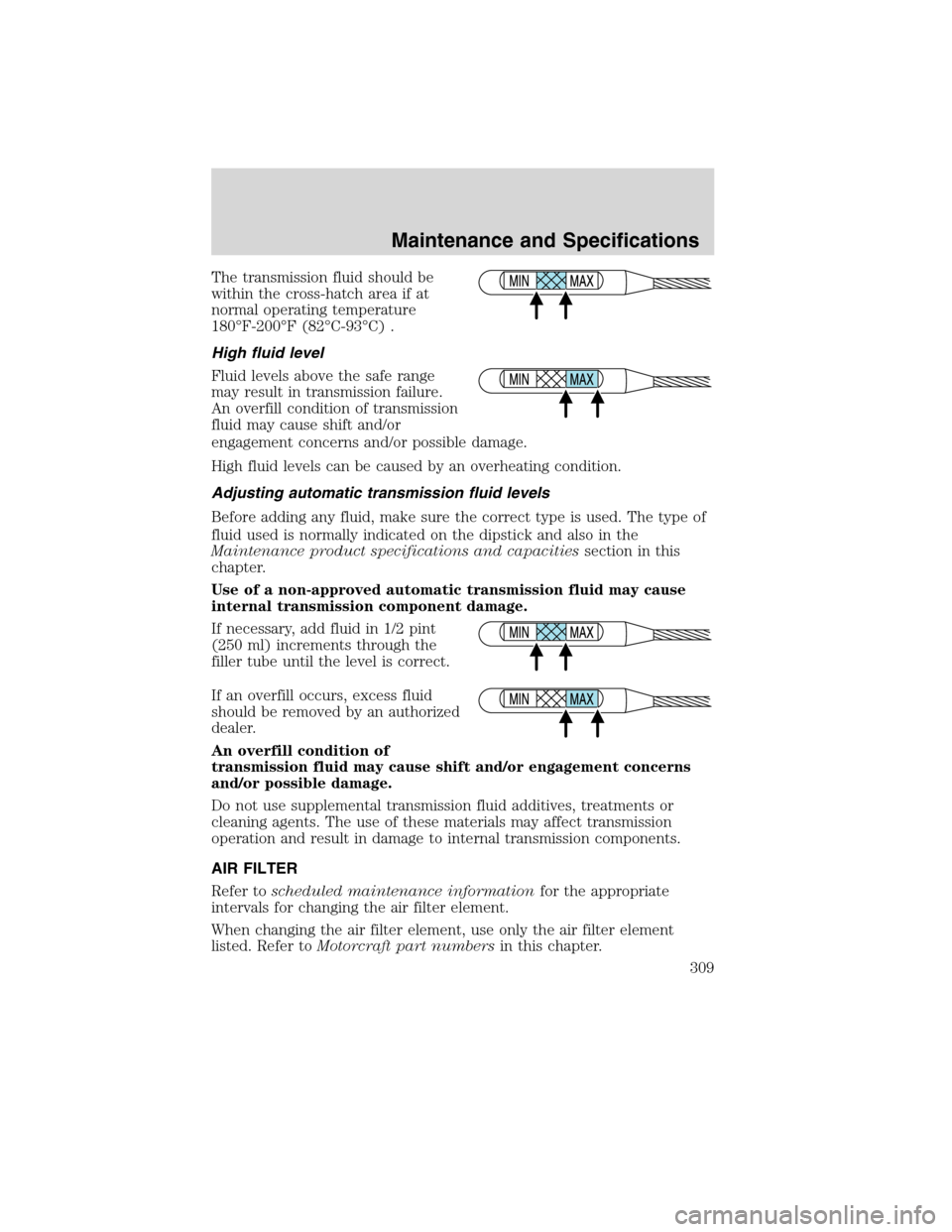

The transmission fluid should be
within the cross-hatch area if at
normal operating temperature
180°F-200°F (82°C-93°C) .
High fluid level
Fluid levels above the safe range
may result in transmission failure.
An overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or possible damage.
High fluid levels can be caused by an overheating condition.
Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance product specifications and capacitiessection in this
chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint
(250 ml) increments through the
filler tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraft part numbersin this chapter.
Maintenance and Specifications
309
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

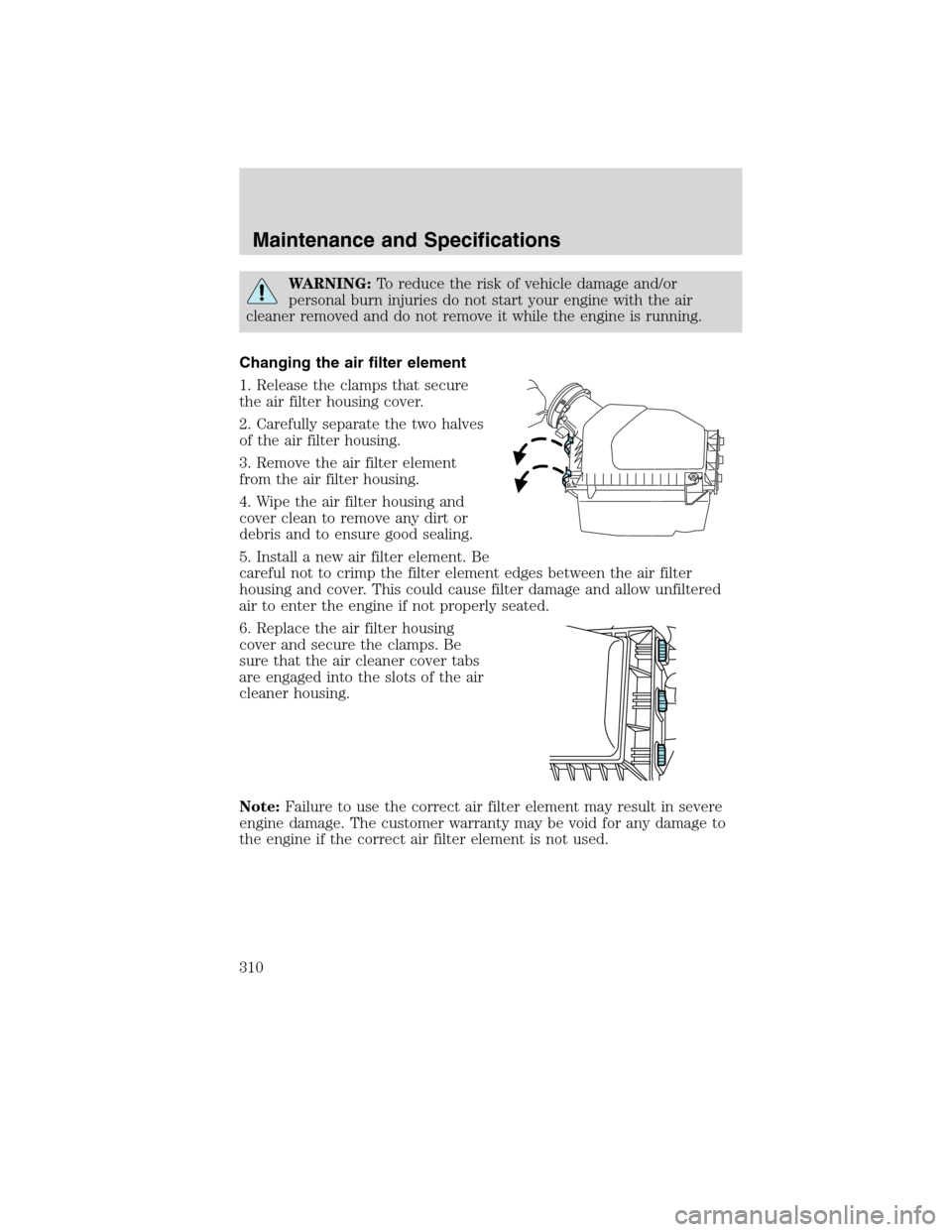

WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Changing the air filter element
1. Release the clamps that secure
the air filter housing cover.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the air filter housing.
4. Wipe the air filter housing and
cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be
careful not to crimp the filter element edges between the air filter
housing and cover. This could cause filter damage and allow unfiltered
air to enter the engine if not properly seated.
6. Replace the air filter housing
cover and secure the clamps. Be
sure that the air cleaner cover tabs
are engaged into the slots of the air
cleaner housing.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
Maintenance and Specifications
310
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

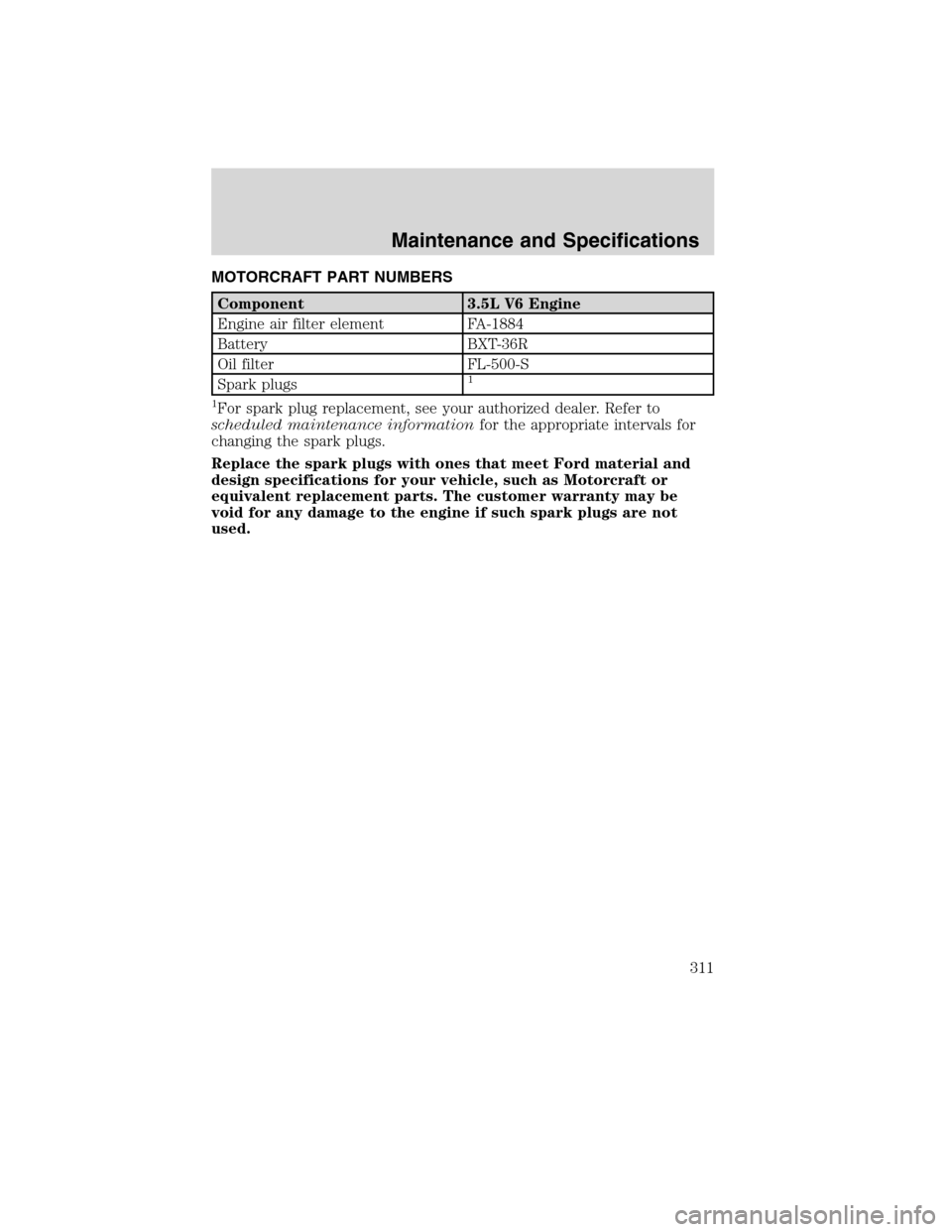

MOTORCRAFT PART NUMBERS
Component 3.5L V6 Engine
Engine air filter element FA-1884
Battery BXT-36R
Oil filter FL-500-S
Spark plugs
1
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
311
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

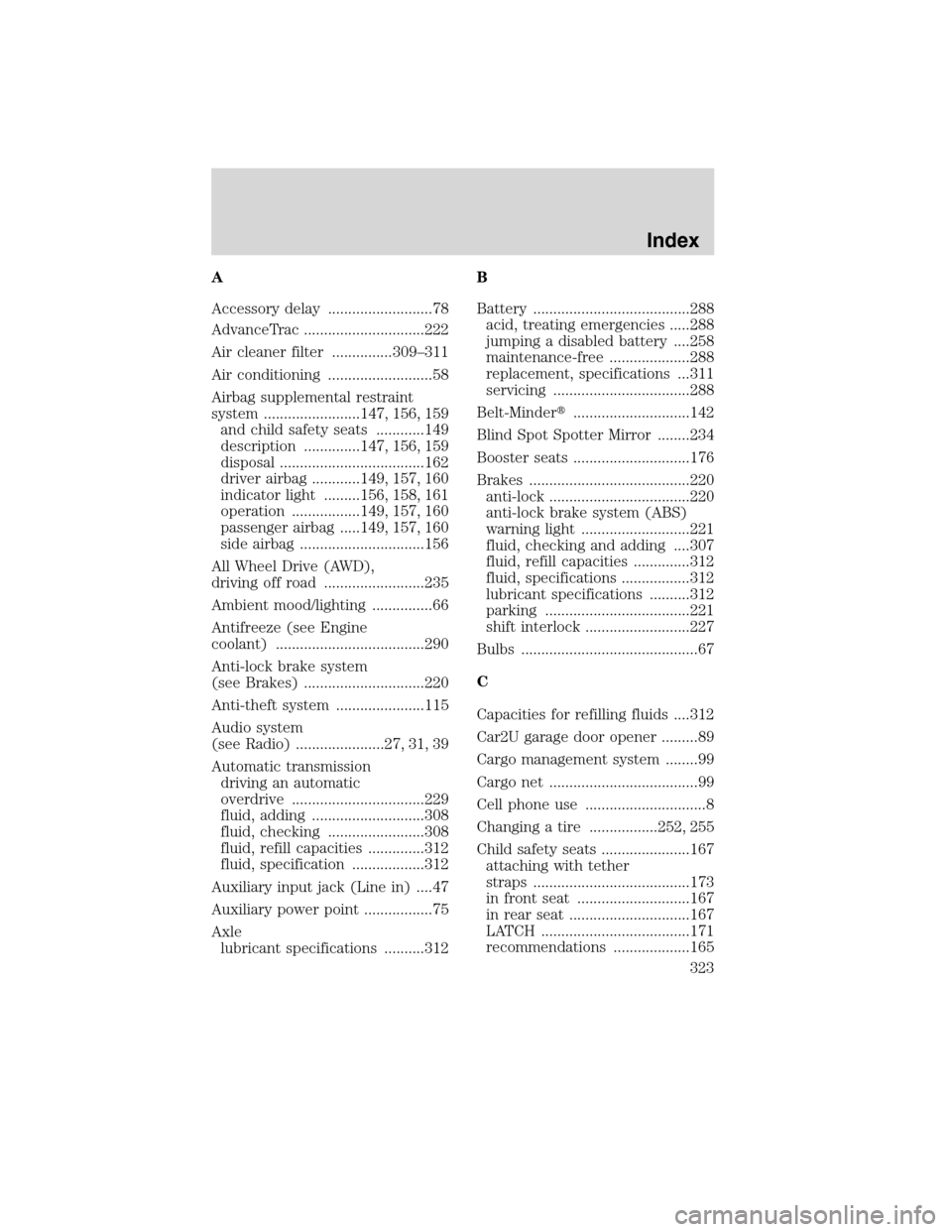

A
Accessory delay ..........................78
AdvanceTrac ..............................222
Air cleaner filter ...............309–311
Air conditioning ..........................58
Airbag supplemental restraint
system ........................147, 156, 159
and child safety seats ............149
description ..............147, 156, 159
disposal ....................................162
driver airbag ............149, 157, 160
indicator light .........156, 158, 161
operation .................149, 157, 160
passenger airbag .....149, 157, 160
side airbag ...............................156
All Wheel Drive (AWD),
driving off road .........................235
Ambient mood/lighting ...............66
Antifreeze (see Engine
coolant) .....................................290
Anti-lock brake system
(see Brakes) ..............................220
Anti-theft system ......................115
Audio system
(see Radio) ......................27, 31, 39
Automatic transmission
driving an automatic
overdrive .................................229
fluid, adding ............................308
fluid, checking ........................308
fluid, refill capacities ..............312
fluid, specification ..................312
Auxiliary input jack (Line in) ....47
Auxiliary power point .................75
Axle
lubricant specifications ..........312B
Battery .......................................288
acid, treating emergencies .....288
jumping a disabled battery ....258
maintenance-free ....................288
replacement, specifications ...311
servicing ..................................288
Belt-Minder.............................142
Blind Spot Spotter Mirror ........234
Booster seats .............................176
Brakes ........................................220
anti-lock ...................................220
anti-lock brake system (ABS)
warning light ...........................221
fluid, checking and adding ....307
fluid, refill capacities ..............312
fluid, specifications .................312
lubricant specifications ..........312
parking ....................................221
shift interlock ..........................227
Bulbs ............................................67
C
Capacities for refilling fluids ....312
Car2U garage door opener .........89
Cargo management system ........99
Cargo net .....................................99
Cell phone use ..............................8
Changing a tire .................252, 255
Child safety seats ......................167
attaching with tether
straps .......................................173
in front seat ............................167
in rear seat ..............................167
LATCH .....................................171
recommendations ...................165
Index
323
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

change oil soon warning,
message center .......................285
checking and adding ..............285
dipstick ....................................285
filter, specifications ........287, 311
recommendations ...................287
refill capacities ........................312
specifications ..........................312
Event data recording ....................7
Exhaust fumes ..........................218
F
Fail safe cooling ........................294
Fluid capacities .........................312
Fog lamps ....................................63
Four-Wheel Drive vehicles
driving off road .......................235
Fuel ............................................295
calculating fuel
economy ............................23, 301
cap ...........................................298
capacity ...................................312
choosing the right fuel ...........299
comparisons with EPA fuel
economy estimates .................304
detergent in fuel .....................300
filling your vehicle
with fuel ..................295, 298, 301
filter, specifications ........295, 311
fuel pump shut-off switch .....244
improving fuel economy ........301
octane rating ...................299, 315
quality ......................................300
running out of fuel .................300
safety information relating to
automotive fuels .....................295
Fuses ..................................244–245G
Garage door opener ....................84
Gas cap (see Fuel cap) ............298
Gas mileage (see Fuel
economy) ...................................301
Gauges .........................................17
H
Hazard flashers .........................243
Head restraints .........................129
Headlamps ...................................62
aiming ........................................64
autolamp system .......................62
bulb specifications ....................68
daytime running lights .............63
flash to pass ..............................63
high beam .................................63
replacing bulbs .........................69
turning on and off ....................62
Heating
heating and air conditioning
system .................................56, 58
Homelink wireless control
system ..........................................85
Hood ..........................................281
How to get going ........................27
I
Ignition ...............................215, 315
Illuminated visor mirror .............74
Infant seats
(see Safety seats) .....................167
Inspection/maintenance (I/M)
testing ........................................306
Index
325
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
