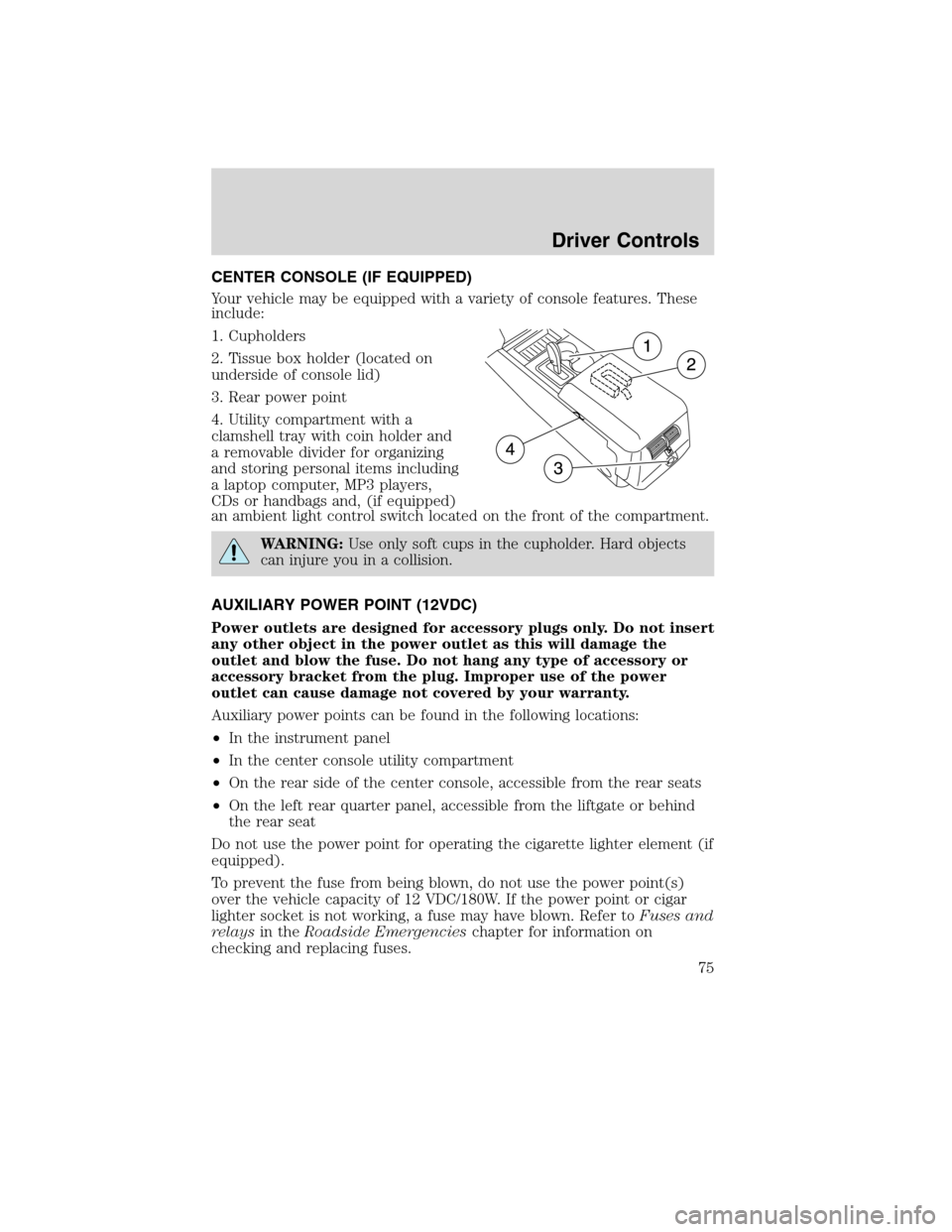

CENTER CONSOLE (IF EQUIPPED)
Your vehicle may be equipped with a variety of console features. These
include:
1. Cupholders
2. Tissue box holder (located on
underside of console lid)
3. Rear power point
4. Utility compartment with a
clamshell tray with coin holder and
a removable divider for organizing
and storing personal items including
a laptop computer, MP3 players,
CDs or handbags and, (if equipped)
an ambient light control switch located on the front of the compartment.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•In the instrument panel
•In the center console utility compartment
•On the rear side of the center console, accessible from the rear seats
•On the left rear quarter panel, accessible from the liftgate or behind
the rear seat
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
Driver Controls
75
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
38 20A Subwoofer/amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming rear view
mirror
42 10A Not used (spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI) light
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
248
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

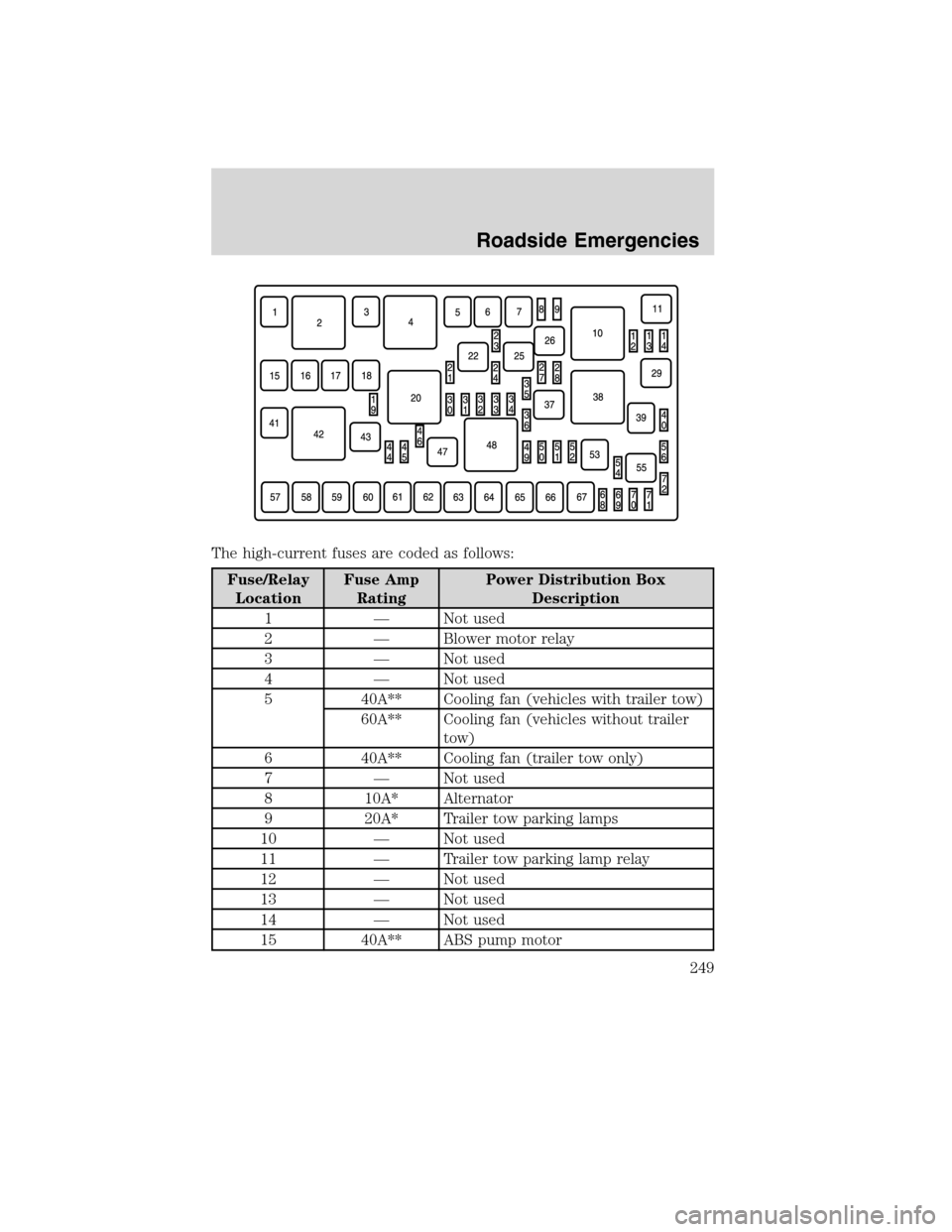

The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 — Blower motor relay
3 — Not used
4 — Not used
5 40A** Cooling fan (vehicles with trailer tow)
60A** Cooling fan (vehicles without trailer
tow)
6 40A** Cooling fan (trailer tow only)
7 — Not used
8 10A* Alternator
9 20A* Trailer tow parking lamps
10 — Not used
11 — Trailer tow parking lamp relay
12 — Not used
13 — Not used
14 — Not used
15 40A** ABS pump motor
Roadside Emergencies
249
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

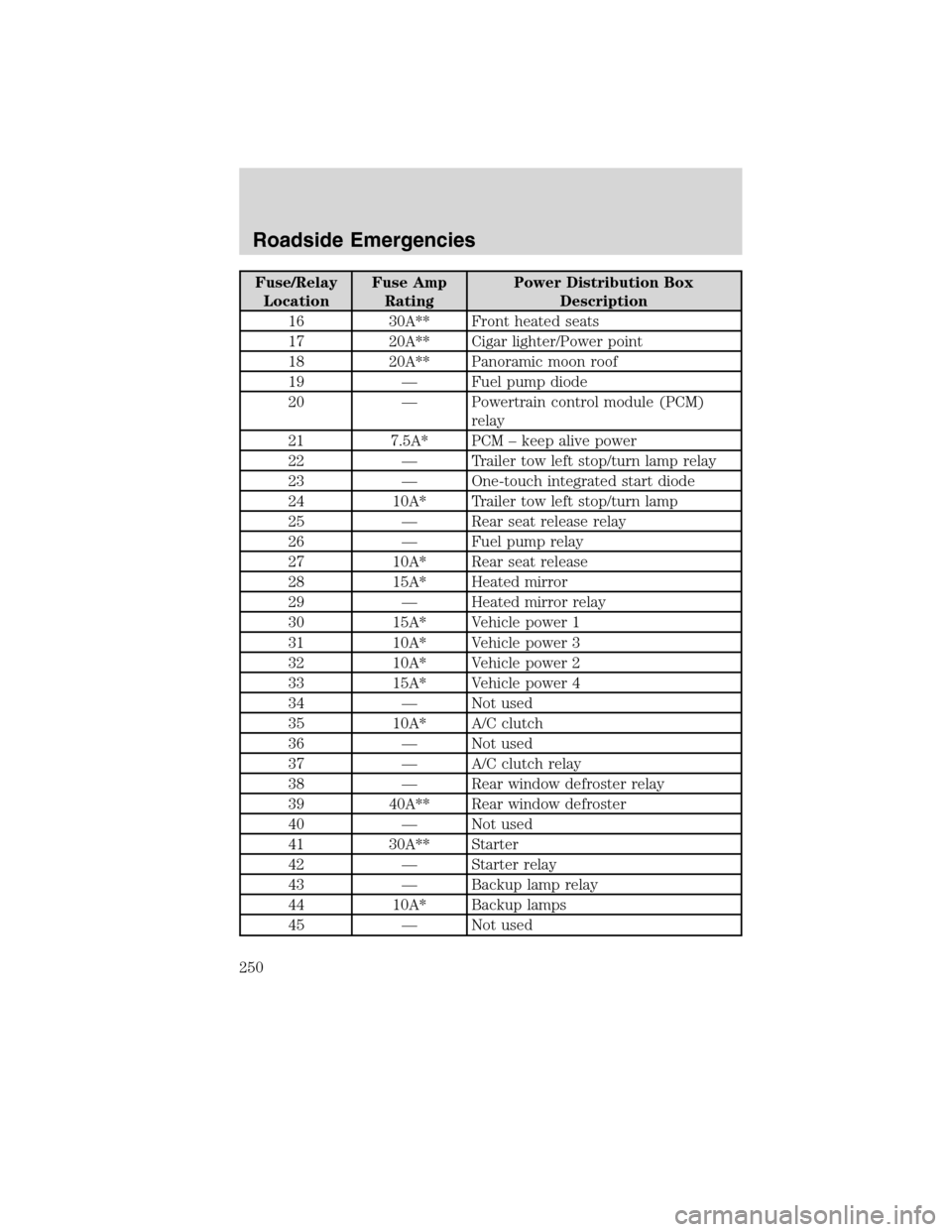

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
16 30A** Front heated seats
17 20A** Cigar lighter/Power point
18 20A** Panoramic moon roof
19 — Fuel pump diode
20 — Powertrain control module (PCM)
relay
21 7.5A* PCM – keep alive power
22 — Trailer tow left stop/turn lamp relay
23 — One-touch integrated start diode
24 10A* Trailer tow left stop/turn lamp
25 — Rear seat release relay
26 — Fuel pump relay
27 10A* Rear seat release
28 15A* Heated mirror
29 — Heated mirror relay
30 15A* Vehicle power 1
31 10A* Vehicle power 3
32 10A* Vehicle power 2
33 15A* Vehicle power 4
34 — Not used
35 10A* A/C clutch
36 — Not used
37 — A/C clutch relay
38 — Rear window defroster relay
39 40A** Rear window defroster
40 — Not used
41 30A** Starter
42 — Starter relay
43 — Backup lamp relay
44 10A* Backup lamps
45 — Not used
Roadside Emergencies
250
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

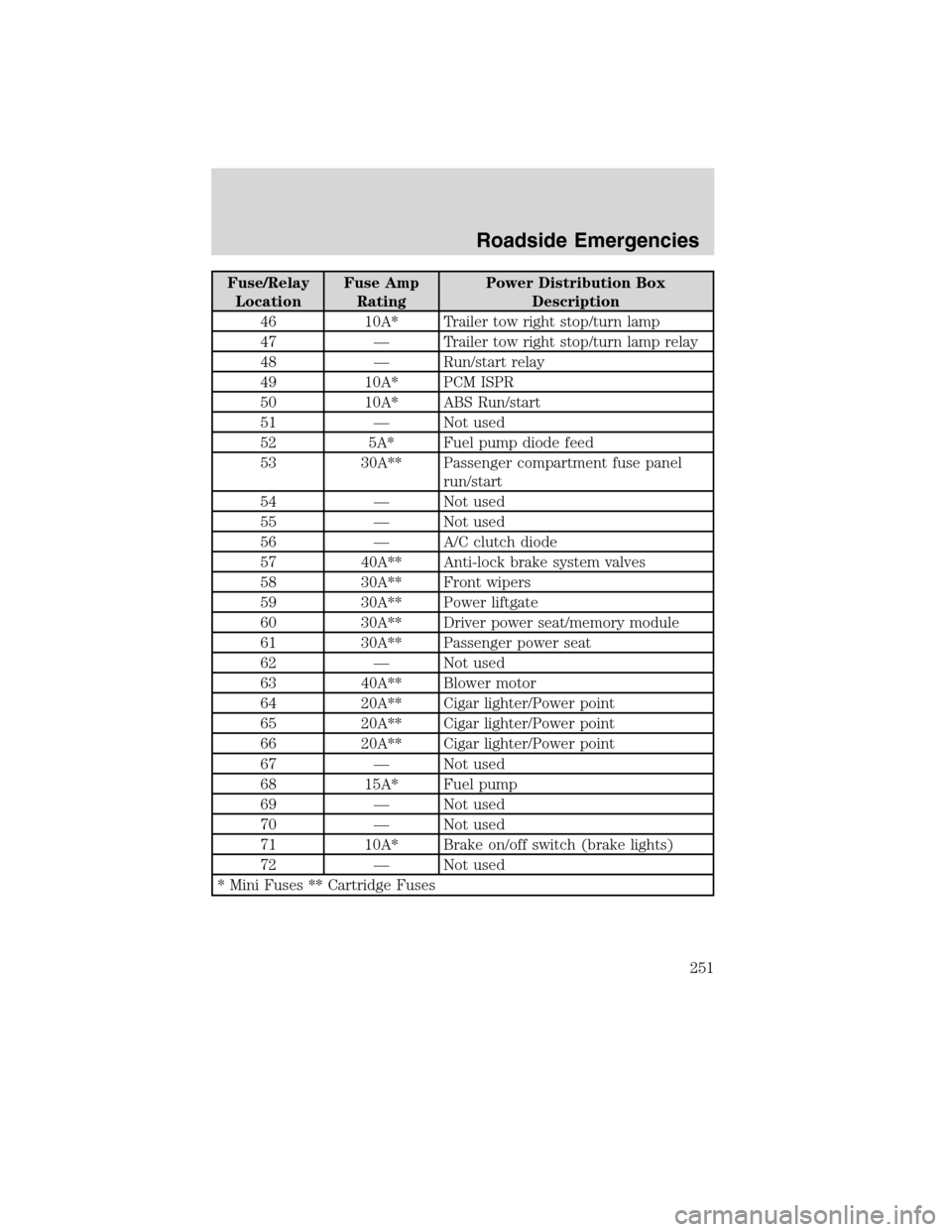

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
46 10A* Trailer tow right stop/turn lamp
47 — Trailer tow right stop/turn lamp relay
48 — Run/start relay
49 10A* PCM ISPR
50 10A* ABS Run/start
51 — Not used
52 5A* Fuel pump diode feed
53 30A** Passenger compartment fuse panel
run/start
54 — Not used
55 — Not used
56 — A/C clutch diode
57 40A** Anti-lock brake system valves
58 30A** Front wipers
59 30A** Power liftgate
60 30A** Driver power seat/memory module
61 30A** Passenger power seat
62 — Not used
63 40A** Blower motor
64 20A** Cigar lighter/Power point
65 20A** Cigar lighter/Power point
66 20A** Cigar lighter/Power point
67 — Not used
68 15A* Fuel pump
69 — Not used
70 — Not used
71 10A* Brake on/off switch (brake lights)
72 — Not used
* Mini Fuses ** Cartridge Fuses
Roadside Emergencies
251
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
