Page 2 of 328
Locks and Security 101
Keys 101
Locks 102
Anti-theft system 115
Seating and Safety Restraints 120
Seating 120
Safety restraints 132
Airbags 147
Child restraints 162
Tires, Wheels and Loading 180
Tire information 182
Tire inflation 184
Tire Pressure Monitoring System (TPMS) 197
Vehicle loading 202
Trailer towing 209
Recreational towing 213
Driving 215
Starting 215
Brakes 220
AdvanceTrac222
Transmission operation 229
Reverse sensing system 231
Roadside Emergencies 242
Getting roadside assistance 242
Hazard flasher control 243
Fuel pump shut-off switch 244
Fuses and relays 244
Changing tires 252
Wheel lug nut torque 257
Jump starting 258
Wrecker towing 264
Table of Contents
2
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 75 of 328
CENTER CONSOLE (IF EQUIPPED)
Your vehicle may be equipped with a variety of console features. These
include:
1. Cupholders
2. Tissue box holder (located on
underside of console lid)
3. Rear power point
4. Utility compartment with a
clamshell tray with coin holder and
a removable divider for organizing
and storing personal items including
a laptop computer, MP3 players,
CDs or handbags and, (if equipped)
an ambient light control switch located on the front of the compartment.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•In the instrument panel
•In the center console utility compartment
•On the rear side of the center console, accessible from the rear seats
•On the left rear quarter panel, accessible from the liftgate or behind
the rear seat
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
Driver Controls
75
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 227 of 328
STEERING
To help prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering fluid level
(below the MIN mark on the reservoir).
•Some noise is normal during operation. If the noise is excessive, check
for a low power steering fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by a low power
steering fluid level. Check for a low power steering fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering fluid reservoir above the MAX mark on
the reservoir.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brakelamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
Driving
227
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 244 of 328
FUEL PUMP SHUT-OFF SWITCH
This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.
After an accident, if the engine cranks but does not start, this switch
may have been activated.
This switch is located behind a
panel on the left side of the cargo
area.
To reset the switch:
1. Turn the ignition to off.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pressing in on the reset
button.
4. Turn the ignition to on.
5. Wait a few seconds and return
the key to off.
6. Make another check for leaks.
7. If no leaks are apparent, restart
the vehicle.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
244
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 246 of 328

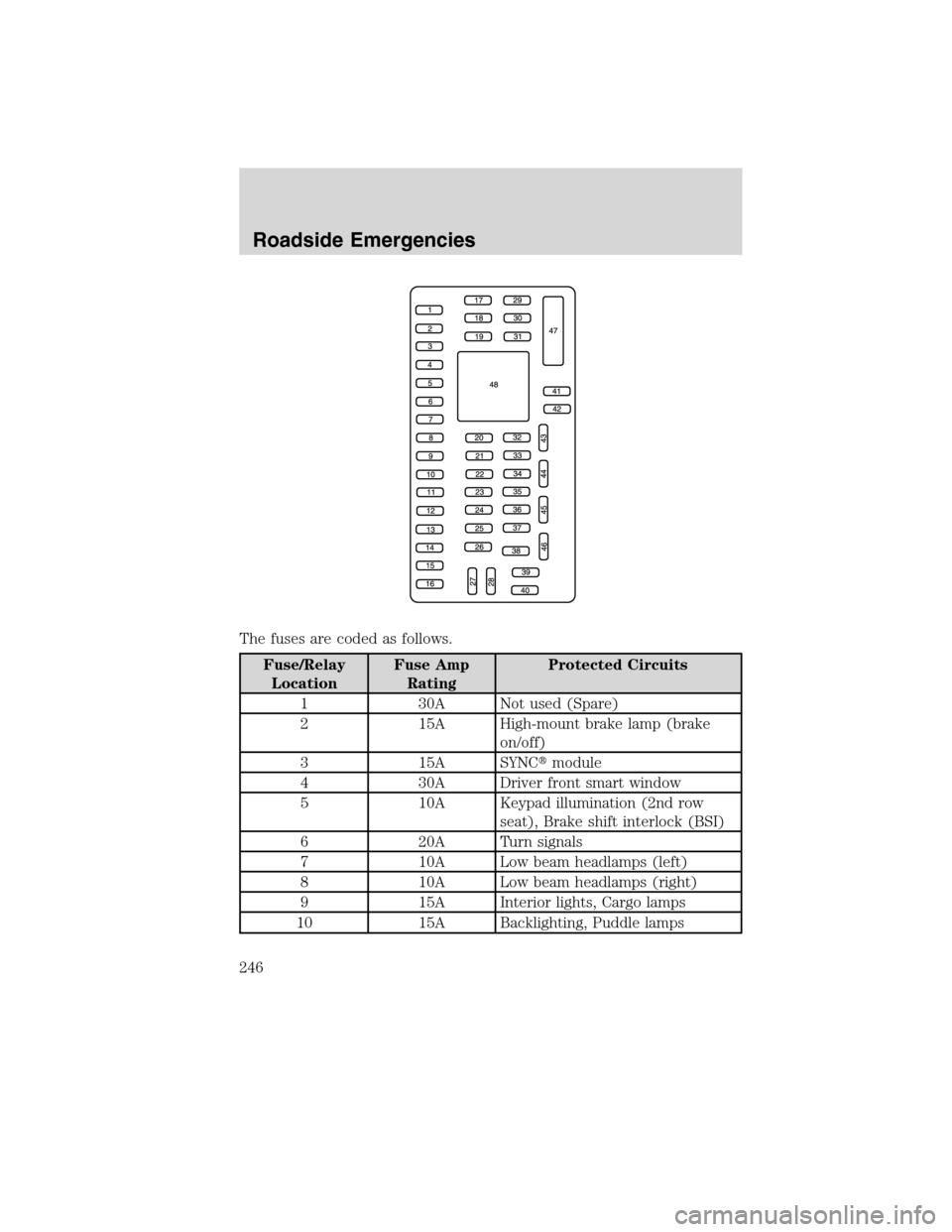

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Not used (Spare)
2 15A High-mount brake lamp (brake
on/off)
3 15A SYNCmodule
4 30A Driver front smart window
5 10A Keypad illumination (2nd row
seat), Brake shift interlock (BSI)
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Backlighting, Puddle lamps
Roadside Emergencies
246
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 247 of 328
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
11 10A All wheel drive (AWD)
12 7.5A Power mirror switch, Driver side
power seat memory, Driver seat
module – keep alive power
13 5A Satellite radio
14 10A Power liftgate – keep alive power
15 10A Climate control, GPS module
16 15A Not used (spare)
17 20A All power lock motor feeds,
Liftgate release
18 20A Amplifier
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Override cancel
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Steering angle sensor
35 10A Rear park assist, Yaw rate sensor,
Heated seats
36 5A Passive anti-theft system
transceiver
37 10A Climate control
Roadside Emergencies
247
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 248 of 328
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
38 20A Subwoofer/amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming rear view
mirror
42 10A Not used (spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI) light
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
248
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 249 of 328
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 — Blower motor relay
3 — Not used
4 — Not used
5 40A** Cooling fan (vehicles with trailer tow)
60A** Cooling fan (vehicles without trailer
tow)
6 40A** Cooling fan (trailer tow only)
7 — Not used
8 10A* Alternator
9 20A* Trailer tow parking lamps
10 — Not used
11 — Trailer tow parking lamp relay
12 — Not used
13 — Not used
14 — Not used
15 40A** ABS pump motor
Roadside Emergencies
249
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 250 of 328
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
16 30A** Front heated seats
17 20A** Cigar lighter/Power point
18 20A** Panoramic moon roof
19 — Fuel pump diode
20 — Powertrain control module (PCM)
relay
21 7.5A* PCM – keep alive power
22 — Trailer tow left stop/turn lamp relay
23 — One-touch integrated start diode
24 10A* Trailer tow left stop/turn lamp
25 — Rear seat release relay
26 — Fuel pump relay
27 10A* Rear seat release
28 15A* Heated mirror
29 — Heated mirror relay
30 15A* Vehicle power 1
31 10A* Vehicle power 3
32 10A* Vehicle power 2
33 15A* Vehicle power 4
34 — Not used
35 10A* A/C clutch
36 — Not used
37 — A/C clutch relay
38 — Rear window defroster relay
39 40A** Rear window defroster
40 — Not used
41 30A** Starter
42 — Starter relay
43 — Backup lamp relay
44 10A* Backup lamps
45 — Not used
Roadside Emergencies
250
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 251 of 328
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
46 10A* Trailer tow right stop/turn lamp
47 — Trailer tow right stop/turn lamp relay
48 — Run/start relay
49 10A* PCM ISPR
50 10A* ABS Run/start
51 — Not used
52 5A* Fuel pump diode feed
53 30A** Passenger compartment fuse panel
run/start
54 — Not used
55 — Not used
56 — A/C clutch diode
57 40A** Anti-lock brake system valves
58 30A** Front wipers
59 30A** Power liftgate
60 30A** Driver power seat/memory module
61 30A** Passenger power seat
62 — Not used
63 40A** Blower motor
64 20A** Cigar lighter/Power point
65 20A** Cigar lighter/Power point
66 20A** Cigar lighter/Power point
67 — Not used
68 15A* Fuel pump
69 — Not used
70 — Not used
71 10A* Brake on/off switch (brake lights)
72 — Not used
* Mini Fuses ** Cartridge Fuses
