Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected. Contact your
authorized dealer as soon as
possible. Normal braking is still functional unless the brake warning light
also is illuminated.
Airbag readiness:If this light fails
to illuminate when the ignition is
turned to on, continues to flash or
remains on, contact your authorized
dealer as soon as possible. A chime will sound when there is a
malfunction in the indicator light.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder
chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and Safety Restraints
chapter to activate/deactivate the Belt-Minderchime feature.
Charging system:Illuminates when
the battery is not charging properly.
If it stays on while the engine is
running, there may be a malfunction
with the charging system. Contact your authorized dealer as soon as
possible. This indicates a problem with the electrical system or a related
component.
Engine oil pressure:Illuminates
when the oil pressure falls below the
normal range, refer toEngine oilin
theMaintenance and
Specificationschapter.
AdvanceTrac/Traction
Control™ active:Illuminates when
the AdvanceTrac/Traction
Control™ is active. If the light
remains on, contact your authorized
dealer as soon as possible. Refer to
theDrivingchapter for more information.
ABS
Instrument Cluster
14
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 182 of 328
INFORMATION ABOUT UNIFORM TIRE QUALITY GRADING
Tire Quality Grades apply to new
pneumatic passenger car tires. The
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
•Treadwear 200 Traction AA Temperature A
These Tire Quality Grades are determined by standards that the United
States Department of Transportation has set.
Tire Quality Grades apply to new pneumatic passenger car tires. They do
not apply to deep tread, winter-type snow tires, space-saver or
temporary use spare tires, light truck or “LT” type tires, tires with
nominal rim diameters of 10 to 12 inches or limited production tires as
defined in Title 49 Code of Federal Regulations Part 575.104(c)(2).
U.S. Department of Transportation-Tire quality grades:The U.S.
Department of Transportation requires Ford Motor Company to give you
the following information about tire grades exactly as the government
has written it.
Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified
government test course. For example, a tire graded 150 would wear one
and one-half (1
1 2) times as well on the government course as a tire
graded 100. The relative performance of tires depends upon the actual
conditions of their use, however, and may depart significantly from the
norm due to variations in driving habits, service practices, and
differences in road characteristics and climate.
Traction AA A B C
The traction grades, from highest to lowest are AA, A, B, and C. The
grades represent the tire’s ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor traction
performance.
Tires, Wheels and Loading
182
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

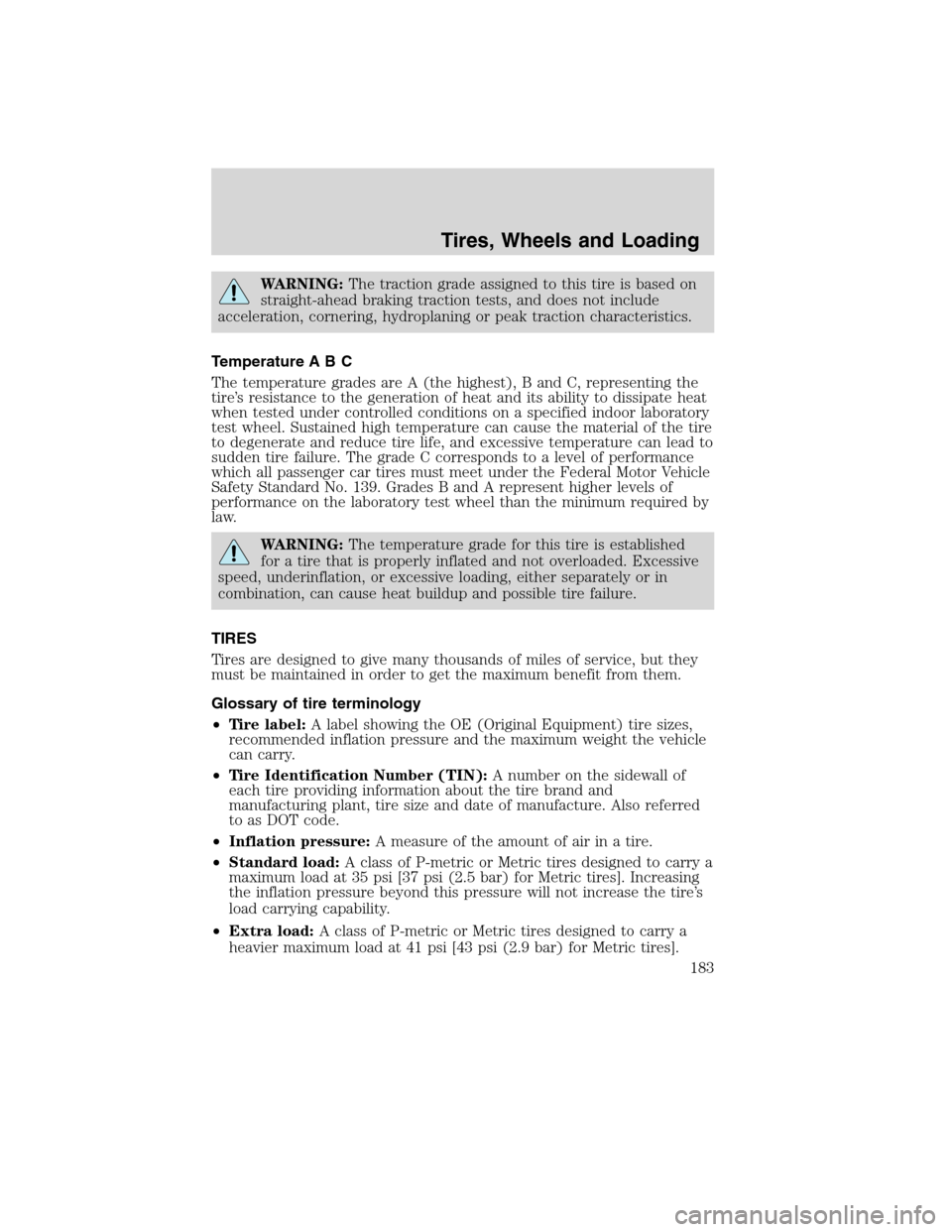

Page 183 of 328
WARNING:The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not include
acceleration, cornering, hydroplaning or peak traction characteristics.
Temperature A B C
The temperature grades are A (the highest), B and C, representing the
tire’s resistance to the generation of heat and its ability to dissipate heat
when tested under controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the material of the tire
to degenerate and reduce tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to a level of performance
which all passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 139. Grades B and A represent higher levels of
performance on the laboratory test wheel than the minimum required by
law.
WARNING:The temperature grade for this tire is established
for a tire that is properly inflated and not overloaded. Excessive
speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
TIRES
Tires are designed to give many thousands of miles of service, but they
must be maintained in order to get the maximum benefit from them.
Glossary of tire terminology
•Tire label:A label showing the OE (Original Equipment) tire sizes,
recommended inflation pressure and the maximum weight the vehicle
can carry.
•Tire Identification Number (TIN):A number on the sidewall of
each tire providing information about the tire brand and
manufacturing plant, tire size and date of manufacture. Also referred
to as DOT code.
•Inflation pressure:A measure of the amount of air in a tire.
•Standard load:A class of P-metric or Metric tires designed to carry a
maximum load at 35 psi [37 psi (2.5 bar) for Metric tires]. Increasing
the inflation pressure beyond this pressure will not increase the tire’s
load carrying capability.
•Extra load:A class of P-metric or Metric tires designed to carry a
heavier maximum load at 41 psi [43 psi (2.9 bar) for Metric tires].
Tires, Wheels and Loading
183
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

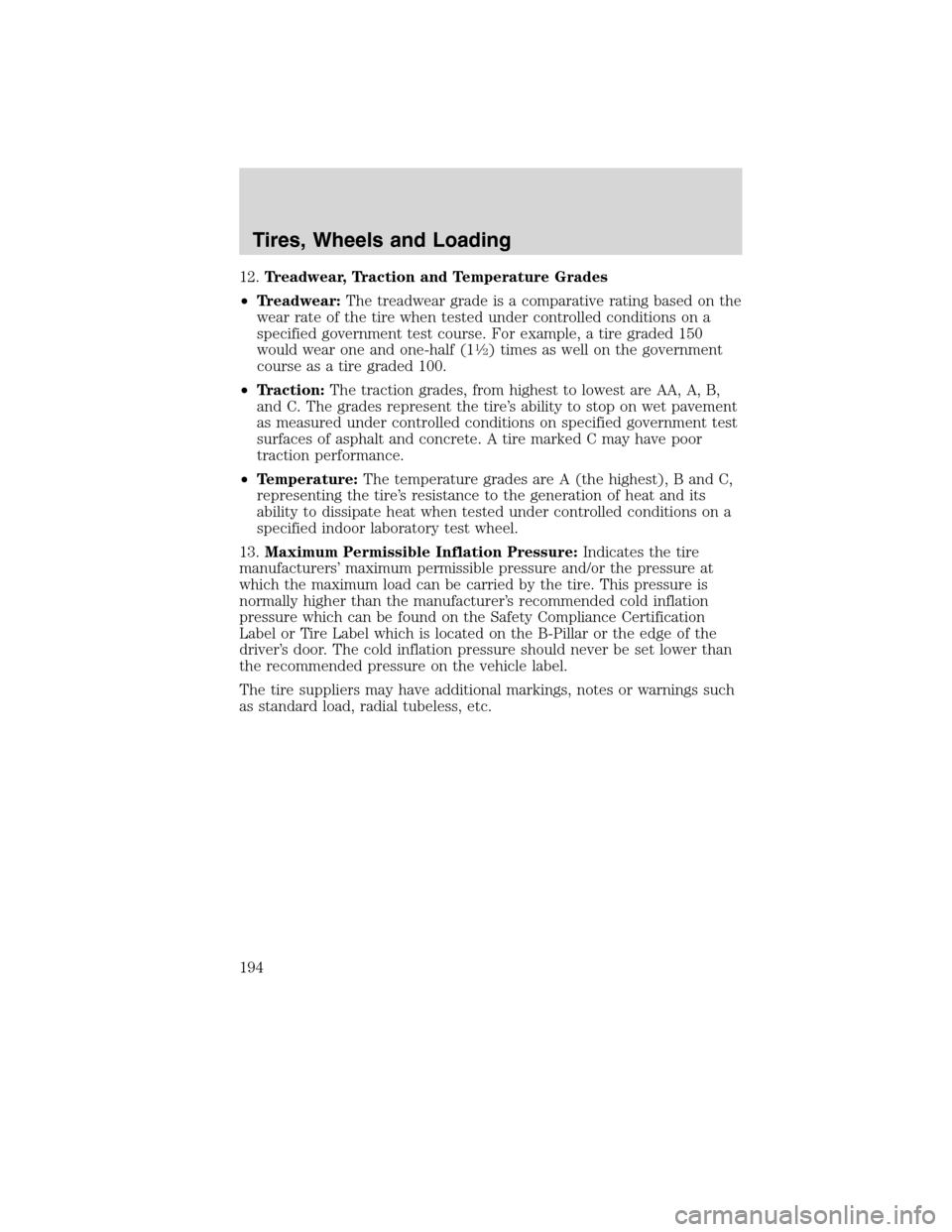

Page 194 of 328
12.Treadwear, Traction and Temperature Grades
•Treadwear:The treadwear grade is a comparative rating based on the
wear rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1
1 2) times as well on the government
course as a tire graded 100.
•Traction:The traction grades, from highest to lowest are AA, A, B,
and C. The grades represent the tire’s ability to stop on wet pavement
as measured under controlled conditions on specified government test
surfaces of asphalt and concrete. A tire marked C may have poor
traction performance.
•Temperature:The temperature grades are A (the highest), B and C,
representing the tire’s resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions on a
specified indoor laboratory test wheel.
13.Maximum Permissible Inflation Pressure:Indicates the tire
manufacturers’ maximum permissible pressure and/or the pressure at
which the maximum load can be carried by the tire. This pressure is
normally higher than the manufacturer’s recommended cold inflation
pressure which can be found on the Safety Compliance Certification
Label or Tire Label which is located on the B-Pillar or the edge of the
driver’s door. The cold inflation pressure should never be set lower than
the recommended pressure on the vehicle label.
The tire suppliers may have additional markings, notes or warnings such
as standard load, radial tubeless, etc.
Tires, Wheels and Loading
194
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

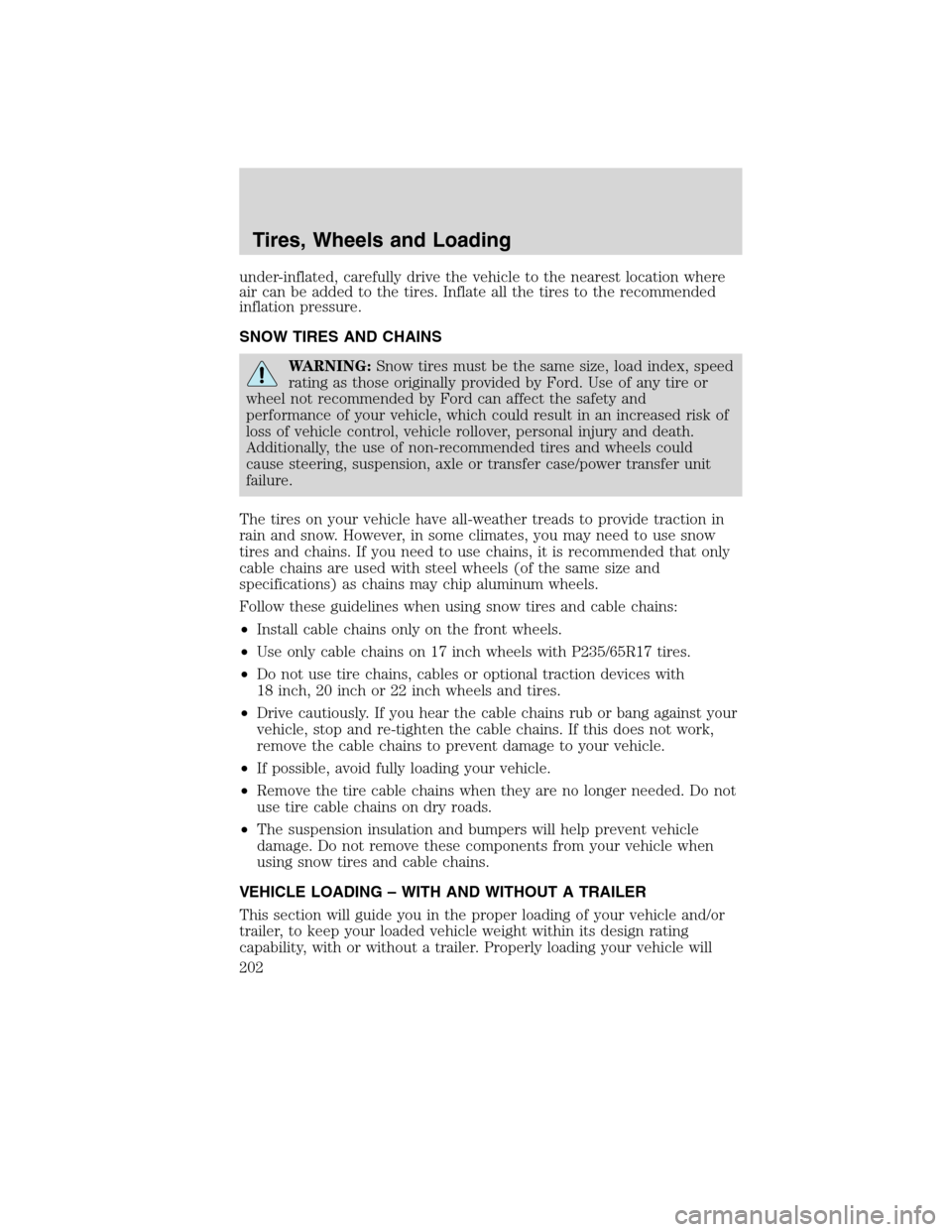

Page 202 of 328
under-inflated, carefully drive the vehicle to the nearest location where
air can be added to the tires. Inflate all the tires to the recommended
inflation pressure.
SNOW TIRES AND CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and
performance of your vehicle, which could result in an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
Additionally, the use of non-recommended tires and wheels could
cause steering, suspension, axle or transfer case/power transfer unit
failure.
The tires on your vehicle have all-weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that only
cable chains are used with steel wheels (of the same size and
specifications) as chains may chip aluminum wheels.
Follow these guidelines when using snow tires and cable chains:
•Install cable chains only on the front wheels.
•Use only cable chains on 17 inch wheels with P235/65R17 tires.
•Do not use tire chains, cables or optional traction devices with
18 inch, 20 inch or 22 inch wheels and tires.
•Drive cautiously. If you hear the cable chains rub or bang against your
vehicle, stop and re-tighten the cable chains. If this does not work,
remove the cable chains to prevent damage to your vehicle.
•If possible, avoid fully loading your vehicle.
•Remove the tire cable chains when they are no longer needed. Do not
use tire cable chains on dry roads.
•The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires and cable chains.
VEHICLE LOADING – WITH AND WITHOUT A TRAILER
This section will guide you in the proper loading of your vehicle and/or
trailer, to keep your loaded vehicle weight within its design rating
capability, with or without a trailer. Properly loading your vehicle will
Tires, Wheels and Loading
202
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 223 of 328
WARNING:If a failure has been detected within the
AdvanceTracwith RSCsystem, the “sliding car” icon
will
illuminate steadily. Verify that the AdvanceTracwith RSCsystem is
not manually disabled (press the AdvanceTracwith RSC“Off “
button located on the center of the instrument panel). If the “sliding
car” icon
still illuminates steadily, have the system serviced by an
authorized dealer immediately. Operating your vehicle with
AdvanceTracwith RSCdisabled could lead to an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
The AdvanceTracwith RSCsystem provides the following stability
enhancement features for certain driving situations:
•Traction Control (TCS), which functions to help avoid drive-wheel
spin and loss of traction.
•Electronic Stability Control (ESC), which functions to help avoid skids
or lateral slides
•Roll Stability Control™ (RSC), which functions to help avoid a
vehicle roll-over.
The AdvanceTracwith RSCsystem automatically enables each time
the engine is started. All features of the AdvanceTracwith RSCsystem
(TCS, ESC, and RSCare active and monitor the vehicle from start-up).
However, the system will only intervene if the driving situation requires
it.
The AdvanceTracwith RSC
system includes an AdvanceTrac
with RSCOffbuttononthe
center of the instrument panel, and
a “sliding car” icon
in the
instrument cluster. The “sliding car”
icon
in the instrument cluster will illuminate temporarily during
start-up as part of a normal system self-check, or during driving if a
driving situation causes the AdvanceTracwith RSCsystem to operate.
If the “sliding car” icon
illuminates steadily, verify that the
AdvanceTracwith RSCsystem is not manually disabled by pressing
the AdvanceTracwith RSCOffbutton located on the center of the
instrument panel. If the “sliding car” icon
remains steadily
illuminated, have the system serviced by an authorized dealer
immediately. The message center will also indicate a failure with the
AdvanceTracwith RSCsystem.
Driving
223
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 224 of 328
When AdvanceTracwith RSCperforms a normal system self-check,
some drivers may notice a slight movement of the brake, and/or a
rumble, grunting, or grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracwith RSCyou may
experience the following:
•A slight deceleration of the vehicle
•The “sliding car”
indicator light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction Control (TCS)
Traction Control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem: Engine Traction Control and Brake Traction
Control. Engine Traction Control works to limit drive-wheel spin by
momentarily reducing engine power. Brake Traction Control works to
limit wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction Control is most active at low speeds.
During Traction Control events the “sliding car” icon
in the
instrument cluster will flash.
If the Traction Control system is activated excessively in a short period
of time, the braking portion of the system may become temporarily
disabled to allow the brakes to cool down. In this situation, Traction
Control will use only engine power reduction or transfer to help control
the wheels from over-spinning. When the brakes have cooled down, the
system will regain all features. Anti-lock braking, RSC, and ESC are not
affected by this condition and will continue to function during the
cool-down period.
The Engine Traction Control and Brake Traction Control system may be
deactivated in certain situations. See theSwitching Off AdvanceTrac
with RSCsection below.
Driving
224
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 226 of 328
The Roll Stability Control system may be deactivated in certain
situations. See theSwitching Off AdvanceTracwith RSCsection
following.
Switching Off AdvanceTracwith RSC
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off certain features of the AdvanceTracwith RSC
system may be beneficial because the wheels are allowed to spin. This
will restore full engine power and will enhance momentum through the
obstacle. To switch off the AdvanceTracwith RSCsystem press the
AdvanceTracwith RSCOffbutton. Full features of the AdvanceTrac
with RSCsystem can be restored by pressing the AdvanceTracwith
RSCOffbutton again or by turning off and restarting the engine.
If you switch off the AdvanceTracwith RSCsystem, the sliding car
icon
will illuminate steadily. Pressing the AdvanceTracwith RSC
Offbutton again will turn off thesliding caricon
.
In R (Reverse), ABS and the Engine and Brake Traction Control features
will continue to function; however, ESC and RSCare disabled.
AdvanceTracwith RSCFeatures
Button
functions“Sliding
car”
icon
RSCESCEngine
Traction
ControlBrake
Traction
Control
Default at
start-upIlluminated
during
bulb checkEnabled Enabled Enabled Enabled
Button
pressed
momentarilyIlluminated
solidDisabled
below
38 mph
(60 kp/h)Disabled
below
38 mph
(60 kp/h)Disabled
below
38 mph
(60 kp/h)Enabled
Button
pressed
again after
deactivationNot
illuminatedEnabled Enabled Enabled Enabled
Driving
226
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 237 of 328
Emergency maneuvers
•In an unavoidable emergency situation where a sudden sharp turn
must be made, remember to avoid “over-driving” your vehicle (i.e.,
turn the steering wheel only as rapidly and as far as required to avoid
the emergency). Excessive steering will result in less vehicle control,
not more. Additionally, smooth variations of the accelerator and/or
brake pedal pressure should be utilized if changes in vehicle speed are
called for. Avoid abrupt steering, acceleration or braking which could
result in an increased risk of loss of vehicle control, vehicle rollover
and/or personal injury. Use all available road surface to return the
vehicle to a safe direction of travel.
•In the event of an emergency stop, avoid skidding the tires and do not
attempt any sharp steering wheel movements.
•If the vehicle goes from one type of surface to another (i.e., from
concrete to gravel) there will be a change in the way the vehicle
responds to a maneuver (steering, acceleration or braking). Again,
avoid these abrupt inputs.
AWD Systems (if equipped)
With AWD, the vehicle uses all four wheels to power the vehicle. This
increases traction, enabling you to drive over terrain and road conditions
that a conventional two-wheel drive vehicle cannot.
Sand
When driving over sand, try to keep all four wheels on the most solid
area of the trail. Avoid reducing the tire pressures but shift to a lower
gear and drive steadily through the terrain. Apply the accelerator slowly
and avoid spinning the wheels.
Do not drive your AWD vehicle in deep sand for an extended period of
time. This will cause the AWD system to overheat. If the rear tires stop
spinning while the front tires spin in deep sand, turn off the vehicle and
allow the AWD system to cool down for a minimum of 15 minutes. After
the system has cooled down, normal AWD function will return. When
driving at slow speeds in deep sand under high outside temperatures,
use L (Low) gear when possible. L (Low) gear operation will maximize
the engine and transmission cooling capability.
Under severe operating conditions, the A/C may cycle on and off to
protect overheating of the engine.
Driving
237
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 238 of 328
Avoid excessive speed because vehicle momentum can work against you
and cause the vehicle to become stuck to the point that assistance may
be required from another vehicle. Remember, you may be able to back
out the way you came if you proceed with caution.
Mud and water
If you must drive through high water, drive slowly. Traction or brake
capability may be limited.
When driving through water, determine the depth; avoid water higher
than the bottom of the wheel rims (for cars) or the bottom of the hubs
(for trucks) (if possible) and proceed slowly. If the ignition system gets
wet, the vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even AWD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
Driving through deep water may damage the transmission.
If the front or rear axle is submerged in water, the axle lubricant and
PTU (Power Transfer Unit) lubricant should be checked and changed if
necessary.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nations
wilderness areas. Ford Motor
Company joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
Driving
238
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
