MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Speed dependent wipers:When
the wiper control is on, the speed of
the wipers will automatically adjust
with the vehicle speed. The faster your vehicle is travelling the faster the
wipers will go.
Windshield washer:Press the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick press and hold: the
wipers will swipe three times with
washer fluid.
•a long press and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper rainlamp feature (if equipped with Autolamp)
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
Driver Controls
72
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
38 20A Subwoofer/amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming rear view
mirror
42 10A Not used (spare)
43 10A Rear wiper logic
44 10A Customer accessory feed
45 5A Front wiper logic
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI) light
47 30A Circuit
BreakerPower windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
248
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

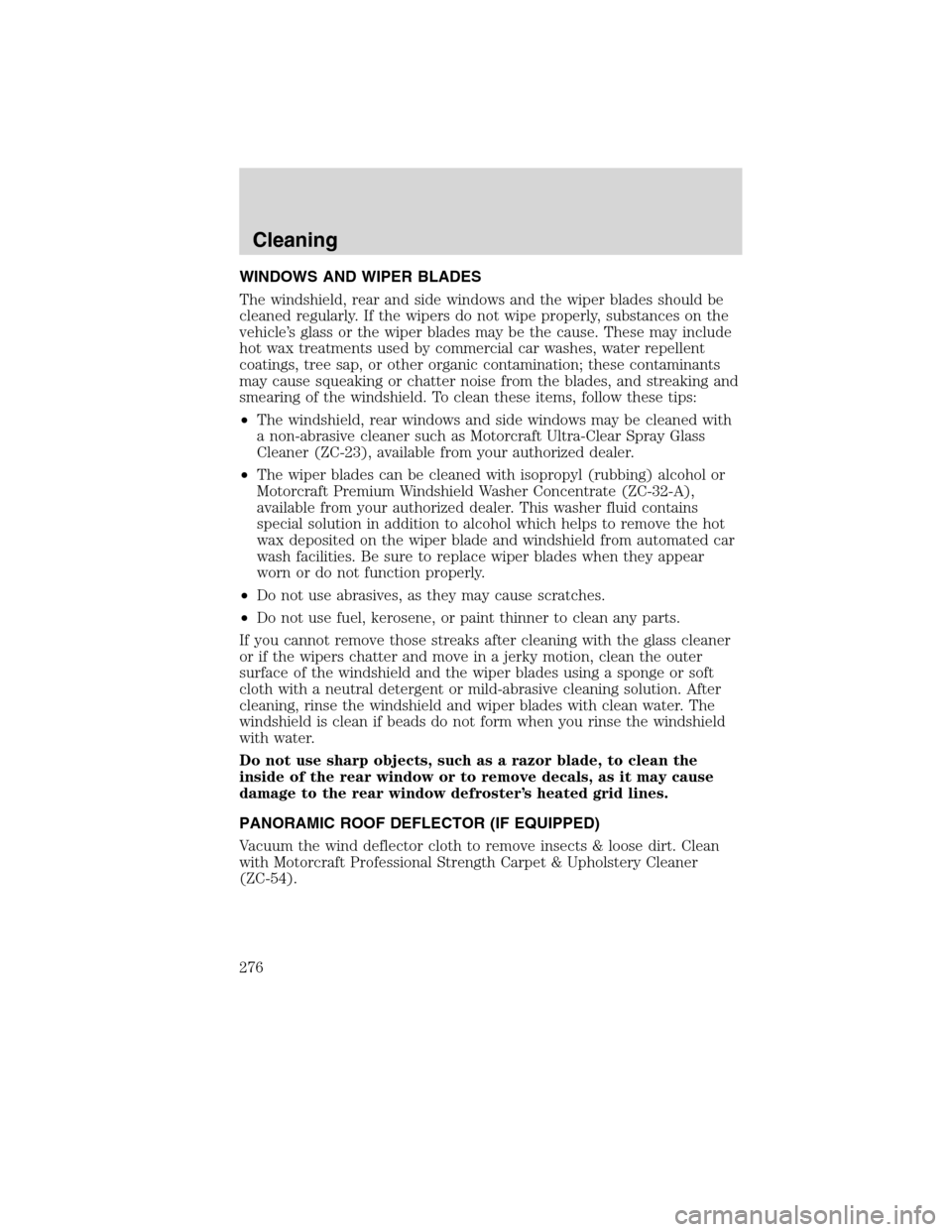

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
PANORAMIC ROOF DEFLECTOR (IF EQUIPPED)
Vacuum the wind deflector cloth to remove insects & loose dirt. Clean
with Motorcraft Professional Strength Carpet & Upholstery Cleaner
(ZC-54).
Cleaning
276
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16-A2.
Do not use any special washer fluid
such as windshield water repellent
type fluid or bug wash. They may
cause squeaking, chatter noise,
streaking and smearing. Refer to the
Maintenance product
specifications and capacitiessection in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
Maintenance and Specifications
283
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

Child safety seats - booster
seats ...........................................176
Cleaning your vehicle
engine compartment ..............275
instrument panel ....................277
interior .....................................278
plastic parts ............................275
safety belts ..............................278
washing ....................................273
waxing .....................................274
wheels ......................................274
wiper blades ............................276
Climate control (see Air
conditioning or Heating) ............58
Clock adjust
6-CD in dash .............................41
AM/FM/CD .................................33
Compass, electronic
set zone adjustment .................23
Console ........................................75
overhead ....................................74
Controls
power seat ...............................125
steering column ........................82
Convertible
cleaning ...................................276
Coolant
checking and adding ..............290
refill capacities ................293, 312
specifications ..........................312
Cruise control (see Speed
control) ........................................80
Cupholder(s) .............................131
Customer Assistance ................242
Ford Extended Service
Plan ..........................................320
Getting assistance outside the
U.S. and Canada .....................270Getting roadside assistance ...242
Getting the service
you need .................................266
Ordering additional owner’s
literature .................................271
Utilizing the
Mediation/Arbitration
Program ...................................270
D
Daytime running lamps
(see Lamps) ................................63
Dipstick
automatic transmission
fluid ..........................................308
engine oil .................................285
Driving under special
conditions ..................231, 236, 239
sand .........................................237
snow and ice ...........................239
through water .................238, 241
E
Electronic message center ...19–20
Emergencies, roadside
jump-starting ..........................258
Emission control system ..........304
Engine ........................................315
cleaning ...................................275
coolant .....................................290
fail-safe cooling .......................294
idle speed control ...................288
lubrication specifications .......312
refill capacities ........................312
service points ..................282–283
starting after a collision .........244
Engine block heater .................218
Engine oil ..................................285
Index
324
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)

Specification chart,
lubricants ...................................312
Speed control ..............................80
Starting your vehicle ........215–217
jump starting ..........................258
Steering wheel
controls ......................................82
tilting .........................................73
SYNC..........................................55
T
Tilt steering wheel ......................73
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....197
Tires ...........................182–183, 252
alignment ................................190
care ..........................................186
changing ..................252, 254–255
checking the pressure ............186
inflating ...................................184
label .........................................196
replacing ..................................188
rotating ....................................190
safety practices .......................189
sidewall information ...............191
snow tires and chains ............202
spare tire .........................252, 254
terminology .............................183
tire grades ...............................183
treadwear ........................182, 187
Towing .......................................209
recreational towing .................213
trailer towing ..........................209wrecker ....................................264
Transmission .............................229
brake-shift interlock (BSI) ....227
fluid, checking and adding
(automatic) .............................308
fluid, refill capacities ..............312
lubricant specifications ..........312
Turn signal ..................................66
U
Universal garage door opener ....84
USB port ......................................49
V
Vehicle Identification Number
(VIN) ..........................................316
Vehicle loading ..........................202
Ventilating your vehicle ...........218
W
Warning lights (see Lights) .......12
Washer fluid ..............................283
Water, Driving through .............241
Windows
power .........................................76
rear wiper/washer .....................73
Windshield washer fluid and
wipers ..........................................72
checking and adding fluid .....283
replacing wiper blades ...........284
Wrecker towing .........................264
Index
328
2010 Edge(edg)
Owners Guide(own2002), 1st Printing
USA(fus)
