check engine light FORD EDGE 2011 1.G User Guide

Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help ensure your vehicle keeps
running great.
Maximum oil change interval
❑As indicated by the instrument cluster message center (can be up to one year or 10,000 miles [16,000 km])
Engine coolant change interval
❑6 years or 100,000 miles (160,000 km) - change engine coolant (whichever comes first)❑After initial change - change engine coolant every 3 years or 50,000 miles (80,000 km).
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, airbag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
Scheduled Maintenance Guide
380
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehicle. It’s
your checklist that gives you immediate feedback on the overall
condition of your vehicle. You’ll know what’s been checked, what’s okay,
as well as those things that may require future or immediate attention.
The multi-point vehicle inspection is one more way to keep your vehicle
running great!
Multi-point inspection - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
381
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

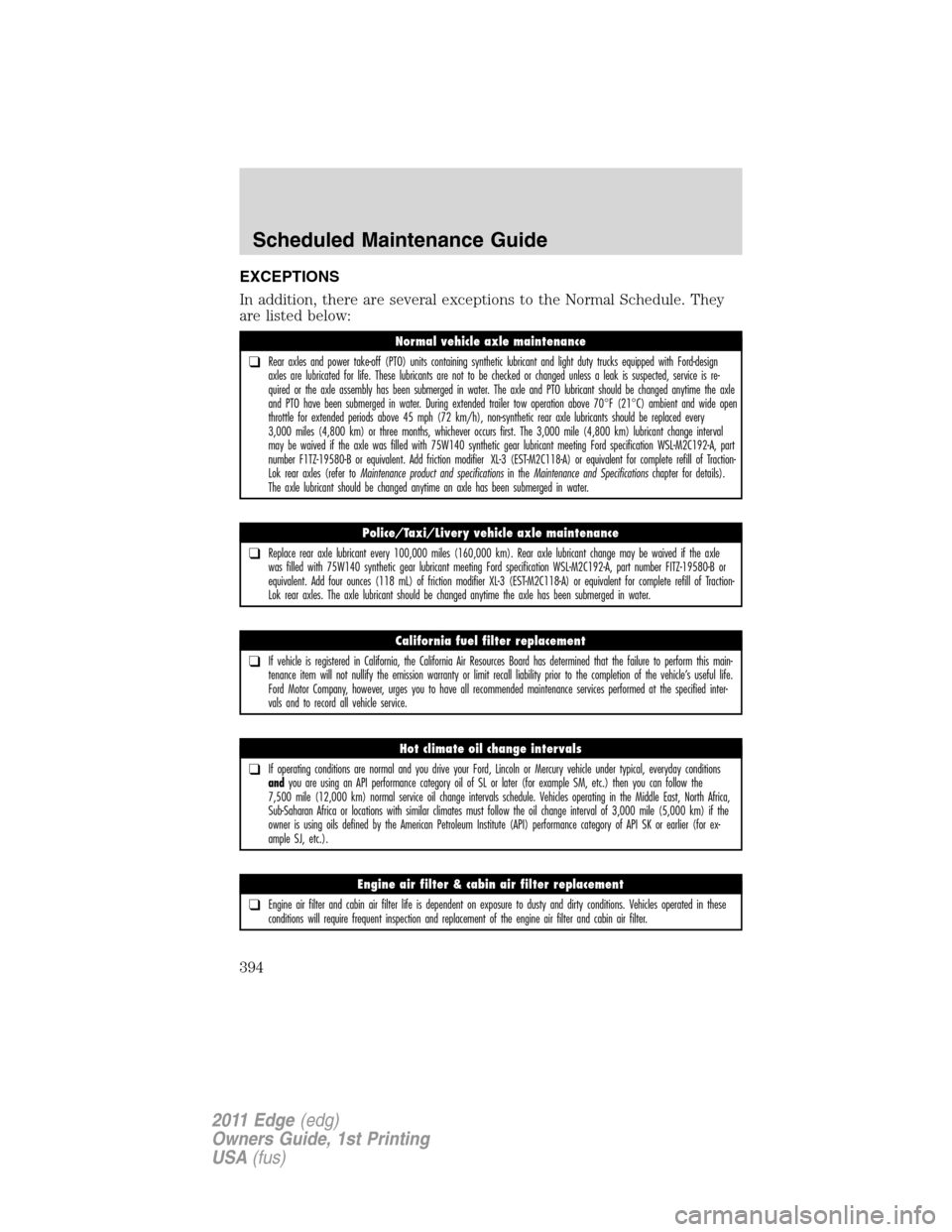

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval
may be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
394
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

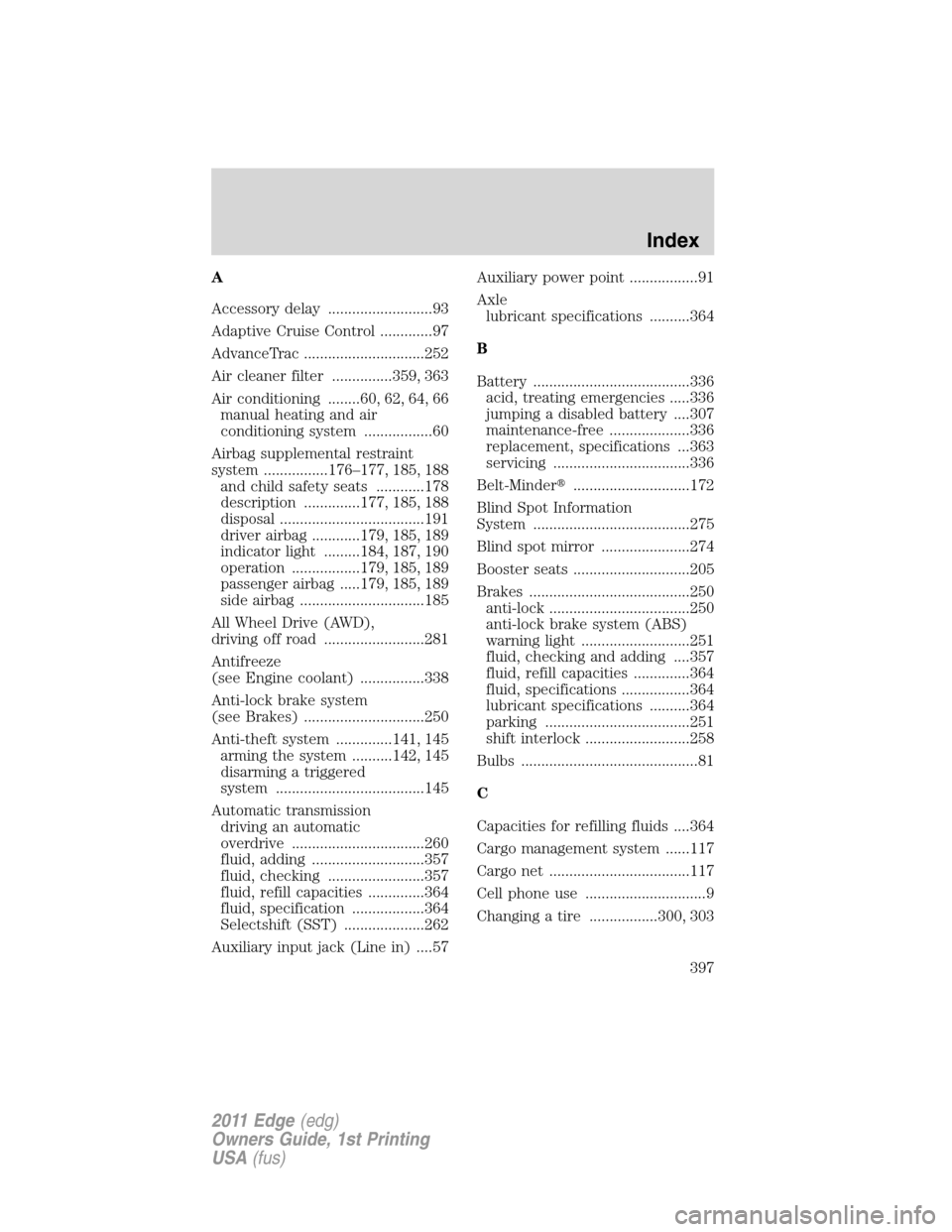

A
Accessory delay ..........................93
Adaptive Cruise Control .............97
AdvanceTrac ..............................252
Air cleaner filter ...............359, 363
Air conditioning ........60, 62, 64, 66
manual heating and air
conditioning system .................60
Airbag supplemental restraint
system ................176–177, 185, 188
and child safety seats ............178
description ..............177, 185, 188
disposal ....................................191
driver airbag ............179, 185, 189
indicator light .........184, 187, 190
operation .................179, 185, 189
passenger airbag .....179, 185, 189
side airbag ...............................185
All Wheel Drive (AWD),
driving off road .........................281
Antifreeze
(see Engine coolant) ................338
Anti-lock brake system
(see Brakes) ..............................250
Anti-theft system ..............141, 145
arming the system ..........142, 145
disarming a triggered
system .....................................145
Automatic transmission
driving an automatic
overdrive .................................260
fluid, adding ............................357
fluid, checking ........................357
fluid, refill capacities ..............364
fluid, specification ..................364
Selectshift (SST) ....................262
Auxiliary input jack (Line in) ....57Auxiliary power point .................91
Axle
lubricant specifications ..........364
B
Battery .......................................336
acid, treating emergencies .....336
jumping a disabled battery ....307
maintenance-free ....................336
replacement, specifications ...363
servicing ..................................336
Belt-Minder.............................172
Blind Spot Information
System .......................................275
Blind spot mirror ......................274
Booster seats .............................205
Brakes ........................................250
anti-lock ...................................250
anti-lock brake system (ABS)
warning light ...........................251
fluid, checking and adding ....357
fluid, refill capacities ..............364
fluid, specifications .................364
lubricant specifications ..........364
parking ....................................251
shift interlock ..........................258
Bulbs ............................................81
C
Capacities for refilling fluids ....364
Cargo management system ......117
Cargo net ...................................117
Cell phone use ..............................9
Changing a tire .................300, 303
Index
397
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

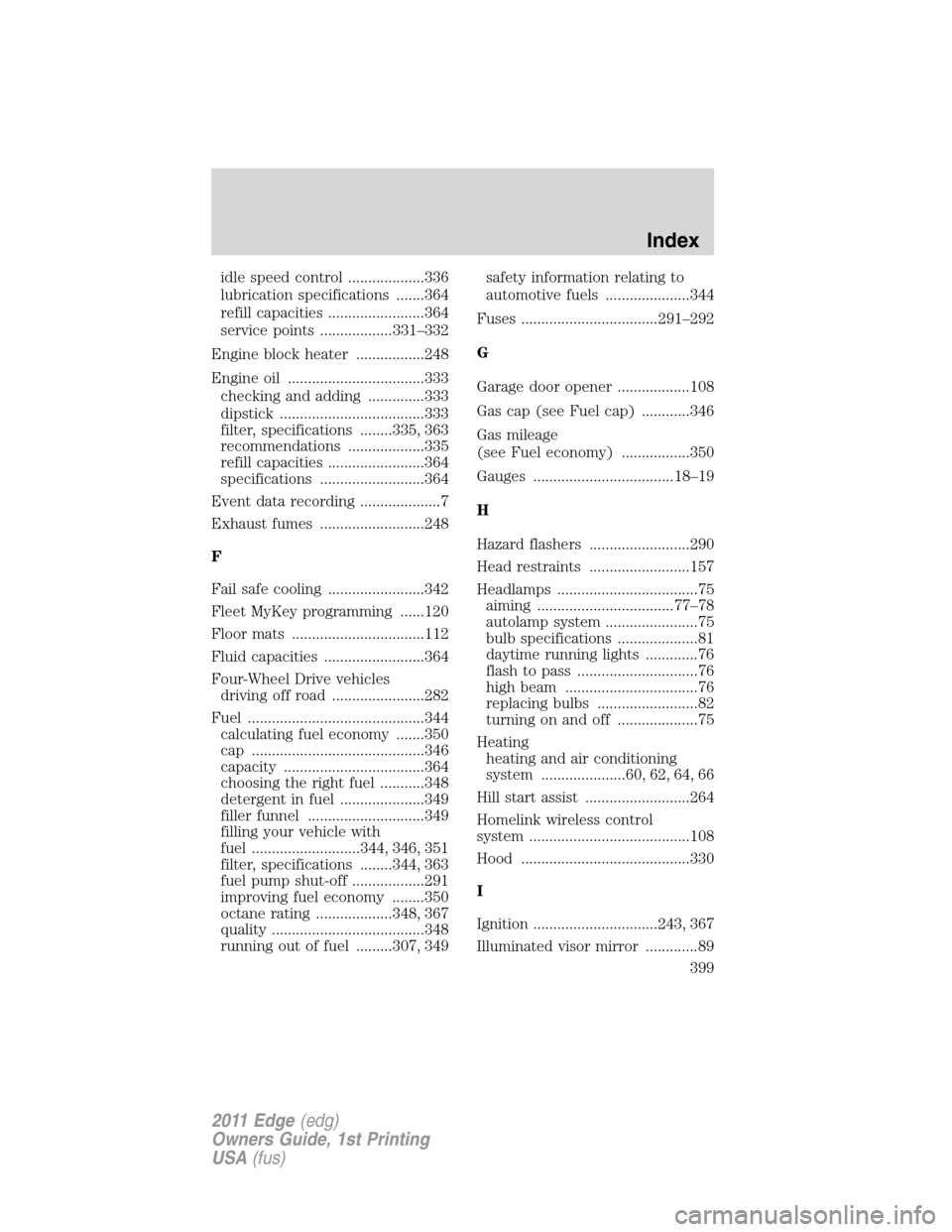

idle speed control ...................336
lubrication specifications .......364
refill capacities ........................364
service points ..................331–332
Engine block heater .................248
Engine oil ..................................333
checking and adding ..............333
dipstick ....................................333
filter, specifications ........335, 363
recommendations ...................335
refill capacities ........................364
specifications ..........................364
Event data recording ....................7
Exhaust fumes ..........................248
F
Fail safe cooling ........................342
Fleet MyKey programming ......120
Floor mats .................................112
Fluid capacities .........................364
Four-Wheel Drive vehicles
driving off road .......................282
Fuel ............................................344
calculating fuel economy .......350
cap ...........................................346
capacity ...................................364
choosing the right fuel ...........348
detergent in fuel .....................349
filler funnel .............................349
filling your vehicle with
fuel ...........................344, 346, 351
filter, specifications ........344, 363
fuel pump shut-off ..................291
improving fuel economy ........350
octane rating ...................348, 367
quality ......................................348
running out of fuel .........307, 349safety information relating to
automotive fuels .....................344
Fuses ..................................291–292
G
Garage door opener ..................108
Gas cap (see Fuel cap) ............346
Gas mileage
(see Fuel economy) .................350
Gauges ...................................18–19
H
Hazard flashers .........................290
Head restraints .........................157
Headlamps ...................................75
aiming ..................................77–78
autolamp system .......................75
bulb specifications ....................81
daytime running lights .............76
flash to pass ..............................76
high beam .................................76
replacing bulbs .........................82
turning on and off ....................75
Heating
heating and air conditioning
system .....................60, 62, 64, 66
Hill start assist ..........................264
Homelink wireless control
system ........................................108
Hood ..........................................330
I
Ignition ...............................243, 367
Illuminated visor mirror .............89
Index
399
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
