Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 15A Interior lighting, Puddle lamps,
Backlighting
13 15A Right turn/stop lamps and turn signals
14 15A Left turn/stop lamps and turn signals
15 15A Reverse lamps, Stop lamps,
High-mounted stop lamps
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A Keypad illumination, Brake shift
interlock (BSI), Passenger compartment
fuse panel, Start button LED, Passive
anti-theft system (PATS), Powertrain
control module (PCM) wake-up, 2nd row
power enable
19 20A Amplifier/subwoofer (Sony)
20 20A Lock/unlock relays – vehicles without
intelligent access (IA)
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control, IA, Headlamp
switch
24 15A On-board diagnostics (OBDII)
25 15A Liftgate release
26 5A Global positioning system (GPS) module
27 20A IA
28 15A Ignition switch (without IA), Key inhibit
solenoid, Push button start (with IA)
29 20A Radio, Multi-function display screen,
Electronic finish panel, SYNCmodule
30 15A Front park lamps
31 5A Not used (spare)
Roadside Emergencies
294
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
32 15A Lock switch backlighting, Moon roof,
Power windows, Compass/auto-dimming
rear view mirror
33 10A Not used (spare)
34 10A Reverse sensing system, Rearview
camera, Blind spot monitor
35 5A Heads-up display, Headlamp leveling
36 10A Not used (spare)
37 10A Climate control
38 10A Not used (spare)
39 15A High beam headlamps
40 10A Rear park lamps
41 7.5A Occupant classification sensor (OCS),
Restraints control module
42 5A Grade assist control switch
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control
47 15A Not used (spare)
48 30A Circuit
BreakerPower windows/moon roof
49 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
Roadside Emergencies
295
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

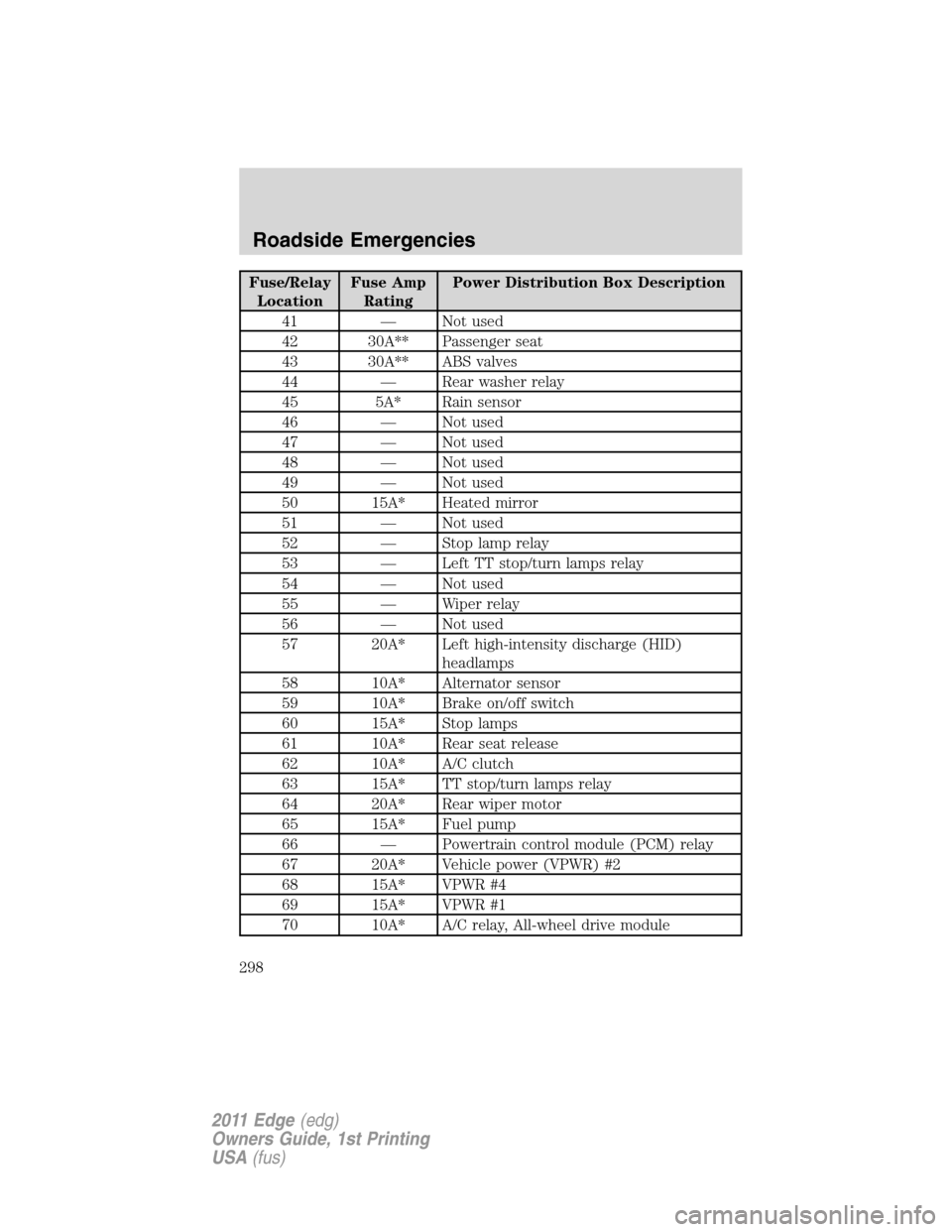

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
41 — Not used
42 30A** Passenger seat
43 30A** ABS valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirror
51 — Not used
52 — Stop lamp relay
53 — Left TT stop/turn lamps relay
54 — Not used
55 — Wiper relay
56 — Not used
57 20A* Left high-intensity discharge (HID)
headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 15A* Stop lamps
61 10A* Rear seat release
62 10A* A/C clutch
63 15A* TT stop/turn lamps relay
64 20A* Rear wiper motor
65 15A* Fuel pump
66 — Powertrain control module (PCM) relay
67 20A* Vehicle power (VPWR) #2
68 15A* VPWR #4
69 15A* VPWR #1
70 10A* A/C relay, All-wheel drive module
Roadside Emergencies
298
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — A/C clutch diode
76 — Not used
77 — TT park lamps relay
78 20A* Right HID headlamps
79 5A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* TT park lamps
85 — Not used
86 7.5A* PCM keep-alive, PCM relay
87 5A* Run/start relay
88 — Run/start relay
89 — Not used
90 10A* PCM
91 10A* Adaptive cruise control
92 10A* ABS module
93 5A* Blower motor/rear defroster relay
94 30A** Passenger compartment fuse panel
run/start
95 — Not used
96 — Not used
97 — Not used
98 — A/C clutch relay
* Mini Fuses ** Cartridge Fuses
Roadside Emergencies
299
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

idle speed control ...................336
lubrication specifications .......364
refill capacities ........................364
service points ..................331–332
Engine block heater .................248
Engine oil ..................................333
checking and adding ..............333
dipstick ....................................333
filter, specifications ........335, 363
recommendations ...................335
refill capacities ........................364
specifications ..........................364
Event data recording ....................7
Exhaust fumes ..........................248
F
Fail safe cooling ........................342
Fleet MyKey programming ......120
Floor mats .................................112
Fluid capacities .........................364
Four-Wheel Drive vehicles
driving off road .......................282
Fuel ............................................344
calculating fuel economy .......350
cap ...........................................346
capacity ...................................364
choosing the right fuel ...........348
detergent in fuel .....................349
filler funnel .............................349
filling your vehicle with
fuel ...........................344, 346, 351
filter, specifications ........344, 363
fuel pump shut-off ..................291
improving fuel economy ........350
octane rating ...................348, 367
quality ......................................348
running out of fuel .........307, 349safety information relating to
automotive fuels .....................344
Fuses ..................................291–292
G
Garage door opener ..................108
Gas cap (see Fuel cap) ............346
Gas mileage
(see Fuel economy) .................350
Gauges ...................................18–19
H
Hazard flashers .........................290
Head restraints .........................157
Headlamps ...................................75
aiming ..................................77–78
autolamp system .......................75
bulb specifications ....................81
daytime running lights .............76
flash to pass ..............................76
high beam .................................76
replacing bulbs .........................82
turning on and off ....................75
Heating
heating and air conditioning
system .....................60, 62, 64, 66
Hill start assist ..........................264
Homelink wireless control
system ........................................108
Hood ..........................................330
I
Ignition ...............................243, 367
Illuminated visor mirror .............89
Index
399
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

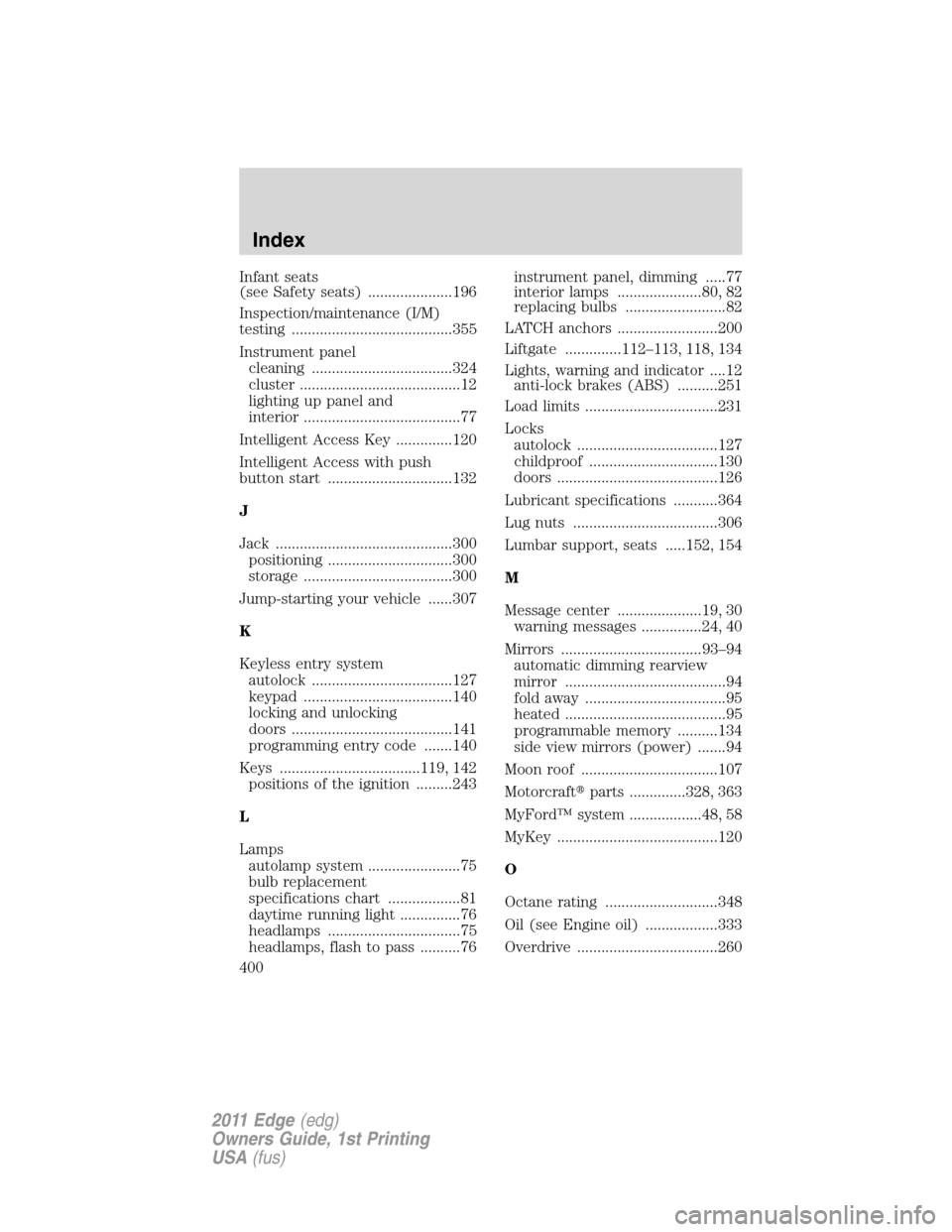

Infant seats
(see Safety seats) .....................196
Inspection/maintenance (I/M)
testing ........................................355
Instrument panel
cleaning ...................................324
cluster ........................................12
lighting up panel and
interior .......................................77
Intelligent Access Key ..............120
Intelligent Access with push
button start ...............................132
J
Jack ............................................300
positioning ...............................300
storage .....................................300
Jump-starting your vehicle ......307
K
Keyless entry system
autolock ...................................127
keypad .....................................140
locking and unlocking
doors ........................................141
programming entry code .......140
Keys ...................................119, 142
positions of the ignition .........243
L
Lamps
autolamp system .......................75
bulb replacement
specifications chart ..................81
daytime running light ...............76
headlamps .................................75
headlamps, flash to pass ..........76instrument panel, dimming .....77
interior lamps .....................80, 82
replacing bulbs .........................82
LATCH anchors .........................200
Liftgate ..............112–113, 118, 134
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........251
Load limits .................................231
Locks
autolock ...................................127
childproof ................................130
doors ........................................126
Lubricant specifications ...........364
Lug nuts ....................................306
Lumbar support, seats .....152, 154
M
Message center .....................19, 30
warning messages ...............24, 40
Mirrors ...................................93–94
automatic dimming rearview
mirror ........................................94
fold away ...................................95
heated ........................................95
programmable memory ..........134
side view mirrors (power) .......94
Moon roof ..................................107
Motorcraftparts ..............328, 363
MyFord™ system ..................48, 58
MyKey ........................................120
O
Octane rating ............................348
Oil (see Engine oil) ..................333
Overdrive ...................................260
Index
400
2011 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
