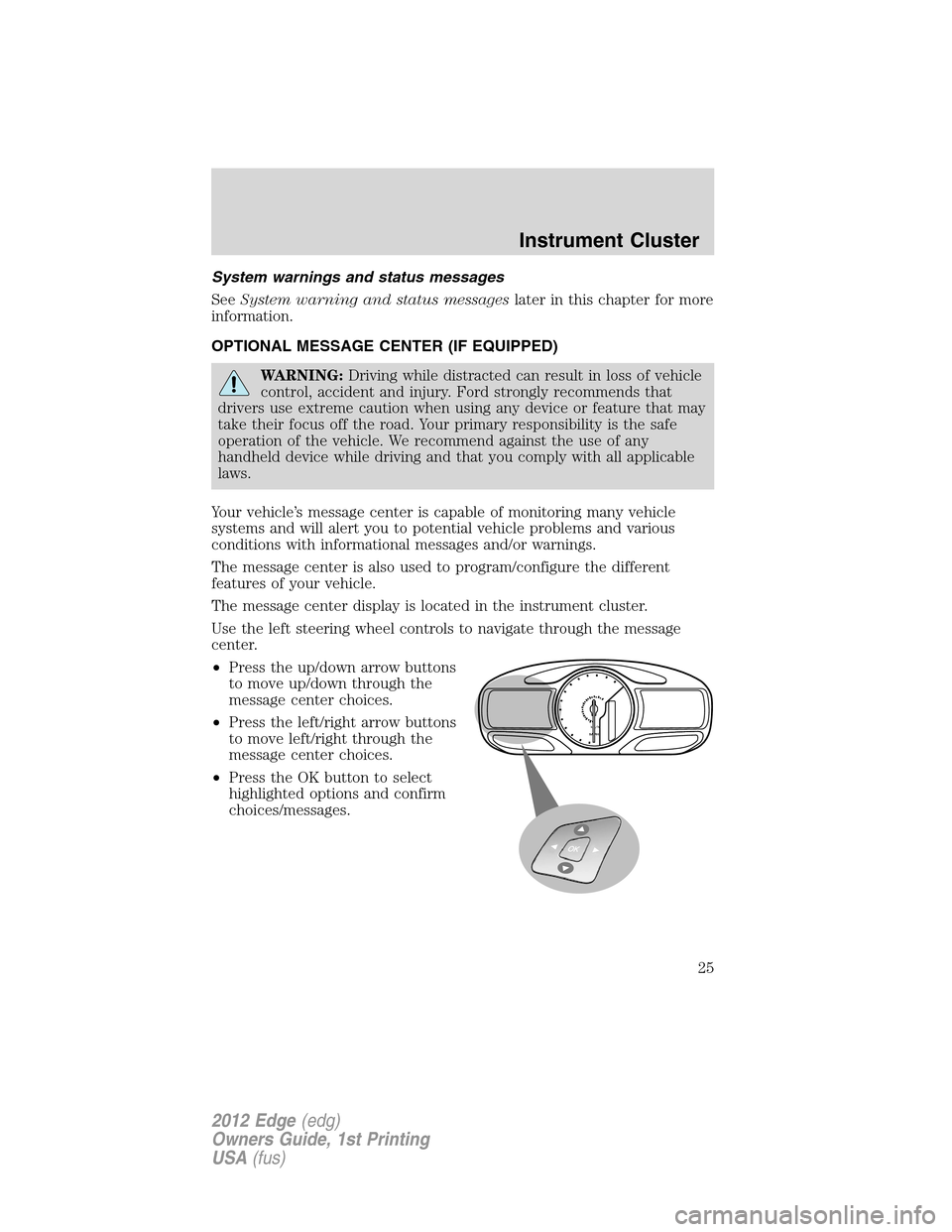

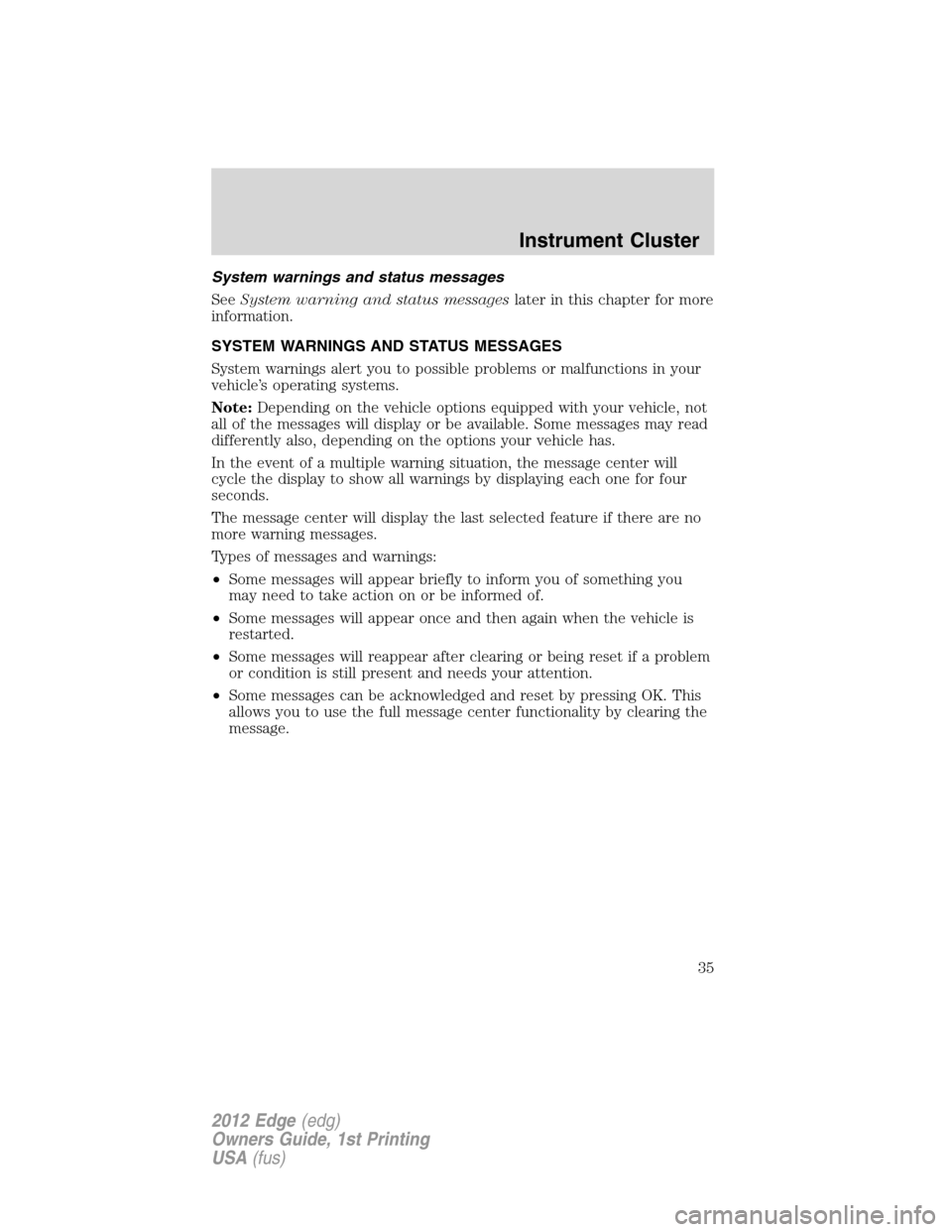

System warnings and status messages
SeeSystem warning and status messageslater in this chapter for more
information.
OPTIONAL MESSAGE CENTER (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Your vehicle’s message center is capable of monitoring many vehicle
systems and will alert you to potential vehicle problems and various
conditions with informational messages and/or warnings.
The message center is also used to program/configure the different
features of your vehicle.
The message center display is located in the instrument cluster.
Use the left steering wheel controls to navigate through the message
center.
•Press the up/down arrow buttons
to move up/down through the
message center choices.
•Press the left/right arrow buttons
to move left/right through the
message center choices.
•Press the OK button to select
highlighted options and confirm
choices/messages.
km/hMPH
Instrument Cluster
25
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

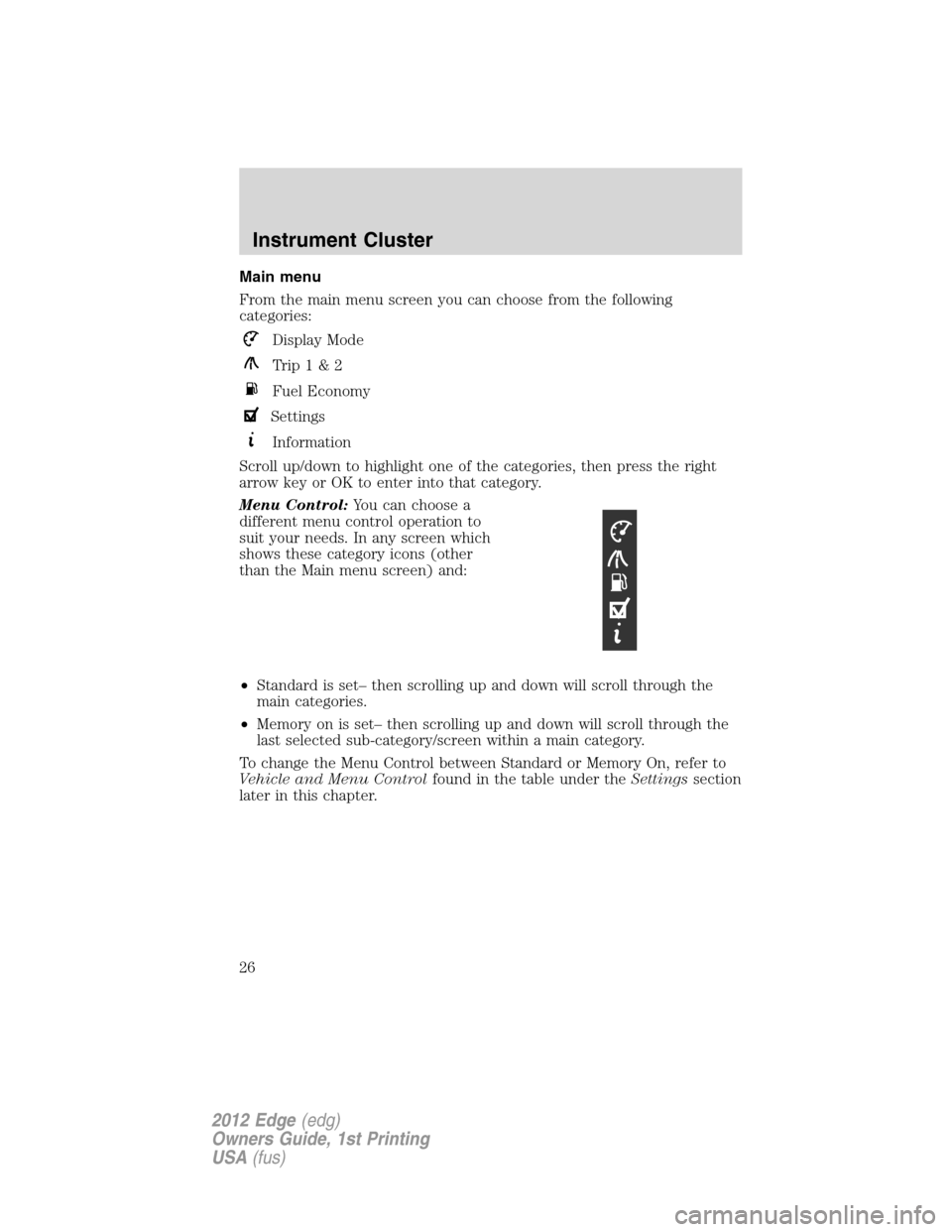

Main menu
From the main menu screen you can choose from the following
categories:
Display Mode
Trip1&2
Fuel Economy
Settings
Information
Scroll up/down to highlight one of the categories, then press the right
arrow key or OK to enter into that category.
Menu Control:You can choose a
different menu control operation to
suit your needs. In any screen which
shows these category icons (other
than the Main menu screen) and:
•Standard is set– then scrolling up and down will scroll through the
main categories.
•Memory on is set– then scrolling up and down will scroll through the
last selected sub-category/screen within a main category.
To change the Menu Control between Standard or Memory On, refer to
Vehicle and Menu Controlfound in the table under theSettingssection
later in this chapter.
Instrument Cluster
26
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

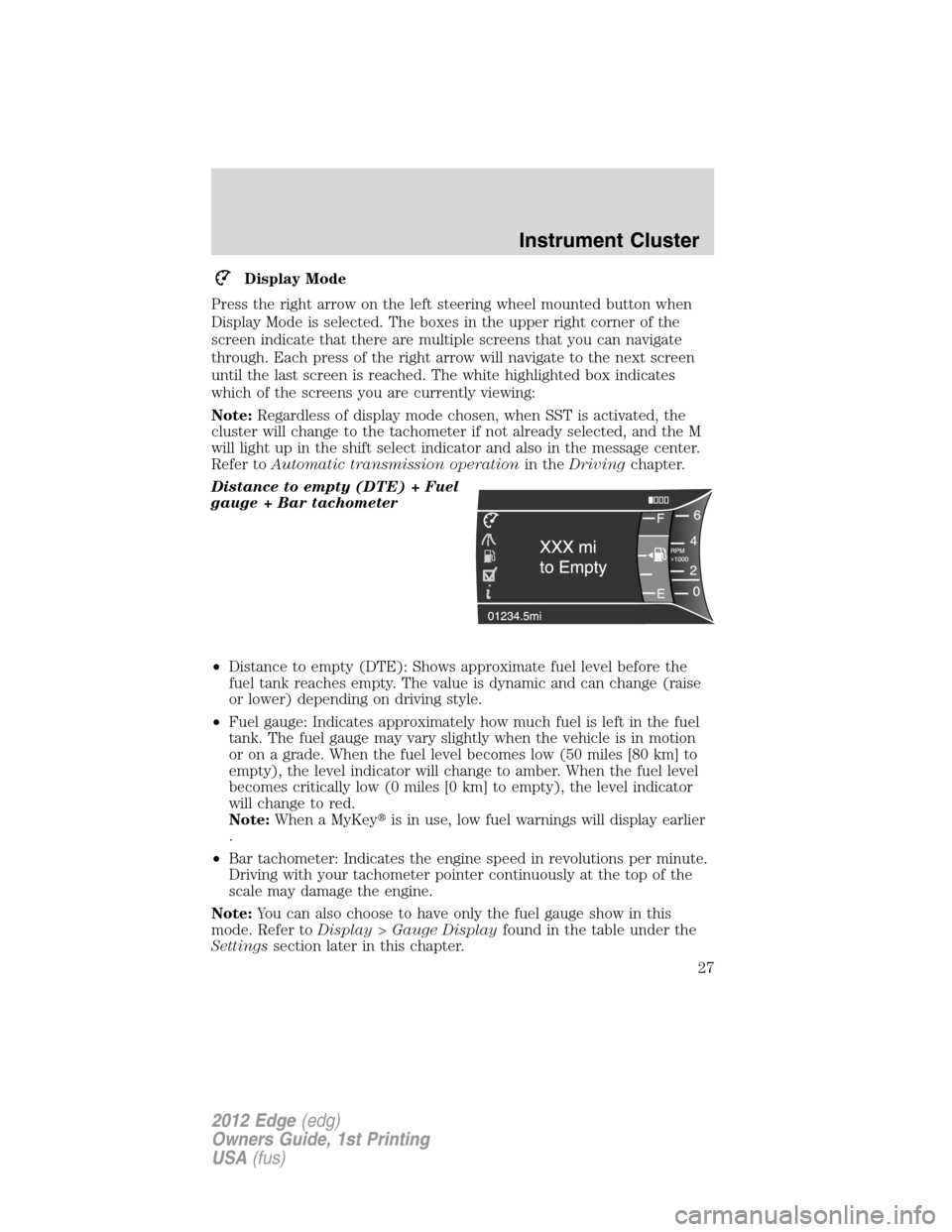

Display Mode
Press the right arrow on the left steering wheel mounted button when
Display Mode is selected. The boxes in the upper right corner of the
screen indicate that there are multiple screens that you can navigate
through. Each press of the right arrow will navigate to the next screen
until the last screen is reached. The white highlighted box indicates
which of the screens you are currently viewing:
Note:Regardless of display mode chosen, when SST is activated, the
cluster will change to the tachometer if not already selected, and the M
will light up in the shift select indicator and also in the message center.
Refer toAutomatic transmission operationin theDrivingchapter.
Distance to empty (DTE) + Fuel
gauge + Bar tachometer
•Distance to empty (DTE): Shows approximate fuel level before the
fuel tank reaches empty. The value is dynamic and can change (raise
or lower) depending on driving style.
•Fuel gauge: Indicates approximately how much fuel is left in the fuel
tank. The fuel gauge may vary slightly when the vehicle is in motion
or on a grade. When the fuel level becomes low (50 miles [80 km] to
empty), the level indicator will change to amber. When the fuel level
becomes critically low (0 miles [0 km] to empty), the level indicator
will change to red.
Note:When a MyKeyis in use, low fuel warnings will display earlier
.
•Bar tachometer: Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the
scale may damage the engine.
Note:You can also choose to have only the fuel gauge show in this
mode. Refer toDisplay>Gauge Displayfound in the table under the
Settingssection later in this chapter.
+
Instrument Cluster
27
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

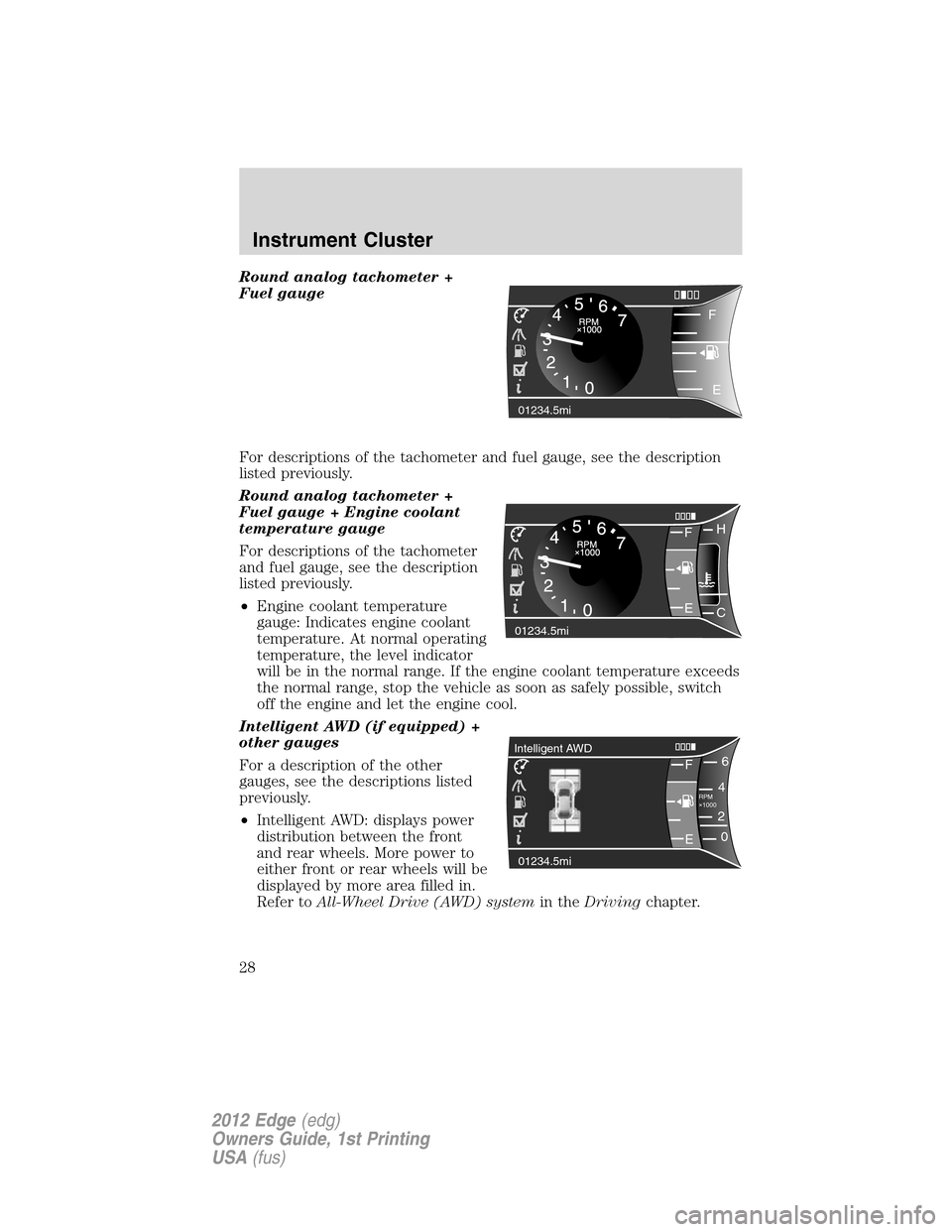

Round analog tachometer +
Fuel gauge
For descriptions of the tachometer and fuel gauge, see the description
listed previously.
Round analog tachometer +
Fuel gauge + Engine coolant
temperature gauge
For descriptions of the tachometer
and fuel gauge, see the description
listed previously.
•Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the level indicator
will be in the normal range. If the engine coolant temperature exceeds
the normal range, stop the vehicle as soon as safely possible, switch
off the engine and let the engine cool.
Intelligent AWD (if equipped) +
other gauges
For a description of the other
gauges, see the descriptions listed
previously.
•Intelligent AWD: displays power
distribution between the front
and rear wheels. More power to
either front or rear wheels will be
displayed by more area filled in.
Refer toAll-Wheel Drive (AWD) systemin theDrivingchapter.
i01234.5mi
F
E
01234.5mi
FH
C E
F6
4
RPM
1000+2
0
01234.5mi Intelligent AWD
E
Instrument Cluster
28
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

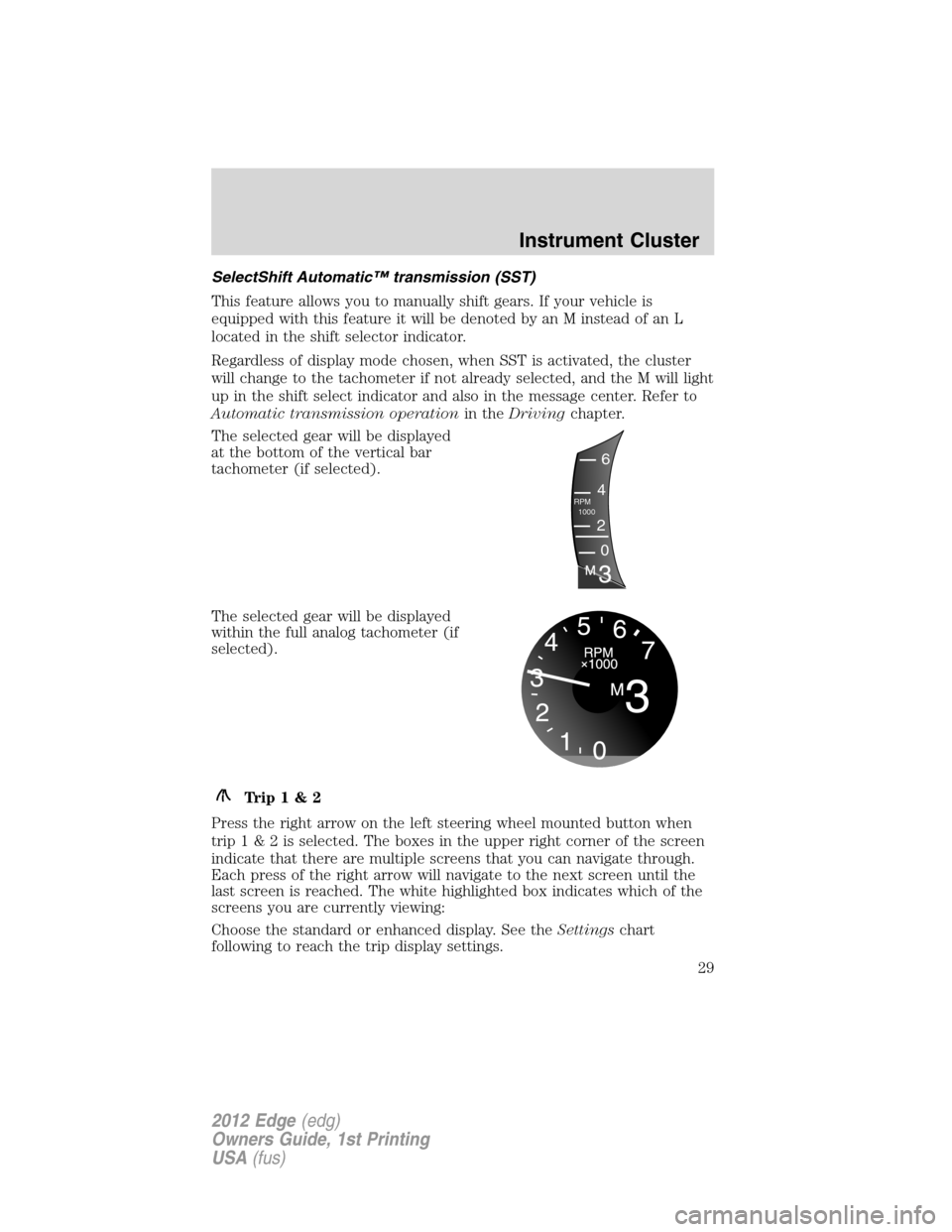

SelectShift Automatic™ transmission (SST)
This feature allows you to manually shift gears. If your vehicle is
equipped with this feature it will be denoted by an M instead of an L
located in the shift selector indicator.
Regardless of display mode chosen, when SST is activated, the cluster
will change to the tachometer if not already selected, and the M will light
up in the shift select indicator and also in the message center. Refer to
Automatic transmission operationin theDrivingchapter.
The selected gear will be displayed
at the bottom of the vertical bar
tachometer (if selected).
The selected gear will be displayed
within the full analog tachometer (if
selected).
Trip1&2
Press the right arrow on the left steering wheel mounted button when
trip1&2isselected.Theboxes in the upper right corner of the screen
indicate that there are multiple screens that you can navigate through.
Each press of the right arrow will navigate to the next screen until the
last screen is reached. The white highlighted box indicates which of the
screens you are currently viewing:
Choose the standard or enhanced display. See theSettingschart
following to reach the trip display settings.
6
4
RPM
1000
2
0
Instrument Cluster
29
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Standard trip display
•Trip distance — shows the accumulated trip distance.
•Elapsed trip time — timer stops when the vehicle is turned off and
restarts when the vehicle is restarted.
Enhanced trip display
•Trip distance — shows the accumulated trip distance.
•Average fuel economy — shows the average fuel economy for a given
trip.
•Estimated amount of fuel consumed — shows the amount of fuel used
for a given trip.
•Elapsed trip time — timer stops when the vehicle is turned off and
restarts when the vehicle is restarted.
Press OK to pause the Trip 1 or 2 screen. Press again to un-pause.
Press and hold OK to reset the currently displayed trip information.
Fuel Economy
Press the right arrow on the left steering wheel mounted button when
fuel economy is selected. The boxes in the upper right corner of the
screen indicate that there are multiple screens that you can navigate
through. Each press of the right arrow will navigate to the next screen
F6
4 139.5 mi
00:58:44
RPM
1000+
2
0
01234.5mi Trip 1
E
F6
4 139.5 mi
28.5
MPG300.5 GAL
00:58:44
RPM
1000+
2
0
01234.5mi Trip 1
E
Instrument Cluster
30
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

until the last screen is reached. The white highlighted box indicates
which of the screens you are currently viewing:

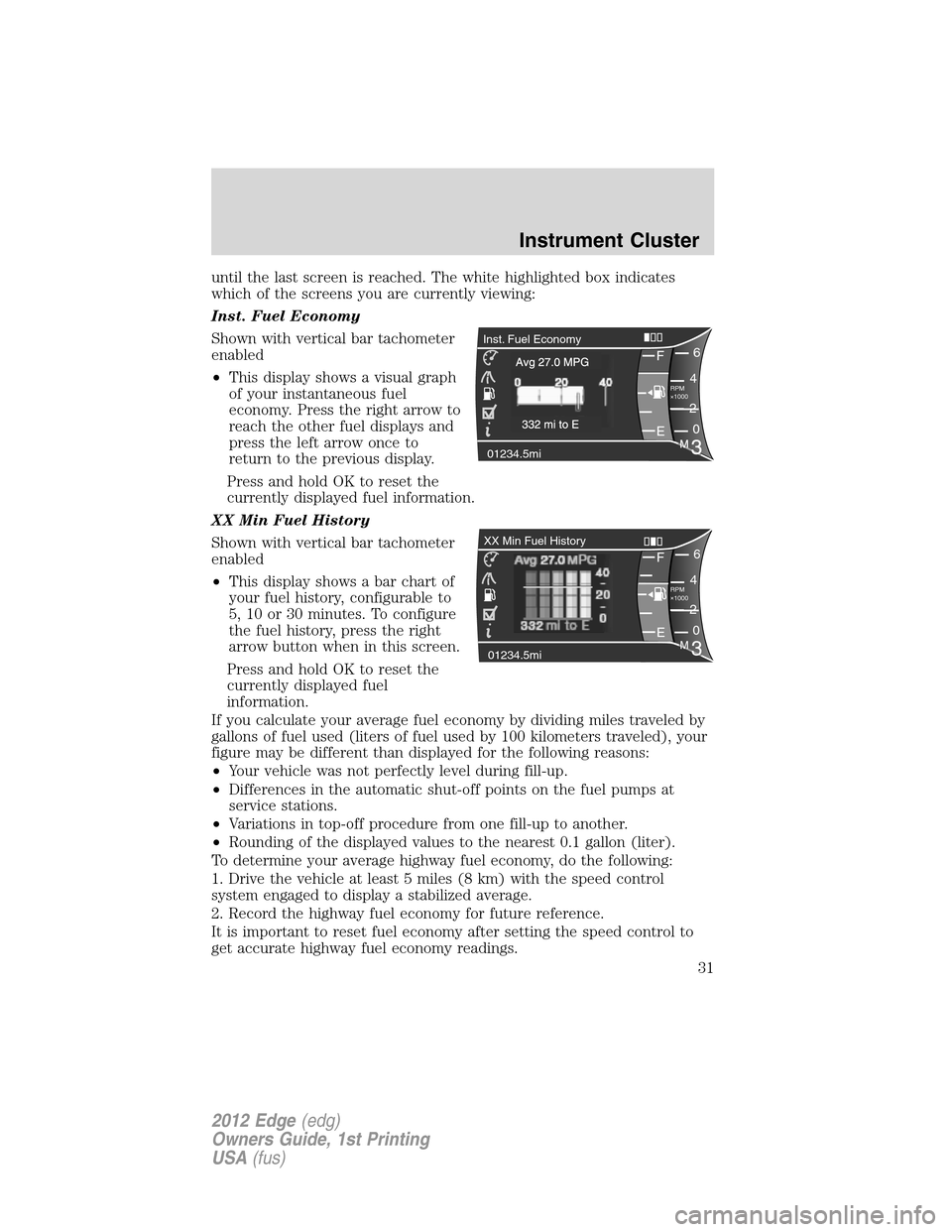

Inst. Fuel Economy
Shown with vertical bar tachometer
enabled
•This display shows a visual graph
of your instantaneous fuel
economy. Press the right arrow to
reach the other fuel displays and
press the left arrow once to
return to the previous display.
Press and hold OK to reset the
currently displayed fuel information.
XX Min Fuel History
Shown with vertical bar tachometer
enabled
•This display shows a bar chart of
your fuel history, configurable to
5, 10 or 30 minutes. To configure
the fuel history, press the right
arrow button when in this screen.
Press and hold OK to reset the
currently displayed fuel
information.
If you calculate your average fuel economy by dividing miles traveled by
gallons of fuel used (liters of fuel used by 100 kilometers traveled), your
figure may be different than displayed for the following reasons:
•Your vehicle was not perfectly level during fill-up.
•Differences in the automatic shut-off points on the fuel pumps at
service stations.
•Variations in top-off procedure from one fill-up to another.
•Rounding of the displayed values to the nearest 0.1 gallon (liter).
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to reset fuel economy after setting the speed control to
get accurate highway fuel economy readings.
F6
4
RPM
1000+
2
0
01234.5mi Inst. Fuel Economy
E
F6
4
RPM
1000+
2
0
01234.5mi XX Min Fuel History
EM3
Instrument Cluster
31
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

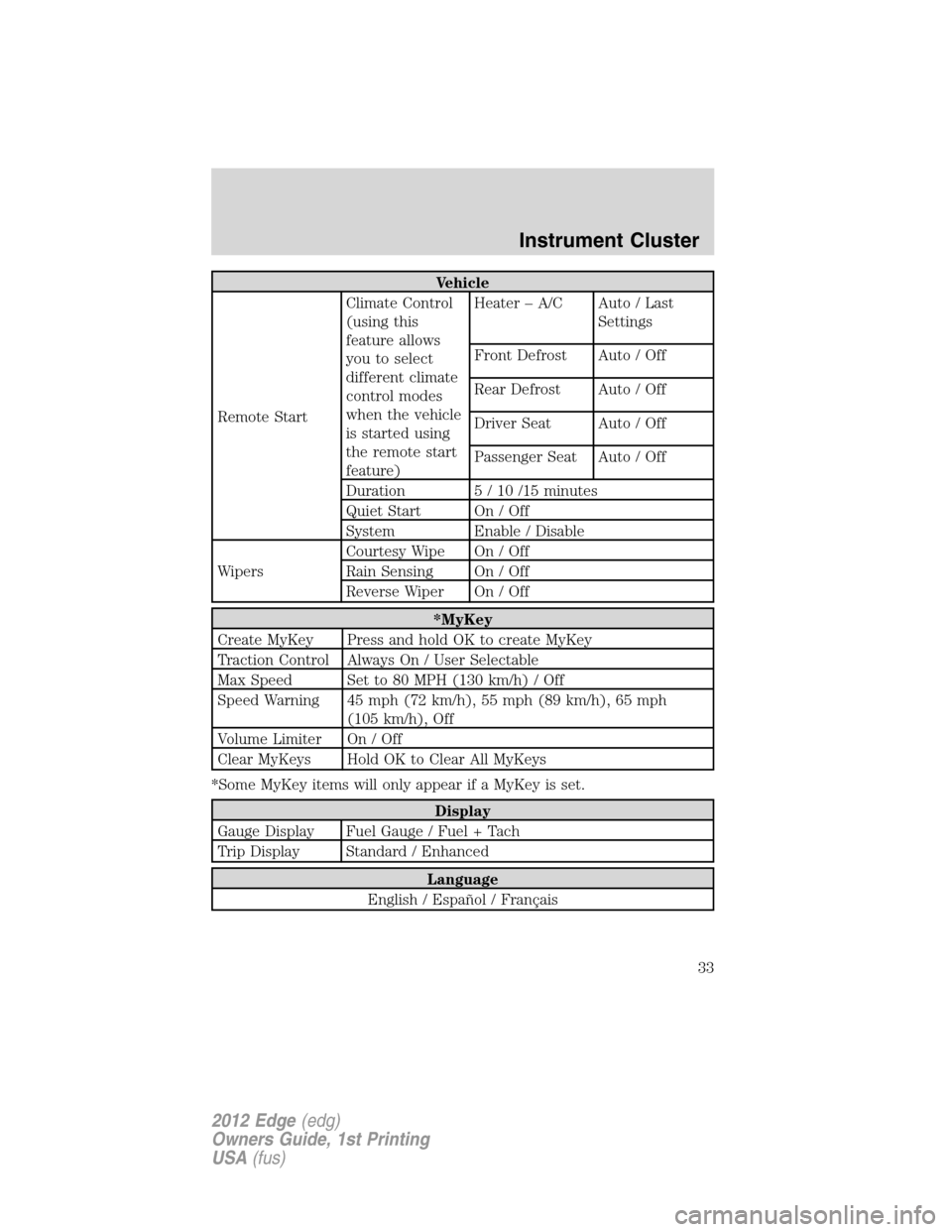

Vehicle
Remote StartClimate Control
(using this
feature allows
you to select
different climate
control modes
when the vehicle
is started using
the remote start
feature)Heater – A/C Auto / Last
Settings
Front Defrost Auto / Off
Rear Defrost Auto / Off
Driver Seat Auto / Off
Passenger Seat Auto / Off
Duration 5 / 10 /15 minutes
Quiet Start On / Off
System Enable / Disable
WipersCourtesy Wipe On / Off
Rain Sensing On / Off
Reverse Wiper On / Off
*MyKey
Create MyKey Press and hold OK to create MyKey
Traction Control Always On / User Selectable
Max Speed Set to 80 MPH (130 km/h) / Off
Speed Warning 45 mph (72 km/h), 55 mph (89 km/h), 65 mph
(105 km/h), Off
Volume Limiter On / Off
Clear MyKeys Hold OK to Clear All MyKeys
*Some MyKey items will only appear if a MyKey is set.
Display
Gauge Display Fuel Gauge / Fuel + Tach
Trip Display Standard / Enhanced
Language
English / Español / Français
Instrument Cluster
33
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

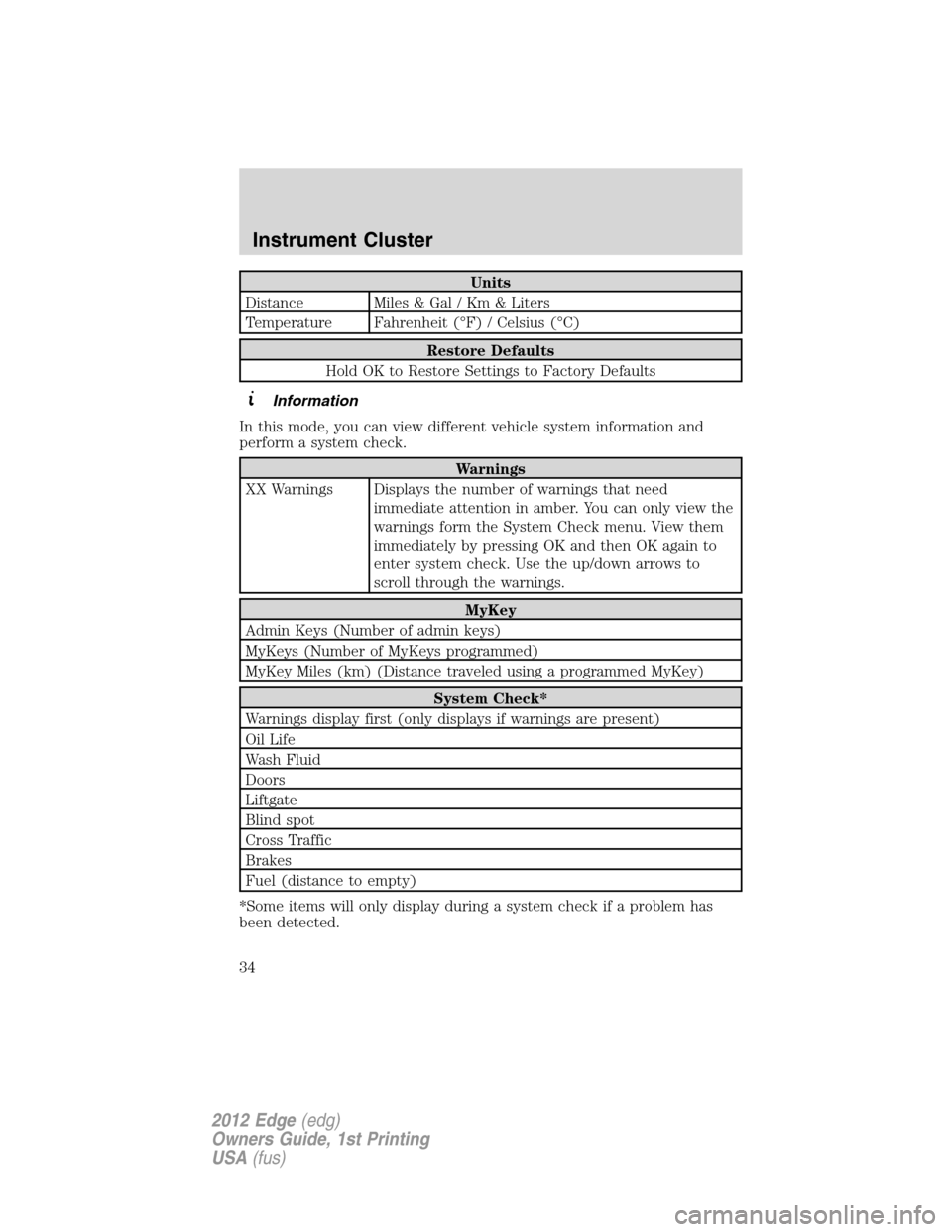

Units
Distance Miles & Gal / Km & Liters
Temperature Fahrenheit (°F) / Celsius (°C)
Restore Defaults
Hold OK to Restore Settings to Factory Defaults
Information
In this mode, you can view different vehicle system information and
perform a system check.
Warnings
XX Warnings Displays the number of warnings that need
immediate attention in amber. You can only view the
warnings form the System Check menu. View them
immediately by pressing OK and then OK again to
enter system check. Use the up/down arrows to
scroll through the warnings.
MyKey
Admin Keys (Number of admin keys)
MyKeys (Number of MyKeys programmed)
MyKey Miles (km) (Distance traveled using a programmed MyKey)
System Check*
Warnings display first (only displays if warnings are present)
Oil Life
Wash Fluid
Doors
Liftgate
Blind spot
Cross Traffic
Brakes
Fuel (distance to empty)
*Some items will only display during a system check if a problem has
been detected.
Instrument Cluster
34
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

System warnings and status messages
SeeSystem warning and status messageslater in this chapter for more
information.
SYSTEM WARNINGS AND STATUS MESSAGES
System warnings alert you to possible problems or malfunctions in your
vehicle’s operating systems.
Note:Depending on the vehicle options equipped with your vehicle, not
all of the messages will display or be available. Some messages may read
differently also, depending on the options your vehicle has.
In the event of a multiple warning situation, the message center will
cycle the display to show all warnings by displaying each one for four
seconds.
The message center will display the last selected feature if there are no
more warning messages.
Types of messages and warnings:
•Some messages will appear briefly to inform you of something you
may need to take action on or be informed of.
•Some messages will appear once and then again when the vehicle is
restarted.
•Some messages will reappear after clearing or being reset if a problem
or condition is still present and needs your attention.
•Some messages can be acknowledged and reset by pressing OK. This
allows you to use the full message center functionality by clearing the
message.
Instrument Cluster
35
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
