General Messages Action / Description
SHIFT TO PARKDisplayed when the engine is turned off with
the shift select lever in any position other than
P (Park).
STEERING LOCK
TURN WHEEL TO
UNLOCKDisplays when you need to turn the steering
wheel in order to disengage the steering lock.
Keys and Intelligent
Access MessagesAction / Description
NO KEY DETECTEDDisplayed if the intelligent access key is not
detected by the system in the following three
scenarios:
•When the start/stop button is pressed in an
attempt to either start the engine or cycle
through the ignition states.
•When the engine is running and a door is
opened then closed.
•When the vehicle’s speed exceeds 10 mph
(16 km/h) for the first time after starting.
Refer toPush button start systemin the
Drivingchapter for more information.
KEY PROGRAMMED
3 KEYS TOTALDisplayed during spare key programming,
when a third intelligent access key is
programmed to the system.
KEY PROGRAMMED
4 KEYS TOTALDisplayed during spare key programming,
when a fourth intelligent access key is
programmed to the system.
MAX NUMBER OF
KEYS LEARNEDDisplayed during spare key programming when
the maximum number of keys have been
programmed.
PRESS BRAKE TO
STARTDisplayed when the start/stop button is
pressed without the brake pedal being applied.
This is a reminder that the brake pedal must
be applied when the start/stop button is
pressed in order to start the engine. Refer to
Push button start systemin theDriving
chapter for more information.
Instrument Cluster
41
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Keys and Intelligent
Access MessagesAction / Description
RESTART NOW OR
KEY IS NEEDEDDisplayed when the start/stop button is
pressed to shut off the engine and a Intelligent
Access Key is not detected inside the vehicle.
Refer toPush button start systemin the
Drivingchapter for more information.
ACCESSORY
POWER ACTIVEDisplayed when the vehicle is in the accessory
ignition state.
Maintenance
MessagesAction / Description
LOW ENGINE OIL
PRESSUREStop the vehicle as soon as safely possible,
turn off the engine. Check the oil level. See
Checking the engine oilin theMaintenance
and Specificationschapter. If the warning
stays on or continues to come on with your
engine running, contact your authorized dealer
as soon as possible.
CHANGE ENGINE
OIL SOONDisplayed when the engine oil life remaining is
10% or less.
OIL CHANGE
REQUIREDDisplayed when the oil life left reaches 0%.
ENGINE COOLANT
OVER TEMPDisplayed when the engine coolant
temperature is excessively high.
WASHER FLUID
LEVEL LOWIndicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level.
Refer toWindshield washer fluidin the
Maintenance and Specificationschapter.
MyKeyMessages Action / Description
MYKEY ACTIVE
DRIVE SAFELYDisplayed when MyKeyis active.
MYKEY NOT
CREATEDDisplayed during key programming when
MyKeycannot be programmed.
SPEED LIMITED TO
80 MPHDisplayed when starting the vehicle and
MyKeyis in use and the MyKey speed limit is
on. Refer toMyKeyin theLocks and
Securitychapter for more information.
Instrument Cluster
42
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

MyKeyMessages Action / Description
VEHICLE AT TOP
SPEED OF MYKEY
SETTINGDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is 80 mph (130 km/h). Refer toMyKeyin the
Locks and Securitychapter for more
information.
VEHICLE NEAR
TOP SPEEDDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is approaching 80 mph (130 km/h). Refer to
MyKeyin theLocks and Securitychapter
for more information.
CHECK SPEED
DRIVE SAFELYDisplayed when a MyKeyis in use and the
optional setting is on and the vehicle exceeds
a preselected speed. Refer toMyKeyin the
Locks and Securitychapter for more
information.
BUCKLE UP TO
UNMUTE AUDIODisplayed when a MyKeyis in use and
Belt-Minderis activated. Refer toMyKeyin
theLocks and Securitychapter for more
information.
COULD NOT
PROGRAM
INTEGRATED KEYDisplayed when an attempt is made to
program a spare key using two existing
MyKeys. Refer toMyKeyin theLocks and
Securitychapter for more information.
COULD NOT
PROGRAM KEYDisplayed when an attempt is made to
program a spare key using two existing
MyKeys. Refer toMyKeyin theLocks and
Securitychapter for more information.
Instrument Cluster
43
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Park Aid Messages Action / Description
CHECK PARK AIDDisplayed when the transmission is in R
(Reverse) and the park aid is disabled.
CHECK REAR PARK
AIDDisplayed when the transmission is in R
(Reverse) and the park aid is disabled.
REAR PARK AID ON
OFFDisplays the rear park aid status.
Passenger Sensing
System MessageAction / Description
REMOVE OBJECTS
NEAR PASSENGER
SEATDisplayed when objects are by the passenger
seat. After the objects are moved away from
the seat, if the warning stays on or continues
to come on contact your authorized dealer as
soon as possible.
Tire Messages Action / Description
LOW TIRE
PRESSUREDisplayed when one or more tires on your
vehicle have low tire pressure. Refer to
Inflating Your Tiresin theTires, Wheels and
Loadingchapter.
TIRE PRESSURE
MONITOR FAULTDisplayed when the Tire Pressure Monitoring
System is malfunctioning. If the warning stays
on or continues to come on, have the system
inspected by your authorized dealer.
TIRE PRESSURE
SENSOR FAULTDisplayed when a tire pressure sensor is
malfunctioning, or your spare tire is in use.
For more information on how the system
operates under these conditions, refer to
Understanding Your Tire Pressure
Monitoring System (TPMS)in theTires,
Wheels and Loadingchapter. If the warning
stays on or continues to come on, contact your
authorized dealer as soon as possible.
Instrument Cluster
44
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

MYFORD™ SYSTEM (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Vol (Power/Volume):Press to turn the system on/off and turn to
increase/decrease the volume levels.
Maneuvering the screens:When using your system, information will
appear in the display screen. You can make selections and maneuver the
screens a few different ways:
1. Use the soft keys beneath the screen to select the function directly
above them.
2. You can press some of the hard buttons to access their respective
menus.
Entertainment Systems
45
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

3. Use the center control in the
same manner you would a joystick
— press
/to move up/down
in menus or press
/to move
out of or into a menu. When these
options are available, icons will
appear on the screen.
4. Press OK on the center control to make or confirm selections.
Note:You can also use the OK and
arrow buttons on the right side of
your steering wheel to make the
same selections you would with the
center control.
Setting the Clock
•Press CLOCK.
•Use the center controls to move
between the options and to
increase/decrease.
Note:You can also access this screen by pressing: Menu > Clock.
Language setting
To access/adjust the language setting, press MENU > Display Settings >
Language.
Listening to music
Radio
Press RADIO to access the radio screen. From this screen you can:
•Press RADIO repeatedly to cycle through AM, AM2-AST, FM1, FM2,
FM3-AST frequency bands.
•Select the Tune soft key then scroll through the frequencies by
using
/or the tune knob.
Entertainment Systems
46
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

•Select the Mute soft key to mute the playing media. Press again to
return to the playing media.
•Press
/to seek to the previous/next station.
•Select the AST (Autostore) soft key to activate the auto store feature.
Autostore allows you to store the 10 strongest local stations available
from the AM and FM frequency band. Press and hold the AST soft key
and follow the screen prompts. When the search is complete, the
sound will return and the 10 strongest stations will be stored in the
memory presets (and overwrite any stations previously stored in the
AST band).
•To save a station in a memory preset, tune to the desired station.
Press and hold the desired preset. The sound will briefly mute and
then return indicating the station has been saved.
•View and access your saved presets by pressing
/orto
access a list of your saved presets. The display will indicate the preset
# the station was saved to. To exit, wait until the menu times out
(approximately eight seconds) or press the RADIO hard button.
Note:You can also manually store stations in the AST band. When the
AST band is active, simply tune to the desired station and press and hold
a memory preset. The new station will be saved and will override the
previously saved station.
Audio settings
To make adjustments to the sound settings, press MENU > Audio
Settings to access:
•Spd. Comp. Vol.:Scroll to select Speed Compensated Volume and
press OK to enter the menu. This feature automatically adjusts the
system’s volume to compensate for speed and wind noise. You can set
the system between off and +7. Press OK to confirm and close.
•Sound:Press OK to enter and scroll using the center control to select
from Treble, Bass, Middle, Balance, Fade. Use the center controls to
make adjustments and press OK to confirm and close.
Radio options
To access more options in radio mode, press MENU > Radio and select
from:
•Scan:Select to hear a brief sampling of all available radio stations.
•Set Category:Select to choose a specific music category in FM
mode. You can then search for stations only playing this kind of music.
Note:RBDS/RDS text must be turn on before “Set Category” will
appear.
Entertainment Systems
47
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

•RBDS/RDS Text:Select to turn Radio Broadcast Digital Signal text
on to view additional broadcast data.Note:This feature defaults to
off, but it must be turned on in order for you to choose and set a
category. When this feature is activated, all of your text will scroll on
one line. To see all of your text, press the Info soft key.
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
SIRIUSsatellite radio (if equipped)
Press SIRIUS to access the satellite radio screen. From this screen you
can:
•Press SIRIUS repeatedly to cycle
between SAT1, SAT2 and SAT3
presets.
•Select the ‘Direct’ soft key to
enter the channel you desire via
the on 0–9 keypad. Enter in the
number of the desired satellite
radio channel and press Enter for
quick access.
•Select the ‘Info’ soft key to view
additional information about the current channel.
•Press
/to seek to the previous/next channel within the
selected category.
•To save a channel as a preset, acquire the desired channel and then
press and hold the desired memory preset (0–9). A pop-up screen will
confirm when it is saved.
•To view your presets, press
//for a list of your saved
presets. The display will also indicate the presets to which the stations
are saved.
•Select the ‘Replay’ soft key to replay audio on the current channel.
You can replay approximately 45 minutes of audio as long as you have
Entertainment Systems
48
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

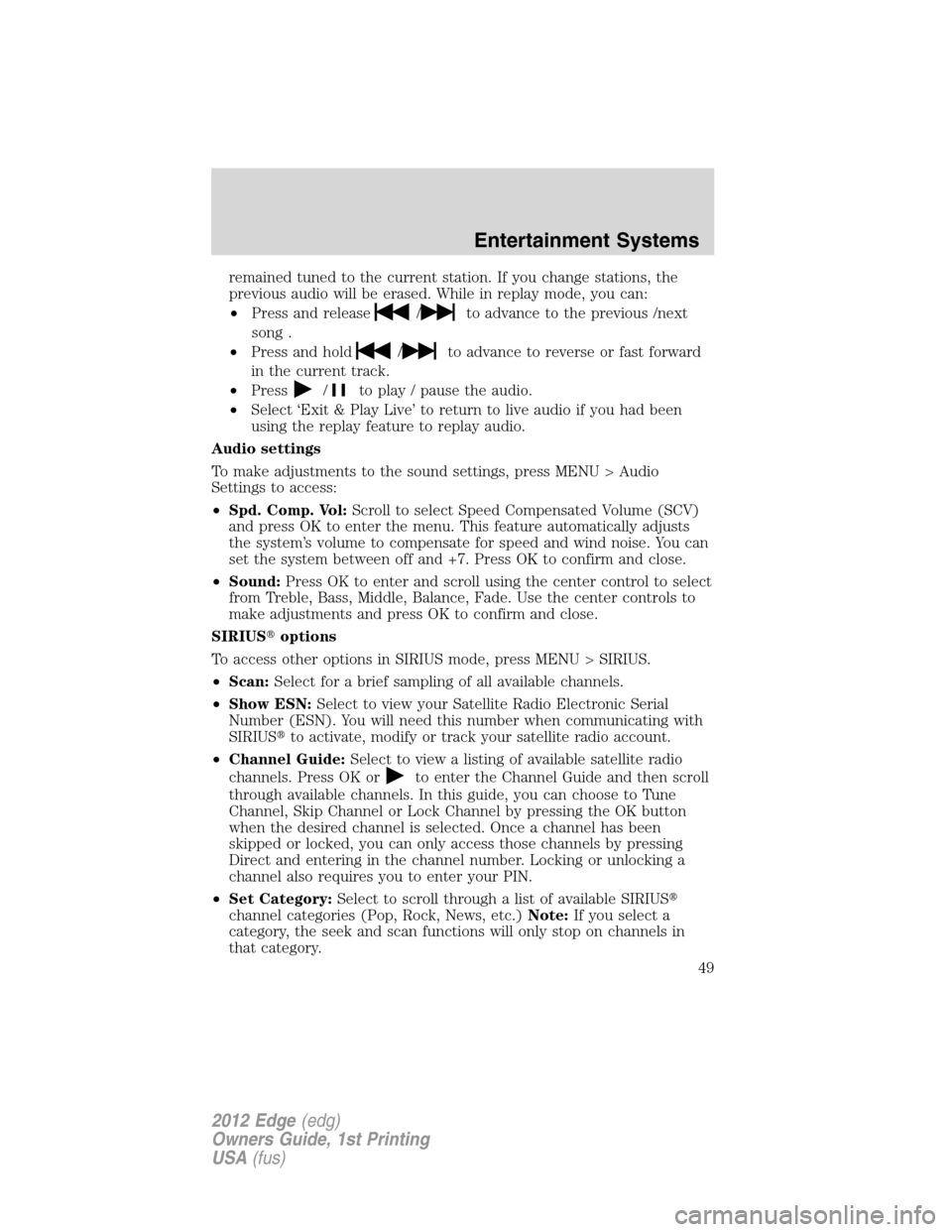

remained tuned to the current station. If you change stations, the
previous audio will be erased. While in replay mode, you can:
•Press and release
/to advance to the previous /next
song .
•Press and hold
/to advance to reverse or fast forward
in the current track.
•Press
/to play / pause the audio.
•Select ‘Exit & Play Live’ to return to live audio if you had been
using the replay feature to replay audio.
Audio settings
To make adjustments to the sound settings, press MENU > Audio
Settings to access:
•Spd. Comp. Vol:Scroll to select Speed Compensated Volume (SCV)
and press OK to enter the menu. This feature automatically adjusts
the system’s volume to compensate for speed and wind noise. You can
set the system between off and +7. Press OK to confirm and close.
•Sound:Press OK to enter and scroll using the center control to select
from Treble, Bass, Middle, Balance, Fade. Use the center controls to
make adjustments and press OK to confirm and close.
SIRIUSoptions
To access other options in SIRIUS mode, press MENU > SIRIUS.
•Scan:Select for a brief sampling of all available channels.
•Show ESN:Select to view your Satellite Radio Electronic Serial
Number (ESN). You will need this number when communicating with
SIRIUSto activate, modify or track your satellite radio account.
•Channel Guide:Select to view a listing of available satellite radio
channels. Press OK or
to enter the Channel Guide and then scroll
through available channels. In this guide, you can choose to Tune
Channel, Skip Channel or Lock Channel by pressing the OK button
when the desired channel is selected. Once a channel has been
skipped or locked, you can only access those channels by pressing
Direct and entering in the channel number. Locking or unlocking a
channel also requires you to enter your PIN.
•Set Category:Select to scroll through a list of available SIRIUS
channel categories (Pop, Rock, News, etc.)Note:If you select a
category, the seek and scan functions will only stop on channels in
that category.
Entertainment Systems
49
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

•Alerts:Select this to create an alert for a particular song or artist or
team. The system will then alert you when it is playing on another
channel. From this screen you can also maintain alerts, enable/disable
and delete alerts from your list. You can save up to 20 alerts. If you
attempt to save an alert and your list is full, the system will prompt
you to delete one.
•Unlock All Stations:Select this and use your PIN to unlock all
previously locked channels (from the parental lock feature).
•Skip No Stations:Select this feature and use to ‘unskip’ all channels
you previously selected to skip.
•Parental Lock (PIN):Select to create a PIN which will allow you to
lock or unlock certain channels.Note:Your initial PIN is 1234.
Satellite radio information (if activated)
SIRIUSsatellite radio service:
SIRIUSsatellite radio is a
subscription based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory installed SIRIUS
satellite radio system includes: hardware and a limited subscription term
which begins on the date of sale or lease of the vehicle. Refer to your
authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit www.sirius.com in
the United States, www.siriuscanada.ca in Canada, or call SIRIUSat
1–888–539–7474.
Satellite radio reception factors
•Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
Entertainment Systems
50
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
