Locks and Security 114
Keys 114
Locks 121
Anti-theft system 136
Seating and Safety Restraints 142
Seating 142
Personal Safety System™ 154
Safety belt system 157
Airbags 169
Child restraints 183
Tires, Wheels and Loading 201
Tire information 203
Tire inflation 206
Tire Pressure Monitoring System (TPMS) 218
Vehicle loading 222
Trailer towing 229
Recreational towing 232
Driving 234
Starting 234
Brakes 241
AdvanceTrac244
Transmission operation 251
Reverse sensing system 257
Rear-view camera system 259
Roadside Emergencies 280
Getting roadside assistance 280
Hazard flasher control 281
Fuel pump shut-off 282
Fuses and relays 282
Changing tires 291
Wheel lug nut torque 297
Jump starting 298
Wrecker towing 302
Table of Contents
2
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 17 of 396
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Heads up display (if equipped):
A red beam of lights will illuminate
on the windshield in certain
instances when using adaptive
cruise control and/or the collision
warning system. It will also
illuminate momentarily when you start your vehicle to make sure the
display works. SeeUsing adaptive cruise controlin theDriving
chapter for more information.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on chime:Sounds when the parking brake is left on and
the vehicle is driven. If the warning stays on after the park brake is off,
contact your authorized dealer as soon as possible.
Instrument Cluster
17
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 21 of 396
Main menu
Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option. Press the left arrow key as
needed to exit back to the main menu.
*Trip1or2
Trip Odometer — shows the accumulated trip distance.
Trip Timer — shows the elapsed trip time. This timer will stop when
the vehicle is turned off and will restart when the vehicle is restarted.
Distance to E — shows the approximate distance the vehicle can travel
before running out of fuel.
Inst Fuel Econ — shows instantaneous fuel usage.
Average Fuel — shows the average distance traveled per unit of fuel
used for a given trip.
Fuel Used — shows the amount of fuel used for a given trip.
Press and hold OK to reset the current trip, distance time, average MPG,
and fuel used.
*Note:Some items are optional and may not appear.
*Information
AWD Gauge. Displays power distribution between the front and rear
wheels. More power to either front or rear wheels will be displayed by
more area filled in. Refer toAll-Wheel Drive (AWD) systemin the
Drivingchapter.
MyKeyDistance (if MyKeyis programmed)
MyKeyInformation (number of MyKeys and admin keys programmed)
Coolant Temperature. The indicator will change colors indicating: blue
for cool, gray for normal and red for hot. If the engine coolant
temperature exceeds the normal range, stop the vehicle as soon as
safely possible, switch off the engine and let the engine cool.
*Note:Some items are optional and may not appear.
Instrument Cluster
21
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 22 of 396
*Settings
Driver Assist Traction Control
Blind Spot
Collision Warning Sensitivity High, Normal or
Low
Chimes (not selectable if using a
MyKey)
Warning (not selectable if using a
MyKey)
Cross Traffic
Rear Park Aid
Trailer Sway
Display Language English, Español or Français
Units Distance Miles and
Gallons or Km
and Liters
Temperature Fahrenheit (°F)
or Celsius (°C)
Convenience Autolamp Delay Off or number of seconds
Compass (if
equipped)Display
Calibrate (if
equipped)HoldOKto
Calibrate
Zone (1–15) (if equipped) See the
diagram below to determine your
magnetic zone.
Determine which magnetic zone you
are in for your geographic location
by referring to the zone map.
1 2 3
4
5
6 7 8 9 101112 13 14 15
Instrument Cluster
22
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 24 of 396
*Settings (cont’d)
MyKey Create MyKey Hold OK to Create MyKey
Traction Control Always On or User Selectable
Max Speed 80 MPH (130 km/h) or Off
Speed Warning 45 mph (75 km/h), 55 mph
(90 km/h), 65 mph (105 km/h) or
Off
Volume Limiter
Clear MyKeys Hold OK to Clear MyKeys
System Reset Hold OK to
Reset System to
Factory DefaultFactory Default
*System Check
Oil Life
Washer Fluid
Doors
Liftgate
Blind spot
Cross Traffic
Brakes
Fuel
The number of warnings will be listed first. All active warnings will
display first if applicable. The system check menu may appear different
based upon equipment options and current vehicle status. Use the
up/down arrow buttons to scroll through the list; press the right arrow
button to display specific information on the highlighted warning.
*Note:Some items are optional and may not appear.
Instrument Cluster
24
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 26 of 396
Main menu
From the main menu screen you can choose from the following
categories:
Display Mode
Trip1&2
Fuel Economy
Settings
Information
Scroll up/down to highlight one of the categories, then press the right
arrow key or OK to enter into that category.
Menu Control:You can choose a
different menu control operation to
suit your needs. In any screen which
shows these category icons (other
than the Main menu screen) and:
•Standard is set– then scrolling up and down will scroll through the
main categories.
•Memory on is set– then scrolling up and down will scroll through the
last selected sub-category/screen within a main category.
To change the Menu Control between Standard or Memory On, refer to
Vehicle and Menu Controlfound in the table under theSettingssection
later in this chapter.
Instrument Cluster
26
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 27 of 396
Display Mode
Press the right arrow on the left steering wheel mounted button when
Display Mode is selected. The boxes in the upper right corner of the
screen indicate that there are multiple screens that you can navigate
through. Each press of the right arrow will navigate to the next screen
until the last screen is reached. The white highlighted box indicates
which of the screens you are currently viewing:
Note:Regardless of display mode chosen, when SST is activated, the
cluster will change to the tachometer if not already selected, and the M
will light up in the shift select indicator and also in the message center.
Refer toAutomatic transmission operationin theDrivingchapter.
Distance to empty (DTE) + Fuel
gauge + Bar tachometer
•Distance to empty (DTE): Shows approximate fuel level before the
fuel tank reaches empty. The value is dynamic and can change (raise
or lower) depending on driving style.
•Fuel gauge: Indicates approximately how much fuel is left in the fuel
tank. The fuel gauge may vary slightly when the vehicle is in motion
or on a grade. When the fuel level becomes low (50 miles [80 km] to
empty), the level indicator will change to amber. When the fuel level
becomes critically low (0 miles [0 km] to empty), the level indicator
will change to red.
Note:When a MyKeyis in use, low fuel warnings will display earlier
.
•Bar tachometer: Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the
scale may damage the engine.
Note:You can also choose to have only the fuel gauge show in this
mode. Refer toDisplay>Gauge Displayfound in the table under the
Settingssection later in this chapter.
+
Instrument Cluster
27
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 32 of 396
For more information refer toEssentials of good fuel economyin the
Maintenance and Specificationschapter.

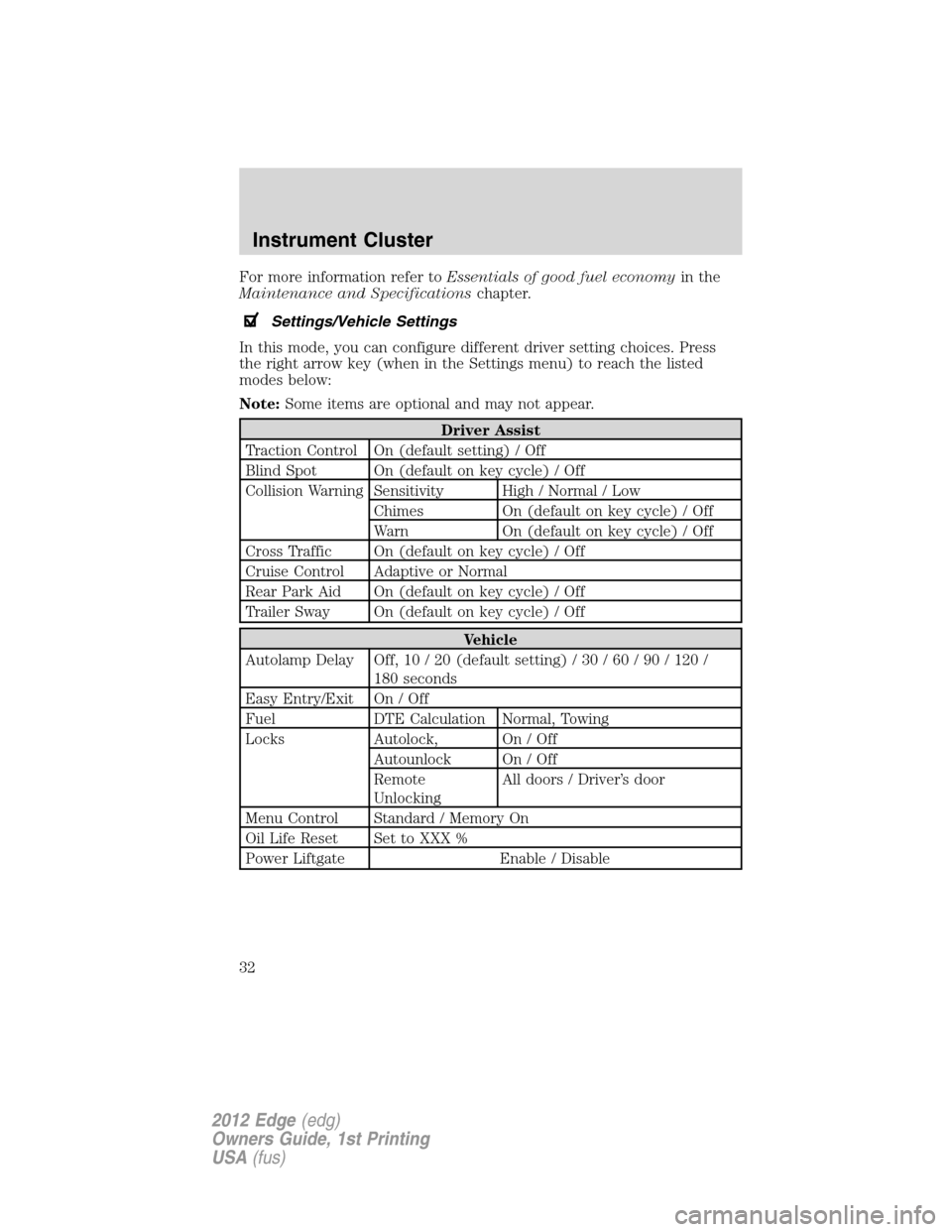

Settings/Vehicle Settings
In this mode, you can configure different driver setting choices. Press
the right arrow key (when in the Settings menu) to reach the listed
modes below:
Note:Some items are optional and may not appear.
Driver Assist
Traction Control On (default setting) / Off
Blind Spot On (default on key cycle) / Off
Collision Warning Sensitivity High / Normal / Low
Chimes On (default on key cycle) / Off
Warn On (default on key cycle) / Off
Cross Traffic On (default on key cycle) / Off
Cruise Control Adaptive or Normal
Rear Park Aid On (default on key cycle) / Off
Trailer Sway On (default on key cycle) / Off
Vehicle
Autolamp Delay Off, 10 / 20 (default setting) / 30 / 60 / 90 / 120 /
180 seconds
Easy Entry/Exit On / Off
Fuel DTE Calculation Normal, Towing
Locks Autolock, On / Off
Autounlock On / Off
Remote
UnlockingAll doors / Driver’s door
Menu Control Standard / Memory On
Oil Life Reset Set to XXX %
Power Liftgate Enable / Disable
Instrument Cluster
32
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 33 of 396
Vehicle
Remote StartClimate Control
(using this
feature allows
you to select
different climate
control modes
when the vehicle
is started using
the remote start
feature)Heater – A/C Auto / Last
Settings
Front Defrost Auto / Off
Rear Defrost Auto / Off
Driver Seat Auto / Off
Passenger Seat Auto / Off
Duration 5 / 10 /15 minutes
Quiet Start On / Off
System Enable / Disable
WipersCourtesy Wipe On / Off
Rain Sensing On / Off
Reverse Wiper On / Off
*MyKey
Create MyKey Press and hold OK to create MyKey
Traction Control Always On / User Selectable
Max Speed Set to 80 MPH (130 km/h) / Off
Speed Warning 45 mph (72 km/h), 55 mph (89 km/h), 65 mph
(105 km/h), Off
Volume Limiter On / Off
Clear MyKeys Hold OK to Clear All MyKeys
*Some MyKey items will only appear if a MyKey is set.
Display
Gauge Display Fuel Gauge / Fuel + Tach
Trip Display Standard / Enhanced
Language
English / Español / Français
Instrument Cluster
33
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 34 of 396
Units
Distance Miles & Gal / Km & Liters
Temperature Fahrenheit (°F) / Celsius (°C)
Restore Defaults
Hold OK to Restore Settings to Factory Defaults
Information
In this mode, you can view different vehicle system information and
perform a system check.
Warnings
XX Warnings Displays the number of warnings that need
immediate attention in amber. You can only view the
warnings form the System Check menu. View them
immediately by pressing OK and then OK again to
enter system check. Use the up/down arrows to
scroll through the warnings.
MyKey
Admin Keys (Number of admin keys)
MyKeys (Number of MyKeys programmed)
MyKey Miles (km) (Distance traveled using a programmed MyKey)
System Check*
Warnings display first (only displays if warnings are present)
Oil Life
Wash Fluid
Doors
Liftgate
Blind spot
Cross Traffic
Brakes
Fuel (distance to empty)
*Some items will only display during a system check if a problem has
been detected.
Instrument Cluster
34
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
