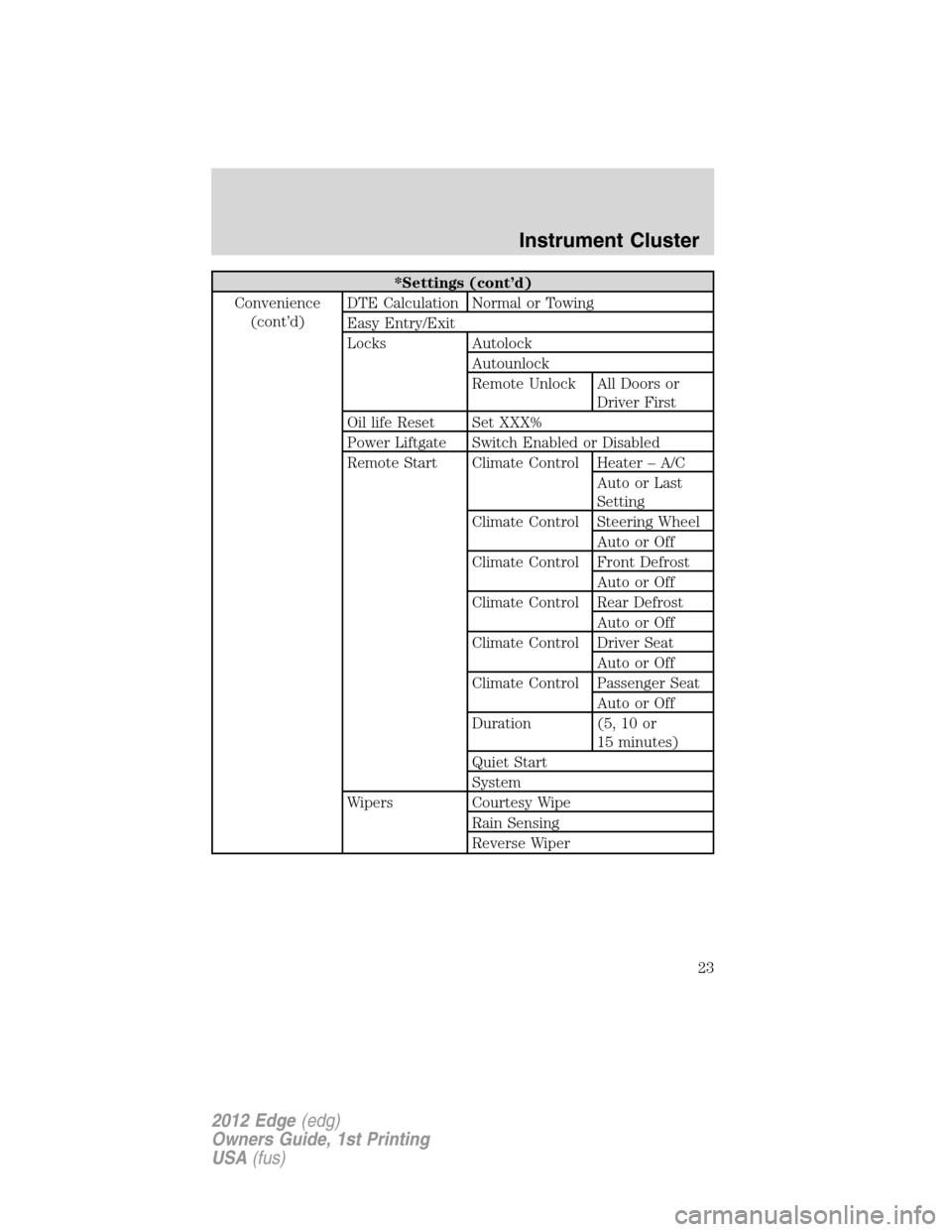

*Settings (cont’d)
Convenience
(cont’d)DTE Calculation Normal or Towing
Easy Entry/Exit
Locks Autolock
Autounlock
Remote Unlock All Doors or
Driver First
Oil life Reset Set XXX%
Power Liftgate Switch Enabled or Disabled
Remote Start Climate Control Heater – A/C
Auto or Last
Setting
Climate Control Steering Wheel
AutoorOff
Climate Control Front Defrost
AutoorOff
Climate Control Rear Defrost
AutoorOff
Climate Control Driver Seat
AutoorOff
Climate Control Passenger Seat
AutoorOff
Duration (5, 10 or
15 minutes)
Quiet Start
System
Wipers Courtesy Wipe
Rain Sensing
Reverse Wiper
Instrument Cluster
23
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Vehicle
Remote StartClimate Control
(using this
feature allows
you to select
different climate
control modes
when the vehicle
is started using
the remote start
feature)Heater – A/C Auto / Last
Settings
Front Defrost Auto / Off
Rear Defrost Auto / Off
Driver Seat Auto / Off
Passenger Seat Auto / Off
Duration 5 / 10 /15 minutes
Quiet Start On / Off
System Enable / Disable
WipersCourtesy Wipe On / Off
Rain Sensing On / Off
Reverse Wiper On / Off
*MyKey
Create MyKey Press and hold OK to create MyKey
Traction Control Always On / User Selectable
Max Speed Set to 80 MPH (130 km/h) / Off
Speed Warning 45 mph (72 km/h), 55 mph (89 km/h), 65 mph
(105 km/h), Off
Volume Limiter On / Off
Clear MyKeys Hold OK to Clear All MyKeys
*Some MyKey items will only appear if a MyKey is set.
Display
Gauge Display Fuel Gauge / Fuel + Tach
Trip Display Standard / Enhanced
Language
English / Español / Français
Instrument Cluster
33
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

REMOTE START CLIMATE OPERATION (IF EQUIPPED)
The climate control system will condition the cabin temperature during
remote start based on the outside temperature. Engine idle may increase
to help with adjusting the cabin temperature.
Note:No climate control adjustments will be recognized during remote
start operation and none of the climate function indicators will be
illuminated while the vehicle is in remote start. Once the ignition is
cycled to the on position, the climate control system will return to the
previous settings (last ignition-on cycle) and adjustments can be made
normally. If the previous setting was off, the climate control system will
turn off.
If you previously had any of the following activated: heated seats (if
equipped), cooled seats (if equipped), heated mirrors (if equipped), or
rear defrost, they will not return to their previous settings (on) when the
ignition is turned on and will need to be re-activated if desired.
For more information on remote start climate settings and options, refer
toMessage Centerin theInstrument Clusterchapter.
Manual climate control
For hot weather conditions:
•The climate control system will be set to MAX A/C.
For cold weather conditions:
•The climate control system will be set to provide maximum heating
in
(floor/defrost) mode.
•Rear defrost/heated mirrors (if equipped) will be activated.
For moderate weather conditions:
•The interior cabin will be heated, cooled or off, based upon the
previous operating state (last ignition-on cycle).
•Rear defrost/heated mirrors (if equipped) will be deactivated.
Automatic climate control
For hot weather conditions:
•The interior cabin will be set to 72°F (22°C).
•The cooled seats (if equipped and if the feature is selected to AUTO
in the message center) will be set to high.
Climate Controls
67
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

KEYS
Integrated keyhead transmitters (IKTs) (if equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters
(IKTs). The key blade is used to
start the vehicle and unlock/lock the
driver’s door from outside the
vehicle. The transmitter portion
functions as the remote entry
transmitter.
Your IKTs are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose one or both of your IKTs,
replacements are available through your authorized dealer. Standard
SecuriLockkeys without remote entry transmitter functionality can also
be purchased from your authorized dealer if desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLockpassive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security label that
provides important vehicle key cut
information. It is recommended that
you keep the label in a safe place
for future reference.
Intelligent Access Key (IA key) (if equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote start system. The IA key
must be in the vehicle to activate
the push button start system.
CAUTIONTO BE REMOVED
BY CUSTOMER ONLY
Locks and Security
114
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•If equipped, any of the following: parking aid, blind spot information
system (BLIS) with cross traffic alert and forward collision warning
systems cannot be turned off.
Optional settings – these settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the audio system display when
attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKeyuser will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKeyon one of the keys programmed to the vehicle,
insert the key that you want to make a MyKeyinto the ignition. For
vehicles equipped with push button start, put the intelligent access key
in the backup slot with brand logo facing up; refer toStartingin the
Drivingchapter for the location of the backup slot. Turn the ignition on.
Use the message center buttons to do the following:
1. Get into main menu, select SETTINGS then MYKEY by pressing OK
button or the right arrow button.
2. Press OK to select CREATE MYKEY.
3. Hold the OK button as prompted until you see a message that the key
is restricted.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyOptional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith remote start systemssection.
Note:All MyKeyscan be cleared within the same key cycle that it was
created, otherwise an admin key is required to clear the MyKey
programming. To clear all MyKeysgo to Step 2 in theClear MyKey
section.
Locks and Security
116
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Programming MyKeyoptional settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Get into main menu, select SETTINGS then MYKEY by pressing the
OK button or the right arrow button.
2. Use the up and down arrow buttons to get to any optional feature.
3. Press the right arrow button to bring up settings of each item.
4. Press OK button or right arrow button to make your choice.
Clear MyKey
To reset all MyKeysas admin keys do the following:
1. At the main menu screen select SETTINGS then MYKEY by pressing
OK or the right arrow key.
2. Press the down arrow key to get to CLEAR MYKEYS.
3. Hold OK until you see ALL MYKEYS CLEARED.
Check MyKeysystem status
The vehicle’s message center information menu will provide the status of
the following MyKeyparameters:
•MYKEY MILES (km) — This odometer only tracks distance when a
MyKeyis used. If distance does not accumulate as expected, then
the MyKeyis not being used by the intended user. The only way to
reset this odometer to zero is by clearing MyKey. If this odometer is
lower than the last time you checked, then the MyKeysystem has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeysare
programmed to the vehicle. Can be used to detect deletion of a
MyKey.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle.
Refer toMessage centerin theInstrument Clusterchapter for MyKey
system warnings displays.
Using MyKeywith remote start systems
MyKeyis not compatible with non Ford-approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford-approved remote start system.
Locks and Security
117
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

The following information MAY help customers who choose to use a non
Ford-approved remote start system. The actions provided below do NOT
make MyKeycompatible with non Ford-approved remote start systems,
but it MAY help you to retain some MyKeyfunctions.
Vehicles equipped with traditional keys:
When using a non Ford-approved remote start system, the default
settings may recognize the remote start system as an additional admin
key with its associated privileges. This makes it NOT compatible with
MyKey. The following action may help you to retain some MyKey
functions:
1. Restart the engine when you insert a key into the ignition cylinder.
2. In addition to the key that you have already programmed as a
MyKey, owners of vehicles equipped with traditional keys may want to
program the non Ford-approved remote start system as a MyKeyif the
remote start fob is used by the MyKey driver.
To program a non Ford-approved remote start system as MyKey,dothe
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a non Ford-approved remote start fob.
3. Follow steps 1-4 in theCreate a MyKeysection.
Vehicles equipped with an intelligent access key (push button
start)
•It is not possible to program any remote start system as MyKeyon
vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any
other admin key. When the vehicle is started using remote start, the
system will stall the engine when you either enter the vehicle or shift
the vehicle into gear. Prior to the engine stall, the vehicle will have
administrative privileges. When you restart the engine, the vehicle will
identify the user as an admin or MyKeydrive depending on the
settings of the actual key used to start the vehicle.

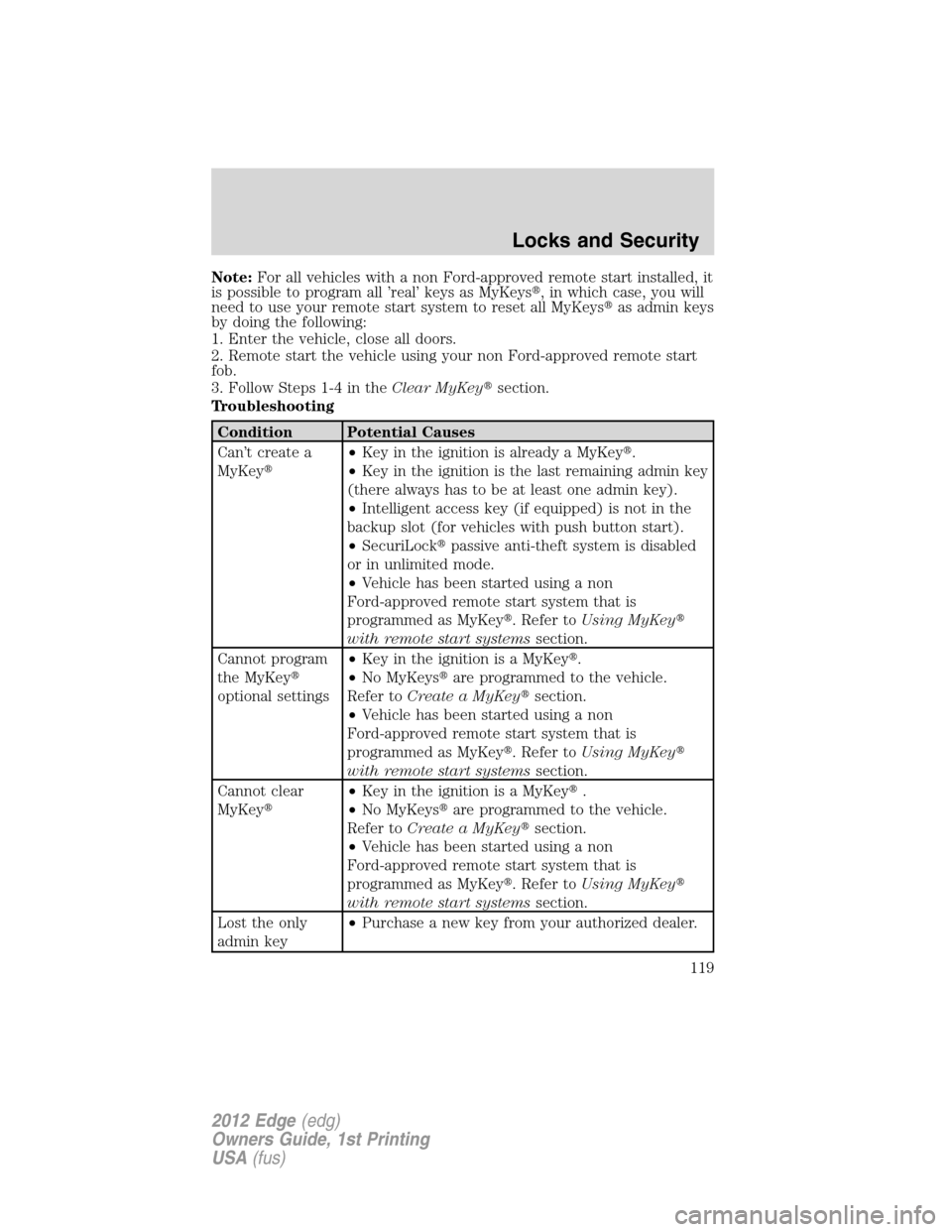

Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus will include the non Ford-approved remote start system as
an additional key in the total count. See theCheck MyKeysystem
statussection.
Locks and Security
118
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Note:For all vehicles with a non Ford-approved remote start installed, it
is possible to program all ’real’ keys as MyKeys, in which case, you will
need to use your remote start system to reset all MyKeysas admin keys
by doing the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your non Ford-approved remote start
fob.
3. Follow Steps 1-4 in theClear MyKeysection.
Troubleshooting
Condition Potential Causes
Can’t create a
MyKey•Key in the ignition is already a MyKey.
•Key in the ignition is the last remaining admin key
(there always has to be at least one admin key).
•Intelligent access key (if equipped) is not in the
backup slot (for vehicles with push button start).
•SecuriLockpassive anti-theft system is disabled
or in unlimited mode.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey. Refer toUsing MyKey
with remote start systemssection.
Cannot program
the MyKey
optional settings•Key in the ignition is a MyKey.
•No MyKeysare programmed to the vehicle.
Refer toCreate a MyKeysection.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey. Refer toUsing MyKey
with remote start systemssection.
Cannot clear
MyKey•Key in the ignition is a MyKey.
•No MyKeysare programmed to the vehicle.
Refer toCreate a MyKeysection.
•Vehicle has been started using a non
Ford-approved remote start system that is
programmed as MyKey. Refer toUsing MyKey
with remote start systemssection.
Lost the only
admin key•Purchase a new key from your authorized dealer.
Locks and Security
119
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Condition Potential Causes
Lost any key•For programming spare keys, refer to the
Programming spare keyssection in this chapter.
I accidentally
programmed all
keys as MyKeys•Vehicle has a non Ford-approved remote start
system that is recognized as an admin key. Refer to
theUsing MyKeywith remote start systems
section to reset all MyKeysas admin keys.
No MyKey
function•An admin intelligent access key is present at a
push-and-start vehicle.
•No MyKeysare programmed to the vehicle.
Refer toCreate a MyKeysection.
•Vehicle has been started using a non
Ford-approved remote start system (as an admin
key) then a MyKeyis inserted without restarting
the engine.
MyKey
programmed
total includes
one additional
key•Unknown key has been programmed to the
vehicle as a MyKey.
•Vehicle is equipped with a non Ford-approved
remote start system. Refer toUsing MyKeywith
remote start systemssection.
Admin keys
programmed
total includes
one additional
key•Unknown key has been programmed to the
vehicle as admin key.
•Vehicle is equipped with a non Ford-approved
remote start system. Refer toUsing MyKeywith
remote start systemssection.
MyKeydistance
does not
accumulate•MyKeyis not being used by the intended user.
•MyKeysystem has been recently cleared.
•Vehicles has been remote started using a non
Ford-approved remote start system (as if an admin
key) then a MyKeyis inserted without recycling
the MyKeyin ignition.
Locks and Security
120
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

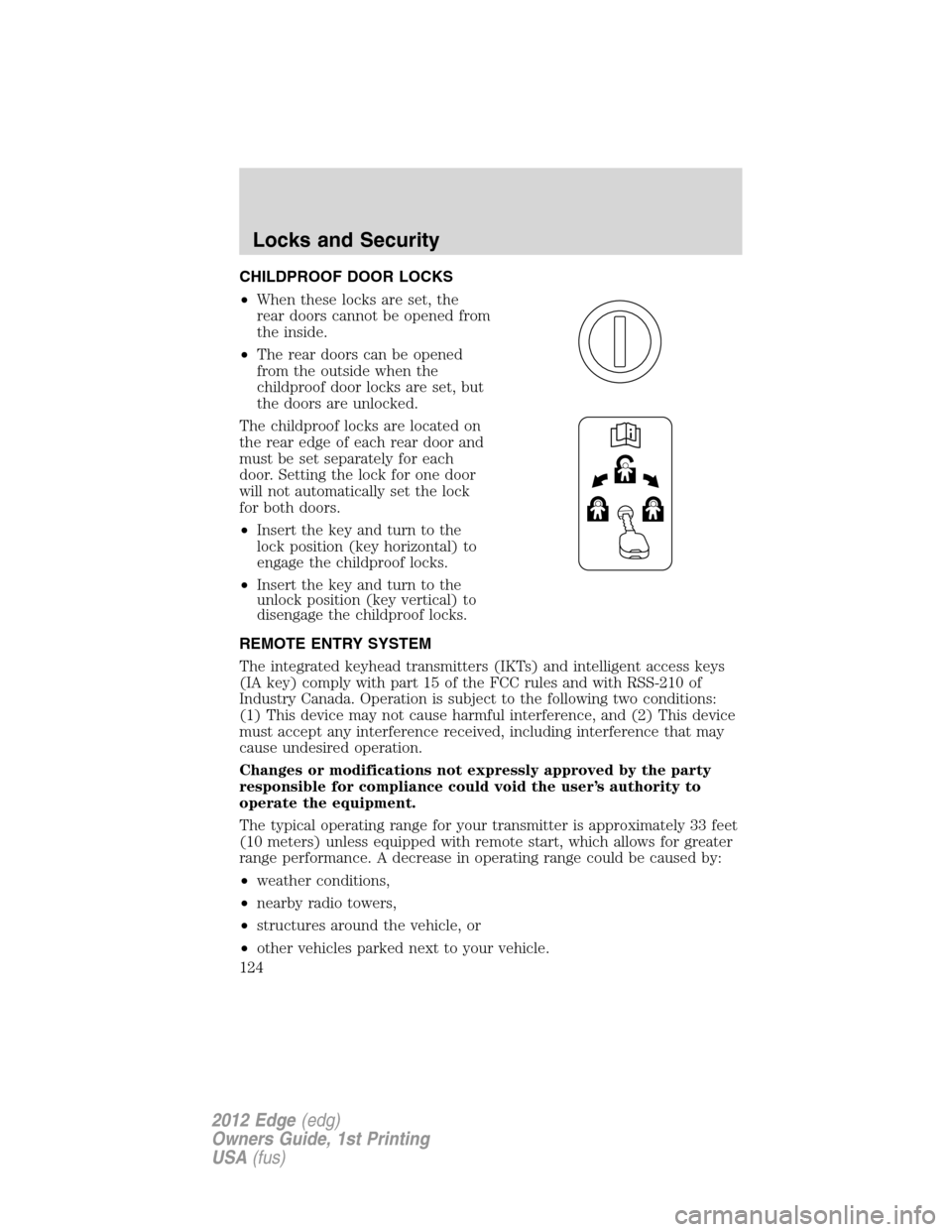

CHILDPROOF DOOR LOCKS
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the
childproof door locks are set, but
the doors are unlocked.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to
disengage the childproof locks.
REMOTE ENTRY SYSTEM
The integrated keyhead transmitters (IKTs) and intelligent access keys
(IA key) comply with part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters) unless equipped with remote start, which allows for greater
range performance. A decrease in operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
Locks and Security
124
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
