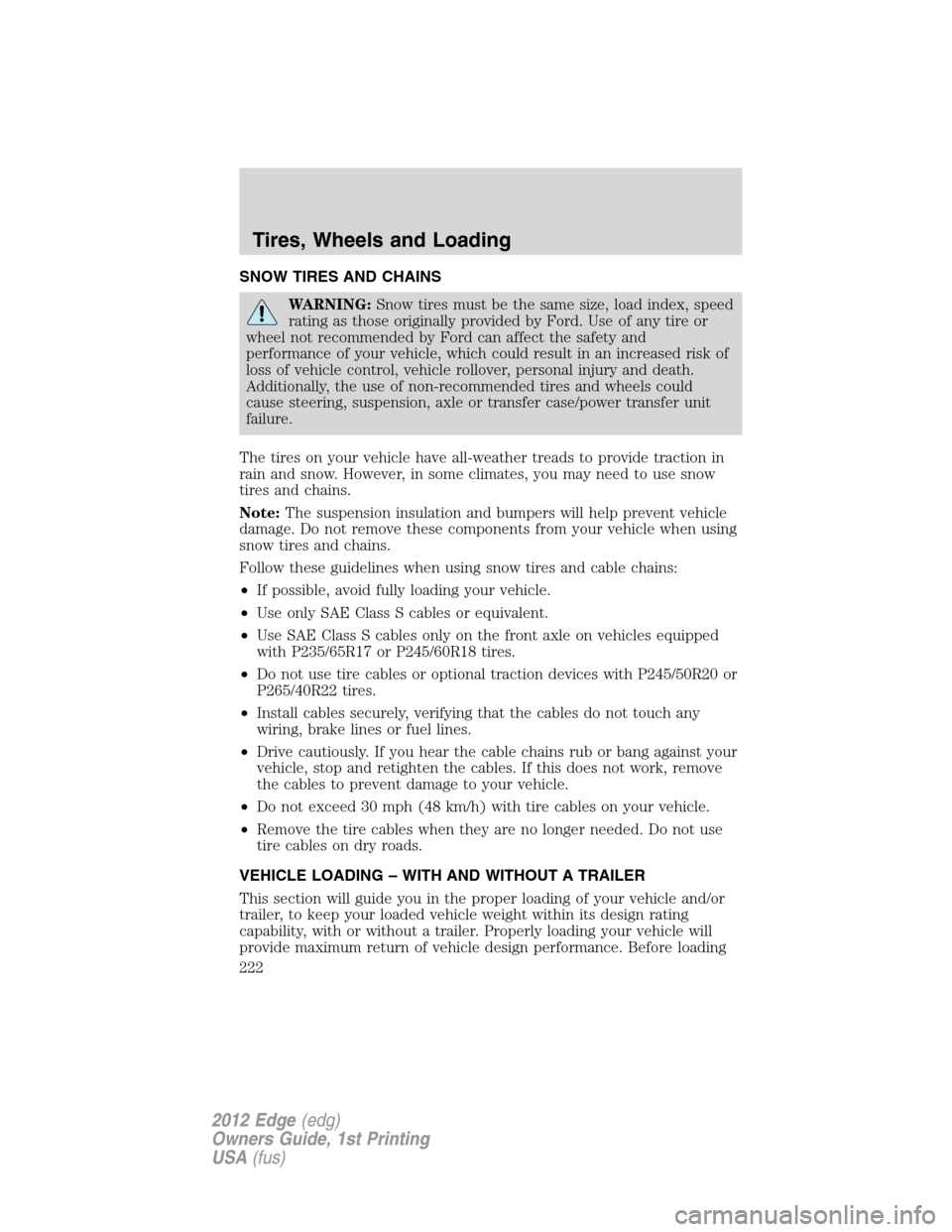

Page 222 of 396
SNOW TIRES AND CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and
performance of your vehicle, which could result in an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
Additionally, the use of non-recommended tires and wheels could
cause steering, suspension, axle or transfer case/power transfer unit
failure.
The tires on your vehicle have all-weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains.
Note:The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when using
snow tires and chains.
Follow these guidelines when using snow tires and cable chains:
•If possible, avoid fully loading your vehicle.
•Use only SAE Class S cables or equivalent.
•Use SAE Class S cables only on the front axle on vehicles equipped
with P235/65R17 or P245/60R18 tires.
•Do not use tire cables or optional traction devices with P245/50R20 or
P265/40R22 tires.
•Install cables securely, verifying that the cables do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the cable chains rub or bang against your
vehicle, stop and retighten the cables. If this does not work, remove
the cables to prevent damage to your vehicle.
•Do not exceed 30 mph (48 km/h) with tire cables on your vehicle.
•Remove the tire cables when they are no longer needed. Do not use
tire cables on dry roads.
VEHICLE LOADING – WITH AND WITHOUT A TRAILER
This section will guide you in the proper loading of your vehicle and/or
trailer, to keep your loaded vehicle weight within its design rating
capability, with or without a trailer. Properly loading your vehicle will
provide maximum return of vehicle design performance. Before loading
Tires, Wheels and Loading
222
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 278 of 396
Descend a hill in the same gear you
would use to climb up the hill to
avoid excessive brake application
and brake overheating. Do not
descend in neutral; instead,
disengage overdrive or manually
shift to a lower gear. When
descending a steep hill, avoid
sudden hard braking as you could
lose control. The front wheels have
to be turning in order to steer the
vehicle.
Your vehicle has anti-lock brakes, therefore apply the brakes steadily. Do
not “pump” the brakes.
Driving on snow and ice
WARNING:If you are driving in slippery conditions that require
tire chains or cables, then it is critical that you drive cautiously.
Keep speeds down, allow for longer stopping distances and avoid
aggressive steering to reduce the chances of a loss of vehicle control
which can lead to serious injury or death. If the rear end of the vehicle
slides while cornering, steer in the direction of the slide until you
regain control of the vehicle.
Note:Excessive tire slippage can cause transmission damage.
AWD vehicles have advantages over 2WD vehicles in snow and ice but
can skid like any other vehicle.
Should you start to slide while driving on snowy or icy roads, turn the
steering wheel in the direction of the slide until you regain control.
Avoid sudden applications of power and quick changes of direction on
snow and ice. Apply the accelerator slowly and steadily when starting
from a full stop.
Avoid sudden braking as well. Although an AWD vehicle may accelerate
better than a two-wheel drive vehicle in snow and ice, it won’t stop any
faster, because as in other vehicles, braking occurs at all four wheels. Do
not become overconfident as to road conditions.
Make sure you allow sufficient distance between you and other vehicles
for stopping. Drive slower than usual and consider using one of the lower
gears. In emergency stopping situations, apply the brake steadily. Since
your vehicle is equipped with a four wheel anti-lock brake system (ABS),
Driving
278
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

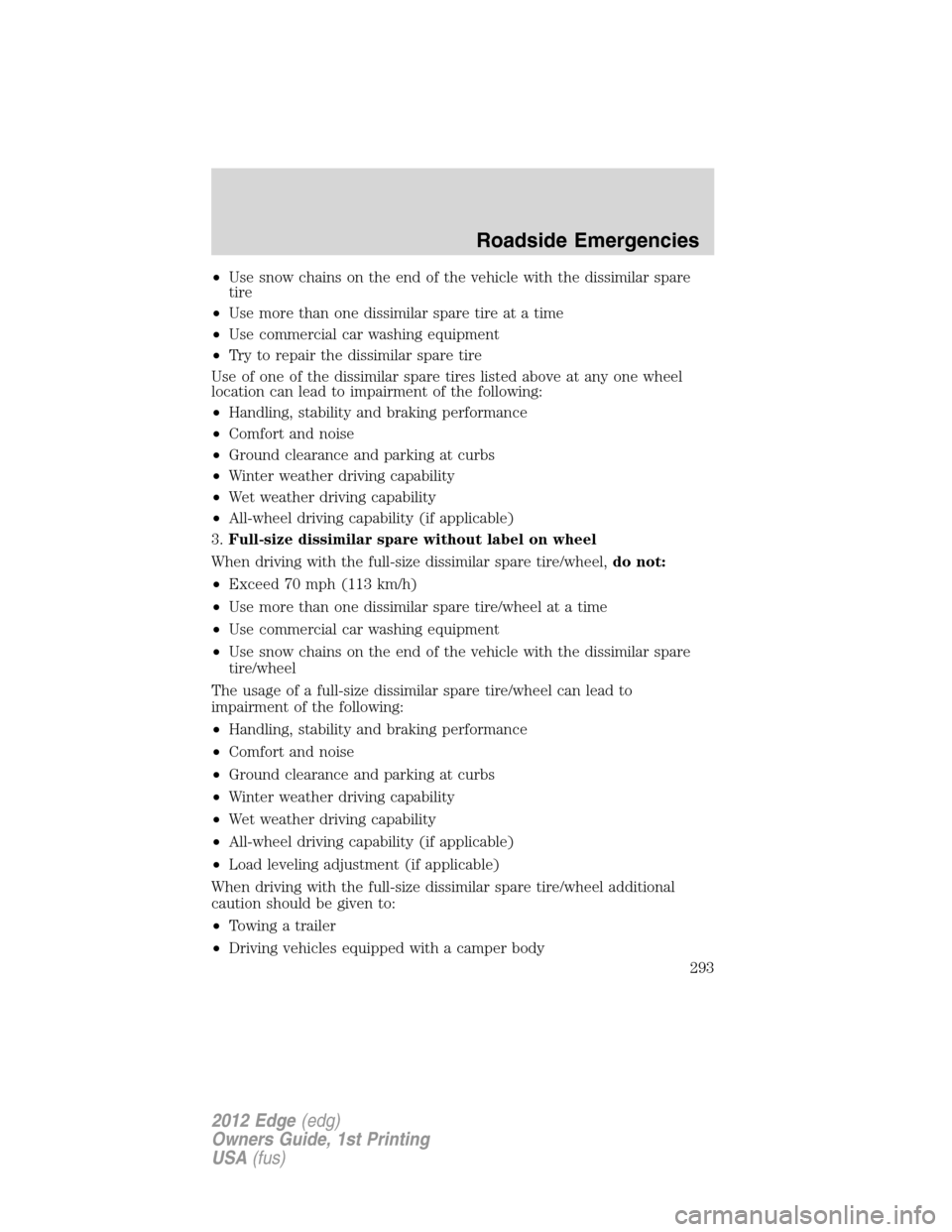

Page 293 of 396
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
Roadside Emergencies
293
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
Page 395 of 396
front seats .......................144, 147
memory seat ...................128, 148
Second-row power fold seat ....151
SecuriCode keyless entry
system ........................................134
SecuriLock passive anti-theft
system ........................................136
Servicing your vehicle ..............319
Setting the clock .........................46
SOS Post Crash Alert ...............183
Spare tire (see Changing
the Tire) ....................................294
Spark plugs,
specifications .....................355, 360
Specification chart,
lubricants ...................................356
Speed control ..............................89
Starting your vehicle ........234–236
jump starting ..........................298
push button start system .......237
Steering wheel
controls ......................................98
tilting .........................................82
T
Tilt steering wheel ......................82
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....218
Tires ...........................203–205, 291
alignment ................................212
care ..........................................208
changing ..........................291, 294
checking the pressure ............208
inflating ...................................206
label .........................................217replacing ..................................209
rotating ....................................212
safety practices .......................211
sidewall information ...............213
snow tires and chains ............222
spare tire .........................292, 294
terminology .............................205
tire grades ...............................204
treadwear ........................204, 208
Towing .......................................229
recreational towing .................232
trailer towing ..........................229
wrecker ....................................302
Transmission .............................251
brake-shift interlock (BSI) ....250
fluid, checking and adding
(automatic) .....................349, 352
fluid, refill capacities ..............356
lubricant specifications ..........356
Turn signal ..................................73
U
Universal garage door
opener ........................................101
USB port ......................................55
V
Vehicle Identification Number
(VIN) ..........................................362
Vehicle loading ..........................222
Ventilating your vehicle ...........239
W
Warning lights (see Lights) .......12
Washer fluid ..............................323
Water, Driving through .............279
Index
395
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
