Page 7 of 451
Essential Towing Checks..........................230
Transporting the Vehicle...........................232
Towing the Vehicle on Four Wheels - 6-Speed Automatic Transmission -
6F35..............................................................232
Towing the Vehicle on Four Wheels - 6-Speed Automatic Transmission -
6F50/6F55 .................................................
233
Driving Hints
Breaking-In.....................................................235
Economical Driving.....................................235
Cold Weather Precautions
.......................235
Driving Through Water...............................235
Floor Mats.......................................................236
Roadside Emergencies
Roadside Assistance
..................................238
Hazard Warning Flashers.........................239
Fuel Shutoff...................................................239
Jump Starting the Vehicle
........................240
Post-Crash Alert System..........................242
Customer Assistance
Getting the Services You Need...............243
In California (U.S. Only)............................244
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).....................245
Utilizing the Mediation/Arbitration Program (Canada Only).......................246
Getting Assistance Outside the U.S. and Canada........................................................246
Ordering Additional Owner's Literature.....................................................247
Reporting Safety Defects (U.S. Only)............................................................248
Reporting Safety Defects (Canada Only)............................................................248
Fuses
Fuse Specification Chart..........................250
Changing a Fuse..........................................260 Maintenance
General Information....................................261
Opening and Closing the Hood
...............261
Under Hood Overview - 2.0L EcoBoost™................................................263
Under Hood Overview - 2.7L EcoBoost™...............................................264
Under Hood Overview - 3.5L
...................265
Engine Oil Dipstick - 2.0L EcoBoost™...............................................266
Engine Oil Dipstick - 2.7L EcoBoost™/ 3.5L...............................................................266
Engine Oil Check..........................................266
Oil Change Indicator Reset.......................267
Engine Coolant Check................................267
Automatic Transmission Fluid Check - 2.0L EcoBoost™
......................................270
Automatic Transmission Fluid Check - 2.7L EcoBoost™/3.5L
..............................271
Brake Fluid Check.........................................272
Power Steering Fluid Check.....................273
Washer Fluid Check
.....................................273
Fuel Filter
.........................................................273
Changing the 12V Battery
.........................274
Checking the Wiper Blades......................275
Changing the Wiper Blades.....................275
Adjusting the Headlamps.........................276
Removing a Headlamp..............................278
Changing a Bulb...........................................278
Bulb Specification Chart..........................280
Changing the Engine Air Filter.................282
Vehicle Care
General Information
...................................283
Cleaning Products
.......................................283
Cleaning the Exterior..................................283
Waxing.............................................................284
Cleaning the Engine....................................285
Cleaning the Windows and Wiper Blades..........................................................285
Cleaning the Interior...................................286
4
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Table of Contents

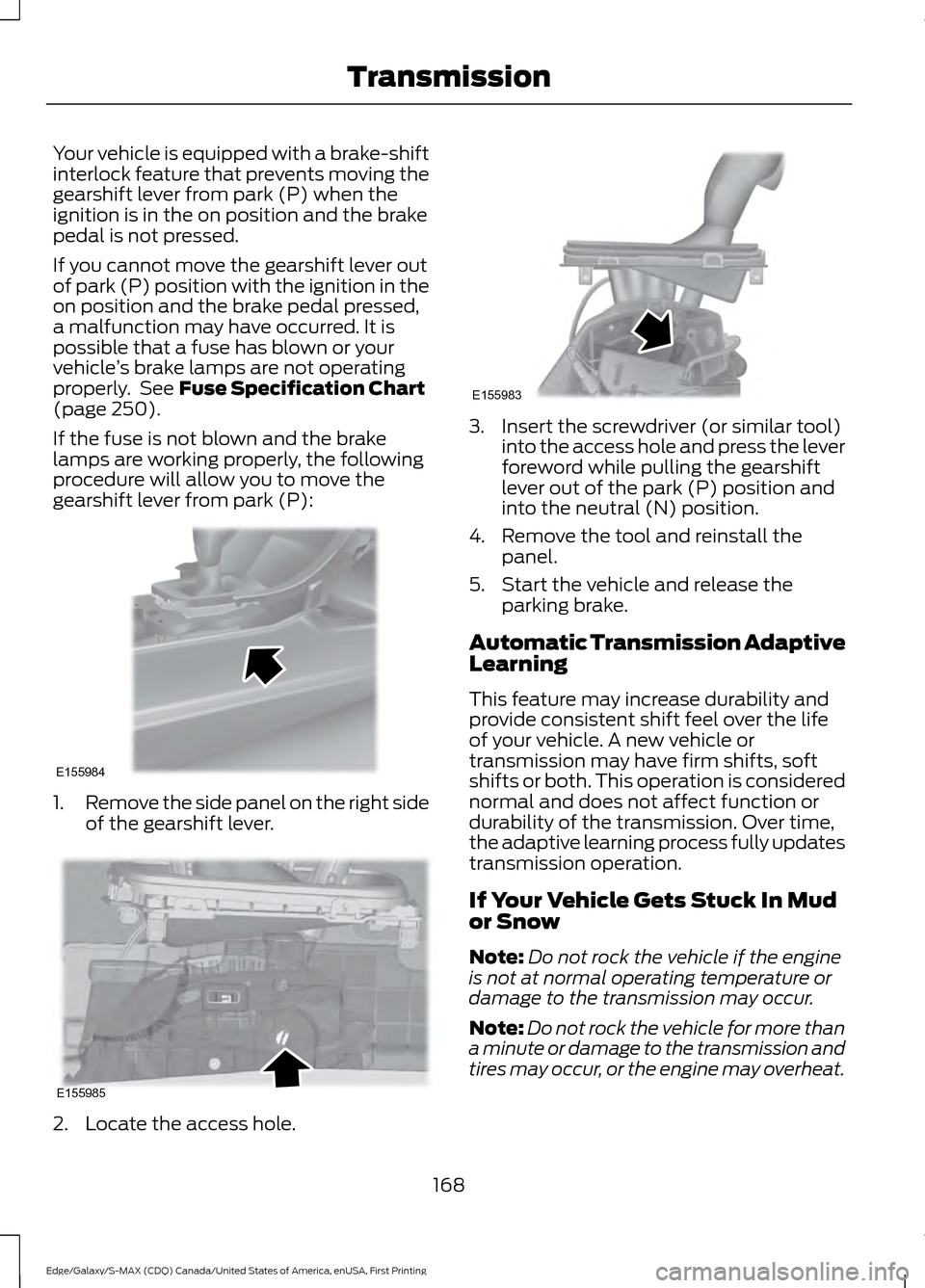

Page 171 of 451
Your vehicle is equipped with a brake-shift
interlock feature that prevents moving the
gearshift lever from park (P) when the
ignition is in the on position and the brake
pedal is not pressed.
If you cannot move the gearshift lever out
of park (P) position with the ignition in the
on position and the brake pedal pressed,
a malfunction may have occurred. It is
possible that a fuse has blown or your
vehicle
’s brake lamps are not operating
properly. See Fuse Specification Chart
(page 250).
If the fuse is not blown and the brake
lamps are working properly, the following
procedure will allow you to move the
gearshift lever from park (P): 1.
Remove the side panel on the right side
of the gearshift lever. 2. Locate the access hole. 3. Insert the screwdriver (or similar tool)
into the access hole and press the lever
foreword while pulling the gearshift
lever out of the park (P) position and
into the neutral (N) position.
4. Remove the tool and reinstall the panel.
5. Start the vehicle and release the parking brake.
Automatic Transmission Adaptive
Learning
This feature may increase durability and
provide consistent shift feel over the life
of your vehicle. A new vehicle or
transmission may have firm shifts, soft
shifts or both. This operation is considered
normal and does not affect function or
durability of the transmission. Over time,
the adaptive learning process fully updates
transmission operation.
If Your Vehicle Gets Stuck In Mud
or Snow
Note: Do not rock the vehicle if the engine
is not at normal operating temperature or
damage to the transmission may occur.
Note: Do not rock the vehicle for more than
a minute or damage to the transmission and
tires may occur, or the engine may overheat.
168
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing TransmissionE155984 E155985 E155983
Page 253 of 451
FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery before
servicing high-current fuses.
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If the battery has been disconnected and
reconnected, some features will need to
be reset. See Changing the 12V Battery
(page 274).
250
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing FusesE190797
Page 268 of 451
UNDER HOOD OVERVIEW - 3.5L
Engine coolant reservoir. See Engine Coolant Check (page 267).
A
Brake fluid reservoir. See
Brake Fluid Check (page 272).
B
Battery. See
Changing the 12V Battery (page 274).
C
Engine compartment fusebox. See
Fuse Specification Chart (page 250).
D
Air filter assembly. See
Changing the Engine Air Filter (page 282).
E
Automatic transmission fluid dipstick. See
Automatic Transmission Fluid
Check (page 271).
F
Engine oil dipstick. See
Engine Oil Dipstick (page 266).
G
Engine oil filler cap. See
Engine Oil Check (page 266).
H
Windshield washer fluid reservoir. See
Washer Fluid Check (page 273).
I
265
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing MaintenanceIEFGH
ABCD
E223186
Page 441 of 451
Automatic Transmission...........................166
Automatic Transmission Adaptive
Learning............................................................ 168
Brake-Shift Interlock.......................................... 167
If Your Vehicle Gets Stuck In Mud or Snow.................................................................. 168
SelectShift Automatic ™
Transmission................................................... 166
Understanding the Positions of Your Automatic Transmission............................ 166
Automatic Transmission Fluid Check - 2.0L EcoBoost™.......................................270
Automatic Transmission Fluid Check - 2.7L EcoBoost™/3.5L...............................271
Adding Transmission Fluid ............................. 272
Checking the Transmission Fluid Level ........................................................................\
....... 271
Auto-Start-Stop...........................................156 Disabling Auto StartStop................................. 157
Enabling Auto StartStop................................. 156
Autowipers........................................................76
Auxiliary Power Points................................147 110 Volt AC Power Point.................................... 147
12 Volt DC Power Point...................................... 147
Locations................................................................ 147
AWD See: All-Wheel Drive.......................................... 170
B
Battery See: Changing the 12V Battery...................... 274
Blind Spot Information System.............209 Switching the System Off and On.................211
System Errors........................................................ 211
Using the System.............................................. 209
Bonnet Lock See: Opening and Closing the Hood...........261
Booster Seats..................................................24 Types of Booster Seats...................................... 25
Brake Fluid Check.........................................272
Brakes................................................................175 General Information........................................... 175
Breaking-In.....................................................235
Bulb Specification Chart..........................280 C
Cabin Air Filter...............................................130
California Proposition 65..............................11
Capacities and Specifications - 2.0L
EcoBoost™.................................................332
Specifications...................................................... 333
Capacities and Specifications - 2.7L EcoBoost™.................................................335
Specifications..................................................... 336
Capacities and Specifications - 3.5L................................................................339
Specifications..................................................... 340
Capacities and Specifications................325
Cargo Nets
.......................................................219
Car Wash See: Cleaning the Exterior.............................. 283
Center Console
..............................................149
Changing a Bulb...........................................278 Headlamp............................................................. 279
LED Lamps........................................................... 279
License Plate Lamp.......................................... 280
Changing a Fuse..........................................260 Fuses...................................................................... 260
Changing a Road Wheel............................319 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 319
Stowing the flat tire .......................................... 322
Tire Change Procedure.................................... 320
Changing the 12V Battery..........................274
Changing the Engine Air Filter.................282
Changing the Wiper Blades.....................275 Service Position.................................................. 275
Checking MyKey System Status...............55
Checking the Wiper Blades......................275
Child Restraint and Seatbelt Maintenance
.................................................36
Child Restraint Positioning.........................26
Child Safety.......................................................15
General Information............................................. 15
Child Safety Locks..........................................27 Left-Hand Side..................................................... 28
Right-Hand Side................................................... 28
Cleaning Leather Seats.............................287
Cleaning Products
.......................................283
Cleaning the Alloy Wheels.......................287
Cleaning the Engine....................................285
438
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Index
Page 443 of 451
Engine Oil Check..........................................266
Adding Engine Oil.............................................. 266
Engine Oil Dipstick - 2.0L EcoBoost™.................................................266
Engine Oil Dipstick - 2.7L EcoBoost™/ 3.5L................................................................266
Engine Specifications - 2.0L EcoBoost™.................................................325
Drivebelt Routing............................................... 325
Engine Specifications - 2.7L EcoBoost™.................................................325
Drivebelt Routing............................................... 326
Engine Specifications - 3.5L....................326 Drivebelt Routing............................................... 326
Environment......................................................14
EPB See: Electric Parking Brake.............................. 176
Essential Towing Checks..........................230 Before Towing a Trailer.................................... 230
Hitches................................................................... 230
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 231
Safety Chains...................................................... 230
Trailer Brakes....................................................... 230
Trailer Lamps...................................................... 230
When Towing a Trailer....................................... 231
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP).................397 EXTENDED SERVICE PLAN (CANADA
ONLY)............................................................... 398
EXTENDED SERVICE PLAN (U.S. Only).................................................................. 397
Exterior Mirrors................................................87
Auto-dimming Feature...................................... 88
Blind Spot Information System...................... 88
Direction Indicator Mirrors ............................... 88
Fold-Away Exterior Mirrors............................... 87
Heated Exterior Mirrors ......................................87
Integrated Blind Spot Mirror............................ 88
Memory Mirrors .................................................... 87
Power Exterior Mirrors........................................ 87
Puddle Lamps....................................................... 88F
Fastening the Seatbelts..............................30
Rear Inflatable Safety Belt................................ 32
Safety Belt Extension Assembly..................... 33
Safety Belt Locking Modes................................ 31
Using Safety Belts During Pregnancy............31
Using the Sliding Clip......................................... 30
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................292
Floor Mats.......................................................236
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Front Parking Aid
..........................................184
Obstacle Distance Indicator........................... 185
Front Passenger Sensing System............40
Fuel and Refueling.......................................158
Fuel Consumption
........................................162
Calculating Fuel Economy.............................. 163
Filling the Tank..................................................... 162
Fuel Filler Funnel Location........................159
Fuel Filter
.........................................................273
Fuel Quality....................................................159
Choosing the Right Fuel................................... 159
Fuel Shutoff...................................................239
Fuses................................................................250
Fuse Specification Chart..........................250 Passenger Compartment Fuse
Panel................................................................. 256
Power Distribution Box.................................... 250
G
Garage Door Opener See: Universal Garage Door Opener............142
Gauges................................................................91 Engine Coolant Temperature Gauge............92
Fuel Gauge.............................................................. 92
Information Display.............................................. 91
Left Information Display.................................... 93
Type 1........................................................................\
. 91
Type 2....................................................................... 93
General Information on Radio Frequencies...................................................47
Intelligent Access.................................................. 47
440
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing Index
