Page 8 of 544
Cleaning the Exterior.................................290
Waxing..............................................................291
Cleaning the Engine....................................292
Cleaning the Windows and Wiper Blades..........................................................292
Cleaning the Interior...................................293
Cleaning the Instrument Panel and Instrument Cluster Lens.......................293
Cleaning Leather Seats.............................294
Repairing Minor Paint Damage
..............294
Cleaning the Wheels..................................294
Vehicle Storage............................................295
Body Styling Kits
..........................................297
Wheels and Tires
General Information...................................298
Tire Sealant and Inflator Kit....................300
Tire Care
.........................................................306
Using Summer Tires
...................................322
Using Snow Chains.....................................323
Tire Pressure Monitoring System...........324
Changing a Road Wheel............................327
Technical Specifications
...........................332
Capacities and Specific- ations
Engine Specifications - 2.0L EcoBoost™................................................333
Engine Specifications - 2.7L EcoBoost™................................................333
Engine Specifications - 3.5L....................334
Motorcraft Parts - 2.0L EcoBoost™
......335
Motorcraft Parts - 2.7L EcoBoost™
......336
Motorcraft Parts - 3.5L...............................337
Vehicle Identification Number................338
Vehicle Certification Label.......................339
Transmission Code Designation............339
Capacities and Specifications - 2.0L EcoBoost™...............................................340
Capacities and Specifications - 2.7L EcoBoost™...............................................344 Capacities and Specifications - 3.5L....348
Audio System
General Information
...................................353
Audio Unit - Vehicles With: Sony AM/FM/ CD..................................................................354
Audio Unit - Vehicles With: AM/FM/CD/ SYNC............................................................358
Audio Unit - Vehicles With: Premium AM/ FM/CD.........................................................360
Digital Radio
..................................................362
Satellite Radio..............................................364
USB Port
..........................................................367
Media Hub......................................................367
SYNC™
General Information...................................368
Using Voice Recognition...........................370
Using SYNC™ With Your Phone.............372
SYNC™ Applications and Services
......384
Using SYNC™ With Your Media Player...........................................................389
SYNC™ Troubleshooting
.........................398
SYNC™ 3
General Information
..................................406
Home Screen.................................................419
Using Voice Recognition
...........................420
Entertainment...............................................427
Climate............................................................437
Phone................................................................441
Navigation......................................................446
Apps.................................................................454
Settings...........................................................457
SYNC™ 3 Troubleshooting.....................469
Accessories
Accessories
....................................................482
5
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Table of Contents
Page 181 of 544
Driving on Hilly or Sloping Terrain
Note:
Avoid driving crosswise or turning on
steep slopes or hills. A danger lies in losing
traction, slipping sideways and possibly
rolling over. Whenever driving on a hill,
determine beforehand the route you will
use. Do not drive over the crest of a hill
without seeing what conditions are on the
other side. Do not drive in reverse over a hill
without the aid of an observer.
Although natural obstacles may make it
necessary to travel diagonally up or down
a hill or steep incline, you should always
try to drive straight up or straight down.
When climbing a steep slope or hill, start
in a lower gear rather than downshifting to
a lower gear from a higher gear once the
ascent has started. This reduces strain on
the engine and the possibility of stalling.
If you do stall out, do not try to turnaround
because you might roll over. It is better to
back down to a safe location.
Apply just enough power to the wheels to
climb the hill. Too much power will cause
the tires to slip, spin or lose traction,
resulting in loss of vehicle control. Descend a hill in the same gear you would
use to climb up the hill to avoid excessive
brake application and brake overheating.
Do not descend in neutral; instead,
disengage overdrive or manually shift to a
lower gear. When descending a steep hill,
avoid sudden hard braking as you could
lose control. The front wheels have to be
turning in order to steer the vehicle.
Your vehicle has anti-lock brakes, therefore
apply the brakes steadily. Do not
“pump”
the brakes.
Driving on Snow and Ice WARNING
If you are driving in slippery
conditions that require tire chains or
cables, then it is critical that you drive
cautiously. Keep speeds down, allow for
longer stopping distances and avoid
aggressive steering to reduce the chances
of a loss of vehicle control which can lead
to serious injury or death. If the rear end of
the vehicle slides while cornering, steer in
the direction of the slide until you regain
control of the vehicle. Note:
Excessive tire slippage can cause
driveline damage.
AWD vehicles have advantages over 2WD
vehicles in snow and ice but can skid like
any other vehicle.
Should you start to slide while driving on
snowy or icy roads, turn the steering wheel
in the direction of the slide until you regain
control.
Avoid sudden applications of power and
quick changes of direction on snow and
ice. Apply the accelerator slowly and
steadily when starting from a full stop.
178
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing All-Wheel Drive (If Equipped)E143949
Page 310 of 544

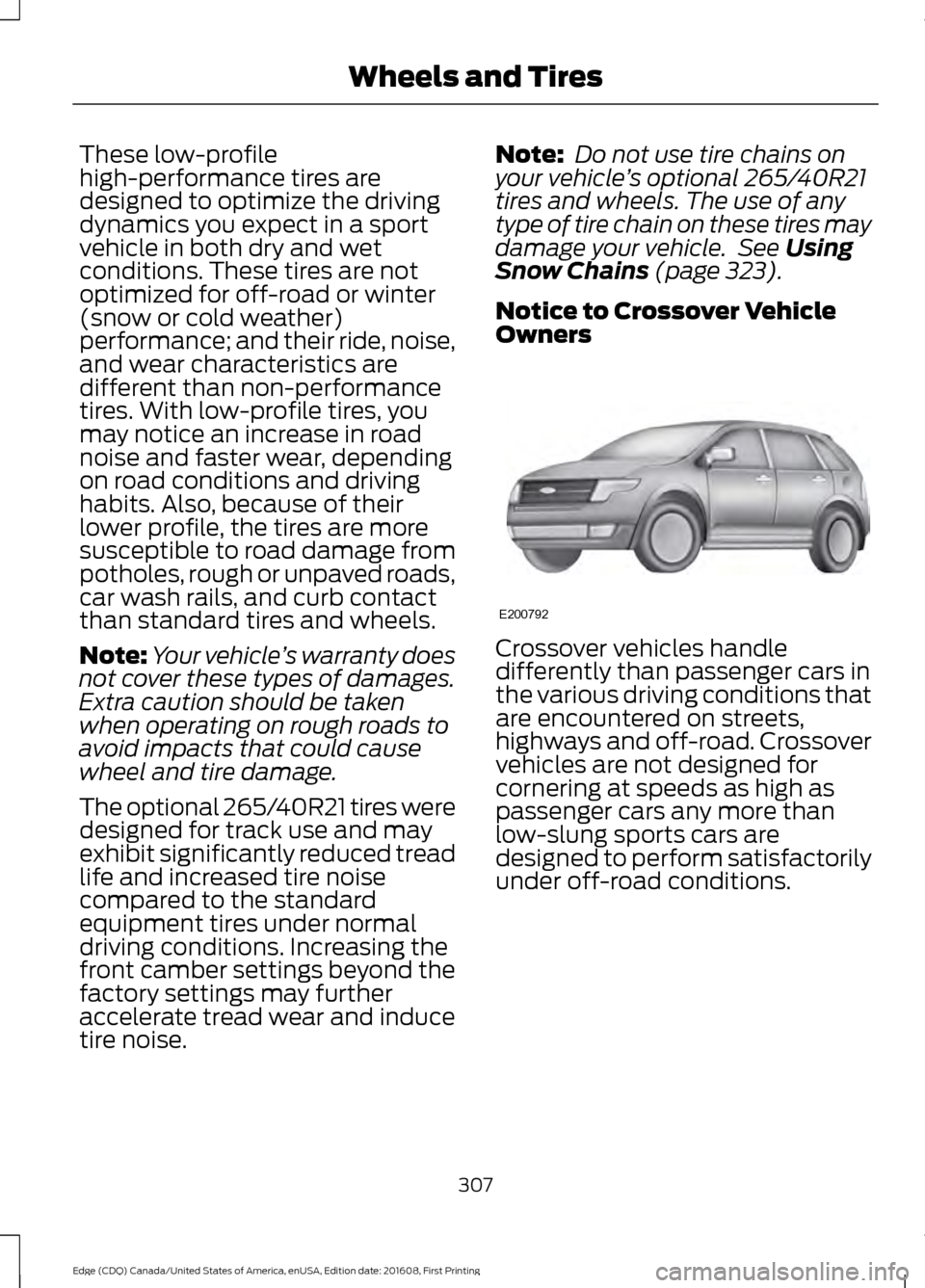

These low-profile
high-performance tires are
designed to optimize the driving
dynamics you expect in a sport
vehicle in both dry and wet
conditions. These tires are not
optimized for off-road or winter
(snow or cold weather)
performance; and their ride, noise,
and wear characteristics are
different than non-performance
tires. With low-profile tires, you
may notice an increase in road
noise and faster wear, depending
on road conditions and driving
habits. Also, because of their
lower profile, the tires are more
susceptible to road damage from
potholes, rough or unpaved roads,
car wash rails, and curb contact
than standard tires and wheels.
Note:
Your vehicle ’s warranty does
not cover these types of damages.
Extra caution should be taken
when operating on rough roads to
avoid impacts that could cause
wheel and tire damage.
The optional 265/40R21 tires were
designed for track use and may
exhibit significantly reduced tread
life and increased tire noise
compared to the standard
equipment tires under normal
driving conditions. Increasing the
front camber settings beyond the
factory settings may further
accelerate tread wear and induce
tire noise. Note:
Do not use tire chains on
your vehicle ’s optional 265/40R21
tires and wheels. The use of any
type of tire chain on these tires may
damage your vehicle. See Using
Snow Chains (page 323).
Notice to Crossover Vehicle
Owners Crossover vehicles handle
differently than passenger cars in
the various driving conditions that
are encountered on streets,
highways and off-road. Crossover
vehicles are not designed for
cornering at speeds as high as
passenger cars any more than
low-slung sports cars are
designed to perform satisfactorily
under off-road conditions.
307
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Wheels and TiresE200792
Page 326 of 544
ice conditions. Like any tire, summer tire
performance is affected by tire wear and
environmental conditions. If you must drive
in those conditions, we recommend using
Mud and Snow (M+S, M/S), All-season or
Snow tires.
Always store your summer tires indoors at
temperatures above 19°F (-7°C). The
rubber compounds used in these tires lose
flexibility and may develop surface cracks
in the tread area at temperatures below
19°F (-7°C)
. If the tires have been
subjected to 19°F (-7°C) or less, warm
them in a heated space to at least 41°F
(5°C) for at least 24 hours before installing
them on a vehicle, or moving the vehicle
with the tires installed, or checking tire
inflation. Do not place tires near heaters
or heating devices used to warm the room
where the tires are stored. Do not apply
heat or blow heated air directly on the tires.
Always inspect the tires after storage
periods and before use.
USING SNOW CHAINS WARNING
Snow tires must be the same size,
load index, speed rating as those
originally provided by Ford. Use of
any tire or wheel not recommended by
Ford can affect the safety and
performance of your vehicle, which could
result in an increased risk of loss of vehicle
control, vehicle rollover, personal injury and
death. Additionally, the use of
non-recommended tires and wheels could
cause steering, suspension, axle, transfer
case or power transfer unit failure. The tires on your vehicle may have
all-weather treads to provide traction in
rain and snow. However, in some climates,
you may need to use snow tires and cables.
Your vehicle may not be compatible with
snow chain or cable usage with the
factory-fitted wheels and tires.
Follow these guidelines when using snow
tires and traction device:
•
If possible, avoid fully loading your
vehicle.
• Purchase chains or cables from a
manufacturer that clearly labels body
to tire dimension restrictions.
• Use no larger than 10 mm cables or
chains ONLY on the front axle with
235/60R18 tires. Do not use chains or
cables on any other size tires.
• The snow chains or cables must be
mounted in pairs on the front axle.
• When driving with tire cables, do not
exceed
30 mph (48 km/h) or the
maximum speed recommended by the
chain manufacturer, whichever is less.
• Drive cautiously. If you hear the cables
rub or bang against the vehicle, stop
and re-tighten them. If this does not
work, remove the cables to prevent
vehicle damage.
• Remove the cables when you no longer
need them. Do not use cables on dry
roads.
• If a temporary spare tire is mounted on
your vehicle, do not use snow chains
on the axle with the temporary spare
tire.
If you have any questions regarding snow
chains or cables, please contact an
authorized dealer.
323
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Wheels and Tires
Page 331 of 544

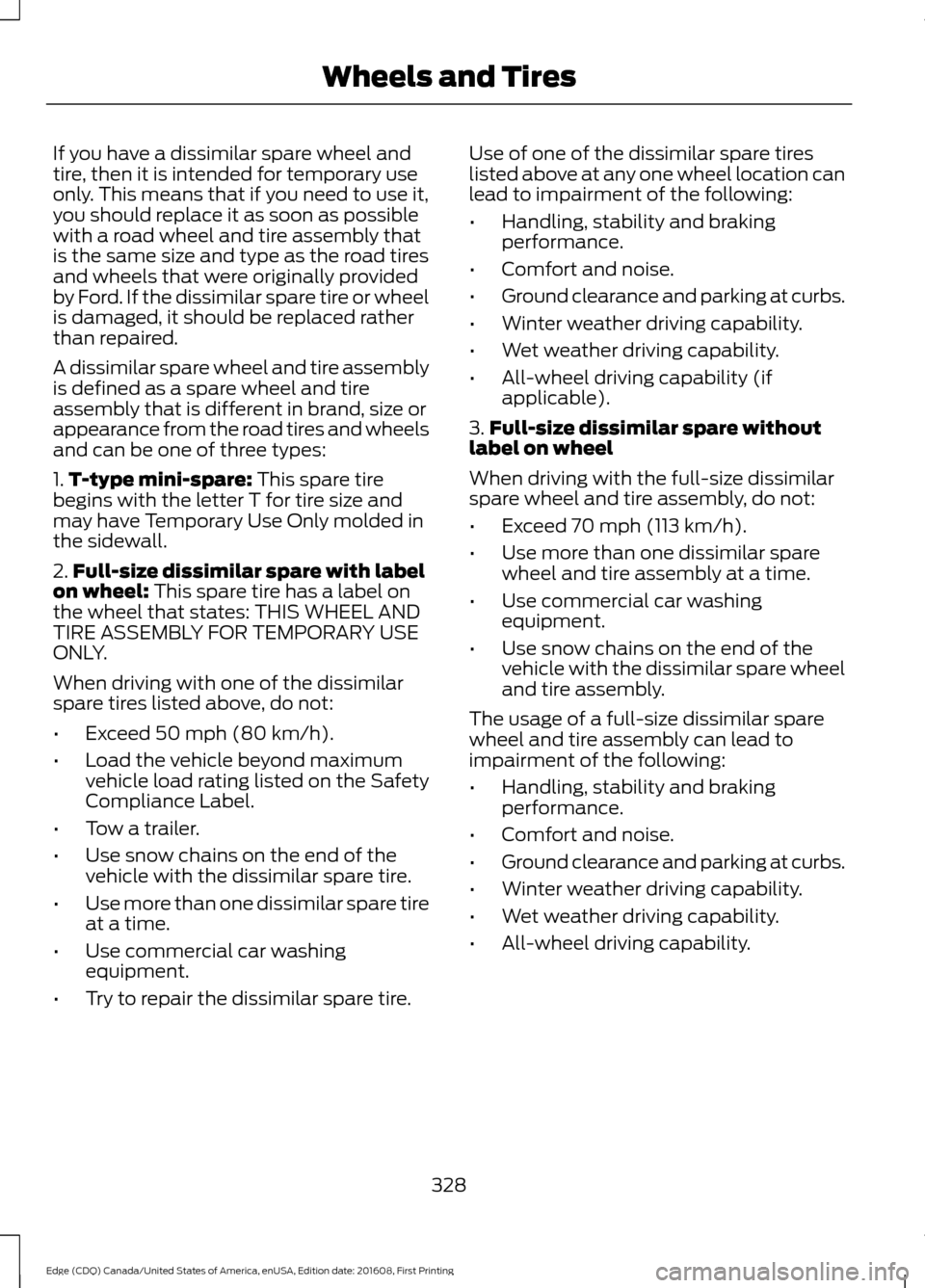

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
1.
T-type mini-spare: This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
spare tires listed above, do not:
• Exceed
50 mph (80 km/h).
• Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Tow a trailer.
• Use snow chains on the end of the
vehicle with the dissimilar spare tire.
• Use more than one dissimilar spare tire
at a time.
• Use commercial car washing
equipment.
• Try to repair the dissimilar spare tire. Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
•
Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability (if
applicable).
3. Full-size dissimilar spare without
label on wheel
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
• Exceed
70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use commercial car washing
equipment.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
328
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Wheels and Tires
Page 542 of 544
Display...................................................................
468
General................................................................. 466
Media Player........................................................ 458
Mobile Apps........................................................ 465
Navigation............................................................ 463
Phone..................................................................... 459
Radio...................................................................... 462
Sound..................................................................... 457
Valet Mode.......................................................... 469
Vehicle .................................................................... 467
Voice Control...................................................... 469
Wi-Fi....................................................................... 467
Side Airbags.....................................................46
Side Sensing System..................................190
Obstacle Distance Indicator............................ 191
Sitting in the Correct Position..................136
Snow Chains See: Using Snow Chains................................. 323
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
On Board Diagnostics Data Link Connector............................................................ 13
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance..............................................492
Exceptions............................................................ 493
Speed Control See: Cruise Control........................................... 202
Stability Control
............................................186
Principle of Operation...................................... 186
Starting a Gasoline Engine
........................155
Automatic Engine Shutdown........................ 156
Failure to Start..................................................... 156
Guarding Against Exhaust Fumes................157
Important Ventilating Information..............158
Stopping the Engine When Your Vehicle is Moving................................................................ 157
Stopping the Engine When Your Vehicle is Stationary.......................................................... 157
Starting and Stopping the Engine..........154 General Information.......................................... 154
Steering............................................................219 Adaptive Steering.............................................. 220
Electric Power Steering.................................... 219
Steering Wheel................................................78
Storage Compartments
.............................153
Sunroof See: Moonroof....................................................... 95Sun Visors.........................................................95
Illuminated Vanity Mirror................................... 95
Supplementary Restraints System
.........42
Principle of Operation......................................... 42
Symbols Glossary
.............................................7
SYNC™ 3.......................................................406
General Information........................................ 406
SYNC™ 3 Troubleshooting.....................469
SYNC™ Applications and Services........................................................384
911 Assist............................................................... 384
SYNC Mobile Apps........................................... 386
SYNC™...........................................................368 General Information......................................... 368
SYNC™ Troubleshooting
.........................398
T
Tailgate See: Manual Liftgate.......................................... 68
See: Power Liftgate............................................. 69
Technical Specifications See: Capacities and Specifications............333
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................249
Tire Care
.........................................................306
Glossary of Tire Terminology........................ 309
Important Information About Low-Profile Tires................................................................... 306
Important Information About Sport Tires and Wheels.................................................... 306
Information About Uniform Tire Quality Grading............................................................. 308
Information Contained on the Tire Sidewall............................................................ 310
Notice to Crossover Vehicle Owners..........307
Temperature A B C........................................... 309
Tire Rotation........................................................ 322
Traction AA A B C.............................................. 309
Treadwear............................................................ 308
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit................300
Tire Pressure Monitoring System
...........324
Changing Tires With a Tire Pressure
Monitoring System....................................... 325
Understanding Your Tire Pressure Monitoring System ...................................... 325
539
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index
Page 543 of 544
Tire Repair Kit
See: Tire Sealant and Inflator Kit................300
Tire Sealant and Inflator Kit....................300 First Stage: Inflating the Tire with Sealing
Compound and Air....................................... 302
General Information.......................................... 301
Second Stage: Checking Tire Pressure........................................................... 304
Tips for Use of the Kit....................................... 301
What to Do After the Tire has Been Sealed............................................................... 304
What to do When a Tire Is Punctured........................................................ 302
Tires See: Wheels and Tires..................................... 298
Towing a Trailer............................................230
Load Placement................................................ 230
Towing the Vehicle on Four Wheels - 6-Speed Automatic Transmission -
6F35...............................................................235
Emergency Towing............................................ 235
Recreational Towing......................................... 235
Towing the Vehicle on Four Wheels - 6-Speed Automatic Transmission -
6F50/6F55
..................................................235
Emergency Towing............................................ 235
Recreational Towing......................................... 236
Towing.............................................................230
Traction Control............................................185 Principle of Operation....................................... 185
Trailer Sway Control.....................................231
Transmission Code Designation............339
Transmission....................................................171
Transmission See: Transmission................................................ 171
Transporting the Vehicle
...........................245
U
Under Hood Overview - 2.0L EcoBoost™.................................................268
Under Hood Overview - 2.7L EcoBoost™.................................................269
Under Hood Overview - 3.5L...................270
Unique Driving Characteristics................160
Universal Garage Door Opener...............146 HomeLink Wireless Control System...........146
USB Port..........................................................367 Using Adaptive Cruise Control...............203
Automatic Cancellation.................................. 206
Blocked Sensor................................................... 207
Canceling the Set Speed................................ 206
Changing the Set Speed................................ 206
Detection Issues................................................. 207
Following a Vehicle........................................... 204
Hilly Condition Usage...................................... 206
Overriding the System..................................... 206
Resuming the Set Speed............................... 206
Setting the Adaptive Cruise Speed............204
Setting the Gap Distance............................... 205
Switching Adaptive Cruise Control Off...................................................................... 206
Switching Adaptive Cruise Control On....................................................................... 203
Switching to Normal Cruise Control..........208
System Not Available....................................... 207
Using All-Wheel Drive
.................................175
Driving In Special Conditions With
All-Wheel Drive (AWD)................................ 175
Using Cruise Control...................................202 Switching Cruise Control Off........................203
Switching Cruise Control On......................... 202
Using MyKey With Remote Start Systems..........................................................62
Using Snow Chains.....................................323
Using Stability Control
................................187
Using Summer Tires...................................322
Using SYNC™ With Your Media Player............................................................389
Accessing Your USB Song Library...............393
Bluetooth Devices and System Settings............................................................ 395
Connecting Your Digital Media Player to the USB Port.......................................................... 389
Media Menu Features...................................... 392
Media Voice Commands................................ 390
USB 2..................................................................... 395
Voice Commands for Audio Sources.........396
Using SYNC™ With Your Phone.............372 Accessing Features through the Phone
Menu................................................................... 377
Accessing Your Phone Settings...................380
Bluetooth Devices.............................................. 381
Making Calls......................................................... 376
Pairing a Phone for the First Time...............373
Pairing Subsequent Phones........................... 374
540
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201608, First Printing Index
