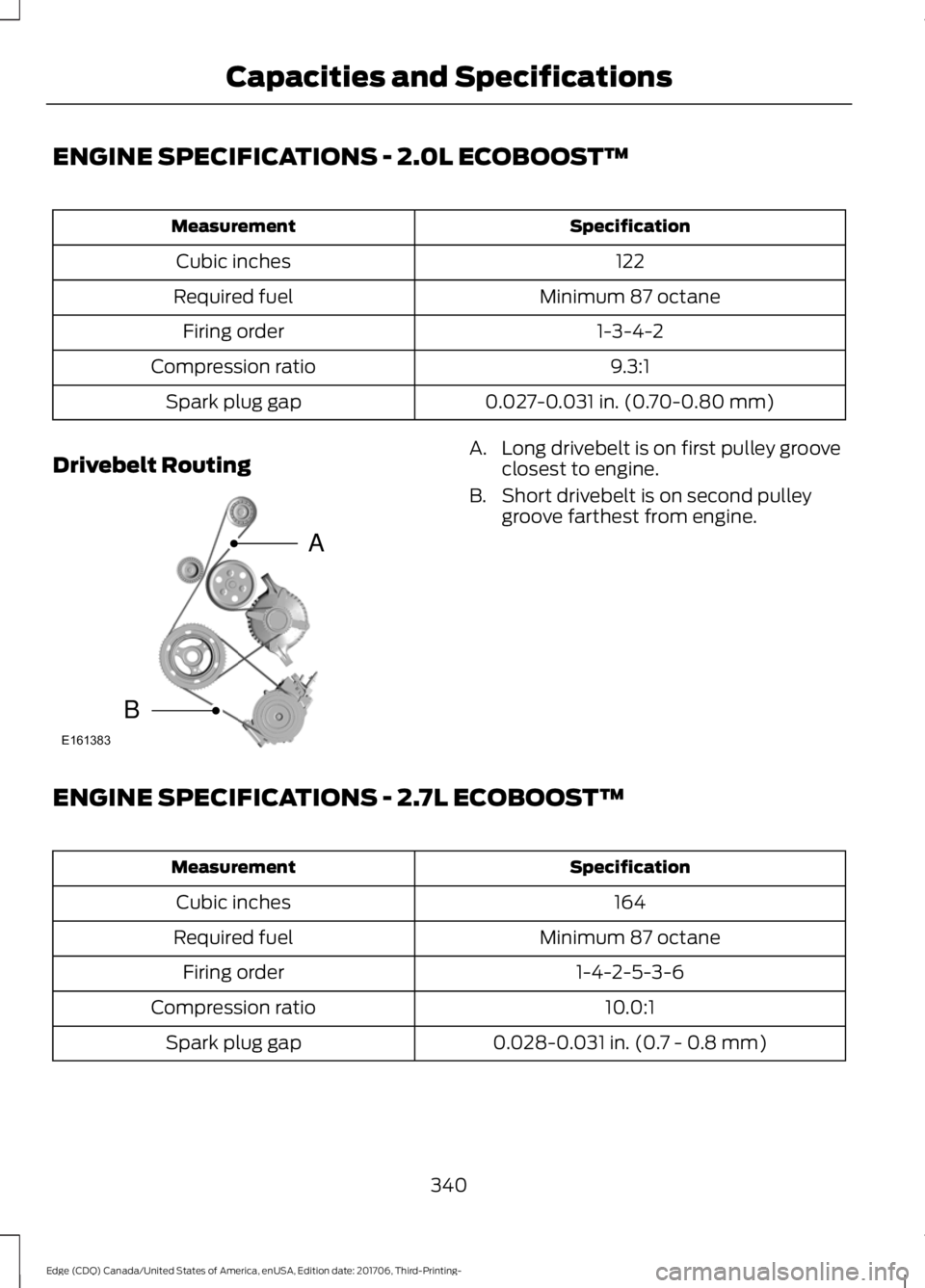

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
Specification
Measurement
122
Cubic inches
Minimum 87 octane
Required fuel
1-3-4-2
Firing order
9.3:1
Compression ratio
0.027-0.031 in. (0.70-0.80 mm)
Spark plug gap
Drivebelt Routing A. Long drivebelt is on first pulley groove
closest to engine.
B. Short drivebelt is on second pulley groove farthest from engine.
ENGINE SPECIFICATIONS - 2.7L ECOBOOST™ Specification
Measurement
164
Cubic inches
Minimum 87 octane
Required fuel
1-4-2-5-3-6
Firing order
10.0:1
Compression ratio
0.028-0.031 in. (0.7 - 0.8 mm)
Spark plug gap
340
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201706, Third-Printing- Capacities and SpecificationsE161383
A
B

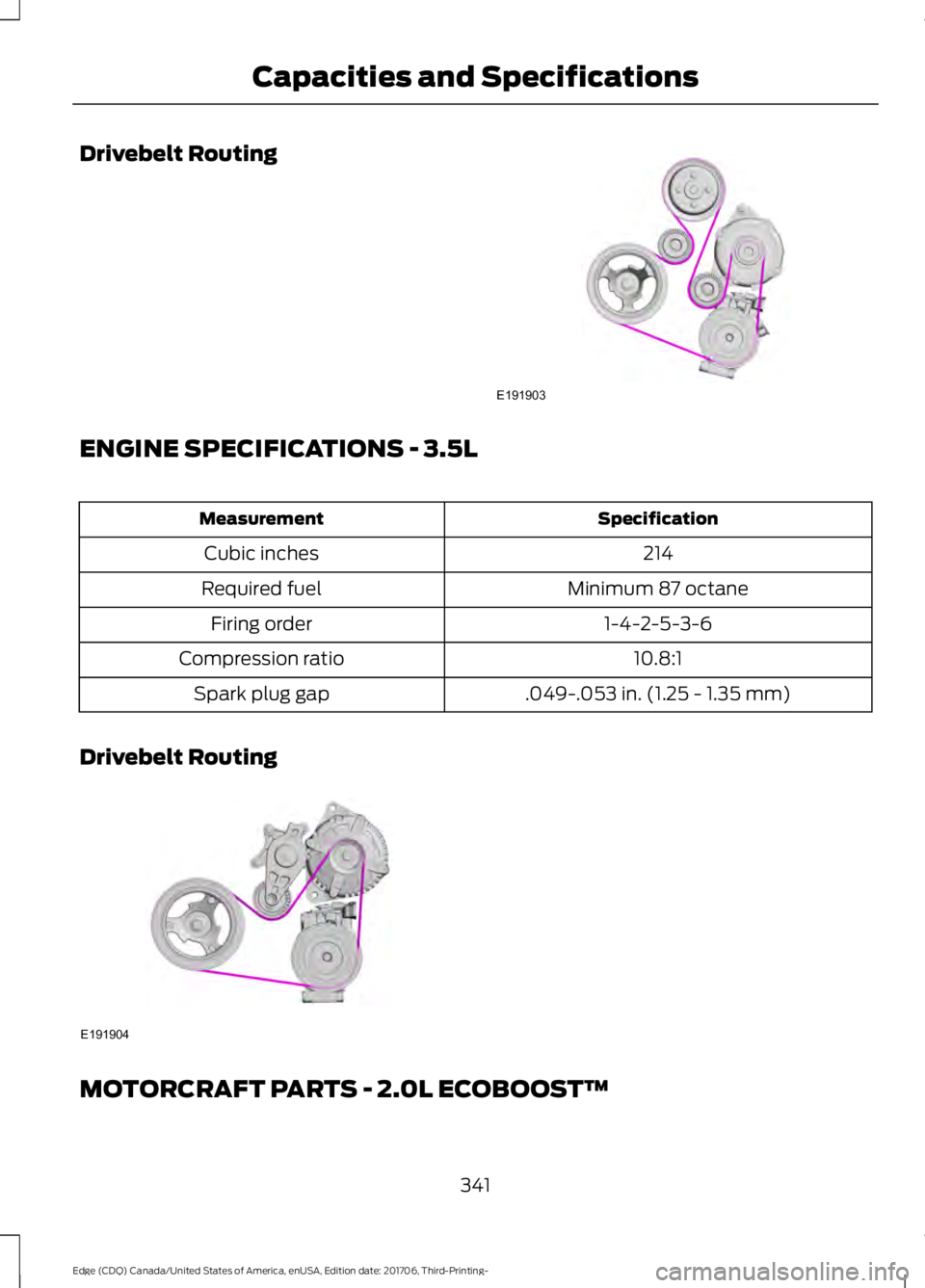

Drivebelt Routing
ENGINE SPECIFICATIONS - 3.5L
Specification
Measurement
214
Cubic inches
Minimum 87 octane
Required fuel
1-4-2-5-3-6
Firing order
10.8:1
Compression ratio
.049-.053 in. (1.25 - 1.35 mm)
Spark plug gap
Drivebelt Routing MOTORCRAFT PARTS - 2.0L ECOBOOST™
341
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201706, Third-Printing- Capacities and SpecificationsE191903 E191904
