At Every Oil Change Interval as Indicated by the Information Display
1
Inspect the tires, tire wear and measure the tread depth.
Inspect the wheels and related components for abnormal noise, wear, looseness or
drag.
1 Do not exceed one year or 10,000 mi (16,000 km) between service intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. See Oil Change
Indicator Reset
(page 285). Other Maintenance Items
1
Replace cabin air filter.
Every
20,000 mi
(32,000 km)
Replace engine air filter.
Every
30,000 mi
(48,000 km)
Change engine coolant.2
At
100,000 mi
(160,000 km)
Replace spark plugs.
Every
100,000 mi
(160,000 km) Inspect accessory drive belt(s). 3
Change automatic transmission fluid.
Every
150,000 mi
(240,000 km) Replace accessory drive belt(s). 4
1 Perform these maintenance items within 3,000 mi (4,800 km) of the last engine oil and
filter change. Do not exceed the designated distance for the interval.
2 Initial replacement at six years or
100,000 mi (160,000 km), then every three years or
50,000 mi (80,000 km).
3 After initial inspection, inspect every other oil change until replaced.
4 If not replaced within the last
100,000 mi (160,000 km).
477
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Scheduled Maintenance

SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
If you operate your vehicle primarily in any
of the foll
owing conditions, you need to
perform extra maintenance as indicated.
If you operate your vehicle
occasionally
under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician. Perform the services shown in the
following tables when specified or within
3,000 mi (4,800 km)
of the message
appearing in the information display
prompting you to change your oil.
• Example 1: The message comes on at
28,751 mi (46,270 km)
. Perform the
30,000 mi (48,000 km) automatic
transmission fluid replacement.
• Example 2
: The message has not
come on, but the odometer reads
30,000 mi (48,000 km) (for example,
the Intelligent Oil-Life Monitor you
reset at
25,000 mi (40,000 km)).
Perform the engine air filter
replacement. Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Inspect rear axle and U-joints (All-Wheel Drive only).
Inspect frequently, service
as required
Change automatic transmission fluid.
Every
30,000 mi
(48,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km) Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
(Such as Delivery, Taxi, Patrol Car or Livery)
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Replace cabin air filter.
Inspect frequently, service
as required
Replace engine air filter.
Change automatic transmission fluid.
Every
30,000 mi
(48,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km)
478
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Scheduled Maintenance

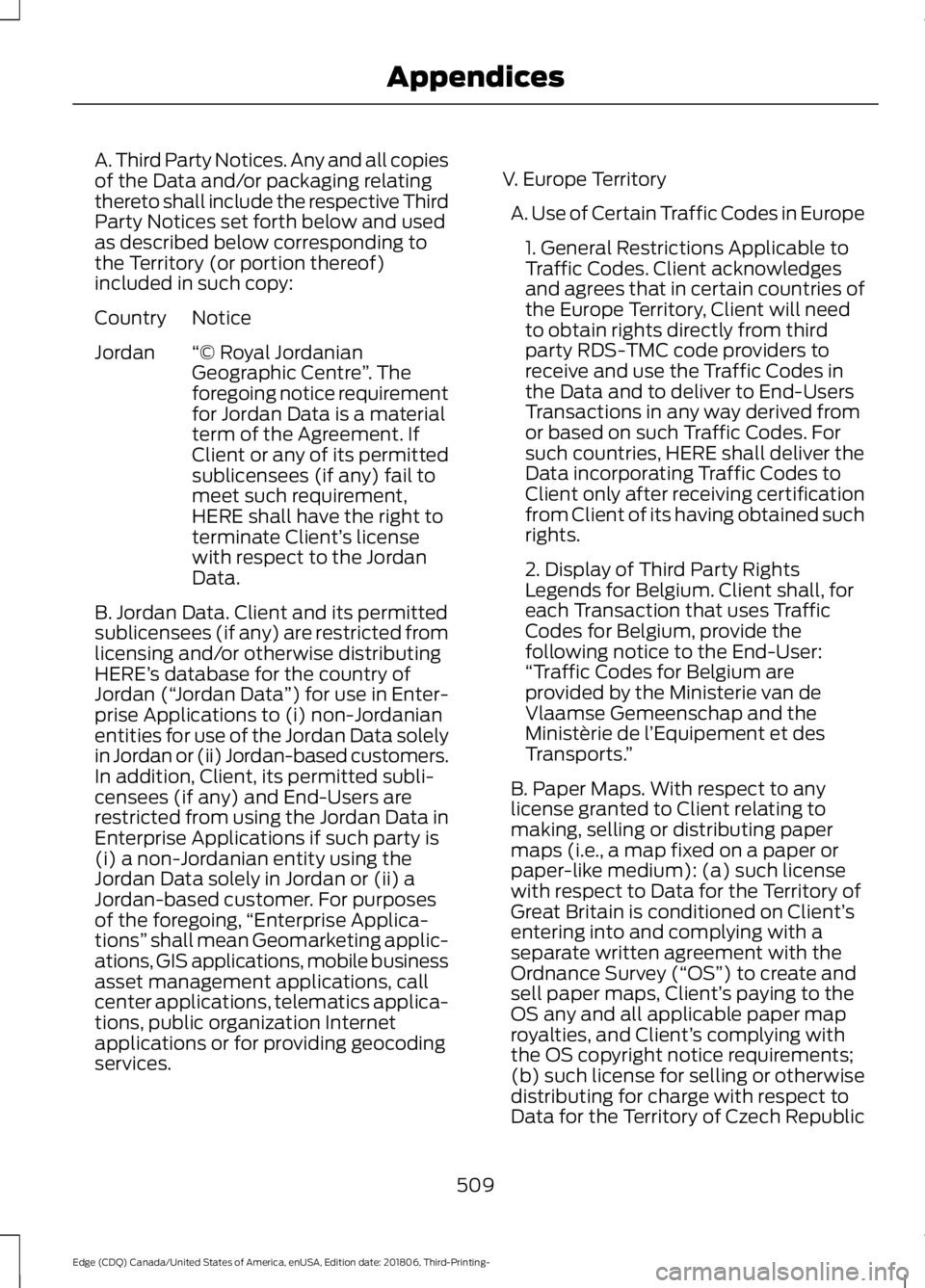

A. Third Party Notices. Any and all copies
of the Data and/or packaging relating
thereto shall include the respective Third
Party Notices set forth below and used
as described below corresponding to
the Territory (or portion thereof)
included in such copy:
Notice
Country
“© Royal Jordanian
Geographic Centre ”. The
foregoing notice requirement
for Jordan Data is a material
term of the Agreement. If
Client or any of its permitted
Jordan
sublicensees (if any) fail to
meet such requirement,
HERE shall have the right to
terminate Client’ s license
with respect to the Jordan
Data.
B. Jordan Data. Client and its permitted
sublicensees (if any) are restricted from
licensing and/or otherwise distributing
HERE’ s database for the country of
Jordan (“ Jordan Data ”) for use in Enter-
prise Applications to (i) non-Jordanian
entities for use of the Jordan Data solely
in Jordan or (ii) Jordan-based customers.
In addition, Client, its permitted subli-
censees (if any) and End-Users are
restricted from using the Jordan Data in
Enterprise Applications if such party is
(i) a non-Jordanian entity using the
Jordan Data solely in Jordan or (ii) a
Jordan-based customer. For purposes
of the foregoing, “Enterprise Applica-
tions” shall mean Geomarketing applic-
ations, GIS applications, mobile business
asset management applications, call
center applications, telematics applica-
tions, public organization Internet
applications or for providing geocoding
services. V. Europe Territory
A. Use of Certain Traffic Codes in Europe 1. General Restrictions Applicable to
Traffic Codes. Client acknowledges
and agrees that in certain countries of
the Europe Territory, Client will need
to obtain rights directly from third
party RDS-TMC code providers to
receive and use the Traffic Codes in
the Data and to deliver to End-Users
Transactions in any way derived from
or based on such Traffic Codes. For
such countries, HERE shall deliver the
Data incorporating Traffic Codes to
Client only after receiving certification
from Client of its having obtained such
rights.
2. Display of Third Party Rights
Legends for Belgium. Client shall, for
each Transaction that uses Traffic
Codes for Belgium, provide the
following notice to the End-User:
“Traffic Codes for Belgium are
provided by the Ministerie van de
Vlaamse Gemeenschap and the
Ministèrie de l ’Equipement et des
Transports. ”
B. Paper Maps. With respect to any
license granted to Client relating to
making, selling or distributing paper
maps (i.e., a map fixed on a paper or
paper-like medium): (a) such license
with respect to Data for the Territory of
Great Britain is conditioned on Client’ s
entering into and complying with a
separate written agreement with the
Ordnance Survey (“OS ”) to create and
sell paper maps, Client’ s paying to the
OS any and all applicable paper map
royalties, and Client’ s complying with
the OS copyright notice requirements;
(b) such license for selling or otherwise
distributing for charge with respect to
Data for the Territory of Czech Republic
509
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Appendices

1
180 Degree Camera....................................205
Camera Views.................................................... 206
Using the 180 degree camera system.............................................................. 206
A
A/C See: Climate Control......................................... 124
About This Manual...........................................7
ABS See: Brakes........................................................... 184
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 184
Accessories...................................................468 Exterior Style....................................................... 468
Interior Style........................................................ 468
Lifestyle................................................................ 468
Peace of Mind..................................................... 468
Accessories See: Replacement Parts
Recommendation............................................ 13
ACC See: Using Adaptive Cruise Control - Vehicles
With: Adaptive Cruise Control With Stop
and Go.............................................................. 208
See: Using Adaptive Cruise Control - Vehicles With: Adaptive Cruise Control With Stop
and Go/Lane Centering............................... 215
Active Park Assist.........................................196 Using Active Park Assist................................... 197
Adaptive Headlamps
....................................83
System Check....................................................... 84
Adjusting the Headlamps........................294 Vertical Aim Adjustment................................ 294
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column............................................................73
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column............................................................73
End of Travel Position......................................... 74
Memory Feature.................................................... 74
AFS See: Adaptive Headlamps................................ 83Airbag Disposal..............................................48
Air Conditioning
See: Climate Control......................................... 124
Air Filter See: Changing the Engine Air Filter............298
Alarm See: Anti-Theft Alarm.......................................... 71
All-Wheel Drive
..............................................179
Ambient Lighting...........................................85 Adjusting the Brightness................................... 85
Changing the Color.............................................. 85
Switching Ambient Lighting Off..................... 85
Switching Ambient Lighting On..................... 85
Anti-Theft Alarm.............................................71 Arming the Alarm.................................................. 71
Disarming the Alarm............................................ 71
Appendices...................................................490
Apps..................................................................437 ........................................................................\
........... 437
SiriusXM Traffic and Travel Link................... 439
At a Glance
.........................................................17
Audible Warnings and Indicators.............97 Headlamps On Warning Chime...................... 97
Keyless Warning Alert......................................... 97
Parking Brake On Warning Chime..................97
Audio Control
...................................................74
Type One.................................................................. 74
Type Two.................................................................. 75
Audio Input Jack...........................................372
Audio System
.................................................361
General Information.......................................... 361
Audio Unit - Vehicles With: AM/FM/CD/ SYNC/Touchscreen Display
.................366
Adjusting the Volume...................................... 366
Changing Radio Stations............................... 366
Ejecting the CD................................................... 367
Inserting a CD...................................................... 367
Switching the Audio Unit On and Off.........367
Using Seek, Fast Forward and Reverse .............................................................. 367
Audio Unit - Vehicles With: AM/FM/CD/ SYNC
.............................................................362
Accessing the Apps Menu.............................. 362
Accessing the Clock Settings........................ 363
Accessing the Media Source Menu.............363
Accessing the Phone Features..................... 363
Accessing the Settings Menu........................ 363
Accessing the Sound Settings...................... 363
531
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

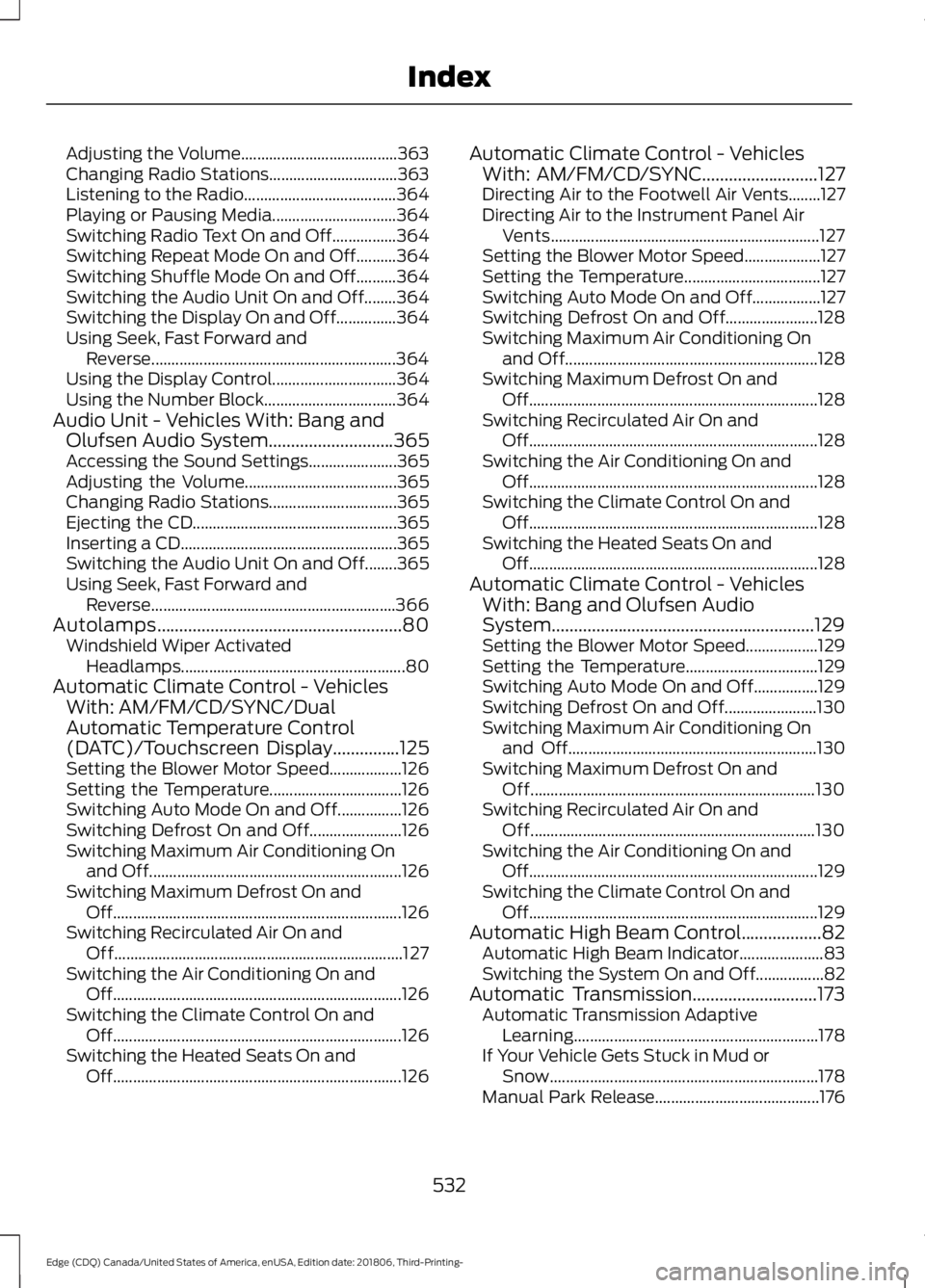

Adjusting the Volume.......................................
363
Changing Radio Stations................................ 363
Listening to the Radio...................................... 364
Playing or Pausing Media............................... 364
Switching Radio Text On and Off................364
Switching Repeat Mode On and Off..........364
Switching Shuffle Mode On and Off..........364
Switching the Audio Unit On and Off........364
Switching the Display On and Off...............364
Using Seek, Fast Forward and Reverse............................................................. 364
Using the Display Control............................... 364
Using the Number Block................................. 364
Audio Unit - Vehicles With: Bang and Olufsen Audio System............................365
Accessing the Sound Settings...................... 365
Adjusting the Volume...................................... 365
Changing Radio Stations................................ 365
Ejecting the CD................................................... 365
Inserting a CD...................................................... 365
Switching the Audio Unit On and Off........365
Using Seek, Fast Forward and Reverse............................................................. 366
Autolamps.......................................................80 Windshield Wiper Activated
Headlamps........................................................80
Automatic Climate Control - Vehicles With: AM/FM/CD/SYNC/Dual
Automatic Temperature Control
(DATC)/Touchscreen Display
...............125
Setting the Blower Motor Speed.................. 126
Setting the Temperature................................. 126
Switching Auto Mode On and Off................126
Switching Defrost On and Off....................... 126
Switching Maximum Air Conditioning On and Off............................................................... 126
Switching Maximum Defrost On and Off........................................................................\
126
Switching Recirculated Air On and Off........................................................................\
127
Switching the Air Conditioning On and Off........................................................................\
126
Switching the Climate Control On and Off........................................................................\
126
Switching the Heated Seats On and Off........................................................................\
126Automatic Climate Control - Vehicles
With: AM/FM/CD/SYNC
..........................127
Directing Air to the Footwell Air Vents........127
Directing Air to the Instrument Panel Air
Vents................................................................... 127
Setting the Blower Motor Speed................... 127
Setting the Temperature.................................. 127
Switching Auto Mode On and Off.................127
Switching Defrost On and Off....................... 128
Switching Maximum Air Conditioning On and Off............................................................... 128
Switching Maximum Defrost On and Off........................................................................\
128
Switching Recirculated Air On and Off........................................................................\
128
Switching the Air Conditioning On and Off........................................................................\
128
Switching the Climate Control On and Off........................................................................\
128
Switching the Heated Seats On and Off........................................................................\
128
Automatic Climate Control - Vehicles With: Bang and Olufsen Audio
System...........................................................129
Setting the Blower Motor Speed.................. 129
Setting the Temperature................................. 129
Switching Auto Mode On and Off................129
Switching Defrost On and Off....................... 130
Switching Maximum Air Conditioning On and Off.............................................................. 130
Switching Maximum Defrost On and Off....................................................................... 130
Switching Recirculated Air On and Off....................................................................... 130
Switching the Air Conditioning On and Off........................................................................\
129
Switching the Climate Control On and Off........................................................................\
129
Automatic High Beam Control..................82 Automatic High Beam Indicator..................... 83
Switching the System On and Off.................82
Automatic Transmission............................173 Automatic Transmission Adaptive
Learning............................................................. 178
If Your Vehicle Gets Stuck in Mud or Snow................................................................... 178
Manual Park Release......................................... 176
532
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

D
Data Recording..................................................9
911 Assist Privacy Notice..................................... 13
Comfort, Convenience and Entertainment Data........................................................................\
11
Event Data................................................................. 11
Service Data............................................................ 10
Services That Third Parties Provide...............12
Services That We Provide.................................. 12
Vehicles With a Modem...................................... 12
Vehicles With SYNC............................................. 12
Daytime Running Lamps..............................81 Type One - Conventional
(Non-Configurable)........................................ 81
Type Two - Configurable.................................... 81
Declaration of Conformity
........................518
Radio Frequency Statement.......................... 518
Digital Radio...................................................367 HD Radio Reception and Station
Troubleshooting............................................ 368
Direction Indicators.......................................84
Doors and Locks
.............................................59
Driver Alert......................................................225
Resetting the System....................................... 226
Switching the System On and Off...............225
System Display................................................... 226
System Warnings............................................... 226
Driver and Passenger Airbags....................41 Children and Airbags........................................... 42
Proper Driver and Front Passenger Seating Adjustment......................................................... 41
Driver and Passenger Knee Airbags........46
Driving Aids
.....................................................225
Driving Hints..................................................254
Driving Through Water...............................254
DRL See: Daytime Running Lamps.......................... 81
E
Economical Driving
.....................................254
Electric Parking Brake.................................185 Applying the Electric Parking Brake............185
Automatically Releasing the Electric
Parking Brake.................................................. 186
Manually Releasing the Electric Parking Brake.................................................................. 185Releasing the Electric Parking Brake if the
Vehicle Battery is Running Out of
Charge............................................................... 186
Electromagnetic Compatibility
.............490
Emission Law.................................................169
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........170
Tampering With a Noise Control System............................................................... 169
End User License Agreement.................492 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................. 492
Engine Block Heater....................................158 Using the Engine Block Heater...................... 159
Engine Coolant Check
...............................286
Adding Coolant.................................................. 286
Coolant Change................................................. 288
Engine Coolant Temperature Management.................................................. 289
Fail-Safe Cooling............................................... 288
Recycled Coolant.............................................. 288
Severe Climates................................................. 288
Engine Emission Control...........................169
Engine Immobilizer See: Passive Anti-Theft System..................... 70
Engine Oil Check..........................................284 Adding Engine Oil.............................................. 285
Engine Oil Dipstick - 2.0L EcoBoost™.................................................284
Engine Oil Dipstick - 2.7L EcoBoost™.................................................284
Engine Specifications - 2.0L EcoBoost™.................................................345
Drivebelt Routing............................................... 345
Engine Specifications - 2.7L EcoBoost™.................................................345
Drivebelt Routing............................................... 346
Entertainment................................................411 AM/FM Radio....................................................... 412
Apps....................................................................... 420
Bluetooth Stereo or USB................................. 419
CD (If equipped)................................................. 418
HD Radio ™ Information (If
Available)......................................................... 415
SiriusXM® Satellite Radio (If Activated)......................................................... 413
Sources................................................................... 412
535
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

Supported Media Players, Formats and
Metadata Information................................ 420
USB Ports............................................................. 420
Environment.....................................................16
EPB See: Electric Parking Brake............................. 185
Essential Towing Checks..........................250
Before Towing a Trailer..................................... 251
Hitches.................................................................. 250
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 251
Safety Chains...................................................... 250
Trailer Brakes....................................................... 250
Trailer Lamps...................................................... 250
When Towing a Trailer...................................... 251
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options.................................15
Exterior Mirrors
................................................87
Auto-dimming Feature...................................... 88
Blind Spot Information System...................... 88
Direction Indicator Mirrors ............................... 88
Fold-Away Exterior Mirrors............................... 87
Heated Exterior Mirrors ......................................87
Integrated Blind Spot Mirror............................ 88
Memory Mirrors ................................................... 88
Power Exterior Mirrors........................................ 87
Puddle Lamps....................................................... 88
F
Fastening the Seatbelts...............................33 Seatbelt Locking Modes.................................... 34
Using a Sliding Clip.............................................. 33
Using Seatbelts During Pregnancy................34
Flat Tire See: Changing a Road Wheel....................... 338
Flat Tire Inflation See: Tire Sealant and Inflator Kit................308
Floor Mats
.......................................................255
Fog Lamps - Front See: Front Fog Lamps........................................ 83
Ford Credit
.........................................................13
US Only..................................................................... 13
Ford Protect...................................................470 Ford Protect Extended Service Plan
(CANADA ONLY)............................................ 471Ford Protect Extended Service Plans (U.S.
Only).................................................................. 470
Front Fog Lamps............................................83
Front Parking Aid..........................................193 Obstacle Distance Indicator........................... 194
Front Passenger Sensing System............42
Fuel and Refueling
.......................................162
Fuel Consumption........................................167 Advertised Capacity........................................... 167
Filling the Fuel Tank........................................... 167
Fuel Economy...................................................... 168
Fuel Filler Funnel Location
........................163
Fuel Filter.........................................................291
Fuel Quality.....................................................162
Choosing the Right Fuel................................... 162
Fuel Shutoff
...................................................257
Fuses................................................................268
Fuse Specification Chart..........................268 Passenger Compartment Fuse Panel........274
Power Distribution Box................................... 268
G
Garage Door Opener...................................146
Garage Door Opener See: Universal Garage Door Opener...........146
Gauges................................................................91 Engine Coolant Temperature Gauge............92
Fuel Gauge.............................................................. 92
Information Display.............................................. 91
Left Information Display.................................... 93
Type 1........................................................................\
. 91
Type 2....................................................................... 93
Gearbox See: Transmission............................................... 173
General Information on Radio Frequencies...................................................49
Intelligent Access................................................. 49
General Maintenance Information........472 Multi-Point Inspection..................................... 474
Owner Checks and Services.......................... 473
Protecting Your Investment........................... 472
Why Maintain Your Vehicle?.......................... 472
Why Maintain Your Vehicle at Your Dealership?...................................................... 472
Getting Assistance Outside the U.S. and Canada.........................................................264
536
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

Getting the Services You Need................261
Away From Home............................................... 261
Global Opening...............................................87 Remote Control Front Windows..................... 87
H
Hazard Flashers............................................257
Headlamp Adjusting See: Adjusting the Headlamps..................... 294
Headlamp Exit Delay.....................................81
Headlamp Removal See: Removing a Headlamp.......................... 296
Headrest See: Head Restraints......................................... 135
Head Restraints.............................................135 Adjusting the Head Restraint......................... 136
Tilting Head Restraints .................................... 136
Heated Exterior Mirrors
...............................133
Heated Rear Window..................................133
Heated Seats
..................................................143
Front Seats............................................................ 143
Rear Seats............................................................. 143
Heated Steering Wheel................................76
Heated Windshield
.......................................133
Windshield Wiper De-Icer................................ 133
Heating See: Climate Control......................................... 124
Hill Start Assist.............................................186 Switching the System On and Off................187
Using Hill Start Assist........................................ 187
Hints on Controlling the Interior Climate..........................................................130
Defogging the Side Windows in Cold Weather............................................................. 132
General Hints....................................................... 130
Quickly Cooling the Interior............................. 132
Quickly Heating the Interior............................. 131
Recommended Settings for Cooling...........132
Recommended Settings for Heating............131
Hints on Driving With Anti-Lock Brakes............................................................184
Home Screen................................................403
Hood Lock See: Opening and Closing the Hood..........280 I
In California (U.S. Only)
.............................262
Information Display Control.......................76
Information Displays
....................................98
General Information........................................... 98
Information Messages
...............................108
Active Park............................................................ 108
Adaptive Cruise Control................................... 109
Airbag..................................................................... 109
Alarm........................................................................\
110
All-Wheel Drive.................................................... 110
Automatic Engine Shutdown......................... 110
Automatic High Beam Control........................ 111
Auto Start-Stop..................................................... 111
Battery and Charging System......................... 112
Blind Spot Information and Cross Traffic Alert System..................................................... 113
Doors and Locks................................................... 113
Driver Alert.............................................................. 114
Electronic Stability Control.............................. 114
Engine...................................................................... 114
Fuel........................................................................\
.... 115
Hill Start Assist..................................................... 115
Keys and Keyless Entry...................................... 115
Lane Centering Assist........................................ 116
Lane Keeping System........................................ 116
Maintenance.......................................................... 117
MyKey....................................................................... 117
Park Aid................................................................... 118
Park Brake.............................................................. 118
Power Steering..................................................... 119
Pre-Collision Warning System....................... 120
Remote Start........................................................ 120
Seats....................................................................... 120
Starting System ................................................. 120
Tire Pressure Monitoring System................... 121
Towing...................................................................... 121
Traction Control.................................................... 121
Transmission ......................................................... 122
Installing Child Restraints............................21 Child Seats............................................................... 21
Using Lap and Shoulder Belts.......................... 21
Using Lower Anchors and Tethers for CHildren (LATCH)........................................... 24
Using Tether Straps............................................. 25
Instrument Cluster
..........................................91
537
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

Message Center
See: Information Displays................................. 98
Mirrors See: Windows and Mirrors............................... 86
Mobile Communications Equipment.......15
Moonroof..........................................................89 Opening and Closing the Moonroof.............90
Motorcraft Parts - 2.0L EcoBoost™.................................................346
Motorcraft Parts - 2.7L EcoBoost™.................................................347
MyKey – Troubleshooting...........................58
MyKey ™.............................................................55
Principle of Operation........................................ 55
N
Navigation......................................................429 cityseeker............................................................. 436
Destination Mode............................................... 431
Map Mode............................................................ 429
Navigation Map Updates................................ 437
Navigation Menu................................................ 434
SiriusXM Traffic and Travel Link................... 437
SYNC AppLink.................................................... 436
Waypoints............................................................ 435
Normal Scheduled Maintenance...........475 Intelligent Oil-Life Monitor™......................... 475
Normal Maintenance Intervals..................... 476
O
Oil Change Indicator Reset......................285
Oil Check See: Engine Oil Check...................................... 284
Opening and Closing the Hood.............280 Closing the Hood................................................ 281
Opening the Hood............................................ 280
Ordering Additional Owner's Literature.....................................................266
Obtaining a French Owner ’s Manual.........266
Overhead Console........................................154
P
Parking Aids
....................................................192
Principle of Operation....................................... 192Passive Anti-Theft System.........................70
SecuriLock®........................................................... 70
PATS See: Passive Anti-Theft System..................... 70
Perchlorate........................................................13
Personal Safety System ™
..........................39
How Does the Personal Safety System
Work?.................................................................. 39
Phone...............................................................423 During a Phone Call........................................... 427
Making Calls........................................................ 426
Pairing Your Cell Phone for the First Time................................................................... 424
Phone Menu........................................................ 424
Receiving Calls.................................................... 427
Smartphone Connectivity.............................. 428
Text Messaging................................................... 428
Post-Crash Alert System..........................260
Power Door Locks See: Locking and Unlocking............................. 59
Power Liftgate.................................................67 Hands-Free Feature............................................ 69
Obstacle Detection............................................. 69
Opening and Closing the Liftgate.................. 67
Setting the Liftgate Open Height.................. 68
Stopping the Liftgate Movement.................. 68
Power Seats
...................................................138
Adjusting the 10-Way Seat............................. 140
Adjusting the 8-Way Seat............................... 139
Adjusting the Lumbar Support..................... 140
Power Steering Fluid Check......................291
Power Windows
.............................................86
Accessory Delay.................................................... 87
Bounce-Back......................................................... 86
One-Touch Down................................................ 86
One-Touch Up...................................................... 86
Window Lock......................................................... 87
Pre-Collision Assist
.....................................236
Adjusting the Pre-Collision Assist
Settings............................................................ 239
Blocked Sensors................................................ 239
Distance Indication and Alert....................... 238
Evasive Steering Assist.................................... 238
Using the Pre-Collision Assist System............................................................... 237
Protecting the Environment........................16
Puncture See: Changing a Road Wheel....................... 338
539
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index

Display...................................................................
453
General.................................................................. 450
Media Player......................................................... 441
Mobile Apps........................................................ 449
Navigation............................................................. 447
Phone..................................................................... 442
Radio...................................................................... 446
SiriusXM................................................................ 447
Sound.................................................................... 440
Valet Mode........................................................... 454
Vehicle................................................................... 452
Voice Control....................................................... 453
Wi-Fi & Hotspot.................................................. 451
Side Airbags
.....................................................45
Side Sensing System..................................194
Obstacle Distance Indicator........................... 195
Sitting in the Correct Position..................135
Snow Chains See: Using Snow Chains.................................. 331
Spare Wheel See: Changing a Road Wheel....................... 338
Special Notices
................................................14
New Vehicle Limited Warranty......................... 14
On Board Diagnostics Data Link Connector............................................................ 15
Special Instructions.............................................. 14
Special Operating Conditions Scheduled Maintenance...............................................478
Exceptions............................................................ 479
Speed Control See: Cruise Control............................................ 207
Stability Control
............................................189
Principle of Operation...................................... 189
Starting a Gasoline Engine
.......................156
Automatic Engine Shutdown......................... 157
Failure to Start...................................................... 157
Guarding Against Exhaust Fumes................158
Important Ventilating Information..............158
Stopping the Engine When Your Vehicle is Moving............................................................... 158
Stopping the Engine When Your Vehicle is Stationary......................................................... 158
Starting and Stopping the Engine..........155 General Information.......................................... 155
Steering...........................................................235 Adaptive Learning............................................. 236
Electric Power Steering................................... 235
Steering Wheel................................................73 Storage Compartments
.............................154
Sunroof See: Moonroof...................................................... 89
Sun Visors.........................................................89 Illuminated Vanity Mirror................................... 89
Supplementary Restraints System.........40 Principle of Operation........................................ 40
Symbols Glossary
.............................................7
SYNC™ 3.........................................................391 General Information.......................................... 391
SYNC™ 3 Troubleshooting......................454
SYNC™ Applications and Services........................................................378
911 Assist............................................................... 378
SYNC Mobile Apps........................................... 380
SYNC™............................................................374 General Information.......................................... 374
SYNC™ Troubleshooting
.........................382
T
Technical Specifications See: Capacities and Specifications............345
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................263
Tire Care
...........................................................315
Glossary of Tire Terminology......................... 318
Important Information About Low-Profile Tires..................................................................... 315
Important Information About Sport Tires and Wheels...................................................... 315
Information About Uniform Tire Quality Grading.............................................................. 316
Information Contained on the Tire Sidewall............................................................ 319
Notice to Crossover Vehicle Owners...........316
Temperature A B C.............................................. 317
Tire Rotation........................................................ 330
Traction AA A B C................................................ 317
Treadwear.............................................................. 317
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit................308
Tire Pressure Monitoring System...........332 Changing Tires With a Tire Pressure
Monitoring System....................................... 333
Understanding Your Tire Pressure Monitoring System ...................................... 333
541
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing- Index
