Page 6 of 495

Seats
Sitting in the Correct Position
.................137
Head Restraints ............................................
137
Manual Seats ................................................
139
Power Seats ..................................................
140
Memory Function ........................................
142
Rear Seats ......................................................
144
Heated Seats ................................................
145
Climate Controlled Seats .........................
146
Garage Door Opener
Universal Garage Door Opener ..............
148
Auxiliary Power Points
Auxiliary Power Points ...............................
153
Wireless Accessory Charger ....................
154
Storage Compartments
Center Console .............................................
156
Overhead Console ......................................
156
Rear Seat Armrest .......................................
156
Starting and Stopping the Engine
General Information ....................................
157
Keyless Starting ............................................
157
Starting a Gasoline Engine ......................
158
Switching Off the Engine .........................
160
Engine Block Heater ...................................
160
Unique Driving Characteristics
Auto-Start-Stop ..........................................
162
Fuel and Refueling
Safety Precautions .....................................
164
Fuel Quality ...................................................
164
Fuel Filler Funnel Location .......................
165
Running Out of Fuel ...................................
165Refueling
.........................................................
167
Fuel Consumption ......................................
169
Engine Emission Control
Emission Law ..................................................
171
Catalytic Converter ......................................
172
Transmission
Automatic Transmission ...........................
175
All-Wheel Drive
Using All-Wheel Drive .................................
181
Brakes
General Information ...................................
186
Hints on Driving With Anti-Lock Brakes ........................................................................\
186
Electric Parking Brake ................................
187
Hill Start Assist ............................................
188
Traction Control
Principle of Operation ...............................
190
Using Traction Control ..............................
190
Stability Control
Principle of Operation .................................
191
Using Stability Control ...............................
192
Parking Aids
Principle of Operation ...............................
194
Rear Parking Aid ...........................................
195
Front Parking Aid .........................................
196
Side Sensing System .................................
198
Active Park Assist ........................................
199
Rear View Camera .....................................
206
180 Degree Camera ..................................
209
Cruise Control
What Is Cruise Control ...............................
210
3
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Table of Contents
Page 21 of 495

AT A GLANCE - ST
•
2.7L DOHC DI GTV6 engine.
• Modified front suspension knuckle for
improved wheel end geometry.
• Cast rear knuckle (improved stiffness)
and alternative anti-roll-bar mounting
for improved efficiency.
• ST-tuned springs and dampers.
• 13.6 in (345 mm) front and rear rotors.
• Enhanced torque vectoring control with
cornering understeer control.
• ST-tuned electric power steering
rack-and-pinion.
• AdvanceTrac® stability enhancement
system with four modes: Default,
Traction Control off, Sport and
Disabled.
• Aluminum ST wheels 20 in (50.8 cm)
x 8 in (20.3 cm), 2.1 in (52.5 mm) offset
or optional 21 in (53.3 cm) x 9 in (22.9
cm), 2.2 in (55mm) offset. •
245/50R20 V-rated all season tires
come standard.
• 265/40R21 A/S V-rated all season tires
comes standard with optional 21 inch
wheels.
• Front seats with increased lateral
support.
• Leather wrapped ST sport steering
wheel with improved grip contour.
• Instrument cluster with boost gauge.
Performance Brake Package Options
• Unique front rotors and dust shields
optimized for cooling. Unique, red
painted calipers with ST tuned pad
formulation front and rear.
• 265/40R21 summer only performance
tires are optional with 21 inch wheels.
• Brushless cooling fan for additional
underhood airflow.
Engine Specifications Description
Item
2.7L DOHC 4V GTDI V6, cast iron cylinderblock and cast aluminum cylinder heads
Configuration
3.3 in (83 mm) bore x 3.2677 in (83 mm)
stroke
Bore x stroke
164 in³ (2,694 cm³)
Displacement
10:1
Compression ratio
335 hp @ 5500 RPM on 93 octane
Horsepower
380 lb-ft @ 3250 RPM on 93 octane
Torque
6250 RPM continuous
Redline
6500 RPM three-second overspeed
124 horsepower per liter
Specific output
Twin independent variable cam timing
Valvetrain
18
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- At a Glance
Page 24 of 495

Parking brake. See Electric Parking Brake (page 187).
M
Keyless start button. See
Keyless Starting (page 157).
N
Audio control. Voice control. See Audio Control (page 79). See Voice Control
(page
80).
O
Steering wheel adjustment. See
Adjusting the Steering Wheel (page 78).
P
Horn.
Q
Cruise control buttons.
See Cruise Control (page 80).
R
Hood release. See
Opening and Closing the Hood (page 277).
S
Lighting control. See Lighting Control (page 85). Power liftgate release button.
See
Power Liftgate (page 71). Traction control switch. See Using Traction
Control (page 190).
T
21
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- At a Glance
Page 63 of 495

•
A vehicle speed limit can be set.
Warnings will be shown in the display
followed by an audible tone when your
vehicle reaches the set speed. You
cannot override the set speed by fully
depressing the accelerator pedal or by
setting cruise control.
• Various vehicle speed minders can be
set. Once you select a speed, it will be
shown in the display, followed by an
audible tone when the preselected
vehicle speed is exceeded.
• Audio system maximum volume of
45%. A message will be shown in the
display when you attempt to exceed
the limited volume. Also, the
speed-sensitive or compensated
automatic volume control will be
disabled.
• Always on setting. When this is
selected, you will not be able to switch
off AdvanceTrac ™ or traction control,
911 Assist or Emergency Assistance, or
the do not disturb feature, if your
vehicle comes with these features.
CREATING A MYKEY
Use the information display to create a
MyKey:
1. Insert the key you want to program into
the ignition. If your vehicle has a
push-button start, place the remote
control into the backup slot. See
Starting a Gasoline Engine (page
158).
2. Switch the ignition on.
3. Access the main menu in the information display and then scroll
through the menus to change the
settings of your MyKey. From the
MyKey menu select the option Create
MyKey. See
Information Displays
(page 105). 4. Select
Yes if you want to create the
key as MyKey. A confirmation message
appears on the screen.
5. Switch the ignition off.
You successfully created a MyKey. Make
sure you label it so you can distinguish it
from the admin keys.
You can also program configurable
settings for the key(s). See
Programming
and Changing Configurable Settings.
Programming and Changing
Configurable Settings
Use the information display to access your
configurable MyKey settings.
1. Switch the ignition on using an admin key or transmitter you want to program.
2. Access the main menu in the information display and then scroll
through the menus to change the
settings of your MyKey. See
Information Displays
(page 105).
3. Follow the instructions in the display. The programmed restrictions apply
when you switch the vehicle off, open
and close the driver door and restart
your vehicle with the programmed key
or transmitter.
Note: You can clear or change your MyKey
settings at any time during the same key
cycle as you created the MyKey. Once you
have switched the vehicle off, however, you
need an admin key to change or clear your
MyKey settings. When you make any
changes to your MyKey settings, you change
the settings for every MyKey. You cannot
make individual changes to apply to certain
MyKeys.
60
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- MyKey
™
Page 115 of 495

Fuel Economy
Instant Fuel Economy - Hold OK to Reset
Auto StartStop
Fuel History
Average Speed
• Inst Fuel Economy - shows a visual graph of your instantaneous fuel economy, average
fuel economy and distance to empty.
• Auto StartStop - available Auto Start-Stop messaging will provide details about what
is happening with your system. See
Information Messages (page 115).
• Fuel History - Shows the fuel economy over the past 30 minutes.
• Average Speed - Shows the average speed since the last reset.
Note: You can reset your average fuel economy by pressing and holding the
OK button on
the left hand steering wheel controls.
Driver Assist
In this mode, you can configure different
driver setting choices. Note:
Some items are optional and may
not appear. Driver Assist
Traction Control
Blindspot
Cross Traffic Alert Select setting
Cruise Control
Driver Alert
Driver Sel. Susp.
Hill Start Assist
Select setting
Mode
Lane Keeping Sys
Intensity
Alert Sensitivity
Pre-Collision
Active Braking
112
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Information Displays
Page 117 of 495

Settings
Select setting
Power Lift-
gate
Select setting
Climate Control
Remote
Start
Seats or Seats and
Wheel
Duration
System
Seatbelts
Silent Mode Remote Open
Windows
Remote Close
Courtesy Wipe
Wipers
Rain Sensing
Hold OK to Create MyKey
Create
MyKey
MyKey
Select setting
911 Assist
Emergency
Assist
Do Not
Disturb
Traction
Ctrl
Max Speed
Speed
Minder
Volume Limiter
Hold
OK to Clear All MyKeys
Clear
MyKeys
Select setting
Distance
Display
Setup
Temper-
ature
114
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Information Displays
Page 124 of 495

Driver Alert
Action
Message
Stop and rest as soon as it is safe to do so.
Driver Alert Warning Rest
Now
Take a rest soon.
Driver Alert Warning Rest
Suggested
Electronic Stability Control Action
Message
The system detects a malfunction due to a blocked sensor.
Service AdvanceTrac
The traction control system status.
AdvanceTrac Off
The traction control system status.
AdvanceTrac On
The traction control system status.
AdvanceTrac SPORT
MODE
Engine Action
Message
Displays when the engine temperature is too high. Stop
your vehicle in a safe place and allow the engine to cool. If the problem persists, see an authorized dealer. See Engine Coolant Check (page 284).
High Engine Temperature
Stop Safely
Engine service is required. See an authorized dealer.
Engine Fault Service Now
Check the engine oil level
See Engine Oil Check (page
281).
Engine Oil Level Low Check
Level
121
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Information Displays
Page 128 of 495

Action
Message
You have an active MyKey with a programmed set speed limit.
Check Speed Drive
Safely
Belt-Minder turns on with a MyKey in use.
Buckle Up to Unmute
Audio
With a MyKey in use, AdvanceTrac turns on.
AdvanceTrac On -
MyKey Setting
With a MyKey in use, traction control turns on.
Traction Control On -
MyKey Setting
With a MyKey in use, park aid is always on.
MyKey Park Aid Cannot
be Deactivated
With a MyKey in use, lane keeping alert turns on.
Lane Keeping Alert On
MyKey Setting
Park Aid Action
Message
The system has detected a condition that requires service.
Contact an authorized dealer. See Principle of Operation
(page 194).
Check Front Park Aid
The system has detected a condition that requires service.
Contact an authorized dealer. See
Principle of Operation
(page 194).
Check Rear Park Aid
Displays the park aid status.
Front Park Aid On Off
Displays the park aid status.
Rear Park Aid On Off
Park Brake Action
Message
You have set the parking brake and you have driven the vehiclemore than
3 mph (5 km/h). If the warning stays on after you
have released the parking brake, contact an authorized dealer.
Park Brake Engaged
The electric parking brake system has detected a conditionthat requires service. See an authorized dealer.
Park Brake Malfunction
Service Now
The electric parking brake is not set.
Park Brake Not Applied
125
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Information Displays
Page 131 of 495

Tire Pressure Monitoring System
Action
Message
One or more tires on your vehicle has low tire pressure. SeeTire Pressure Monitoring System (page 330).
Tire Pressure Low
The tire pressure monitoring system is malfunctioning. If thewarning stays on or continues to come on, contact an
authorized dealer. See
Tire Pressure Monitoring System (page 330).
Tire Pressure Monitor
Fault
A tire pressure sensor is malfunctioning or your spare tire is inuse. See
Tire Pressure Monitoring System (page 330). If
the warning stays on or continues to come on, contact an authorized dealer.
Tire Pressure Sensor
Fault
Towing Action
Message
Your trailer sway control has detected trailer sway so youneed to reduce your speed.
Trailer Sway Reduce
Speed
Traction Control Action
Message
The status of the traction control system. See
Using Traction
Control (page 190).
Traction Control Off
The status of the traction control system. See
Using Traction
Control (page 190).
Traction Control On
128
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Information Displays

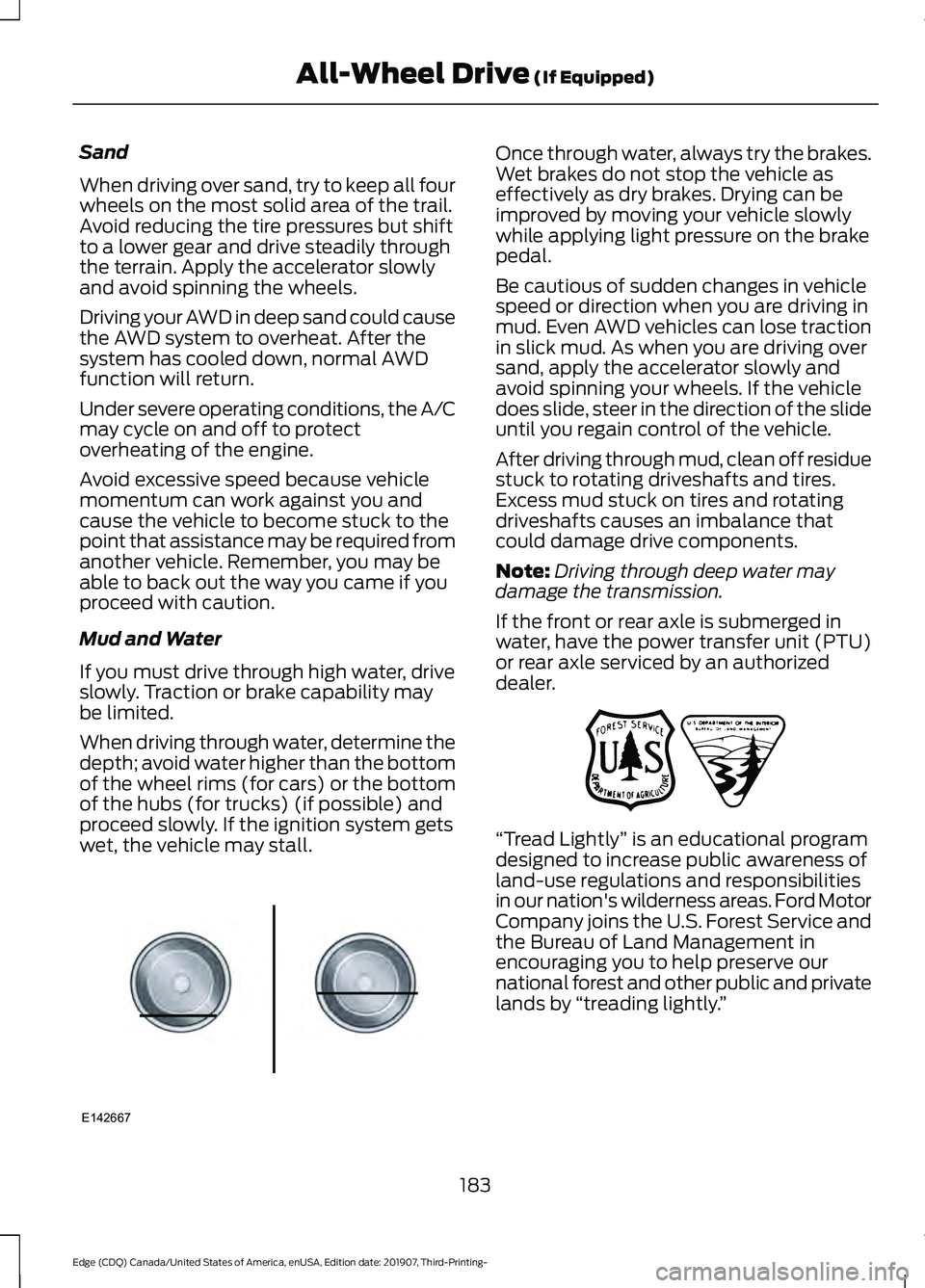

Page 186 of 495

Sand
When driving over sand, try to keep all four
wheels on the most solid area of the trail.
Avoid reducing the tire pressures but shift
to a lower gear and drive steadily through
the terrain. Apply the accelerator slowly
and avoid spinning the wheels.
Driving your AWD in deep sand could cause
the AWD system to overheat. After the
system has cooled down, normal AWD
function will return.
Under severe operating conditions, the A/C
may cycle on and off to protect
overheating of the engine.
Avoid excessive speed because vehicle
momentum can work against you and
cause the vehicle to become stuck to the
point that assistance may be required from
another vehicle. Remember, you may be
able to back out the way you came if you
proceed with caution.
Mud and Water
If you must drive through high water, drive
slowly. Traction or brake capability may
be limited.
When driving through water, determine the
depth; avoid water higher than the bottom
of the wheel rims (for cars) or the bottom
of the hubs (for trucks) (if possible) and
proceed slowly. If the ignition system gets
wet, the vehicle may stall.
Once through water, always try the brakes.
Wet brakes do not stop the vehicle as
effectively as dry brakes. Drying can be
improved by moving your vehicle slowly
while applying light pressure on the brake
pedal.
Be cautious of sudden changes in vehicle
speed or direction when you are driving in
mud. Even AWD vehicles can lose traction
in slick mud. As when you are driving over
sand, apply the accelerator slowly and
avoid spinning your wheels. If the vehicle
does slide, steer in the direction of the slide
until you regain control of the vehicle.
After driving through mud, clean off residue
stuck to rotating driveshafts and tires.
Excess mud stuck on tires and rotating
driveshafts causes an imbalance that
could damage drive components.
Note:
Driving through deep water may
damage the transmission.
If the front or rear axle is submerged in
water, have the power transfer unit (PTU)
or rear axle serviced by an authorized
dealer. “Tread Lightly
” is an educational program
designed to increase public awareness of
land-use regulations and responsibilities
in our nation's wilderness areas. Ford Motor
Company joins the U.S. Forest Service and
the Bureau of Land Management in
encouraging you to help preserve our
national forest and other public and private
lands by “treading lightly. ”
183
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- All-Wheel Drive (If Equipped)E142667 E143950
