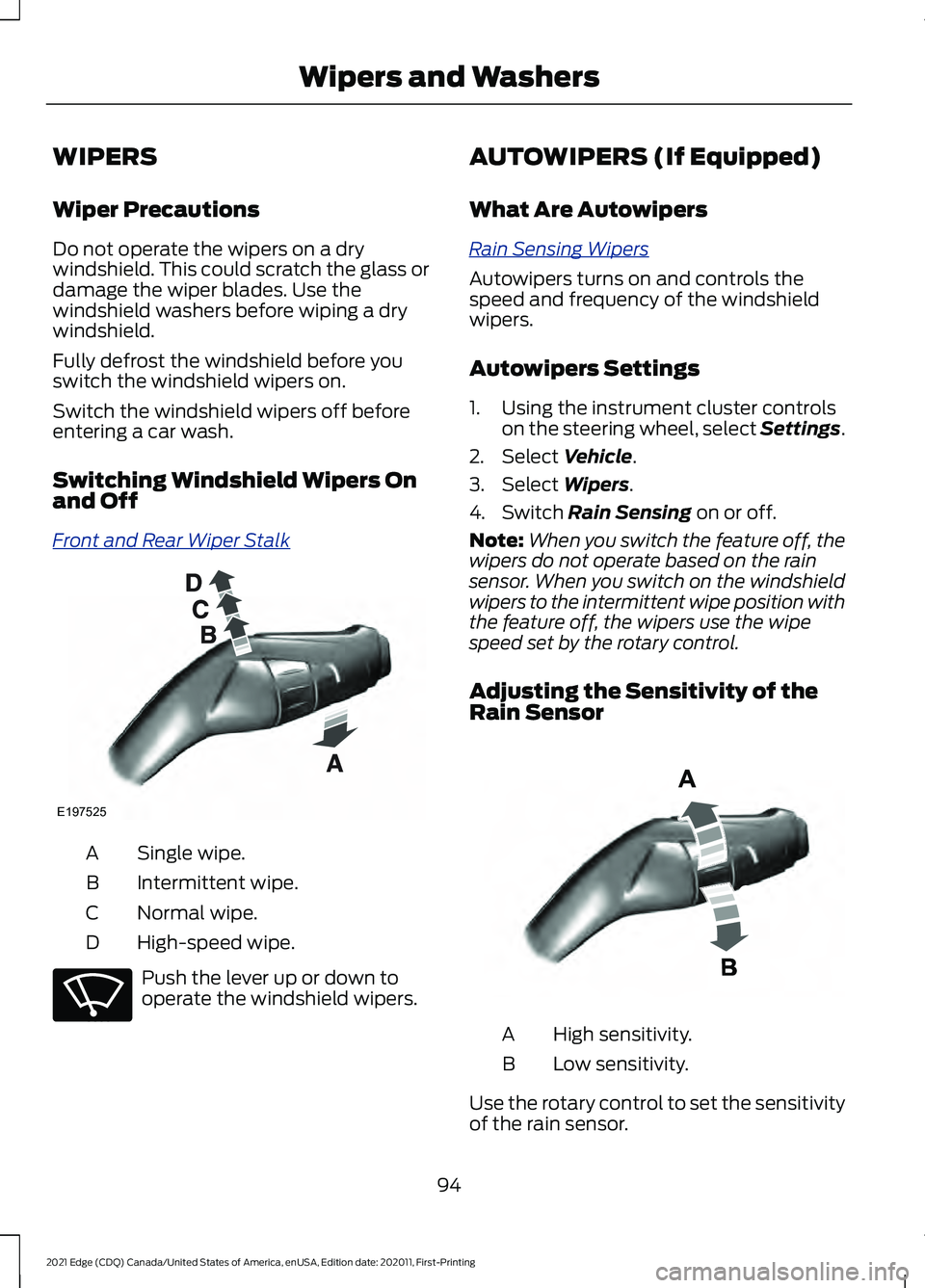

WIPERS
Wiper Precautions
Do not operate the wipers on a dry
windshield. This could scratch the glass or
damage the wiper blades. Use the
windshield washers before wiping a dry
windshield.
Fully defrost the windshield before you
switch the windshield wipers on.
Switch the windshield wipers off before
entering a car wash.
Switching Windshield Wipers On
and Off
Fr
ont and R e ar W iper S t alk
Single wipe.
A
Intermittent wipe.
B
Normal wipe.
C
High-speed wipe.
D Push the lever up or down to
operate the windshield wipers. AUTOWIPERS (If Equipped)
What Are Autowipers
R ain S ensing W iper s
Autowipers turns on and controls the
speed and frequency of the windshield
wipers.
Autowipers Settings
1. Using the instrument cluster controls
on the steering wheel, select Settings.
2. Select Vehicle.
3. Select
Wipers.
4. Switch
Rain Sensing on or off.
Note: When you switch the feature off, the
wipers do not operate based on the rain
sensor. When you switch on the windshield
wipers to the intermittent wipe position with
the feature off, the wipers use the wipe
speed set by the rotary control.
Adjusting the Sensitivity of the
Rain Sensor High sensitivity.
A
Low sensitivity.
B
Use the rotary control to set the sensitivity
of the rain sensor.
94
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Wipers and WashersE197525 E270969 E331276

When you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.
When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield.
SWITCHING THE REAR
WINDOW WIPER ON AND OFF
Fr
ont and R e ar W iper S t alk
Intermittent wipe.
A
Continuous wipe.
B
Rear window wiper off.
C
REVERSE WIPE
What Is Reverse Wipe
Reverse wipe turns on the rear window
wiper when you shift into reverse (R) and
the windshield wipers are on.
Reverse Wipe Settings
1. Using the instrument cluster controls on the steering wheel, select Settings.
2. Select Vehicle.
3. Select
Wipers.
4. Switch
Reverse Wiper on or off. CHECKING THE WIPER
BLADES
Run the tip of your fingers over the edge of
the blade to check for roughness.
REPLACING THE FRONT
WIPER BLADES
1. Lift the wiper arm and then press the
wiper blade locking buttons together.
Note: Do not hold the wiper blade to lift the
wiper arm.
Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.
2. Slightly rotate the wiper blade.
3. Remove the wiper blade.
4. To install, reverse the removal procedure.
95
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Wipers and WashersE171615 E142463 E129990

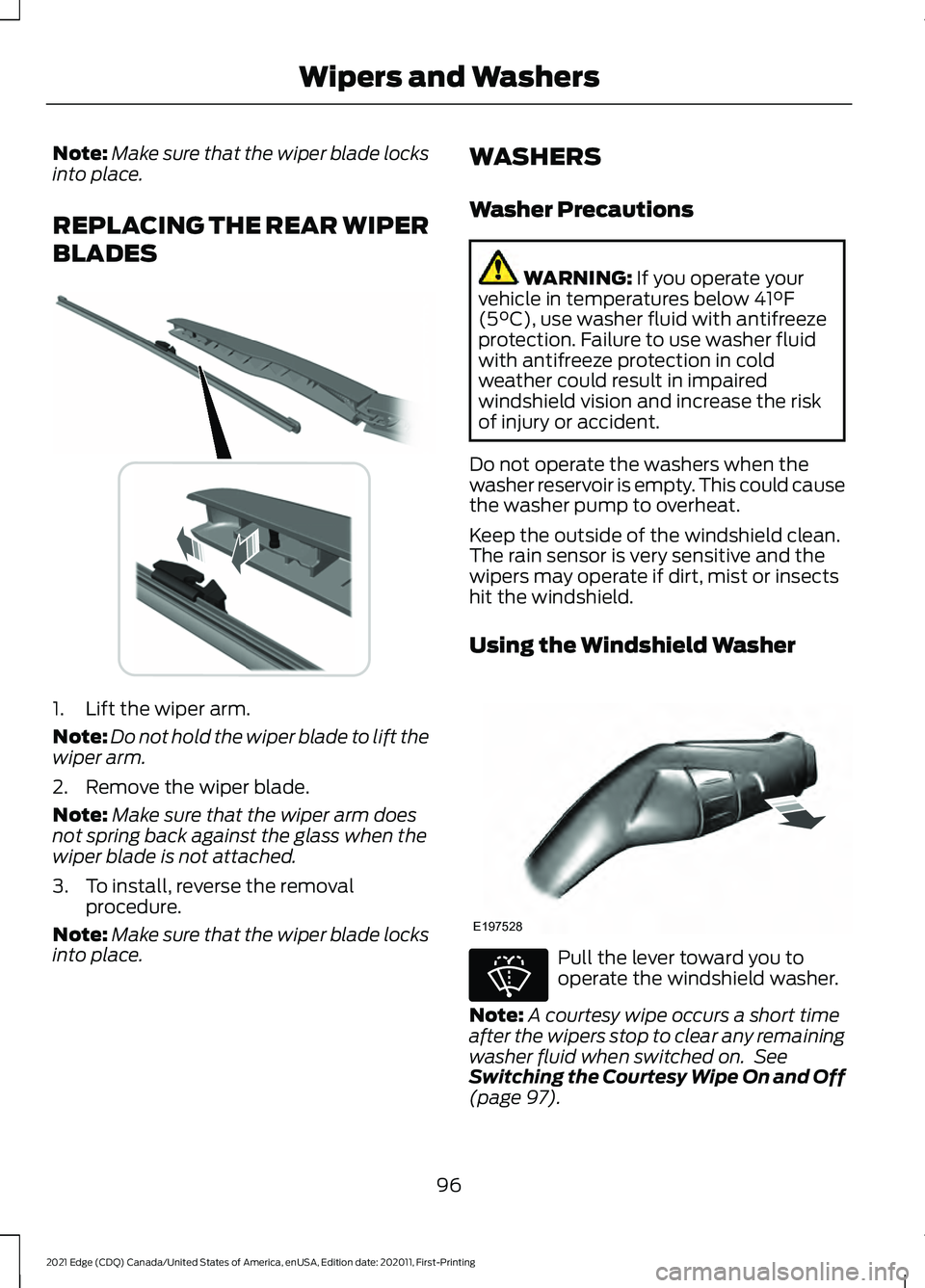

Note:
Make sure that the wiper blade locks
into place.
REPLACING THE REAR WIPER
BLADES 1. Lift the wiper arm.
Note:
Do not hold the wiper blade to lift the
wiper arm.
2. Remove the wiper blade.
Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.
3. To install, reverse the removal procedure.
Note: Make sure that the wiper blade locks
into place. WASHERS
Washer Precautions WARNING: If you operate your
vehicle in temperatures below 41°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.
Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.
Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.
Using the Windshield Washer Pull the lever toward you to
operate the windshield washer.
Note: A courtesy wipe occurs a short time
after the wipers stop to clear any remaining
washer fluid when switched on. See
Switching the Courtesy Wipe On and Off
(page
97).
96
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Wipers and Washers E271380 E197528 E270967

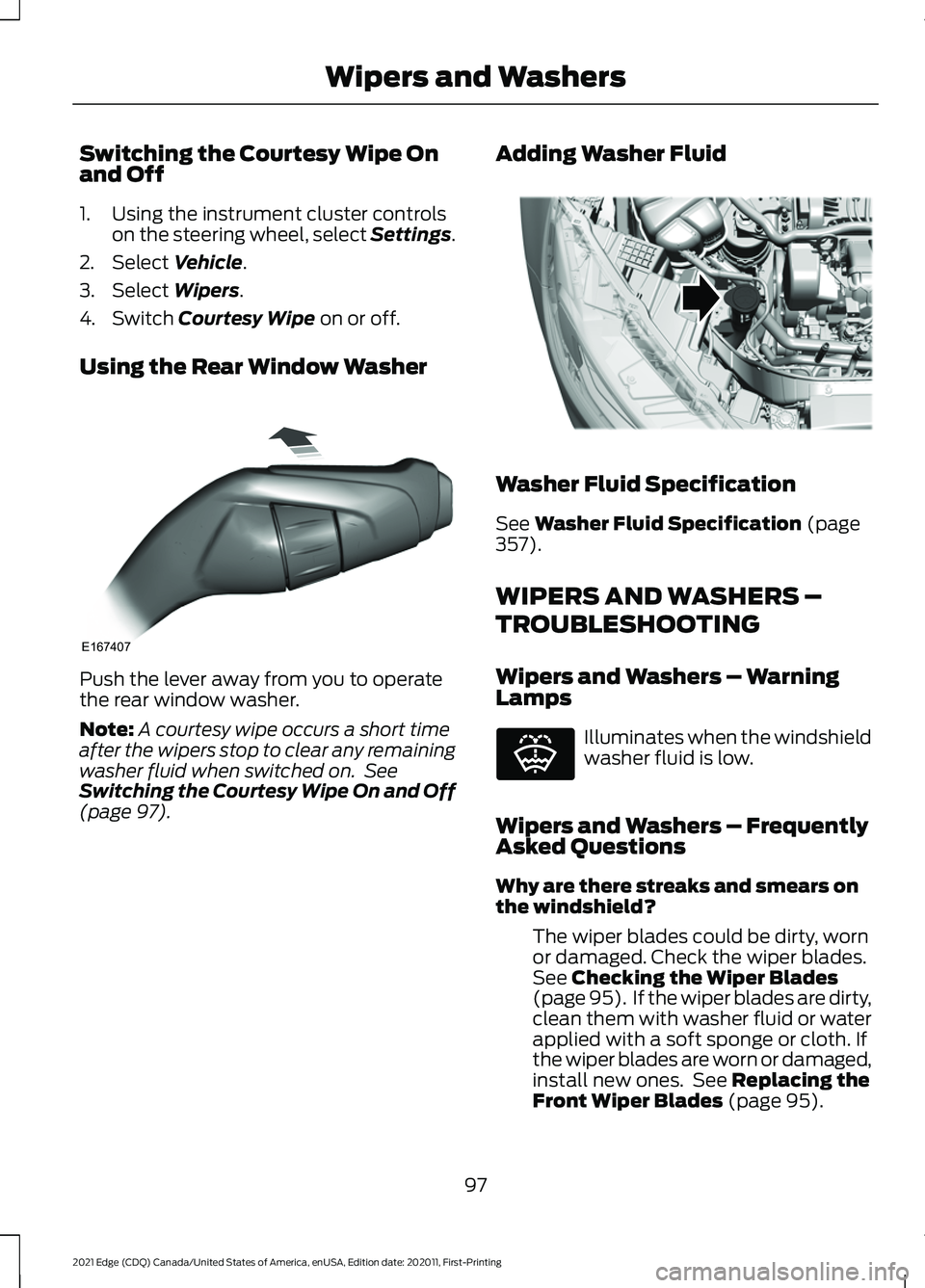

Switching the Courtesy Wipe On
and Off
1. Using the instrument cluster controls
on the steering wheel, select Settings.
2. Select Vehicle.
3. Select
Wipers.
4. Switch
Courtesy Wipe on or off.
Using the Rear Window Washer Push the lever away from you to operate
the rear window washer.
Note:
A courtesy wipe occurs a short time
after the wipers stop to clear any remaining
washer fluid when switched on. See
Switching the Courtesy Wipe On and Off
(page
97). Adding Washer Fluid Washer Fluid Specification
See
Washer Fluid Specification (page
357).
WIPERS AND WASHERS –
TROUBLESHOOTING
Wipers and Washers – Warning
Lamps Illuminates when the windshield
washer fluid is low.
Wipers and Washers – Frequently
Asked Questions
Why are there streaks and smears on
the windshield? The wiper blades could be dirty, worn
or damaged. Check the wiper blades.
See
Checking the Wiper Blades
(page 95). If the wiper blades are dirty,
clean them with washer fluid or water
applied with a soft sponge or cloth. If
the wiper blades are worn or damaged,
install new ones. See
Replacing the
Front Wiper Blades (page 95).
97
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Wipers and WashersE167407 E330184 E132353

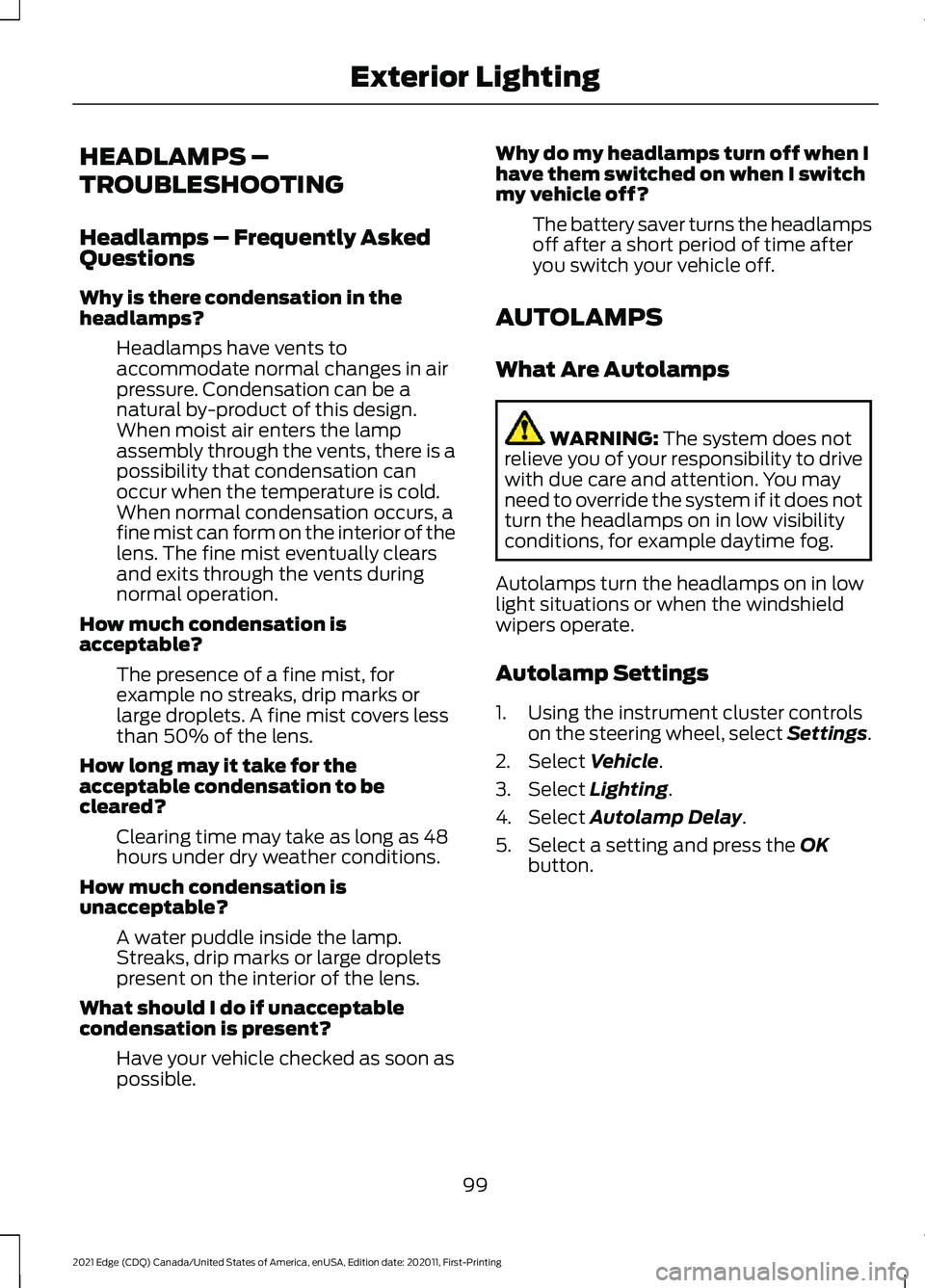

HEADLAMPS –
TROUBLESHOOTING
Headlamps – Frequently Asked
Questions
Why is there condensation in the
headlamps?
Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can
occur when the temperature is cold.
When normal condensation occurs, a
fine mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.
How much condensation is
acceptable? The presence of a fine mist, for
example no streaks, drip marks or
large droplets. A fine mist covers less
than 50% of the lens.
How long may it take for the
acceptable condensation to be
cleared? Clearing time may take as long as 48
hours under dry weather conditions.
How much condensation is
unacceptable? A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.
What should I do if unacceptable
condensation is present? Have your vehicle checked as soon as
possible. Why do my headlamps turn off when I
have them switched on when I switch
my vehicle off?
The battery saver turns the headlamps
off after a short period of time after
you switch your vehicle off.
AUTOLAMPS
What Are Autolamps WARNING: The system does not
relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.
Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.
Autolamp Settings
1. Using the instrument cluster controls on the steering wheel, select Settings.
2. Select
Vehicle.
3. Select
Lighting.
4. Select
Autolamp Delay.
5. Select a setting and press the
OK
button.
99
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Exterior Lighting

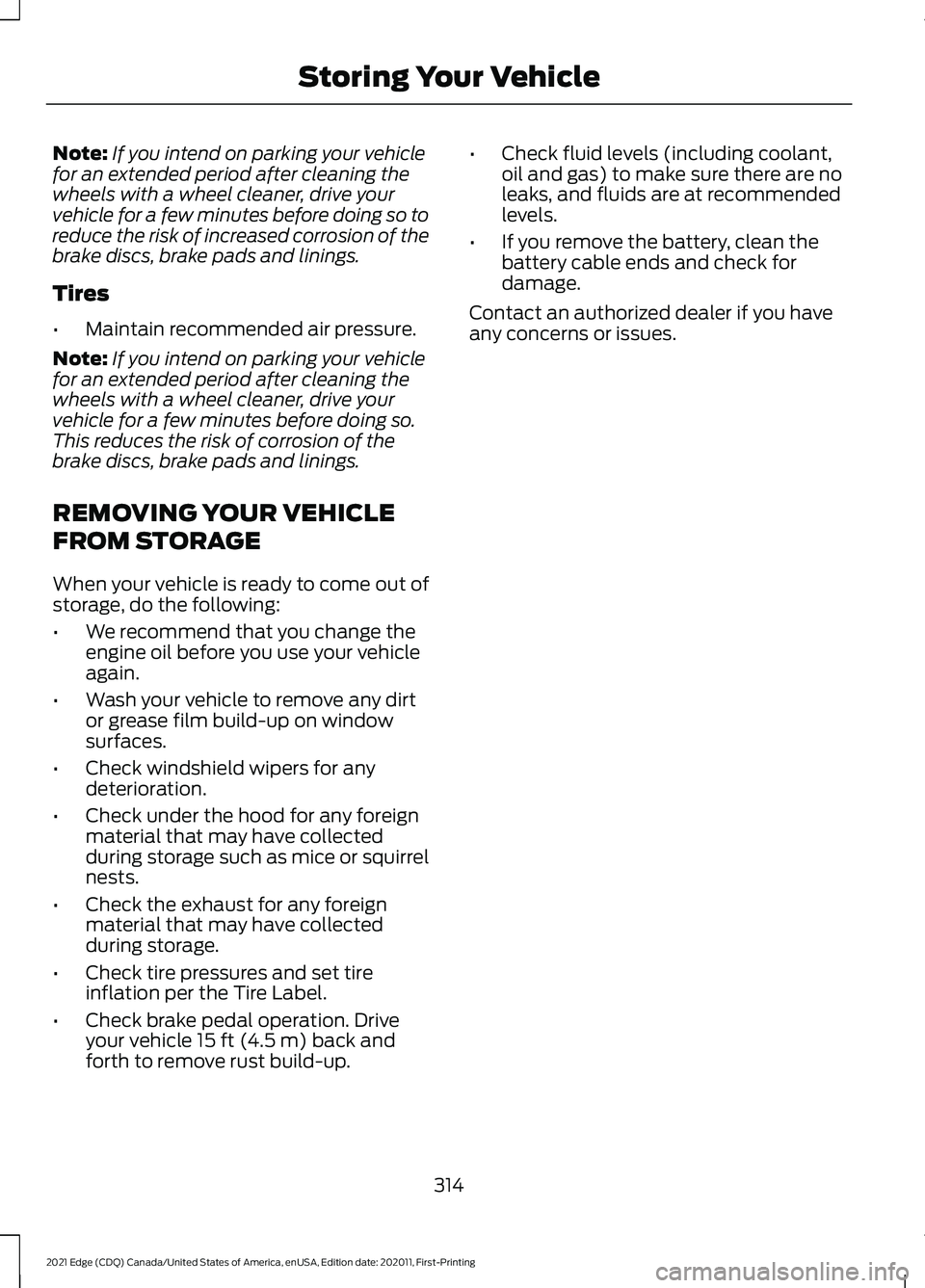

Note:
If you intend on parking your vehicle
for an extended period after cleaning the
wheels with a wheel cleaner, drive your
vehicle for a few minutes before doing so to
reduce the risk of increased corrosion of the
brake discs, brake pads and linings.
Tires
• Maintain recommended air pressure.
Note: If you intend on parking your vehicle
for an extended period after cleaning the
wheels with a wheel cleaner, drive your
vehicle for a few minutes before doing so.
This reduces the risk of corrosion of the
brake discs, brake pads and linings.
REMOVING YOUR VEHICLE
FROM STORAGE
When your vehicle is ready to come out of
storage, do the following:
• We recommend that you change the
engine oil before you use your vehicle
again.
• Wash your vehicle to remove any dirt
or grease film build-up on window
surfaces.
• Check windshield wipers for any
deterioration.
• Check under the hood for any foreign
material that may have collected
during storage such as mice or squirrel
nests.
• Check the exhaust for any foreign
material that may have collected
during storage.
• Check tire pressures and set tire
inflation per the Tire Label.
• Check brake pedal operation. Drive
your vehicle 15 ft (4.5 m) back and
forth to remove rust build-up. •
Check fluid levels (including coolant,
oil and gas) to make sure there are no
leaks, and fluids are at recommended
levels.
• If you remove the battery, clean the
battery cable ends and check for
damage.
Contact an authorized dealer if you have
any concerns or issues.
314
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Storing Your Vehicle

V
Vehicle Care...................................................307
Cleaning the Exterior........................................ 307
Cleaning the Interior......................................... 309
Vehicle Identification Number................359 Locating the Vehicle Identification
Number............................................................ 359
Vehicle Identification Number Overview.......................................................... 359
Vehicle Identification.................................359
Vehicle Identification Number...................... 359
Vehicle Interior
................................................28
Vehicle System Updates..........................386
Vehicle Wi-Fi Hotspot
...............................364
Ventilation See: Climate Control......................................... 128
Venting the Moonroof..................................112
Viewing the Tire Pressures.......................338
Visual Search
...................................................26
Voice Interaction Examples.....................375
Voice Interaction..........................................375
W
Washer Fluid Specification.......................357
Washers.............................................................96 Adding Washer Fluid........................................... 97
Switching the Courtesy Wipe On and Off........................................................................\
. 97
Using the Rear Window Washer..................... 97
Using the Windshield Washer......................... 96
Washer Fluid Specification............................... 97
Washer Precautions............................................ 96
Washers See: Wipers and Washers................................. 94
Waxing Your Vehicle.....................................311
Waypoints......................................................385 Adding a Waypoint........................................... 385
Editing Waypoints............................................. 385
What Are the Instrument Cluster Indicators.......................................................116
What Are the Instrument Cluster Warning Lamps
...........................................114
What Is a Connected Vehicle.................360
What Is Active Park Assist.......................208
What Is Auto-Start-Stop...........................167 What Is Blind Spot Information
System...........................................................231
What Is Cross Traffic Alert........................234
What Is Cruise Control................................212 Requirements....................................................... 212
What Is Driver Alert
.....................................244
What Is Ford Protect..................................389 Ford Protect Extended Service Plan
(Canada Only).............................................. 390
Ford Protect Extended Service Plans - United States Only....................................... 389
What Is Hill Start Assist
.............................193
What Is MyKey................................................66
What Is Pre-Collision Assist
.....................237
What Is Remote Start.................................125
What Is the 180 Degree Camera...........206
What Is the Cabin Air Filter........................132
What Is the Catalytic Converter..............176
What Is the Electric Parking Brake........190
What Is the Engine Coolant Temperature Gauge..............................................................114
What Is the Garage Door Opener...........148 HomeLink Wireless Control System...........148
What Is the Gross Axle Weight Rating.............................................................247
GAWR (Gross Axle Weight Rating).............247
What Is the Gross Combined Weight Rating............................................................248
What Is the Gross Vehicle Weight Rating.............................................................247
What Is the Keyless Entry Keypad
...........76
What Is the Lane Keeping System........224
What Is the Maximum Loaded Trailer Weight...........................................................247
What Is the Personal Safety System............................................................49
What Is the Power Outlet..........................155
What is the Rear Occupant Alert System...........................................................144
What Is the Rear View Camera..............203
What Is the Speedometer..........................113
What Is the Tachometer.............................113
What Is the Tire Pressure Monitoring System
..........................................................336
What Is the Tire Sealant and Inflator Kit...................................................................330
What Is the Turbo Boost Gauge...............114
492
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index

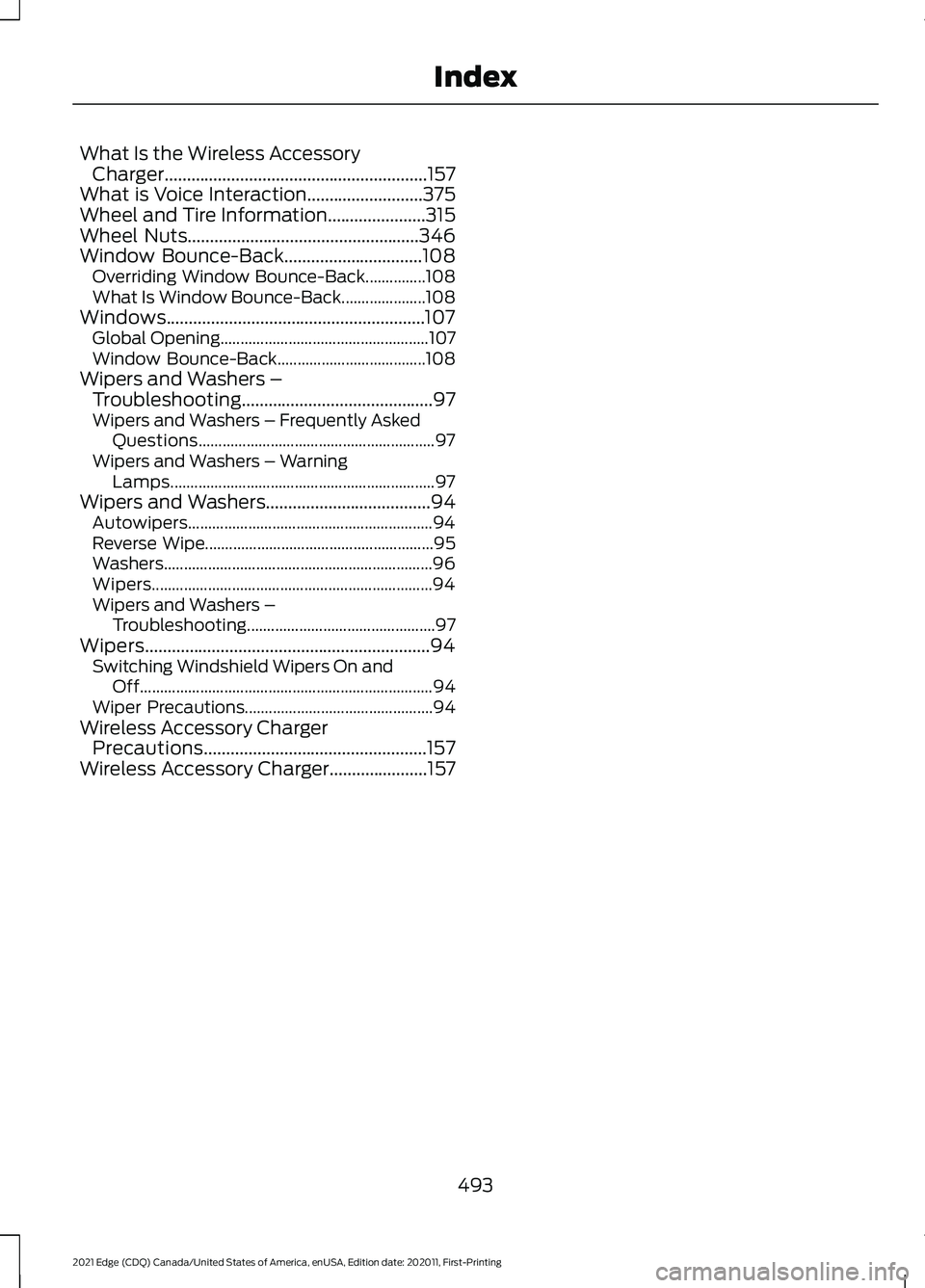

What Is the Wireless Accessory
Charger...........................................................157
What is Voice Interaction..........................375
Wheel and Tire Information......................315
Wheel Nuts....................................................346
Window Bounce-Back
...............................108
Overriding Window Bounce-Back...............108
What Is Window Bounce-Back..................... 108
Windows..........................................................107 Global Opening.................................................... 107
Window Bounce-Back..................................... 108
Wipers and Washers – Troubleshooting...........................................
97
Wipers and Washers – Frequently Asked
Questions........................................................... 97
Wipers and Washers – Warning Lamps.................................................................. 97
Wipers and Washers.....................................94 Autowipers............................................................. 94
Reverse Wipe......................................................... 95
Washers................................................................... 96
Wipers...................................................................... 94
Wipers and Washers – Troubleshooting............................................... 97
Wipers................................................................94 Switching Windshield Wipers On and
Off........................................................................\
. 94
Wiper Precautions............................................... 94
Wireless Accessory Charger Precautions..................................................157
Wireless Accessory Charger......................157
493
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index
