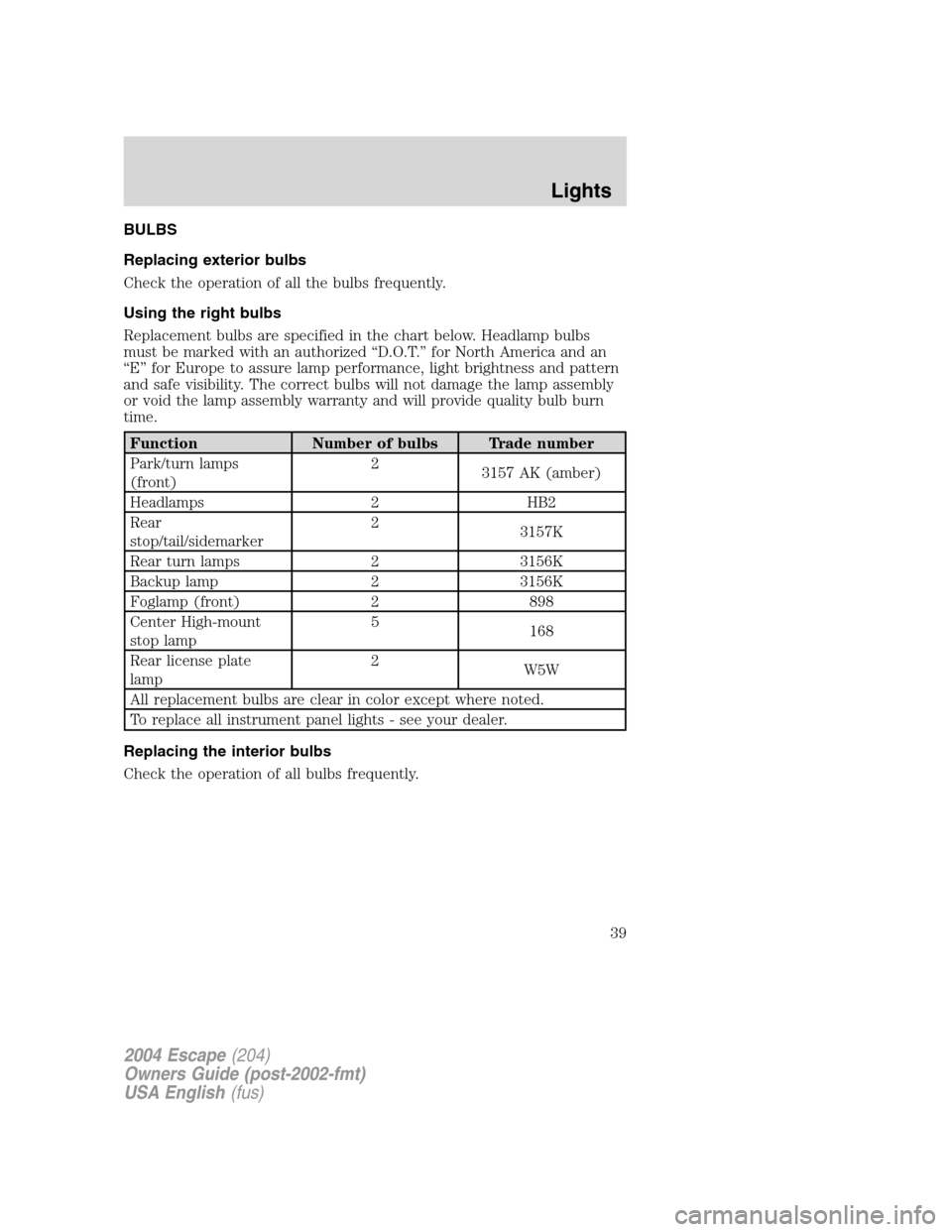

BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to assure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Number of bulbs Trade number
Park/turn lamps
(front)2
3157 AK (amber)
Headlamps 2 HB2
Rear
stop/tail/sidemarker2
3157K
Rear turn lamps 2 3156K
Backup lamp 2 3156K
Foglamp (front) 2 898
Center High-mount
stop lamp5
168
Rear license plate
lamp2
W5W
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer.
Replacing the interior bulbs
Check the operation of all bulbs frequently.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
39

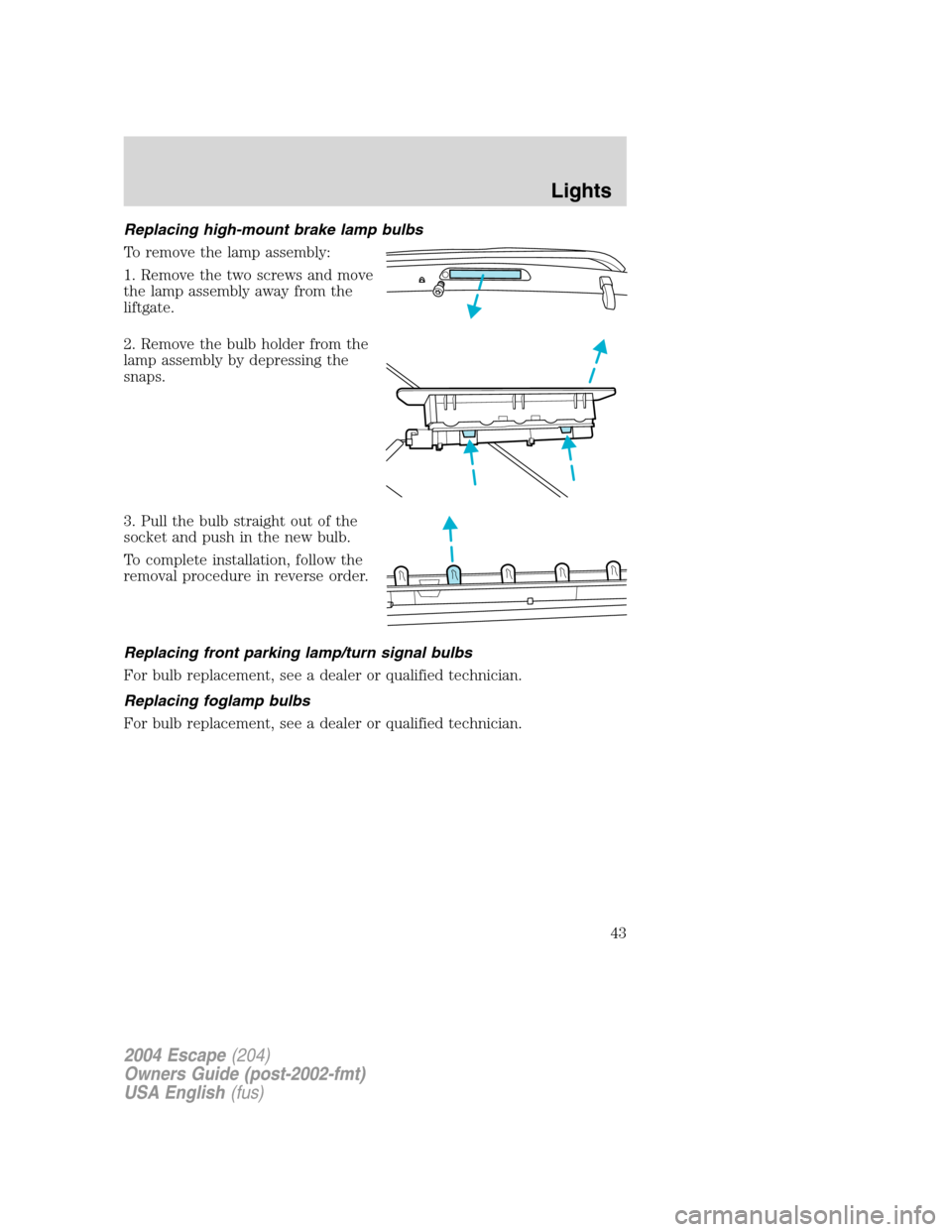

Replacing high-mount brake lamp bulbs
To remove the lamp assembly:
1. Remove the two screws and move
the lamp assembly away from the
liftgate.
2. Remove the bulb holder from the
lamp assembly by depressing the
snaps.
3. Pull the bulb straight out of the
socket and push in the new bulb.
To complete installation, follow the
removal procedure in reverse order.
Replacing front parking lamp/turn signal bulbs
For bulb replacement, see a dealer or qualified technician.
Replacing foglamp bulbs
For bulb replacement, see a dealer or qualified technician.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
43

refill capacities ........................220
service points ..................188–189
starting after a collision .........150
Engine block heater .................118
Engine oil ..................................190
checking and adding ..............190
dipstick ....................................190
filter, specifications ........193, 220
recommendations ...................193
refill capacities ........................220
specifications ..................223, 225
Exhaust fumes ..........................118
F
Fluid capacities .........................220
Foglamps .....................................34
Four-Wheel Drive vehicles
driving off road .......................131
indicator light .........................130
preparing to drive your
vehicle .....................................121
Fuel ............................................201
calculating fuel economy .......205
cap ...........................................202
capacity ...................................220
choosing the right fuel ...........203
comparisons with EPA fuel
economy estimates .................208
detergent in fuel .....................204
filling your vehicle with
fuel ...........................201–202, 205
filter, specifications ........205, 220
fuel pump shut-off switch .....150
improving fuel economy ........205
octane rating ...................204, 225
quality ......................................204
running out of fuel .................204
safety information relating to
automotive fuels .....................201Fuses ..................................151–152
G
Garage door opener ....................46
Gas cap (see Fuel cap) ............202
Gas mileage (see Fuel
economy) ...................................205
Gauges .........................................13
GAWR (Gross Axle Weight
Rating) .......................................141
calculating ...............................143
definition .................................141
driving with a heavy load ......141
location ....................................141
GVWR (Gross Vehicle Weight
Rating) .......................................141
calculating .......................141, 143
definition .................................141
driving with a heavy load ......141
location ....................................141
H
Hazard flashers .........................150
Head restraints .....................75, 77
Headlamps ...................................34
aiming ........................................36
autolamp system .................34, 48
bulb specifications ....................39
daytime running lights .............34
flash to pass ..............................35
high beam .................................35
replacing bulbs .........................40
turning on and off ....................34
Heating
heater only system ...................31
Hood ..........................................187
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
233

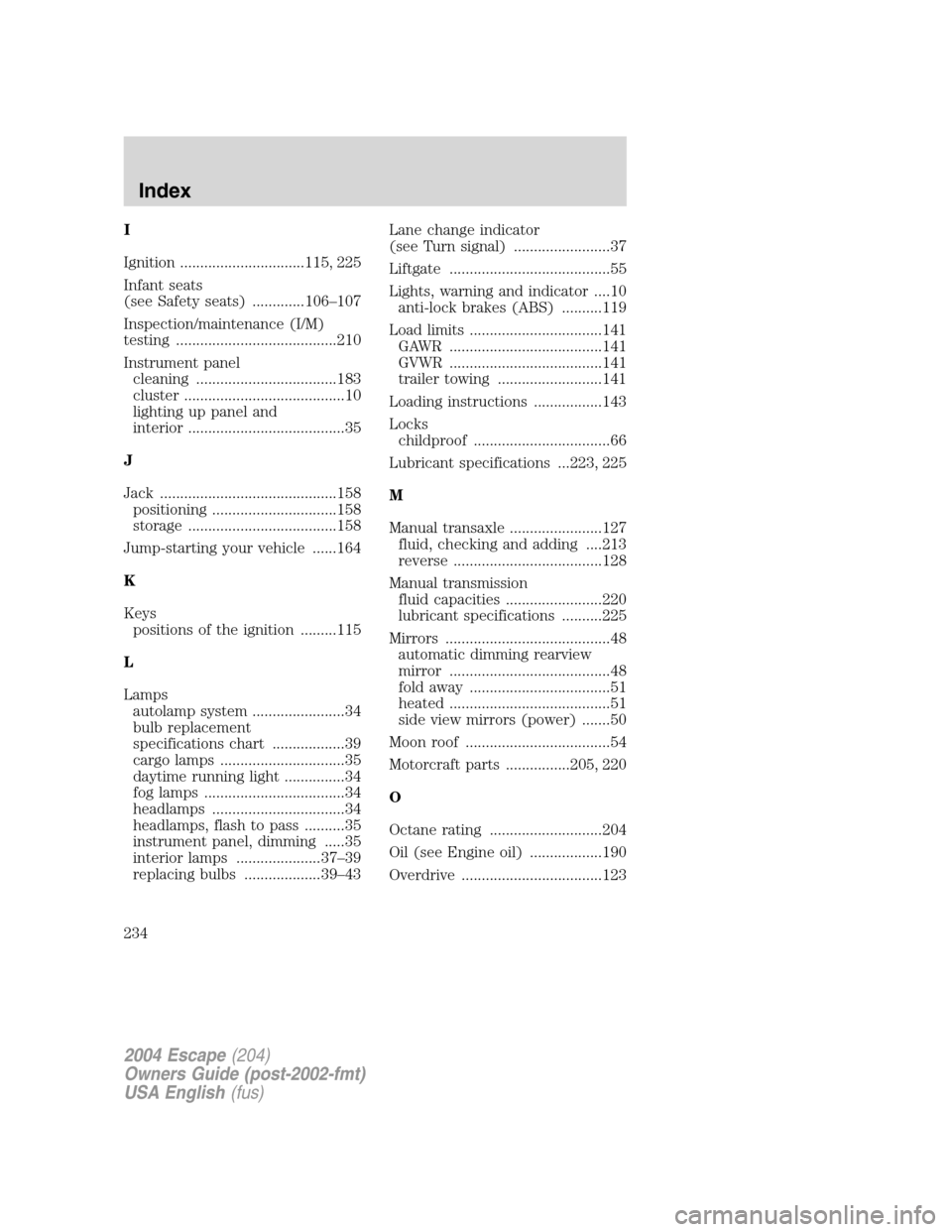

I
Ignition ...............................115, 225
Infant seats
(see Safety seats) .............106–107
Inspection/maintenance (I/M)
testing ........................................210
Instrument panel
cleaning ...................................183
cluster ........................................10
lighting up panel and
interior .......................................35
J
Jack ............................................158
positioning ...............................158
storage .....................................158
Jump-starting your vehicle ......164
K
Keys
positions of the ignition .........115
L
Lamps
autolamp system .......................34
bulb replacement
specifications chart ..................39
cargo lamps ...............................35
daytime running light ...............34
fog lamps ...................................34
headlamps .................................34
headlamps, flash to pass ..........35
instrument panel, dimming .....35
interior lamps .....................37–39
replacing bulbs ...................39–43Lane change indicator
(see Turn signal) ........................37
Liftgate ........................................55
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........119
Load limits .................................141
GAWR ......................................141
GVWR ......................................141
trailer towing ..........................141
Loading instructions .................143
Locks
childproof ..................................66
Lubricant specifications ...223, 225
M
Manual transaxle .......................127
fluid, checking and adding ....213
reverse .....................................128
Manual transmission
fluid capacities ........................220
lubricant specifications ..........225
Mirrors .........................................48
automatic dimming rearview
mirror ........................................48
fold away ...................................51
heated ........................................51
side view mirrors (power) .......50
Moon roof ....................................54
Motorcraft parts ................205, 220
O
Octane rating ............................204
Oil (see Engine oil) ..................190
Overdrive ...................................123
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
234
