Locking the doors
Turn the key in the door cylinder to lock all the doors. The park lamps
will flash once and the perimeter alarm (if equipped) will start the
arming process. For more information concerning the perimeter alarm,
refer toPerimeter alarm system (if equipped)later in this chapter.
If any of the doors or the hood are not properly closed the park lamps
will not flash.
Childproof door locks
•When these locks are set, the
rear doors cannot be opened from
the inside.
•The rear doors can be opened
from the outside when the doors
are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be setseparatelyfor each
door. Setting the lock for one door
willnotautomatically set the lock
for both doors.
•Rotate lock control in the
direction of arrow to engage the
lock.
•Rotate control in the opposite
direction to disengage childproof
locks.
REMOTE ENTRY SYSTEM (IF EQUIPPED)
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
66

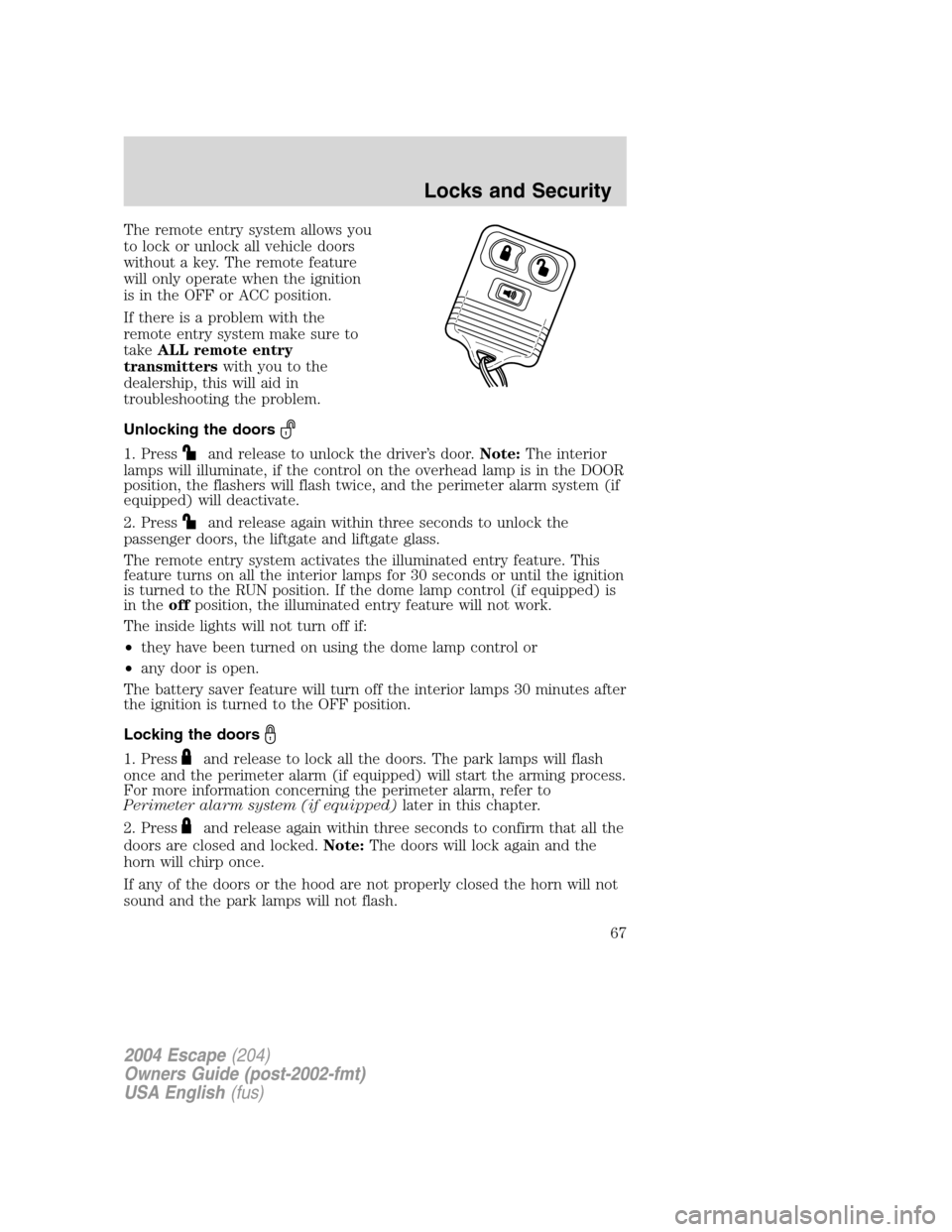

The remote entry system allows you
to lock or unlock all vehicle doors
without a key. The remote feature
will only operate when the ignition
is in the OFF or ACC position.
If there is a problem with the
remote entry system make sure to
takeALL remote entry
transmitterswith you to the
dealership, this will aid in
troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate, if the control on the overhead lamp is in the DOOR
position, the flashers will flash twice, and the perimeter alarm system (if
equipped) will deactivate.
2. Press
and release again within three seconds to unlock the
passenger doors, the liftgate and liftgate glass.
The remote entry system activates the illuminated entry feature. This
feature turns on all the interior lamps for 30 seconds or until the ignition
is turned to the RUN position. If the dome lamp control (if equipped) is
in theoffposition, the illuminated entry feature will not work.
The inside lights will not turn off if:
•they have been turned on using the dome lamp control or
•any door is open.
The battery saver feature will turn off the interior lamps 30 minutes after
the ignition is turned to the OFF position.
Locking the doors
1. Pressand release to lock all the doors. The park lamps will flash
once and the perimeter alarm (if equipped) will start the arming process.
For more information concerning the perimeter alarm, refer to
Perimeter alarm system (if equipped)later in this chapter.
2. Press
and release again within three seconds to confirm that all the
doors are closed and locked.Note:The doors will lock again and the
horn will chirp once.
If any of the doors or the hood are not properly closed the horn will not
sound and the park lamps will not flash.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
67

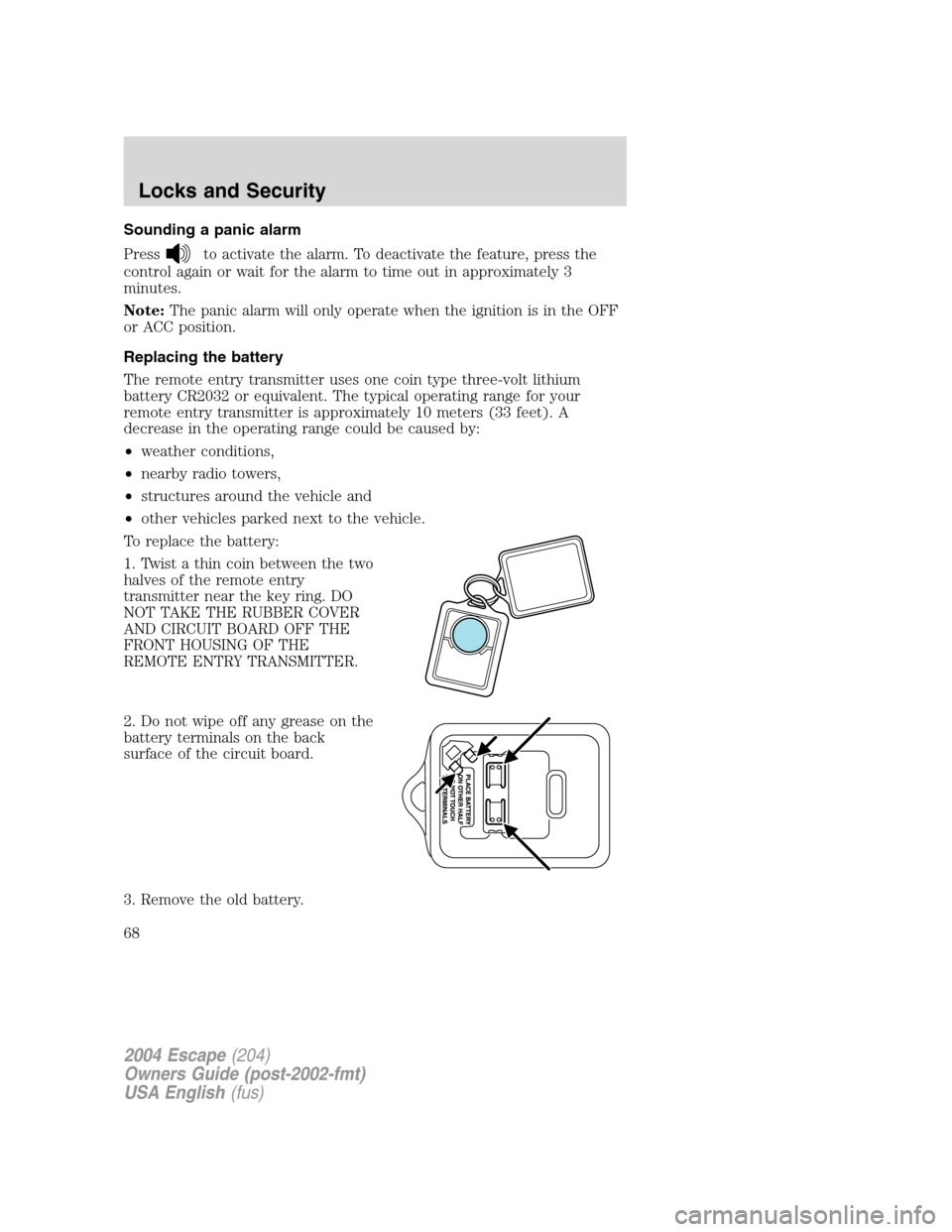

Sounding a panic alarm
Press
to activate the alarm. To deactivate the feature, press the
control again or wait for the alarm to time out in approximately 3
minutes.
Note:The panic alarm will only operate when the ignition is in the OFF
or ACC position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent. The typical operating range for your
remote entry transmitter is approximately 10 meters (33 feet). A
decrease in the operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle and
•other vehicles parked next to the vehicle.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
68

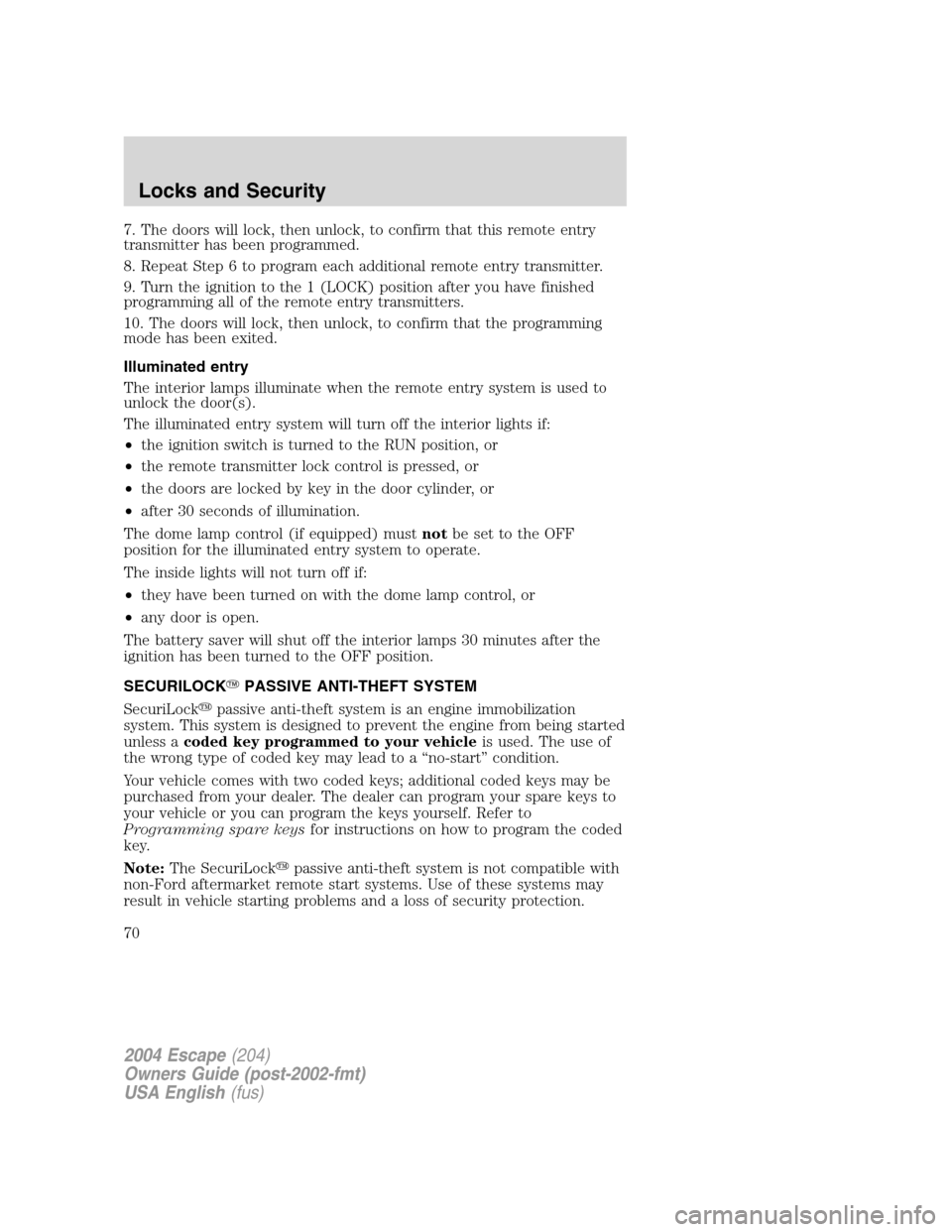

7. The doors will lock, then unlock, to confirm that this remote entry
transmitter has been programmed.
8. Repeat Step 6 to program each additional remote entry transmitter.
9. Turn the ignition to the 1 (LOCK) position after you have finished
programming all of the remote entry transmitters.
10. The doors will lock, then unlock, to confirm that the programming
mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the RUN position, or
•the remote transmitter lock control is pressed, or
•the doors are locked by key in the door cylinder, or
•after 30 seconds of illumination.
The dome lamp control (if equipped) mustnotbe set to the OFF
position for the illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dome lamp control, or
•any door is open.
The battery saver will shut off the interior lamps 30 minutes after the
ignition has been turned to the OFF position.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to prevent the engine from being started
unless acoded key programmed to your vehicleis used. The use of
the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how to program the coded
key.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
70

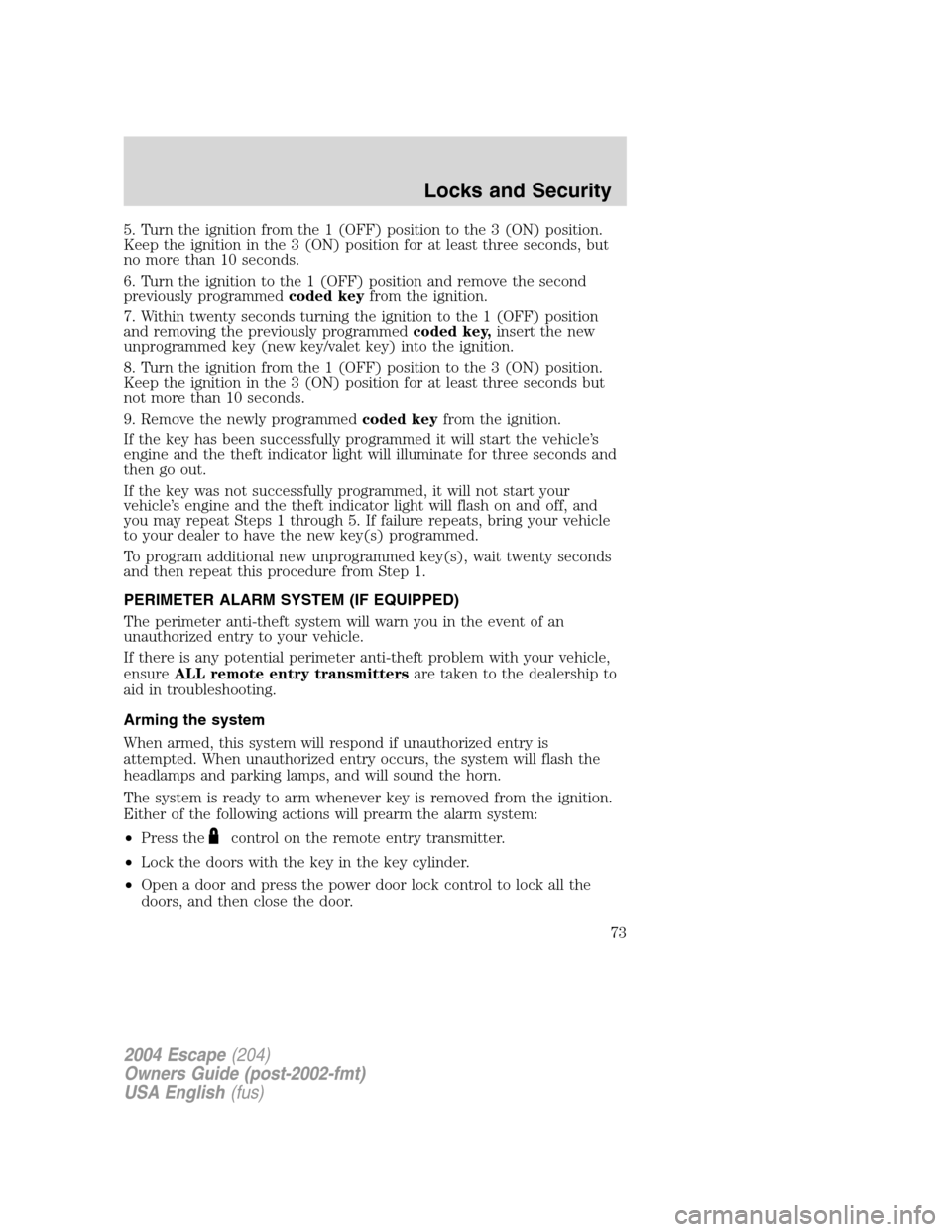

5. Turn the ignition from the 1 (OFF) position to the 3 (ON) position.
Keep the ignition in the 3 (ON) position for at least three seconds, but
no more than 10 seconds.
6. Turn the ignition to the 1 (OFF) position and remove the second
previously programmedcoded keyfrom the ignition.
7. Within twenty seconds turning the ignition to the 1 (OFF) position
and removing the previously programmedcoded key,insert the new
unprogrammed key (new key/valet key) into the ignition.
8. Turn the ignition from the 1 (OFF) position to the 3 (ON) position.
Keep the ignition in the 3 (ON) position for at least three seconds but
not more than 10 seconds.
9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out.
If the key was not successfully programmed, it will not start your
vehicle’s engine and the theft indicator light will flash on and off, and
you may repeat Steps 1 through 5. If failure repeats, bring your vehicle
to your dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait twenty seconds
and then repeat this procedure from Step 1.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
headlamps and parking lamps, and will sound the horn.
The system is ready to arm whenever key is removed from the ignition.
Either of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Lock the doors with the key in the key cylinder.
•Open a door and press the power door lock control to lock all the
doors, and then close the door.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
73

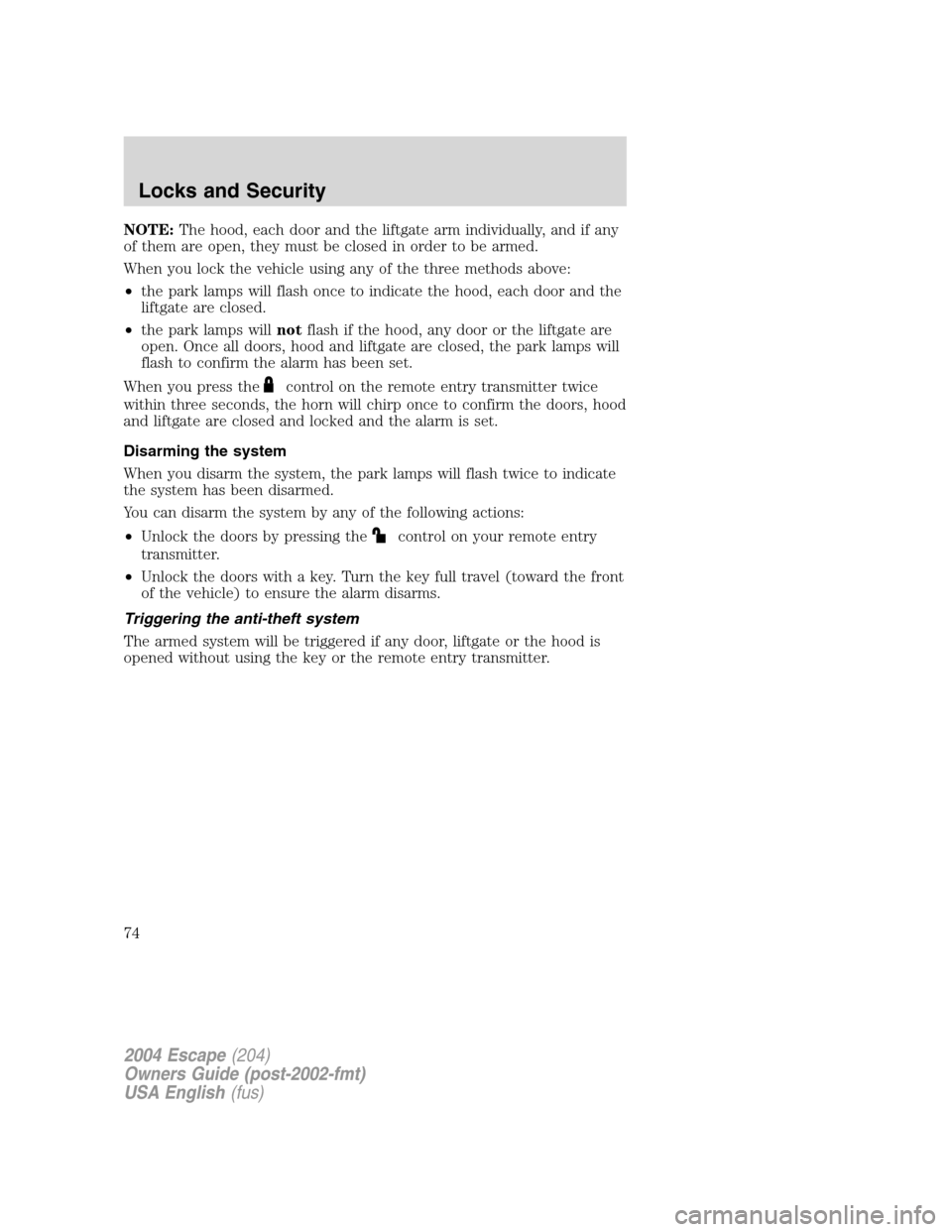

NOTE:The hood, each door and the liftgate arm individually, and if any
of them are open, they must be closed in order to be armed.
When you lock the vehicle using any of the three methods above:
•the park lamps will flash once to indicate the hood, each door and the
liftgate are closed.
•the park lamps willnotflash if the hood, any door or the liftgate are
open. Once all doors, hood and liftgate are closed, the park lamps will
flash to confirm the alarm has been set.
When you press the
control on the remote entry transmitter twice
within three seconds, the horn will chirp once to confirm the doors, hood
and liftgate are closed and locked and the alarm is set.
Disarming the system
When you disarm the system, the park lamps will flash twice to indicate
the system has been disarmed.
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
Triggering the anti-theft system
The armed system will be triggered if any door, liftgate or the hood is
opened without using the key or the remote entry transmitter.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
74

P
Parking .......................................129
Parking brake ............................120
Parts (see Motorcraft parts) ....220
Power distribution box
(see Fuses) ...............................155
Power point .................................49
Power steering ..........................120
fluid, checking and adding ....210
fluid, refill capacity ................220
fluid, specifications .........223, 225
Power Windows ...........................49
Preparing to drive your
vehicle ........................................121
R
Radio ..........................15, 18, 22, 26
Single CD ..................................15
Rear window defroster ...............33
Relays ........................................151
Remote entry system
illuminated entry ......................70
locking/unlocking doors ...........65
Reverse sensing system ...........139
Roadside assistance ..................149
Roof rack .....................................56
S
Safety Belt Maintenance ............96
Safety belts
(see Safety restraints) .........85–89Safety defects, reporting ..........179
Safety restraints ....................85–90
belt minder ...............................92
extension assembly ..................91
for adults .............................86–89
for children .....................103–104
lap belt ......................................90
safety belt maintenance ...........96
warning light and chime ....91–92
Safety seats for children ..106–107
Seat belts
(see Safety restraints) ...............85
Seats ............................................75
child safety seats ............106–107
heated ........................................77
Servicing your vehicle ..............186
Snowplowing .................................7
Spare tire
(see Changing the Tire) ...........158
Spark plugs,
specifications .....................220, 225
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................223, 225
Speed control ..............................51
Starting your vehicle .......115–116,
118
jump starting ..........................164
Steering wheel
tilting .........................................46
Stereo
Single CD ..................................15
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
235
