set clock FORD ESCAPE 2004 1.G Owners Manual

not be inserted into the CD player. The label may peel and cause
the CD to become jammed. It is recommended that homemade
CDs be identified with permanent felt tip marker rather than
adhesive labels. Ballpoint pens may damage CDs. Please contact
your dealer for further information.
4.Cassette door:Insert the
cassette with the opening to the
right.
5.Eject:Press to eject the
cassette/CD. The radio will resume
playing.
6.Tape:Press to start tape play.
Press to stop tape during
rewind/fast forward.
CD:Press to start CD play. With the
dual media audio, press CD to
toggle between single CD and CD
changer play (if equipped).
7.Mute:Press to MUTE playing
media; press again return to playing
media.
8.Auto:Press to set first six
strongest stations (if available) into
AM, FM1 or FM2 memory buttons;
press again to return to normal
stations.
9.Clock:Press and hold to set the
clock. Press the
SEEK to
decrease hours or SEEK
to
increase hours. Press the
TUNE
to decrease minutes or TUNE
to
increase minutes. If your vehicle has a stand alone clock this control will
not function.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
19

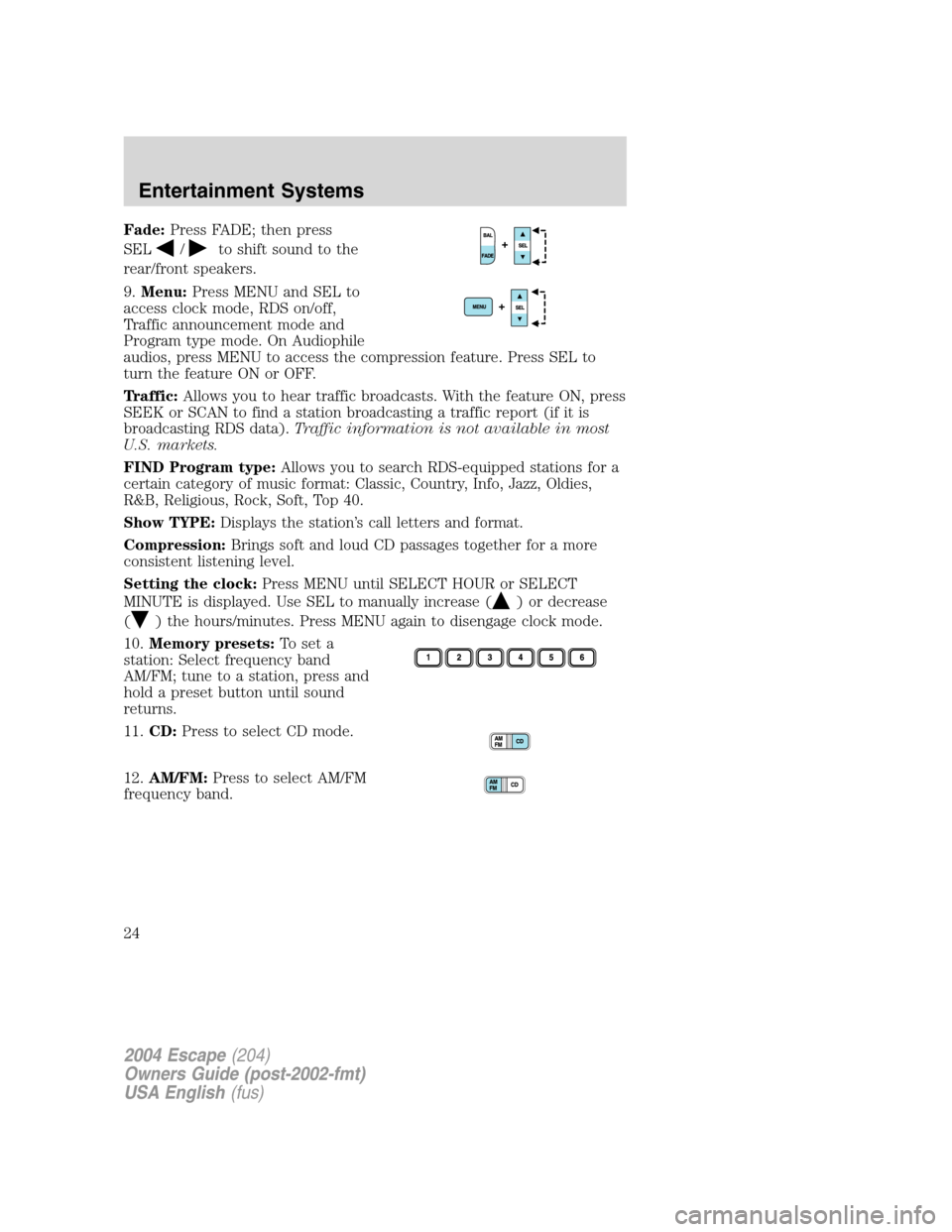

Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
9.Menu:Press MENU and SEL to
access clock mode, RDS on/off,
Traffic announcement mode and
Program type mode. On Audiophile
audios, press MENU to access the compression feature. Press SEL to
turn the feature ON or OFF.
Traffic:Allows you to hear traffic broadcasts. With the feature ON, press
SEEK or SCAN to find a station broadcasting a traffic report (if it is
broadcasting RDS data).Traffic information is not available in most
U.S. markets.
FIND Program type:Allows you to search RDS-equipped stations for a
certain category of music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE:Displays the station’s call letters and format.
Compression:Brings soft and loud CD passages together for a more
consistent listening level.
Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use SEL to manually increase (
) or decrease
(
) the hours/minutes. Press MENU again to disengage clock mode.
10.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound
returns.
11.CD:Press to select CD mode.
12.AM/FM:Press to select AM/FM
frequency band.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
24

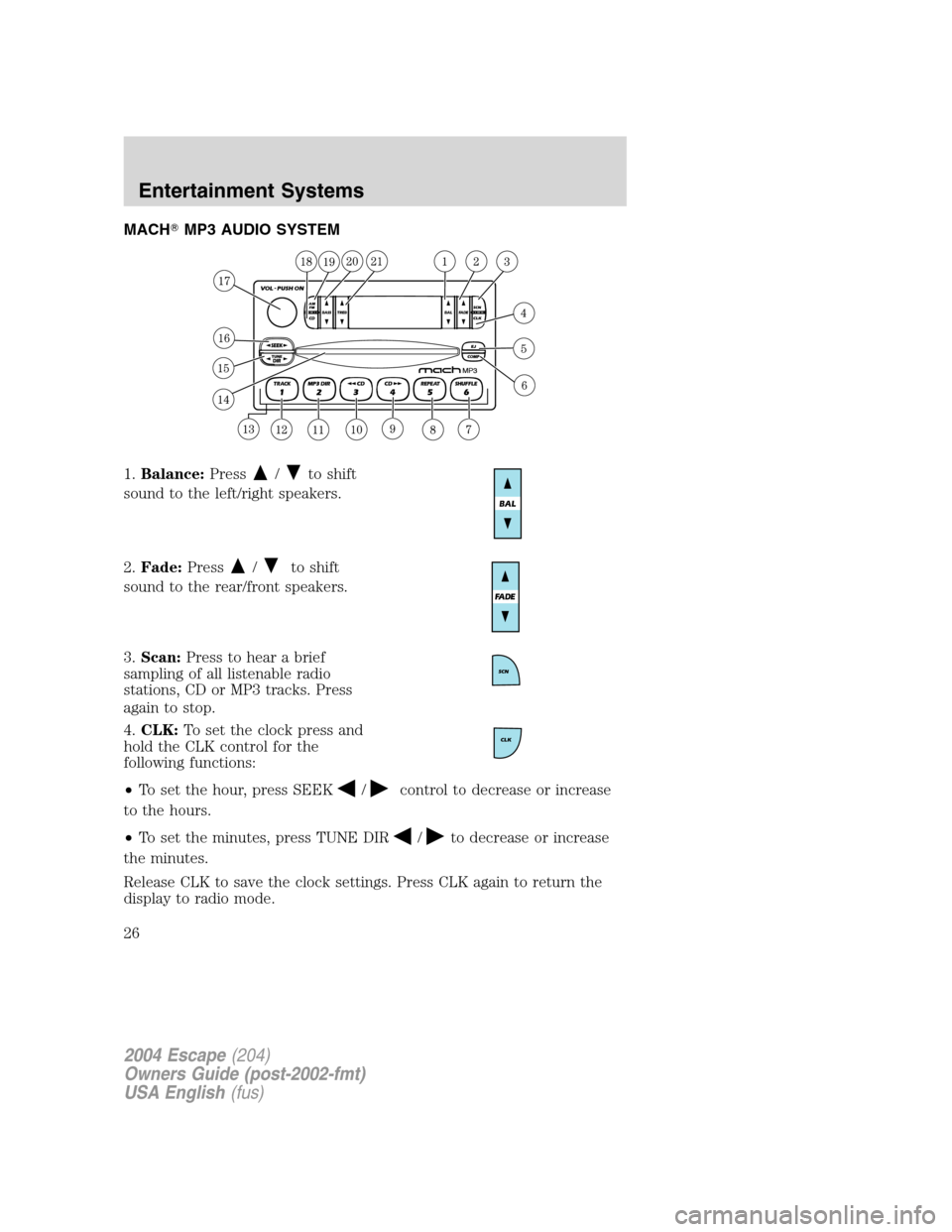

MACHMP3 AUDIO SYSTEM
1.Balance:Press
/to shift
sound to the left/right speakers.
2.Fade:Press
/to shift
sound to the rear/front speakers.
3.Scan:Press to hear a brief
sampling of all listenable radio
stations, CD or MP3 tracks. Press
again to stop.
4.CLK:To set the clock press and
hold the CLK control for the
following functions:
•To set the hour, press SEEK
/control to decrease or increase
to the hours.
•To set the minutes, press TUNE DIR
/to decrease or increase
the minutes.
Release CLK to save the clock settings. Press CLK again to return the
display to radio mode.
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
26

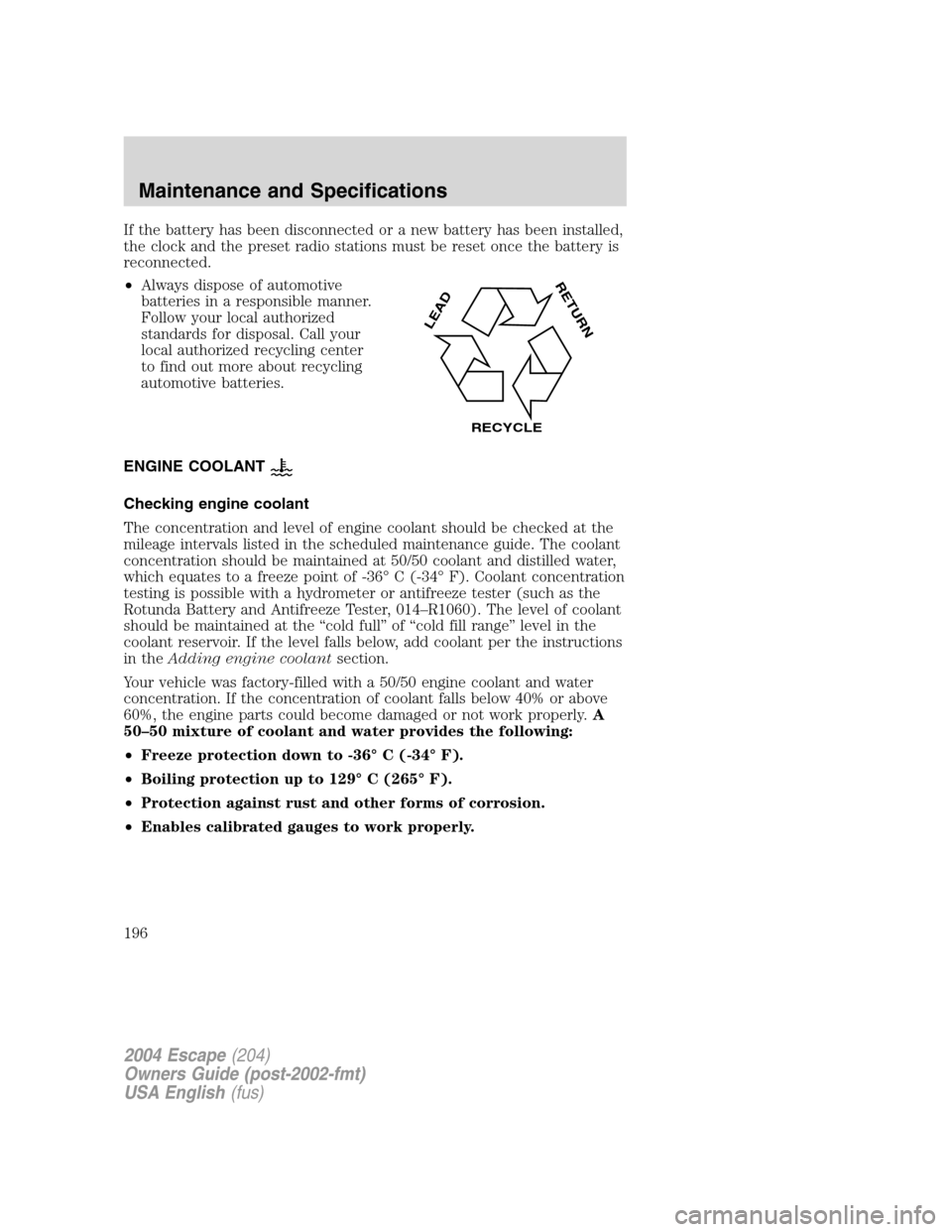

If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed in the scheduled maintenance guide. The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -36° C (-34° F). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the “cold full” of “cold fill range” level in the
coolant reservoir. If the level falls below, add coolant per the instructions
in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -36° C (-34° F).
•Boiling protection up to 129° C (265° F).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
LEAD
RETURN
RECYCLE
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
196

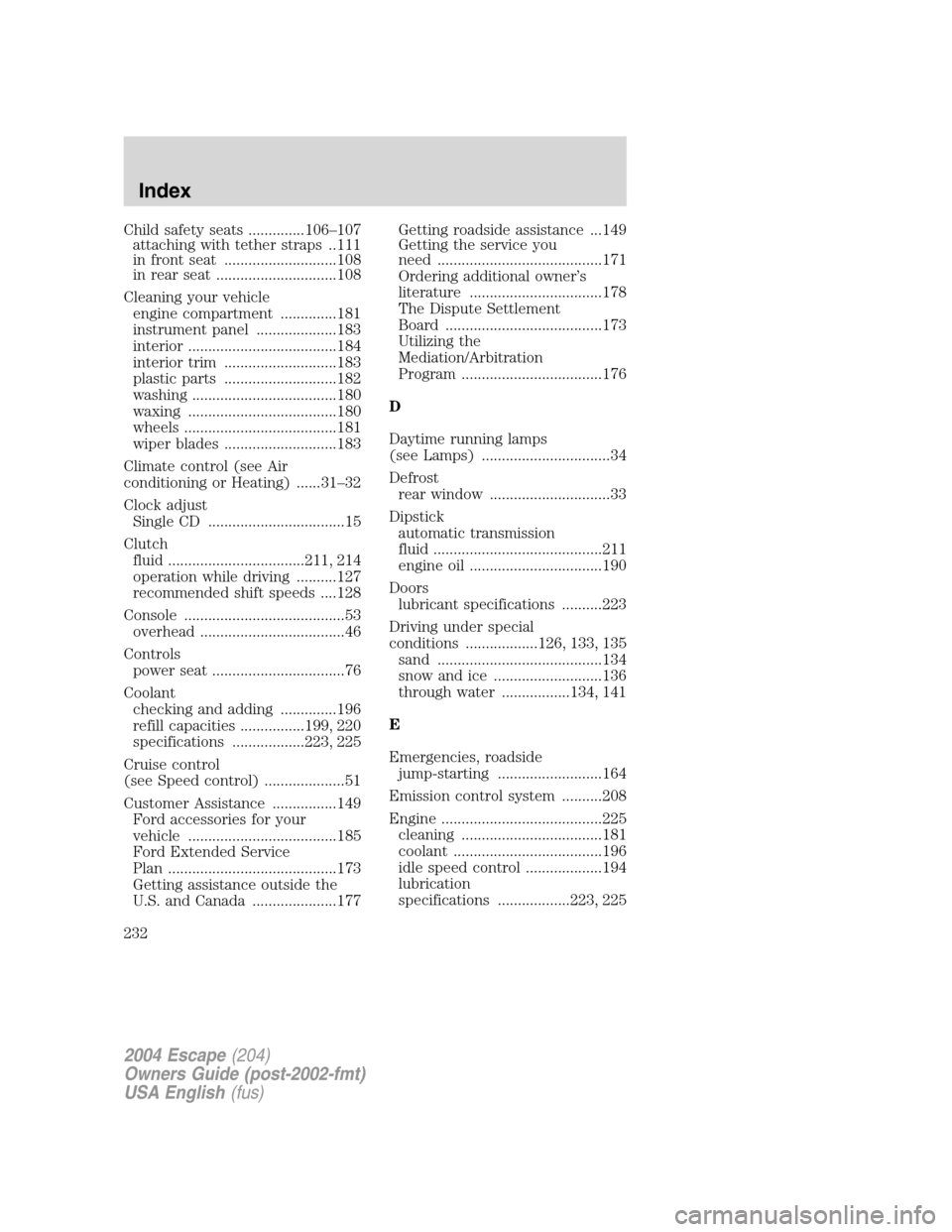

Child safety seats ..............106–107
attaching with tether straps ..111
in front seat ............................108
in rear seat ..............................108
Cleaning your vehicle
engine compartment ..............181
instrument panel ....................183
interior .....................................184
interior trim ............................183
plastic parts ............................182
washing ....................................180
waxing .....................................180
wheels ......................................181
wiper blades ............................183
Climate control (see Air
conditioning or Heating) ......31–32
Clock adjust
Single CD ..................................15
Clutch
fluid ..................................211, 214
operation while driving ..........127
recommended shift speeds ....128
Console ........................................53
overhead ....................................46
Controls
power seat .................................76
Coolant
checking and adding ..............196
refill capacities ................199, 220
specifications ..................223, 225
Cruise control
(see Speed control) ....................51
Customer Assistance ................149
Ford accessories for your
vehicle .....................................185
Ford Extended Service
Plan ..........................................173
Getting assistance outside the
U.S. and Canada .....................177Getting roadside assistance ...149
Getting the service you
need .........................................171
Ordering additional owner’s
literature .................................178
The Dispute Settlement
Board .......................................173
Utilizing the
Mediation/Arbitration
Program ...................................176
D
Daytime running lamps
(see Lamps) ................................34
Defrost
rear window ..............................33
Dipstick
automatic transmission
fluid ..........................................211
engine oil .................................190
Doors
lubricant specifications ..........223
Driving under special
conditions ..................126, 133, 135
sand .........................................134
snow and ice ...........................136
through water .................134, 141
E
Emergencies, roadside
jump-starting ..........................164
Emission control system ..........208
Engine ........................................225
cleaning ...................................181
coolant .....................................196
idle speed control ...................194
lubrication
specifications ..................223, 225
2004 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
232
