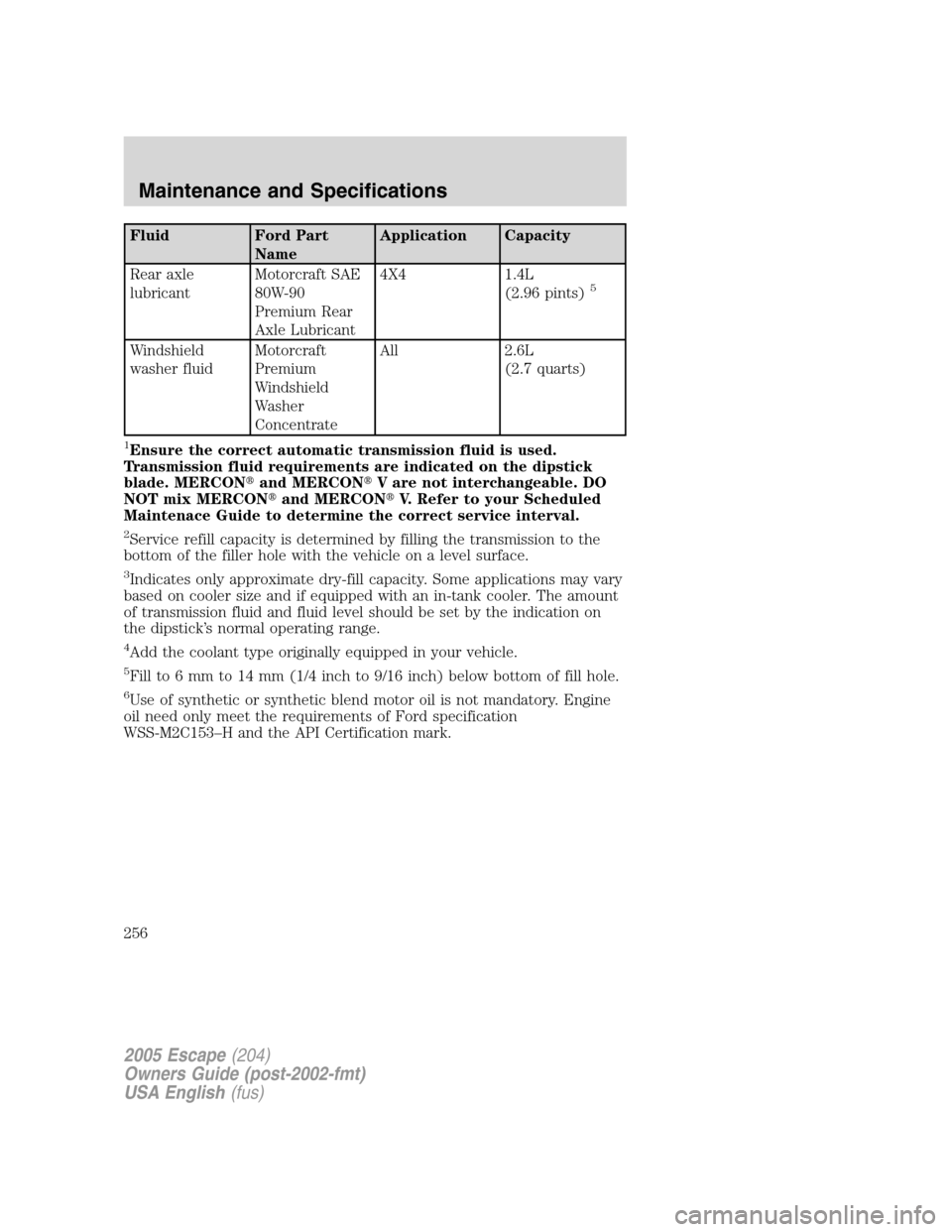

Fluid Ford Part
NameApplication Capacity
Rear axle
lubricantMotorcraft SAE
80W-90
Premium Rear
Axle Lubricant4X4 1.4L
(2.96 pints)
5
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 2.6L
(2.7 quarts)
1Ensure the correct automatic transmission fluid is used.
Transmission fluid requirements are indicated on the dipstick
blade. MERCONand MERCONV are not interchangeable. DO
NOT mix MERCONand MERCONV. Refer to your Scheduled
Maintenace Guide to determine the correct service interval.
2Service refill capacity is determined by filling the transmission to the
bottom of the filler hole with the vehicle on a level surface.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
4Add the coolant type originally equipped in your vehicle.
5Fill to 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
256

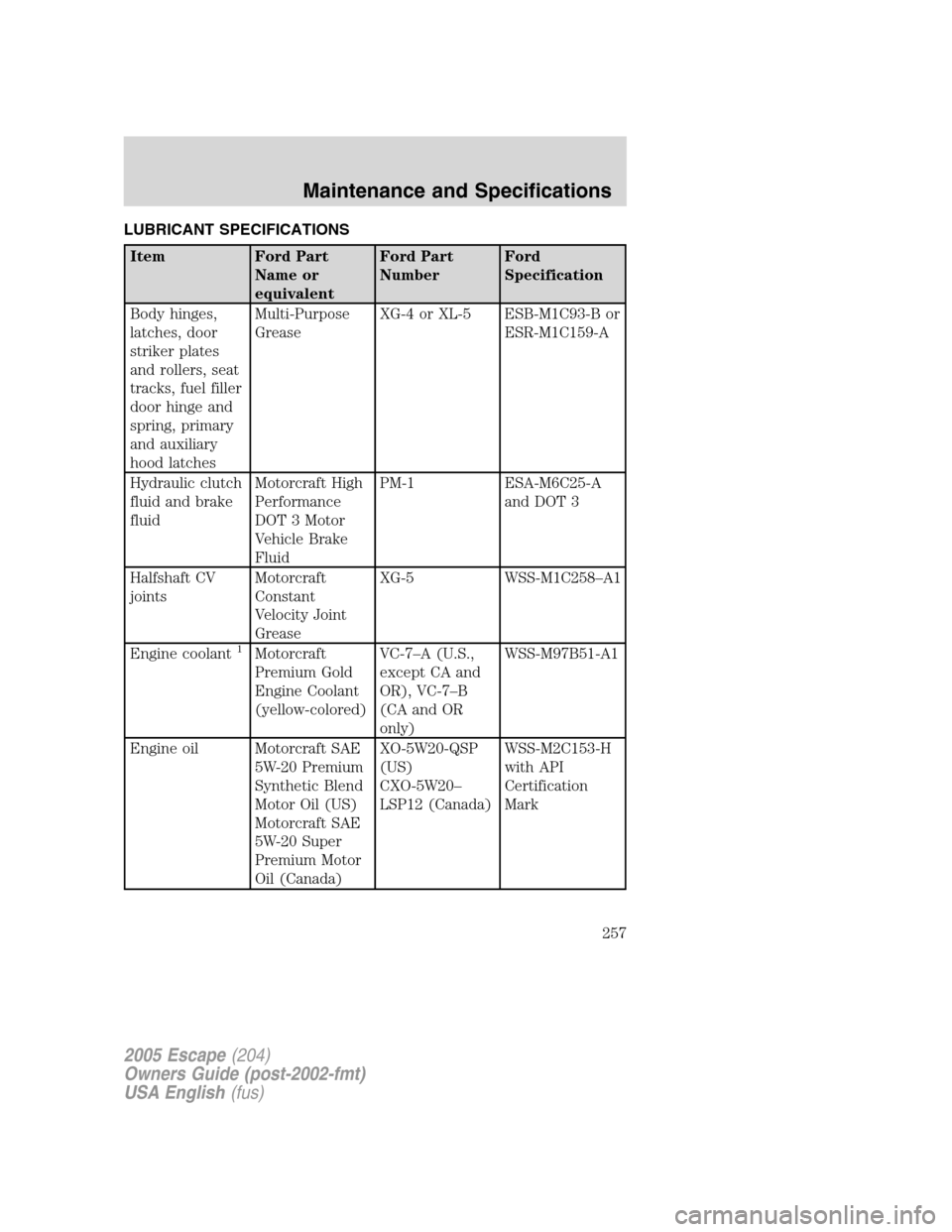

LUBRICANT SPECIFICATIONS
Item Ford Part
Name or
equivalentFord Part
NumberFord
Specification
Body hinges,
latches, door
striker plates
and rollers, seat
tracks, fuel filler
door hinge and
spring, primary
and auxiliary
hood latchesMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B or
ESR-M1C159-A
Hydraulic clutch
fluid and brake
fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Halfshaft CV
jointsMotorcraft
Constant
Velocity Joint
GreaseXG-5 WSS-M1C258–A1
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A (U.S.,
except CA and
OR), VC-7–B
(CA and OR
only)WSS-M97B51-A1
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–
LSP12 (Canada)WSS-M2C153-H
with API
Certification
Mark
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
257

Item Ford Part
Name or
equivalentFord Part
NumberFord
Specification
Manual transaxle
2Motorcraft SAE
75W-90 Gear OilF32Z-19C547–MAWSS-M2C203-A1
Automatic
transaxle
2Motorcraft
MERCONAT FXT-2-QDX MERCON
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Rear axle (4X4)
4Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Power
Take-off(PTO)
(4X4-Manual
Transaxle)Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Power
Take-off(PTO)
3
(4X4-Automatic
Transaxle)Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1DO NOT USE Motorcraft Specialty Orange Engine Coolant VC-2. Refer
toAdding engine coolant,in thethischapter.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to yourScheduled Maintenance
Guideto determine the correct service interval.
3The Power Take-off (PTO) is lubricated for life with synthetic lube.
Lubricant levels are not to be checked or changed unless a leak is
suspected or repair required. Replace Power Take-off (PTO) lubricant
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
258

with specified synthetic lubricant anytime the unit is submerged in
water. Never engage the 4X4 feature while on dry pavement.
44X4 vehicles exposed for prolonged periods to temperatures less than
–40°C (-40°F) should change out the rear axle fluid to Motorcraft SAE
75W-140 Synthetic Rear Axle Lubricant, Ford part number
XY-75W140–QL meeting Ford specification WSL-M2C192–A.
ENGINE DATA
Engine 2.3L I4 engine 3.0L DOHC V6
Duratec engine
Cubic inches 140 183
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Compression ratio 9.7:1 10.0:1
VEHICLE DIMENSIONS
Dimensions 4 Door mm (in.)
(1) Vehicle height/ Maximum
height*1770 (69.7)/1778 (70.0)*
(2) Front track / rear 1557 (61.3)/1548 (60.9)
(3) Overall width (body) 1780 (70.1)
(4) Wheelbase 2620 (103.1)
(5) Overall length 4442 (174.9)
* Denotes a 4x4 vehicle with optional 16”tires
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
259

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission and frame.
XXXXXXXXXXXXXXXXX
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
262

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000 miles)
(whichever occurs first). Contact your dealer for details and a copy of
the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Fender flares
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Splash guards
Step Bars
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
265

Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Rear seat entertainment systems
Towing mirrors
Trailer hitches, wiring harnesses and accessories
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
266

A
Accessory delay ..........................53
Air bag supplemental
restraint system ........109–110, 116
and child safety seats ............111
description ......................110, 116
disposal ....................................119
driver air bag ..................112, 117
indicator light .................115, 118
operation .........................112, 117
passenger air bag ...........112, 117
Air cleaner filter ...............238, 253
All Wheel Drive (AWD),
driving off road .........................145
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................219
Anti-lock brake system
(see Brakes) ......................134–135
Anti-theft system ........................87
arming the system ....................87
disarming a triggered
system .......................................88
Audio system
(see Radio) ......................16, 19, 23
Automatic transaxle
fluid, adding ............................235
fluid, checking ........................235
Automatic transmission ............137
driving an automatic
overdrive .................................139
fluid, refill capacities ..............254
fluid, specification ..................259
Auxiliary power point .................52
Axle
lubricant specifications ..257, 259
refill capacities ........................254B
Battery .......................................217
acid, treating emergencies .....217
jumping a disabled battery ....186
maintenance-free ....................217
replacement, specifications ...253
servicing ..................................217
BeltMinder .................................105
Brakes ........................................134
anti-lock ...........................134–135
anti-lock brake system
(ABS) warning light ...............135
fluid, checking and adding ....235
fluid, refill capacities ..............254
fluid, specifications .........257, 259
lubricant specifications ..257, 259
parking ....................................135
shift interlock ..........................137
Bulbs ............................................43
C
Calculating load ........................161
Capacities for refilling fluids ....254
Cargo area shade ........................67
Cassette tape player ...................23
Cell phone use ............................58
Certification Label ....................261
Changing a tire .........................177
Child safety restraints ..............119
child safety belts ....................119
Child safety seats ......................122
attaching with tether straps ..126
in front seat ............................123
in rear seat ..............................123
Cigar lighter
Power Point ..............................52
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
267

Cleaning your vehicle
engine compartment ..............204
instrument panel ....................206
interior .....................................207
interior trim ............................206
plastic parts ............................205
safety belts ..............................207
washing ....................................203
waxing .....................................203
wheels ......................................204
wiper blades ............................206
Climate control (see Air
conditioning or Heating) ......33–34
Clock adjust
6-CD in dash .......................25, 29
AM/FM/CD .................................16
AM/FM/Tape/CD .......................21
Clutch
fluid ..................................235, 238
operation while driving ..........142
recommended shift speeds ....143
Console ........................................57
overhead ....................................50
Controls
power seat .................................90
Coolant
checking and adding ..............219
refill capacities ................222, 254
specifications ..................257, 259
Cruise control
(see Speed control) ....................55
Customer Assistance ................168
Ford accessories for your
vehicle .....................................208
Ford Extended Service Plan .196
Getting assistance outside
the U.S. and Canada ..............200
Getting roadside assistance ...168
Getting the service
you need .................................194Ordering additional
owner’s literature ...................201
The Dispute Settlement
Board .......................................196
Utilizing the Mediation/
Arbitration Program ...............199
D
Daytime running lamps
(see Lamps) ................................37
Defrost
rear window ..............................35
Dipstick
automatic transmission
fluid ..........................................235
engine oil .................................213
Doors
lubricant specifications ..........257
Driving under special
conditions ..................141, 148, 150
sand .........................................149
snow and ice ...........................151
through water .................149, 156
E
Electronic message center .........59
Emergencies, roadside
jump-starting ..........................186
Emission control system ..........232
Engine ........................................259
cleaning ...................................204
coolant .....................................219
fail-safe coolant ......................223
idle speed control ...................217
lubrication
specifications ..................257, 259
refill capacities ........................254
service points ..................211–212
starting after a collision .........170
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
268

Engine block heater .................133
Engine oil ..................................213
checking and adding ..............213
dipstick ....................................213
filter, specifications ........216, 253
recommendations ...................216
refill capacities ........................254
specifications ..................257, 259
Exhaust fumes ..........................133
F
Fail safe cooling ........................223
Fluid capacities .........................254
Foglamps .....................................37
Four-Wheel Drive vehicles
driving off road .......................146
indicator light .........................146
preparing to drive your
vehicle .....................................137
Fuel ............................................225
calculating fuel
economy ............................60, 229
cap ...........................................226
capacity ...................................254
choosing the right fuel ...........227
comparisons with EPA fuel
economy estimates .................232
detergent in fuel .....................228
filling your vehicle
with fuel ..................225–226, 229
filter, specifications ........229, 253
fuel pump shut-off switch .....170
improving fuel economy ........229
octane rating ...................228, 259
quality ......................................228
running out of fuel .................228
safety information relating
to automotive fuels ................225
Fuses ..................................170, 172G
Garage door opener ....................51
Gas cap (see Fuel cap) ............226
Gas mileage
(see Fuel economy) .................229
Gauges .........................................14
GAWR (Gross Axle
Weight Rating)
calculating ...............................161
GVWR (Gross Vehicle
Weight Rating)
calculating ...............................161
H
Hazard flashers .........................169
Head restraints .....................89, 91
Headlamps ...................................36
aiming ........................................39
autolamp system .......................36
bulb specifications ....................43
daytime running lights .............37
flash to pass ..............................38
high beam .................................38
replacing bulbs .........................44
turning on and off ....................36
Heating
heater only system ...................33
Hood ..........................................210
I
Ignition ...............................130, 259
Infant seats
(see Safety seats) .....................122
Inspection/maintenance
(I/M) testing ..............................234
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
269
