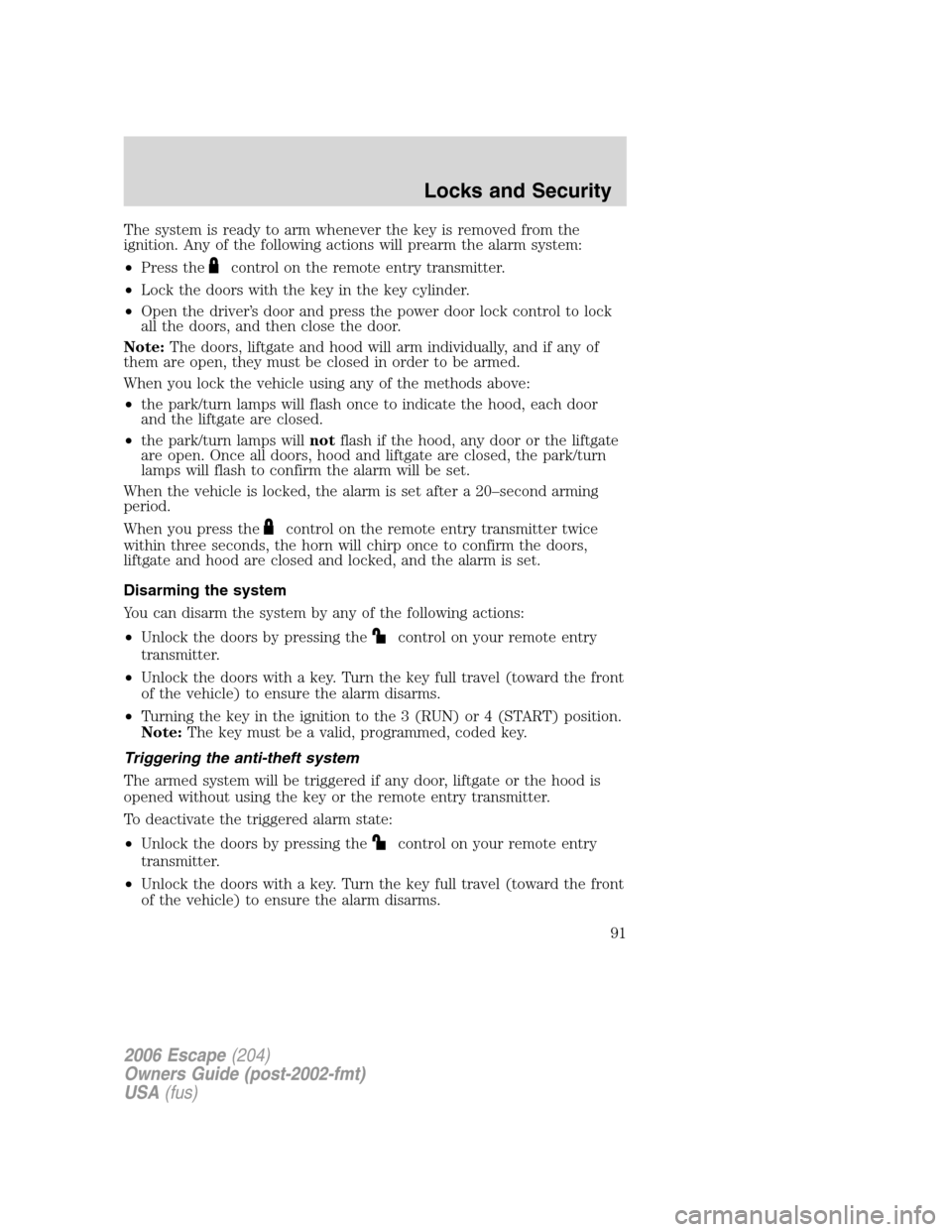

The system is ready to arm whenever the key is removed from the
ignition. Any of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Lock the doors with the key in the key cylinder.
•Open the driver’s door and press the power door lock control to lock
all the doors, and then close the door.
Note:The doors, liftgate and hood will arm individually, and if any of
them are open, they must be closed in order to be armed.
When you lock the vehicle using any of the methods above:
•the park/turn lamps will flash once to indicate the hood, each door
and the liftgate are closed.
•the park/turn lamps willnotflash if the hood, any door or the liftgate
are open. Once all doors, hood and liftgate are closed, the park/turn
lamps will flash to confirm the alarm will be set.
When the vehicle is locked, the alarm is set after a 20–second arming
period.
When you press the
control on the remote entry transmitter twice
within three seconds, the horn will chirp once to confirm the doors,
liftgate and hood are closed and locked, and the alarm is set.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Note:The key must be a valid, programmed, coded key.
Triggering the anti-theft system
The armed system will be triggered if any door, liftgate or the hood is
opened without using the key or the remote entry transmitter.
To deactivate the triggered alarm state:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
91

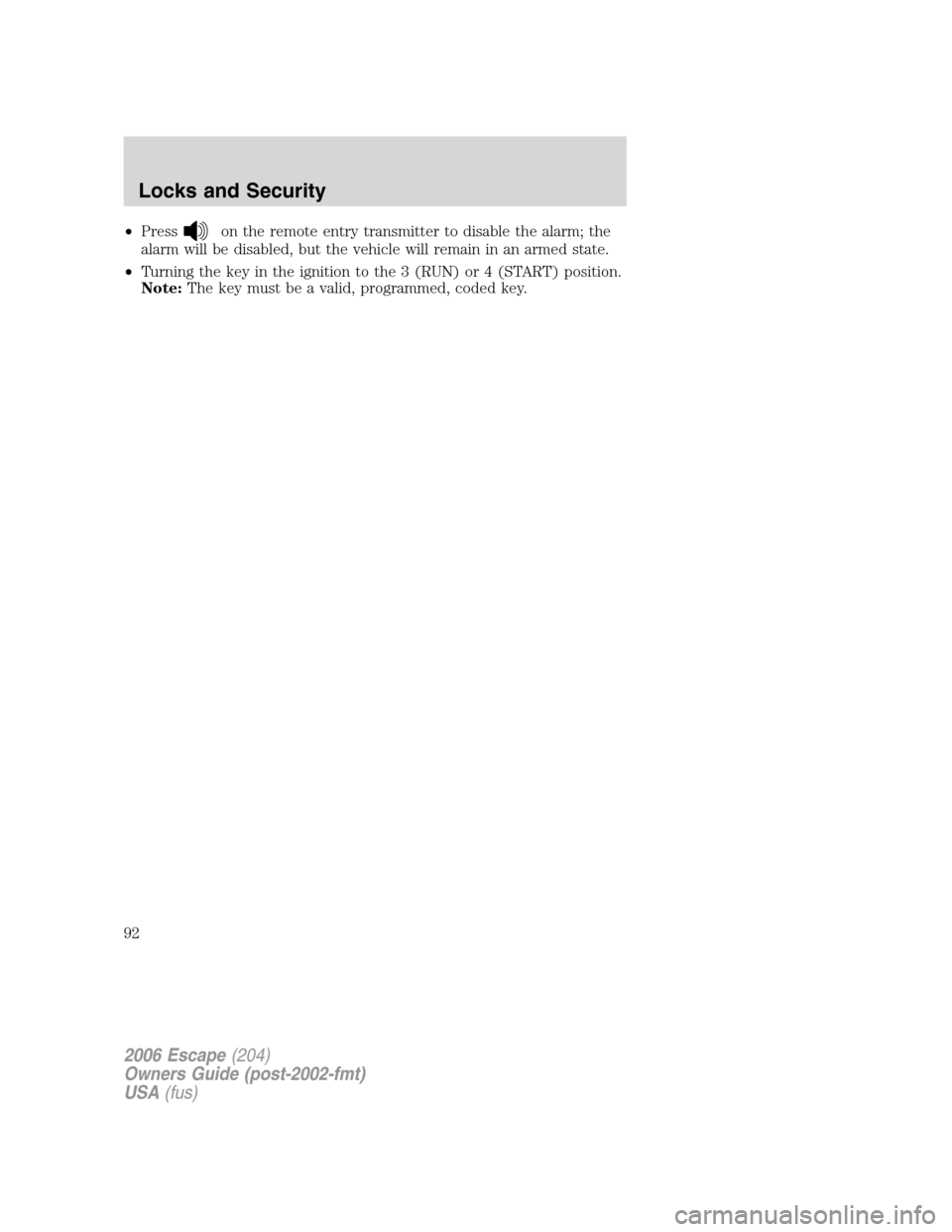

•Presson the remote entry transmitter to disable the alarm; the
alarm will be disabled, but the vehicle will remain in an armed state.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Note:The key must be a valid, programmed, coded key.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
92

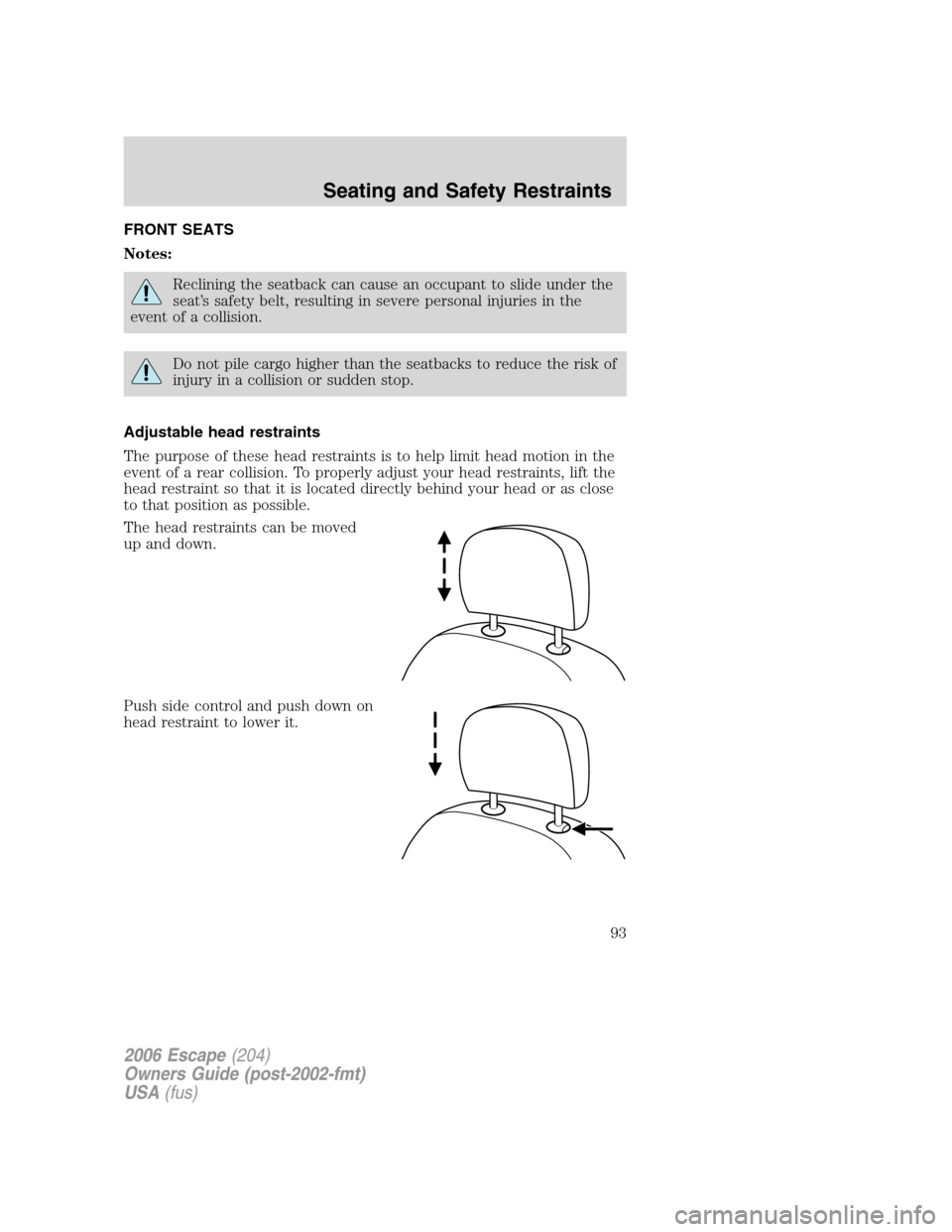

FRONT SEATS
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
Adjustable head restraints
The purpose of these head restraints is to help limit head motion in the
event of a rear collision. To properly adjust your head restraints, lift the
head restraint so that it is located directly behind your head or as close
to that position as possible.
The head restraints can be moved
up and down.
Push side control and push down on
head restraint to lower it.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
93

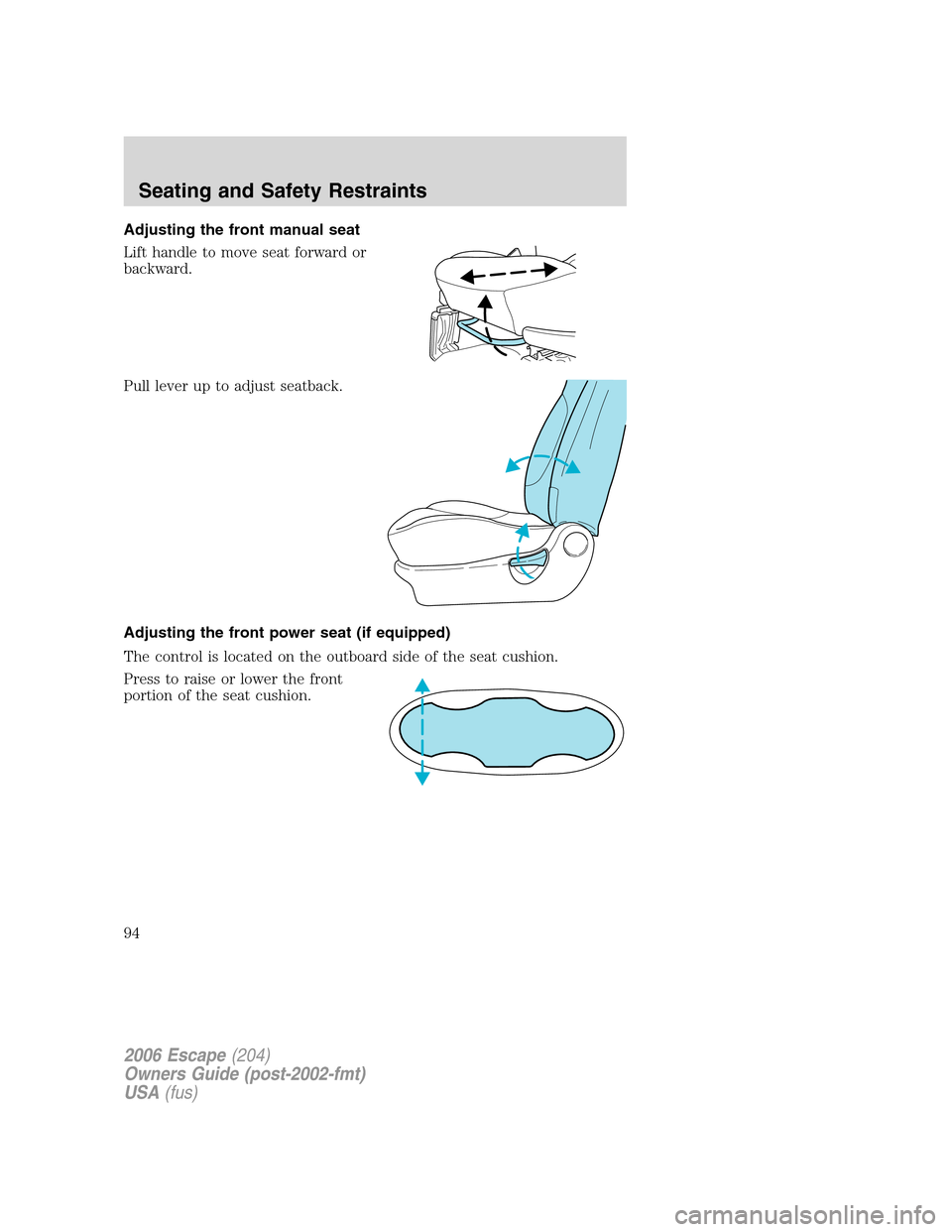

Adjusting the front manual seat
Lift handle to move seat forward or
backward.
Pull lever up to adjust seatback.
Adjusting the front power seat (if equipped)
The control is located on the outboard side of the seat cushion.
Press to raise or lower the front
portion of the seat cushion.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
94

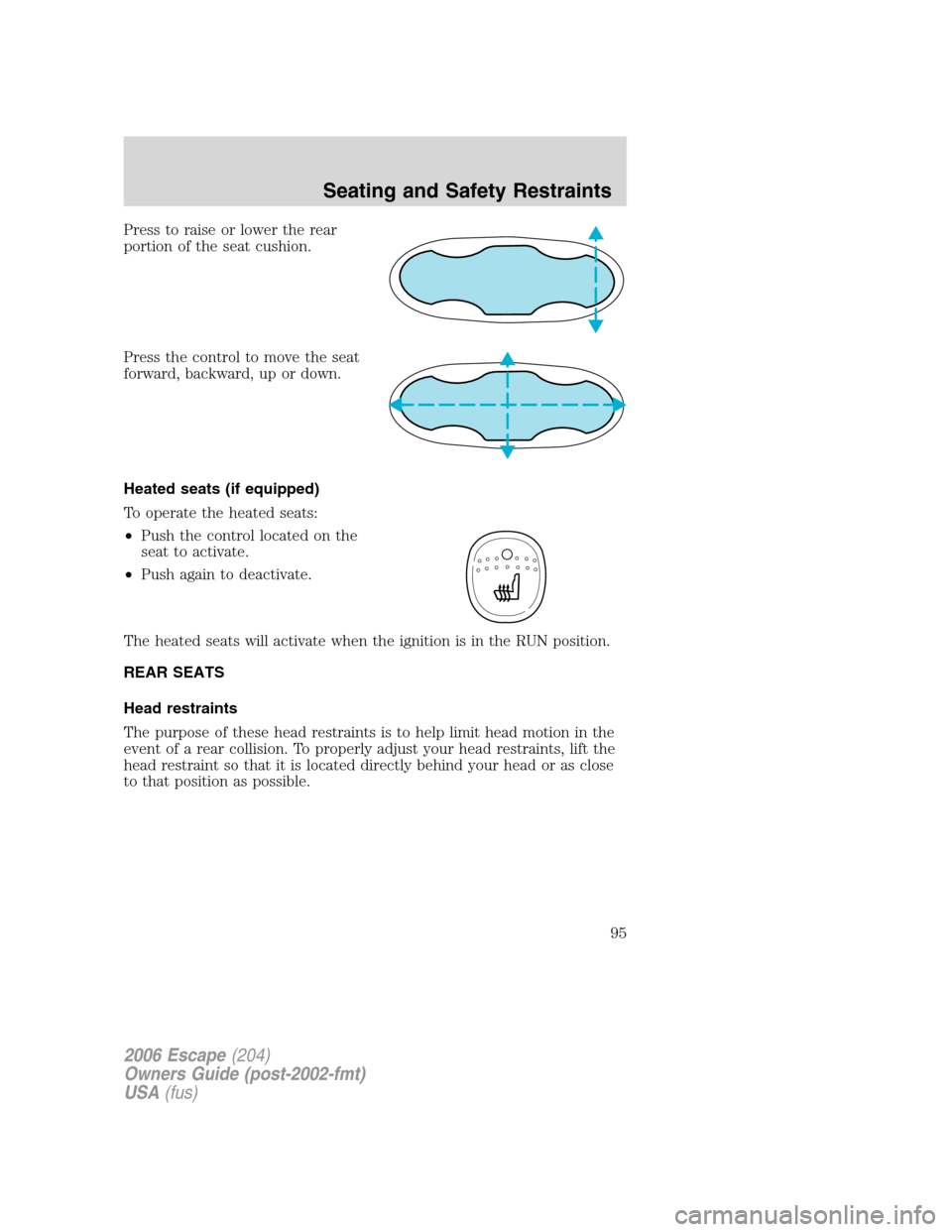

Press to raise or lower the rear
portion of the seat cushion.
Press the control to move the seat
forward, backward, up or down.
Heated seats (if equipped)
To operate the heated seats:
•Push the control located on the
seat to activate.
•Push again to deactivate.
The heated seats will activate when the ignition is in the RUN position.
REAR SEATS
Head restraints
The purpose of these head restraints is to help limit head motion in the
event of a rear collision. To properly adjust your head restraints, lift the
head restraint so that it is located directly behind your head or as close
to that position as possible.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
95

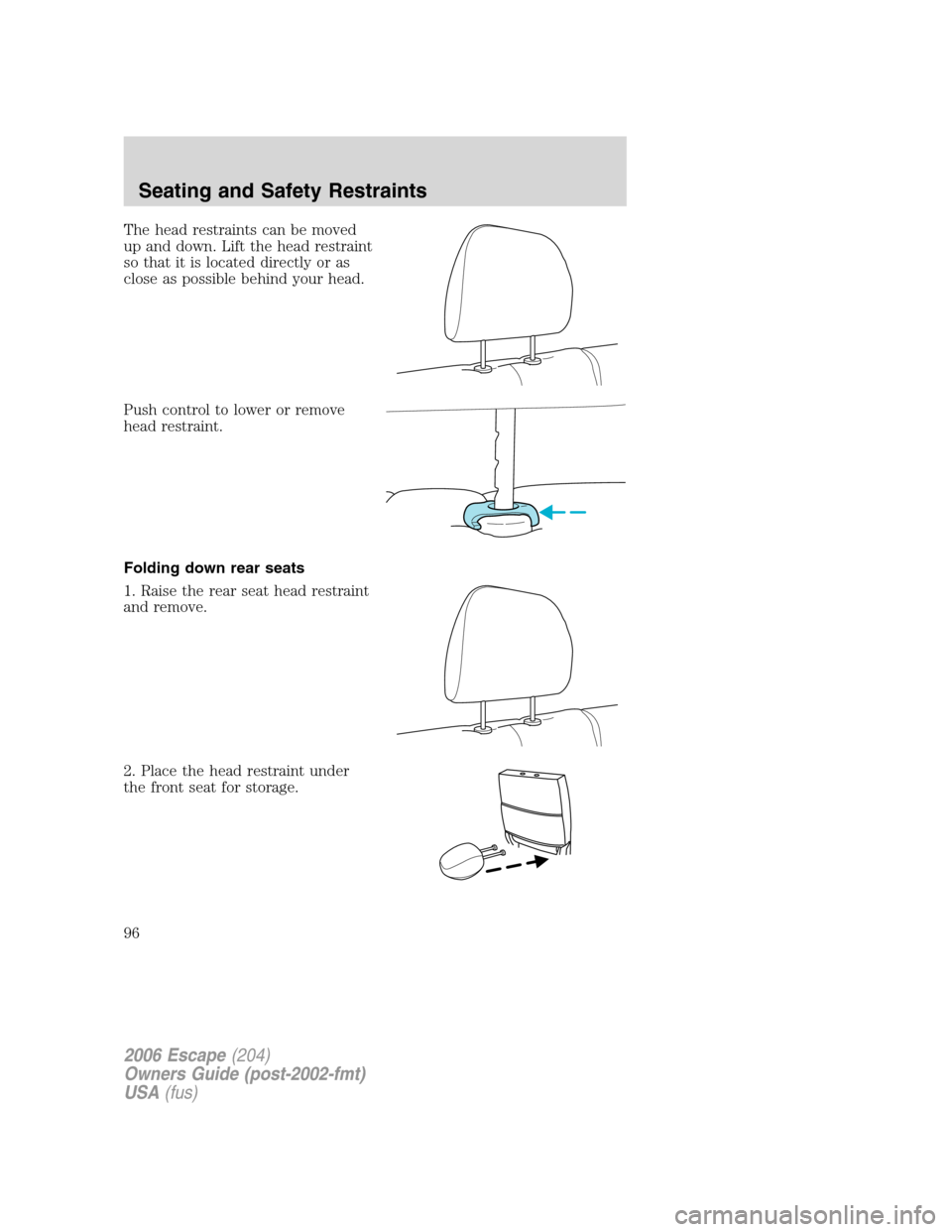

The head restraints can be moved
up and down. Lift the head restraint
so that it is located directly or as
close as possible behind your head.
Push control to lower or remove
head restraint.
Folding down rear seats
1. Raise the rear seat head restraint
and remove.
2. Place the head restraint under
the front seat for storage.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
96

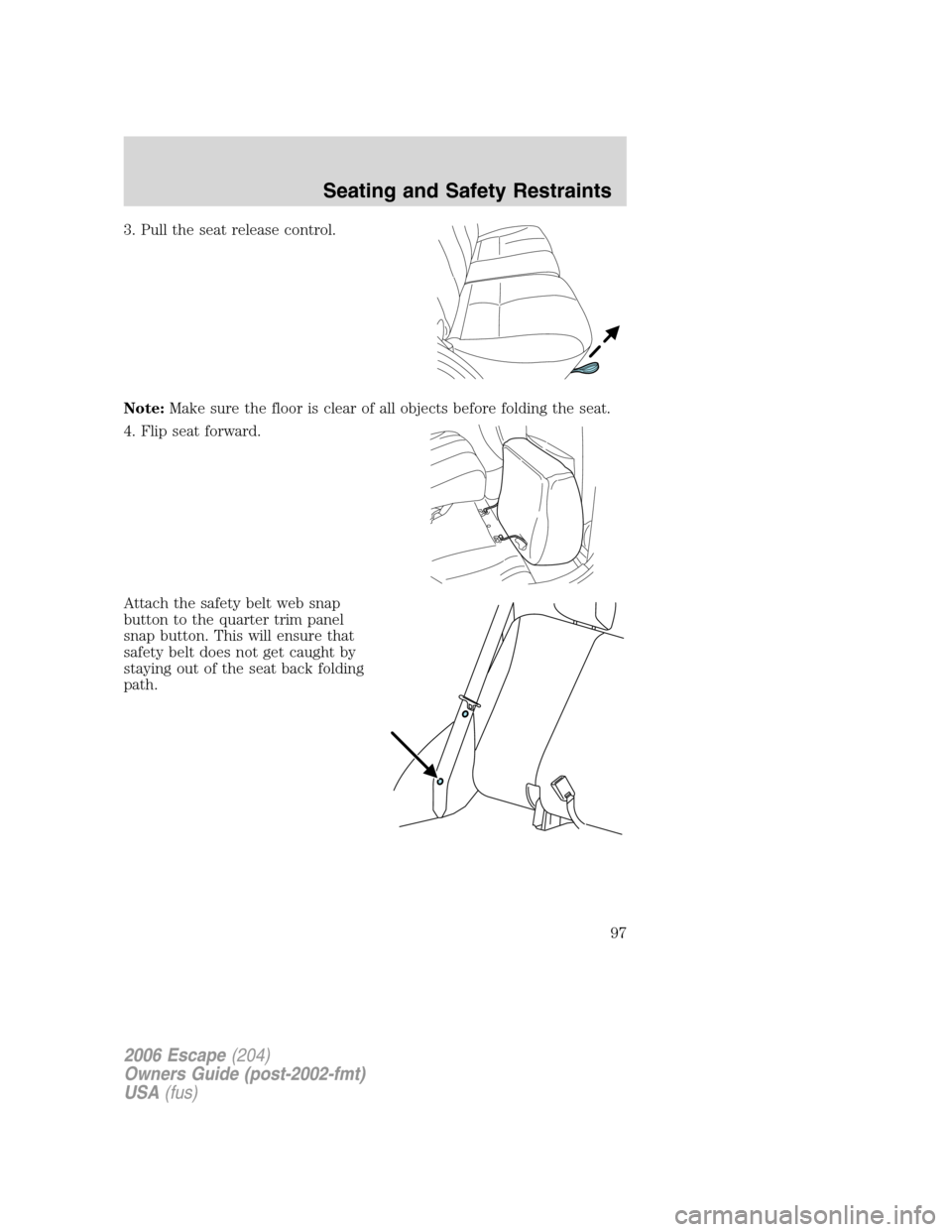

3. Pull the seat release control.
Note:Make sure the floor is clear of all objects before folding the seat.
4. Flip seat forward.
Attach the safety belt web snap
button to the quarter trim panel
snap button. This will ensure that
safety belt does not get caught by
staying out of the seat back folding
path.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
97

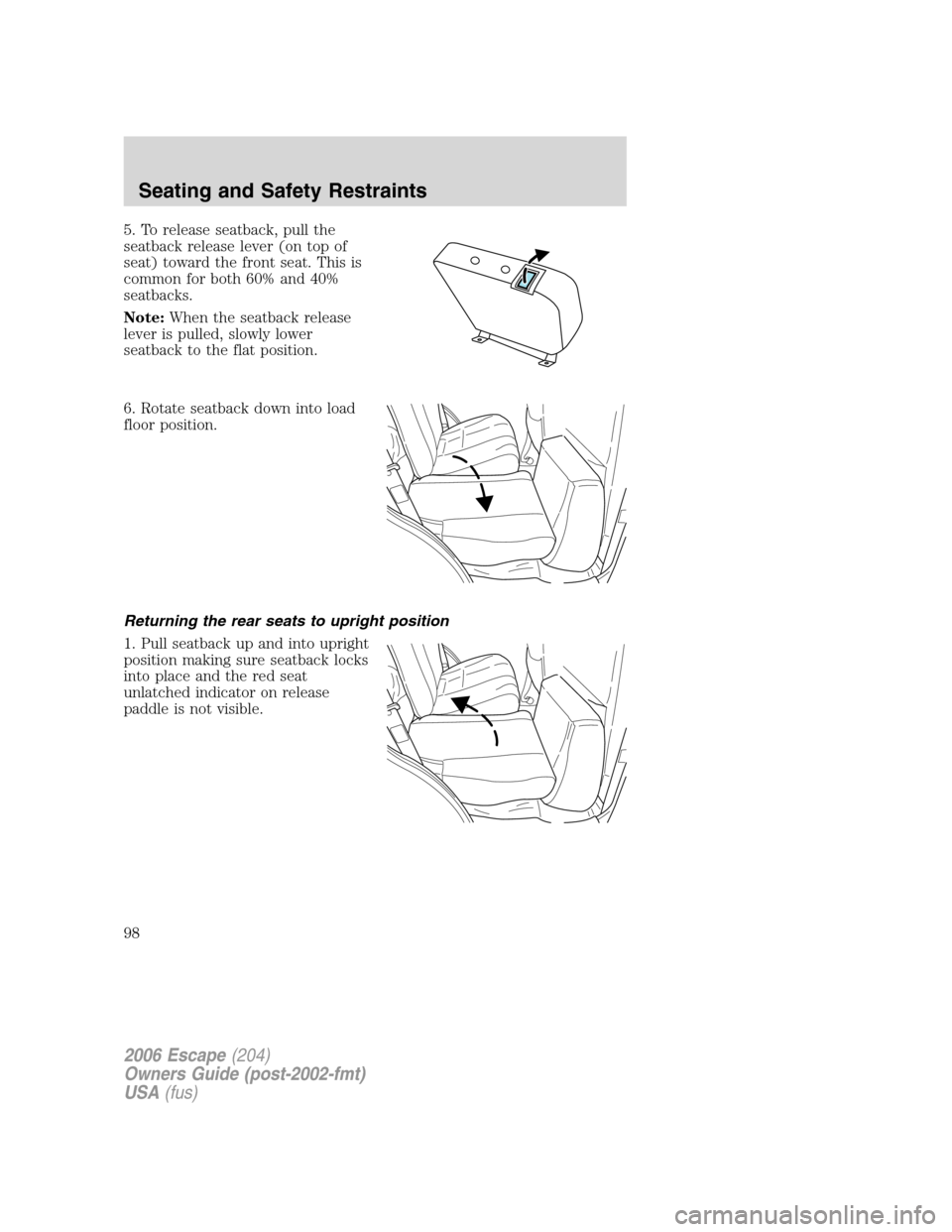

5. To release seatback, pull the
seatback release lever (on top of
seat) toward the front seat. This is
common for both 60% and 40%
seatbacks.
Note:When the seatback release
lever is pulled, slowly lower
seatback to the flat position.
6. Rotate seatback down into load
floor position.
Returning the rear seats to upright position
1. Pull seatback up and into upright
position making sure seatback locks
into place and the red seat
unlatched indicator on release
paddle is not visible.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
98

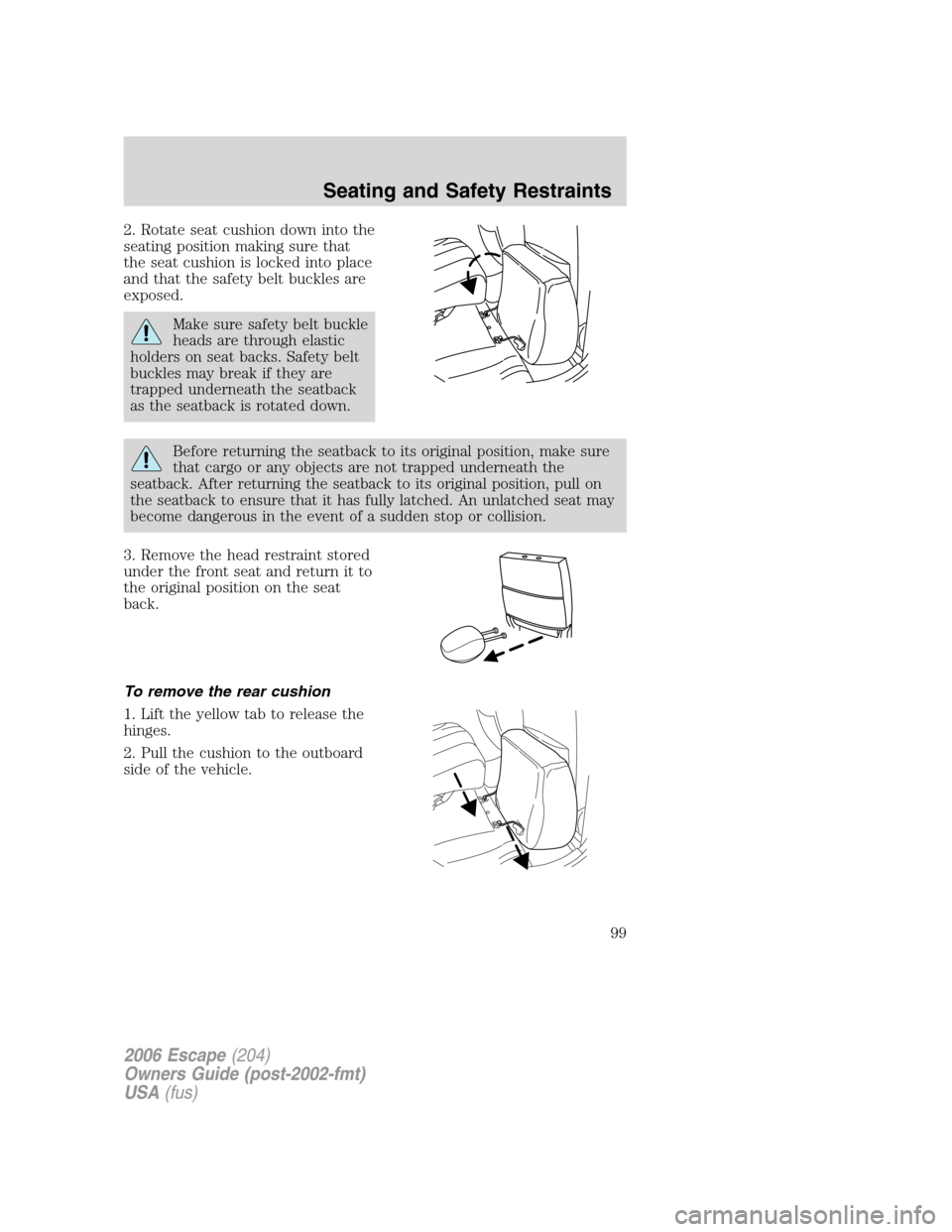

2. Rotate seat cushion down into the
seating position making sure that
the seat cushion is locked into place
and that the safety belt buckles are
exposed.
Make sure safety belt buckle
heads are through elastic
holders on seat backs. Safety belt
buckles may break if they are
trapped underneath the seatback
as the seatback is rotated down.
Before returning the seatback to its original position, make sure
that cargo or any objects are not trapped underneath the
seatback. After returning the seatback to its original position, pull on
the seatback to ensure that it has fully latched. An unlatched seat may
become dangerous in the event of a sudden stop or collision.
3. Remove the head restraint stored
under the front seat and return it to
the original position on the seat
back.
To remove the rear cushion
1. Lift the yellow tab to release the
hinges.
2. Pull the cushion to the outboard
side of the vehicle.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
99

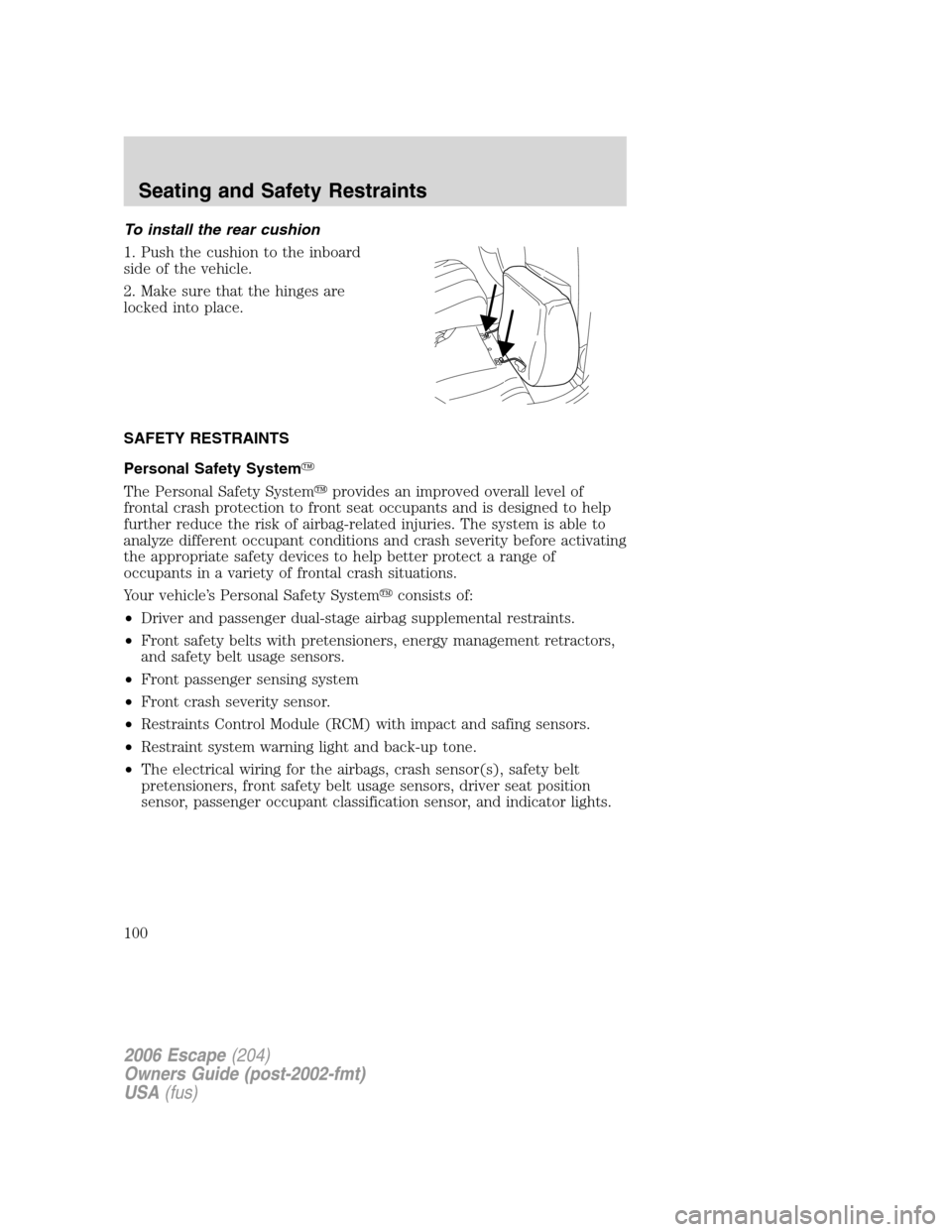

To install the rear cushion
1. Push the cushion to the inboard
side of the vehicle.
2. Make sure that the hinges are
locked into place.
SAFETY RESTRAINTS
Personal Safety System
The Personal Safety System
provides an improved overall level of
frontal crash protection to front seat occupants and is designed to help
further reduce the risk of airbag-related injuries. The system is able to
analyze different occupant conditions and crash severity before activating
the appropriate safety devices to help better protect a range of
occupants in a variety of frontal crash situations.
Your vehicle’s Personal Safety System
consists of:
•Driver and passenger dual-stage airbag supplemental restraints.
•Front safety belts with pretensioners, energy management retractors,
and safety belt usage sensors.
•Front passenger sensing system
•Front crash severity sensor.
•Restraints Control Module (RCM) with impact and safing sensors.
•Restraint system warning light and back-up tone.
•The electrical wiring for the airbags, crash sensor(s), safety belt
pretensioners, front safety belt usage sensors, driver seat position
sensor, passenger occupant classification sensor, and indicator lights.
