Replacing brake/tail/turn/backup lamp bulbs
The brake/tail/turn/backup lamp bulbs are located in the tail lamp
assembly, one just below the other. Follow the same steps to replace
either bulb:
1. Make sure the headlamp switch is
in the OFF position and then open
the liftgate to expose the lamp
assemblies.
2. Remove the two screws from the
lamp assembly.
3. Carefully remove the lamp
assembly by pulling it rearward to
disengage snap features on the
outward side of the lamp.
4. Twist the bulb socket
counterclockwise and remove from
lamp assembly.
5. Pull the bulb straight out of the
socket and push in the new bulb.
6. To complete installation, follow
the removal procedure in reverse
order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position and then pry
the license plate lamp assembly
(located above the license plate)
from the liftgate.
2. Remove bulb socket from lamp
assembly by turning
counterclockwise.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
50

Liftgate ajar Warning returns after the
ignition key is turned from
OFF to ON. Service emission sys
Check fuel cap
Low brake fluid
Service brake system
Check left headlamp
Check right headlamp
Check left high beam
Check right high beam
Check left turn lamps
Check right turn lamps
Engine change oil soon
Engine oil change now
Low fuel
Service 4WD
Turn signal on
4WD locked temporarily (if equipped) Temporary alert
4WD disabled temporarily (if equipped)
4WD auto restored (if equipped)
HIGH ENGINE TEMPERATURE.Displayed when the engine is
overheating. Stop the vehicle as soon as safely possible, turn off the
engine and let it cool. Check the coolant and coolant level. Refer to
Engine coolantin theMaintenance and Specificationschapter. If the
warning stays on or continues to come on, contact your dealer as soon as
possible.
Never remove the coolant reservoir cap while the engine is
running or hot.
DRIVER DOOR AJAR.Displayed when the driver door is not
completely closed.
PASSENGER DOOR AJAR.Displayed when the passenger door is not
completely closed.
REAR LEFT DOOR AJAR.Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR.Displayed when the rear right door is not
completely closed.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
67

LIFTGATE AJAR.Displayed when the liftgate or liftgate glass is not
completely closed. Press SET to reset display.
PARK BRAKE ON.Displayed when the park brake is on. If the warning
stays on after the park brake is off, contact your dealer as soon as
possible.
SERVICE EMISSION SYS.Displayed when the engine has defaulted to
a ’limp-home’ operation. If the warning stays on or continues to come on,
contact your dealer as soon as possible.
SERVICE BRAKE SYSTEM.Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your dealer as soon as possible.
CHECK LEFT OR RIGHT HEADLAMPS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT HIGH BEAMS.Displayed when the
headlamps are activated and at least one is burned out. Check the lamps
as soon as possible and have the burned out lamp replaced. Refer to
Replacing headlamp bulbsin theLightschapter.
CHECK LEFT OR RIGHT TURN LAMPS.Displayed when the turn
signals are activated and at least one is burned out. Check the lamps as
soon as safely possible and have the burned out lamp replaced.
LOW FUEL.Displayed as an early reminder of a low fuel condition.
SERVICE 4WD.Displayed when the 4X4 is not operating properly. If
the warning stays on or continues to come on, contact your dealer as
soon as possible.
TURN SIGNAL ON.Displayed when the turn signal is activated and the
vehicle is driven more that 0.8 km (1/2 mile).
4WD LOCKED TEMPORARILY (if equipped).Displayed when the
4X4 is temporarily locked. If the warning stays on or continues to come
on, contact your dealer as soon as possible.
4WD DISABLED TEMPORARILY (if equipped).Displayed when the
4X4 is temporarily disabled. If the warning stays on or continues to come
on, contact your dealer as soon as possible.
4WD AUTO RESTORED (if equipped).Displayed when the 4X4 is
restored to normal operations.
ENGINE OIL CHANGE SOON/ENGINE OIL CHANGE NOW.
Displayed when the engine oil life remaining is 5% or less. When oil life
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
68

If you smell exhaust fumes inside your vehicle, have your dealer
inspect your vehicle immediately. Do not drive if you smell
exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all vehicle occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
If starting a vehicle with an
automatic transmission:
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
P
R
N
D
2
1
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
170

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay -
Electrochromatic mirror, Cigar
lighter, Front and rear wipers
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
11 10A* PCM
12 20A* Power point
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
1530A* Anti-lock Brake System (ABS)
solenoid
16 25A* I/P fuse panel (RUN/START)
17 50A** Ignition (main)
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
202

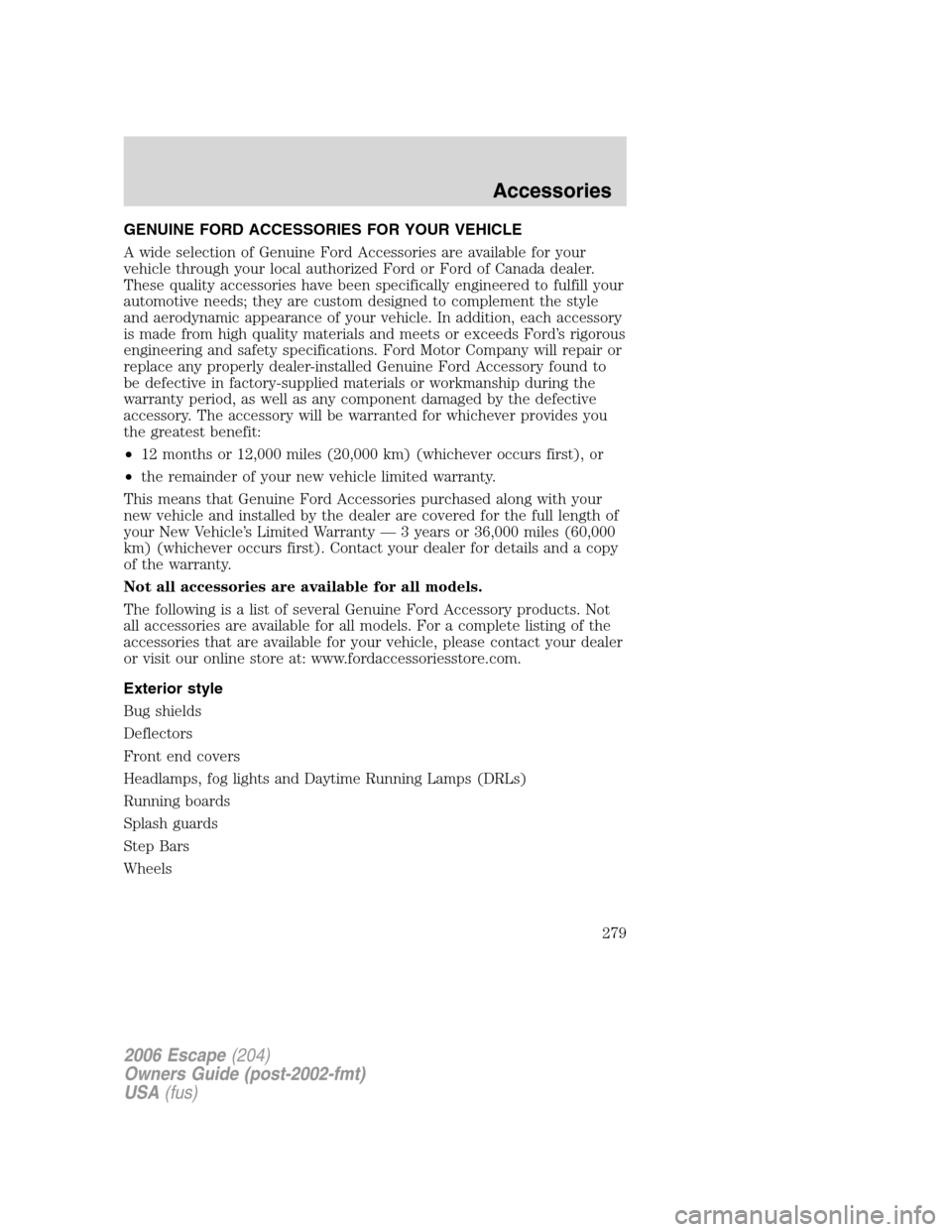

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products. Not
all accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Splash guards
Step Bars
Wheels
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
279

Engine block heater .................172
Engine oil ..................................242
checking and adding ..............242
dipstick ....................................242
filter, specifications ........245, 269
recommendations ...................245
refill capacities ........................270
specifications ..................272, 274
Exhaust fumes ..........................172
F
Fail safe cooling ........................252
Fluid capacities .........................270
Foglamps .....................................44
Four-Wheel Drive vehicles
driving off road .......................187
indicator light .........................186
preparing to drive your
vehicle .....................................175
Fuel ............................................254
calculating fuel
economy ............................63, 258
cap ...........................................256
capacity ...................................270
choosing the right fuel ...........257
comparisons with EPA fuel
economy estimates .................261
detergent in fuel .....................258
filling your vehicle with
fuel ...........................254, 256, 259
filter, specifications ........254, 269
fuel pump shut-off switch .....196
improving fuel economy ........258
octane rating ...................257, 274
quality ......................................258
running out of fuel .................258
safety information relating to
automotive fuels .....................254
Fuses ..................................196, 198G
Garage door opener ....................54
Gas cap (see Fuel cap) ............256
Gas mileage
(see Fuel economy) .................258
Gauges .........................................16
GAWR (Gross Axle Weight
Rating)
calculating ...............................163
GVWR (Gross Vehicle Weight
Rating)
calculating ...............................163
H
Hazard flashers .........................195
Head restraints .....................93, 95
Headlamps ...................................41
aiming ........................................44
autolamp system .......................41
bulb specifications ....................48
daytime running lights .............43
flash to pass ..............................43
high beam .................................42
replacing bulbs .........................48
turning on and off ....................41
Heating
heater only system ...................38
Hood ..........................................238
I
Ignition ...............................169, 274
Infant seats
(see Safety seats) .....................130
Inspection/maintenance (I/M)
testing ........................................263
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
284

Instrument panel
cleaning ...................................234
cluster ........................................12
lighting up panel and
interior .......................................44
J
Jump-starting your vehicle ......214
K
Keyless entry system
autolock .....................................81
Keys
positions of the ignition .........169
L
Lamps
autolamp system .......................41
bulb replacement
specifications chart ..................48
daytime running light ...............43
fog lamps ...................................44
headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ....... 47–48, 50–51
Lane change indicator
(see Turn signal) ........................46
Liftgate ........................................70
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........173
Load limits .................................156
Loading instructions .................163
Locks
autolock .....................................81
childproof ..................................83Lubricant specifications ...272, 274
Lug nuts ....................................214
Luggage rack ...............................71
M
Manual transaxle .......................181
fluid, checking and adding ....267
reverse .....................................182
Manual transmission
fluid capacities ........................270
lubricant specifications ..........274
Message center .....................62–63
english/metric button ...............64
system check button ................65
warning messages .....................66
Mirrors .........................................55
automatic dimming rearview
mirror ........................................58
fold away ...................................59
heated ........................................59
side view mirrors (power) .......58
Moon roof ....................................62
Motorcraft parts ........236, 254, 269
O
Octane rating ............................257
Oil (see Engine oil) ..................242
Overdrive ...................................177
P
Parking .......................................183
Parking brake ............................174
Parts (see Motorcraft parts) ....269
Passenger Occupant
Classification Sensor .................101
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
285
